The system’s inventory parameters (such as Serial Number, Part Number, GUID and MAC address) can be extracted from the inventory pull-out tab on the lower right side of the front panel.

In some systems, there is no pull-out tab, and the information is provided on labels in several locations.

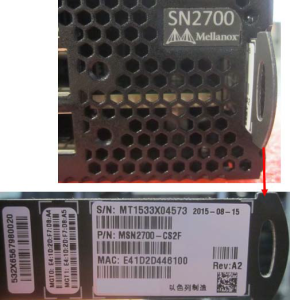

SN2700 Pull-out Tab

SN2740 Inventory Information Illustration

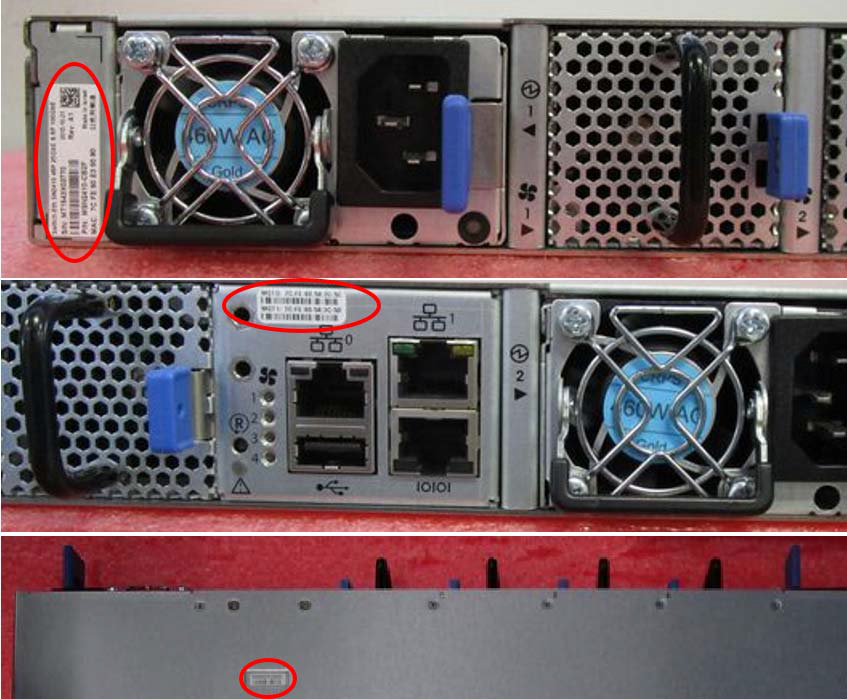

SN2410 Inventory Information Illustration

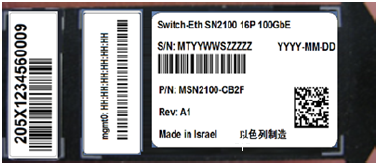

SN2100 Pull-out Tab

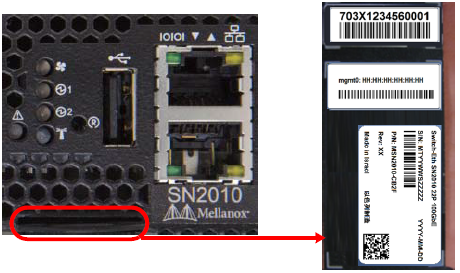

SN2010 Pull-out Tab

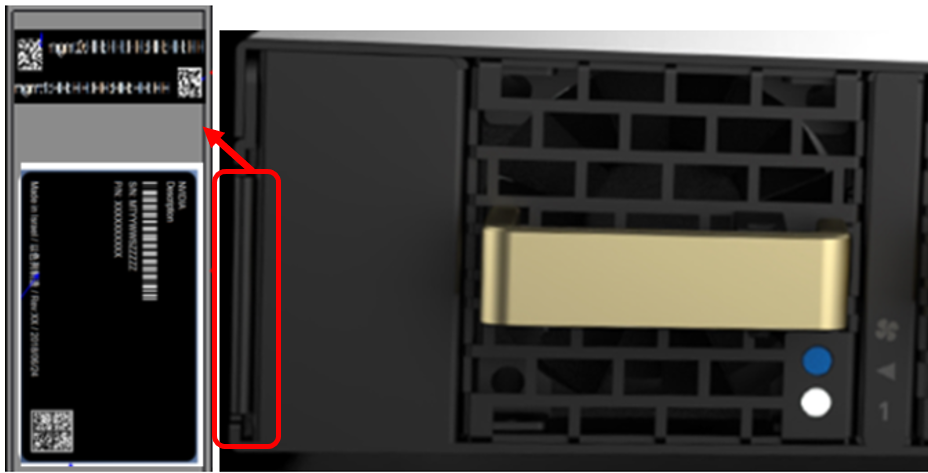

SN2201 Pull-out Tab
