Tool-Less 4-Post Mounting Rail-Kit

Kit Part NumberKit Legacy Part NumberRack Size and Rack Depth Range
930-9NRKT-00JS-000 MTEF-KIT-M-TLNVIDIA Tool-less rack installation kit, 4-post rack, for SN2201 switch

The following parts are included in the tool-less rail kit (see figure below):

  • 2x Rack mount rails (A)
  • 2x Rack mount blades (B)
  • 2x Inner rails (C)

Rail-Kit Parts

   2xA                                2xB                            2xC

Prerequisites:

  • At least two people are required to safely mount the system in the rack.
  • All servers and systems in the rack should be planned with the same airflow direction.
    All FRU components must have the same airflow direction. A mismatch in the airflow will affect the heat dissipation.
  • The part of the system to which you choose to attach the rails will determine the system’s adjustable side. The system’s part to which the brackets are attached will be adjacent to the cabinet.
  • The FRU side is extractable. Mounting the rack brackets inverted to the FRU side will allow you to slide the FRUs, in and out.

Installation

  1. Extract the inner rails (A) from the other rails by pressing the spring latch and pulling it out, as shown in the following illustration:
  2. Mount the inner rails (A) onto the chassis:
    1. Attach the switch to the left and right inner rails according to your installation selection -

      • Standard Installation:

      The inner rails should be assembled to the switch using the first five holes (from its front side).

      • Recessed Installation:

      The inner rails should be assembled to the switch skipping the first hole (from its front side).

    2. Secure the assembly by pushing the chassis’ pins through the slider key holes, until a click is heard and locking occurs.

  3. Install the outer rails (B+C) in the rack, as shown in the following illustration:

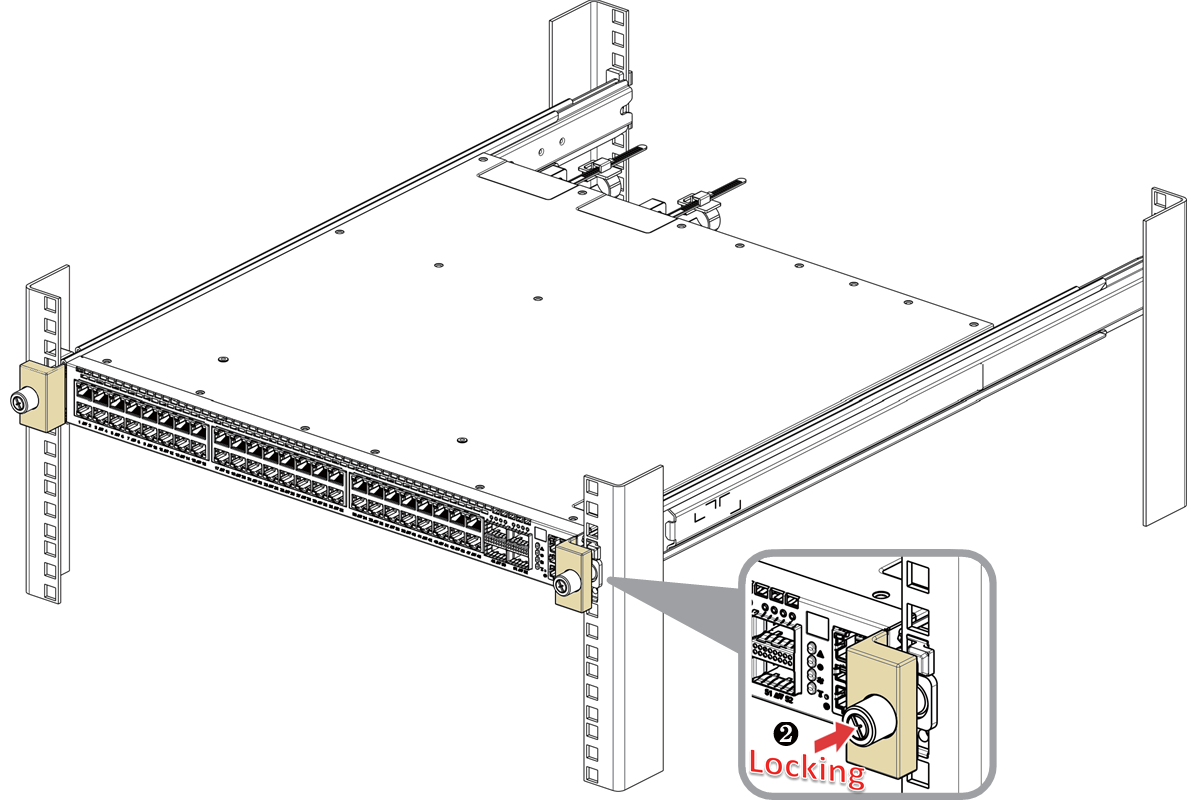

  4. Mount the chassis onto the rack:
    1. Insert the chassis into the middle-outer rails installed in the rack (C).
    2. Secure the chassis in place by tightening the thumb-screws.



Tool-Less 2-Post Mounting Rail-Kit

This mounting kit is optional and should be ordered separately.

Kit Part NumberLegacy Kit Part NumberRack Size and Rack Depth Range
930-9NRKT-00JR-000 MTEF-KIT-MNVIDIA fixed installation kit, 2-post rack, for SN2201 switch

The following parts are included in the 2-post mounting rail kit (see figure below):

  • 2x Rack mount brackets (A)
  • 12x M4 screws (B)
  • 2x cage nuts (C)
  • 4x 10-32 screws (D)

Rail-Kit Parts

          2xA                  12xB                  4xC              4xD

  • Standard Installation:

  • Middle rack Installation:


  1. Attach the two brackets (A) to the chassis, using the 12 M4 screws (B) provided in the kit.
  2. Install 4 cage nuts (C) in the desired 1U slots of the rack, and mount the device in the rack, using 10-32 rack mounting screws.



    The 2-post mounting installation may cause sinking of the switch. The rear end sag is 6-8mm.

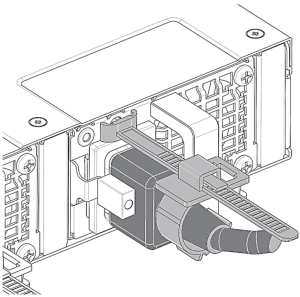

  3. The cable retainer should be used to secure the cable when installing the system. To secure the power cord inside the retainer, press the small tab on the retainer strip to loosen the loop.
