Integrating TAO Models into DeepStream

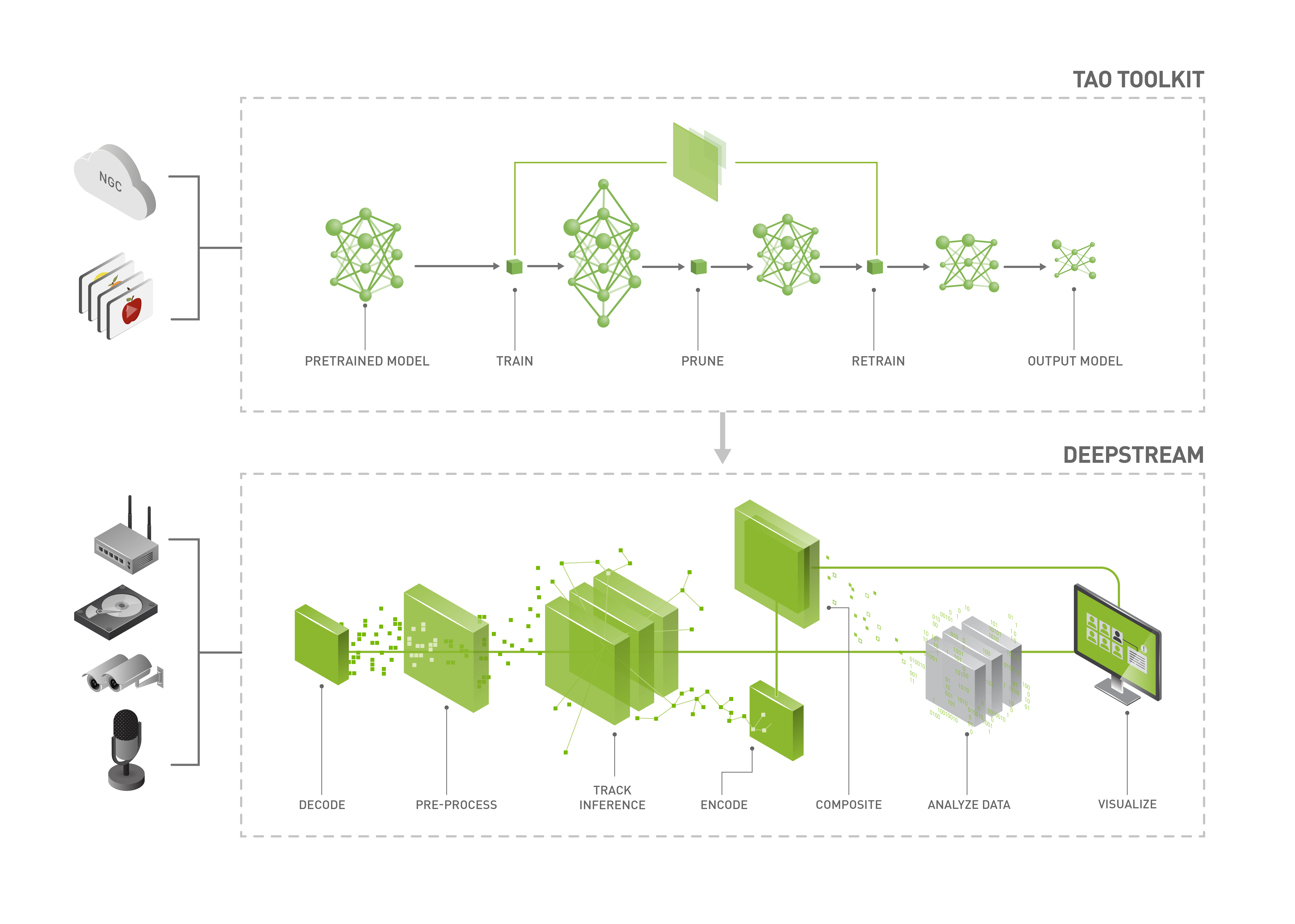

The deep learning and computer vision models that you’ve trained can be deployed on edge devices, such as Jetson Xavier or Jetson Nano, on discrete GPUs, or in the cloud with NVIDIA GPUs. TAO is designed to integrate with the DeepStream SDK. Models trained with TAO work out of the box with DeepStream.

DeepStream SDK is a streaming analytic toolkit that accelerates building AI-based video analytic applications. This section describes how to deploy a TAO-trained model to DeepStream.

TAO model skills export their trained checkpoints to ONNX. Build the device-specific TensorRT engine from that ONNX with the trtexec tool (or ask the agent to run the model’s gen_trt_engine action), then feed the engine to DeepStream:

• Refer to the Exporting the Model section for how to export the trained model to ONNX.

• Refer to Integrating TAO Models into DeepStream for how to wire the engine into a DeepStream pipeline.

Machine-specific optimizations are done as part of the engine-creation process, so a distinct engine must be generated for each target environment and hardware configuration. If the TensorRT or CUDA libraries on the inference host change (including minor versions), or if a new model is generated, the engine must be regenerated. Running an engine built against a different TensorRT or CUDA version is not supported and produces undefined behavior; failures range from degraded accuracy to refusing to load.

Note

TAO 7.0 model skills export trained checkpoints to ONNX. The pre-trained .etlt artifacts referenced lower on this page are legacy NGC publications retained for back-compatibility with the deepstream_tao_apps and deepstream_lpr_app reference repositories. For checkpoints you train in TAO 7.0, build a TensorRT engine via the model skill’s gen_trt_engine action (or run trtexec against the ONNX) and point DeepStream at the resulting engine.

The tables below capture the compatibility of the various open architectures supported in TAO and and pre-trained models distributed with TAO for deployment with respective versions of DeepStream SDK.

Open Model Deployment

Model	Model output format	Prunable	INT8	Compatible with DS5.1	Compatible with DS6.0	TRT-OSS required
Image Classification	Encrypted UFF	Yes	Yes	Yes	Yes	No
MultiTask Classification	Encrypted UFF	Yes	Yes	Yes	Yes	No
DetectNet_v2	Encrypted UFF	Yes	Yes	Yes	Yes	No
EfficientDet	Encrypted ONNX	Yes	Yes	No	Yes	Yes
FasterRCNN	Encrypted UFF	Yes	Yes	Yes	Yes	Yes
SSD	Encrypted UFF	Yes	Yes	Yes	Yes	Yes
YOLOv3	Encrypted ONNX	Yes	Yes	Yes (with TRT 7.1)	Yes	Yes
YOLOv4	Encrypted ONNX	Yes	Yes	Yes (with TRT 7.1)	Yes	Yes
YOLOv4-tiny	Encrypted ONNX	Yes	Yes	Yes (with TRT 7.1)	Yes	Yes
DSSD	Encrypted UFF	Yes	Yes	Yes	Yes	Yes
RetinaNet	Encrypted UFF	Yes	Yes	Yes	Yes	Yes
MaskRCNN	Encrypted UFF	No	Yes	Yes	Yes	Yes
UNET	Encrypted ONNX	No	Yes	Yes	Yes	No
Character Recognition	Encrypted ONNX	No	Yes	Yes	Yes	No
PointPillars	Encrypted ONNX	Yes	No	No	No	Yes

Pre-trained Model Deployment

Model Name	Model arch	Model output format	Prunable	INT8	Compatible with DS5.1	Compatible with DS6.0	TRT-OSS required
PeopleNet	DetectNet_v2	Encrypted UFF	Yes	Yes	Yes	Yes	No
TrafficCamNet	DetectNet_v2	Encrypted UFF	Yes	Yes	Yes	Yes	No
DashCamNet	DetectNet_v2	Encrypted UFF	Yes	Yes	Yes	Yes	No
FaceDetect-IR	DetectNet_v2	Encrypted UFF	Yes	Yes	Yes	Yes	No
FaceDetect	DetectNet_v2	Encrypted UFF	Yes	Yes	Yes	Yes	No
VehicleMakeNet	Image Classification	Encrypted UFF	Yes	Yes	Yes	Yes	No
VehicleTypeNet	Image Classification	Encrypted UFF	Yes	Yes	Yes	Yes	No
LPDNet	DetectNet_v2	Encrypted UFF	Yes	Yes	Yes	Yes	No
LPRNet	Character Recognition	Encrypted ONNX	No	Yes	Yes	Yes	No
PeopleSegNet	MaskRCNN	Encrypted UFF	No	Yes	Yes	Yes	Yes
PeopleSemSegNet	UNET	Encrypted ONNX	No	Yes	Yes	Yes	Yes
BodyPoseNet	VGG Backbone with Custom Refinement Stages	Encrypted ONNX	Yes	Yes	No	Yes	No
EmotionNet	5 Fully Connected Layers	Encrypted ONNX	No	No	No	Yes	No
FPENet	Recombinator networks	Encrypted ONNX	No	Yes	No	Yes	No
GazeNet	Four branch AlexNet based model	Encrypted ONNX	No	No	No	Yes	No
GestureNet	ResNet18	Encrypted ONNX	No	Yes	No	Yes	No
HeartRateNet	Two branch model with attention	Encrypted ONNX	No	No	No	Yes	No
Action Recognition Net	Action Recognition Net	Encrypted ONNX	No	No	No	Yes	No
OCDNet	Optical Character Detection	ONNX	Yes	No	No	No	Yes
OCRNet	Optical Character Recognition	ONNX	Yes	No	No	No	Yes
Optical Inspection	Optical Inspection	ONNX	No	No	No	No	No
PCBInspection	Image Classification	ONNX	No	No	No	No	No
Retail Object Recognition	Metric Learning Recognition	ONNX	No	No	No	Yes	No

Note

Due to changes in the TensorRT API between versions 8.0.x and 7.2.x, the deployable models generated using the export task in TAO 3.0-21.11+ can only be deployed in DeepStream version 6.0. In order to deploy the models compatible with DeepStream 5.1, you will need to re-export the model using the TAO 3.0-21.08 package to re-generate a deployable model and calibration cache file that is compatible with TensorRT 7.2.

Similarly, if you have a model trained with TAO 3.0-21.08 package and want to deploy to DeepStream 6.0, please regenerate the deployable model.etlt and int8 calibration file by re-exporting it in TAO 3.0-21.11+.

TAO 3.0-21.11+ was built with TensorRT 8.0.1.6.

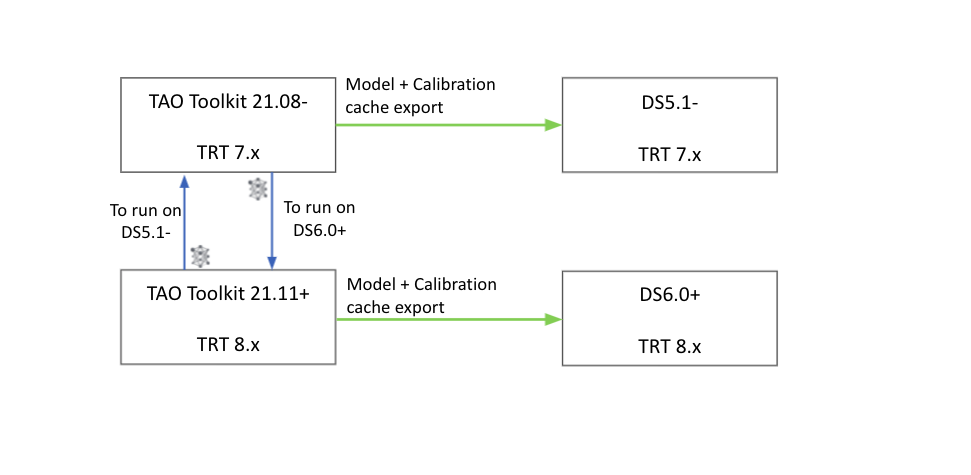

TAO -> DeepStream version interoperability

Follow the instructions below to deploy TAO models to DeepStream.

Installation Prerequisites

1. Install Jetpack 4.6 for Jetson devices.

   Note: For Jetson devices, use the following commands to manually increase the Jetson Power mode and maximize performance further by using the Jetson Clocks mode:

   sudo nvpmodel -m 0
   sudo /usr/bin/jetson_clocks


2. Install Deepstream.

Deployment Files

The following files are required to run each TAO model with Deepstream:

• ds_tlt.c: The application main file

• nvdsinfer_custombboxparser_tlt: A custom parser function on inference end nodes

• Models: TAO models from NGC

• Model configuration files: The Deepstream Inference configuration file

Sample Application

We have provided several reference applications on GitHub.

Reference app for YOLOv3/YOLOv4/YOLOv4-tiny, FasterRCNN, SSD/DSSD, RetinaNet, EfficientDet, MaskRCNN, UNet - DeepStream TAO reference app

Reference app for License plate detection and Recognition - DeepStream LPR app

Pre-trained models - License Plate Detection (LPDNet) and Recognition (LPRNet)

The following steps outline how to run the License Plate Detection and Recognition application: DeepStream LPR app

Download the Repository

git clone https://github.com/NVIDIA-AI-IOT/deepstream_lpr_app.git

Download the Models

cd deepstream_lpr_app

mkdir -p ./models/tlt_pretrained_models/trafficcamnet
cd ./models/tlt_pretrained_models/trafficcamnet
wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/trafficcamnet/versions/pruned_v1.0/files/trafficnet_int8.txt
wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/trafficcamnet/versions/pruned_v1.0/files/resnet18_trafficcamnet_pruned.etlt
cd -

mkdir -p ./models/LP/LPD
cd ./models/LP/LPD
wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/lpdnet/versions/pruned_v1.0/files/usa_pruned.etlt
wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/lpdnet/versions/pruned_v1.0/files/usa_lpd_cal.bin
wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/lpdnet/versions/pruned_v1.0/files/usa_lpd_label.txt
cd -

mkdir -p ./models/LP/LPR
cd ./models/LP/LPR
wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/lprnet/versions/deployable_v1.0/files/us_lprnet_baseline18_deployable.etlt
touch labels_us.txt
cd -

Build and Run

make
cd deepstream-lpr-app

For US car plate recognition:

cp dict_us.txt dict.txt

Start to run the application:

./deepstream-lpr-app <1:US car plate model|2: Chinese car plate model> <1: output as h264 file| 2:fakesink 3:display output>
[0:ROI disable|1:ROI enable] [input mp4 file path and name] [input mp4 file path and name] ... [input mp4 file path and name] [output 264 file path and name]

For detailed instructions about running this application, refer to this GitHub repository.

Pre-trained models - PeopleNet, TrafficCamNet, DashCamNet, FaceDetectIR, Vehiclemakenet, Vehicletypenet, PeopleSegNet

• Deepstream-TAO PeopleNet model Deployment

• Deepstream-TAO TrafficCamNet model Deployment

• Deepstream-TAO DashCamNet model deployment

• Deepstream-TAO FaceDetectIR model deployment

• Deepstream-TAO PeopleSegNet model deployment

• Deepstream-TAO apps

PeopleNet

Follow these instructions to run the PeopleNet model in DeepStream:

1. Download the model:

   mkdir -p $HOME/peoplenet && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/peoplenet/versions/pruned_quantized_v2.3/files/resnet34_peoplenet_pruned_int8.etlt \
   -O $HOME/peoplenet/resnet34_peoplenet_pruned_int8.etlt


2. Run the application:

   xhost +
   docker run --gpus all -it --rm -v /tmp/.X11-unix:/tmp/.X11-unix -e DISPLAY=$DISPLAY -v $HOME:/opt/nvidia/deepstream/deepstream-6.0/samples/models/tao_pretrained_models \
   -w /opt/nvidia/deepstream/deepstream-6.0/samples/configs/tao_pretrained_models nvcr.io/nvidia/deepstream:6.0-samples \
   deepstream-app -c deepstream_app_source1_peoplenet.txt


TrafficCamNet

Follow these instructions to run the TrafficCamNet model in DeepStream:

1. Download the model:

   mkdir -p $HOME/trafficcamnet && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/trafficcamnet/versions/pruned_v1.0/files/resnet18_trafficcamnet_pruned.etlt \
   -O $HOME/trafficcamnet/resnet18_trafficcamnet_pruned.etlt && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/trafficcamnet/versions/pruned_v1.0/files/trafficnet_int8.txt \
   -O $HOME/trafficcamnet/trafficnet_int8.txt


2. Run the application:

   xhost +
   docker run --gpus all -it --rm -v /tmp/.X11-unix:/tmp/.X11-unix -e DISPLAY=$DISPLAY -v $HOME:/opt/nvidia/deepstream/deepstream-6.0/samples/models/tao_pretrained_models \
   -w /opt/nvidia/deepstream/deepstream-6.0/samples/configs/tao_pretrained_models nvcr.io/nvidia/deepstream:6.0-samples \
   deepstream-app -c deepstream_app_source1_trafficcamnet.txt


DashCamNet + Vehiclemakenet + Vehicletypenet

Follow these instructions to run the DashCamNet model as primary detector and Vehiclemakenet and Vehicletypenet as secondary classifier in DeepStream:

1. Download the model:

   mkdir -p $HOME/dashcamnet && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/dashcamnet/versions/pruned_v1.0/files/resnet18_dashcamnet_pruned.etlt \
   -O $HOME/dashcamnet/resnet18_dashcamnet_pruned.etlt && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/dashcamnet/versions/pruned_v1.0/files/dashcamnet_int8.txt \
   -O $HOME/dashcamnet/dashcamnet_int8.txt
   mkdir -p $HOME/vehiclemakenet && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/vehiclemakenet/versions/pruned_v1.0/files/resnet18_vehiclemakenet_pruned.etlt \
   -O $HOME/vehiclemakenet/resnet18_vehiclemakenet_pruned.etlt && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/vehiclemakenet/versions/pruned_v1.0/files/vehiclemakenet_int8.txt \
   -O $HOME/vehiclemakenet/vehiclemakenet_int8.txt
   mkdir -p $HOME/vehicletypenet && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/vehicletypenet/versions/pruned_v1.0/files/resnet18_vehicletypenet_pruned.etlt \
   -O $HOME/vehicletypenet/resnet18_vehicletypenet_pruned.etlt && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/vehicletypenet/versions/pruned_v1.0/files/vehicletypenet_int8.txt \
   -O $HOME/vehicletypenet/vehicletypenet_int8.txt


2. Run the application:

   xhost +
   docker run --gpus all -it --rm -v /tmp/.X11-unix:/tmp/.X11-unix -e DISPLAY=$DISPLAY -v $HOME:/opt/nvidia/deepstream/deepstream-6.0/samples/models/tao_pretrained_models \
   -w /opt/nvidia/deepstream/deepstream-6.0/samples/configs/tao_pretrained_models nvcr.io/nvidia/deepstream:6.0-samples \
   deepstream-app -c deepstream_app_source1_dashcamnet_vehiclemakenet_vehicletypenet.txt


FaceDetectIR

Follow these instructions to run the FaceDetectIR model in DeepStream:

1. Download the model:

   mkdir -p $HOME/facedetectir && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/facedetectir/versions/pruned_v1.0/files/resnet18_facedetectir_pruned.etlt \
   -O $HOME/facedetectir/resnet18_facedetectir_pruned.etlt && \
   wget https://api.ngc.nvidia.com/v2/models/nvidia/tao/facedetectir/versions/pruned_v1.0/files/facedetectir_int8.txt \
   -O $HOME/facedetectir/facedetectir_int8.txt


2. Run the application:

   xhost +
   docker run --gpus all -it --rm -v /tmp/.X11-unix:/tmp/.X11-unix -e DISPLAY=$DISPLAY -v $HOME:/opt/nvidia/deepstream/deepstream-6.0/samples/models/tao_pretrained_models \
   -w /opt/nvidia/deepstream/deepstream-6.0/samples/configs/tao_pretrained_models nvcr.io/nvidia/deepstream:6.0-samples \
   deepstream-app -c deepstream_app_source1_facedetectir.txt


PeopleSegNet

Follow these instructions to run the PeopleSegNet model in DeepStream:

1. Download the Repository:

   git clone https://github.com/NVIDIA-AI-IOT/deepstream_tlt_apps.git


2. Download the model:

   ngc registry model download-version "nvidia/tao/peoplesegnet:deployable_v2.0"


   or

   wget --content-disposition https://api.ngc.nvidia.com/v2/models/nvidia/tao/peoplesegnet/versions/deployable_v2.0/zip \
   -O peoplesegnet_deployable_v2.0.zip


3. Build TRT OSS Plugin:

   TRT-OSS instructions are provided in NVIDIA-AI-IOT/deepstream_tao_apps

4. Build the application:

   export CUDA_VER=xy.z              // xy.z is CUDA version, e.g. 10.2
   make


5. Run the application:

   SHOW_MASK=1 ./apps/ds-tlt -c configs/peopleSegNet_tlt/pgie_peopleSegNetv2_tlt_config.txt -i \
   /opt/nvidia/deepstream/deepstream-5.1/samples/streams/sample_720p.h264 -d


Pre-trained models - BodyPoseNet, EmotionNet, FPENet, GazeNet, GestureNet, HeartRateNet

• Deepstream-TAO BodyPoseNet model Deployment

• Deepstream-TAO EmotionNet model Deployment

• Deepstream-TAO FPENet model deployment

• Deepstream-TAO GazeNet model deployment

• Deepstream-TAO GestureNet model deployment

• Deepstream-TAO HeartRateNet model deployment

• Deepstream-TAO Other apps

1. Follow the prerequisites for the Deepstream-TAO Other apps README such as installing DeepStream SDK 6.0.

2. Download the Deepstream-TAO Other apps repository.

3. Download all the pre-trained models with the provided utility script. This will place the etlt models in pre-determined locations so that DeepStream configs can properly locate them. Replace these models with custom versions as needed.

   cd deepstream_tao_apps
   chmod 755 download_models.sh
   export MODEL_PRECISION=fp16
   ./download_models.sh


4. Build and run the sample applications per the Deepstream-TAO Other apps README. For example, to run the BodyPoseNet sample application,

   cd deepstream-bodypose2d-app
   ./deepstream-bodypose2d-app [1:file sink|2:fakesink|3:display sink]  \
   <bodypose2d model config file> <input uri> ... <input uri> <out filename>


General purpose CV model architecture - Classification, Object detection and Segmentation

A sample DeepStream app to run a classification, object detection, and semantic and instance segmentation network as well as TRT-OSS instructions are provided here.

For more information about each individual model architecture, refer to the following sections.

Image classification

• Deploying to DeepStream for Classification TF1/TF2/PyTorch
  • Integrating the model with DeepStream

Multitask Classification

• Deploying to DeepStream for Multitask Classification
  • Integrating the Model with DeepStream

Object Detection

• Deploying to DeepStream for DetectNet_v2
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for Deformable DETR
  • TensorRT Open Source Software (OSS)
  • Integrating the model with DeepStream
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for DINO
  • TensorRT Open Source Software (OSS)
  • Integrating the model with DeepStream
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for DSSD
  • TensorRT Open Source Software (OSS)
  • Integrating the model to DeepStream
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for EfficientDet
  • TensorRT Open Source Software (OSS)
  • Integrating the model with DeepStream
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for FasterRCNN
  • TensorRT Open Source Software (OSS)
  • Integrating the model to DeepStream
• Deploying to DeepStream for RetinaNet
  • TensorRT Open Source Software (OSS)
  • Integrating the model with DeepStream
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for SSD
  • TensorRT Open Source Software (OSS)
  • Integrating the model to DeepStream
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for YOLOv3
  • TensorRT Open Source Software (OSS)
  • Integrating the model to DeepStream
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for YOLOv4
  • TensorRT Open Source Software (OSS)
  • Integrating the model with DeepStream
  • Label File
  • DeepStream Configuration File
• Deploying to DeepStream for YOLOv4-tiny
  • TensorRT Open Source Software (OSS)
  • Integrating the model with DeepStream
  • Label File
  • DeepStream Configuration File

Instance Segmentation

• Deploying to DeepStream for MaskRCNN
  • TensorRT Open Source Software (OSS)
  • Integrating the model with DeepStream
  • Label File
  • DeepStream Configuration File

Semantic Segmentation

• Deploying to Deepstream for UNet
  • TensorRT Open Source Software (OSS)
  • Label File
  • Integrating the model with DeepStream
  • DeepStream Configuration File
• Deploying to Deepstream for Segformer
  • TensorRT Open Source Software (OSS)
  • Label File
  • Integrating the model with DeepStream
  • DeepStream Configuration File

Character Recognition Using nvOCDR

• Deploying nvOCDR to DeepStream
  • Get Trained OCDNet and OCRNet Models
  • Set Up the Software Environment
  • Generate a TensorRT Engine for OCDNet and OCRNet
  • Build the nvOCDR Library and DeepStream Intermedia Library
  • Run the nvOCDR DeepStream Sample:
  • Integrating nvOCDR with Triton Inference Server
