Fault Management Architecture

Aerial follows the best practices of Kubernetes (https://kubernetes.io/docs/concepts/cluster-administration/logging/) for implementing logging.

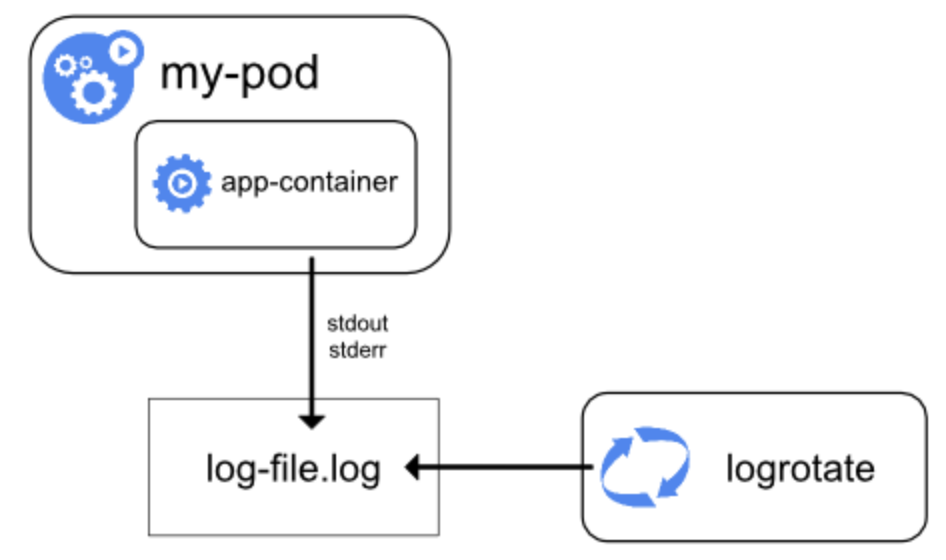

The cuphycontroller application outputs log messages with log level less than or equal to the cuphycontroller YAML configuration parameter nvlog.console_log_level directly to stdout using the “logging at the node level” pattern.

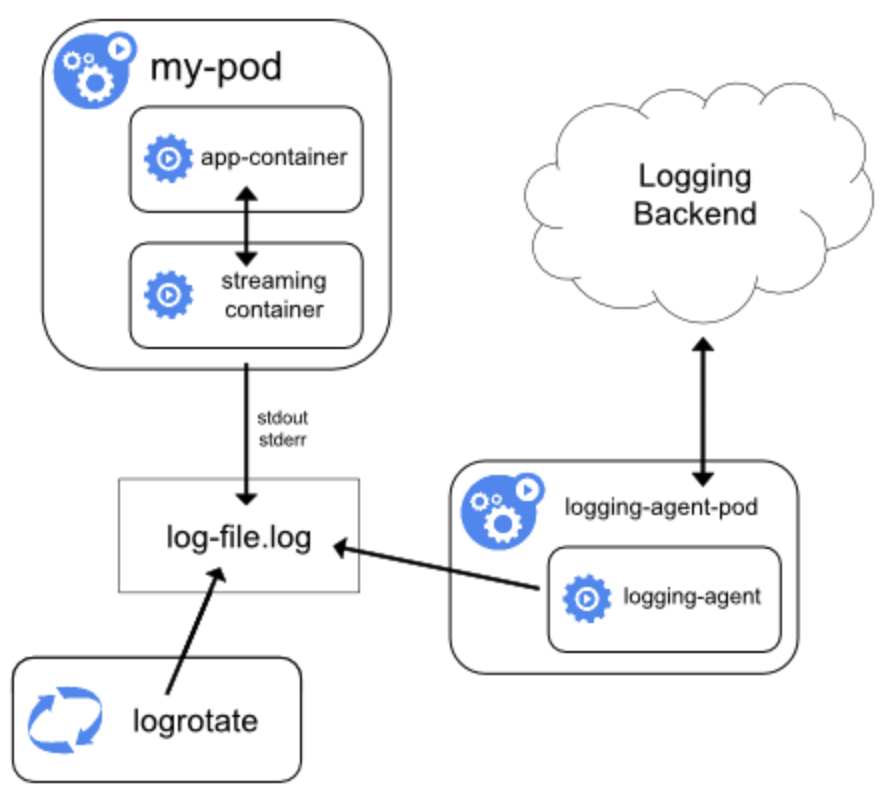

For high performance logs, Aerial uses a shared memory logger to offload the I/O bottleneck from the real-time threads. Log messages with level less than or equal to cuphycontroller YAML configuration parameter nvlog.shm_log_level are output to the shared memory logger. The shared memory logger outputs can be retrieved using either the “streaming sidecar” pattern with logs written directly to the local disk:

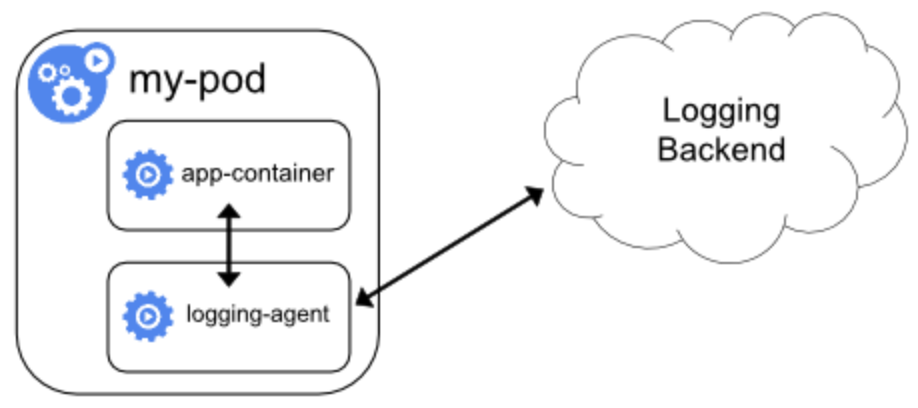

or the “sidecar with logging agent” pattern to stream directly to an external logging backend:


Each nvlog message is a string of the form “[Software Component Name] Msg” prefixed with the following space-separated optional fields:

  • Date

  • Timestamp

  • Primary or Secondary nvlog process

  • Log level

  • Log event code id

  • Log event code string

  • CPU core number the calling thread is running on

  • 64-bit sequence number

  • Thread ID

  • Thread Name

These fields are enabled in the nvlog_config.yaml.

An example nvlog message is:

Copy
Copied!


20:58:09.036299 C [NVLOG.CPP] nvlog_create: name=phy shm_level=1 console_level=1 max_file_size=0x10000000 shm_cache_size=0x200000 log_buf_size=1024 prefix_opts=0x09

The message above had the following prefaces enabled:

  • Timestamp

  • Log level

Here are three more example nvlog message with all prefixed fields enabled taken at the start of cuphycontroller process execution:

Copy
Copied!


2021-09-15 21:29:22.926521 P C 0 SUCESS 1 0 140699056300032 cuphycontroller [NVLOG.CPP] nvlog_create: name=phy shm_level=1 console_level=1 max_file_size=0x10000000 shm_cache_size=0x200000 log_buf_size=1024 prefix_opts=0xFF 2021-09-15 21:29:22.926560 P C 0 SUCCESS 1 1 140699056300032 cuphycontroller [CTL.SCF] Config file: /cuBB_21-3/cuPHY-CP/cuphycontroller/config/cuphycontroller_V08.yaml 2021-09-15 21:29:23.130882 P C 0 SUCCESS 22 2 140699056300032 cuphycontroller [CTL.YAML] Standalone mode: No

Here is an example of an nvlog message at Fault level with Event Code AERIAL_MEMORY_EVENT:

Copy
Copied!


20:58:09.036299 F MEMORY_EVENT Unable to allocate memory for FH buffers

The message above had the following prefaces enabled:

  • Timestamp

  • Log level

  • Log event code string

The fields are further described herein:

Date is YYYY-MM-DD format, e.g. 1970-01-01

Timestamp is HH:MM:SS.us, e.g. 20:58:09.036299

Primary process is P, secondary process is S

Log level is:

  • F - Fatal

  • E - Error

  • C - Console

  • W - Warning

  • I - Info

  • D - Debug

  • V - Verbose

Log event code string / log event code id is a string (or a numerical id) that indicates the category of event which has occurred.

Aerial implements the following default logging component tags.

nvlog component:

  • 10: “NVLOG”

  • 11: “NVLOG.TEST”

  • 12: “NVLOG.ITAG”

nvipc component:

  • 30: “NVIPC”

cuPHY-CP Controller component:

  • 100: “CTL”

  • 101: “CTL.SCF”

  • 102: “CTL.ALTRAN”

  • 103: “CTL.DRV”

  • 104: “CTL.YAML”

cuPHY-CP driver component:

  • 200: “DRV”

  • 201: “DRV.SA”

  • 202: “DRV.TIME”

  • 203: “DRV.CTX”

  • 204: “DRV.API”

  • 205: “DRV.FH”

  • 206: “DRV.GEN_CUDA”

  • 207: “DRV.GPUDEV”

  • 208: “DRV.PHYCH”

  • 209: “DRV.TASK”

  • 210: “DRV.WORKER”

  • 211: “DRV.DLBUF”

  • 212: “DRV.CSIRS”

  • 213: “DRV.PBCH”

  • 214: “DRV.PDCCH_DL”

  • 215: “DRV.PDSCH”

  • 216: “DRV.MAP_DL”

  • 217: “DRV.FUNC_DL”

  • 218: “DRV.HARQ_POOL”

  • 219: “DRV.ORDER_CUDA”

  • 220: “DRV.ORDER_ENTITY”

  • 221: “DRV.PRACH”

  • 222: “DRV.PUCCH”

  • 223: “DRV.PUSCH”

  • 224: “DRV.MAP_UL”

  • 225: “DRV.FUNC_UL”

  • 226: “DRV.ULBUF”

  • 227: “DRV.MPS”

  • 228: “DRV.METRICS”

  • 229: “DRV.MEMFOOT”

  • 230: “DRV.CELL”

cuPHY-CP cuphyl2adapter component:

  • 300: “L2A”

  • 301: “L2A.MAC”

  • 302: “L2A.MACFACT”

  • 303: “L2A.PROXY”

  • 304: “L2A.EPOLL”

  • 305: “L2A.TRANSPORT”

  • 306: “L2A.MODULE”

  • 307: “L2A.TICK”

  • 308: “L2A.UEMD”

cuPHY-CP scfl2adapter component:

  • 330: “SCF”

  • 331: “SCF.MAC”

  • 332: “SCF.DISPATCH”

  • 333: “SCF.PHY”

  • 334: “SCF.SLOTCMD”

  • 335: “SCF.L2SA”

  • 336: “SCF.DUMMYMAC”

cuPHY-CP testMAC component:

  • 400: “MAC”

  • 401: “MAC.LP”

  • 402: “MAC.FAPI”

  • 403: “MAC.UTILS”

  • 404: “MAC.SCF”

  • 405: “MAC.ALTRAN”

  • 406: “MAC.CFG”

  • 407: “MAC.PROC”

cuPHY-CP ru-emulator component:

  • 500: “RU”

  • 501: “RU.EMULATOR”

  • 502: “RU.PARSER”

cuPHY-CP aerial-fh-driver component:

  • 600: “FH”

  • 601: “FH.FLOW”

  • 602: “FH.FH”

  • 603: “FH.GPU_MP”

  • 604: “FH.LIB”

  • 605: “FH.MEMREG”

  • 606: “FH.METRICS”

  • 607: “FH.NIC”

  • 608: “FH.PDUMP”

  • 609: “FH.PEER”

  • 610: “FH.QUEUE”

  • 611: “FH.RING”

  • 612: “FH.TIME”

cuPHY-CP compression_decompression component:

  • 700: “COMP”

cuPHY-CP cuphyoam component:

  • 800: “OAM”

cuPHY component:

  • 900: “CUPHY”

Note that these strings may be changed by the Aerial SDK user via the nvlog_config.yaml.

Following is the list of event codes (see aerial_event_code.h).  The event strings match the event code names, minus the AERIAL_.

Copy
Copied!


| AERIAL_SUCCESS             = 0, | AERIAL_INVALID_PARAM_EVENT = 1, | AERIAL_INTERNAL_EVENT      = 2, | AERIAL_CUDA_API_EVENT      = 3, | AERIAL_DPDK_API_EVENT      = 4, | AERIAL_THREAD_API_EVENT    = 5, | AERIAL_CLOCK_API_EVENT     = 6, | AERIAL_NVIPC_API_EVENT     = 7, | AERIAL_ORAN_FH_EVENT       = 8, | AERIAL_CUPHYDRV_API_EVENT  = 9, | AERIAL_INPUT_OUTPUT_EVENT  = 10, | AERIAL_MEMORY_EVENT        = 11, | AERIAL_YAML_PARSER_EVENT   = 12, | AERIAL_NVLOG_EVENT         = 13, | AERIAL_CONFIG_EVENT        = 14, | AERIAL_FAPI_EVENT          = 15, | AERIAL_NO_SUPPORT_EVENT    = 16, | AERIAL_SYSTEM_API_EVENT    = 17, | AERIAL_L2ADAPTER_EVENT     = 18, | AERIAL_RU_EMULATOR_EVENT   = 19,
