TLS Offload

NVIDIA TLS Offload Guide

This guide provides an overview and configuration steps of TLS hardware offloading via kernel-TLS, using hardware capabilities of NVIDIA® BlueField® DPU.

Transport layer security (TLS) is a cryptographic protocol designed to provide communications security over a computer network. The protocol is widely used in applications such as email, instant messaging, and voice over IP (VoIP), but its use in securing HTTPS remains the most publicly visible.

The TLS protocol aims primarily to provide cryptography, including privacy (confidentiality), integrity, and authenticity using certificates, between two or more communicating computer applications. It runs in the application layer and is itself composed of two layers: the TLS record and the TLS handshake protocols. TLS works over TCP and consists of 3 phases:

  1. Handshake – establishment of a connection
  2. Application – sending and receiving encrypted packets
  3. Termination – connection termination

1.1. TLS Handshake

In the handshake phase, the client and server decide on which cipher suites they will use, and exchange keys and certificates according to the following flow:

  1. Client hello, provides the server at a minimum with the following:
    • A key exchange algorithm, to determine how symmetric keys are exchanged
    • An authentication or digital signature algorithm, which dictates how server authentication and client authentication (if required) are implemented
    • A bulk encryption cipher, which is used to encrypt the data
    • A hash/MAC (message authentication code) function, which determines how data integrity checks are carried out
    • The version of the protocol it understands
    • The cipher suites it is capable of working with
    • A unique random number, which is important to guard against replay attacks
  2. Server hello:
    • Selects a cipher suite
    • Generates its own random number
    • Assigns a session ID to the TLS connection
    • Sends enough information to complete a key exchange—most often, this means sending a certificate including an RSA public key
  3. Client:
    • Responsible for completing the key exchange using the information the server provided

At this point, the connection is secured, both sides have agreed on an encryption algorithm, a MAC algorithm, and respective keys.

1.2. kTLS

The Linux kernel provides TLS offload infrastructure. kTLS (kernel TLS) offloads TLS handling from the user-space to the kernel-space. kTLS has 3 modes of operation:

  • SW – all operation is handled in kernel (i.e., handshake, encryption, decryption)
  • HW-offload (the focus of this guide) – handshake and error handling are performed in software. Packets are encrypted/decrypted in hardware. In this case, there is an additional offload from the kernel to the hardware.
  • HW-record – all operations are handled by the hardware (driver and firmware) including the handshake. It also handles its own TCP session. This option is currently not supported.

Note:

It is important to understand that Rx (receiving) and Tx (sending) can have two separate modes. For example, Rx can be dealt in SW mode but Tx in HW-offload mode (i.e., the hardware will only encrypt but not decrypt).

1.3. HW-offloading kTLS

In general, the TLS HW-offload performs best and provides optimal value on longer lived sessions, with relatively large packets. Scaling in terms of concurrent connections and connections per second is use-case dependent (e.g., the amount of active concurrent connections from the overall open concurrent connections is material). It is necessary to learn the following terms before proceeding:

  • The transport interface send (TIS) object is responsible for performing all transport-related operations of the transmit side. Messages from Send Queues (SQs) get segmented and transmitted by the TIS including all transport required implications. For example, in the case of a large send offload, the TIS is responsible for the segmentation. The ConnectX HW uses a TIS object to save and access the TLS crypto information and state of an offloaded Tx kTLS connection.
  • The transport interface receive (TIR) object is responsible for performing all transport-related operations on the receive side. TIR performs the packet processing and reassembly and is also responsible for demultiplexing the packets into different receive queues (RQs).
  • Both TIS and TIR hold the data encryption key (DEK).

1.3.1. kTLS Offload Flow in High Level

Note:

The following flow does not include resync and error handling.

  1. Establishes a TLS connection with remote host (server or client) by handling a TLS handshake by kernel on current host.
  2. Initializes the following state for each connection, Rx and Tx:
    • Crypto secrets (e.g., public key)
    • Crypto processing state
    • Record metadata (e.g., record sequence number, offset)
    • Expected TCP sequence number

Tx flow:

  1. Packets belonging to device offloaded sockets arrive to the kernel and it does not encrypt them.
  2. Kernel performs record framing and marks the packet with a connection identifier.
  3. Kernel sends packets to the device driver for offloading.
  4. Device checks that the sequence number matches the state in the TIS and performs encryption and authentication.

Rx flow:

  1. When the connection is created, a HW steering rule is added to steer packets to their respective TIR.
  2. Device receives the packet then validates and checks that sequence number of TCP matches the state in the TIR.
  3. Performs decryption and authentication, and indicates in the CQE (completion queue entry).
  4. Kernel understands that the packet is already decrypted so it does not decrypt it itself and passes it on to the user-space.

1.3.2. Resync and Error Handling

When the sequence number does not match expectations or if any other error occurs, the hardware gives control back to the SW which handles the problem.

See more about kTLS modes, resync, and error handling in the Linux Kernel documentation.

All commands in this section should be performed on host (not on BlueField) unless stated otherwise.

2.1. Checking Hardware Support for Crypto Acceleration

To check if the BlueField or ConnectX have crypto acceleration, run the following command from host:

Copy
Copied!


host> mst start # turn on mst driver host> flint -d <device under /dev/mst/ directory> dc | grep Crypto


The output should include Crypto Enabled. For example:

Copy
Copied!


host> flint -d /dev/mst/mt41686_pciconf0 dc | grep Crypto .... ;;Description = NVIDIA BlueField-2 E-Series Eng. sample DPU; 200GbE single-port QSFP56; PCIe Gen4 x16; Secure Boot Disabled; Crypto Enabled; 16GB on-board DDR; 1GbE OOB management ....

2.2. Kernel Requirements

Operating system must be either:

  • FreeBSD 13.0+.
  • A Linux distribution built on Linux kernel version 5.3 or later for Tx support and version 5.9 or later for Rx support. We recommend using the latest version when possible for the best available optimizations.

Note:

TIS Pool optimization is added to Linux kernel version 6.0. Instead of creating TIS per new connection, unused TIS from previous connection, will be recycled. This will improve Tx connection rate. No further installations required beyond installing the kernel itself.

To check the current kernel version on the host, run:

Copy
Copied!


host> uname -r


The kernel must be configured to support TLS. The options TLS_DEVICE and MLX5_TLS must be set to y. To check if it is configured, run:

Copy
Copied!


host> cat /boot/config-$(uname -r) | grep TLS


Example output:

Copy
Copied!


host> cat /boot/config-5.4.0-121-generic | grep TLS ... CONFIG_TLS_DEVICE=y CONFIG_MLX5_TLS=y ...


If the current kernel does not support one of the settings, you may want to change configurations and recompile, or build a new kernel.

Note:

Follow the building instructions provided with kernel provider when building a new kernel.


Schematic flow for building a Linux kernel:

Copy
Copied!


# Enter Linux kernel directory downloaded (usually in /usr/src/) host> make menuconfig # in options set TLS_DEVICE=y, MLX5_TLS=y. Setting location in the menu, can be found by searching the setting- pressing '/' and typing setting. host> make -j <num of cores> && make -j <num of cores> modules_install && make -j <num of cores> install # Update grub to new configured kernel and than reboot

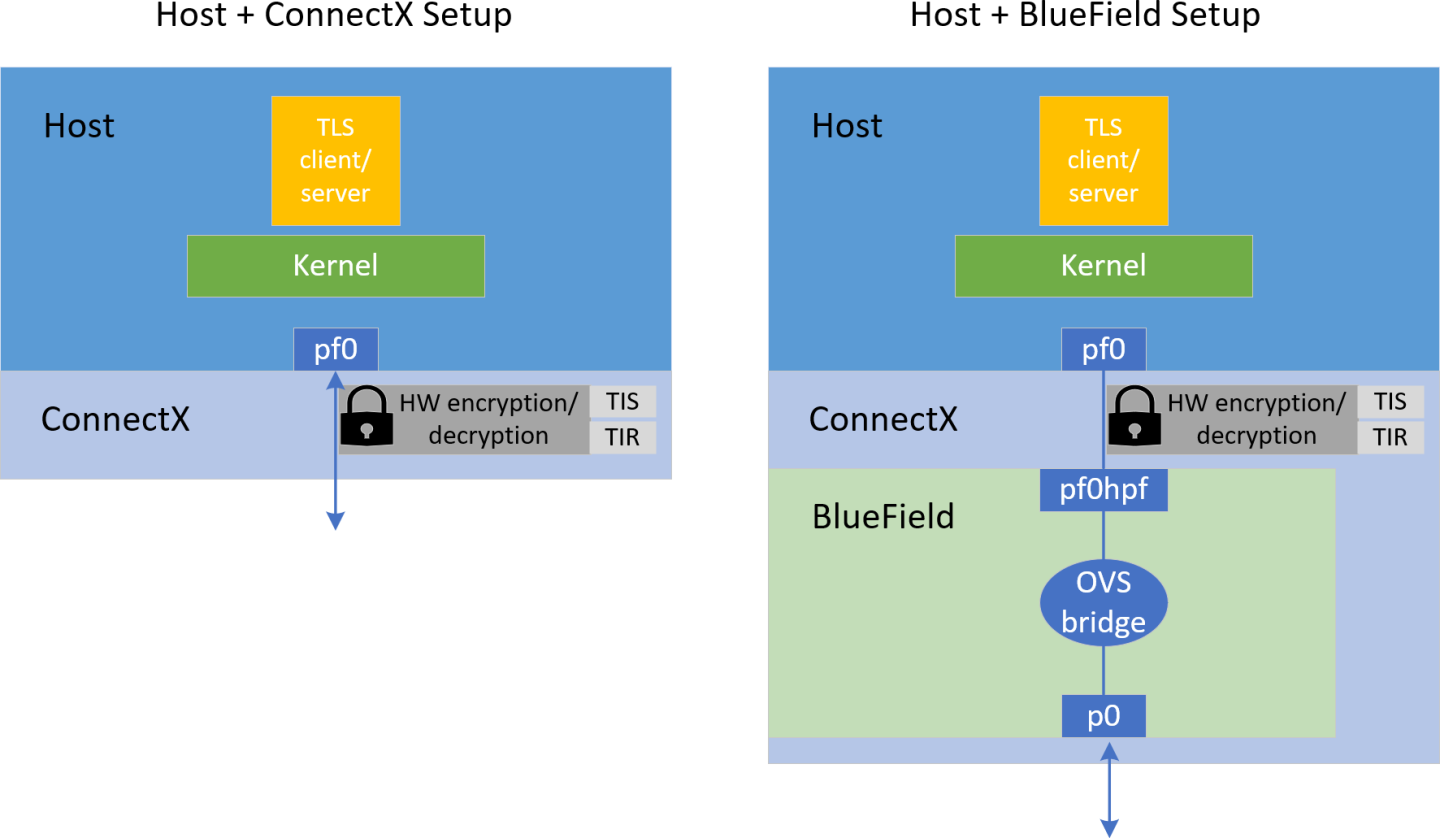

3.1. TLS Setup


3.2. Finding Netdev Interfaces

Copy
Copied!


host> mst start # If mst driver is not loaded host> mst status -v

NVIDIA's netdev interfaces are found be under the NET column.
For example:

Copy
Copied!


host> mst status -v .... DEVICE_TYPE MST PCI RDMA NET NUMA BlueField2(rev:0) /dev/mst/mt41686_pciconf0.1 b1:00.1 mlx5_1 net-ens5f1 1 BlueField2(rev:0) /dev/mst/mt41686_pciconf0 b1:00.0 mlx5_0 net-ens5f0 1

In this example, the interfaces ens5f1 and ens5f0 are NVIDIA's netdev interfaces.

3.3. Configuring TLS Offload

To check if the offload option is on or off, run:

Copy
Copied!


host> ethtool -k $iface | grep tls


Example output:

Copy
Copied!


tls-hw-tx-offload: on tls-hw-rx-offload: off tls-hw-record: off [fixed]

Note:

tls-hw-record is not required for the device as kTLS does not support "HW Record" mode.


To turn Tx offload on or off:

Copy
Copied!


host> ethtool -K $iface tls-hw-tx-offload <on | off>


To turn Rx offload on or off:

Copy
Copied!


host> ethtool -K $iface tls-hw-rx-offload <on | off>

3.4. Configuring OVS Bridge on BlueField

When the host is connected to a BlueField device, an OVS bridge must be configured on the BlueField so traffic passes bidirectionally from host to uplink. If no OVS bridge is configured, the host is isolated from the network (see diagram above).

Note:

On BlueField image version 3.7.0 or higher the default OVS configuration can be used without additional modifications.


To configure the OVS bridge on BlueField, run the following commands on BlueField:

Copy
Copied!


dpu> for br in $(ovs-vsctl list-br); do ovs-vsctl del-br $br; done # erasing existing bridges dpu> ovs-vsctl add-br ovs-br0 && ovs-vsctl add-port ovs-br0 p0 && ovs-vsctl add-port ovs-br0 pf0hpf dpu> ovs-vsctl add-br ovs-br1 && ovs-vsctl add-port ovs-br1 p1 && ovs-vsctl add-port ovs-br1 pf1hpf dpu> ovs-vsctl set Open_vSwitch . other_config:hw-offload=true && systemctl restart openvswitch-switch

Where p0/p1 are the uplink interfaces and pf0hpf/pf1hpf are the interfaces facing the host.

3.5. Configuring OpenSSL

OpenSSL is an all-around cryptography library that offers open-source application of the TLS protocol. It is the main library for using kTLS and other applications since Nginx depends on it as their base library.

Note:

The kTLS and HW offloading do not depend on OpenSSL. Any program that can implement a TLS stack can be run instead. However, because of the vast use of OpenSSL, this guide addresses installation recommendations.


kTLS is supported only in OpenSSL version 3.0.0 or higher, and only on the supported kernel versions. The supported OpenSSL version is available for download from distro packages, or it can be downloaded and compiled from the OpenSSL GitHub.

Note:

Many modules depend on OpenSSL. Changing the default version may cause problems. Adding --prefix=/var/tmp/ssl --openssldir=/var/tmp/ssl in the ./Configure command below may prevent the built OpenSSL from becoming the default one used by the system. Make sure the directory of the OpenSSL you build manually is not located in any paths listed in the PATH environment variable.


Check the version of the default OpenSSL:

Copy
Copied!


host> openssl version


Follow OpenSSL installation instructions from their supplied guides. During the configuration process, make sure to configure the enable-ktls option before building it by running from within OpenSSL directory (works in version 3.0 and higher). For example:

Copy
Copied!


host> ./Configure linux-$(uname -p) enable-ktls --prefix=/var/tmp/ssl --openssldir=/var/tmp/ssl # add "threads" as well for multithread support


Check if kTLS is enabled in OpenSSL by running the following command from within the OpenSSL directory, and check whether ktls is listed under Enabled features:

Copy
Copied!


host> perl configdata.pm --dump | less


If OpenSSL has been downloaded manually, the OpenSSL executable would be located in the /<openssl-dir>/apps/ directory. For example, checking the version (from within OpenSSL directory) is done using the command ./apps/openssl version.

Note:

Installing a new OpenSSL requires recompiling user tools that were configured over OpenSSL (e.g., Nginx).


4.1. XLIO

The NVIDIA accelerated IO (XLIO) software library boosts the performance of TCP/IP applications based on Nginx (e.g., CDN, DoH) and storage solutions as part of SPDK. XLIO is a user-space software library that exposes standard socket APIs with kernel-bypass architecture, enabling a hardware-based direct copy between an application's user-space memory and the network interface. In particular, XLIO can boost the performance of applications that use the kTLS hardware offload as OpenSSL and Nginx. Read more about XLIO in the NVIDIA XLIO Documentation and XLIO TLS HW-offload over kTLS in the TLS HW Offload section.

Note:

Even though XLIO is a kernel-bypass library, the kernel must support kTLS for the bypass to work properly.

This section demonstrates how to test the kTLS hardware offload.

Note:

Make sure to refer to section Configuring OpenSSL before proceeding.

5.1. TLS Testing Setup

For testing, a server and a client are required. The testing section only tests a single setup of host and BlueField-2 or host ConnectX which will participate either as a server or as a client. Setting a back-to-back setup of the same kind and installing the same OpenSSL version can help avoid misconfigurations. Nevertheless, it is required to have the same OpenSSL version on both the client and server.

Make sure the desired kTLS is configured as detailed in section Configuring TLS Offload. To test hardware offload, make sure tls-hw-tx-offload and/or tls-hw-rx-offload are on. To test kTLS software mode, make sure to turn them off.

In addition, make sure both hosts (server and client) can communicate bidirectionally through ConnectX or BlueField. One can set the interface that supports the offload (on the host) with an IP, in same subnet. Make sure that when using BlueField, an OVS bridge will be set on BF, as shown in section Configuring OVS Bridge on BlueField.

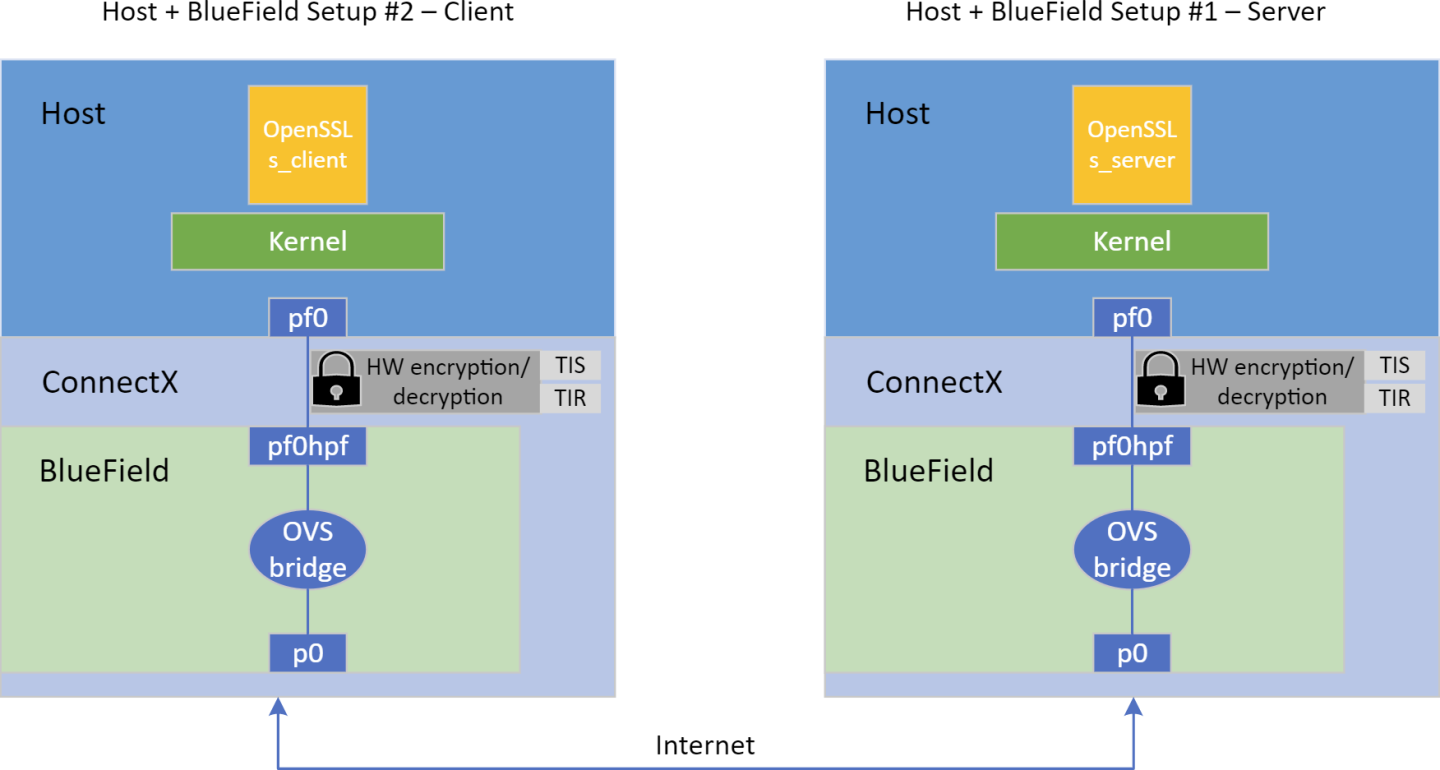

Suggestion for setup:


5.2. Adding Certificate and Key

The server side should create a certificate and key. The client can also use a certificate, but it is not necessary for this test case. Run the following command in the installed OpenSSL directory and fill in all the requested details:

Copy
Copied!


host> openssl req -x509 -newkey rsa:2048 -keyout key.pem -out cert.pem -days 365 -nodes


The following files are created:

  • key.pem – private-key file used to generate the CSR and, later, to secure and verify connections using the certificate
  • cert.pem – certificate signing request (CSR) file used to order your SSL certificate and, later, to encrypt messages that only its corresponding private key can decrypt

Note:

The server side should be run before client side so that client's request are answered by server.

Running Server Side

The following example works on OpenSSL version 3.1.0:

Copy
Copied!


host> openssl s_server -key key.pem -cert cert.pem -tls1_2 -cipher ECDHE-RSA-AES128-GCM-SHA256 -accept 443 -ktls

Note:

Notice the -ktls flag.

Note:

Refer to official OpenSSL documentation on s_server for more information.


In this example, the key and certificate are provided, the cipher suite and TLS version are configured, and the server listens to port 443 and is instructed to use kTLS.

5.4. Running Client Side

The following example works on OpenSSL version 3.1.0:

Copy
Copied!


host> openssl s_client -connect 4.4.4.4:443 -tls1_2

Where 4.4.4.4 is the IP of the remote server.

Note:

Refer to official OpenSSL documentation on s_client for more information.

5.5. Testing TLS

After the connection is established (handshake is done), a prompt will open and the user, both on the client and server side, can send a message to other side in a chat-like manner. Messages should appear on the other side once they are received. The following example checks kTLS hardware offload on the tested setup by tracking Rx and Tx TLS on device counters:

Copy
Copied!


host> ethtool -S $iface | grep -i 'tx_tls_encrypted\|rx_tls_decrypted' # ($iface is the interface that offloads)


To check kTLS over kernel counters:

Copy
Copied!


host> cat /proc/net/tls_stat


Output example:

Note:

The comments are not part of the output and are added as explanation.

Copy
Copied!


host> cat /proc/net/tls_stat TlsCurrTxSw 0 # Current Tx connections opened in SW mode TlsCurrRxSw 0 # Current Rx connections opened in SW mode TlsCurrTxDevice 0 # Current Tx connections opened in HW-offload mode TlsCurrRxDevice 0 # Current Rx connections opened in HW-offload mode TlsTxSw 2323828 # Accumulated number of Tx connections opened in SW mode TlsRxSw 1 # Accumulated number of Rx connections opened in SW mode TlsTxDevice 12203652 # Accumulated number of Tx connections opened in HW-offload mode TlsRxDevice 0 # Accumulated number of Rx connections opened in HW-offload mode TlsDecryptError 0 # Failed record decryption (e.g., due to incorrect authentication tag) TlsRxDeviceResync 0 # Rx resyncs sent to HW's handling cryptographyTlsDecryptRetry 0 # All Rx records re-decrypted due to TLS_RX_EXPECT_NO_PAD misprediction TlsRxNoPadViolation 0 # Data Rx records re-decrypted due to TLS_RX_EXPECT_NO_PAD misprediction

Note:

More information about the kernel counters can be found in the Statistics section of the Kernel TLS documentation.

Nginx is a free and open-source software web server that can also be used as a reverse proxy, load balancer, mail proxy and HTTP cache. Nginx can be configured to depend on OpenSSL library and therefore Nginx could have the great advantages of TLS HW-offload on NVIDIA ConnectX-6 Dx, NVIDIA ConnectX-7 or NVIDIA BlueField DPU. Helpful configuration instructions might be found in Kernel TLS official documentation here.
