This guide shows how to benchmark Dynamo deployments using AIPerf, a comprehensive tool for measuring generative AI inference performance. AIPerf provides detailed metrics, real-time dashboards, and automatic visualization — you call it directly against your endpoints.

You can benchmark any combination of:

• DynamoGraphDeployments
• External HTTP endpoints (vLLM, llm-d, AIBrix, etc.)

Start from Dynamo Recipes When Possible

If you are benchmarking a supported model, backend, hardware target, or Dynamo feature, check Dynamo Recipes before writing deployment and benchmark manifests from scratch. Recipes provide known-good starting points, including:

• deploy.yaml manifests for tuned DynamoGraphDeployment configurations
• model-cache setup for downloading and reusing model weights
• perf.yaml benchmark jobs for many recipes
• model-specific notes about GPU requirements, serving mode, and expected setup

Use recipes when you want a validated baseline or a feature comparison such as aggregated vs. disaggregated serving, KV-aware routing, or embedding cache. Use this guide when you need to benchmark a custom DGD, compare arbitrary HTTP endpoints, or adapt an existing recipe to your own environment.

Choosing Your Benchmarking Approach

Client-side runs benchmarks on your local machine via port-forwarding. Server-side runs benchmarks directly within the Kubernetes cluster using internal service URLs.

TLDR: Need high performance/load testing? Server-side. Just quick testing/comparison? Client-side.

Use Client-Side Benchmarking When:

• You want to quickly test deployments
• You want immediate access to results on your local machine
• You’re comparing external services or deployments (not necessarily just Dynamo deployments)
• You need to run benchmarks from your laptop/workstation

→ Go to Client-Side Benchmarking (Local)

Use Server-Side Benchmarking When:

• You have a development environment with kubectl access
• You’re doing performance validation with high load/speed requirements
• You’re experiencing timeouts or performance issues with client-side benchmarking
• You want optimal network performance (no port-forwarding overhead)
• You’re running automated CI/CD pipelines
• You need isolated execution environments
• You want persistent result storage in the cluster

→ Go to Server-Side Benchmarking (In-Cluster)

Quick Comparison

AIPerf Overview

AIPerf is a standalone benchmarking tool available on PyPI. It is pre-installed in Dynamo container images. Key features:

• Measures latency, throughput, TTFT, inter-token latency, and more
• Multiple load modes: concurrency, request-rate, trace replay
• Automatic visualization with aiperf plot (Pareto curves, time series, GPU telemetry)
• Interactive dashboard mode for real-time exploration
• Arrival patterns (Poisson, constant, gamma) for realistic traffic simulation
• Warmup phases, gradual ramping, and multi-URL load balancing

Important: The --model parameter must match the model deployed at the endpoint.

For full documentation, see the AIPerf docs.

Client-Side Benchmarking (Local)

Client-side benchmarking runs on your local machine and connects to Kubernetes deployments via port-forwarding.

Prerequisites

1. Dynamo container environment - You must be running inside a Dynamo container with AIPerf pre-installed, or install it locally:

   $
   pip install aiperf

2. HTTP endpoints - Ensure you have HTTP endpoints available for benchmarking. These can be:

   • DynamoGraphDeployments exposed via HTTP endpoints
   • External services (vLLM, llm-d, AIBrix, etc.)
   • Any HTTP endpoint serving OpenAI-compatible models

User Workflow

Step 1: Set Up Cluster and Deploy

Set up your Kubernetes cluster with NVIDIA GPUs and install the Dynamo Kubernetes Platform following the installation guide. Then deploy your DynamoGraphDeployment.

Prefer Dynamo Recipes when a recipe matches your model, backend, hardware, and serving mode. Recipes include tuned deploy.yaml manifests and, in many cases, matching perf.yaml benchmark jobs that you can run or adapt. If no recipe matches, start from the Deployment Overview or the backend examples in examples/backends.

Step 2: Port-Forward and Run a Single Benchmark

Wait for model readiness. Before benchmarking, ensure your deployment has fully loaded the model. Check pod logs or hit the health endpoint (curl http://localhost:8000/health) — it should return 200 OK before you proceed.

$
# Port-forward the frontend service
$
kubectl port-forward -n <namespace> svc/<frontend-service-name> 8000:8000 > /dev/null 2>&1 &
$
$
# Run a single benchmark
$
aiperf profile \
>
    --model <your-model-name> \
>
    --url http://localhost:8000 \
>
    --endpoint-type chat \
>
    --streaming \
>
    --concurrency 10 \
>
    --request-count 100 \
>
    --synthetic-input-tokens-mean 2000 \
>
    --output-tokens-mean 256

This produces results in artifacts/ and prints a summary table to the console:

                                NVIDIA AIPerf | LLM Metrics
┏━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━┳━━━━━━━━━┳━━━━━━━━━┳━━━━━━━━━┳━━━━━━━━━┳━━━━━━━━━┳━━━━━━━━━┓
┃              Metric ┃     avg ┃     min ┃     max ┃     p99 ┃     p90 ┃     p50 ┃     std ┃
┡━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━╇━━━━━━━━━╇━━━━━━━━━╇━━━━━━━━━╇━━━━━━━━━╇━━━━━━━━━╇━━━━━━━━━┩
│ Time to First Token │  234.56 │  189.23 │  298.45 │  289.34 │  267.12 │  231.12 │   28.45 │
│                (ms) │         │         │         │         │         │         │         │
│     Request Latency │ 1234.56 │  987.34 │ 1567.89 │ 1534.23 │ 1456.78 │ 1223.45 │  156.78 │
│                (ms) │         │         │         │         │         │         │         │
│ Inter Token Latency │   15.67 │   12.34 │   19.45 │   19.01 │   18.23 │   15.45 │    1.89 │
│                (ms) │         │         │         │         │         │         │         │
│  Request Throughput │   31.45 │     N/A │     N/A │     N/A │     N/A │     N/A │     N/A │
│      (requests/sec) │         │         │         │         │         │         │         │
└─────────────────────┴─────────┴─────────┴─────────┴─────────┴─────────┴─────────┴─────────┘

Actual numbers will vary based on model size, hardware, batch size, and network conditions. Client-side benchmarks include port-forwarding overhead — use server-side benchmarking for accurate performance measurement.

To stop the port-forward when done: kill %1 (or kill <PID>).

Step 3: Concurrency Sweep for Pareto Analysis

To understand how your deployment behaves across load levels, run a concurrency sweep. Each concurrency level sends enough requests for stable measurements (max(c*3, 10)):

$
MODEL="<your-model-name>"
$
URL="http://localhost:8000"
$
$
for c in 1 2 5 10 50 100; do
$
    aiperf profile \
>
        --model "$MODEL" \
>
        --url "$URL" \
>
        --endpoint-type chat \
>
        --streaming \
>
        --concurrency $c \
>
        --request-count $(( c * 3 > 10 ? c * 3 : 10 )) \
>
        --synthetic-input-tokens-mean 2000 \
>
        --output-tokens-mean 256 \
>
        --artifact-dir "artifacts/deployment-a/c$c"
$
done

Note: Adjust concurrency levels to match your deployment’s capacity. Very high concurrency on a small deployment (e.g., c250 on a single GPU) will cause server errors. Start with lower values and increase until you find the saturation point.

Step 4: [If Comparative] Benchmark a Second Deployment

Teardown deployment A and deploy deployment B with a different configuration. Kill the previous port-forward (kill %1), then repeat:

$
kubectl port-forward -n <namespace> svc/<frontend-service-b> 8000:8000 > /dev/null 2>&1 &
$
$
for c in 1 2 5 10 50 100; do
$
    aiperf profile \
>
        --model "$MODEL" \
>
        --url "$URL" \
>
        --endpoint-type chat \
>
        --streaming \
>
        --concurrency $c \
>
        --request-count $(( c * 3 > 10 ? c * 3 : 10 )) \
>
        --synthetic-input-tokens-mean 2000 \
>
        --output-tokens-mean 256 \
>
        --artifact-dir "artifacts/deployment-b/c$c"
$
done

Step 5: Generate Visualizations

$
# Compare all runs — auto-detects multi-run directories
$
aiperf plot artifacts/deployment-a artifacts/deployment-b
$
$
# Or compare all subdirectories under a parent
$
aiperf plot artifacts/
$
$
# Launch interactive dashboard for exploration
$
aiperf plot artifacts/ --dashboard

AIPerf automatically generates plots based on available data:

• TTFT vs Throughput — find the sweet spot between responsiveness and capacity (always generated for multi-run comparisons)
• Pareto Curves — throughput per GPU vs latency and interactivity (only generated when GPU telemetry data is available — add --gpu-telemetry during profiling if DCGM is running)
• Time series — per-request TTFT, ITL, and latency over time (generated for single-run analysis)

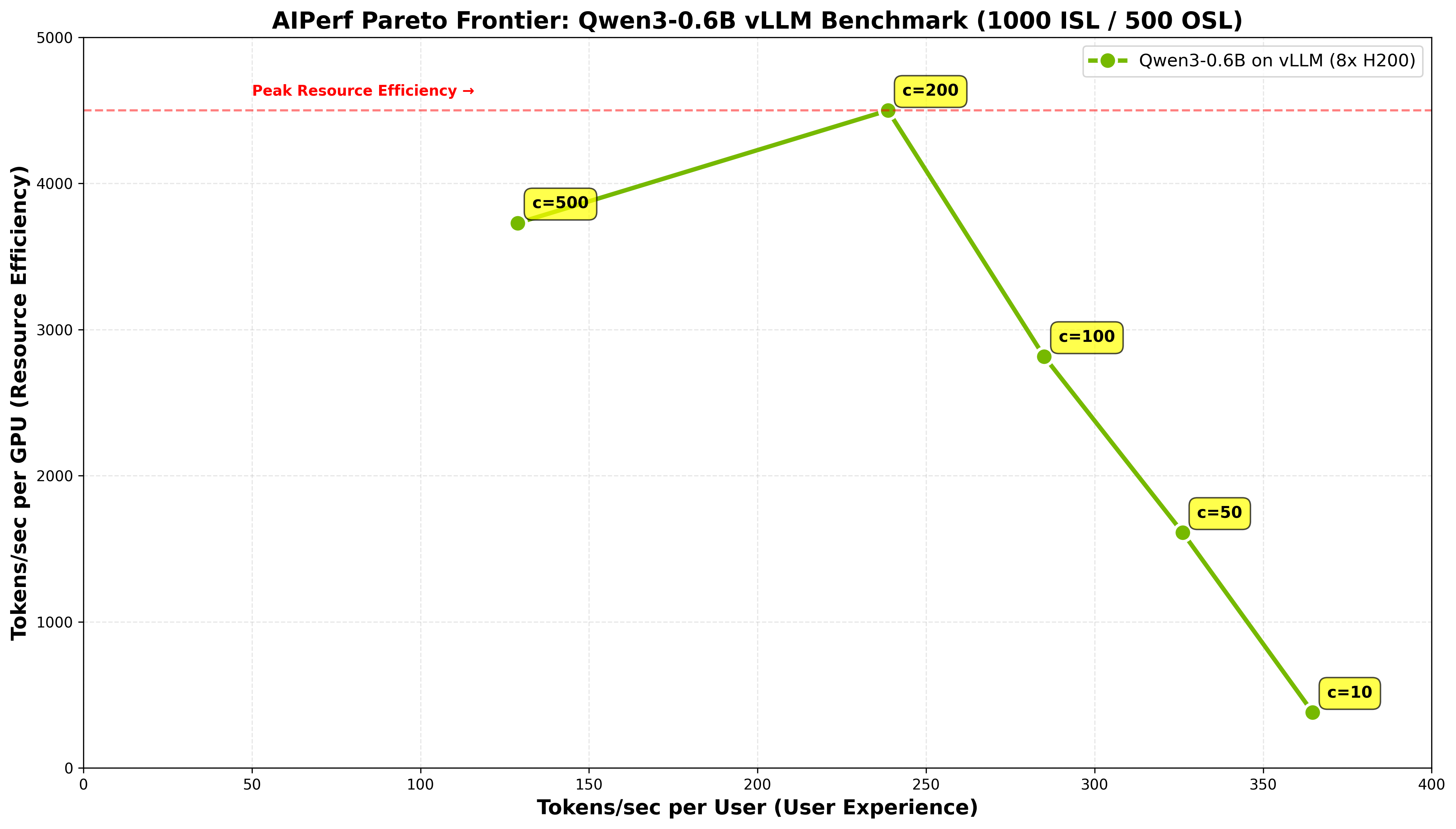

Here is an example Pareto frontier from a concurrency sweep of Qwen3-0.6B on 8x H200 with vLLM, showing the tradeoff between user experience (tokens/sec per user) and resource efficiency (tokens/sec per GPU):

See the AIPerf Visualization Guide for full details on plot customization, experiment classification, and themes.

Use Cases

• Compare DynamoGraphDeployments (e.g., aggregated vs disaggregated configurations)
• Compare different backends (e.g., SGLang vs TensorRT-LLM vs vLLM)
• Compare Dynamo vs other platforms (e.g., Dynamo vs llm-d vs AIBrix)
• Compare different models (e.g., Llama-3-8B vs Llama-3-70B vs Qwen-3-0.6B)
• Compare different hardware configurations (e.g., H100 vs A100 vs H200)
• Compare different parallelization strategies (e.g., different GPU counts or memory configurations)

AIPerf Quick Reference

Commonly Used Options

aiperf profile [OPTIONS]
REQUIRED:
  --model MODEL               Model name (must match the deployed model)
  --url URL                   Endpoint URL (e.g., http://localhost:8000)
COMMON OPTIONS:
  --endpoint-type TYPE        Endpoint type: chat, completions, embeddings (default: chat)
  --streaming                 Enable streaming responses
  --concurrency N             Number of concurrent requests
  --request-rate N            Target requests per second (alternative to --concurrency)
  --request-count N           Total number of requests to send
  --benchmark-duration N      Run for N seconds instead of a fixed request count
  --synthetic-input-tokens-mean N   Average input sequence length in tokens
  --output-tokens-mean N      Average output sequence length in tokens
  --artifact-dir DIR          Output directory for results (default: artifacts/)
  --warmup-request-count N    Warmup requests before measurement
  --ui TYPE                   UI mode: dashboard, simple, none (default: dashboard)

For the complete CLI reference, see aiperf profile --help or the CLI docs.

Output Sequence Length

To enforce a specific output length, pass ignore_eos and min_tokens via --extra-inputs:

$
aiperf profile \
>
    --model <model> \
>
    --url http://localhost:8000 \
>
    --endpoint-type chat \
>
    --streaming \
>
    --concurrency 10 \
>
    --output-tokens-mean 256 \
>
    --extra-inputs max_tokens:256 \
>
    --extra-inputs min_tokens:256 \
>
    --extra-inputs ignore_eos:true

Understanding Results

Each aiperf profile run produces an artifact directory containing:

• profile_export_aiperf.json — Structured metrics (latency, throughput, TTFT, ITL, etc.)
• profile_export.jsonl — Per-request raw data
• profile_export_aiperf.csv — CSV format metrics

Results are organized by the --artifact-dir you specify. For concurrency sweeps, a common pattern is:

artifacts/
├── deployment-a/
│   ├── c1/
│   │   ├── profile_export_aiperf.json
│   │   └── profile_export.jsonl
│   ├── c10/
│   ├── c50/
│   └── c100/
├── deployment-b/
│   ├── c1/
│   ├── c10/
│   ├── c50/
│   └── c100/
└── plots/                    # Generated by aiperf plot
    ├── ttft_vs_throughput.png
    ├── pareto_curve_throughput_per_gpu_vs_latency.png      # If GPU telemetry available
    └── pareto_curve_throughput_per_gpu_vs_interactivity.png # If GPU telemetry available

Server-Side Benchmarking (In-Cluster)

Server-side benchmarking runs directly within the Kubernetes cluster, eliminating port-forwarding overhead and enabling high-load testing.

Prerequisites

1. Kubernetes cluster with NVIDIA GPUs and Dynamo namespace setup (see Dynamo Kubernetes Platform docs)
2. Storage: PersistentVolumeClaim configured with appropriate permissions (see deploy/utils README)
3. Docker image containing AIPerf (Dynamo runtime images include it)

Quick Start

Step 1: Deploy Your DynamoGraphDeployment

Deploy a DynamoGraphDeployment using a matching Dynamo Recipe, the Deployment Overview, or the backend examples in examples/backends. Ensure it has a frontend service exposed and the model is fully loaded before running benchmarks — check pod logs or verify the health endpoint returns 200 OK.

Step 2: Configure and Run Benchmark Job

If your recipe includes a perf.yaml, start from that benchmark job because it already encodes the model, endpoint, workload shape, and result collection expected by the recipe. Otherwise, use the generic job below.

First, edit benchmarks/incluster/benchmark_job.yaml to match your deployment:

• Model name: Update the MODEL variable
• Service URL: Update the URL variable (use <svc_name>.<namespace>.svc.cluster.local:port for cross-namespace access)
• Concurrency levels: Adjust the for c in ... loop
• Docker image: Update the image field if needed

Then deploy:

$
export NAMESPACE=benchmarking
$
$
# Deploy the benchmark job
$
kubectl apply -f benchmarks/incluster/benchmark_job.yaml -n $NAMESPACE
$
$
# Monitor the job
$
kubectl logs -f job/dynamo-benchmark -n $NAMESPACE

Step 3: Retrieve Results

$
# Create access pod (skip if already running)
$
kubectl apply -f deploy/utils/manifests/pvc-access-pod.yaml -n $NAMESPACE
$
kubectl wait --for=condition=Ready pod/pvc-access-pod -n $NAMESPACE --timeout=60s
$
$
# Download the results
$
kubectl cp $NAMESPACE/pvc-access-pod:/data/results ./results
$
$
# Cleanup
$
kubectl delete pod pvc-access-pod -n $NAMESPACE

Step 4: Generate Plots

$
aiperf plot ./results

Cross-Namespace Service Access

When referencing services in other namespaces, use full Kubernetes DNS:

$
# Same namespace
$
--url http://vllm-agg-frontend:8000
$
$
# Different namespace
$
--url http://vllm-agg-frontend.production.svc.cluster.local:8000

Monitoring and Debugging

$
# Check job status
$
kubectl describe job dynamo-benchmark -n $NAMESPACE
$
$
# Follow logs
$
kubectl logs -f job/dynamo-benchmark -n $NAMESPACE
$
$
# Check pod status
$
kubectl get pods -n $NAMESPACE -l job-name=dynamo-benchmark
$
$
# Debug failed pod
$
kubectl describe pod <pod-name> -n $NAMESPACE

Troubleshooting

1. Service not found: Ensure your DynamoGraphDeployment frontend service is running
2. PVC access: Check that dynamo-pvc is properly configured and accessible
3. Image pull issues: Ensure the Docker image is accessible from the cluster
4. Resource constraints: Adjust resource limits if the job is being evicted

$
# Check PVC status
$
kubectl get pvc dynamo-pvc -n $NAMESPACE
$
$
# Verify service exists and has endpoints
$
kubectl get svc -n $NAMESPACE
$
kubectl get endpoints <service-name> -n $NAMESPACE

Testing with DynoSim / Mocker

For development and testing purposes, Dynamo provides DynoSim and the mocker backend to simulate LLM inference without requiring actual GPU resources. This is useful for:

• Testing deployments without expensive GPU infrastructure
• Developing and debugging router, planner, or frontend logic
• CI/CD pipelines that need to validate infrastructure without model execution
• Benchmarking framework validation to ensure your setup works before using real backends

Mocker is the live simulated engine in DynoSim: it mimics the API and behavior of real backends (SGLang, TensorRT-LLM, vLLM) but generates mock responses instead of running actual inference. Use DynoSim Runs for one simulated workload/config trial and DynoSim Sweeps when you want to search across many candidate configurations.

See Live Simulation with Mocker for usage examples and configuration options.

Advanced AIPerf Features

AIPerf has many capabilities beyond basic profiling. Here are some particularly useful for Dynamo benchmarking:
