Interacting with an articulation

This tutorial shows how to interact with an articulated robot in the simulation. It is a continuation of the Interacting with a rigid object tutorial, where we learned how to interact with a rigid object. On top of setting the root state, we will see how to set the joint state and apply commands to the articulated robot.

The Code

The tutorial corresponds to the run_articulation.py script in the scripts/tutorials/01_assets directory.

# Copyright (c) 2022-2025, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
# All rights reserved.
#
# SPDX-License-Identifier: BSD-3-Clause
"""This script demonstrates how to spawn a cart-pole and interact with it.
~~~bash
# Usage
./isaaclab.sh -p scripts/tutorials/01_assets/run_articulation.py
~~~
"""
"""Launch Isaac Sim Simulator first."""
import argparse
from isaaclab.app import AppLauncher
# add argparse arguments
parser = argparse.ArgumentParser(description="Tutorial on spawning and interacting with an articulation.")
# append AppLauncher cli args
AppLauncher.add_app_launcher_args(parser)
# parse the arguments
args_cli = parser.parse_args()
# launch omniverse app
app_launcher = AppLauncher(args_cli)
simulation_app = app_launcher.app
"""Rest everything follows."""
import torch
import isaacsim.core.utils.prims as prim_utils
import isaaclab.sim as sim_utils
from isaaclab.assets import Articulation
from isaaclab.sim import SimulationContext
##
# Pre-defined configs
##
from isaaclab_assets import CARTPOLE_CFG  # isort:skip
def design_scene() -> tuple[dict, list[list[float]]]:
    """Designs the scene."""
    # Ground-plane
    cfg = sim_utils.GroundPlaneCfg()
    cfg.func("/World/defaultGroundPlane", cfg)
    # Lights
    cfg = sim_utils.DomeLightCfg(intensity=3000.0, color=(0.75, 0.75, 0.75))
    cfg.func("/World/Light", cfg)
    # Create separate groups called "Origin1", "Origin2"
    # Each group will have a robot in it
    origins = [[0.0, 0.0, 0.0], [-1.0, 0.0, 0.0]]
    # Origin 1
    prim_utils.create_prim("/World/Origin1", "Xform", translation=origins[0])
    # Origin 2
    prim_utils.create_prim("/World/Origin2", "Xform", translation=origins[1])
    # Articulation
    cartpole_cfg = CARTPOLE_CFG.copy()
    cartpole_cfg.prim_path = "/World/Origin.*/Robot"
    cartpole = Articulation(cfg=cartpole_cfg)
    # return the scene information
    scene_entities = {"cartpole": cartpole}
    return scene_entities, origins
def run_simulator(sim: sim_utils.SimulationContext, entities: dict[str, Articulation], origins: torch.Tensor):
    """Runs the simulation loop."""
    # Extract scene entities
    # note: we only do this here for readability. In general, it is better to access the entities directly from
    #   the dictionary. This dictionary is replaced by the InteractiveScene class in the next tutorial.
    robot = entities["cartpole"]
    # Define simulation stepping
    sim_dt = sim.get_physics_dt()
    count = 0
    # Simulation loop
    while simulation_app.is_running():
        # Reset
        if count % 500 == 0:
            # reset counter
            count = 0
            # reset the scene entities
            # root state
            # we offset the root state by the origin since the states are written in simulation world frame
            # if this is not done, then the robots will be spawned at the (0, 0, 0) of the simulation world
            root_state = robot.data.default_root_state.clone()
            root_state[:, :3] += origins
            robot.write_root_pose_to_sim(root_state[:, :7])
            robot.write_root_velocity_to_sim(root_state[:, 7:])
            # set joint positions with some noise
            joint_pos, joint_vel = robot.data.default_joint_pos.clone(), robot.data.default_joint_vel.clone()
            joint_pos += torch.rand_like(joint_pos) * 0.1
            robot.write_joint_state_to_sim(joint_pos, joint_vel)
            # clear internal buffers
            robot.reset()
            print("[INFO]: Resetting robot state...")
        # Apply random action
        # -- generate random joint efforts
        efforts = torch.randn_like(robot.data.joint_pos) * 5.0
        # -- apply action to the robot
        robot.set_joint_effort_target(efforts)
        # -- write data to sim
        robot.write_data_to_sim()
        # Perform step
        sim.step()
        # Increment counter
        count += 1
        # Update buffers
        robot.update(sim_dt)
def main():
    """Main function."""
    # Load kit helper
    sim_cfg = sim_utils.SimulationCfg(device=args_cli.device)
    sim = SimulationContext(sim_cfg)
    # Set main camera
    sim.set_camera_view([2.5, 0.0, 4.0], [0.0, 0.0, 2.0])
    # Design scene
    scene_entities, scene_origins = design_scene()
    scene_origins = torch.tensor(scene_origins, device=sim.device)
    # Play the simulator
    sim.reset()
    # Now we are ready!
    print("[INFO]: Setup complete...")
    # Run the simulator
    run_simulator(sim, scene_entities, scene_origins)
if __name__ == "__main__":
    # run the main function
    main()
    # close sim app
    simulation_app.close()

The Code Explained

Designing the scene

Similar to the previous tutorial, we populate the scene with a ground plane and a distant light. Instead of spawning rigid objects, we now spawn a cart-pole articulation from its USD file. The cart-pole is a simple robot consisting of a cart and a pole attached to it. The cart is free to move along the x-axis, and the pole is free to rotate about the cart. The USD file for the cart-pole contains the robot’s geometry, joints, and other physical properties.

For the cart-pole, we use its pre-defined configuration object, which is an instance of the assets.ArticulationCfg class. This class contains information about the articulation’s spawning strategy, default initial state, actuator models for different joints, and other meta-information. A deeper-dive into how to create this configuration object is provided in the Writing an Asset Configuration tutorial.

As seen in the previous tutorial, we can spawn the articulation into the scene in a similar fashion by creating an instance of the assets.Articulation class by passing the configuration object to its constructor.

# Create separate groups called "Origin1", "Origin2"
# Each group will have a robot in it
origins = [[0.0, 0.0, 0.0], [-1.0, 0.0, 0.0]]
# Origin 1
prim_utils.create_prim("/World/Origin1", "Xform", translation=origins[0])
# Origin 2
prim_utils.create_prim("/World/Origin2", "Xform", translation=origins[1])
# Articulation
cartpole_cfg = CARTPOLE_CFG.copy()
cartpole_cfg.prim_path = "/World/Origin.*/Robot"
cartpole = Articulation(cfg=cartpole_cfg)

Running the simulation loop

Continuing from the previous tutorial, we reset the simulation at regular intervals, set commands to the articulation, step the simulation, and update the articulation’s internal buffers.

Resetting the simulation

Similar to a rigid object, an articulation also has a root state. This state corresponds to the root body in the articulation tree. On top of the root state, an articulation also has joint states. These states correspond to the joint positions and velocities.

To reset the articulation, we first set the root state by calling the Articulation.write_root_pose_to_sim and Articulation.write_root_velocity_to_sim methods. Similarly, we set the joint states by calling the Articulation.write_joint_state_to_sim method. Finally, we call the Articulation.reset method to reset any internal buffers and caches.

# reset the scene entities
# root state
# we offset the root state by the origin since the states are written in simulation world frame
# if this is not done, then the robots will be spawned at the (0, 0, 0) of the simulation world
root_state = robot.data.default_root_state.clone()
root_state[:, :3] += origins
robot.write_root_pose_to_sim(root_state[:, :7])
robot.write_root_velocity_to_sim(root_state[:, 7:])
# set joint positions with some noise
joint_pos, joint_vel = robot.data.default_joint_pos.clone(), robot.data.default_joint_vel.clone()
joint_pos += torch.rand_like(joint_pos) * 0.1
robot.write_joint_state_to_sim(joint_pos, joint_vel)
# clear internal buffers
robot.reset()

Stepping the simulation

Applying commands to the articulation involves two steps:

Setting the joint targets: This sets the desired joint position, velocity, or effort targets for the articulation.
Writing the data to the simulation: Based on the articulation’s configuration, this step handles any actuation conversions and writes the converted values to the PhysX buffer.

In this tutorial, we control the articulation using joint effort commands. For this to work, we need to set the articulation’s stiffness and damping parameters to zero. This is done a-priori inside the cart-pole’s pre-defined configuration object.

At every step, we randomly sample joint efforts and set them to the articulation by calling the Articulation.set_joint_effort_target method. After setting the targets, we call the Articulation.write_data_to_sim method to write the data to the PhysX buffer. Finally, we step the simulation.

# Apply random action
# -- generate random joint efforts
efforts = torch.randn_like(robot.data.joint_pos) * 5.0
# -- apply action to the robot
robot.set_joint_effort_target(efforts)
# -- write data to sim
robot.write_data_to_sim()

Updating the state

Every articulation class contains a assets.ArticulationData object. This stores the state of the articulation. To update the state inside the buffer, we call the assets.Articulation.update method.

# Update buffers
robot.update(sim_dt)

The Code Execution

To run the code and see the results, let’s run the script from the terminal:

./isaaclab.sh -p scripts/tutorials/01_assets/run_articulation.py

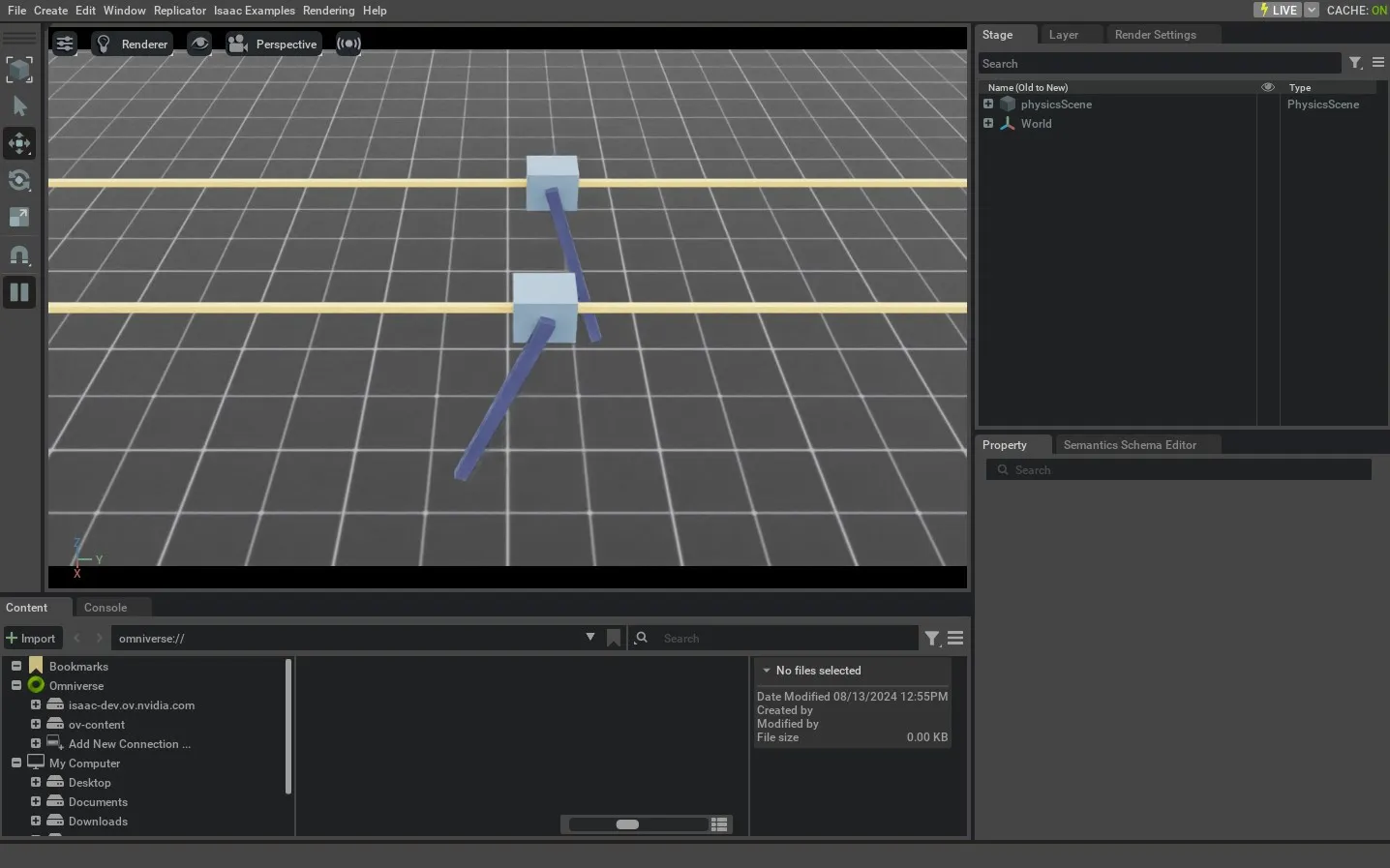

This command should open a stage with a ground plane, lights, and two cart-poles that are moving around randomly. To stop the simulation, you can either close the window, or press Ctrl+C in the terminal.

In this tutorial, we learned how to create and interact with a simple articulation. We saw how to set the state of an articulation (its root and joint state) and how to apply commands to it. We also saw how to update its buffers to read the latest state from the simulation.

In addition to this tutorial, we also provide a few other scripts that spawn different robots. These are included in the scripts/demos directory. You can run these scripts as:

# Spawn many different single-arm manipulators
./isaaclab.sh -p scripts/demos/arms.py
# Spawn many different quadrupeds
./isaaclab.sh -p scripts/demos/quadrupeds.py
