Image Segmentation Without Simulation#

Overview#

In this module, we will test the Isaac ROS image segmentation package using pre-recorded data (rosbags). This step is crucial for understanding how the software works before integrating it into a simulated environment. By running the image segmentation package on pre-recorded data, we can focus on the functionality of the software itself without the added complexity of simulation.

We will use the PeopleSemSegNet model, a pre-trained semantic segmentation model designed to identify and segment people in images. This model leverages GPU acceleration for efficient and accurate pixel-level classification. The module will also introduce you to the Isaac ROS development container, which simplifies the setup process by providing all necessary dependencies in a pre-configured environment.

By the end of this module, you will:

Gain hands-on experience with Isaac ROS development tools.
Learn how to set up and run the image segmentation package using a docker-based development container.
Test the PeopleSemSegNet model on pre-recorded data to validate its functionality.

This foundational knowledge will prepare you for the next module, where we will test the same software in a simulated environment using Isaac Sim.

Isaac ROS Development#

In this section, we will explore the basics of working with Isaac ROS, NVIDIA’s collection of GPU-accelerated ROS 2 packages designed for advanced robotics applications. While the focus here is on using Isaac ROS as a tool to understand and implement Software-in-the-Loop (SIL), we will not dive deeply into the specifics of Isaac ROS itself. For more comprehensive details, you can refer to the official Isaac ROS documentation .
Using the PeopleSemSegNet model, a pre-trained semantic segmentation model for segmenting people in images, we will set up the development environment and download the necessary assets to prepare for running the image segmentation package.

Prepare Environment#

Access the documentation:
- Navigate to the Isaac ROS Image Segmentation documentation .
  - Open the Isaac ROS Unet Quickstart section for detailed setup instructions. We have listed them below as well.

Set up the Development Environment:
- In a terminal, follow the steps provided in the link above.
  - Per Step 2, in Isaac ROS Unet Quickstart, clone the isaac_ros_common repository into your workspace by running:

cd ${ISAAC_ROS_WS}/src &&
git clone -b release-3.1`
https://github.com/NVIDIA-ISAAC-ROS/isaac_ros_common.git isaac_ros_common

Follow Step 3 in the quickstart above to install dependencies for sensors if needed. This is optional.

Download Quickstart Assets:
- Follow the instructions under Download Quickstart Assets in the documentation.
- This will include downloading the PeopleSemSegNet model, which is stored in the isaac_ros_assets folder within your workspace.

At this point, you have successfully set up your development environment and downloaded all required assets for people segmentation. These steps ensure that you are ready to use Isaac ROS for testing and validating image segmentation software in subsequent sections.

Using Isaac ROS Development Center#

In this section, we will set up and use the Isaac ROS development container to run the image segmentation ROS 2 package. The container is pre-configured with all the necessary libraries and dependencies, making it the recommended way to develop and test Isaac ROS packages. This setup ensures a streamlined environment for running the PeopleSemSegNet model for image segmentation.

In this section, we’ll:

Launch the Isaac ROS development container.
Prepare the PeopleSemSegNet model by converting it into a TensorRT plan file.
Set up the container to run the image segmentation package in subsequent steps.

Launch the Isaac ROS Development Container#

Open a terminal on your system.

Follow Steps 1 and 2 under Build isaac_ros_unet in the Isaac ROS documentation.
- Step 1 will guide you through launching the Docker container.

Note

The first time you launch the container, it may take up to an hour to build and start, as it downloads and configures all required dependencies.

Prepare the PeopleSemSegNet Model#

Once inside the container, follow the steps under Prepare PeopleSemSegnet Model.

This process will install model assets and convert the downloaded PeopleSemSegNet model into a TensorRT plan file optimized for GPU inference. This step typically takes about 5 minutes.

Verify Setup#

Ensure that both the container and model preparation steps have completed successfully. At this point, your environment is ready to run the image segmentation package.#

Once the development container is set up, we will use a launch file to run the image segmentation example with pre-recorded data (rosbag). A launch file simplifies execution by starting all required ROS packages with a single command. Learn more about rosbags here and launch files here.

By completing this setup, you are now prepared to test image segmentation using pre-recorded data in the next section.

Image Segmentation#

In this section, we will run the Isaac ROS image segmentation package using pre-recorded data stored in a rosbag.

A rosbag is a file format in ROS used to record and playback data streams, such as images or sensor readings.

This step allows us to validate the functionality of the PeopleSemSegNet model and observe its segmentation results on pre-recorded images.

../_images/image-segmentation-sample.png

In this section, we’ll:

Launch the image segmentation package using a ROS 2 launch file.
Play back the rosbag containing pre-recorded image data (image above).
Visualize the segmentation results using the rqt_image_view tool.

Run the Launch File#

Open a terminal and ensure your Isaac ROS development container is running.
Follow Steps 1 and 2 under Run Launch File in the Isaac ROS documentation.
- This will start the image segmentation package.
Check for the message Node was started in the terminal to confirm that the package is running without errors.

Play Back the Rosbag#

Open a second terminal and attach it to the same running container as in Step 1. Follow Step 3 in the documentation to attach to the container.
Follow Step 4 to play back the rosbag containing pre-recorded image data.

Visualize Segmentation Results#

Open a third terminal and follow Step 1 under Visualize Results.
Run rqt_image_view by following Step 2 in the documentation.
- After about a minute, a window will open displaying segmentation results.
In rqt_image_view, switch topics to view:
- The original input image.
- The segmented output where people are highlighted.

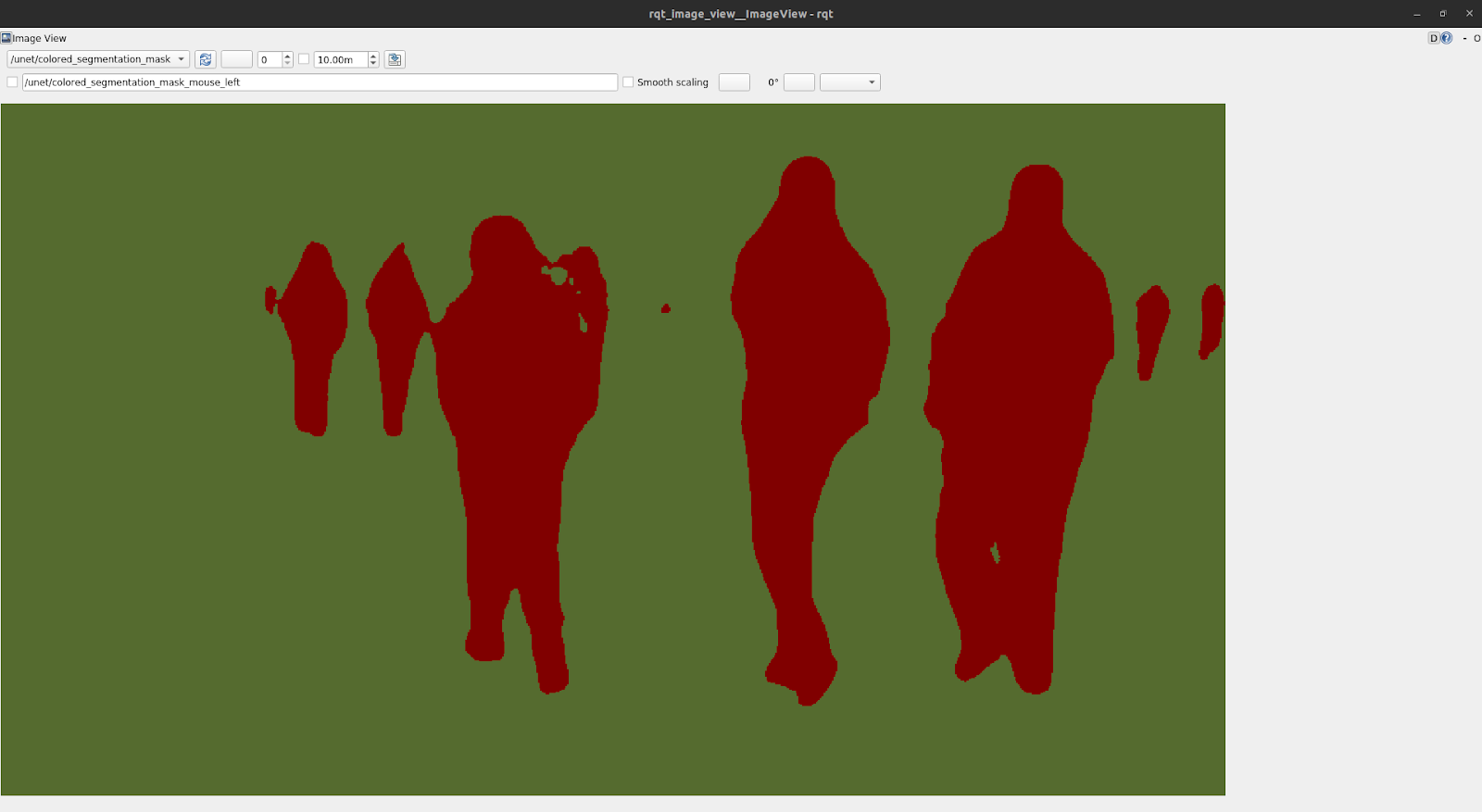

By completing these steps, you will have successfully tested the image segmentation package on pre-recorded data. The PeopleSemSegNet model will process the image from the rosbag, segmenting people in the image and displaying them as colorized masks.#

This step helps validate that the software works as expected before moving on to more complex scenarios involving simulated environments, which we will explore in the next module.

Review#

In this module, we focused on testing the Isaac ROS image segmentation package using pre-recorded data (rosbags) to validate its functionality before integrating it into a simulated environment. This step was essential for understanding how the software processes image data and generates segmentation results.

In this module:

Environment Setup: We configured the Isaac ROS development environment and downloaded the PeopleSemSegNet model assets.
Using the Development Container: We utilized the pre-configured Isaac ROS development container to streamline dependency management and ensure seamless execution.
Testing with Rosbags: We ran the image segmentation package on pre-recorded data, allowing us to evaluate the PeopleSemSegNet model’s ability to perform semantic segmentation on images.
Visualization: Using rqt_image_view, we visualized segmentation results, confirming that the software successfully segmented people in the images.

This module demonstrated how to test and validate an image segmentation package in a controlled environment without simulation. With this foundational understanding, we are now prepared to run the same package in a simulated environment using Isaac Sim in the next module, where Software-in-the-Loop (SIL) will be fully implemented.#
