Specifications

Warning

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Electrical and Thermal Specifications document, which is available at NVOnline following login.

Important

The BlueField-2 DPU is designed and validated for operation in data-center servers and other large environments that guarantee proper power supply and airflow conditions.

The DPU is not intended for installation on a desktop or a workstation. Moreover, installing the DPU in any system without proper power and airflow levels can impact the DPU's functionality and potentially damage it. Failure to meet the environmental requirements listed in this user manual may void the warranty.

Important

Ensure your system supports the following system hardware and power supply requirements prior to installing your card.

HHHL DPUs

75W or greater system power supply through the PCIe x8 interface

FHHL DPUs

E-Series DPUs: A maximum of 75W system power supply through the PCIe x16 interface.

P-Series DPUs: A minimum of 75W or greater system power supply through the PCIe x16 interface, and an additional 75W through the supplementary 6-pin ATX power supply connector.

BlueField-2 SoC

BlueField-2 P-Series - 8 Cores - 500MHz/2500MHz

  • MBF2H332A-AECOT: Crypto Enabled, Secure Boot Enabled

  • MBF2H332A-AEEOT: Crypto Enabled, Secure Boot Disabled

  • MBF2H332A-AENOT: Crypto Disabled, Secure Boot Disabled

Physical

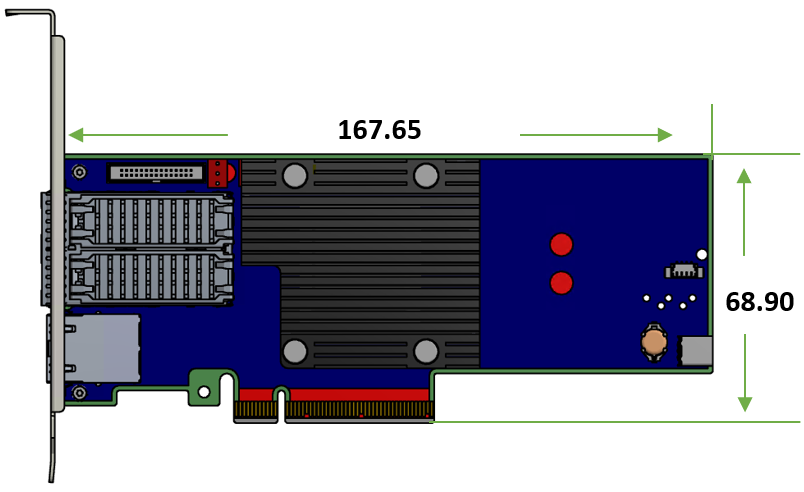

Card Dimensions (HHHL): 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)

Bracket Dimensions: 4.73 in. x 0.85 in. (121.0mm x 21.6mm)

Connector: Dual SFP56 (copper and optical)

Interfaces

See Interfaces of MBF2H332A-AECOT, MBF2H332A-AEEOT, MBF2H332A-AENOT

PCI Express Gen4.0: SERDES 16.0GT/s, 8 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support

Data Rate: 25/10/1 Gb/s Ethernet

Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

On-board Memory

Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s
64GB eMMC memory

DPU Power Consumption and Airflow

Voltage: 12V

Maximum power available through SFP56 port: 2W

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Ca

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety

CB / cTUVus / CE

EMC

CE / FCC / VCCI / ICES / RCM

RoHS

RoHS compliant

Notes:
(a) The non-operational storage temperature specifications apply to the product without its package.

BlueField-2 SoC

BlueField-2 E-Series - 8 Cores - 43 0MHz/2000MHz

MBF2M355A-VECOT: Crypto Enabled, Secure Boot Enabled

MBF2M355A-VESOT: Crypto Disabled, Secure Boot Enabled

Physical

Card Dimensions (HHHL): 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)

Bracket Dimensions: 4.73 in. x 0.85 in. (121.0mm x 21.6mm)

Connector: Single QSFP56 (copper and optical)

Interfaces

See Interfaces of MBF2M355A-VECOT, MBF2M355A-VESOT

PCI Express Gen4.0: SERDES @ 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support

Data Rate: 200/100/50/25/10/1 Gb/s Ethernet

Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2

On-board Memory

Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 32GB @ 3200MT/s, 64GB eMMC memory

Power Supply, Consumption and Airflow

Voltage: 12V

Maximum power available through QFP56 port: 6W

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Ca

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety

CB / cTUVus / CE

EMC

CE / FCC / VCCI / ICES / RCM

RoHS

RoHS compliant

Notes:
(a) The non-operational storage temperature specifications apply to the product without its package.

BlueField-2 SoC

BlueField-2 P-Series - 8 Cores - 500MHz/2500MHz

  • MBF2H512C-AECOT: Crypto Enabled, Secure Boot Enabled

  • MBF2H512C-AESOT: Crypto Disabled, Secure Boot Enabled

  • MBF2H512C-AEUOT: Crypto Disabled, Secure Boot Enabled with UEFI disabled

Physical

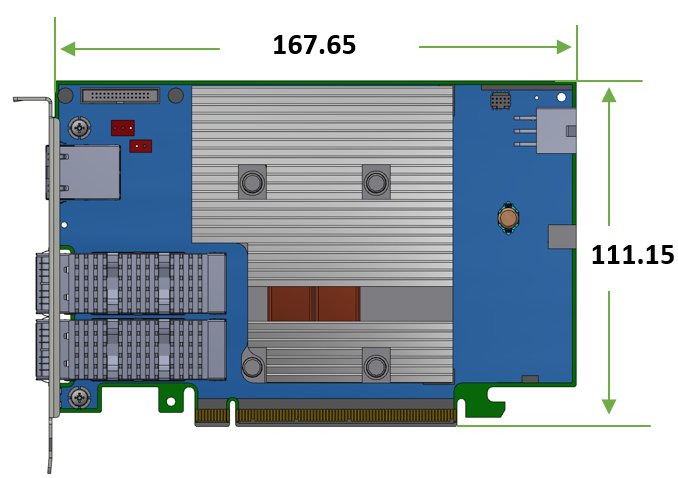

Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)

Bracket Dimensions: 4.73 in. x 0.85 in. (121.0mm x 21.6mm)

Connector: Dual SFP56 (copper and optical)

Interfaces

See Interfaces of MBF2H512C-AECOT, MBF2H512C-AESOT, MBF2H512C-AEUOT

PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 8 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support

Data Rate: 25/10/1 Gb/s Ethernet

Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

On-board Memory

Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s, 128GB eMMC memory

Power Supply, Consumption and Airflow

Voltage: 12V

Maximum power available through SFP56 port: 1.5W (per port)

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Ca

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety

CB / cTUVus / CE

EMC

CE / FCC / VCCI / ICES / RCM

RoHS

RoHS compliant

Notes:
(a) The non-operational storage temperature specifications apply to the product without its package.

BlueField-2 SoC

BlueField-2 P-Series - 8 Cores - 500MHz/2500MHz

  • MBF2H532C-AECOT: Crypto Enabled, Secure Boot Enabled

  • MBF2H532C-AESOT: Crypto Disabled, Secure Boot Enabled

Physical

Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)

Bracket Dimensions: 4.73 in. x 0.72 in. (121.0mm x 18.4mm)

Connector: Dual SFP56 (copper and optical)

Interfaces

See Interfaces of MBF2H532C-AECOT, MBF2H532C-AESOT

PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 8 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support

Data Rate: 25/10/1 Gb/s Ethernet

Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

On-board Memory

Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 32GB @ 3200MT/s, 128GB eMMC memory

DPU Power Supply, Consumption and Airflow

Voltage: 12V

Maximum power available through SFP56 port: 1.5W (per port)

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Ca

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety

CB / cTUVus / CE

EMC

CE / FCC / VCCI / ICES / RCM

RoHS

RoHS compliant

Notes:
(a) The non-operational storage temperature specifications apply to the product without its package.

Important

To power-up these FHHL P-Series DPUs with x16 PCIe Gen 4.0 lanes , you need to connect a PCIe external power cable to the on-board 6-pin ATX connector. The PCIe external power cable should be supplied by the customer (usually available with the server). Refer to External Power Supply Connector pinouts for pin descriptions.

BlueField-2 SoC

BlueField-2 P-Series - 8 Cores - 550MHz/2750MHz

  • MBF2H516A-CEEOT: Crypto Enabled, Secure Boot Enabled

  • MBF2H516A-CENOT: Crypto Disabled, Secure Boot Enabled

Physical

Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)

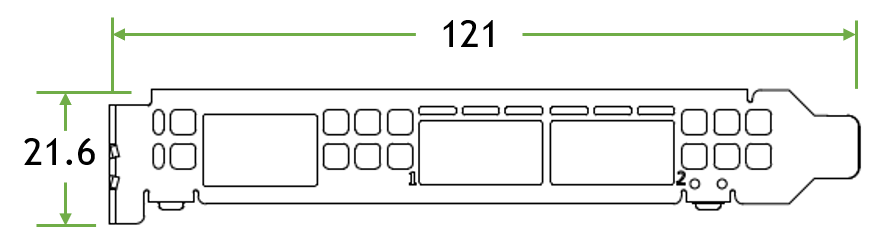

Bracket Dimensions: 4.73 in. x 0.72 in. (121.0mm x 18.4mm)

Connector: Dual QSFP56 (copper and optical)

Interfaces

See Interfaces of MBF2H516A-CEEOT, MBF2H516A-CENOT

PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support

Data Rate: 100/50/40/25//10/1 Gb/s Ethernet

Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

On-board Memory

Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s, 64GB eMMC memory

Capabilities

DPU Power Supply, Consumption and Airflow

Voltage: 12V

Maximum power available through QSFP56 port: 2.5W (per port)

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Ca

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety

CB / cTUVus / CE

EMC

CE / FCC / VCCI / ICES / RCM

RoHS

RoHS compliant

Notes:
(a) The non-operational storage temperature specifications apply to the product without its package.

BlueField-2 SoC

BlueField®-2 E-Series - 8 Cores 430MHz/2000MHz

MBF2M516A-CECOT(a): Crypto Enabled, Secure Boot Enabled
MBF2M516A-CEEOT: Crypto Enabled, Secure Boot Disabled
MBF2M516A-CENOT: Crypto Disabled, Secure Boot Disabled

Physical

Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)

Bracket Dimensions: 4.73 in. x 0.72 in. (121.0mm x 18.4mm)

Connector: Dual QSFP56 (copper and optical)

Interfaces

See Interfaces of MBF2M516A-CECOT, MBF2M516A-CEEOT, MBF2M516A-CENOT

PCI Express Gen4.0: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support

Data Rate: 100/50/40/25//10/1 Gb/s Ethernet

Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

On-board Memory

Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s

64GB eMMC memory

Capabilities

DPU Power Supply, Consumption and Airflow

Voltage: 12V

Maximum power available through QSFP56 port: 2.5W (per port)

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°C(b)

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety

CB / cTUVus / CE

EMC

CE / FCC / VCCI / ICES / RCM

RoHS

RoHS compliant

Notes:
(a) If your target application for this crypto-enabled card will utilize 100Gb/s or higher bandwidth, where a substantial part of the bandwidth will be allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Release Notes document to learn about a potential bandwidth limitation. See Related Documents section for details on accessing the document.
(b) The non-operational storage temperature specifications apply to the product without its package.

Important

To power-up these FHHL P-Series DPUs with x16 PCIe Gen 4 lanes , you need to connect a PCIe external power cable to the onboard 6-pin ATX connector. The PCIe external power cable should be supplied by the customer (usually available with the server). Refer to External Power Supply Connector pinouts for pin descriptions.

BlueField-2 SoC

BlueField-2 P-Series - 8 Cores - 550MHz/2750MHz

MBF2H516C-CECOT(a): Crypto Enabled, Secure Boot Enabled
MBF2H516C-CESOT: Crypto Disabled, Secure Boot Enabled
MBF2H516C-CEUOT: Crypto Disabled, Secure Boot Enabled with UEFI Disabled
MBF2H536C-CECOT(a): Crypto Enabled, Secure Boot Enabled
MBF2H536C-CESOT: Crypto Disabled, Secure Boot Enabled
MBF2H536C-CEUOT: Crypto Disabled, Secure Boot Enabled with UEFI Disabled

Physical

Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)

Bracket Dimensions: 4.73 in. x 0.72 in. (121.0mm x 18.4mm)

Connector: Dual QSFP56 (copper and optical)

Interfaces

See Interfaces of MBF2H516C-CECOT, MBF2H516C-CESOT, MBF2H516C-CEUOT, MBF2H536C-CECOT, MBF2H536C-CESOT, MBF2H536C-CEUOT

PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support

Data Rate: 100/50/40/25//10/1 Gb/s Ethernet

Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

Onboard Memory

Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB or 32GB @ 3200MT/s (16GB for MBF2H516C-CECOT, MBF2H516C-CESOT, MBF2H516C-CEUOT; 32GB for MBF2H536C-CECOT, MBF2H536C-CESOT)

128GB eMMC memory

Capabilities

DPU Power Supply, Consumption and Airflow

Voltage: 12V

Maximum power available through QSFP56 port: 2.5W (per port)

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°C(b)

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety

CB / cTUVus / CE

EMC

CE / FCC / VCCI / ICES / RCM

RoHS

RoHS compliant

Notes:
(a) If your target application for this crypto-enabled card will utilize 100Gb/s or higher bandwidth, where a substantial part of the bandwidth will be allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Product Release Notes document to learn about a potential bandwidth limitation. See Related Documents section for details on accessing the document.
(b) The non-operational storage temperature specifications apply to the product without its package.

BlueField-2 SoC

BlueField-2 E-Series - 8 Cores - 430MHz/2000MHz

MBF2M516C-CECOT(a): Crypto Enabled, Secure Boot Enabled
MBF2M516C-CESOT: Crypto Disabled, Secure Boot Enabled

Physical

Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)

Bracket Dimensions: 4.73 in. x 0.72 in. (121.0mm x 18.4mm)

Connector: Dual QSFP56 (copper and optical)

Interfaces

See Interfaces of MBF2M516C-CECOT, MBF2M516C-CESOT

PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support

Data Rate: 100/50/40/25//10/1 Gb/s Ethernet

Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

On-board Memory

Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s

128GB eMMC memory

DPU Power Supply, Consumption and Airflow

Voltage: 12V

Maximum power available through QSFP56 port: 2.5 (per port)

Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Ca

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety

CB / cTUVus / CE

EMC

CE / FCC / VCCI / ICES / RCM

RoHS

RoHS compliant

(a) If your target application for this crypto-enabled card will utilize 100Gb/s or higher bandwidth, where a substantial part of the bandwidth will be allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Product Release Notes document to learn about a potential bandwidth limitation. See Related Documents section for details on accessing the document.
(b) The non-operational storage temperature specifications apply to the product without its package.

Warning

All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.

The diagrams may differ for different cards and are provided here for illustration purposes only.

HHHL DPUs

FHHL DPUs



Warning

All dimensions are in millimeters.

OPNs

Bracket

MBF2H332A-AECOT
MBF2H332A-AEEOT
MBF2H332A-AENOT


MBF2H516C-CECOT
MBF2H516C-CESOT
MBF2H516C-CEUOT
MBF2M516C-CECOT
MBF2M516C-CESOT
MBF2H536C-CECOT
MBF2H536C-CESOT
MBF2H536C-CEUOT


MBF2H512C-AECOT
MBF2H512C-AESOT
MBF2H512C-AEUOT
MBF2H532C-AECOT
MBF2H532C-AESOT


MBF2H516A-CEEOT
MBF2H516A-CENOT
MBF2M516A-CECOT
MBF2M516A-CEEOT
MBF2M516A-CENOT


MBF2M355A-VECOT
MBF2M355A-VESOT

Tall bracket:


Short bracket:


© Copyright 2023, NVIDIA. Last updated on Sep 9, 2023.
