MNG Console Interfaces

Important

RJ-45 Console and I²C interfaces are integrated in the same connector. Due to that, connecting any cable other than the Mellanox supplied console cable may cause an I²C hang.

Using uncertified cables may damage the I²C interface. Refer to the Replacement Parts Ordering Numbers appendix for harness details.

RJ-45 CONSOLE and I²C Pinout

Signal

Pin#

Color

Not connected

1

G/W

I²C_SCL

2

G

TXD

3

O/W

Not connected

4

Bl

GND

5

Bl/W

RXD

6

O

I²C_SDA

7

Br/W

Not connected

8

Br

RS232 harness cable (DB9 to RJ45) is supplied to connect a host PC to the switch’s RJ-45 Console port.

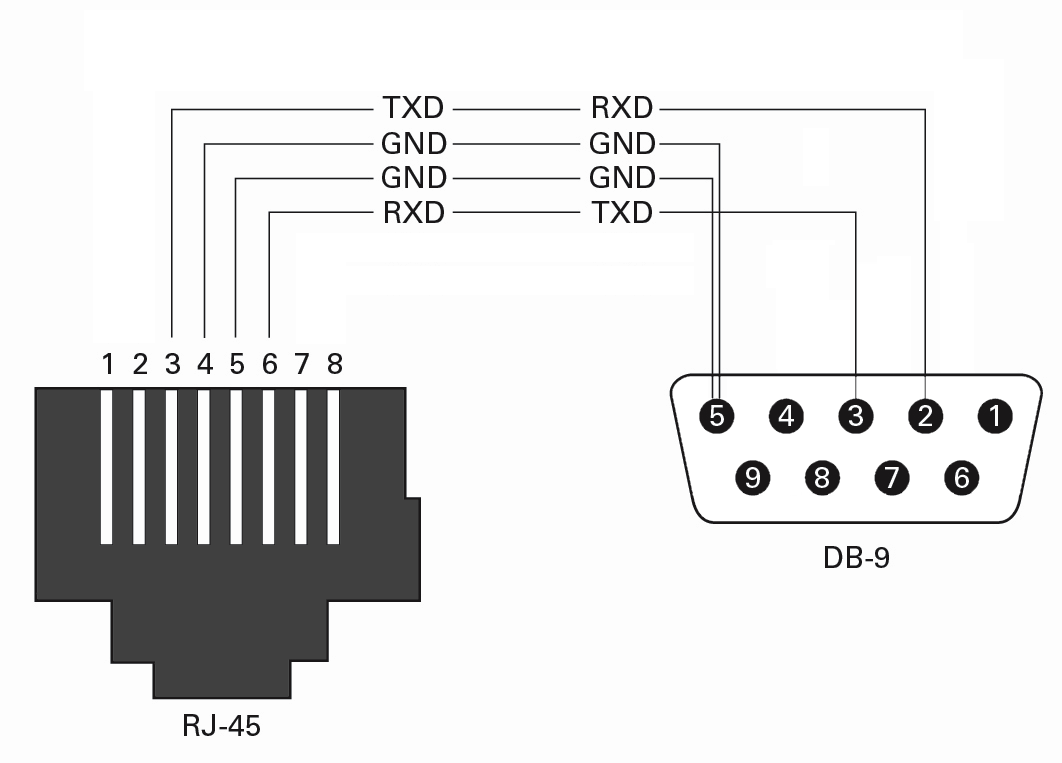

RJ45 to DB9 Harness Pinout
