DPA All-to-all

NVIDIA DOCA DPA All-to-all Application Guide

This guide explains the all-to-all collective operation example when accelerated using the DPA in NVIDIA® BlueField®-3 DPU.

This example shows how the MPI all-to-all collective can be accelerated on the DPA. In an MPI collective, all processes in the same job call the collective routine.

Given a communicator of n ranks, the example performs a collective operation in which all the processes send and receive the same amount of data from all the processes (hence all-to-all).

This document describes how to run the all-to-all example using DOCA DPA.

All-to-all is a message passing interface (MPI) method. MPI is a standardized and portable message-passing standard designed to function on parallel computing architectures. An MPI program is one where several processes run in parallel.

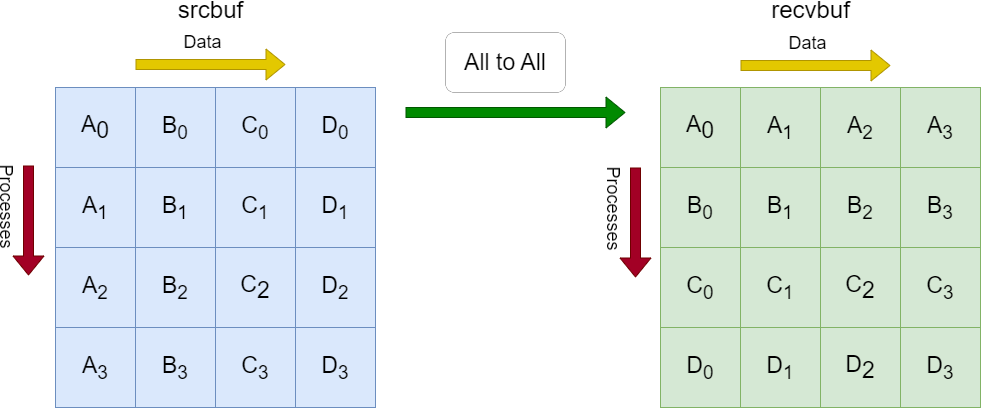

Each process in the diagram divides its local sendbuf into n blocks (4 in this example), each containing sendcount (4 in this example) elements. Process i sends the k-th block of its local sendbuf to process k which places the data in the i-th block of its local recvbuf.

Implementing the all-to-all method using DOCA DPA offloads the copying of the elements from the srcbuf to the recvbufs to the DPA, and leaves the CPU free to perform other computations.

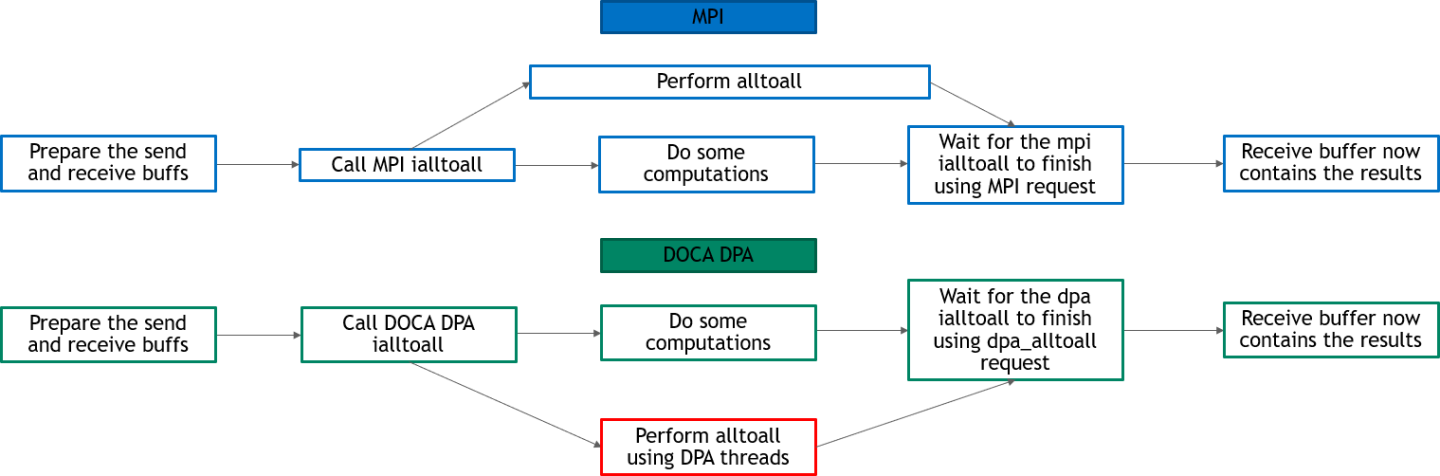

The following diagram describes the differences between the host-based all-to-all and DPA all-to-all.


  • In DPA all-to-all, DPA threads perform the all-to-all and the CPU is free to do other computations
  • In host-based all-to-all, the CPU must still perform the all-to-all at some point and is not completely free for other computations

This application leverages the following DOCA driver:

This section lists the application's configuration flow which includes different FlexIO functions and wrappers.

  1. Initialize MPI.
    Copy
    Copied!


    MPI_Init(&argc, &argv);

  2. Parse application argument.
    1. Initialize arg parser resources and register DOCA general parameters.
      Copy
      Copied!


      doca_argp_init();

    2. Register the application's parameters.
      Copy
      Copied!


      register_all_to_all_params();

    3. Parse the arguments.
      Copy
      Copied!


      doca_argp_start();

      1. The msgsize parameter is the size of the sendbuf and recvbuf (in bytes). It must be in multiples of an integer and at least the number of processes times an integer size.
      2. The devices_param parameter is the names of the InfiniBand devices to use (must support DPA). It can include up to two devices names.
    4. Only let the first process (of rank 0) parse the parameters to then broadcast them to the rest of the processes.
  3. Check and prepare the needed resources for the all_to_all call:
    • Check the number of processes (maximum is 16).
    • Check the msgsize. It must be in multiples of integer size and at least the number of processes times integer size.
    • Allocate the sendbuf and recvbuf according to msgsize.
  4. Prepare the resources required to perform the all-to-all method using DOCA DPA:
    1. Initialize DOCA DPA context:
      1. Open DOCA DPA device (DOCA device that supports DPA).
        Copy
        Copied!


        open_dpa_device();

      2. Create DOCA DPA context using the opened device.
        Copy
        Copied!


        doca_dpa_create();

    2. Create the required events for the all-to-all: One completion event for the kernel launch (wait location CPU and update location DPA) and kernel events (wait location remote and update location DPA) as the number of processes.
      Copy
      Copied!


      create_dpa_a2a_events() { doca_dpa_event_create(doca_dpa, DOCA_DPA_EVENT_ACCESS_DPA, DOCA_DPA_EVENT_ACCESS_CPU, DOCA_DPA_EVENT_WAIT_DEFAULT, &comp_event, 0); for (i = 0; i < resources->num_ranks; i++) doca_dpa_event_create(doca_dpa, DOCA_DPA_EVENT_ACCESS_REMOTE, DOCA_DPA_EVENT_ACCESS_DPA, DOCA_DPA_EVENT_WAIT_DEFAULT, &(kernel_events[i]), 0); }

    3. Create DOCA DPA worker (for the endpoints).
      Copy
      Copied!


      doca_dpa_worker_create();

    4. Prepare DOCA DPA endpoints:
      1. Create DOCA DPA endpoints as the number of processes/ranks.
        Copy
        Copied!


        for (i = 0; i < resources->num_ranks; i++) doca_dpa_ep_create();

      2. Connect the local process' endpoints to the other processes' endpoints.
        Copy
        Copied!


        connect_dpa_a2a_endpoints();

      3. Export the endpoints to DOCA DPA device endpoints (so they can be used by the DPA) and copy them to DPA heap memory.
        Copy
        Copied!


        for (int i = 0; i < resources->num_ranks; i++) { result = doca_dpa_ep_dev_export(); doca_dpa_mem_alloc(); doca_dpa_h2d_memcpy(); }

    5. Prepare the memory required to perform the all-to-all method using DOCA DPA. This includes creating memory handlers for the sendbuf and recvbuf, getting the other processes' recvbufs handlers, and copying these memory handlers and their remote keys and the events' handlers to the DPA heap memory.
      Copy
      Copied!


      prepare_dpa_a2a_memory();

  5. Launch the alltoall_kernel using DOCA DPA kernel launch with all the required parameters:
    1. Every MPI rank launches a kernel of up to MAX_NUM_THREADS. This example defines MAX_NUM_THREADS as 16.
    2. Launch alltoall_kernel using kernel_launch.
      Copy
      Copied!


      doca_dpa_kernel_launch();

    3. Using the doca_dpa_dev_put_signal_nb() function, copy the relevant sendbuf to the correct recvbuf (according to the process' rank) for every OS process. Remember that multithreading is also used inside of the DPA threads.
      Copy
      Copied!


      for (i = thread_rank; i < num_ranks; i += num_threads) doca_dpa_dev_put_signal_nb();

    4. Wait until the alltoall_kernel has finished.
      Copy
      Copied!


      doca_dpa_event_wait_until();

      Note:

      Add an MPI barrier after waiting for the event to make sure that all of the processes have finished executing the alltoall_kernel.

      Copy
      Copied!


      MPI_Barrier();

      After the alltoall_kernel is finished, the recvbuf of all the processes now contain the expected output of the all-to-all method.

  6. Destroy the a2a_resources:
    1. Free all the DOCA DPA memories.
      Copy
      Copied!


      doca_dpa_mem_free();

    2. Unregister all the DOCA DPA host memories.
      Copy
      Copied!


      doca_dpa_mem_unregister();

    3. Destroy all the DOCA DPA endpoints.
      Copy
      Copied!


      doca_dpa_ep_destroy();

    4. Destroy the DOCA DPA worker.
      Copy
      Copied!


      doca_dpa_worker_destroy();

    5. Destroy all the DOCA DPA events.
      Copy
      Copied!


      doca_dpa_event_destroy();

    6. Destroy the DOCA DPA context.
      Copy
      Copied!


      doca_dpa_destroy();

    7. Close the DOCA device.
      Copy
      Copied!


      doca_dev_close();

  • BlueField-3 or later
  • Ubuntu 18.04/20.04/22.04 on the host (x86)
  • Open MPI version 4.1.5rc2 or greater (included in DOCA installation)

  1. Refer to the following documents:
  2. The doca_dpa_all_to_all binary is located under /opt/mellanox/doca/applications/dpa_all_to_all/bin/doca_dpa_all_to_all. To build all the applications together, run:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson build ninja -C build


  3. To build only the dpa_all_to_all application:
    1. Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
      • Set enable_all_applications to false
      • Set enable_dpa_all_to_all to true
    2. Run the commands in step 2.
      Note:

      doca_dpa_all_to_all is created under ./build/dpa_all_to_all/src/host/.

    Application usage:

    Copy
    Copied!


    Usage: doca_dpa_all_to_all [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60> Program Flags: -m, --msgsize <Message size> The message size - the size of the sendbuf and recvbuf (in bytes). Must be in multiplies of integer size. Default is size of one integer times the number of processes. -d, --devices <IB device names> IB devices names that supports DPA, separated by comma without spaces (max of two devices). If not provided then a random IB device will be chosen.


  4. Pre-run setup:
    • Make sure that MPI is installed in your setup (openmpi is provided as part of the doca-tools metapackage). Do not forget to update your LD_LIBRARY_PATH and PATH environment variable to include MPI. For example, if MPI is installed under /usr/mpi/gcc/openmpi-4.1.5rc2/ then run:
      Copy
      Copied!


      export PATH=/usr/mpi/gcc/openmpi-4.1.5rc2/bin:$PATH export LD_LIBRARY_PATH=/usr/mpi/gcc/openmpi-4.1.5rc2/lib:$LD_LIBRARY_PATH

  5. CLI example for running the application. Remember, this is an MPI program, so use mpirun to run the application (with the -np flag to specify the number of processes to run). The same command works for running the application on the host (x86) and the BlueField (Arm cores).
    • The following runs the DPA all-to-all application with 8 processes using the default message size (the number of processes, which is 8, times the size of 1 integer) with a random InfiniBand device:
      Copy
      Copied!


      mpirun -np 8 /opt/mellanox/doca/applications/dpa_all_to_all/bin/doca_dpa_all_to_all

    • The following runs DPA all-to-all application with 8 processes, with 128 bytes as the message size and with mlx5_0 and mlx5_1 as the IB devices:
      Copy
      Copied!


      mpirun-np 8 /opt/mellanox/doca/applications/dpa_all_to_all/bin/doca_dpa_all_to_all -m 128 -d "mlx5_0,mlx5_1"

      Note:

      The application supports running with a maximum of 16 processes. If you try to run with more processes, then an error is printed and the application exits.

  6. To run doca_all_to_all_dpa using a JSON file:
    Copy
    Copied!


    doca_dpa_all_to_all --json [json_file]

    For example:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/dpa_all_to_all/bin ./doca_dpa_all_to_all --json ./dpa_all_to_all_params.json


Refer to NVIDIA DOCA Arg Parser Programming Guide for more information.

Flag Type Short Flag Long Flag/JSON Key Description JSON Content
General flags l log-level Sets the log level for the application:
  • CRITICAL=20
  • ERROR=30
  • WARNING=40
  • INFO=50
  • DEBUG=60
Copy
Copied!


"log-level": 60

v version Prints program version information N/A
h help Prints a help synopsis N/A
Program flags m msgsize The message size. The size of the sendbuf and recvbuf (in bytes). Must be in multiples of an integer. The default is size of 1 integer times the number of processes.
Copy
Copied!


"msgsize": -1

Note:

The value -1 is a placeholder to use the default size, which is only known at run time (because it depends on the number of processes).

d device InfiniBand devices names that support DPA, separated by comma without spaces (max of two devices). If NOT_SET then a random InfiniBand device is chosen.
Copy
Copied!


"devices": "NOT_SET"

  • /opt/mellanox/doca/applications/all_to_all_dpa/src
  • /opt/mellanox/doca/applications/all_to_all_dpa/bin/all_to_all_dpa_params.json
