DPA L2 Reflector

NVIDIA DOCA DPA L2 Reflector Application Guide

This document provides a DPA L2 reflector implementation on top of the NVIDIA® BlueField®-3 DPU.

The BlueField-3 DPU supports high-speed DPA. Data path accelerator allows for accelerated packet processing and manipulation.

DOCA Layer-2 (L2) Reflector uses the DPA engine to intercept network traffic and swap the source and destination MAC addresses of each packet.

The application accepts traffic from specific port given as an argument and leverage the DPA capabilities for accelerated processing.

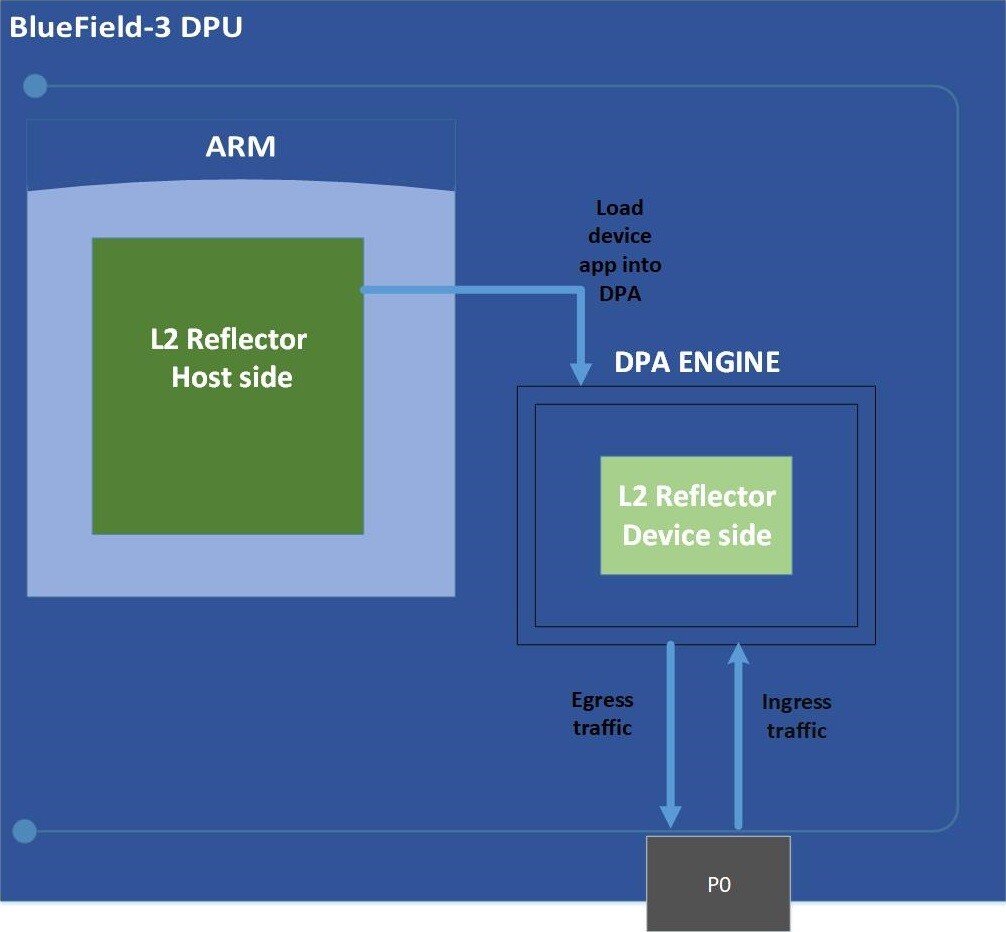

The following figure shows a view of the high-level components of the application:


DOCA L2 Reflector runs on top of FlexIO SDK to configure the DPA engine.


The FlexIO application consist of two parts:

  • Host side – responsible for allocating resources and loading them to the DPA
  • Device side – core processing logic of the application which swaps the MACs on the DPA

For more information, please refer to section "Programming FlexIO SDK" in the NVIDIA DOCA DPA Subsystem Programming Guide.

This application leverages the following DOCA driver:

This section lists the application's configuration flow which includes different FlexIO functions and wrappers.

  1. Parse application argument.
    1. Initialize arg parser resources and register DOCA general parameters.
      Copy
      Copied!


      doca_argp_init();

    2. Register the application's parameters.
      Copy
      Copied!


      register_l2_reflector_params();

    3. Parse the arguments.
      Copy
      Copied!


      doca_argp_start();

  2. Setup the InfiniBand device.
    Copy
    Copied!


    l2_reflector_setup_ibv_device();

  3. Setup the DPA device.
    Copy
    Copied!


    l2_reflector_setup_device();

  4. Allocate the device's resources.
    Copy
    Copied!


    l2_reflector_allocate_device_resources();

  5. Run initialization function on the device:
    Copy
    Copied!


    flexio_process_call();

  6. Create the steering rule.
    Copy
    Copied!


    l2_reflector_create_steering_rule();

  7. Start the event handler on the device.
    Copy
    Copied!


    flexio_event_handler_run();

  8. Main loop.
    Copy
    Copied!


    while (!force_quit) sleep(10);

  9. Cleanup the resources.
    Copy
    Copied!


    l2_reflector_destroy();

NVIDIA BlueField-3 DPU is required.

  1. Refer to the following documents:
  2. The L2 Reflector binary is located under /opt/mellanox/doca/applications/l2_reflector/bin/l2_reflector. To build all the applications together, run:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson build ninja -C build


  3. To build only the L2 Reflector application:
    1. Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
      • Set enable_all_applications to false
      • Set enable_l2_reflector to true
    2. Run the commands in step 2.
      Note:

      l2_reflector will be created under ./build/l2_reflector/src/host/.

    Application usage:

    Copy
    Copied!


    Usage: l2_reflector [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60> Program Flags: -d, --device <device name> Device name

    Note:

    For additional information on the application, use -h:

    Copy
    Copied!


    /opt/mellanox/doca/applications/l2_reflector/bin/l2_reflector -h


  4. CLI example for running the application on BlueField/host:
    Copy
    Copied!


    /opt/mellanox/doca/applications/l2_reflector/bin/l2_reflector -d mlx5_0

    Note:

    To run the application on the second port, verify that it has a partition. Run:

    Copy
    Copied!


    dpaeumgmt partition info -d mlx5_1

    If DPA EU partition creation is required, refer to NVIDIA DOCA DPA EU Management Tool.

  5. To run l2_reflector using a JSON file:
    Copy
    Copied!


    <application name> --json [json_file]

    For example:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/l2_reflector/bin ./l2_reflector –-json ./l2_reflector_params.json


Refer to NVIDIA DOCA Arg Parser Programming Guide for more information.

Flag Type Short Flag Long Flag/JSON Key Description JSON Content
General Flags l log-level Sets the log level for the application:
  • CRITICAL=20
  • ERROR=30
  • WARNING=40
  • INFO=50
  • DEBUG=60
Copy
Copied!


"log-level": 60

v version Print program version information N/A
h help Prints a help synopsis N/A
Program Flags d device Device name
Copy
Copied!


"device": mlx5_0

  • /opt/mellanox/doca/applications/l2_reflector/src
  • /opt/mellanox/doca/applications/l2_reflector/bin/l2_reflector_params.json
