DOCA Flow Tune Tool
DOCA Flow Tune is a powerful, one-stop-shop solution, providing visibility and analysis capabilities for DOCA Flow programs.
DOCA Flow Tune is supported at alpha level.
DOCA Flow Tune is a one-stop-shop solution which allows developers to visualize their traffic steering pipelines, have a live monitor of software Key Performance Indicators (KPIs) as well as hardware counters, and gain valuable performance insights about their DOCA-Flow-based program.
DOCA Flow Tune is especially useful for the following scenarios:
Aiding developers during the development of their traffic steering pipeline by providing visualization of the pipeline, and later also performance insights about the designed pipeline
Aiding developers in pre-production environments by providing live monitoring of the performance indicators of the program on both software and hardware levels, and helping detect possible bottlenecks/critical paths so they are addressed before deployment to production environments
Aiding administrators monitor the program in production by providing live monitoring as well as high-rate hardware counters to be used when analyzing a possible deployment/setup issue
The tool operates in three distinct modes, Monitor, Analyze, and Visualize, which are presented in the following subsections.
Collecting, analyzing, and displaying information from the analyzed DOCA-Flow-based program requires the explicit activation of the DOCA Flow Tune server by the target program. For more information about that, refer to the DOCA Flow Tune Server programming guide.
Monitor Mode Overview

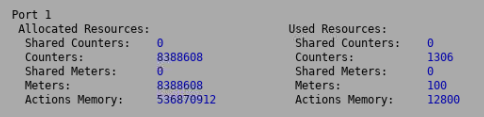

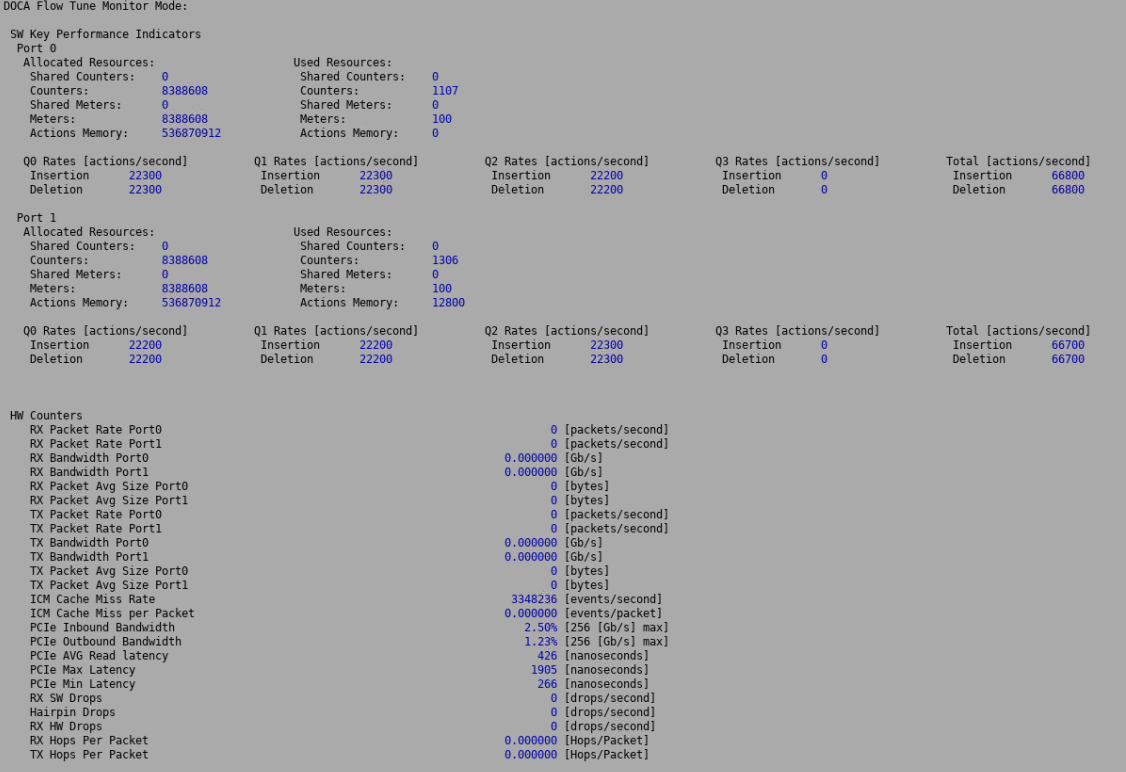

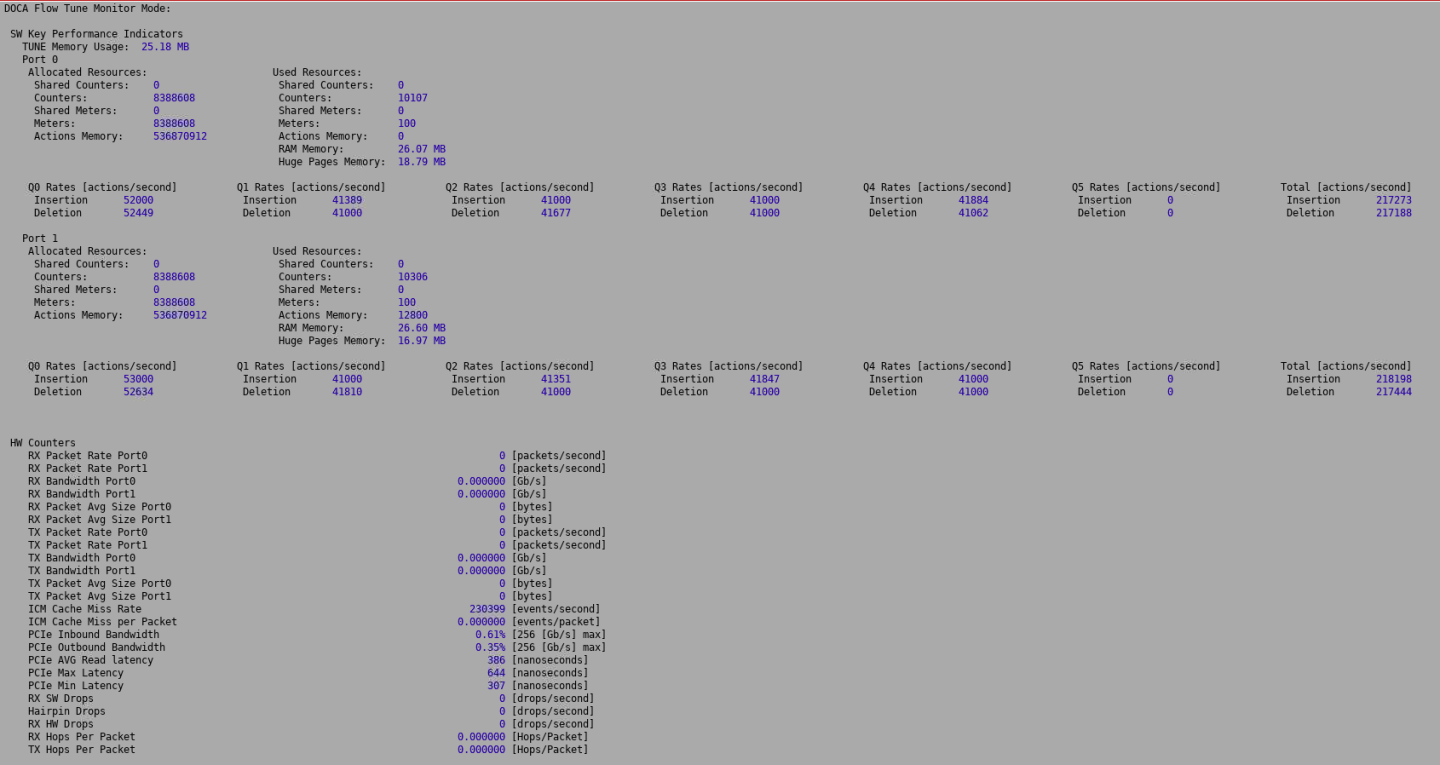

This mode collects and displays both hardware counters and software KPIs in real time (as extracted from the running DOCA Flow program and the underlying setup), providing a comprehensive view of the system's performance:

This information can also be exported to a CSV file for further analysis.
For more information about this mode, please refer to section "Monitor Mode".
For information about running DOCA Flow Tune in this mode, please refer to section "Monitor Command".
Analyze Mode Overview
The analyze mode supports the ability to dump the internal steering pipeline state to be used by Visualize mode.
For more information about this mode, please refer to section "Analyze Mode".
For more information about running DOCA Flow Tune in this mode, please refer to section "Analyze Command".
Visualize Mode Overview
This mode allows users to produce a graphical representation of their steering pipeline (as built using the DOCA Flow API), allowing developers to quickly understand their program's pipeline, and compare it with their intended architecture.

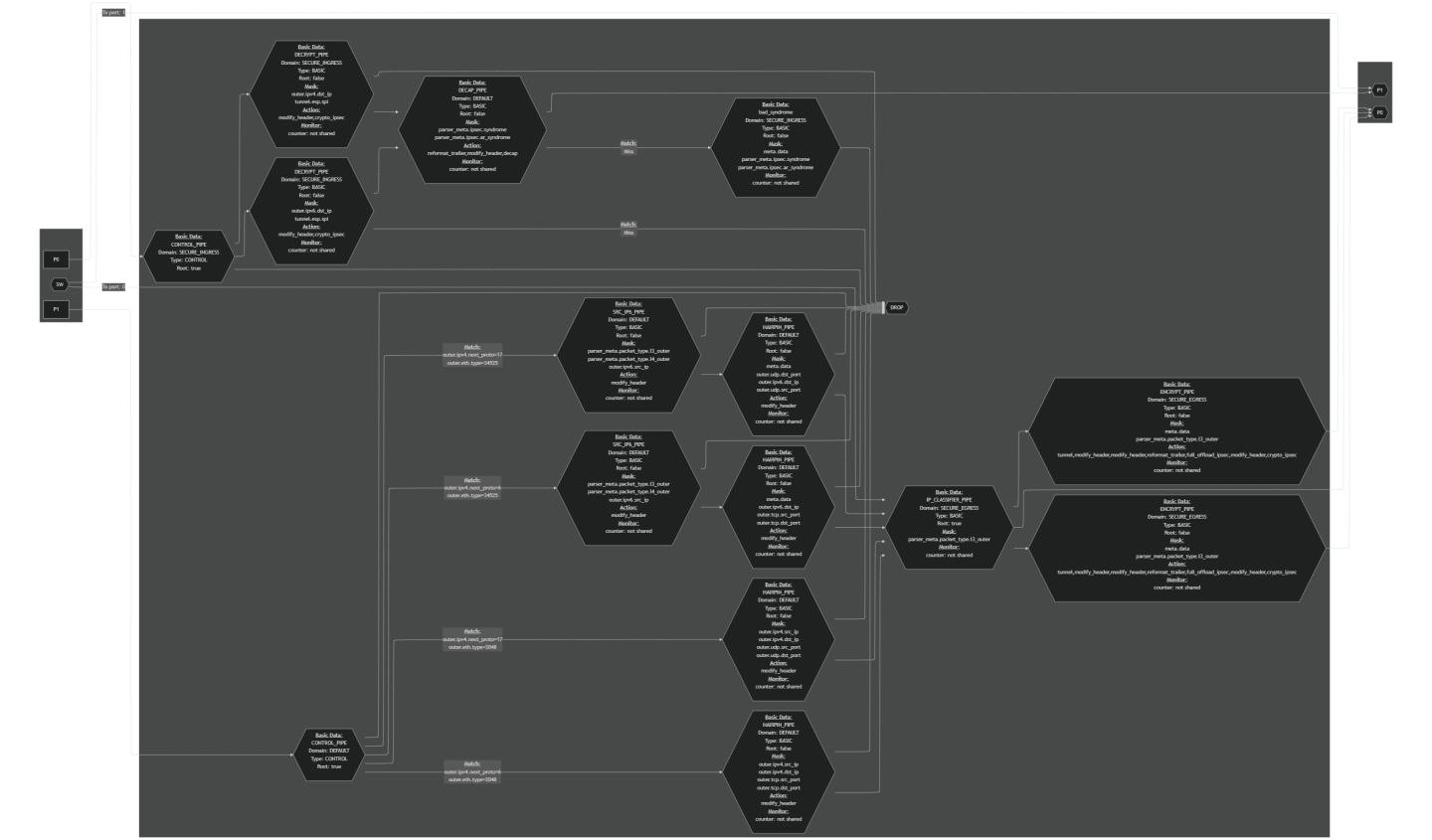

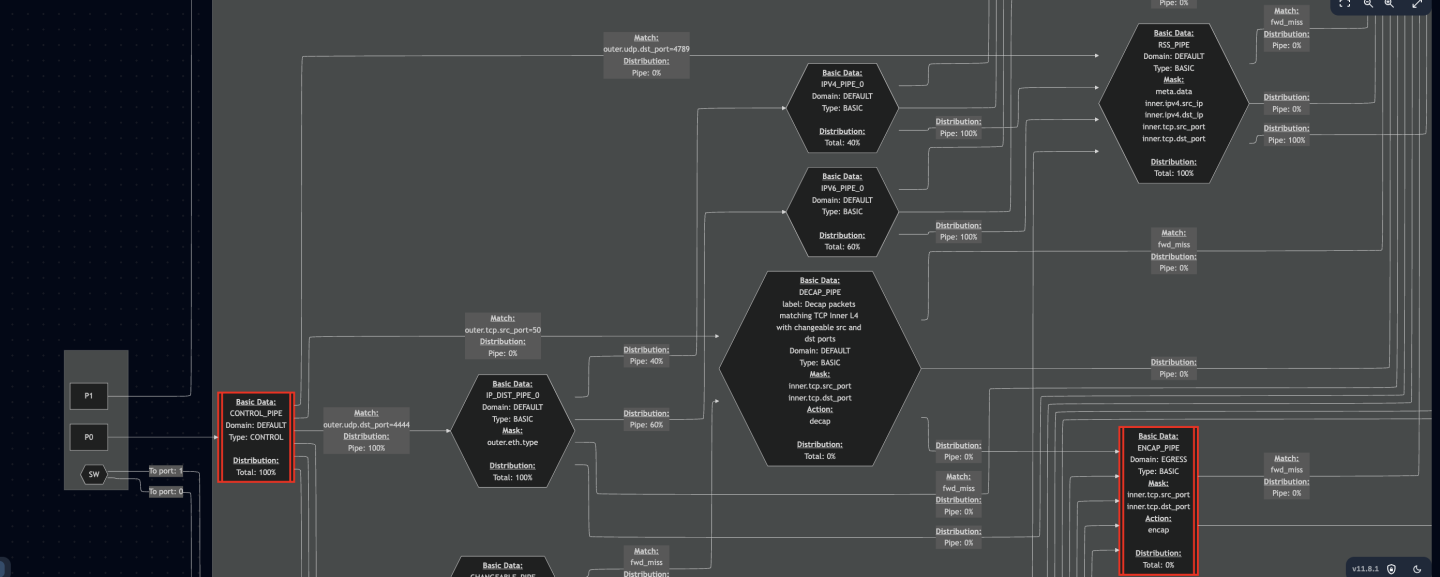

The following is an example from the DOCA IPsec Security Gateway Application Guide:

Mermaid Graph
The DOCA Flow Tune Mermaid graph visually represents the pipeline structure and metadata. It uses the following conventions:
Shapes:

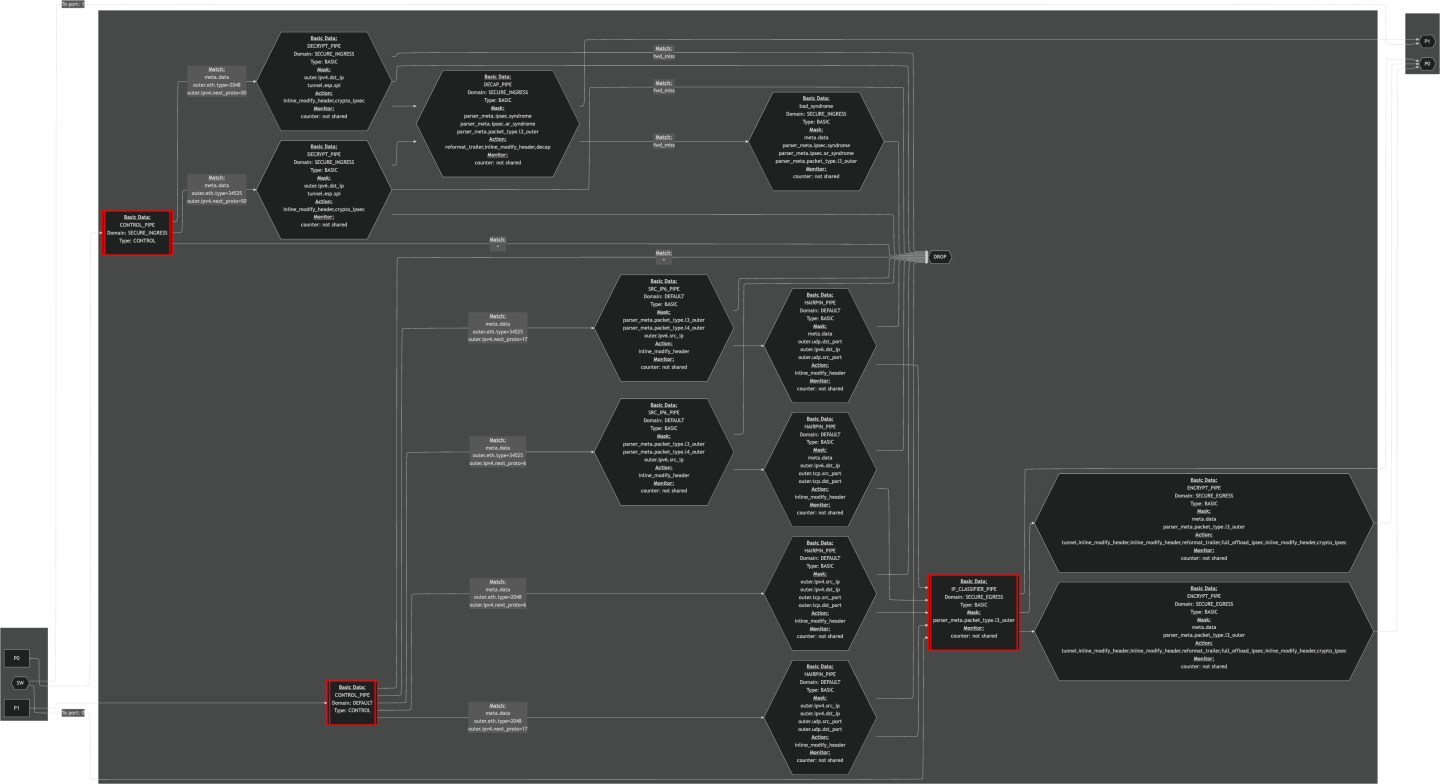

Square: Denotes an input port or a root pipe. These are also outlined with a red frame for clarity.
Hexagon: Represents a pipe or an output port.
Arrow: Indicates a possible connection between pipes and ports.
Pipe Data Layers:
Pipe metadata is organized into multiple visual layers. Layers can be stacked and selectively displayed when analyzing the pipeline.
Base Layer (default):
Includes general pipe attributes:
Name, label, type, domain
Mask, monitor configuration, and action data

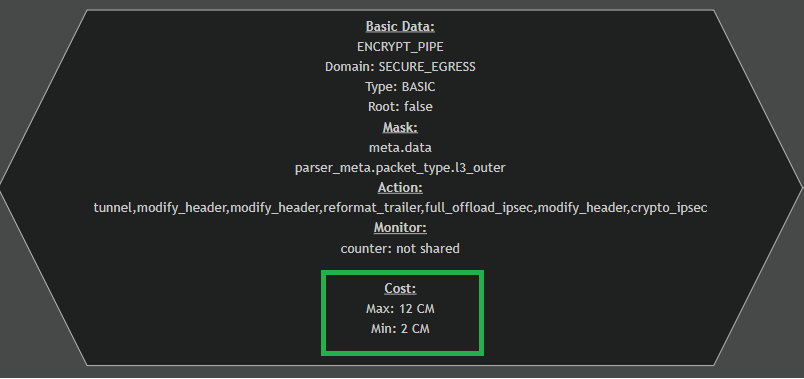

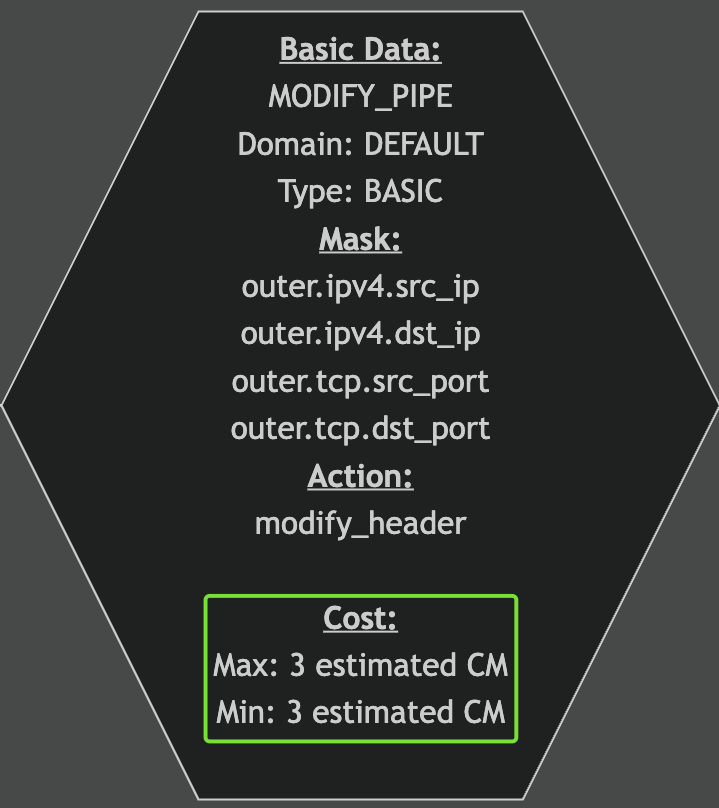

Cost Layer:
Displays the minimum and maximum cost a packet can incur while traversing the pipe.
Overlays on top of the base layer.

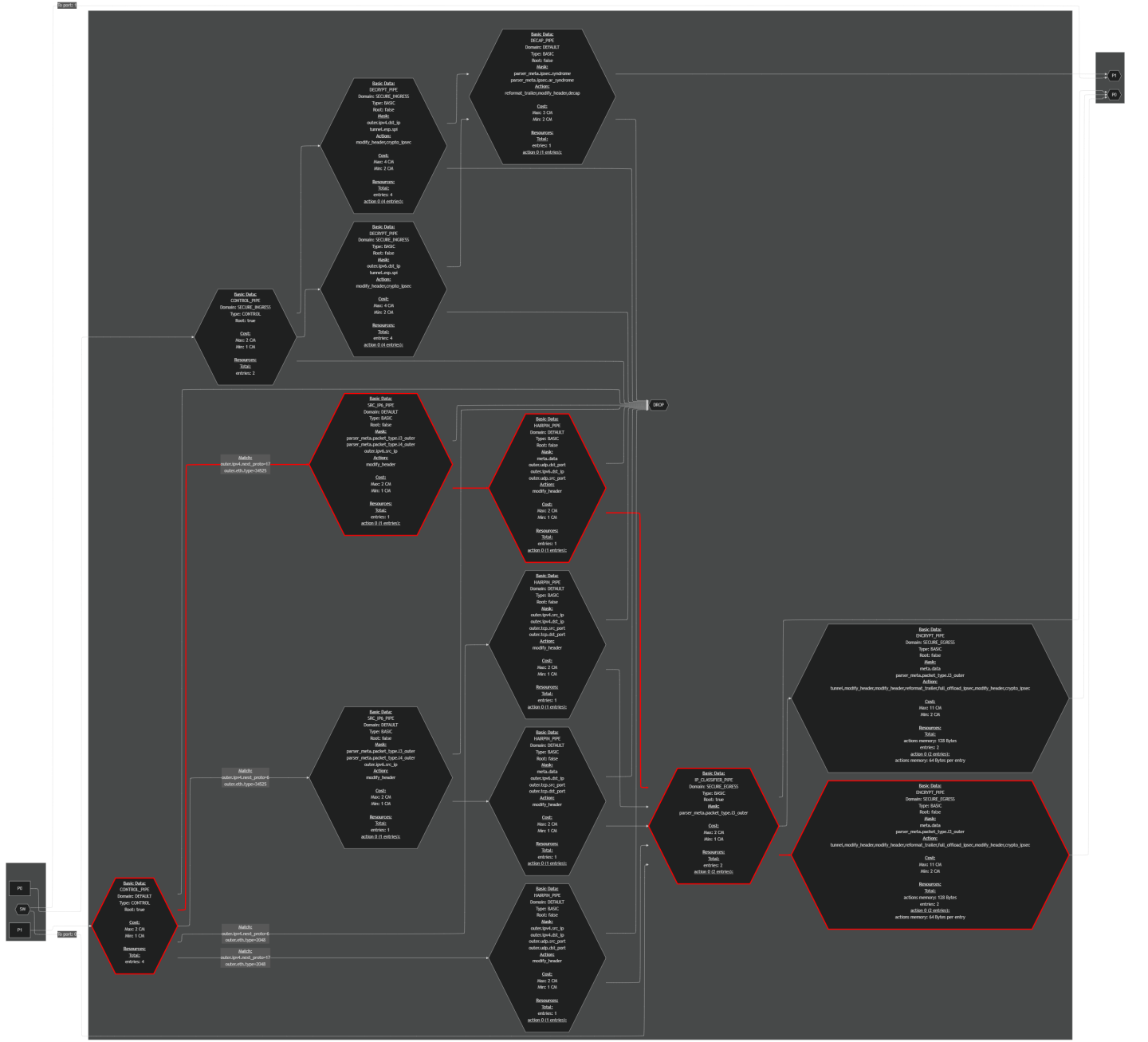

Critical Path Layer:
Highlights the pipeline path with the highest total processing cost.
If multiple paths have the same cost, a single one is arbitrarily highlighted.

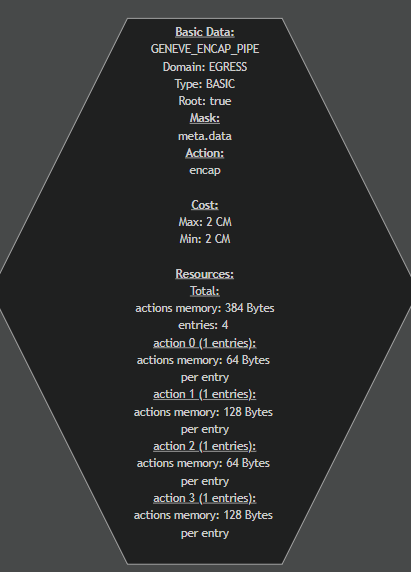

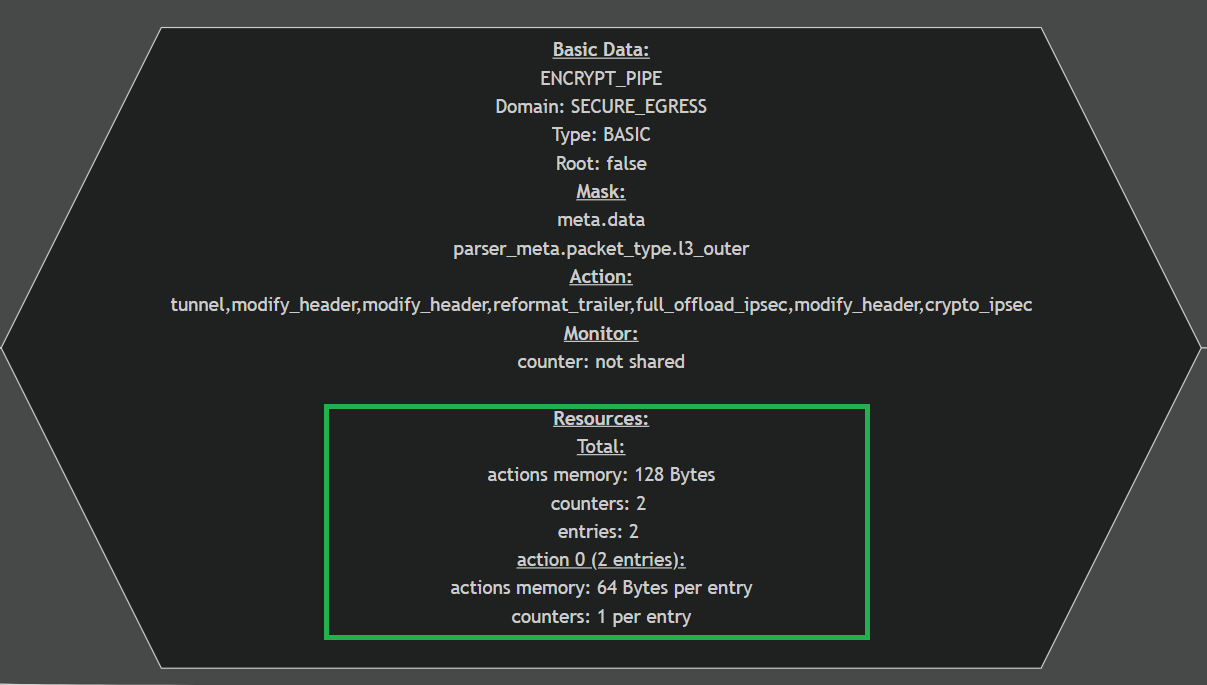

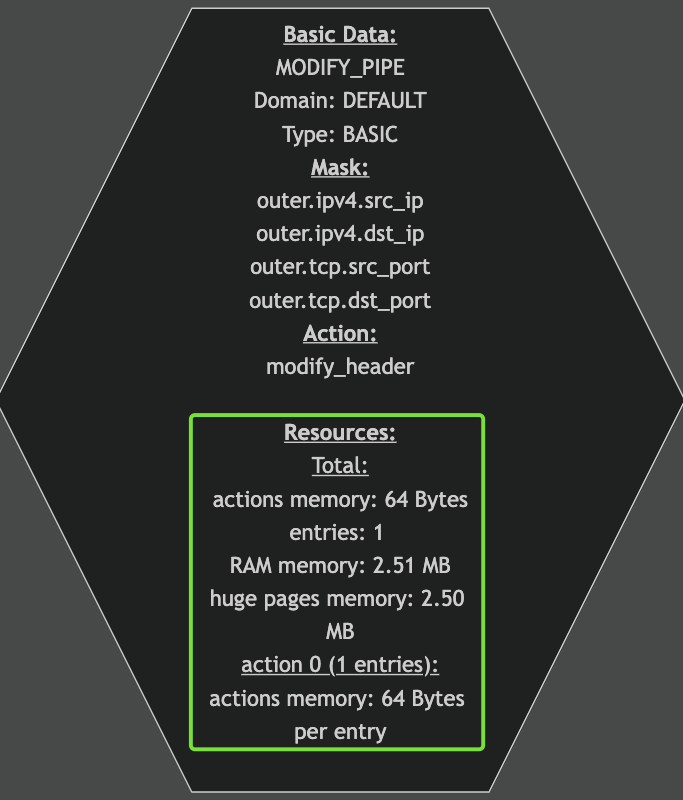

Resources Layer:
Shows resource utilization per pipe, including:
Number of counters
Number of meters
Action memory usage
RAM and hugepages consumption
This layer is an overlay on the base layer.
For more information about this mode, please refer to section "Visualize Mode".
For more information on running DOCA Flow Tune in this mode, please refer to section "Visualize Command".
DOCA Flow Tune depends on the following DOCA SDK libraries:
DOCA 3.0.0 and higher.
For optimal experience, it is recommended to comply with the prerequisites of all the listed dependencies, and especially with their recommended firmware versions.
To execute DOCA Flow Tune tool:
Usage: doca_flow_tune [Program Commands] [DOCA Flags] [Program Flags]
Program Commands:
analyze Run Flow Tune in Analyze mode
monitor Run Flow Tune in Monitor mode
visualize Run Flow Tune in Visualize mode
DOCA Flags:
-h, --help Print a help synopsis
-v, --version Print program version information
-l, --log-level Set the (numeric) log level for
the program <10
=DISABLE, 20
=CRITICAL, 30
=ERROR, 40
=WARNING, 50
=INFO, 60
=DEBUG, 70
=TRACE>
--sdk-log-level Set the SDK (numeric) log level for
the program <10
=DISABLE, 20
=CRITICAL, 30
=ERROR, 40
=WARNING, 50
=INFO, 60
=DEBUG, 70
=TRACE>
This usage printout can be printed to the command line interface (CLI) using the -h
(or --help
) option:
doca_flow_tune -h
The same applies for each of the tool's commands (and subcommands). For instance:
doca_flow_tune monitor -h
Monitor Command
The monitor
command presents software KPIs and hardware counters. Each component offers various options, which can be specified in the configuration file under the monitor
section, or through the CLI.
Usage: doca_flow_tune monitor [Program Commands] [DOCA Flags] [Program Flags]
Program Commands:
background Collect software key performance indicators and hardware counters on the background
DOCA Flags:
-h, --help Print a help synopsis
-l, --log-level Set the (numeric) log level for
the program <10
=DISABLE, 20
=CRITICAL, 30
=ERROR, 40
=WARNING, 50
=INFO, 60
=DEBUG, 70
=TRACE>
--sdk-log-level Set the SDK (numeric) log level for
the program <10
=DISABLE, 20
=CRITICAL, 30
=ERROR, 40
=WARNING, 50
=INFO, 60
=DEBUG, 70
=TRACE>
Program Flags:
--enable-csv Enable dumping data to CSV file
--disable-csv Disable dumping data to CSV file
--csv-file-name CSV file name to create
--hw-profile Register hardware profile {basic, full}
--sw-profile Register software profile
-f, --cfg-file JSON configuration file
Supported sub-commands:
background
– This subcommand allows performing CSV dumping without displaying the output on the screen. This is useful for scenarios where one wants to log counters without cluttering the terminal. It also supports high-rate dumping for hardware counters which may be activated using the--high-rate
flag.Usage: doca_flow_tune monitor background [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -l, --log-level Set the (numeric) log level
for
the program <10
=DISABLE,20
=CRITICAL,30
=ERROR,40
=WARNING,50
=INFO,60
=DEBUG,70
=TRACE> --sdk-log-level Set the SDK (numeric) log levelfor
the program <10
=DISABLE,20
=CRITICAL,30
=ERROR,40
=WARNING,50
=INFO,60
=DEBUG,70
=TRACE> Program Flags: --high-rate Enable dumping hardware counters data to CSV file in high rate --hw-profile Register hardware profile {basic, full} --sw-profile Register software profile
CLI Examples
To launch the
monitor
command with a given configuration file:doca_flow_tune monitor -f /tmp/flow_tune_cfg.json
To launch the
monitor
command with both a given configuration file and a CLI parameter for specifying the desired hardware counters profile:doca_flow_tune monitor -f /tmp/flow_tune_cfg.json --hw-profile basic
To launch the
monitor
command with thebackground
subcommand and the request to perform a high-rate collection and export for the hardware counters:doca_flow_tune monitor -f /tmp/flow_tune_cfg.json background --high-rate
NoteThe tool silently creates and updates the
flow_tune.csv
file.
Analyze Command
The analyze
command runs a specified set of analysis methods over the target DOCA Flow program. The analysis supports the ability to export a JSON description of the steering pipeline, as is used by the visualize
command, and could later be used for future analysis methods (both online or offline).
Usage: doca_flow_tune analyze export [DOCA Flags] [Program Flags]
DOCA Flags:
-h, --help Print a help synopsis
-l, --log-level Set the (numeric) log level for
the program <10
=DISABLE, 20
=CRITICAL, 30
=ERROR, 40
=WARNING, 50
=INFO, 60
=DEBUG, 70
=TRACE>
--sdk-log-level Set the SDK (numeric) log level for
the program <10
=DISABLE, 20
=CRITICAL, 30
=ERROR, 40
=WARNING, 50
=INFO, 60
=DEBUG, 70
=TRACE>
Program Flags:
--file-name File name on which the pipeline information will be saved
-f, --cfg-file JSON configuration file
Supported subcommands:
export
– This command allows the tool to export a running DOCA Flow program's pipeline into a JSON file. This file is the main input for other features of the tool, such as the graphical visualization.NoteThe
export
subcommand is currently mandatory.
CLI Examples
To launch the analyze command without a configuration file:
doca_flow_tune analyze export
The JSON file is stored into its default path.
To launch the
analyze
command with a given configuration file that specifies the desired values for all needed configurations:doca_flow_tune analyze export -f /tmp/flow_tune_cfg.json
To launch the
analyze
command with a configuration file while also configuring the output path for the exported JSON file through the CLI:doca_flow_tune analyze export -f /tmp/flow_tune_cfg.json --file-name my_program_pipeline_desc.json
The exported pipeline is stored as
my_program_pipeline_desc.json
into the chosen/default output directory.
Visualize Command
The visualize
command visualizes the steering pipeline of a given DOCA Flow program. The command works on a given JSON file as input. This file can either be generated by the analyze export
command or queried dynamically from a running program, in which case the command would dump the pipeline from the program and then generate the visualization output file.
The visualization output file is a Mermaid markdown format.
This file can be fed to any of the widely available Mermaid visualization tools, as explained in depth in the corresponding section "Visualize Mode".
Usage: doca_flow_tune visualize [DOCA Flags] [Program Flags]
DOCA Flags:
-h, --help Print a help synopsis
-l, --log-level Set the (numeric) log level for
the program <10
=DISABLE, 20
=CRITICAL, 30
=ERROR, 40
=WARNING, 50
=INFO, 60
=DEBUG, 70
=TRACE>
--sdk-log-level Set the SDK (numeric) log level for
the program <10
=DISABLE, 20
=CRITICAL, 30
=ERROR, 40
=WARNING, 50
=INFO, 60
=DEBUG, 70
=TRACE>
Program Flags:
--pipeline-desc Input JSON file that represents the Flow application pipeline
--file-name File name on which the visualization information will be saved
-f, --cfg-file JSON configuration file
--cost Show cost
--critical-path Show critical path
--resources Show resources
--distribution Show distribution
CLI Examples
Launching the
visualize
command without a configuration file triggers a live query of the pipeline from the currently running DOCA Flow program. In the absence of an input JSON file, the tool automatically generates and dumps a JSON representation of the active pipeline to be used for Mermaid diagram generation.doca_flow_tune visualize
Example output:
2025
-04
-09
15
:06
:44
- flow_tune - INFO - Pipeline description file not provided or doesn't exist, dumping pipeline description to /tmp/tmp_pipeline_desc.json2025
-04
-09
15
:06
:44
- flow_tune - INFO - Flow program pipeline information was exported to"/tmp/tmp_pipeline_desc.json"
2025
-04
-09
15
:06
:44
- flow_tune - INFO - Mermaid graph exported to /tmp/flow_tune/flow_tune_pipeline_vis.md2025
-04
-09
15
:06
:44
- flow_tune - INFO - DOCA Flow Tune finished successfullyLaunching the
visualize
command with a given configuration file that specifies the desired values for all needed configurations:doca_flow_tune visualize -f /tmp/flow_tune_cfg.json
To launch the
visualize
command with a configuration file while configuring the output path for the Mermaid file through the CLI and providing an offline pipeline file:doca_flow_tune visualize -f /tmp/flow_tune_cfg.json --file-name my_program_pipeline_viz.md --pipeline-desc my_program_pipeline_desc.json
The exported Mermaid file is stored as
my_program_pipeline_viz.md
into the chosen/default output directory. Because the pipeline description file is explicitly provided, this command could be used offline, as it would not need connection with the DOCA Flow program to visualize.NoteTo launch the
visualize
command with the--critical-path
or--cost
flags, thelow_level_info
setting must be enabled (true
):When using a configuration file, the
low_level_info
field must be set totrue
in theanalyze
section of the provided configuration file. For example:doca_flow_tune visualize --cost -f /tmp/flow_tune_cfg.json # flow_tune_cfg.json must include:
"low_level_info"
:true
When using an offline pipeline JSON file, the file must have been generated with
low_level_info
enabled at the time of the dump:doca_flow_tune visualize --cost --pipeline-desc my_program_pipeline_desc.json # my_program_pipeline_desc.json must have been dumped with
"low_level_info"
:true
DOCA Flow Tune has a configuration file which allows customizing various settings.
The configuration file is divided into sections to simplify its usage.
Config File Default Values
If a configuration file is not provided, DOCA Flow Tune uses its default values for fields which are mandatory.
A list of all default values can be seen in the appendix.
In Monitor mode, if a software KPIs or hardware counters query is not needed, removing the hardware
or software
fields from the configuration file disables the respective feature.
Custom Config File
Instead of using default configuration values, users can create a file of their own and provide a file path when running DOCA Flow Tune (-f
/--cfg-file
).
Once used, DOCA Flow Tune loads all provided values directly from the file, while the rest of the fields (if any) use their respective default values.
Overriding Config Values from CLI
Setting s
ome of the fields in the configuration file is supported through CLI using the
--file-name
flag.
If used, the provided values from the CLI would override the values of the fields from the configuration file. This allows for easier configuration of common values without the need to create a new custom file or to modify an existing configuration file.
Common Configuration Values
Some sections of the configuration file are shared between multiple runtime modes of DOCA Flow Tune (i.e., Monitor, Analyze, Visualize) and generally have to do with the output/input file paths and interaction with the live DOCA Flow program.
flow_tune_cfg.json
{
...
"outputs_directory"
: "/tmp/flow_tune/"
,
...
"network"
: {
"server_uds"
: "/tmp/tune_server.sock"
,
"uds_directory"
: "/var/run/doca/flow_tune/"
},
...
}
Output Directory
outputs_directory
defines the main directory on which all output products are saved. This field does not have a default value. If no value is provided, DOCA Flow Tune files are saved at the following directories:
CSV file –
/var/log/doca/flow_tune/
Analyze export pipeline description file –
/tmp/flow_tune/
Pipeline visualization file –
/tmp/flow_tune/
Connection to DOCA Flow Tune Server
Some features of DOCA Flow Tune work by interacting with a live DOCA Flow based program. This is enabled through a server that is running in the background as part of the DOCA Flow library, and requires all the following to be applied:
DOCA Flow based program should explicitly enable the server.
InfoMore information is available in the relevant DOCA Flow Tune Server programming guide.
The DOCA-Flow-based program should run using the trace-enabled DOCA Flow library.
InfoMore information is available in the "Debug and Trace Features" section of the DOCA Flow programming guide.
DOCA Flow Tune should be configured in a way to allow it to connect to the matching server. This can be done by modifying the following
variables under the
network
section of the configuration file:
server_uds
– DOCA Tune Server Unix Domain Socket (UDS) path. Default value is/tmp/tune_server.sock
.uds_directory
– Directory on which all local UDSs are created. Default value is/var/run/doca/flow_tune/
.
Hardware Counters
This table provides the supported hardware counters and their associated profiles.
Counter Name | Description | Unit | Profile Basic | Profile Full |
RX Packet Rate | The number of received packets per second | pkt/sec |
|
|
RX Bandwidth | The data transfer rate based on the number of packets received per second | Gb/s |
|
|
RX Packet Average Size | The average size of received data packets | Bytes |
|
|
TX Packet Rate | The number of packets transmitted per second | pkt/sec |
|
|
TX Bandwidth | The data transfer rate based on the number of packets transmitted per second | Gb/s |
|
|
TX Packet Average Size | The average size of transmitted data packets | Bytes |
|
|
The number of dropped packets due to a lack of WQE for the associated QPs/RQs (excluding hairpin QPs/RQs) | drops/sec |
|
| |
The number of dropped packets due to a lack of WQE for the associated hairpin QPs/RQs | drops/sec |
|
| |
RX HW Drops 4 | The number of packets discarded due to no available data or descriptor buffers in the RX buffer | drops/sec |
|
|
ICM Cache Miss Rate | The rate of data requests that miss in the ICM (interconnect context memory) cache | events/sec |
|
|
ICM Cache Miss per Packet | The number of data requests that miss per packet | events/pkt |
|
|
PCIe Inbound Bandwidth 5 | The number of bits received from the PCIe toward the device per second. | Gb/s |
|
|
PCIe Outbound Bandwidth 5 | The number of bits transmitted from the device toward the PCIe per second | Gb/s |
|
|
PCIe AVG Read latency 5 | The average PCIe read latency for all read data | nsec |
|
|
PCIe Max Latency 5 | T he maximum latency (in nanoseconds) for a single PCIe read from the device | nsec |
|
|
PCIe Min Latency 5 | T he minimum latency (in nanoseconds) for a single PCIe read from the device | nsec |
|
|
RX Hops Per Packet | The number of hops per packet in RX domain | hops/pkt |
|
|
TX Hops Per Packet | The number of hops per packet in TX domain | hops/pkt |
|
|
If drops are observed, this may be because the software was unable to process all received packets. Consider reducing CPU processing time or increasing the number of utilized cores and queues.
If drops are observed, the Tx packet processing is probably causing a bottleneck. Consider simplifying the process or adjusting the number or size of hairpin queues, or implementing locking mechanisms.
If drops are observed, the Rx packet processing is probably causing a bottleneck. Consider simplifying it.
Software Key Performance Indicators
The following table lists the supported software Key Performance Indicators (KPIs) and their associated profiling categories:
Key Performance Indicator | Description | Units | Profile |
Insertion rate | Number of successful table entry insertions per queue per second | actions/sec |
|
Deletion rate | Number of successful table entry deletions per queue per second | actions/sec |
|
Action resources | Number of resources utilized by the program for all user-defined actions | N/A |
|
Action Resources Counters
The action_resources
section displays the following per-port counters, including both the total allocated and currently used amounts:
Resource Counters:
Number of Shared Counters
Number of Counters
Number of Shared Meters
Number of Meters
Actions Memory
Used Memory Resources:
RAM
HugePages Memory
Configuration
CSV Format
The CSV format stores two types of rows, specific to each counter module:
Hardware Counter Rows (Module ID=0)
Module ID
HW Counter ID
Counter Value
Timestamp
0
1
8
142623139459
0
2
197503959728
142623139459
Module ID – Hardware module identifier
HW Counter ID – Unique identifier for the hardware counter
Counter Value – Counter value
Timestamp – Hardware timestamp
Hardware Counter ID Mapping
HW Counter ID | Description | Units |
0 | Rate of RX packets on port 0 | Packets per second |
1 | Rate of RX packets on port 1 | Packets per second |
2 | RX bandwidth on port 0 | Gb/s |
3 | RX bandwidth on port 1 | Gb/s |
4 | Average RX packet size on port 0 | Bytes |
5 | Average RX packet size on port 1 | Bytes |
6 | Rate of TX packets on port 0 | Packets per second |
7 | Rate of TX packets on port 1 | Packets per second |
8 | TX bandwidth on port 0 | Gb/s |
9 | TX bandwidth on port 1 | Gb/s |
10 | Average TX packet size on port 0 | Bytes |
11 | Average TX packet size on port 1 | Bytes |
12 | ICMC misses rate | Events per second |
13 | ICMC misses per packet | Events per packet |
14 | The bandwidth of bytes received from PCIe toward the device | Gb/s |
15 | The bandwidth of bytes transmitted from the device toward PCIe | Gb/s |
16 | The average PCIe read latency | Nanoseconds |
17 | The total latency for all PCIe read from the device | Nanoseconds |
18 | The total number of PCIe packets | Events |
19 | The maximum latency for a single PCIe read from the device | Nanoseconds |
20 | The minimum latency for a single PCIe read from the device | Nanoseconds |
21 | RX software drops | Drops per second |
22 | Hairpin drops | Drops per second |
23 | RX hardware drops | Drops per second |
26 | RX Hops Per Packet | [Hops/Packet] |
27 | TX Hops Per Packet | [Hops/Packet] |
Software KPI Rows (Module ID=1)
Module ID
Port ID
SW Counter Type
Counter Value
Timestamp
1
0
Queue 0 insertion rate
34511
1727345744137828
1
1
Queue 0 insertion rate
37050
1727345755137828
1
0
Action resource 64B allocated shared counters
4
1727345755137828
1
0
Action resource 64B used shared counters
3
1727345755137828
Module ID – Software module identifier
Port ID – Software port ID
SW KPI Type – KPI type
KPI Value – KPI value
Timestamp – Software timestamp
Configuration File
DOCA Flow Tune's configuration file consists of two main parts of relevance for Monitor mode:
csv
dump objectmonitor
configuration object
The following is an example for both sections:
flow_tune_cfg.json
{
...
"csv"
: {
"enable"
: false
,
"file_name"
: "flow_tune.csv"
,
"max_size_bytes"
: 1000000
,
"max_files"
: 1
},
...
"monitor"
: {
"screen_mode"
: "dark"
, // modes: {light, dark}
"hardware"
: {
"pci_addresses"
: [
"b1:00.0"
,
"b1:00.1"
],
"profile"
: "full"
// profiles: {basic, full}
},
"software"
: [
{
"flow_port_id"
: 0
,
"profiles"
: [
"entries_ops_rates"
// profiles: {entries_ops_rates, action_resources}
]
},
{
"flow_port_id"
: 1
,
"profiles"
: [
"entries_ops_rates"
]
}
]
}
...
}
CSV Configuration Section
CSV dumping allows exporting the hardware and software counters collected by the tool into a CSV file for further analysis or record keeping. This is particularly useful for logging performance metrics over time.
How to Enable CSV Dumping
To enable CSV dumping, modify the configuration in the JSON file as follows:
{
"csv"
: {
"enable"
: true
,
"file_name"
: "flow_tune.csv"
,
"max_size_bytes"
: 1000000
,
"max_files"
: 1
}
}
The supported fields are:
enable
– Set totrue
to enable CSV dumping orfalse
to disable it. Default value isfalse
.file_name
– The name of the CSV file where the data will be saved.max_size_bytes
– The maximum size (in bytes) of the CSV file. Once this limit is reached, a new file is created based on themax_files
setting.max_files
– The maximum number of CSV files to keep. When this limit is reached, the oldest files are deleted.
CSV dumping can also be enabled or disabled from the CLI using the --enable-csv
or --disable-csv
flags, respectively. For example:
doca_flow_tune monitor -f /tmp/flow_tune_cfg.json --enable-csv
Additionally, the CSV filename can be updated by using the --csv-file-name
flag, for example:
doca_flow_tune monitor -f /tmp/flow_tune_cfg.json --csv-file-name "counters_dump.csv"
Monitor Configuration Section
Screen Mode
The Monitor module supports two screen modes: dark
and light
.
Hardware
The hardware
section includes the pci_addresses
and profile
fields:
The
pci_addresses
field expects an array of PCIe addresses for NIC ports. The tool uses these addresses to retrieve the corresponding NIC device and the desired port IDs.NotePCIe addresses must belong to the same device.
InfoThe tool supports up to two ports per device.
The
profile
field expects to receive either abasic
orfull
profile.basic
profile – includes packet- and port-related counters (i.e., Bandwidth, Packets Per Second, Average Packet Size, Packet Drops)full
profile – includes all thebasic
counters and adds additional debug counters (e.g., ICMC and PCIe counters)InfoFor more information about the counters please refer to section "Hardware Counters".
The hardware counters profile can be set from the CLI by adding --hw-profile
. For example:
doca_flow_tune monitor -f /tmp/flow_tune_cfg.json --hw-profile basic
Software
The software
section includes the flow_port_id
and profiles
fields:
flow_port_id
field – expects a single DOCA Flow port identification number. Flow port ID should be set by the DOCA Flow program, by calling thedoca_flow_port_cfg_set_devargs()
API call with a proper port ID string.profiles
field – accepts one or more of the supported profiling categories.entries_ops_rates
profile – includes both insertion and deletion rates KPIsaction_resources
profile – provides data on allocated and in-use resources, including counters, meters, and actions memory .
The software profile can be set from the CLI by adding --sw-profile
, for example:
doca_flow_tune monitor -f /tmp/flow_tune_cfg.json --sw-profile entries_ops_rates
Analyze mode gathers (and later analyzes) information in order to assist users to better understand and debug their DOCA-Flow-based program.
Pipeline Export
This tool export an internal state of the DOCA-Flow-based program in a proprietary JSON format. This allows the tool to provide offline information about a given program which can be later be analyzed. One such example is the ability to visualize the pipeline of the target program without having said program run on real hardware.
While the pipeline export operation is meant to encode all relevant information for future analysis, the format itself is proprietary and is only meant to be consumed by other DOCA tools.
The doca_flow_tune visualize
command generates a visual representation of a DOCA Flow pipeline using the Mermaid diagram format.
Supported Pipe Types
The following pipe types are supported in visualization mode:
Basic
Control
Hash
CT (partially supported):
Pipe-level FWD and FWD miss
Basic pipe data only
Viewing the Pipeline
Running the visualize
command produces a Mermaid-format file representing the pipeline structure. Mermaid is a text-based diagramming language supported by many documentation tools and editors. One commonly used online editor is Mermaid Live, which can be used to render and inspect the generated pipeline diagram.
To view the pipeline:
Open Mermaid Live.
Copy the contents of the generated
.mmd
file.Paste the contents into the editor to visualize the pipeline.
Visualization Layers
Each Mermaid diagram can include multiple layers, each offering a distinct view into pipeline characteristics. If no specific layer is selected, the base layer is used by default.
Base Layer
This layer visualizes the static configuration of the DOCA Flow pipeline, including:
Pipe node data:
Name
Label
Domain
Type
Mask configuration
Defined actions
Monitor attributes
Pipe link (arrow) data:
For Control pipes: matching values (e.g.,
*
indicates match-all).For other pipes: FWD_MISS links are marked accordingly.

Resources Layer
Enabled via the --resources
flag, this layer adds information about resource utilization:
Pipe node data:
Total number of actions in use by entries (all pipe types)
Resource breakdown per action (non-Control pipes only)
Resources visualized:
Counters
Meters
Actions memory
Entry count
RAM usage
Huge pages consumption

Cost Layer
Enabled via the --cost
flag, this layer estimates the cache impact of processing packets through the pipeline:
Minimum and maximum estimated cache misses per pipe
Helps identify high-cost areas in the pipeline

Critical Path Layer
Enabled via the --critical-path
flag, this layer highlights the pipeline path with the highest estimated processing cost (i.e., the path with the most cache misses). If multiple paths are tied, one is selected arbitrarily.

Distribution Layer
Enabled via the --distribution
flag, this layer simulates traffic flow through the pipeline using a PCAP input file.
Requirements:
A PCAP file must be provided via the
--pcap-file
flag or configuration filelow_level_info
must be set totrue
in the configuration if analyzing offline
Output data:
Pipe node data:
Distribution
: Percentage of all packets that passed through this pipeExample:
Total: 62%
Pipe link data:
Distribution
: Percentage of packets from the source pipe that used this linkExample:
Pipe: 78%

Match values for the following fields are not supported:
outer.l2_type
outer_l3_type
outer_l4_type
tun.gre.protocol
tun.key_present
The Distribution layer functions only when using supported match fields. Unsupported fields may result in inaccurate or incomplete packet flow analysis.
Actions Memory Calculation
The DOCA Flow API requires the application to configure the maximum actions memory using the doca_flow_port_cfg_set_actions_mem_size()
function. There are two strategies for determining the optimal value:
Measured Strategy
Configure the application with the maximum supported actions memory.
Run the application under expected load.
Execute the Flow Tune tool in Monitor mode.
Use the reported memory usage from the tool to determine the optimal actions memory size.
Update the application configuration to match the measured usage, ensuring compliance with the DOCA Flow API.

Calculated Strategy
Start with a minimal actions memory size in the application configuration.
After pipe creation (but before adding entries), run the Flow Tune tool in Visualization mode with the Resources Layer enabled.
For each pipe:
Multiply the expected number of entries by the reported actions memory per entry.
Sum the memory requirements across all pipes to obtain the total actions memory needed.
Set this value in the application using the appropriate DOCA Flow API.

Counter Observation
Use the tool in Monitor mode to observe hardware and software counters in real time. The tool provides per-second updates on:
Entry insertion and deletion rates
Memory and resource utilization
Other performance metrics
This helps identify performance bottlenecks and track system behavior under load.
Program Pipeline Visualization
By running the tool in Visualization mode, the developer can:
Generate a graphical representation of the DOCA Flow program pipeline
Understand the packet processing path and logic
Debug and validate flow construction
Optimize the pipeline for performance and correctness
Identifying Bottle Neck Pipes
Running the tool in Visualization mode with the --cost
and --critical-path
flags enables detection of performance-critical paths:
Highlights pipes with the highest cache miss estimates
Marks the most critical path (i.e., the slowest or most resource-intensive)
Helps developers focus optimization efforts on the slowest segments of the pipeline
Telemetry fwctl driver is not loaded
Error
When running the DOCA Flow Tune in Monitor mode, the following log messages are encountered at startup:
[DOCA][WRN][priv_doca_telemetry_fwctl.cpp:121
][priv_doca_telemetry_fwctl_find_device_by_pci] Failed finding fwctl device: Opening directory /sys/class
/fwctl/ failed. Make sure you have the fwctl driver loaded
[DOCA][ERR][priv_doca_telemetry_fwctl.cpp:201
][priv_doca_telemetry_fwctl_open_by_devinfo] devinfo 0x55c572286520
: Failed to open fwctl device: Failed to find matching fwctl device
Solution
The DOCA Telemetry SDK uses the fwctl
driver to query the hardware counters, so it is essential to have it installed and loaded.
Step 1: Verify the Driver Installation
First, check if the driver is installed as follow:
Debian/Ubuntu:
$ sudo apt list --installed | grep fwctl
RHEL:
$ sudo yum list installed | grep fwctl
If the driver is not installed, install it by running the following commands:
Debian/Ubuntu:
$ sudo apt search fwctl >> <fwctl-
package
-name>/.... $ sudo apt install -y <fwctl-package
-name>RHEL:
$ sudo yum search fwctl >> <fwctl-
package
-name>/.... $ apt/yum install -y <fwctl-package
-name>
Step 2: Check if the Driver is Loaded
After installing the driver, verify that it is loaded by executing:
$ sudo lsmod | grep fwctl
You should see output similar to:
> mlx5_fwctl 20480
0
> fwctl 16384
1
mlx5_fwctl
> mlx5_core 2134016
2
mlx5_fwctl,mlx5_ib
> mlx_compat 69632
14
rdma_cm,ib_ipoib,mlxdevm,mlxfw,mlx5_fwctl,iw_cm,ib_umad,fwctl,ib_core,rdma_ucm,ib_uverbs,mlx5_ib,ib_cm,mlx5_core
If the driver is not loaded, load it by running:
$ sudo modprobe mlx5_fwctl
Mermaid visualization in Visual Studio Code
Visual Studio Code provides extensions to view Mermaid markdown format, these extensions can be used to view the Mermaid output from DOCA Flow Tune tool.
However, for these extension to work, the Mermaid file should be modified with Mermaid opening and closure lines as follows:
```mermaid
<original_mermaid_file_content>
```
Limited Feature Set – Could Not Detect Running DOCA Flow Program
Error
When running DOCA Flow Tune, the following log message is encountered at startup, followed by some features failing to work/load:
[DOCA][WRN][flow_tune.cpp:195
][get_flow_app_data] Could not detect a running DOCA Flow program, some features will be impacted
Solution
Some features of DOCA Flow Tune work by interacting with a live DOCA-Flow-based program. This is enabled through a server running in the background as part of the DOCA Flow library, and requires all of the following to be applied:
DOCA-Flow-based program should explicitly enable the server. More information is available in the DOCA Flow Tune Server programming guide.
DOCA-Flow-based program should run using the "trace enabled" DOCA Flow library. More information is available in the "Debug and Trace Features" section of the DOCA Flow programming guide.\
visualize --cost or --critical-path Not Working
Error
When running DOCA Flow Tune in visualize
mode with the --cost
or --critical-path
flags, the following error may occur:
2025
-04
-14
12
:24
:20
- flow_tune - ERROR - Low level info need to be enabled to visualize cost or critical path
2025
-04
-14
12
:24
:20
- flow_tune - ERROR - Failed to export mermaid graph
2025
-04
-14
12
:24
:20
- flow_tune - ERROR - DOCA Flow Tune failed during "visualize"
command: Invalid input
2025
-04
-14
12
:24
:20
- flow_tune - ERROR - DOCA Flow Tune finished with errors
Solution
The --cost
and --critical-path
options require low-level pipeline information, which is not enabled by default.
To resolve this issue, ensure that "low_level_info": true
is specified in one of the following ways:
Option 1 – configuration file:
doca_flow_tune visualize --cost -f /tmp/flow_tune_cfg.json
Make sure the config file (
flow_tune_cfg.json
) includes:"analyze"
: {"low_level_info"
:true
}Option 2 – offline pipeline description:
doca_flow_tune visualize --cost --pipeline-desc my_program_pipeline_desc.json
Ensure that
my_program_pipeline_desc.json
was originally exported with"low_level_info": true
enabled during analysis or dump.
flow_tune_cfg.json
{
"outputs_directory"
: "/tmp/flow_tune/"
,
"logging"
: {
"developer_log"
: "/var/log/doca/flow_tune/flow_tune_dev.log"
,
"operational_log"
: "/var/log/doca/flow_tune/flow_tune.log"
},
"network"
: {
"server_uds"
: "/tmp/tune_server.sock"
,
"uds_directory"
: "/var/run/doca/flow_tune/"
},
"csv"
: {
"enable"
: false
,
"file_name"
: "flow_tune.csv"
,
"max_size_bytes"
: 1000000000
,
"max_files"
: 1
},
"analyze"
: {
"file_name"
: "flow_tune_pipeline_desc.json"
,
"low_level_info"
: false
},
"visualize"
: {
"pipeline_desc_file"
: "/tmp/flow_tune/flow_tune_pipeline_desc.json"
, // Non-mandatory field
"file_name"
: "flow_tune_pipeline_vis.md"
,
"pcap_file"
: "sample_pcap.pcap"
},
"monitor"
: {
"screen_mode"
: "light"
,
"hardware"
: {
"pci_addresses"
: [
"08:00.0"
,
"08:00.1"
],
"profile"
: "full"
},
"software"
: [
{
"flow_port_id"
: 0
,
"profiles"
: [
"entries_ops_rates"
,
"action_resources"
]
},
{
"flow_port_id"
: 1
,
"profiles"
: [
"entries_ops_rates"
,
"action_resources"
]
}
]
}
}
Where:
outputs_directory
– Main directory on which all output products are saved. This field does not have a default value. If no value is provided, DOCA Flow Tune files are saved at the following directories:CSV file –
/var/log/doca/flow_tune/
Analyze export pipeline description file –
/tmp/flow_tune/
Pipeline visualization file –
/tmp/flow_tune/
logging
- Log files directory.developer_log
– developer level log file.operational_log
– user level log file.
network
server_uds
– DOCA Tune Server Unix Domain Socket (UDS) path. Default value is/tmp/tune_server.sock
.uds_directory
– Directory on which all local UDS is created. Default value is/var/run/doca/flow_tune/
.
csv
enable
– true if information should be saved into a CSV file. Default value isfalse
.file_name
– CSV filename. Default value isflow_tune.csv
.max_size_bytes
– CSV file maximum size in bytes. When the limit is reached, a new file is created. Default value is1Gb
.max_files
– Maximum CSV files to create. Default value is1
.
analyze
file_name
– Flow program pipeline description filename. File is created underoutputs_directory
path. Default value isflow_tune_pipeline_desc.json
.low_level_info
– Pipeline description JSON file to include low level information.
visualize
pipeline_desc_file
– Flow program pipeline description input file path. This file is the product of theanalyze export
command. If not provided, then thevisualize
command triggers a creation of it (a run ofanalyze export
).file_name
– Flow program pipeline visualization filename. File is created under theoutputs_directory
path. Default value isflow_tune_pipeline_vis.md
.pcap_file
– PCAP file to use when running distribution algorithm.
monitor
screen_mode
– Monitor command theme to be used. Default value islight
.hardware
pci_addresses
– List of PCIe addresses which DOCA Flow Tune should inspect.profile
– Hardware profile to be used for each PCIe address given. Default value isfull
.
software
flow_port_id
– Flow program port identification number which DOCA Flow Tune should inspect.profiles
– List of software profiles to be used for the specific port identification number given. Default value is[entries_ops_rates]
.
