DOCA Telemetry Service Guide

This guide provides instructions on how to use the DOCA Telemetry Service (DTS) container on top of hosts or NVIDIA® BlueField® DPU.

New Features

1. Added host image for aarch64 servers

2. Introduce Real Time Analytics (RTA) Exporter

3. Introduce Virtual NIC Counters Provider

4. Introduce high frequency telemetry REST API

5. Support Multirate export of telemetry to Open Telemetry receivers using loadbalancer

Bug Fixes

1. Updated default configuration of counterset folder location

2. Fixed default field indexes to perform exact string match in dts_config.ini

Deprecations and Removals

1. hcaperf provider will be removed starting with DOCA 3.2.0

DOCA Telemetry Service (DTS) provides real-time system and workload metrics for BlueField platforms and supported host systems from built-in providers and from external telemetry applications.

DTS supports the following providers:

• Data providers:

  • Sysfs

  • Ethtool

  • Advanced monitoring and bringup errors (amber)

  • Port programmable congestion control (ppcc_eth)

  • Diagnostic data

  • Ifconfig

  • RDMA notifications

  • Data center GPU manager (DCGM)

  • NVIDIA System Management Interface (nvidia-smi)

  • BlueField performance (bfperf)

  • TC (traffic control)

• Aggregation providers:

  • Fluent aggregator

  • Prometheus aggregator

Data Storage

DTS stores collected data in binary files located at /opt/mellanox/doca/services/telemetry/data directory. By default, data writing is disabled.

Data Export Options

DTS supports the following export mechanisms:

• Prometheus Endpoint (pull)

• Fluent Bit (push)

• OpenTelemetry (push)

• Prometheus Remote Write (push)

NetFlow Packet Export

DTS can export NetFlow packets when data is collected using the DOCA Telemetry Exporter NetFlow API client application.

To enable the NetFlow exporter, configure the dts_config.ini file with the NetFlow collector IP/address and port.

DTS is available as a built-in service on BlueField DPUs and as a container image on NVIDIA NGC for hosts.

Built-in DOCA Service Image (BlueField)

DOCA Telemetry Service is included by default in the BlueField DPU image. Each DPU image ships with a fixed version of the service, providing out-of-the-box support for applications using the DOCA Telemetry library.

DOCA Service on NGC

In addition to the built-in image, updated DTS versions are available on NVIDIA NGC. This is useful if you need to upgrade to a newer version than the one bundled with the BlueField OS. Refer to the container's NGC page for service-specific configuration and deployment steps.

DPU Deployment

On BlueField DPUs, DTS starts automatically during boot using the configuration defined in:




/etc/kubelet.d/doca_telemetry_standalone.yaml


• To disable auto-start, remove the YAML file from this path

• Changes to the YAML file are applied on system restart

DTS file location: /opt/mellanox/doca/services/telemetry/

• Container volume mounts:

  • config/

  • data/

  • ipc_sockets/

• Backup artifacts:

  • doca_telemetry_service_${version}_arm64.tar.gz – DTS container image

  • doca_telemetry_standalone.yaml – backup of the default boot YAML

Host Deployment

DTS supports deployment on x86_64 and aarch64 host architectures. All exporters and providers run from a single Docker container.

1. Initialize and configure host DTS with the desired DTS version:

   Copy

   Copied!




   export DTS_IMAGE=nvcr.io/nvidia/doca/doca_telemetry:<desired-DTS-host-version>
   docker run -v "/opt/mellanox/doca/services/telemetry/config:/config" --rm --name doca-telemetry-init -it $DTS_IMAGE /bin/bash -c "DTS_CONFIG_DIR=host /usr/bin/telemetry-init.sh"


   Note

   NGC does not support the latest tag. You must specify a full versioned tag (e.g., 1.16.5-doca2.6.0-host).

   Copy

   Copied!




   export DTS_IMAGE=nvcr.io/nvidia/doca/doca_telemetry:1.16.5-doca2.6.0-host


   Info

   The purpose of telemetry-init.sh is to populate the config/ directory. If this directory already contains configuration files, the script is a no-op. When upgrading, mount an alternate directory to add new configuration files as needed.

2. Launch the DTS container:

   Copy

   Copied!




   docker run -d --net=host --uts=host --ipc=host \
              --privileged \
              --ulimit stack=67108864 --ulimit memlock=-1 \
              --device=/dev/mst/ \
              --device=/dev/infiniband/ \
              --gpus all \
              -v "/opt/mellanox/doca/services/telemetry/config:/config" \
              -v "/opt/mellanox/doca/services/telemetry/ipc_sockets:/tmp/ipc_sockets" \
              -v "/opt/mellanox/doca/services/telemetry/data:/data" \
              -v "/usr/lib64/mft:/usr/lib64/mft" \
              --rm --name doca-telemetry -it $DTS_IMAGE /usr/bin/telemetry-run.sh


   Note

   If GPU devices are not properly detected by the driver, remove --gpus all from the command.

   Note

   Required mounts per service:

   Service Component	Required Flags
   GPU providers (nvidia_smi, dcgm)	--gpus all
   amber, ppcc_eth, hcaperf	--device=/dev/mst/ -v "/usr/lib64/mft:/usr/lib64/mft"
   hcaperf (additional)	-v "/sys/kernel/debug:/sys/kernel/debug"
   UCX/RDMA modes	--device=/dev/infiniband/

   Collection logs are available at /var/log/clx.log*. To persist logs on the host, mount a host folder using:

   Copy

   Copied!




   -v /opt/mellanox/doca/services/telemetry/log:/var/log


Deployment with Grafana Monitoring

For information on integrating DTS with Grafana dashboards, refer to the section "Deploying with Grafana Monitoring".

DTS configuration is located at /opt/mellanox/doca/services/telemetry/config.

This directory is initialized during service startup. It contains the main configuration file (dts_config.ini) and a folder for Fluent Bit configuration (fluent_bit_configs). The dts_config.ini file is used to control telemetry provider behavior, exporter settings, sampling rates, and data output. Fluent Bit integration is discussed separately in the Fluent Bit section.

Initialization Scripts (BlueField Deployment)

The DTS container’s initContainers section of the .yaml file executes two initialization scripts:

• /usr/bin/telemetry-init.sh – Generates default configuration files only if the config directory is empty

• /usr/bin/enable-fluent-forward.sh – Configures the Fluent Bit forwarding destination (host and port). This script only runs when both parameters are provided and will overwrite the fluent_bit_configs directory with a new .exp configuration file.

Enabling Fluent Bit Forwarding

To enable Fluent Bit forwarding, add the destination IP and port to the command line in the initContainers section of your deployment YAML:




command: ["/bin/bash", "-c", "/usr/bin/telemetry-init.sh && /usr/bin/enable-fluent-forward.sh -i=127.0.0.1 -p=24224"]


Generating Configuration

The config directory starts empty by default. The initialization process will generate default configuration files during first launch.

Resetting Configuration

To reset DTS to its default state:

1. Delete all files from /opt/mellanox/doca/services/telemetry/config/.

2. Restart the DTS container to regenerate default configuration files.

Sampling Interval

The sampling interval for most telemetry providers is controlled by the update parameter in dts_config.ini:




# Sampling interval for providers (milliseconds)
update=1000





# Timeout for forced page rotation in seconds
sync-time-limit=10000


Enabling Providers

To enable a telemetry provider, uncomment its enable-provider line in dts_config.ini. For example:




enable-provider=ethtool


Remote Collection (BlueField Only)

Some providers may not function correctly within a container and require remote execution. Enable this mode as follows:

1. Start the DOCA privileged executor (DPE):

   Copy

   Copied!




   systemctl start dpe


2. Prefix the provider name with grpc.. For example, the following line configures remote collection of the hcaperf provider:

   Copy

   Copied!




   enable-provider=grpc.hcaperf


3. For provider-specific configuration, apply the same prefix. Building upon the previous example:

   Copy

   Copied!




   grpc.hcaperf.mlx5_0=sample
   grpc.hcaperf.mlx5_1=sample


Enabling Data Output

To enable writing collected data to disk, uncomment the following line in dts_config.ini:




output=/data

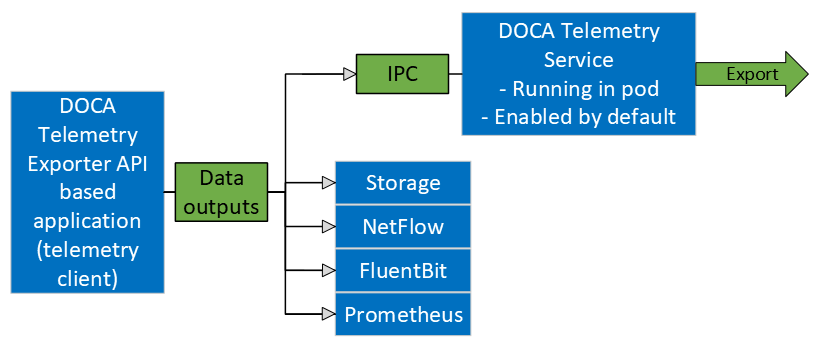

Enabling IPC with External Applications

To enable inter-process communication (IPC) between DTS and a non-containerized application, refer to the section "Using IPC with Non-container Application" in DOCA Telemetry Exporter.

Level Labels

DTS supports metadata labels for telemetry exporters such as Prometheus and OpenTelemetry. Labels can be configured globally or per device, and are defined in /opt/mellanox/doca/services/telemetry/config/level_labels.ini.

Sample level_labels.ini

The following is an example level_labels.ini file, defining global and per-device labels:




# lines starting with hash are ignored
# 2 level labels are supported - global and device
# global labels will be added to all metrics
# device labels will be added to metrics matching the device description

[global_labels]
# global labels to be added to all metrics
# format:
# label_name=label_value
hostname=myhost
ip=127.127.127.127

[device_labels]
# device labels will be added to metrics related to the device
# format:
# device_index_label=device_label_name1|device_label_value1|device_label_name2|device_label_value2
mlx5_0=rail|0|network|compute
mlx5_1=rail|1|network|compute
mlx5_2=rail|2|network|storage

[device_mapping]
# optional: mapping of device names to network interfaces and mst devices
# this is done internally by DTS, but can be overridden here
# add clear_auto_detected_mapping=true to clear the auto-detected mapping
# format:
# device_name=mst_device_name|net_interface_names
# in case of multiple net interfaces, separate them with comma

[data_types_mapping]
# internal data types, don't change this section if you don't know what you are doing
# format:
# data_type|index|device_type_name
ethtool_event=device_name|netif
ppcc_eth=device_name|mst
ifconfig_event=device_name|netif


Enabling Level Labels

1. Confirm that level_labels.ini is properly configured.

2. Add the following line to dts_config.ini:

   Copy

   Copied!




   level-labels-file=/config/level_labels.ini


Monitoring and Reloading

DTS continuously monitors level_labels.ini. When a change is detected:

• The current telemetry process exits automatically

• DTS restarts within 60 seconds and loads the updated labels

This ensures label changes take effect without requiring manual restarts.

Providers

DTS supports on-board data collection from sysf, ethtool, and tc providers. Fluent and Prometheus aggregator providers can collect the data from other applications.

Other providers are available based on different conditions (e.g., specific container mounts or host only such as amber, ppcc_eth, etc). Such providers are described with their dependencies in their corresponding sections.

Sysfs Counters List

The sysfs provider has several components: ib_port, hw_port, mr_cache, eth, hwmon and bf_ptm. By default, all the components (except bf_ptm) are enabled when the provider is enabled:




#disable-provider=sysfs


The components can be disabled separately. For instance, to disable eth:




enable-provider=sysfs
disable-provider=sysfs.eth


• ib_port counters:

  Copy

  Copied!




  {hca_name}:{port_num}:ib_port_state
  {hca_name}:{port_num}:VL15_dropped
  {hca_name}:{port_num}:excessive_buffer_overrun_errors
  {hca_name}:{port_num}:link_downed
  {hca_name}:{port_num}:link_error_recovery
  {hca_name}:{port_num}:local_link_integrity_errors
  {hca_name}:{port_num}:multicast_rcv_packets
  {hca_name}:{port_num}:multicast_xmit_packets
  {hca_name}:{port_num}:port_rcv_constraint_errors
  {hca_name}:{port_num}:port_rcv_data
  {hca_name}:{port_num}:port_rcv_errors
  {hca_name}:{port_num}:port_rcv_packets
  {hca_name}:{port_num}:port_rcv_remote_physical_errors
  {hca_name}:{port_num}:port_rcv_switch_relay_errors
  {hca_name}:{port_num}:port_xmit_constraint_errors
  {hca_name}:{port_num}:port_xmit_data
  {hca_name}:{port_num}:port_xmit_discards
  {hca_name}:{port_num}:port_xmit_packets
  {hca_name}:{port_num}:port_xmit_wait
  {hca_name}:{port_num}:symbol_error
  {hca_name}:{port_num}:unicast_rcv_packets
  {hca_name}:{port_num}:unicast_xmit_packets


• ib_hw counters:

  Copy

  Copied!




  {hca_name}:{port_num}:hw_state
  {hca_name}:{port_num}:hw_duplicate_request
  {hca_name}:{port_num}:hw_implied_nak_seq_err
  {hca_name}:{port_num}:hw_lifespan
  {hca_name}:{port_num}:hw_local_ack_timeout_err
  {hca_name}:{port_num}:hw_out_of_buffer
  {hca_name}:{port_num}:hw_out_of_sequence
  {hca_name}:{port_num}:hw_packet_seq_err
  {hca_name}:{port_num}:hw_req_cqe_error
  {hca_name}:{port_num}:hw_req_cqe_flush_error
  {hca_name}:{port_num}:hw_req_remote_access_errors
  {hca_name}:{port_num}:hw_req_remote_invalid_request
  {hca_name}:{port_num}:hw_resp_cqe_error
  {hca_name}:{port_num}:hw_resp_cqe_flush_error
  {hca_name}:{port_num}:hw_resp_local_length_error
  {hca_name}:{port_num}:hw_resp_remote_access_errors
  {hca_name}:{port_num}:hw_rnr_nak_retry_err
  {hca_name}:{port_num}:hw_rx_atomic_requests
  {hca_name}:{port_num}:hw_rx_dct_connect
  {hca_name}:{port_num}:hw_rx_icrc_encapsulated
  {hca_name}:{port_num}:hw_rx_read_requests
  {hca_name}:{port_num}:hw_rx_write_requests


• ib_mr_cache counters:

  Copy

  Copied!




  {hca_name}:mr_cache:size_{n}:cur
  {hca_name}:mr_cache:size_{n}:limit
  {hca_name}:mr_cache:size_{n}:miss
  {hca_name}:mr_cache:size_{n}:size


  Note

  Where n ranges from 0 to 24.

• eth counters:

  Copy

  Copied!




  {hca_name}:{device_name}:eth_collisions
  {hca_name}:{device_name}:eth_multicast
  {hca_name}:{device_name}:eth_rx_bytes
  {hca_name}:{device_name}:eth_rx_compressed
  {hca_name}:{device_name}:eth_rx_crc_errors
  {hca_name}:{device_name}:eth_rx_dropped
  {hca_name}:{device_name}:eth_rx_errors
  {hca_name}:{device_name}:eth_rx_fifo_errors
  {hca_name}:{device_name}:eth_rx_frame_errors
  {hca_name}:{device_name}:eth_rx_length_errors
  {hca_name}:{device_name}:eth_rx_missed_errors
  {hca_name}:{device_name}:eth_rx_nohandler
  {hca_name}:{device_name}:eth_rx_over_errors
  {hca_name}:{device_name}:eth_rx_packets
  {hca_name}:{device_name}:eth_tx_aborted_errors
  {hca_name}:{device_name}:eth_tx_bytes
  {hca_name}:{device_name}:eth_tx_carrier_errors
  {hca_name}:{device_name}:eth_tx_compressed
  {hca_name}:{device_name}:eth_tx_dropped
  {hca_name}:{device_name}:eth_tx_errors
  {hca_name}:{device_name}:eth_tx_fifo_errors
  {hca_name}:{device_name}:eth_tx_heartbeat_errors
  {hca_name}:{device_name}:eth_tx_packets
  {hca_name}:{device_name}:eth_tx_window_errors


• devices counters

  Copy

  Copied!




  {hca_name}:current_link_width
  {hca_name}:current_link_speed
  {hca_name}:max_link_speed
  {hca_name}:max_link_width


• BlueField-2 hwmon counters:

  Collapse Source

  Copy

  Copied!




  {hwmon_name}:{l3cache}:CYCLES
  {hwmon_name}:{l3cache}:HITS_BANK0
  {hwmon_name}:{l3cache}:HITS_BANK1
  {hwmon_name}:{l3cache}:MISSES_BANK0
  {hwmon_name}:{l3cache}:MISSES_BANK1
  {hwmon_name}:{pcie}:IN_C_BYTE_CNT
  {hwmon_name}:{pcie}:IN_C_PKT_CNT
  {hwmon_name}:{pcie}:IN_NP_BYTE_CNT
  {hwmon_name}:{pcie}:IN_NP_PKT_CNT
  {hwmon_name}:{pcie}:IN_P_BYTE_CNT
  {hwmon_name}:{pcie}:IN_P_PKT_CNT
  {hwmon_name}:{pcie}:OUT_C_BYTE_CNT
  {hwmon_name}:{pcie}:OUT_C_PKT_CNT
  {hwmon_name}:{pcie}:OUT_NP_BYTE_CNT
  {hwmon_name}:{pcie}:OUT_NP_PKT_CNT
  {hwmon_name}:{pcie}:OUT_P_PKT_CNT
  {hwmon_name}:{tile}:MEMORY_READS
  {hwmon_name}:{tile}:MEMORY_WRITES
  {hwmon_name}:{tile}:MSS_NO_CREDIT
  {hwmon_name}:{tile}:VICTIM_WRITE
  {hwmon_name}:{tilenet}:CDN_DIAG_C_OUT_OF_CRED
  {hwmon_name}:{tilenet}:CDN_REQ
  {hwmon_name}:{tilenet}:DDN_REQ
  {hwmon_name}:{tilenet}:NDN_REQ
  {hwmon_name}:{trio}:TDMA_DATA_BEAT
  {hwmon_name}:{trio}:TDMA_PBUF_MAC_AF
  {hwmon_name}:{trio}:TDMA_RT_AF
  {hwmon_name}:{trio}:TPIO_DATA_BEAT
  {hwmon_name}:{triogen}:TX_DAT_AF
  {hwmon_name}:{triogen}:TX_DAT_AF


• BlueField-3 hwmon counters:

  Copy

  Copied!




  {hwmon_name}:{llt}:GDC_BANK0_RD_REQ
  {hwmon_name}:{llt}:GDC_BANK1_RD_REQ
  {hwmon_name}:{llt}:GDC_BANK0_WR_REQ
  {hwmon_name}:{llt}:GDC_BANK1_WR_REQ
  {hwmon_name}:{llt_miss}:GDC_MISS_MACHINE_RD_REQ
  {hwmon_name}:{llt_miss}:GDC_MISS_MACHINE_WR_REQ
  {hwmon_name}:{mss}:SKYLIB_DDN_TX_FLITS
  {hwmon_name}:{mss}:SKYLIB_DDN_RX_FLITS


• BlueField-3 bf_ptm counters:

  Copy

  Copied!




  bf:ptm:active_power_profile
  bf:ptm:atx_power_available
  bf:ptm:core_temp
  bf:ptm:ddr_temp
  bf:ptm:error_state
  bf:ptm:power_envelope
  bf:ptm:power_throttling_event_count
  bf:ptm:power_throttling_state
  bf:ptm:thermal_throttling_event_count
  bf:ptm:thermal_throttling_state
  bf:ptm:throttling_state
  bf:ptm:total_power
  bf:ptm:vr0_power
  bf:ptm:vr1_power


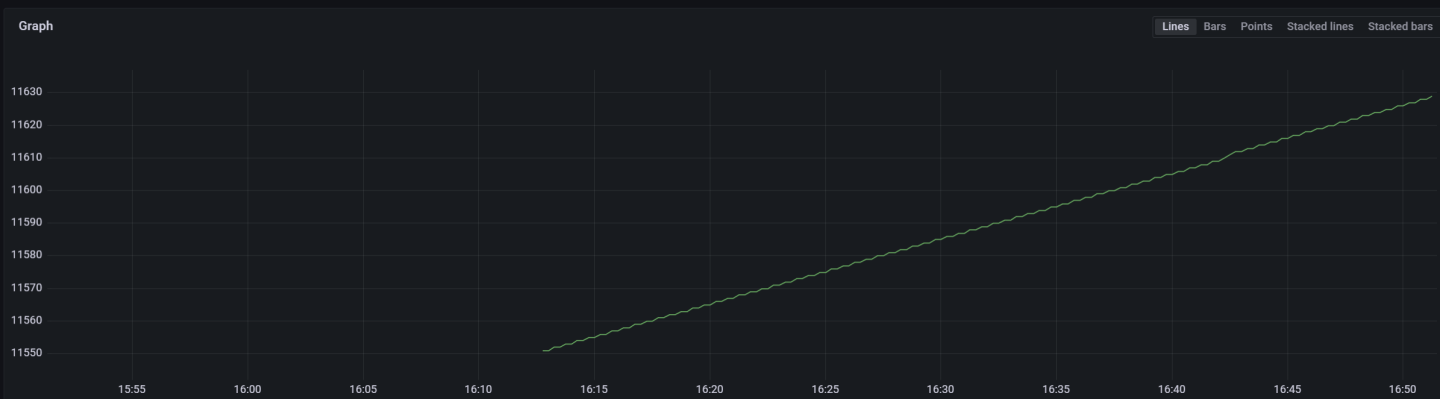

• rate counters – calculated counters showing the rate of raw counters of other components. Such counters are identified by a _rate suffix which correspond to the original raw counter name they track.

Port Counters

The following parameters are located in /sys/class/infiniband/mlx5_0/ports/1/counters.

Hardware Counters

The hardware counters, found under /sys/class/infiniband/mlx5_0/ports/1/hw_counters/, are counted per function and exposed on the function. Some counters are not counted per function. These counters are commented with a relevant comment.

Debug Status Counters

The following parameters are located in /sys/class/net/<interface>/debug.




# cat /sys/class/net/eth2/debug/lro_timeout
Actual timeout: 32
Supported timeout: 8 16 32 1024





$ cat /sys/class/net/ethXX/debug/link_down_reason
monitor_opcode: 0x0
status_message: The port is Active.


Power Thermal Counters

The bf_ptm component collects BlueField-3 power thermal counters using remote collection. It is disabled by default and can be enabled as follows:

1. Load kernel module mlxbf-ptm:

   Copy

   Copied!




   modprobe -v mlxbf-ptm


2. Enable component using remote collection:

   Copy

   Copied!




   enable-provider=grpc.sysfs.bf_ptm


   Note

   DPE server should be active before changing the dts_config.ini file. See section "Remote Collection" for details.

Ethtool Counters

Ethtool counters is the generated list of counters which corresponds to Ethtool utility. Counters are generated on a per-device basis.

There are several counter groups, depending on where the counter is counted:

• Ring – software ring counters

• Software port – an aggregation of software ring counters

• vPort counters – traffic counters and drops due to steering or no buffers. May indicate BlueField issues. These counters include Ethernet traffic counters (including raw Ethernet) and RDMA/RoCE traffic counters.

• Physical port counters – the physical port connecting BlueField to the network. May indicate device issues or link or network issues. This measuring point holds information on standardized counters like IEEE 802.3, RFC2863, RFC 2819, RFC 3635 and additional counters like flow control, FEC, and more. Physical port counters are not exposed to virtual machines.

• Priority port counters – a set of the physical port counters, per priory per port

Each group of counters may have different counter types:

• Traffic informative counters – counters which counts traffic. These counters can be used for load estimation of for general debug.

• Traffic acceleration counters – counters which counts traffic accelerated by NVIDIA drivers or by hardware. The counters are an additional layer to the informative counter set and the same traffic is counted in both informative and acceleration counters. Acceleration counters are marked with [A].

• Error counters – increment of these counters might indicate a problem

The following acceleration mechanisms have dedicated counters:

• TCP segmentation offload (TSO) – increasing outbound throughput and reducing CPU utilization by allowing the kernel to buffer multiple packets in a single large buffer. The BlueField splits the buffer into packet and transmits it.

• Large receive offload (LRO) – increasing inbound throughput and reducing CPU utilization by aggregation of multiple incoming packets of a single stream to a single buffer

• CHECKSUM – calculation of TCP checksum (by the BlueField). The following checksum offloads are available (refer to skbuff.h for detailed explanation)

  • CHECKSUM_UNNECESSARY

  • CHECKSUM_NONE – no checksum acceleration was used

  • CHECKSUM_COMPLETE – device provided checksum on the entire packet

  • CHECKSUM_PARTIAL – device provided checksum

• CQE compress – compression of completion queue events (CQE) used for sparing bandwidth on PCIe and hence achieve better performance.

Ring/Software Port Counters

The following counters are available per ring or software port.

These counters provide information on the amount of traffic accelerated by the BlueField. The counters tally the accelerated traffic in addition to the standard counters which tally that (i.e. accelerated traffic is counted twice).

The counter names in the table below refers to both ring and port counters. the notation for ring counters includes the [i] index without the braces. the notation for port counters does not include the [i]. a counter name rx[i]_packets will be printed as rx0_packets for ring 0 and rx_packets for the software port

1. The corresponding ring and global counters do not share the same name (i.e., do not follow the common naming scheme). ↩   ↩   ↩   ↩

vPort Counters

Counters on the eswitch port that is connected to the vNIC.

Physical Port Counters

The physical port counters are the counters on the external port connecting adapter to the network. This measuring point holds information on standardized counters like IEEE 802.3, RFC2863, RFC 2819, RFC 3635 and additional counters like flow control, FEC and more.

Priority Port Counters

The following counters are physical port counters that being counted per L2 priority (0-7).

Device Counters

Full List of Counters




# ethtool -S eth5

NIC statistics:
rx_packets: 10
rx_bytes: 3420
tx_packets: 18
tx_bytes: 1296
tx_tso_packets: 0
tx_tso_bytes: 0
tx_tso_inner_packets: 0
tx_tso_inner_bytes: 0
tx_added_vlan_packets: 0
tx_nop: 0
rx_lro_packets: 0
rx_lro_bytes: 0
rx_ecn_mark: 0
rx_removed_vlan_packets: 0
rx_csum_unnecessary: 0
rx_csum_none: 0
rx_csum_complete: 10
rx_csum_unnecessary_inner: 0
rx_xdp_drop: 0
rx_xdp_redirect: 0
rx_xdp_tx_xmit: 0
rx_xdp_tx_full: 0
rx_xdp_tx_err: 0
rx_xdp_tx_cqe: 0
tx_csum_none: 18
tx_csum_partial: 0
tx_csum_partial_inner: 0
tx_queue_stopped: 0
tx_queue_dropped: 0
tx_xmit_more: 0
tx_recover: 0
tx_cqes: 18
tx_queue_wake: 0
tx_udp_seg_rem: 0
tx_cqe_err: 0
tx_xdp_xmit: 0
tx_xdp_full: 0
tx_xdp_err: 0
tx_xdp_cqes: 0
rx_wqe_err: 0
rx_mpwqe_filler_cqes: 0
rx_mpwqe_filler_strides: 0
rx_buff_alloc_err: 0
rx_cqe_compress_blks: 0
rx_cqe_compress_pkts: 0
rx_page_reuse: 0
rx_cache_reuse: 0
rx_cache_full: 0
rx_cache_empty: 2688
rx_cache_busy: 0
rx_cache_waive: 0
rx_congst_umr: 0
rx_arfs_err: 0
ch_events: 75
ch_poll: 75
ch_arm: 75
ch_aff_change: 0
ch_eq_rearm: 0
rx_out_of_buffer: 0
rx_if_down_packets: 15
rx_steer_missed_packets: 0
rx_vport_unicast_packets: 0
rx_vport_unicast_bytes: 0
tx_vport_unicast_packets: 0
tx_vport_unicast_bytes: 0
rx_vport_multicast_packets: 2
rx_vport_multicast_bytes: 172
tx_vport_multicast_packets: 12
tx_vport_multicast_bytes: 936
rx_vport_broadcast_packets: 37
rx_vport_broadcast_bytes: 9270
tx_vport_broadcast_packets: 6
tx_vport_broadcast_bytes: 360
rx_vport_rdma_unicast_packets: 0
rx_vport_rdma_unicast_bytes: 0
tx_vport_rdma_unicast_packets: 0
tx_vport_rdma_unicast_bytes: 0
rx_vport_rdma_multicast_packets: 0
rx_vport_rdma_multicast_bytes: 0
tx_vport_rdma_multicast_packets: 0
tx_vport_rdma_multicast_bytes: 0
tx_packets_phy: 0
rx_packets_phy: 0
rx_crc_errors_phy: 0
tx_bytes_phy: 0
rx_bytes_phy: 0
tx_multicast_phy: 0
tx_broadcast_phy: 0
rx_multicast_phy: 0
rx_broadcast_phy: 0
rx_in_range_len_errors_phy: 0
rx_out_of_range_len_phy: 0
rx_oversize_pkts_phy: 0
rx_symbol_err_phy: 0
tx_mac_control_phy: 0
rx_mac_control_phy: 0
rx_unsupported_op_phy: 0
rx_pause_ctrl_phy: 0
tx_pause_ctrl_phy: 0
rx_discards_phy: 0
tx_discards_phy: 0
tx_errors_phy: 0
rx_undersize_pkts_phy: 0
rx_fragments_phy: 0
rx_jabbers_phy: 0
rx_64_bytes_phy: 0
rx_65_to_127_bytes_phy: 0
rx_128_to_255_bytes_phy: 0
rx_256_to_511_bytes_phy: 0
rx_512_to_1023_bytes_phy: 0
rx_1024_to_1518_bytes_phy: 0
rx_1519_to_2047_bytes_phy: 0
rx_2048_to_4095_bytes_phy: 0
rx_4096_to_8191_bytes_phy: 0
rx_8192_to_10239_bytes_phy: 0
link_down_events_phy: 0
rx_prio0_bytes: 0
rx_prio0_packets: 0
tx_prio0_bytes: 0
tx_prio0_packets: 0
rx_prio1_bytes: 0
rx_prio1_packets: 0
tx_prio1_bytes: 0
tx_prio1_packets: 0
rx_prio2_bytes: 0
rx_prio2_packets: 0
tx_prio2_bytes: 0
tx_prio2_packets: 0
rx_prio3_bytes: 0
rx_prio3_packets: 0
tx_prio3_bytes: 0
tx_prio3_packets: 0
rx_prio4_bytes: 0
rx_prio4_packets: 0
tx_prio4_bytes: 0
tx_prio4_packets: 0
rx_prio5_bytes: 0
rx_prio5_packets: 0
tx_prio5_bytes: 0
tx_prio5_packets: 0
rx_prio6_bytes: 0
rx_prio6_packets: 0
tx_prio6_bytes: 0
tx_prio6_packets: 0
rx_prio7_bytes: 0
rx_prio7_packets: 0
tx_prio7_bytes: 0
tx_prio7_packets: 0
module_unplug: 0
module_bus_stuck: 0
module_high_temp: 0
module_bad_shorted: 0
ch0_events: 9
ch0_poll: 9
ch0_arm: 9
ch0_aff_change: 0
ch0_eq_rearm: 0
ch1_events: 23
ch1_poll: 23
ch1_arm: 23
ch1_aff_change: 0
ch1_eq_rearm: 0
ch2_events: 8
ch2_poll: 8
ch2_arm: 8
ch2_aff_change: 0
ch2_eq_rearm: 0
ch3_events: 19
ch3_poll: 19
ch3_arm: 19
ch3_aff_change: 0
ch3_eq_rearm: 0
ch4_events: 8
ch4_poll: 8
ch4_arm: 8
ch4_aff_change: 0
ch4_eq_rearm: 0
ch5_events: 8
ch5_poll: 8
ch5_arm: 8
ch5_aff_change: 0
ch5_eq_rearm: 0
rx0_packets: 0
rx0_bytes: 0
rx0_csum_complete: 0
rx0_csum_unnecessary: 0
rx0_csum_unnecessary_inner: 0
rx0_csum_none: 0
rx0_xdp_drop: 0
rx0_xdp_redirect: 0
rx0_lro_packets: 0
rx0_lro_bytes: 0
rx0_ecn_mark: 0
rx0_removed_vlan_packets: 0
rx0_wqe_err: 0
rx0_mpwqe_filler_cqes: 0
rx0_mpwqe_filler_strides: 0
rx0_buff_alloc_err: 0
rx0_cqe_compress_blks: 0
rx0_cqe_compress_pkts: 0
rx0_page_reuse: 0
rx0_cache_reuse: 0
rx0_cache_full: 0
rx0_cache_empty: 448
rx0_cache_busy: 0
rx0_cache_waive: 0
rx0_congst_umr: 0
rx0_arfs_err: 0
rx0_xdp_tx_xmit: 0
rx0_xdp_tx_full: 0
rx0_xdp_tx_err: 0
rx0_xdp_tx_cqes: 0
rx1_packets: 10
rx1_bytes: 3420
rx1_csum_complete: 10
rx1_csum_unnecessary: 0
rx1_csum_unnecessary_inner: 0
rx1_csum_none: 0
rx1_xdp_drop: 0
rx1_xdp_redirect: 0
rx1_lro_packets: 0
rx1_lro_bytes: 0
rx1_ecn_mark: 0
rx1_removed_vlan_packets: 0
rx1_wqe_err: 0
rx1_mpwqe_filler_cqes: 0
rx1_mpwqe_filler_strides: 0
rx1_buff_alloc_err: 0
rx1_cqe_compress_blks: 0
rx1_cqe_compress_pkts: 0
rx1_page_reuse: 0
rx1_cache_reuse: 0
rx1_cache_full: 0
rx1_cache_empty: 448
rx1_cache_busy: 0
rx1_cache_waive: 0
rx1_congst_umr: 0
rx1_arfs_err: 0
rx1_xdp_tx_xmit: 0
rx1_xdp_tx_full: 0
rx1_xdp_tx_err: 0
rx1_xdp_tx_cqes: 0
rx2_packets: 0
rx2_bytes: 0
rx2_csum_complete: 0
rx2_csum_unnecessary: 0
rx2_csum_unnecessary_inner: 0
rx2_csum_none: 0
rx2_xdp_drop: 0
rx2_xdp_redirect: 0
rx2_lro_packets: 0
rx2_lro_bytes: 0
rx2_ecn_mark: 0
rx2_removed_vlan_packets: 0
rx2_wqe_err: 0
rx2_mpwqe_filler_cqes: 0
rx2_mpwqe_filler_strides: 0
rx2_buff_alloc_err: 0
rx2_cqe_compress_blks: 0
rx2_cqe_compress_pkts: 0
rx2_page_reuse: 0
rx2_cache_reuse: 0
rx2_cache_full: 0
rx2_cache_empty: 448
rx2_cache_busy: 0
rx2_cache_waive: 0
rx2_congst_umr: 0
rx2_arfs_err: 0
rx2_xdp_tx_xmit: 0
rx2_xdp_tx_full: 0
rx2_xdp_tx_err: 0
rx2_xdp_tx_cqes: 0
...
tx0_packets: 1
tx0_bytes: 60
tx0_tso_packets: 0
tx0_tso_bytes: 0
tx0_tso_inner_packets: 0
tx0_tso_inner_bytes: 0
tx0_csum_partial: 0
tx0_csum_partial_inner: 0
tx0_added_vlan_packets: 0
tx0_nop: 0
tx0_csum_none: 1
tx0_stopped: 0
tx0_dropped: 0
tx0_xmit_more: 0
tx0_recover: 0
tx0_cqes: 1
tx0_wake: 0
tx0_cqe_err: 0
tx1_packets: 5
tx1_bytes: 300
tx1_tso_packets: 0
tx1_tso_bytes: 0
tx1_tso_inner_packets: 0
tx1_tso_inner_bytes: 0
tx1_csum_partial: 0
tx1_csum_partial_inner: 0
tx1_added_vlan_packets: 0
tx1_nop: 0
tx1_csum_none: 5
tx1_stopped: 0
tx1_dropped: 0
tx1_xmit_more: 0
tx1_recover: 0
tx1_cqes: 5
tx1_wake: 0
tx1_cqe_err: 0
tx2_packets: 0
tx2_bytes: 0
tx2_tso_packets: 0
tx2_tso_bytes: 0
tx2_tso_inner_packets: 0
tx2_tso_inner_bytes: 0
tx2_csum_partial: 0
tx2_csum_partial_inner: 0
tx2_added_vlan_packets: 0
tx2_nop: 0
tx2_csum_none: 0
tx2_stopped: 0
tx2_dropped: 0
tx2_xmit_more: 0
tx2_recover: 0
tx2_cqes: 0
tx2_wake: 0
tx2_cqe_err: 0
...


Traffic Control Info

The following TC objects are supported and reported regarding the ingress filters:

• Filters

  • flower

• Actions

  • mirred

  • tunnel_key

The info is provided as one of the following events:

• Basic filter event

• Flower/IPv4 filter event

• Flower/IPv6 filter event

• Basic action event

• Mirred action event

• Tunnel_key/IPv4 action event

• Tunnel_key/IPv6 action event

General notes:

• Actions always belong to a filter, so action events share the filter event's ID via the event_id data member

• Basic filter event only contains textual kind (so users can see which real life objects' support they are lacking)

• Basic action event only contains textual kind and some basic common statistics if available

Amber Provider

Amber data for both InfiniBand and Ethernet MST devices in amBER format.

The following config files are available:




amber_devices=DEV1,DEV2,DEV3   # Default:all, or set comma separated list of devices under /dev/mst
amber_update_interval_sec=30   # Sample rate for collection amber counters


PPCC_ETH Provider

Programmable congestion control counters are based on an algorithm defined by an end-user, although default algorithms are also available.

Counters are collected per MST device and algorithm parameters.

The counter list depends on the installed MFT version.

A comma-separated list of device names is required to enable this provider:




ppcc_eth_devices=mt41692_pciconf0,mt41692_pciconf0.1


Assuming the setup is configured by the user, ppcc_eth provider only reads and does not write to device registers.

The following parameter assures the described behaviour.




ppcc_read_only=1


The following algorithm parameters are set to default values. In most cases, they should not be changed.




ppcc_algo_slot=1
ppcc_algo_param_index=0
ppcc_local_port=1
ppcc_pnat=0
ppcc_lp_msb=0


Fluent Aggregator

fluent_aggr listens on a port for Fluent Bit Forward protocol input connections. Received data can be streamed via a Fluent Bit exporter.

The default port is 42442. This can be changed by updating the following option:




fluent-aggr-port=42442


Prometheus Aggregator

prometheus_aggr polls data from a list of Prometheus endpoints.

Each endpoint is listed in the following format:




prometheus_aggr_endpoint.{N}={host_name},{host_port_url},{poll_inteval_msec}


Where N starts from 0.

Aggregated data can be exported via a Prometheus Aggr Exporter endpoint.

Network Interfaces

ifconfig collects network interface data. To enable, set:




enable-provider=ifconfig


If the Prometheus endpoint is enabled, add the following configuration to cache every collected network interface and arrange the index according to their names:




prometheus-fset-indexes=name


Metrices are collected for each network interface as follows:




name
rx_packets
tx_packets
rx_bytes
tx_bytes
rx_errors
tx_errors
rx_dropped
tx_dropped
multicast
collisions
rx_length_errors
rx_over_errors
rx_crc_errors
rx_frame_errors
rx_fifo_errors
rx_missed_errors
tx_aborted_errors
tx_carrier_errors
tx_fifo_errors
tx_heartbeat_errors
tx_window_errors
rx_compressed
tx_compressed
rx_nohandler


HCA Performance

hcaperf collects HCA performance data. Since it requires access to an RDMA device, it must use remote collection on the BlueField. On the host, the user runs the container in privileged mode and RDMA device mount.

The counter list is device dependent.

hcaperf DPU Configuration

To enable hcaperf in remote collection mode, set:




enable-provider=grpc.hcaperf

# specify HCAs to sample
grpc.hcaperf.mlx5_0=sample
grpc.hcaperf.mlx5_1=sample


hcaperf Host Configuration

To enable hcaperf in regular mode, set:




enable-provider=hcaperf

# specify HCAs to sample
hcaperf.mlx5_0=sample
hcaperf.mlx5_1=sample


NVIDIA System Management Interface

The nvidia-smi provider collects GPU and GPU process information provided by the NVIDIA system management interface.

This provider is supported only on x86_64 hosts with installed GPUs. All GPU cards supported by nvidia-smi are supported by this provider.

The counter list is GPU dependent. Additionally, per-process information is collected for the first 20 (by default) nvidia_smi_max_processes processes.

Counters can be either collected as string data "as is" in nvidia-smi or converted to numbers when nvsmi_with_numeric_fields is set.

To enable nvidia-smi provider and change parameters, set:




enable-provider=nvidia_smi

# Optional parameters:
#nvidia_smi_max_processes=20
#nvsmi_with_numeric_fields=1


NVIDIA Data Center GPU Manager

The dcgm provider collects GPU information provided by the NVIDIA data center GPU manager (DCGM) API.

This provider is supported only on x86_64 hosts with installed GPUs, and requires running the nv-hostengine service (refer to DCGM documentation for details).

DCGM counters are split into several groups by context:

• GPU – basic GPU information (always)

• COMMON – common fields that can be collected from all devices

• PROF – profiling fields

• ECC – ECC errors

• NVLINK / NVSWITCH / VGPU – fields depending on the device type

To enable DCGM provider and counter groups, set:




enable-provider=dcgm

dcgm_events_enable_common_fields=1
#dcgm_events_enable_prof_fields=0
#dcgm_events_enable_ecc_fields=0
#dcgm_events_enable_nvlink_fields=0
#dcgm_events_enable_nvswitch_fields=0
#dcgm_events_enable_vgpu_fields=0


BlueField Performance

The bfperf provider collects calculated performance counters of BlueField Arm cores. It requires the executable bfperf_pmc, which is integrated in the DOCA BFB bundle of BlueField-3, as well as an active DPE.

To enable BlueField performance provider, set:




enable-provider=bfperf


Diagnostic Data

Diagnostic data is comprised of two providers which gather diagnostic data counters from network interface cards (NICs). These providers support the same counters (as defined in a YAML file), but they differ in usage and collection frequency:

• Low frequency provider is defined in dts_config.ini and is controlled by DTS collection loop

• High frequency provider is defined in dts_high_freq_config.ini and operates in a distinct flow for a limited duration

The fwctl and mlx5_fwctl drivers (supported on NVIDIA networking devices from BlueField-3 and ConnectX-7 , FW version x.43.1000 onwards) are required for firmware interaction and are part of MLNX_OFED driver. To load them, run:




modprobe -a fwctl mlx5_fwctl


This provider utilizes DOCA Telemetry library for data collection. Make sure that the library's prerequisites are met.

Both providers get the counter set from a YAML file.

Diagnostic Data Low Frequency

To enable the diagnostic data low frequency provider, set:




enable-provider=diagnostic_data_low_freq


Configure the counter set YAML file (all default files are available in the mounted folder host /opt/mellanox/doca/services/telemetry/config/diagnostic_data_configs).

If there is no such folder, you must update the config folder by running telemetry-init.sh. See "DTS Deployment" section for information.




diagnostic-data-yml-file=/config/diagnostic_data_configs/all-single-port.yml


To configure the diagnostic data timestamp collection type, set the following:




diagnostic-data-timestamp-collection-type=<method>


Where <method> can be one of the following:

• no_counters – Do not collect timestamp counters. This is the default method.

• start_and_end – Collect sample start and end timestamps

• per_counter – Collect every counter collection timestamp

To configure the clock firmware should use when collecting time stamps, set the following:




diagnostic-data-timestamp-source=<clock>


Where <clock> can be one of the following:

• RTC – Real-time clock (default clock used)

• RFC – Free-running clock

Diagnostic Data High Frequency

The Diagnostic Data High Frequency provider supports higher sampling frequencies with sub-millisecond resolution, enabling detailed and precise telemetry collection. Due to the large volume of collected data, this provider is designed to run ad-hoc for limited periods, unlike standard DTS providers configured via the DTS configuration file at /opt/mellanox/doca/services/telemetry/config/dts_config.ini.

While the standard DTS flow functions as an endless collect-export loop, High Frequency Telemetry (HFT) operates as an external flow triggered by an HFT HTTP API or by HFT configuration file.

Providers Compatibility

Both low and high frequency providers can run concurrently. The low frequency provider samples at the DTS standard frequency (defined in dts_config.ini), and the high frequency provider samples counters based on the HFT configuration file ( dts_high_freq_config.ini ).

To allow both providers to run concurrently, verify that the counters, the timestamp collection type, and the timestamp collection source are identical. Otherwise, when the high frequency provider starts sampling, the low frequency provider hangs until the end of the HFT session.

HFT HTTP API

The HFT HTTP API allows to start and stop remotely high frequency sampling sessions at scale on devices running DTS, it also allows to get and delete the data as needed.

The API is disabled by default. To enable it, add the following parameter to DTS configuration file /opt/mellanox/doca/services/telemetry/config/dts_config.ini.




enable-http-api=true


The default port is 9117. To modify it, set the http-port option with the desired port number.

The general expected API usage is:

1. Start an HFT ad hoc collection, wait for it to stop or manually stop it. By default, the collected telemetry is stored locally to binary files in the filesystem.

2. Get the binary data files. The binary data can be read using the /opt/mellanox/collectx/bin/clx_read app, packaged in collectx-clxapidev, a DOCA dependency package.

3. Delete the collection from DTS host. In any case, DTS runs a configurable retention policy for the collected data files:

   Copy

   Copied!




   # by size - set the max size limit of the collection files in bytes. Default is 1GB
   ad-hoc-runner-max-size-bytes=1073741824
   # by time - set the max age of collection files in seconds. Default is 1 week
   ad-hoc-runner-max-age-seconds=604800
   # set the minimum time for collection files to exist. Default is 10 minutes
   ad-hoc-runner-min-age-seconds=600


Summary

Query parameters are key-value pairs appended to the URL with ? and separated by & , for example /URL?key1=value1&key2=value2

Request Body is a JSON containing key-value pairs passed as body of request. For example '{"key1": "value1", "key2": "value2"}'

Response Body is the JSON reply of the server. The "Success Response" section of every endpoint demonstrates the expected response body.

Status Code is 200 for successful requests. In case of errors, a different status code will be returned.

POST /ad-hoc-collection/start

Start ad hoc collection.

Request Body

The following table describes supported parameters in the request body:

Success Response




{
  "status": "success",
  "message": "Collection created",
  "collection_id": 2
}


The collection_id parameter is generated automatically by this API and used in the GET and DELETE requests.

POST /ad-hoc-collection/stop

Stop active collection.

Success Response




{
  "status": "success",
  "message": "Collection stopped successfully"
}


POST /ad-hoc-collection/hft-counterset

Post an HFT counterset which can be used by the POST /ad-hoc-collection/start endpoint with the hft-counterset parameter.

Request Body

JSON of key-value strings pairs, keys are the counter names and the value is a string representation of the hexadecimal data ID of that counter.

For example, the following JSON contains two counters




{
  "port_rx_bytes_0": "0x1020000100000000",
  "port_rx_packets_0": "0x1020000300000000"
}


Query Parameters

Success Response




{
  "status": "success",
  "message": "HFT counterset saved successfully",
  "filename": "my_cset_filename",
  "overriden": false
}


overriden is true if there was already a counterset with this name and it was replaced.

GET /ad-hoc-collection

This request is feasible for collections that were made with file-write: true and were not removed from the system (by DELETE /ad-hoc-collection or the retention policy).

Query Parameters

Success Response

Content of tar.gz file. when extracted, a collection_data folder should appear in the working directory. Example with bash:




$ curl localhost:9117/ad-hoc-collection?collection_id=2 -o response.tar.gz
$ tar xf response.tar.gz
$ tree collection_data
collection_data/
├── 2025
│   └── 0401
│       └── c-237-169-100-103
│           ├── diagnostic_data_1743529761189538.bin
│           ├── diagnostic_data_1743529761802460.bin
│           ├── diagnostic_data_1743529762402948.bin
│           ├── diagnostic_data_1743529763003488.bin
│           ├── diagnostic_data_1743529763604078.bin
│           ├── diagnostic_data_1743529764204606.bin
│           ├── diagnostic_data_1743529764805022.bin
│           ├── diagnostic_data_1743529765405535.bin
│           └── diagnostic_data_1743529766005931.bin
└── schema
    └── schema_c4d0317ee6cecbab995bfbcc237c76b2.json


GET /ad-hoc-collection/list

List the collections available on the file system, to be gathered by GET /ad-hoc-collection.

Success Response




{
  "status": "success",
  "num_collections": 3,
  "collection_ids": [1,2,3]
}


DELETE /ad-hoc-collection

Delete data of an ad-hoc collection. Note that in addition to this API there is a configurable retention policy.

Query Parameters

Success Response




{
  "status": "success",
  "message": "Collection removed"
}


HFT Configuration File

The configuration file is mounted to DTS container, the host path is /opt/mellanox/doca/services/telemetry/config/clx_ad_hoc_runner_config.ini

This configuration file specifies the HFT session's timing parameters, provider settings, and export configurations. HFT allows data export to endpoints or protocols distinct from those used in the standard DTS collection loop. The DTS configuration references the HFT configuration file as an "ad hoc runner," enabling DTS to monitor its status via the following directive:




ad-hoc-runner-file=/config/clx_ad_hoc_runner_config.ini


The HFT configuration file serves as both the trigger and definition for HFT sessions. Modifying the file stops the current session and applies the new configuration for the next session. Deleting the file stops any pending HFT sessions entirely.

HFT File Parameters

This table provides the details of the HFT parameters. Refer to section "HFT Configuration File Example" for more helpful tips.

HFT Configuration File Example




## DTS configuration file for ad-hoc high frequency collection
## When modified, the file is parsed and applied.
## Note that the folders path is the container path, not the host path.

## Each section defines a collection. A file may have several sections, each one defines a high frequency collection.
## Section names must be unique and will be used as collection name by clx.
[collection-session]

### Time between samples in microseconds
sample-time-us=100000

### Start time of high frequency collection. Can be in the format HH:MM:SS or HH:MM or as epoch timestamp in microseconds
### Note - in container, the time is in UTC
start-time=18:00:00

### End time of high frequency collection. Can be in the format HH:MM:SS or HH:MM or as epoch timestamp in microseconds
### Note - in container, the time is in UTC
end-time=18:01:00
### Alternatively, you can set the number of iterations. This and start_time field will determine the end time
#num-iterations=300

### Data provider to use
provider=diagnostic_data_high_freq

### Write data to file system. Could potentially fill up the disk
file-write=false

### Root directory to store the data
# Ignored if file-write is set to false
data-root=/data

### Enable busy wait between iterations, for a more accurate sample time (default is false)
#busy-wait-sampling=true

### Set prometheus endpoint to enable http endpoint
#prometheus-endpoint=http://0.0.0.0:9112

### Set fluentbit config dir to enable fluentbit export
#fluentbit-config-dir=/config/fluent_bit_configs

### Set open telemetry receiver to enable open telemetry export
#open-telemetry-receiver=http://0.0.0.0:9502/v1/metrics

### Set remote write receiver to enable remote write export
#remote-write-receiver=http://0.0.0.0:9090/api/v1/write

### Provider specific parameters. Format is 'provider.$KEY=$VALUE'.
### The options below are specific to the diagnostic data high frequency provider

# Number of samples to collect on each iteration
provider.diagnostic-data-num-samples=1000

# The time period (in nanoseconds) between samples
provider.diagnostic-data-sample-period-nsec=100000

# The YAML file with the configuration for the diagnostic data provider
provider.diagnostic-data-yml-file=/config/diagnostic_data_configs/all-single-port.yml

# Diagnostic Data timestamp collection type. Options are ['no_counters', 'start_and_end', 'per_counter']. default: 'no_counters'
#provider.diagnostic-data-timestamp-collection-type=start_and_end

# Diagnostic Data timestamp source. Options are ['RTC', 'FRC']. default: 'RTC'
#provider.diagnostic-data-timestamp-source=FRC


Diagnostic Data YAML File

For compatibility with other related tools, the counter set is defined in YAML format.

There are 4 YAML files within a DTS container (one per permutation of BlueField-3 and ConnectX-7 with dual or single ports). The path to the YAMLs folder is /opt/mellanox/doca/services/telemetry/config/diagnostic_data_configs which is mounted to /config/diagnostic_data_configs.

By default, YAML files include a counter set that is not device-specific. This implies that the same counter set is utilized across all devices by default.

It is possible to assign a specific device within a YAML file; however, this requires maintaining a separate copy of the YAML file for each device. To manage multiple devices, use the diagnostic-data-yml-dir option to specify a directory for YAML files, where each .yml/.yaml file is utilized. This folder should be available to the container under /opt/mellanox/doca/services/telemetry/config .

The following list describes the expected entries in the YAML file:

• counters – sequence of counters to collect

  • id – counter data ID

  • desc – counter description (optional)

  • unit – name of unit to collect from (optional)

  • name – name of counter to use (optional). If not specified, the generated name is based on the counter description. Otherwise, it is based on the data ID.

• device – name of the mlx device to collect (optional). If not used, the provider requires a single file containing a list of counters, which it then applies to all available devices on the host.

YAML File Example

The following is the content of the all-dual-port.yml file provided by DTS:




counters:
  - id: 0x1020000100000000
    name: port_rx_bytes_0
  - id: 0x1020000100000001
    name: port_rx_bytes_1
  - id: 0x1020000300000000
    name: port_rx_packets_0
  - id: 0x1020000300000001
    name: port_rx_packets_1
  - id: 0x1140000100000000
    name: port_tx_bytes_0
  - id: 0x1140000100000001
    name: port_tx_bytes_1
  - id: 0x1140000300000000
    name: port_tx_packets_0
  - id: 0x1140000300000001
    name: port_tx_packets_1
  - id: 0x1100000100000000
    name: port_tx_transport_cnp_sent_packets_0
  - id: 0x1100000100000001
    name: port_tx_transport_cnp_sent_packets_1
  - id: 0x1080000500000000
    name: port_rx_transport_cnp_handled_packets_0
  - id: 0x1080000500000001
    name: port_rx_transport_cnp_handled_packets_1
  - id: 0x1080000400000000
    name: port_rx_transport_ecn_packets_0
  - id: 0x1080000400000001
    name: port_rx_transport_ecn_packets_1
  - id: 0x1160000b00000000
    name: pcie_link_latency_total_read_ns
  - id: 0x1160000c00000000
    name: pcie_link_latency_total_read_packets
  - id: 0x1160000d00000000
    name: pcie_link_latency_max_read_ns
  - id: 0x1160000e00000000
    name: pcie_link_latency_min_read_ns
  - id: 0x1180000100000000
    name: global_icmc_request
  - id: 0x1180000200000000
    name: global_icmc_hit
  - id: 0x1180000300000000
    name: global_icmc_miss


RDMA Notifications

The RDMA Notifications events provider collects notifications from the RDMA firmware and converts them into DTS events for telemetry purposes.

To enable the RDMA notifications provider, add the following line to the DTS configuration file (/opt/mellanox/doca/services/telemetry/config/dts_config.ini):




enable-provider=rdma_notifications


Prerequisites

• RDMA device(s) configured to operate in Ethernet protocol

• OFED installed

• ConnectX-7 or BlueField-3 and later

• Firmware version x.44.0820 or newer

Options

Events List

There are two types of events provided by the RDMA notifications:

• Notification Event – A direct translation of an RDMA notification into one of four possible event types, based on the notification content

• Counter Event – A periodic aggregation event that reports the total number of events collected for each syndrome

Notification Events

Additional fields are provided for convenience:

• guid – A globally unique identifier for the device

• idx – The event index, determined by the provider option rdma-notifications-num-event-indexes

• device_name – The name of the RDMA device, based on the devices listed in rdma-notifications-hca

These fields are not specified in the NVIDIA Adapters PRM but are included in the event data to enhance usability.

cqe_with_error_responder_ipv4




telemetry_counter
msn
syndrome
qp_type
vport_id
source_qpn
destination_qpn
psn
timestamp
dest_ipv4
node_guid
idx
device_name


cqe_with_error_responder_ipv6




telemetry_counter
msn
syndrome
qp_type
vport_id
source_qpn
destination_qpn
psn
timestamp
dest_ipv6
node_guid
idx
device_name


cqe_with_error_requestor_ipv4




telemetry_counter
msn
syndrome
opcode
qp_type
vport_id
source_qpn
destination_qpn
psn
timestamp
dest_ipv4
node_guid
idx
device_name


cqe_with_error_requestor_ipv6




telemetry_counter
msn
syndrome
opcode
qp_type
vport_id
source_qpn
destination_qpn
psn
timestamp
dest_ipv6
node_guid
idx
device_name


Counter Events

Describing the number of events per syndrome, for each device.

cqe_with_error_syndrome_counter




syndrome
device_name
node_guid
CQEwE_events


vNIC Provider

To enable the virtual NIC counters provider:




enable-provider=vnic


Counters are provided for all the valid Ethernet devices in the devlink dev output.

Counters are retrieved using devlink health diagnose <device_name> reporter vnic .

The exact list of counters depends on the driver version.

The following is an example of a counter list:




total_error_queues
send_queue_priority_update_flow
comp_eq_overrun
async_eq_overrun
cq_overrun
invalid_command
quota_exceeded_command
generated_pkt_steering_fail
handled_pkt_steering_fail


Data Outputs

DTS can send the collected data to the following outputs:

• Data writer (saves binary data to disk)

• Prometheus endpoint (keeps the most recent data to be pulled)

• Fluent Bit (push-model streaming)

• Open Telemetry exporter (push-model streaming)

• Prometheus Remote write exporter (push-model streaming)

Data Writer

The data writer is disabled by default to save space on BlueField. Steps for activating data write during debug can be found under section Enabling Data Output.

The schema folder contains JSON-formatted metadata files which allow reading the binary files containing the actual data. The binary files are written according to the naming convention shown in the following example (apt install tree):




tree /opt/mellanox/doca/services/telemetry/data/
/opt/mellanox/doca/services/telemetry/data/
├── {year}
│   └── {mmdd}
│        └── {hash}
│             ├── {source_id}
│             │   └── {source_tag}{timestamp}.bin
│             └── {another_source_id}
│                  └── {another_source_tag}{timestamp}.bin
└── schema
    └── schema_{MD5_digest}.json


New binary files appears when the service starts or when binary file age/size restriction is reached. If no schema or no data folders are present, refer to the Troubleshooting section.

Reading the binary data can be done from within the DTS container using the following command:




crictl exec -it <Container ID> /opt/mellanox/collectx/bin/clx_read -s /data/schema /data/path/to/datafile.bin


Example output:




{
    "timestamp": 1634815738799728,
    "event_number": 0,
    "iter_num": 0,
    "string_number": 0,
    "example_string": "example_str_1"
}
{
    "timestamp": 1634815738799768,
    "event_number": 1,
    "iter_num": 0,
    "string_number": 1,
    "example_string": "example_str_2"
}
…


Prometheus

The Prometheus endpoint keeps the most recent data to be pulled by the Prometheus server and is enabled by default.

To check that data is available, run the following command on BlueField:




curl -s http://0.0.0.0:9100/metrics


The command dumps every counter in the following format:




counter_name {list of meta fields} counter_value timestamp


Additionally, endpoint supports JSON and CSV formats:




curl -s http://0.0.0.0:9100/json/metrics
curl -s http://0.0.0.0:9100/csv/metrics


Configuration Details

Prometheus is configured as a part of dts_config.ini.

By default, the Prometheus HTTP endpoint is set to port 9100. Comment this line out to disable Prometheus export.




prometheus=http://0.0.0.0:9100


Prometheus can use the data field as an index to keep several data records with different index values. Index fields are added to Prometheus labels.




# Comma-separated counter set description for Prometheus indexing:
#prometheus-indexes=idx1,idx2

# Comma-separated fieldset description for prometheus indexing
#prometheus-fset-indexes=idx1,idx2


The default fset index is device_name. It allows Prometheus to keep ethtool data up for both the p0 and p1 devices.




prometheus-fset-indexes=device_name


If fset index is not set, the data from p1 overwrites p0's data.

For quick name filtering, the Prometheus exporter supports being provided with a comma-separated list of counter names to be ignored:




#prometheus-ignore-names=counter_name1,counter_name_2


For quick filtering of data by tag, the Prometheus exporter supports being provided with a comma-separated list of data source tags to be ignored.

Users should add tags for all streaming data since the Prometheus exporter cannot be used for streaming. By default, FI_metrics are disabled.




prometheus-ignore-tags=FI_metrics


Prometheus Aggregator Exporter

Prometheus aggregator exporter is an endpoint that keeps the latest aggregated data using prometheus_aggr.

This exporter labels data according to its source.

To enable this provider, users must set 2 parameters in dts_config.ini:




prometheus-aggr-exporter-host=0.0.0.0
prometheus-aggr-exporter-port=33333


Fluent Bit

Fluent Bit allows streaming to multiple destinations. Destinations are configured in .exp files that are documented in-place and can be found under:




/opt/mellanox/doca/services/telemetry/config/fluent_bit_configs


Fluent Bit allows exporting data via "Forward" protocol which connects to the Fluent Bit/FluentD instance on customer side.

Export can be enabled manually:

1. Uncomment the line with fluent_bit_configs=… in dts_config.ini.

2. Set enable=1 in required .exp files for the desired plugins.

3. Additional configurations can be set according to instructions in the .exp file if needed.

4. Restart the DTS.

5. Set up receiving instance of Fluent Bit/FluentD if needed.

6. See the data on the receiving side.

Export file destinations are set by configuring .exp files or creating new ones. It is recommended to start by going over documented example files. Documented examples exist for the following supported plugins:

• forward

• file

• stdout

• kafka

• es (elastic search)

• influx

Export File Configuration Details

Each export destination has the following fields:

• name – configuration name

• plugin_name – Fluent Bit plugin name

• enable – 1 or 0 values to enable/disable this destination

• host – the host for Fluent Bit plugin

• port – port for Fluent Bit plugin

• msgpack_data_layout – the msgpacked data format. Default is flb_std. The other option is custom. See section Msgpack Data Layout for details.

• plugin_key=val – key-value pairs of Fluent Bit plugin parameter (optional)

• counterset/fieldset – file paths (optional). See details in section Cset/Fset Filtering.

• source_tag=source_tag1,source_tag2 – comma-separated list of data page source tags for filtering. The rest tags are filtered out during export. Event tags are event provider names. All counters can be enabled/disabled only simultaneously with a counters keyword.

Msgpack Data Layout

Data layout can be configured using .exp files by setting msgpack_data_layout=layout. There are two available layouts: Standard and Custom.

The standard flb_std data layout is an array of 2 fields:

• timestamp double value

• a plain dictionary (key-value pairs)

The standard layout is appropriate for all Fluent Bit plugins. For example:




[timestamp_val, {"timestamp"->ts_val, type=>"counters/events", "source"=>"source_val", "key_1"=>val_1, "key_2"=>val_2,...}]


The custom data layout is a dictionary of meta-fields and counter fields. Values are placed into a separate plain dictionary. Custom data format can be dumped with stdout_raw output plugin of Fluent-Bit installed or can be forwarded with forward output plugin.

Counters example:




{"timestamp"=>timestamp_val, "type"=>"counters", "source"=>"source_val", "values"=> {"key_1"=>val_1, "key_2"=>val_2,...}}


Events example:




{"timestamp"=>timestamp_val, "type"=>"events", "type_name"=>"type_name_val", "source"=>" source_val", "values"=>{"key_1"=>val_1, "key_2"=>val_2,...}}


Cset/Fset Filtering

Each export file can optionally use one cset and one fset file to filter DTS counters and events data.

• cset contains tokens per line to filter data with "type"="counters".

• fset contains several blocks started with the header line [event_type_name] and tokens under that header. An Fset file is used to filter data with "type"="events".

  Note

  Event type names could be prefixed to apply the same tokens to all fitting types. For example, to filter all ethtool events, use [ethtool_event_*].

If several tokens must be matched simultaneously, use <tok1>+<tok2>+<tok3>. Exclusive tokens are available as well. For example, the line <tok1>+<tok2>-<tok3>-<tok4> filters names that match both tok1 and tok2 and do not match tok3 or tok4.

The following are the details of writing cset files:




# Put tokens on separate lines
# Tokens are the actual name 'fragments' to be matched
# port$ # match names ending with token "port"
# ^port # match names starting with token "port"
# ^port$ # include name that is exact token "port
# port+xmit # match names that contain both tokens "port" and "xmit"
# port-support # match names that contain the token "port" and do not match the "-" token "support"
#
# Tip: To disable counter export put a single token line that fits nothing


The following are the details of writing fset files:




# Put your events here
# Usage:
#
# [type_name_1]
# tokens
# [type_name_2]
# tokens
# [type_name_3]
# tokens
# ...
# Tokens are the actual name 'fragments' to be matched
# port$ # match names ending with token "port"
# ^port # match names starting with token "port"
# ^port$ # include name that is exact token "port
# port+xmit # match names that contain both tokens "port" and "xmit"
# port-support # match names that contain the token "port" and do not match the "-" token "support"

# The next example will export all the "tc" events and all events with type prefix "ethtool_" "ethtool" are filtered with token "port":
# [tc]
#
# [ethtool_*]
# packet

# To know which event type names are available check export and find field "type_name"=>"ethtool_event_p0"
# ...
# Corner cases:
# 1. Empty fset file will export all events.
# 2. Tokens written above/without [event_type] will be ignored.
# 3. If cannot open fset file, warning will be printed, all event types will be exported.


NetFlow Exporter

NetFlow exporter must be used when data is collected as NetFlow packets from the telemetry client applications. In this case, DOCA Telemetry Exporter NetFlow API sends NetFlow data packages to DTS via IPC. DTS uses NetFlow exporter to send data to the NetFlow collector (3rd party service).

To enable NetFlow exporter, set netflow-collector-ip and netflow-collector-port in dts_config.ini. netflow-collector-ip could be set either to IP or an address.

For additional information, refer to the dts_config.ini file.

Open Telemetry Exporter

DTS is capable of streaming telemetry data towards an Open Telemetry receiver using the HTTP-based OTLP metrics protocol.

The Open Telemetry exporter is disabled by default and can be configured via dts_config.ini.

To enable the telemetry data streaming in the form of metrics, set the destination of the OTLP data streaming (i.e., the Open Telemetry receiver):




open-telemetry-receiver=http://0.0.0.0:9502/v1/metrics


This example expects the running Open Telemetry receiver to be bound to port 9502 on the host running the DTS instance. Section "Open Telemetry Metrics Receiver Sample Configuration" provides an example of the Open Telemetry receiver configuration.

The Open Telemetry exporter can be configured to apply counter-set or field-set to the data stream, similar to the Fluent Bit exporter:




open-telemetry-counter-set=slow_counters
open-telemetry-field-set=slow_counters


The Open Telemetry exporter sends data in bulk, combining bursts when possible. By default, the size of the bulk is up to 100 data points. If desirable, the size of the bulk can be altered using the open-telemetry-bulk-size configuration parameter. For example:




open-telemetry-bulk-size=20


To set the start timestamp of DTS, add:




open-telemetry-set-start-timestamp=true


To set the description field of the exported data, add:




open-telemetry-with-description=true


The default serialization logic uses a customized JSON encoder. The following parameters use the official protobuf serializer and encode it as protobuf rather than JSON:




open-telemetry-fast-serializer=false
open-telemetry-binary-protobuf=true


Open Telemetry Metrics Receiver Sample Configuration

The following is a sample Open Telemetry server configuration file (collector-config.yaml):




receivers:
  otlp:
    protocols:
      http:
        endpoint: 0.0.0.0:9502

exporters:
  debug:
    verbosity: detailed

service:
  pipelines:
    metrics:
      receivers: [otlp]
      exporters: [debug]


To run an Open Telemetry instance:




docker run --rm --name "$(whoami)_open_telemetry" -p 9502:9502 \
    -v $(pwd)/data:/data -v $(pwd)/collector-config.yaml:/etc/otelcol/config.yaml otel/opentelemetry-collector


Prometheus Remote Write Exporter

DTS can stream the telemetry data towards an external Prometheus service with an enabled metrics receiver. If enabled, the DTS data exporter acts as a Prometheus remote write protocol "Sender", streaming telemetry data towards a Prometheus server using remote write protocol.

To enable telemetry data streaming:




remote-write-receiver=http://0.0.0.0:9090/api/v1/write


This example assumes the running Prometheus remote write receiver to be bound to port 9090 on the host running the DTS instance.

For example, a Prometheus remote write receiver could be run using the following command:




docker run -p 9090:9090 prom/prometheus --config.file=/etc/prometheus/prometheus.yml \
    --storage.tsdb.path=/prometheus --web.console.libraries=/usr/share/prometheus/console_libraries \
    --web.console.templates=/usr/share/prometheus/consoles --web.enable-remote-write-receiver


The Prometheus remote write exporter can be configured to apply counter-set or field-set to the data stream, similar to the Open Telemetry exporter:




remote-write-counter-set=slow_counters
remote-write-field-set=slow_counters


The Prometheus remote write exporter sends data in bulk, combining bursts when possible. By default, the size of the bulk is up to 100 data points. If necessary, the size of the bulk can be altered using the bulk-size configuration parameter. For example:




remote-write-bulk-size=20


Load Balancer Exporter

The load balancer exporter is an exporter which distributes or copies data between multiple instances of another (secondary) exporter.

For example, the number of instances may be set as follows depending on the use case:

When loadbalancer-INDEX-KEY and loadbalancer-exporter-config-var are not used, all instances are created equal, and their configuration is done according to other available configuration. If none of the instance configuration variables exist, that instance is created with other available configuration.

For example, the following is a section of the dts_config.ini configuration file which provides a sample of enabling load balancer to run 2 OTLP exporter instances:




loadbalancer-exporter-name=open_telemetry
loadbalancer-mode=replication
loadbalancer-0-open-telemetry-receiver=http://10.141.160.210:9502/v1/metrics
loadbalancer-1-open-telemetry-receiver=http://10.141.160.211:9502/v1/metrics


The default behavior is to export the entire collected data. To restrict the export interval of different instances (multirate export), add the required interval in seconds:




loadbalancer-0-open-telemetry-export-interval=30
loadbalancer-1-open-telemetry-export-interval=60


Distributed Real Time Analysis Exporter

The Real Time Analysis (RTA) Exporter is a powerful tool designed to export real-time analytics data from DTS. It provides seamless integration with various data sources and destinations, allowing you to efficiently collect, process, and export analytics information in real-time. One of its key features is the ability to run an HTTP server at a preconfigured port, allowing for remote management of Lua scripts used in data processing.

It allows to get relevant insights based on telemetry data without the overhead of aggregation and central analysis. Potential use cases can be running link health tests (by analyzing L1 data) before executing an AI job (saving cluster time by avoiding starting a job on a bad link), or any other custom logic that is able to run on-demand \ on-going and uses telemetry data as input.

To enable this exporter, the lua scripts folder path (in DTS container filesystem) should be specified in DTS config file




lua-script-dir=/config/rta/lua_scripts


The default DTS configuration folder contains several Lua scripts that can be used as an example. The section below describes the API




rta-enable-http-api=true
rta-http-port=1812


Additional Configuration Parameters

Lua Script Requirements

• If the script implements the isEnabled() function, it must return true for the script to be enabled. If this function is not implemented, the script will be disabled by default.

• Scripts must provide a set of metric names to be filtered for processing by implementing the getMetricNames() function.

• If a script is disabled, doesn't implement getMetricNames(), or returns an empty set of metric names, it will not be loaded.

Lua Scripts Workflow

The RTA Exporter plugin processes data in two ways:

1. 1. Periodic:

      • At the end of each data page, the plugin calls the processDataPageCompleted() Lua function.

      • This function allows the Lua script to process the collected data.

   2. On demand via http server - see <link>

Lua Scripts API

There are 2 directions of function calls:

1. DTS calls lua script functions

2. Lua script calls DTS functions

Lua script functions

2 functions are required - isEnabled and getMetricNames

isEnabled()

Determines if the script should be loaded.




function isEnabled()
    return true -- or false
end


getMetricNames()

Provides a set of metric names to be filtered for processing.




function getMetricNames()
    return {"metric1", "metric2", "metric3"}
end


processDataPageCompleted()

Processes collected data at the end of each data page.




function processDataPageCompleted()
    -- Implementation for processing data
end


getMetricsCapacity()

Defines the maximum size of the buffer that stores the most recent metric values.




function getMetricsCapacity()
    return 20 -- Example: Set the buffer size to 20 entries
end


processChangedMetricsOnly()

This function instructs the host application (CLX) to provide only metrics that have changed since the last time the script accessed them.




function processChangedMetricsOnly()
    return true -- Receive only updated metrics data
end


• Purpose: Optimizes data processing by instructing the host application to provide only metrics with new values since the script last accessed them. This can significantly improve performance and reduce unnecessary data transfer.

• Return value:

  • true: The host application will provide only metrics that have changed since the last access by the script.

  • false: The host application will provide all metrics, regardless of whether they've changed.

processDataMinPeriodMs()

Returns the minimum delay in milliseconds between calls to processDataPageCompleted(). This function helps reduce the frequency of calls if data pages are completed too quickly.




function processDataMinPeriodMs()
    return 5000 -- Example: Ensure processDataPageCompleted() is called at least 5 seconds apart
end


• Purpose: This function allows you to control maximum frequency at which processDataPageCompleted() is called when multiple data pages are completed in rapid succession.

• Note: The frequency of data pages becoming ready for processing is controlled by the CLX configuration. If the processDataMinPeriodMs() value is lower than the interval at which data pages are completed (as set by CLX), processDataPageCompleted() will be called on each data page completion, as the delay condition will always be met.

• If data pages are completed more frequently than the specified delay, processDataPageCompleted() will be called less often to prevent excessive processing.

processData()

Processes data on demand when requested via the HTTP API.




function processData()
    -- Your logic here to process data
    -- For example, let's assume a simple response
    return "Data processed successfully","text/plain; charset=utf-8"
end


The processData() function is an optional function in Lua scripts that is only required when the script is executed on demand. It processes data and returns a response. When implemented, it must return two values:

1. Response Content (string): The actual data or message to be sent back

2. Content Type (string): Specifies how the response should be interpreted

Return Values

• First Value: The response content as a string

• Second Value: The content type as a string (e.g., "text/plain; charset=utf-8")

Content Type Examples

• "text/plain; charset=utf-8" - For plain text responses

• "text/html; charset=utf-8" - For HTML responses

• "application/json" - For JSON responses

• Purpose: This function allows scripts to handle on-demand data processing requests initiated through the RTA HTTP API.

• Note: The processData() function is called independently of the regular data page processing cycle and is used for ad-hoc data processing tasks.

DTS functions that can be called from Lua script

The RTA Exporter plugin provides several functions implemented by DTS that allow Lua scripts to interact with metrics data. These functions are prefixed with clx_ and are designed to be called from within the processDataPageCompleted() and processData() functions in your Lua scripts.

clx_get_updated_metric_names(metricNames)

This function returns a list of metric names that have been updated since the last access.




function clx_get_updated_metric_names(metricNames)


• Parameters:

  • metricNames: A table of metric names to check for updates.

• Returns:

  • A table containing the names of metrics that have been updated.

clx_create_label_sets_iterator(metric_name, skip_unchanged)

This function creates an iterator for label sets associated with a given metric.




for label_set_index, labels in clx_create_label_sets_iterator(metric_name, skip_unchanged) do
    -- Process data
end


• Parameters:

  • metric_name: The name of the metric to iterate over.

  • skip_unchanged: A boolean indicating whether to skip label sets that haven't changed.

• Returns:

  • An iterator that yields pairs of label_set_index and labels for the specified metric.

clx_get_last_data_points(metric_name, label_set_index)

Retrieves both timestamps and corresponding values for a specific metric and label set index.




local timestamps, values = clx_get_last_data_points(metric_name, label_set_index)


• Parameters:

  • metric_name: The name of the metric.

  • label_set_index: The index of the label set associated with the metric.

• Returns:

  • timestamps: A table of timestamps corresponding to the data points.

  • values: A table of values corresponding to the timestamps.

clx_get_last_metric_values_by_index(metric_name, label_set_index, n)

Retrieves the last n values for a specific metric and label set index.




local values = clx_get_last_metric_values_by_index(metric_name, label_set_index, n)


• Parameters:

  • metric_name: The name of the metric.

  • label_set_index: The index of the label set associated with the metric.

  • n: The number of last values to retrieve.

• Returns:

  • A table containing the last n values for the specified metric and label set index.

clx_get_labels_set(label_set_index)

Retrieves the labels set for a given label set index.




local labels = clx_get_labels_set(label_set_index)


• Parameters:

  • label_set_index: The index of the label set to retrieve.

• Returns:

  • A table containing the labels set for the specified index.

clx_get_last_metric_values(metric_name, labels, n)

This function retrieves the last n values for a specific metric and label set.




function clx_get_last_metric_values(metric_name, labels, n)


• Parameters:

  • metric_name: The name of the metric.

  • labels: The label set associated with the metric.

  • n: The number of last values to retrieve.

• Returns:

  • A table containing the last n values for the specified metric and label set.

clx_get_all_metrics_data_points(label_set_index, n)

This function retrieves historical data points for a set of metrics




local timestamps, values = clx_get_all_metrics_data_points(label_set_index, n)


• Parameters:

  • label_set_index: number - Index of the label set to get data for

  • n: number - Maximum number of data points to retrieve per metric

• Returns:

  • timestamps_table: table - Array of timestamps for each metric

  • values_table: table - Array of values for each metric

• Usage: Used to access historical metric data for analysis

• Example:

  Copy

  Copied!




  local timestamps, values = clx_get_all_metrics_data_points(label_set_index, 2)
  if timestamps and values then
      for i, metric_name in ipairs(metricNames) do
          if values[i] and #values[i] > 0 then
              local last_value = values[i][#values[i]]
              -- Process the value
          end
      end
  end


clx_post_ufm_event(event_dictionary)

Posts a UFM external event and returns the response. (This is relevant in case UFM is running).




local response = clx_post_ufm_event(event_dictionary)


• Parameters:

  • event_dictionary: A table containing the event details to be posted. (See: Trigger External Events)

• Returns:

  • The UFM external event response if successful, or an error string if the operation fails.

clx_log_info(...)

Logs an informational message.




clx_log_info("Informational message %s %d", "Additional context", 123)


• Parameters:

  • ...: Variable number of arguments to log. These can be strings, numbers, or other types that can be converted to strings.

clx_log_warning(...)

Logs a warning message.




clx_log_warning("Warning message %s %d", "Additional context", 456)


• Parameters:

  • ...: Variable number of arguments to log.

clx_log_error(...)

Logs an error message.




clx_log_error("Error message %s %d", "Additional context", 789)


• Parameters:

  • ...: Variable number of arguments to log.
