Fine-Tune Gemma 3 and Gemma 3n

This document explains how to fine-tune Gemma 3 and Gemma 3n using NeMo AutoModel. It outlines key operations, including initiating SFT and PEFT-LoRA runs and managing experiment configurations using YAML.

To set up your environment to run NeMo AutoModel, follow the Installation Guide.

Data

MedPix-VQA Dataset

The MedPix-VQA dataset is a comprehensive medical Visual Question-Answering dataset designed for training and evaluating VQA models in the medical domain. It contains medical images from MedPix, a well-known medical image database, paired with questions and answers that focus on medical image interpretation.

The dataset consists of 20,500 examples with the following structure:

• Training Set: 17,420 examples (85%)
• Validation Set: 3,080 examples (15%)
• Columns: image_id, mode, case_id, question, answer

Preprocess the Dataset

NeMo AutoModel provides built-in preprocessing for the MedPix-VQA dataset through the make_medpix_dataset function. Here’s how the preprocessing works:

1
from nemo_automodel.components.datasets.vlm.datasets import make_medpix_dataset
2
3
# Load and preprocess the dataset
4
dataset = make_medpix_dataset(
5
    path_or_dataset="mmoukouba/MedPix-VQA",
6
    split="train"
7
)

The preprocessing pipeline performs the following steps:

1. Loads the dataset using the Hugging Face datasets library.
2. Extracts question-answer pairs by processing the question and answer fields from the dataset.
3. Converts to the Hugging Face message list format to restructure the data into a chat-style format compatible with the Autoprocessor’s apply_chat_template function.

1
# Example of the conversation format created
2
conversation = [
3
    {
4
        "role": "user",
5
        "content": [
6
            {"type": "image", "image": example["image_id"]},
7
            {"type": "text", "text": example["question"]},
8
        ],
9
    },
10
    {
11
        "role": "assistant",
12
        "content": [{"type": "text", "text": example["answer"]}]
13
    },
14
]

Use the Collate Functions

NeMo AutoModel provides specialized collate functions for different VLM processors. The collate function is responsible for batching examples and preparing them for model input.

Both Gemma 3 and Gemma 3n models work seamlessly with the Hugging Face AutoProcessor and use the default collate function:

1
processor = AutoProcessor.from_pretrained("google/gemma-3-4b-it")
2
# For Gemma 3n, get processor:
3
# processor = AutoProcessor.from_pretrained("google/gemma-3n-e4b-it")
4
5
# For Gemma 3 and Gemma 3n, use the default collate function
6
def default_collate_fn(examples: list, processor) -> dict[str, torch.Tensor]:
7
    batch = processor.apply_chat_template(
8
        [example["conversation"] for example in examples],
9
        tokenize=True,
10
        add_generation_prompt=False,
11
        return_tensors="pt",
12
        return_dict=True,
13
    )
14
15
    labels = batch["input_ids"].clone()[:, 1:]
16
    labels = torch.cat([labels, -100 * torch.ones_like(labels[:, :1])], dim=1)
17
    batch["labels"] = labels
18
    loss_mask = create_batch_loss_masks(
19
        batch["input_ids"], processor, start_of_response_token=start_of_response_token
20
    )
21
    batch["loss_mask"] = loss_mask
22
23
    return batch

The default collate function:

• Applies the processor’s chat template to convert message lists into model-ready inputs.
• Creates labels for training to guide supervised learning.
• Masks prompts and special tokens so that only answer tokens are considered during loss calculation.

Preprocess Custom Datasets

When using a custom dataset with a model whose Hugging Face AutoProcessor supports the apply_chat_template method, you’ll need to convert your data into the Hugging Face message list format expected by the apply_chat_template. We provide examples demonstrating how to perform this conversion.

Some models, such as Qwen2.5 VL, have specific preprocessing requirements and require custom collate functions. For instance, Qwen2.5-VL uses the qwen_vl_utils.process_vision_info function to process images:

1
texts = [processor.apply_chat_template(example["conversation"], tokenize=False) for example in examples]
2
image_inputs = [process_vision_info(example["conversation"])[0] for example in examples]
3
4
batch = processor(
5
    text=texts,
6
    images=image_inputs,
7
    padding=True,
8
    return_tensors="pt",
9
)

If your dataset requires custom preprocessing logic, you can define a custom collate function. To use it, specify the function in your YAML configuration:

1
dataloader:
2
  _target_: torchdata.stateful_dataloader.StatefulDataLoader
3
  batch_size: 1
4
  collate_fn:
5
    _target_: nemo_automodel.components.datasets.vlm.collate_fns.qwen2_5_collate_fn

We provide example custom collate functions that you can use as references for your implementation.

Run the Fine-Tune Script

Use the automodel CLI to launch fine-tuning with a YAML configuration file.

Apply YAML-Based Configuration

NeMo AutoModel uses a flexible configuration system that combines YAML configuration files with command-line overrides. This allows you to maintain base configurations while easily experimenting with different parameters.

The simplest way to run fine-tuning is with a YAML configuration file. We provide configs for both Gemma 3 and Gemma 3n.

$
uv sync --frozen --extra vlm

Run Gemma 3 Fine-Tuning

• Single-GPU

$
automodel examples/vlm_finetune/gemma3/gemma3_vl_4b_medpix.yaml

• Multi-GPU

$
automodel --nproc-per-node=2 examples/vlm_finetune/gemma3/gemma3_vl_4b_medpix.yaml

Run Gemma 3n Fine-Tuning

• Single-GPU

$
automodel examples/vlm_finetune/gemma3n/gemma3n_vl_4b_medpix.yaml

• Multi-GPU

$
automodel --nproc-per-node=2 examples/vlm_finetune/gemma3n/gemma3n_vl_4b_medpix.yaml

Override Configuration Parameters

You can override any configuration parameter using dot-notation without modifying the YAML file:

$
automodel examples/vlm_finetune/gemma3/gemma3_vl_4b_medpix.yaml \
>
    --step_scheduler.ckpt_every_steps 100 \
>
    --step_scheduler.max_steps 1000 \
>
    --optimizer.lr 2e-5 \
>
    --rng.seed 1234

Configure Model Freezing

NeMo AutoModel supports parameter freezing, allowing you to control which parts of a model remain trainable during fine-tuning. This is especially useful for VLMs, where you may want to preserve the pre-trained visual and audio encoders while adapting only the language model components.

With the freezing configuration, you can selectively freeze specific parts of the model to suit your training objectives:

1
freeze_config:
2
  freeze_embeddings: true        # Freeze embeddings
3
  freeze_vision_tower: true      # Freeze vision encoder (recommended for VLMs)
4
  freeze_audio_tower: true       # Freeze audio encoder (for multimodal models)
5
  freeze_language_model: false   # Allow language model adaptation

Run Parameter-Efficient Fine-Tuning

For memory-efficient training, you can use Low-Rank Adaptation (LoRA) instead of full fine-tuning. NeMo AutoModel provides a dedicated PEFT recipe for Gemma 3:

To run PEFT with Gemma 3:

$
automodel examples/vlm_finetune/gemma3/gemma3_vl_4b_medpix_peft.yaml

The LoRA configuration excludes vision and audio components from adaptation to preserve pre-trained visual representations:

1
peft:
2
  peft_fn: nemo_automodel._peft.lora.apply_lora_to_linear_modules
3
  match_all_linear: False
4
  exclude_modules:  # exclude all vision and audio modules and lm_head
5
    - "*vision_tower*"
6
    - "*vision*"
7
    - "*visual*"
8
    - "*audio*"
9
    - "*image_encoder*"
10
    - "*lm_head*"
11
  dim: 8
12
  alpha: 32
13
  use_triton: True

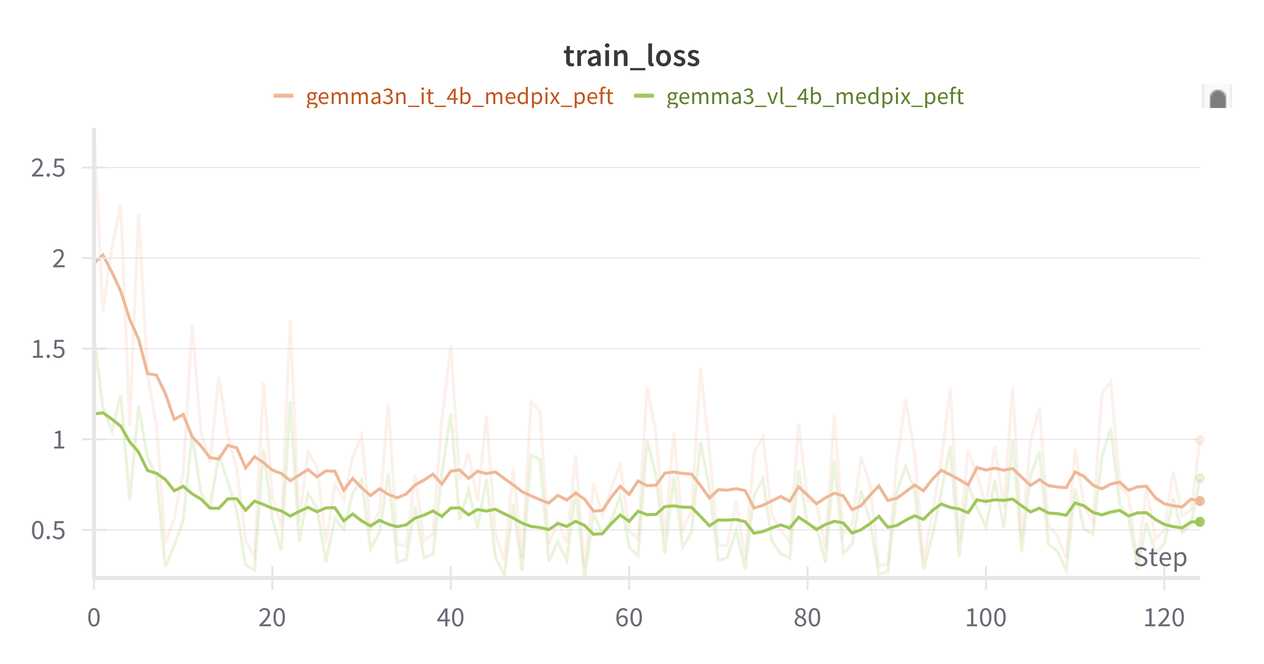

The training loss should look similar to the example below:

Checkpointing

We support training state checkpointing in either Safetensors or PyTorch DCP format.

1
checkpoint:
2
  enabled: true
3
  checkpoint_dir: vlm_checkpoints/
4
  model_save_format: torch_save  # or "safetensors"
5
  save_consolidated: false

Integrate Weights & Biases

You can enable W&B logging by setting your API key and configuring the logger:

$
export WANDB_API_KEY=<YOUR_WANDB_API_KEY>

Then, add the W&B configuration to your YAML file:

1
wandb:
2
  project: nemo_automodel_vlm
3
  entity: your_entity
4
  name: gemma3_medpix_vqa_experiment
5
  save_dir: ./wandb_logs

Run Inference

After fine-tuning your Gemma 3 or Gemma 3n model, you can use it for inference on new image-text tasks.

Generation Script

The inference functionality is provided through examples/vlm_generate/generate.py, which supports loading fine-tuned checkpoints and performing image-text generation.

Basic Usage

$
uv run examples/vlm_generate/generate.py \
>
    --checkpoint-path /path/to/checkpoint \
>
    --prompt "Describe this image." \
>
    --base-model google/gemma-3-4b-it \
>
    --image /path/to/image.jpg

The output can be either text (default) or json, with an optional write file.

For models trained on MedPix-VQA, load the trained checkpoint and generate outputs using the following command. Be sure to specify the same base model used during training:

$
uv run examples/vlm_generate/generate.py \
>
    --checkpoint-path vlm_checkpoints/epoch_0_step_200 \
>
    --prompt "What medical condition is shown in this image?" \
>
    --base-model google/gemma-3-4b-it \
>
    --image medical_image.jpg

When checkpoints are saved from PEFT training, they contain only the adapter weights. To use them for generation, you need to specify the PEFT configuration. Run the following command to load and generate from adapters trained on MedPix-VQA:

$
uv run examples/vlm_generate/generate.py \
>
    --checkpoint-path peft_vlm_checkpoints/epoch_0_step_200/ \
>
    --prompt "What medical condition is shown in this image?" \
>
    --image-url medical_image.jpg \
>
    --base-model google/gemma-3-4b-it \
>
    --is-peft \
>
    --peft-exclude-modules *vision_tower* *vision* *visual* *audio* *image_encoder* *lm_head*

Given the following image:

And the prompt:

How does the interhemispheric fissure appear in this image?

Example Gemma 3 response:

The interhemispheric fissure appears as a dark streak, indicating significant tissue loss.

Example Gemma 3n response:

The interhemispheric fissure appears somewhat obscured by the fluid-filled mass.
