Gemma 4#

NeMo RL supports post-training the Gemma 4 family with the AutoModel training backend and vLLM generation. The reference configurations cover text-only DAPO for the E2B, 12B, 26B-A4B, and 31B variants and multimodal GRPO for the E4B variant.

Important

Status: Functionally Ready. The listed configurations provide short-run functional and CI coverage. They are starting points for post-training, not a claim of long-run convergence on every model and parallel layout.

Support Matrix#

Model

Task

Training backend

Training parallelism

Generation backend

Status

google/gemma-4-E2B-it

Text-only DAPO

AutoModel (FSDP2)

CP1 or CP2

vLLM

Functionally Ready

google/gemma-4-E4B-it

VLM GRPO

AutoModel (FSDP2)

CP1

vLLM TP4

Functionally Ready

google/gemma-4-12B-it

Text-only DAPO

AutoModel (FSDP2)

CP1

vLLM TP2

Functionally Ready

google/gemma-4-26B-A4B-it

Text-only DAPO

AutoModel (FSDP2)

EP32 with CP1; EP16 with CP2

vLLM TP4

Functionally Ready

google/gemma-4-31B-it

Text-only DAPO

AutoModel (FSDP2)

CP1 or CP2

vLLM TP4

Functionally Ready

Reference Recipes#

Recipe YAML files under examples/configs/recipes/ are the source of truth.

Model

Layout

Nodes and GPUs

Recipe

E2B

FSDP2, CP1

1n8g

dapo-gemma4-e2b-it-1n8g-fsdp2-automodel.yaml

E2B

FSDP2, CP2

1n8g

dapo-gemma4-e2b-it-1n8g-fsdp2cp2-automodel.yaml

E4B

VLM FSDP2, CP1

1n8g

vlm_grpo-gemma4-e4b-geo3k-1n8g-automodel.yaml

12B

FSDP2, CP1

2n8g

dapo-gemma4-12b-it-2n8g-fsdp2-automodel.yaml

26B-A4B

FSDP2, EP32, CP1

4n8g

dapo-gemma4-26ba4b-it-4n8g-fsdp2-automodel.yaml

26B-A4B

FSDP2, EP16, CP2

4n8g

dapo-gemma4-26ba4b-it-4n8g-fsdp2ep16cp2-automodel.yaml

31B

FSDP2, CP1

4n8g

dapo-gemma4-31b-it-4n8g-fsdp2-automodel.yaml

31B

FSDP2, CP2

4n8g

dapo-gemma4-31b-it-4n8g-fsdp2cp2-automodel.yaml

Run a Recipe#

From an allocation matching the recipe, launch the standard GRPO entry point. For example, run the 12B configuration with:

uv run examples/run_grpo.py \
  --config examples/configs/recipes/llm/dapo-gemma4-12b-it-2n8g-fsdp2-automodel.yaml

See the GRPO guide for algorithm and launch details.

Context Parallel#

Context Parallel support uses the refactored AutoModel CP interface introduced by PR #3498. The E2B and 31B CP2 recipes are thin overrides of their CP1 parents that change policy.dtensor_cfg.context_parallel_size to 2. The 26B-A4B CP2 recipe also changes expert parallelism from EP32 to EP16 so the model-parallel product fits on the same four-node allocation. Other model, optimizer, sequence-length, and generation settings remain identical to their CP1 parents.

Context Parallel currently applies to the text-only E2B, 26B-A4B, and 31B recipes backed by AutoModel’s Gemma 4 model-owned attention. Do not enable it for the E4B VLM recipe or the 12B unified checkpoint. The text-only recipes freeze the vision and audio towers, disable sequence packing, and configure vLLM with language_model_only: true where the checkpoint requires it.

Training and generation parallelism are independent. CP partitions training sequences; the tensor_parallel_size under policy.generation.vllm_cfg controls vLLM. The AutoModel model-parallel product must divide the training world size. The 26B-A4B CP2 recipe uses EP16 × CP2 across 32 GPUs, provided by four nodes with eight GPUs per node.

Validation Curves#

The following plots show raw step-level metrics captured from completed validation runs. Validation accuracy is plotted only at validation steps; the other metrics are plotted at every recorded training step.

E2B Context Parallel Parity#

The E2B CP1 and CP2 runs use the same 100-step training configuration except for policy.dtensor_cfg.context_parallel_size. Their trajectories remain close across the six metrics: the mean absolute difference in validation accuracy is 0.0083 across six aligned validation points, while the mean absolute difference in generation KL error is 1.6e-5 across 100 aligned training points.

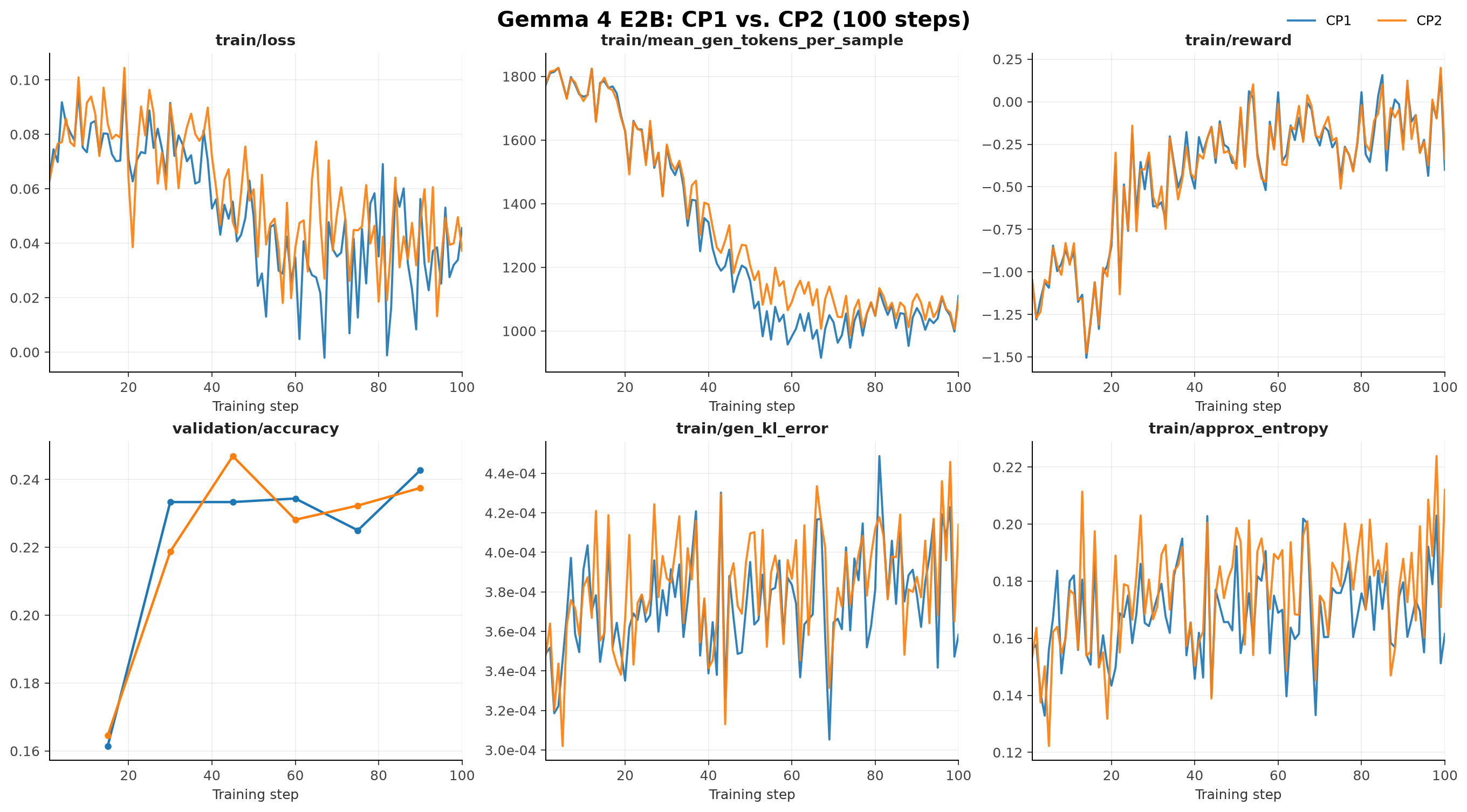

Gemma 4 E2B CP1 versus CP2 curves for train/loss, train/mean_gen_tokens_per_sample, train/reward, validation/accuracy, train/gen_kl_error, and train/approx_entropy

26B-A4B Context Parallel Parity#

The 26B-A4B pair keeps the four-node, 32-GPU training world size fixed while changing the model-parallel layout from EP32 × CP1 to EP16 × CP2. Both runs complete 100 steps. The mean absolute difference in validation accuracy is 0.0114 across 20 aligned validation points, while the mean absolute difference in generation KL error is 5.6e-5 across 100 aligned training points. The final validation accuracies are 0.741 for EP32 × CP1 and 0.751 for EP16 × CP2.

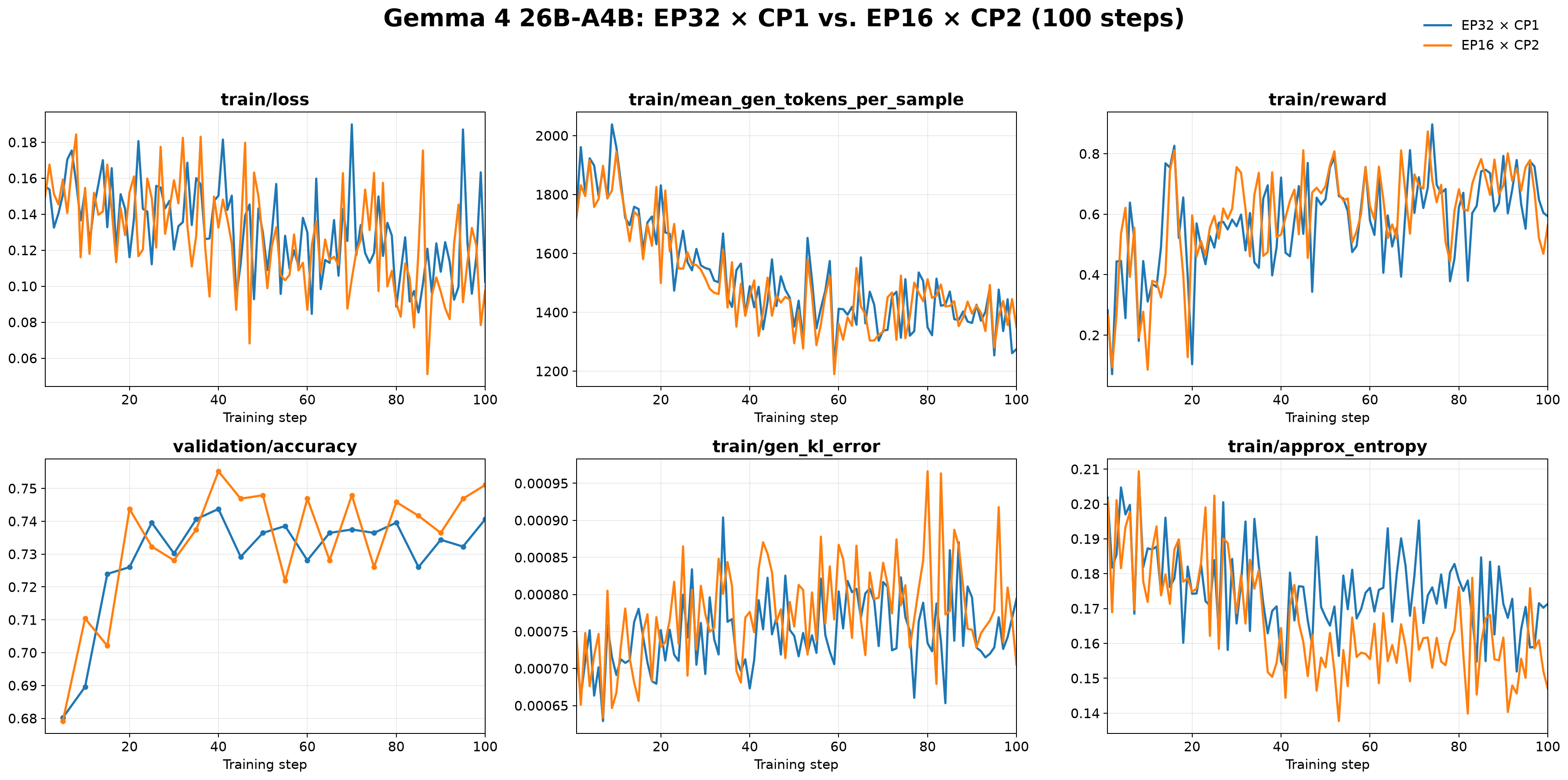

Gemma 4 26B-A4B EP32 CP1 versus EP16 CP2 curves for train/loss, train/mean_gen_tokens_per_sample, train/reward, validation/accuracy, train/gen_kl_error, and train/approx_entropy

31B Context Parallel Parity#

The 31B CP1 and CP2 runs use the same four-node training configuration except for policy.dtensor_cfg.context_parallel_size. Both runs complete 100 steps. The mean absolute difference in validation accuracy is 0.0099 across 20 aligned validation points, while the mean absolute difference in generation KL error is 2.2e-5 across 100 aligned training points. The final validation accuracies are 0.823 for CP1 and 0.818 for CP2.

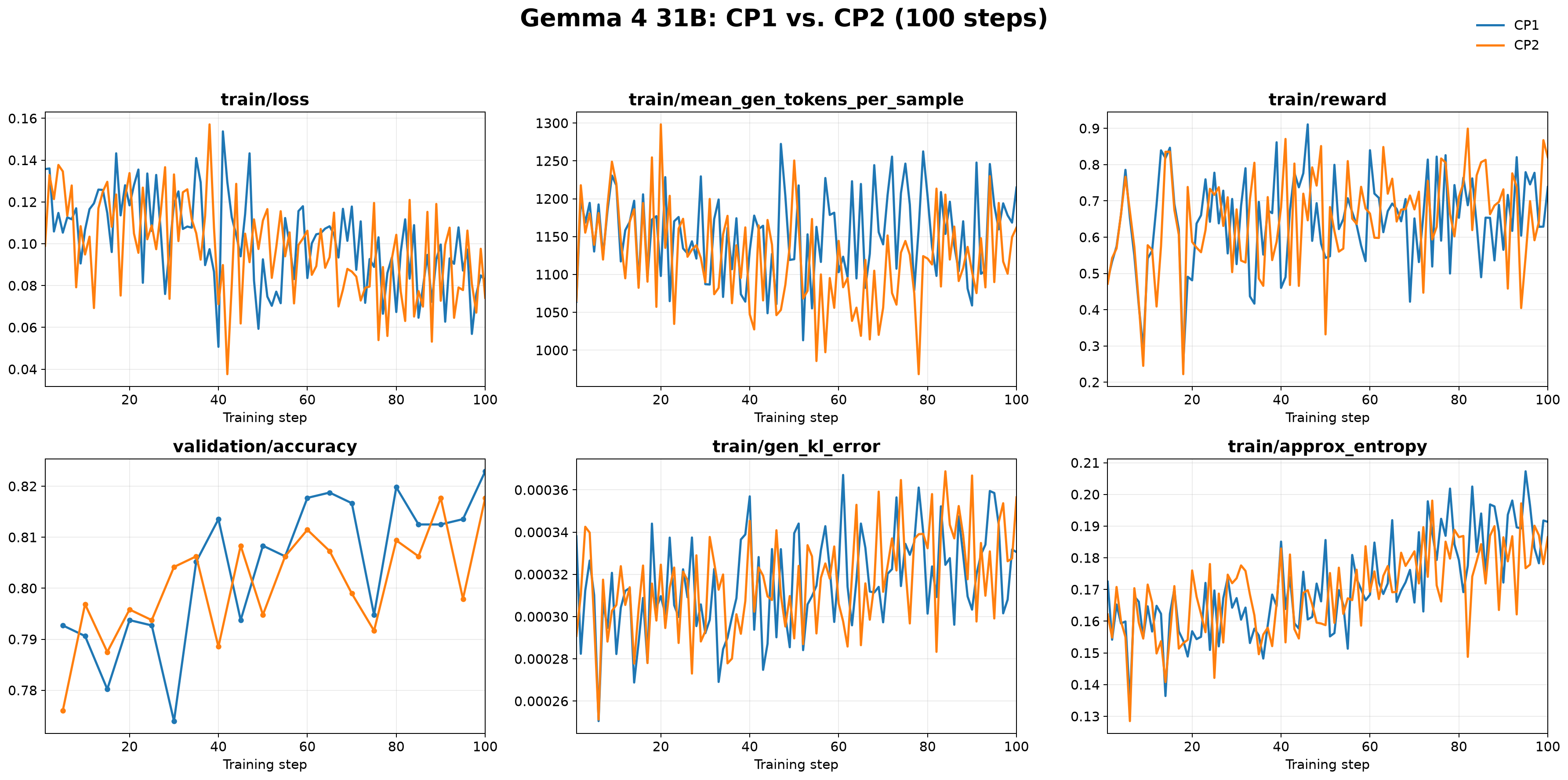

Gemma 4 31B CP1 versus CP2 curves for train/loss, train/mean_gen_tokens_per_sample, train/reward, validation/accuracy, train/gen_kl_error, and train/approx_entropy

12B Long Run#

The 12B CP1 run completed 200 steps. Validation accuracy increases from 0.540 at step 5 to 0.617 at step 200 and reaches a maximum of 0.631. Training loss decreases from 0.166 at step 1 to 0.054 at step 200, while generation KL error stays below 6.9e-4. The recorded history contains 199 training-metric rows and 39 validation rows; step 125 has no values for the requested metrics, so the plot does not interpolate that missing row.

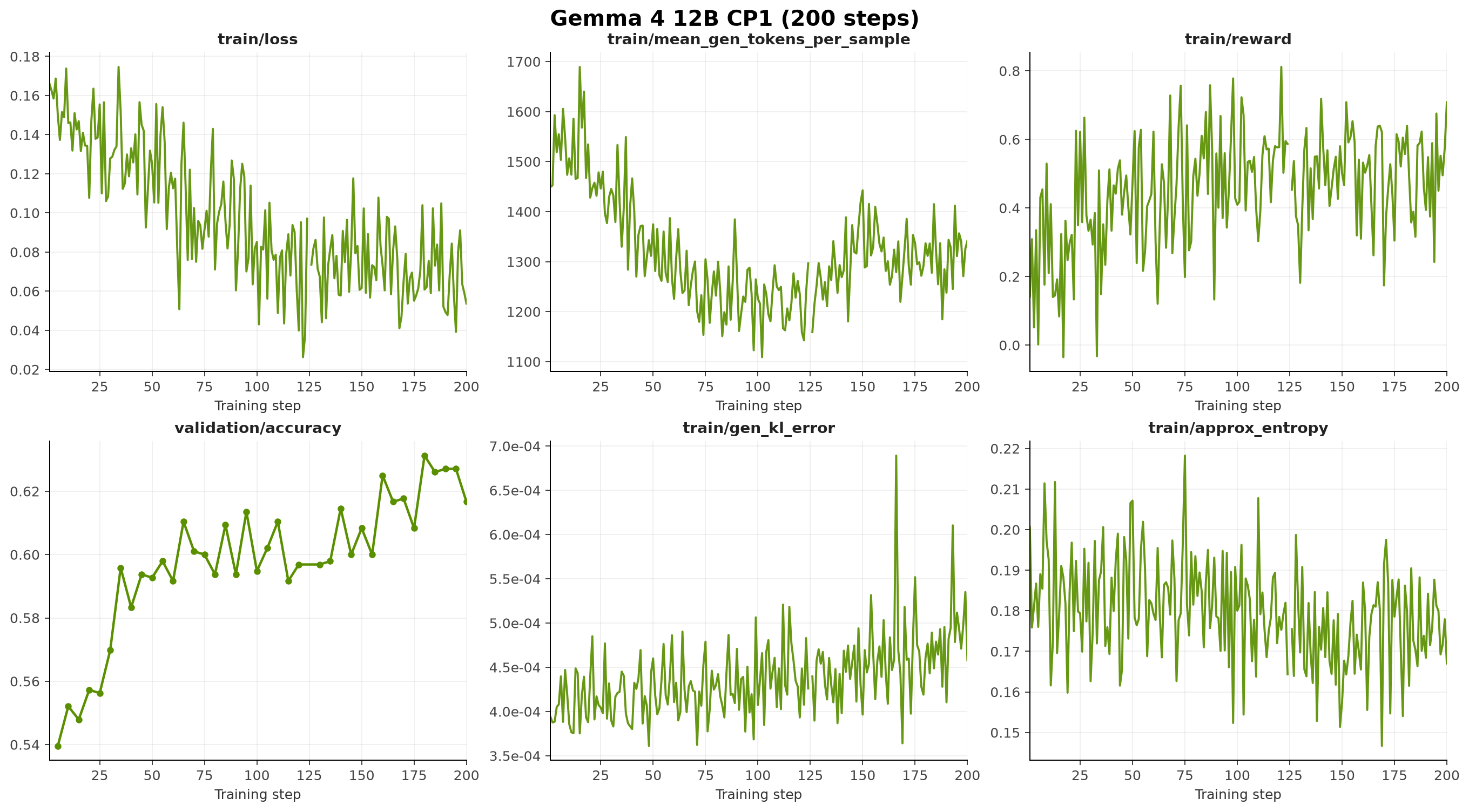

Gemma 4 12B CP1 curves for train/loss, train/mean_gen_tokens_per_sample, train/reward, validation/accuracy, train/gen_kl_error, and train/approx_entropy

12B Unified Checkpoint#

The 12B checkpoint reports model_type: gemma4_unified and architecture Gemma4UnifiedForConditionalGeneration. NeMo RL routes it through the image-text AutoModel class so the complete checkpoint can load, while the reference recipe trains only the language path:

  • The vision and audio towers are frozen.

  • vLLM generation uses language_model_only: true and TP2.

  • Weight refits omit the frozen vision/audio tensors because vLLM’s text-only unified model uses encoder-free multimodal stubs with a different layout.

  • vLLM tokenizer initialization is enabled for the unified architecture.

  • Activation checkpointing and optimizer offload during log-probability computation are enabled.

  • Sequence packing and Liger kernels are disabled.

  • The total sequence length is 4,096 tokens, with up to 3,072 generated tokens.

Limitations and Tracking#

  • Context Parallel is not supported by the Gemma 4 VLM recipe.

  • The 12B gemma4_unified checkpoint currently supports CP1 only; unlike the other text variants, it does not use AutoModel’s Gemma 4 model-owned CP attention implementation.

  • The recipes disable sequence packing; validate any packing change separately.

  • The functional status does not imply long-run convergence for every variant.

  • Gemma 4 CP support is tracked by #2914, and 12B support by #2913.
