GLM-5.1 and GLM-5.2#

This guide summarizes GLM-5.1 and GLM-5.2 support in NeMo RL, including the validated GRPO configurations, required Megatron and vLLM configs, supported DeepSeek Sparse Attention kernel backends, reference training curves, and known limitations.

The key architecture difference is GLM-5.2’s IndexShare: within each four-layer sharing group, one layer computes the DSA indexer’s top-k selection and the next three reuse it. GLM-5.1 computes the indexer in each DSA layer. Reuse avoids repeating the indexer’s projection and scoring GEMMs in the three shared layers.

Important

Status: Functionally Ready. The GLM-5.1 and GLM-5.2 integrations support Megatron training with vLLM generation. The GLM-5.2 reference configurations include short- and long-context training paths.

Support Status#

Model	Training backend	Validated training parallelism	Generation backend	DSA kernel backends	Status
`zai-org/GLM-5.1`	Megatron	TP8 + PP8 + CP1 + EP64	Colocated vLLM with TP32 + EP128	cuDNN or TileLang	Functionally Ready
`zai-org/GLM-5.2`	Megatron	TP2 + PP8 + EP64 with CP8/CP32	Colocated or non-colocated vLLM	cuDNN or TileLang	Functionally Ready

Validated Scope#

Algorithm: GRPO with the DAPO Math training and validation datasets.
Models: zai-org/GLM-5.1 and zai-org/GLM-5.2.
Training backend: Megatron with tensor parallelism (TP), pipeline parallelism (PP), context parallelism (CP), and expert parallelism (EP).
Context-parallel layout: The Megatron CP path uses sequence-packed THD input and supports the fused cuDNN DSA kernels.
Generation backend: vLLM in colocated or non-colocated mode, depending on the recipe. Training and generation parallelism are configured independently.
DSA kernel backends: cuDNN and TileLang for the Megatron Core backend. The reference GLM-5.2 recipes use cuDNN.
Precision: BF16 model training and generation.
vLLM compatibility patch: NeMo RL automatically applies a GLM-specific vLLM 0.25.1 compatibility patch that disables decoder-level sequence-parallel MoE for glm_moe_dsa while retaining MoE-local sequence parallelism. This restores correct iterative decoding for GLM-5.1 and GLM-5.2.

Recipe YAML files under examples/configs/recipes/ are the source of truth for resource, parallelism, dataset, and checkpointing settings.

How to Run#

1. Prepare the Environment#

Use the Megatron submodule and dependency lock recorded by the NeMo RL revision that contains this guide. From the NeMo RL repository root, run:

git submodule update --init --recursive
uv sync --locked --extra mcore --extra vllm

See the installation guide for container and bare-metal setup details.

2. Choose a Reference Recipe#

GLM-5.1, 2K, colocated: grpo-glm5.1-64n8g-megatron.yaml
GLM-5.2, 6K, colocated: grpo-glm5.2-64n8g-megatron-6K-colocated.yaml
GLM-5.2, non-colocated (131K capacity): grpo-glm5.2-72n8g-megatron-noncolocated.yaml

Note

The 131K label describes training capacity, not current full-context GRPO validation. See Long-Context Capacity and Validation for details.

3. Launch#

From an allocation matching the selected recipe, launch the standard GRPO entry point:

# Example: GLM-5.2, 6K, colocated on H100
uv run examples/run_grpo.py \
  --config examples/configs/recipes/llm/grpo-glm5.2-64n8g-megatron-6K-colocated.yaml

Replace the --config value with the path to any reference recipe listed above.

See the GRPO guide for algorithm and configuration details.

Long-Context Capacity and Validation#

The non-colocated recipe sets policy.max_total_sequence_length to 131072. Its inherited sequence-packing budgets resolve to 131,072 tokens, and CP32 distributes long sequences across the training workers. This is a capacity setting, not a claim that end-to-end GRPO has been validated at 131K.

Sequence packing is enabled, so the training tensor can reach the full 131,072-token budget even when individual prompt-and-response samples are shorter. The maximum total sequence length is the combined prompt and generated response limit; actual sample lengths still depend on the selected dataset and policy.generation.max_new_tokens.

GRPO validation currently covers 8K context runs and synthetic datasets with a 32K ISL and 4K OSL. Full 131K GRPO validation remains pending because vLLM timeouts and available-resource limits prevented completing those runs. Megatron Core SFT has been tested at 131K, demonstrating that the training backend has full-context capability.

The 72-node recipe is a manual-only support example because its allocation is too expensive for recurring CI. Eight nodes are dedicated to generation, isolating vLLM memory from the 64-node training allocation.

cuDNN and TileLang DSA Backends#

Both GLM versions support cudnn and tilelang for the Megatron DSA kernel. Under CP, the reference recipes use packed sequences in THD layout. The cuDNN backend provides fused forward and backward kernels for the DSA indexer and sparse MLA, plus the fused indexer-loss score path; the fused implementation supports GLM-5.2 IndexShare together with CP and packed THD.

In NVIDIA’s 128K BF16 GLM-5.2 SFT benchmarks on 192 GB200 GPUs, cuDNN delivered roughly 2.0–3.4× the model TFLOP/s per GPU of TileLang across the tested TP/CP and indexer-loss configurations, with a peak speedup of about 3.4×. See the Megatron Bridge benchmark for the exact configurations and results. Use cuDNN by default unless you specifically need to compare or debug the TileLang path.

To run a reference recipe with TileLang, override the backend at launch:

uv run examples/run_grpo.py \
  --config examples/configs/recipes/llm/grpo-glm5.2-72n8g-megatron-noncolocated.yaml \
  policy.megatron_cfg.model_overrides.dsa_kernel_backend=tilelang

The locked NeMo RL environment includes both kernel dependencies. For bare-metal Megatron installations, also follow the cuDNN setup guidance so Transformer Engine loads the pinned cuDNN version.

Reference Training Curves#

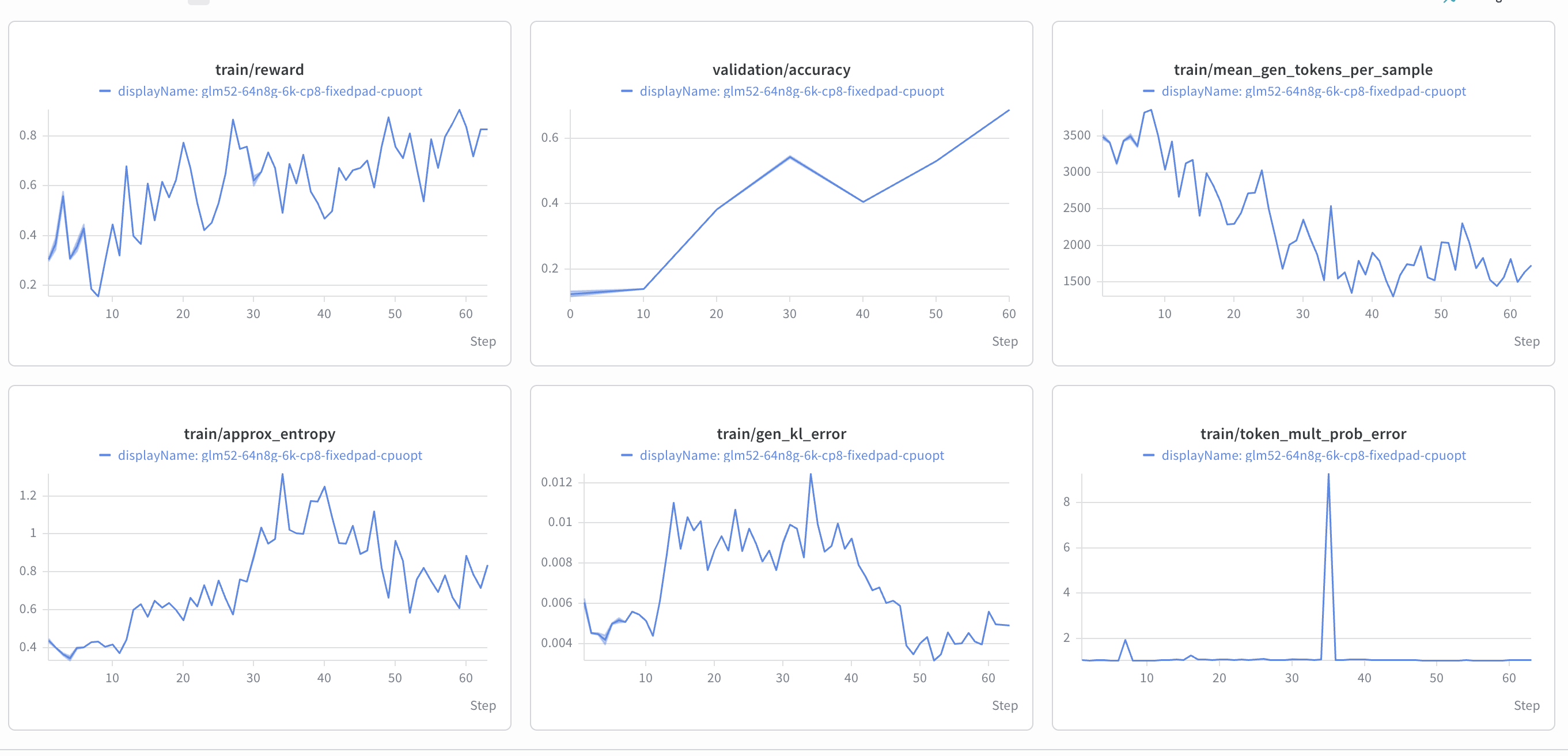

The following curves show a colocated GLM-5.2 training run at a 6K sequence length using this reference recipe.

GLM-5.2 GRPO training curves

Known Limitations#

Long-run convergence results are not yet included.
Full 131K end-to-end GRPO is not yet validated because of vLLM timeouts and resource constraints. The 131K Megatron Core SFT path has been tested.
The non-colocated configuration requires a large multi-node allocation. Changes to the model, hardware, or parallel layout should be validated independently.

What’s Next#

Add GLM-5.1 and GLM-5.2 8K reference curves and convergence summaries.
Add validated AutoModel results to the support guide.
