BlueField SoC | BlueField™ G-Series 16 Cores | ||||

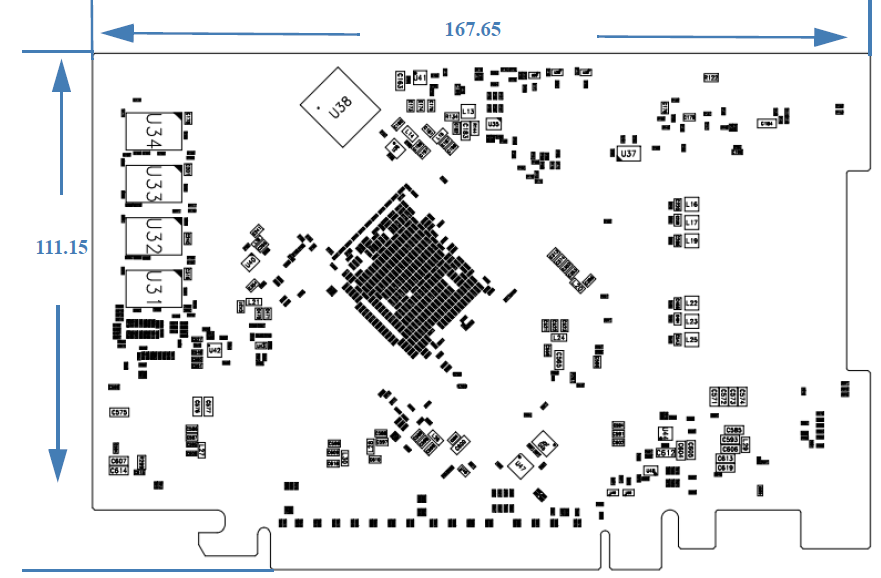

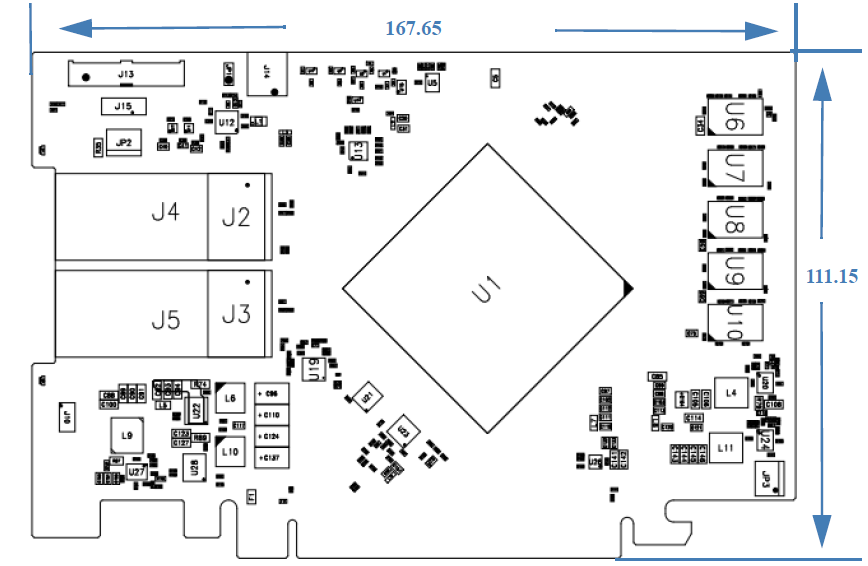

Physical | Size: 4.37in. x 6.6 in. (111.15mm x 167.65 mm) | ||||

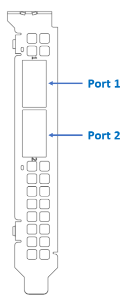

Connector: Dual QSFP28 (copper and optical) | |||||
Protocol Support | Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | ||||
Data Rate: 1/10/25/40/50/100 Gb/s Ethernet | |||||
PCI Express Gen3.0/4.0: SERDES @ 8.0 / 16.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||||
On-board Memory | 16GB On-board DDR4 | ||||
Power | Voltage: 12V | ||||
Power | Cable | ||||
Typical Power | Passive Cables | 51.28W | |||
Maximum Power | Passive Cables | 55.83W | |||
1.5W Active Cables | 59.24W | ||||
2.5W Active Cables | 61.51W | ||||
3.5W Active Cables | 63.78W | ||||
Maximum power available through SFP28 port: 3.5W | |||||
Environmental | Temperature | Operational | 0°C to 45°C | ||
Non-operational | -40°C to 70°C | ||||
Humidity | 90% relative humidity(a) | ||||
Airflow (Heatsink-to-port) | Cable Type | At 35°C Ambient | At 45°C Ambient | ||
Passive Cables | TBD | TBD | |||
Active 3.5W Cables | TBD | TBD | |||
Regulatory | Safety | CB / cTUVus / CE | |||
EMC | CE / FCC / VCCI / ICES / RCM | ||||
RoHS | RoHS compliant | ||||
a. For both operational and non-operational states.
