Appendix – UFM-SDN Appliance Specifications

(1U)1.7”H x 17.2”W x 27.9”D

43.2mm 438 mm 709.37 mm

14.1 kg 2 PS units

19” Rack mount

62 CFM

750 Watt Max – 2560 BTU/hour

2 – Intel Xeon E5-2620 v4 CPUs

750W power supply module

• 100 – 127 V at 50/60 Hz 8.2 A

• 200 – 240 V at 50/60 Hz 4.4 A

• Operating: +10°C to +40°C with the maximum rate of change not to exceed 10°C per hour

• Non-operating:-40° to 70° C

ETSI EN 300 019-2-2: 1999-09

Operating: 90%, non-condensing at 35°C

2 X 960GB HDD 2.5''

Auto-negotiation:

• X/2X/4X SDR (2.5Gb/s per lane)

• DDR (5Gb/s per lane)

• QDR (10Gb/s per lane)

• FDR10 (10.3125Gb/s per lane)

• FDR (14.0625Gb/s per lane)

• EDR (25Gb/s per lane) port

• HDR (50Gb/s per lane) port

Ethernet: 200GBASE-KR4, 200GBASE-CR4, 200GBASE-SR4, 200GBASE-DR4, 200GBASE-FR4, 200GBASE-LR4, 200GBASE-ER4, 200GAUI-4 C2M, 200GAUI-4 C2C, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASESR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASEKR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASEKR

SGMII Data Rate: SDR

InfiniBand – SDR/DDR/QDR/FDR/EDR/HDR
Ethernet – 1/10/25/40/50/100/200 Gb/s

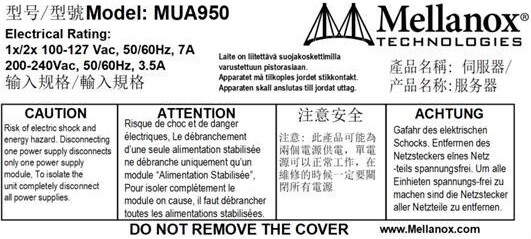

Safety:

US/Canada: cTUVus EU: CE
International: CB Russia: GOST-R Argentina: S-mark DoC

EMC
(Emissions):

• USA: FCC, Class A

• Canada: ICES-003, Class A

• EU: EN55022, Class A

• EU: EN55024,

• EU: EN61000-3-2,

• EU: EN61000-3-3,

• Japan: VCCI, Class A

• Australia / New-Zealand: C-Tick, AS/NZS CISPR 22 class A

• Korea: KCC Class A

• Taiwan: BCCI Class A

Environmental:

EU: IEC 60068-2-64: Random Vibration EU: IEC 60068-2-29:
Shocks, Type I / II EU: IEC 60068-2-32: Fall Test

Acoustic:

Sound power:
7.0 BA in operating conditions at typical office ambient temperature. (23 +/- 2 degrees C)

• Hot-swappable: 1+1 power supplies

• N+N redundant
