Introduction

NVIDIA GPUs starting from Turing generation contain a hardware-based Optical Flow Accelerator (NVOFA) that gives flow vectors map between the two frames. NVIDIA Optical Flow SDK gives access to NVOFA via Optical Flow APIs.

NVIDIA Optical Flow SDK 4.0 includes NVOFA assisted Frame Rate Up Conversion (FRUC) library. The library exposes FRUC APIs that can be used for frame rate up conversion of game or video.

This document provides information on how to use the FRUC APIs. It is expected that the developer should have familiarity with Windows and/or Linux development environment.

Frame Rate Up Conversion

Frame Rate Up Conversion is a technique that generates higher frame rate video from lower frame rate video by inserting interpolated frames into it. Such high frame rate video shows smooth continuity of motion across frames that improves perceived visual quality of video.

Figure 1. Frame Rate Up Conversion

Frame Rate Up Conversion

NVIDIA FRUC library

NVIDIA FRUC library exposes FRUC APIs that take two consecutive frames and generate an interpolated frame in between. These APIs can be used for frame rate up conversion of gaming or video content.

The library internally uses NVOFA hardware engine and CUDA. As a result, the frame interpolation using FRUC library is much faster compared to software-only methods.

The library supports ARGB and NV12 input surface formats. It can be directly integrated into a DirectX game or a CUDA application.

The FRUC library works on Windows OS (Windows 10 and above) and Linux OS (distributions Ubuntu 18 and above). It needs NVIDIA display driver version 522.25 or above on Windows and NVIDIA display driver version 520.56.06 or above on Linux.

How FRUC Library Works?

FRUC Library Usage Overview

Here is a block diagram showing how applications can use FRUC library for frame rate up conversion.

Figure 2. FRUC Library Software Stack

FRUC library Software Stack

  1. Application passes consecutive frames to FRUC library.

  2. FRUC library uses frame from current call (next frame) and cached frame from previous call (previous frame) to interpolate intermediate frame. The library first calls NVIDIA Optical flow APIs to get forward and backward flow vector maps between the two frames (previous and next). It then uses CUDA accelerated techniques to generate an interpolated frame between the two frames.

  3. The interpolated frame is returned to the application. Application then interleaves the interpolated frames with original frames and generates video with an increased framerate.

Inside FRUC Library

Here is a simplified functional block diagram of FRUC library.

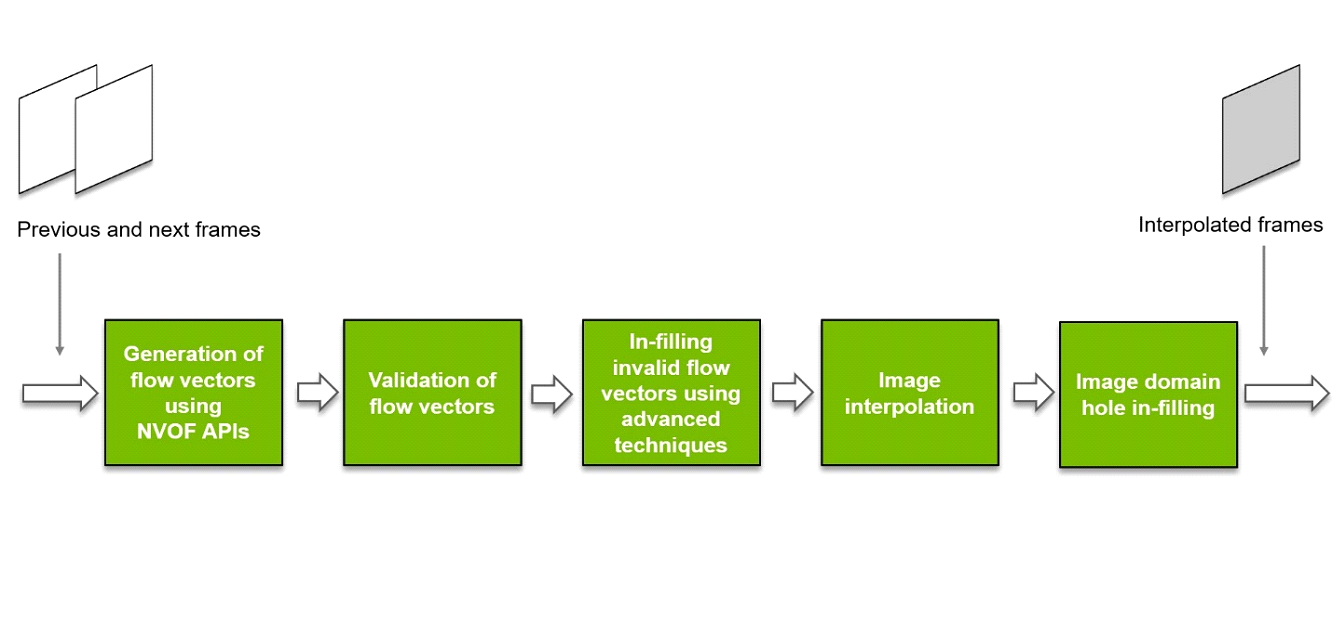

Figure 3. Simplified block diagram of FRUC library

Simplified block diagram of FRUC library

Here is a brief explanation about how FRUC library processes two consecutive frames and generates an interpolated frame.

Input to the FRUC library are two consecutive frames (previous and next)

  1. Generation of flow vectors using NVOFA APIs

    Consecutive frame pairs are sent to NVIDIA Optical flow engine using NVOFA APIs to get forward and backward flow vector maps between them.

  2. Validation of flow vectors

    All flow vectors in the flow vectors maps are then validated using forward-backward consistency check. The flow vectors that do not pass the consistency check are rejected, resulting in sparse optical flow vector maps.

  3. Infilling invalid flow vectors using advanced techniques

    Using available flow vectors and advanced techniques, accurate flow vectors are generated to fill in the rejected flow vectors, converting the sparse flow vector map into a fully dense flow vector map.

  4. Image interpolation

    Using the dense flow vector map, an interpolated frame between the two input frames is generated.

    Such an image may contain a few hole regions (pixels that don’t have valid color).

  5. Image domain hole in-filling

    Holes in the interpolated frame are filled using image domain hole infilling techniques to generate final interpolated image.

    The final interpolated frame is returned to the application.

FRUC Library Components

Optical Flow SDK includes the following components of FRUC Library:

  • NvOFFRUC.dll: DLL that exposes FRUC APIs on Windows.
  • libNvOFFRUC.so: .so file that exposes FRUC APIs on Linux (Ubuntu).
  • NvOFFRUC.h: NvOFFRUC API header file.
  • NvOFFRUCSample: Application source code: Shows how to use NVIDIA FRUC library.
  • ReadMe.pdf: Includes instructions on how to build and run NvOFFRUCSample application
  • NVOFA_FRUC.pdf: Contains detailed information about FRUC APIs and how to use those (this document).

Programming Using FRUC APIs

Basic Programming Flow

NVIDIA FRUC APIs are designed to accept raw video frames in NV12 or ARGB format and return an interpolated frame between them.

Broadly, the programming flow consists of the following steps:

  1. Call API PtrToFuncNvOFFRUCCreate to create FRUC instance.
  2. Create input resources (DirectX NV12 or CUDA ARGB surfaces) and register them with FRUC library using API PtrToFuncNvOFFRUCRegisterResource.
  3. Call API PtrToFuncNvOFFRUCProcess to process input frames to generate interpolated frames.
  4. Call API PtrToFuncNvOFFRUCUnregisterResource to unregister input resources with FRUC library so that they can be destroyed.
  5. Call API PtrToFuncNvOFFRUCDestroy to destroy FRUC instance.

Header file NvOFFRUC.h has details of structures used in these functions.

Background

As seen in Simplified block diagram of FRUC library, the FRUC library uses Optical Flow APIs to get flow vector maps between the two consecutive frames. The client application first needs to allocate buffers to hold input frame pair data and interpolated frame data. Client application then needs to pass the address of these buffers to the FRUC library. The FRUC library then makes use of NVOFA APIs, advanced CUDA algorithms to produce an interpolated frame and copies it to the output buffer shared by the client application.

The client application can create input and output resources using either DirectX APIs or CUDA driver APIs.

  • Resource creation using DirectX 11 API

    In this case the client application creates shared texture using DirectX 11 APIs and shares the pointers of the device that creates textures and texture itself to FRUC library. Since the textures are shared between the client application and FRUC library, it is the client application’s responsibility to ensure synchronization to avoid race conditions. The synchronization mechanism to be used is ID3D11Fence on Windows OS build number 1703 and above or IDXGIKeyedMutex on rest of Windows OS’s. Client application and FRUC library uses the CUDA-DirectX graphics interoperability API for thread safe read-write of buffers. To know more about this, please visit Direct3D 11 Interoperability.

  • Resource creation using CUDA Driver API

    If the client application uses CUDA API to create the shared resources, it just needs to pass the resource pointer to the FRUC library.

Example Of FRUC API Usage

Source code of NvOFFRUCSample application demonstrates use of the APIs exposed by NVIDIA FRUC library for frame rate up conversion. The application accepts input video either as YUV file or as sequence of PNG frames and generates outputs as follows:

  • Input as YUV video sequence

    In this case the application takes a YUV (YUV420) video sequence, interpolates intermediate frames between the consecutive frames, interleaves interpolated frames with original frames to generate output YUV video. The output video thus generated has double the framerate as that of input video.

  • Input as PNG frame sequence

    In this case the application takes sequence of frames in PNG format, interpolates intermediate frames between the consecutive frames and saves those in PNG format.

NvOFFRUCSample has the following helper classes to create and handle shared resources. You could reuse these helper classes and other parts of code of NVOFFRUCSample application in your custom application.

  • FrameGeneratorD3D11

    This class handles the creation of ID3D11Device, IDXGIKeyedMutex and ID3D11Fence interfaces. It also handles reading and writing of shared surfaces with synchronization.

  • FrameGeneratorCUDA

    This handles the creation of cuDevicePtr, cuArray interface pointers and sharing these pointers to FRUC library. It also handles reading and writing into CUDA device memory.

  • BufferManager

    This class handles device-to-host and host-to-device CUDA memory transfers between FRUC NvOFFRUCSample application and FRUC library.

Using FRUC APIs

Creating FRUC Instance

Load NvOFFRUC.dll (Windows) or libNvOFFRUC.so (on Linux) as follows.

  • Windows
    SecureLoadLibrary(L"NvOFFRUC.dll", &hDLL);


    We recommend loading NvOFFRUC.dll using SecureLoadLibrary() to ensure Nvidia Signed Library is loaded by the application.

  • Linux
    hDLL = dlopen("libNvOFFRUC.so", RTLD_LAZY);


Retrieve the addresses of functions exported by FRUC library as follows. Signatures of exported functions are available in header file NvOFFRUC.h.

NvOFFRUCCreate = (PtrToFuncNvOFFRUCCreate)GETPROCEDUREADDRESS(
                                        DLL,
                                        CreateProcName);
NvOFFRUCRegisterResource =(PtrToFuncNvOFFRUCRegisterResource)GETPROCEDUREADDRESS(
                                        hDLL,
                                        RegisterResourceProcName);
NvOFFRUCUnregisterResource = (PtrToFuncNvOFFRUCUnregisterResource)GETPROCEDUREADDRESS(
                                        hDLL,
                                        UnregisterResourceProcName);
NvOFFRUCProcess = (PtrToFuncNvOFFRUCProcess)GETPROCEDUREADDRESS(
                                        hDLL,
                                        ProcessProcName);
NvOFFRUCDestroy = (PtrToFuncNvOFFRUCDestroy)GETPROCEDUREADDRESS(
                                        hDLL,
                                        DestroyProcName);


To create NvOFFRUC instance call NvOFFRUCCreate function as follows.

NvOFFRUC_CREATE_PARAM createParams = { 0 };
NvOFFRUCHandle hFRUC;
createParams.pDevice = objFrameGenerator->GetDevice();
createParams.uiHeight = stArgs.m_Height;
createParams.uiWidth = stArgs.m_Width;
createParams.eResourceType = (NvOFFRUCResourceType)stArgs.m_ResourceType;
createParams.eSurfaceFormat = (NvOFFRUCSurfaceFormat)stArgs.m_InputSurfaceFormat;
createParams.eCUDAResourceType = (NvOFFRUCCUDAResourceType)stArgs.m_CudaResourceType;

//Initialize FRUC pipeline which internally initializes Optical flow engine
status = NvOFFRUCCreate(
        &createParams,
        &hFRUC);


Here is a brief explanation about parameters of structure NvOFFRUC_CREATE_PARAM that you need to pass to NvOFFRUCCreate function.

  • pDevice(input): This is pointer to ID3D11Device interface. This pointer is shared with the FRUC library. This is used only if the client is using DirectX API for resource creation. It should be NULL in case you are using CUDA APIs for resource creation.
  • uiHeight(input): Height of input surface to be created by client application.
  • uiWidth(input): Width of input surface to be created by client application.
  • eResourceType(input): Set this to 1 if you are creating shared resources as DirectX 11 texture. In case you are creating a shared resource as cuDevicePtr or cuArray, set this to 0.
  • eSurfaceFormat(input): Set this to 0 for surface format NV12 and 1 for surface format ARGB. Surface format is independent of the API being used to create resources.
  • eCUDAResourceType(input): In case you are using CUDA APIs for resource creation set this parameter to 0 for cuDevicePtr and 1 for cuArray.

If this function succeeds, it returns handle to FRUC instance that is required in all subsequent functions.

Registering Resources

Register the resources created by client with FRUC library using NvOFFRUCRegisterResource function as follows.

NvOFFRUC_REGISTER_RESOURCE_PARAM regOutParam = { 0 };
objFrameGenerator->GetResource(
                    regOutParam.pArrResource,
                    regOutParam.uiCount);
                    regOutParam.pD3D11FenceObj = objFrameGenerator->GetFenceObj();

status = NvOFFRUCRegisterResource(
                    hFRUC,
                    &regOutParam);



Here the objFrameGenerator is an object of class FrameGeneratorD3D11 or FrameGeneratorCUDA. It creates the required resources during initialization. The objFrameGenerator->GetResource() function called above arranges these resources in the form of an array of void pointers which are then passed to NvOFFRUCRegisterResource() function.

Fill in NvOFFRUC_REGISTER_RESOURCE_PARAM structure as follows.

  • pArrResource(input): Array of pointers to input and output resources.
  • uiCount(input): Total number of input and output resources.

If the function call succeeds it returns NvOFFRUC_SUCCESS.

Interpolating Intermediate Frame

Provide the consecutive input frames and get interpolated frame by calling NvOFFRUCProcess in loop as follows.

NvOFFRUC_PROCESS_IN_PARAMS stInParams = { 0 };
NvOFFRUC_PROCESS_OUT_PARAMS stOutParams = { 0 };

status = NvOFFRUCProcess(
               hFRUC,
               &stInParams,
               &stOutParams);


Here is a figure showing how to use NvOFFRUCProcess function.

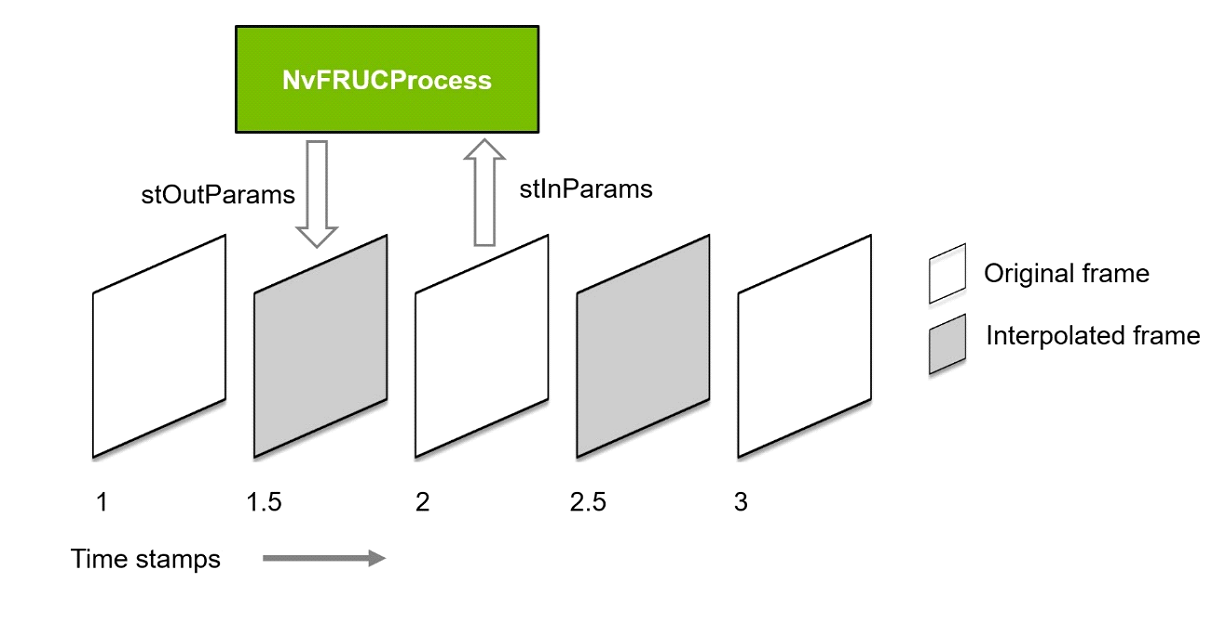

Figure 4. How to use NvOFFRUCProcess function

How to use NvOFFRUCProcess function

Assume that you have a sequence of consecutive frames at timestamps 1, 2, 3 and so on. You wish to interpolate frames in between these frames at timestamps 1.5, 2.5, 3.5 and so on.

Call NvOFFRUCProcess in loop with stInParams set to frame with timestamp 1, 2, 3 and timestamp field in stOutParams set to 1.5, 2.5, 3.5 and so on. For the first call, NvOFFRUCProcess function returns frame at timestamp 1 itself as it cannot interpolate frame using just one frame. From the next call onwards, this function returns interpolated frames 1.5, 2.5, 3.5 and so on.

NvOFFRUCProcess API can be used to interpolate frame at any time-stamp between the two frames. e.g. 1.25, 1.50, 1.75 etc. Please use the values of stInParams.nTimeStamp and stOutParams.nTimeStamp accordingly.

NvOFFRUCProcess API uses frame from current call and the cached frame from previous call to interpolate the intermediate frame. Users should not call NvOFFRUCProcess multiple times with the same frame.

Fill in the stInParams and stOutParams structures before calling NvOFFRUCProcess API as follows:

stInParams is a structure of type NvOFFRUC_PROCESS_IN_PARAMS that has the following members:

Fill in stFrameDataInput struct as follows.

  • pFrame(input): Pointer to raw input frame data.
  • nTimeStamp(input): Timestamp of input frame.
  • bHasFrameRepetitionOccurred(ignored): The value of this flag is ignored by FRUC library in parameter stFrameDataInput.
  • uSyncWait(output): This member is used for synchronization of CUDA-DirectX interop in case you are using FRUC API in a DirectX application such as a game on Windows. FRUC library supports synchronization using fence on Windows OS build 1703 and above and keyed mutex on other windows OS builds. If you are using ID3D11Fence, increment the fence value here so that the library can acquire the input resource, else increment key value. For more details, please refer to graphics-interoperability section in NVIDIA CUDA programming guide.

stOutParams is a structure of type NvOFFRUC_PROCESS_OUT_PARAMS that has the following members:

  • pFrame(output): Pointer to raw output frame data.
  • nTimeStamp(input): Timestamp of frame to be interpolated.
  • bHasFrameRepetitionOccurred(output): FRUC library returns the previous frame as interpolated frame in case the interpolated frame does not meet a certain quality bar. In such a case, this flag would be set to true by FRUC library. The application can monitor this flag, if useful.

On success the function returns NvOFFRUC_SUCCESS. If you are using FRUC library in DirectX application, then you need to wait on user thread till NvOFFRUCProcess() completes. For CUDA APIs, the function call is a blocking call.

Unregistering Resources

Unregister the resource using NvOFFRUCUnregisterResource function as follows.

NvOFFRUC_UNREGISTER_RESOURCE_PARAM stUnregisterResourceParam = { 0 };
memcpy(stUnregisterResourceParam.pArrResource,
            regOutParam.pArrResource,
            regOutParam.uiCount * sizeof(IUnknown*));

stUnregisterResourceParam.uiCount = regOutParam.uiCount;

status = NvOFFRUCUnregisterResource(
            hFRUC,
            &stUnregisterResourceParam);


Fill in NvOFFRUC_UNREGISTER_RESOURCE_PARAM structure as follows.

  • pArrResource(input): Array of pointers to input and output resources.
  • uiCount(input): Total number of input and output resources.

If the function call succeeds it returns NvOFFRUC_SUCCESS.

Destroying FRUC Instance

In the end, destroy FRUC instance using NvOFFRUCDestroy function as follows:

status = NvOFFRUCDestroy(hFRUC);


This function destroys the FRUC instance and returns NvOFFRUC_SUCCESS if it succeeds.

Diagnostics

All FRUC APIs return status NvOFFRUC_SUCCESS if they succeed. In case of failure, the APIs return error codes hinting at the possible causes of failure. FRUC header NvOFFRUC.h has a list of all such error codes.

Prerequisites

Once you integrate FRUC APIs into your application, you can build the application and run it on the target system. Do not run the sample application executable with elevated permission. Target system needs to have the following prerequisites for using FRUC library:

  • NVIDIA GPU (Graphics Processing Units): Turing or above, with Optical Flow hardware support
  • Windows OS: Windows 10 or above with latest updates
  • Linux OS: Distributions Ubuntu 18 or above
  • NVIDIA Windows display driver version 522.25 or above
  • NVIDIA Linux display driver version 520.56.06 or above
