Architecture#

NeMo Curator’s video curation system builds on Ray, a distributed computing framework that enables scalable, high-throughput data processing across clusters of machines.

Ray Foundation#

NeMo Curator leverages two essential Ray Core capabilities:

  • Distributed Actor Management: Creates and manages Ray actors across a cluster. Cosmos-Xenna supports per-stage runtime environments. In Curator today, per-stage runtime_env is not user-configurable through stage specs; the integration sets only limited executor-level environment variables.

  • Ray Object Store and References: Uses Ray’s object store and data references to reduce data movement and increase throughput.

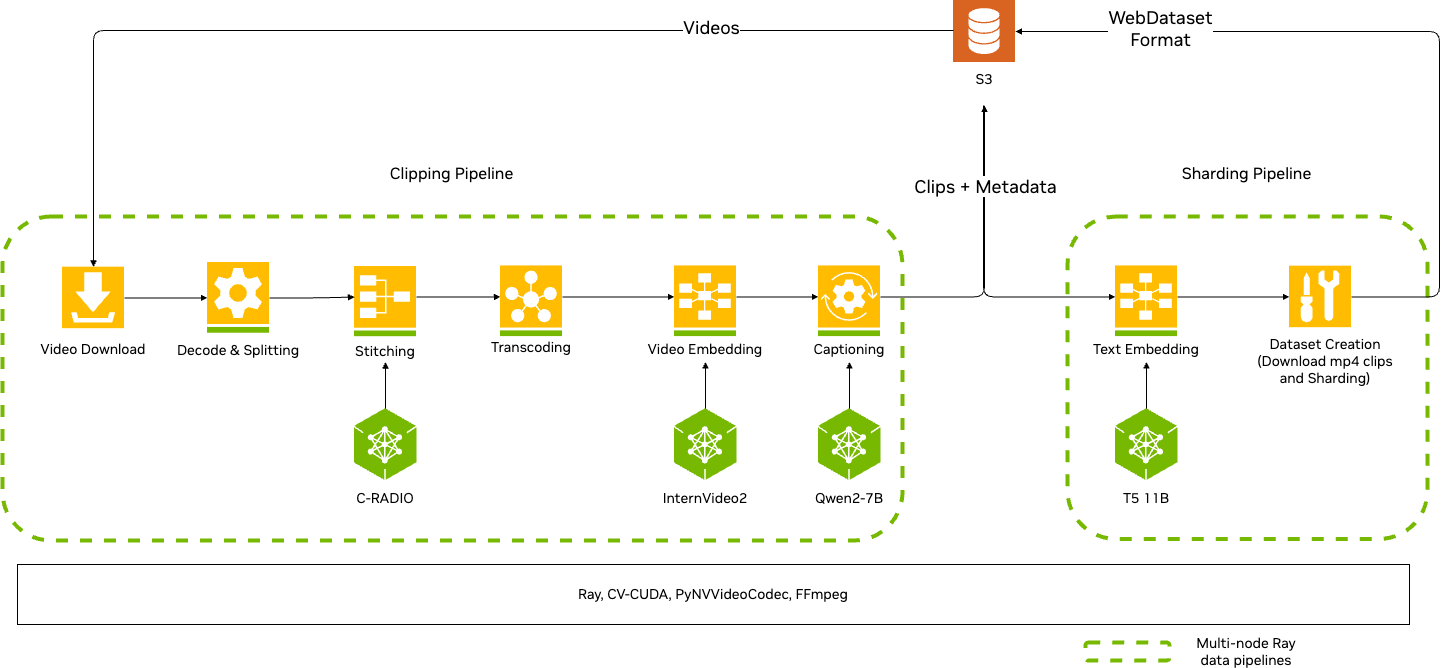

Ray Architecture

Execution and Auto Scaling#

Curator runs pipelines through an executor. The Cosmos-Xenna executor (XennaExecutor) translates ProcessingStage definitions into Cosmos-Xenna stage specifications and runs them on Ray in either streaming or batch mode. During streaming execution, the auto-scaling mechanism:

  • Monitors each stage’s throughput

  • Dynamically adjusts worker allocation

  • Optimizes pipeline performance by balancing resources across stages

This dynamic scaling reduces bottlenecks and uses hardware efficiently for large-scale video curation tasks.

Key executor configuration (actual keys):

  • logging_interval: Seconds between status logs (default: 60)

  • ignore_failures: Continue on failures (default: False)

  • execution_mode: “streaming” or “batch” (default: “streaming”)

  • cpu_allocation_percentage: CPU allocation ratio (default: 0.95)

  • autoscale_interval_s: Auto-scaling interval in seconds (applies in streaming mode; default: 180)

Use Pipeline.describe() to review stage resources and input/output requirements at a glance during development.
