FP8 Quantization in NeMo RL#

This module provides a suite of tools to enable FP8 quantization for large language models. It is currently under active development.

Supported Features#

FP8 Generation#

  • Implements Deepseek-style FP8 quantization using sub-channel scaling.

FP8 Training#

  • Uses TransformerEngine for linear layer implementation.

  • Supports both Deepseek-style sub-channel scaling and per-tensor scaling.

Integration with NeMo RL#

NeMo RL applies monkey patches to several core vLLM components to enable FP8 generation for reinforcement learning.
When the init_fp8 function is called, it modifies the following:

RayDistributedExecutor#

  • For multi-GPU inference, the executor is patched to ensure that every worker process applies the same FP8 patches before model initialization.

Quantization Utilities#

  • Functions within vllm.model_executor.layers.quantization are replaced with custom implementations that support:

    • Power-of-2 scaling

    • Other custom features

Weight Loading#

  • A custom load_weights function performs on-the-fly quantization of model weights from higher-precision formats to FP8.

Usage#

FP8 generations are recommended to be configured with the following settings:

 loss_fn:
     # importance sampling helps improve stability
     use_importance_sampling_correction: true

 policy:
     generation:
         vllm_cfg:
             precision: 'fp8'
             # DeepGemm is much more performant than vLLM's default cutlass fp8 subchannel scaling kernels
             use_deep_gemm: true
             # Users can specify number of layers to be kept in BF16 precision in their experiments
             # and by default they are set to 0
             num_last_layers_in_bf16: 0
             num_first_layers_in_bf16: 0
             # Use FP32 scaling factors. Rounding scaling factors to the nearest pow2 may improve quantization
             # fidelity however this feature is still under research.
             use_weight_pow2_scale: False
             use_activation_pow2_scale: False

“To train with FP8, you need to set the Megatron path and configure it using the following settings:

    policy:
        megatron_cfg:
            fp8_cfg:
                fp8: "hybrid"               # choices: [hybrid, e4m3]
                fp8_recipe: "tensorwise"    # choices: [tensorwise, blockwise]
                fp8_param: false            # boolean value

Compatibility Note for Deepseek-Style FP8 Training#

When using FP8 training with Deepseek-style FP8 (sub-channel scaling), be aware of the following compatibility issue:

The TransformerEngine implementation for this recipe requires cuBLAS version ≥ 12.9. However, nemo-rl currently depends on Torch 2.7.1, which in turn requires CUDA 12.8. As a result, attempting to use the default setup will trigger the following error:

File "/opt/ray_venvs/nemo_rl.models.policy.megatron_policy_worker.MegatronPolicyWorker/lib/python3.12/site-packages/transformer_engine/pytorch/fp8.py", line 646, in fp8_autocast
FP8GlobalStateManager.fp8_autocast_enter(
File "/opt/ray_venvs/nemo_rl.models.policy.megatron_policy_worker.MegatronPolicyWorker/lib/python3.12/site-packages/transformer_engine/pytorch/fp8.py", line 465, in fp8_autocast_enter
assert fp8_block_available, reason_for_no_fp8_block
           ^^^^^^^^^^^^^^^^^^^
AssertionError: FP8 block scaled GEMM requires Hopper and CUDA >= 12.9.

This issue will be resolved once the Torch version is upgraded to ≥ 2.8.0 (Please follow #1122 for more progress on the upgrade). In the meantime, you can enable Deepseek-style FP8 training using the following workaround:

  • Build the NGC PyTorch container from docker/Dockerfile.ngc_pytorch.
    This setup uses the system Python environment, which includes CUDA version 12.9 or higher, meeting the requirements for TransformerEngine’s FP8 implementation.

Accuracy#

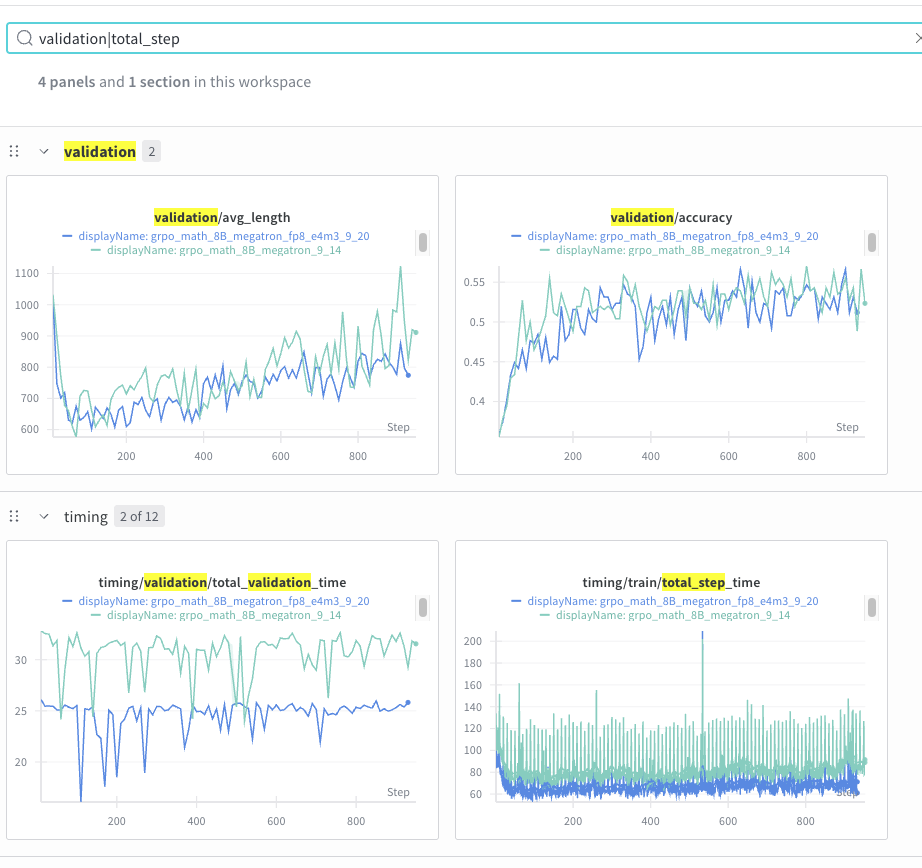

Llama-3.1-8B-Instruct GRPO Curve BF16 vs FP8

The above results are from Llama-3.1-8B-Instruct GRPO experiments. You can run them with the following example configs:

  • For BF16: examples/configs/grpo_math_8B_megatron.yaml

  • For FP8: examples/configs/grpo_math_8B_megatron_fp8.yaml

In the experiment in this figure, enabling FP8 rollout and training gives 15%-25% decrease in step time, and the validation accuracy curves match up to 1000 step. Efforts are ongoing to performs longer runs and further optimize performance.
