Single Root I/O Virtualization (SR-IOV)

Warning

SR-IOV is not on a GA level in Windows 2012. It is recommended to use Windows 2012 R2 or a newer version, when SR-IOV is configured.

Single Root I/O Virtualization (SR-IOV) is a technology that allows a physical PCIe device to present itself multiple times through the PCIe bus. This technology enables multiple virtual instances of the device with separate resources. Mellanox adapters are capable of exposing in ConnectX®-3/ConnectX®-3 Pro adapter cards, up to 126 virtual instances called Virtual Functions (VFs). These virtual functions can then be provisioned separately. Each VF can be seen as an addition device connected to the Physical Function. It also shares resources with the Physical Function.

SR-IOV is commonly used in conjunction with an SR-IOV enabled hypervisor to provide virtual machines direct hardware access to network resources hence increasing its performance.

This guide demonstrates the setup and configuration of SR-IOV, using Mellanox ConnectX® VPI adapter cards family. SR-IOV VF is a single port device.

Warning

Mellanox device is a dual-port single-PCI function. Virtual Functions' pool belongs to both ports. To define how the pool is divided between the two ports use the PowerShell SriovPort1NumVFs” command (see Step 5 in Enabling SR-IOV in Mellanox WinOF Package (Ethernet SR-IOV Only).

System Requirements

  • A server and BIOS with SR-IOV support. BIOS settings might need to be updated to enable virtualization support and SR-IOV support.

  • Hypervisor OS: Windows Server 2012 R2 and above

  • Virtual Machine (VM) OS:

  • The VM OS can be either Windows Server 2012 and above

  • Mellanox ConnectX®-3/ ConnectX®-3 Pro VPI Adapter Card family with SR-IOV capability

  • Mellanox WinOF 5.22 or higher

  • It is recommended to use the same driver version in the hypervisor and the virtual machine

  • Firmware version: 2.30.8000 or higher

Feature Limitations

  • SR-IOV is supported only in Ethernet ports and can be enabled if all ports are set as Ethernet.

  • RDMA (i.e RoCE) capability is available in SR-IOV mode only in Windows Server 2016 and above

System Requirements

  • A server and BIOS with SR-IOV support. BIOS settings might need to be updated to enable virtualization support and SR-IOV support.

  • Hypervisor OS: Linux KVM using SR-IOV enabled drivers

  • Virtual Machine (VM) OS:

    • The VM OS can be Windows Server 2012, 2012 R2 and 2016
      For further details about assigning a VF to the Windows VM, please refer to steps 1-5 in the section titled “Assigning the SR-IOV Virtual Function to the Red Hat KVM VM Server” in Mellanox OFED for Linux User Manual.

  • Mellanox ConnectX®-3/ ConnectX®-3 Pro VPI Adapter Card family with SR-IOV capability

  • Mellanox WinOF 4.80 or higher

  • Firmware version: 2.30.8000 or higher

Feature Limitations (Compared to Native InfiniBand)

  • OpenSM and Infiniband Fabric Diagnostic Utilities listed in Table 51, “Diagnostic Utilities,” on page 184 are not supported in guest OS.

  • For a UD QP, only SGID index 0 is supported.

  • The allocation of the GIDs (per port) in the VFs are accordingly:

    • 16 GIDs are allocated to the PF

    • 2 GIDs are allocated to every VF

    • The remaining GIDs (if such exist), will be assigned to the VFs, one GID to every VF - starting from the lower VF.

  • Currently, Mellanox IB Adapter Diagnostic Counters and Mellanox IB Adapter Traffic Counters are not supported.

  • Only Administrator assigned GUIDs are supported, please refer to the MLNX_OFED User Manual for instructions on how to configure Administrator assigned GUIDs.

The following are the necessary steps for configuring host machines.

Enabling SR-IOV in BIOS

Depending on your system, perform the steps below to set up your BIOS. The figures used in this section are for illustration purposes only. For further information, please refer to the appropriate BIOS User Manual.

To enable SR-IOV in BIOS:

  1. Make sure the machine’s BIOS supports SR-IOV.
    Please, consult BIOS vendor website for SR-IOV supported BIOS versions list. Update the BIOS version if necessary.

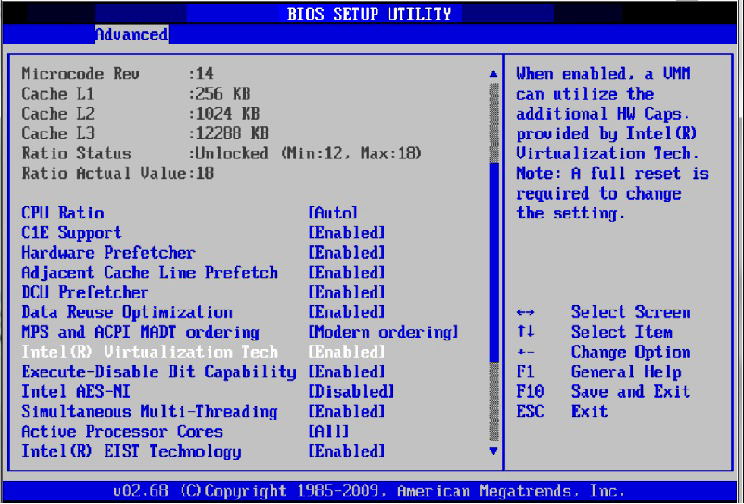

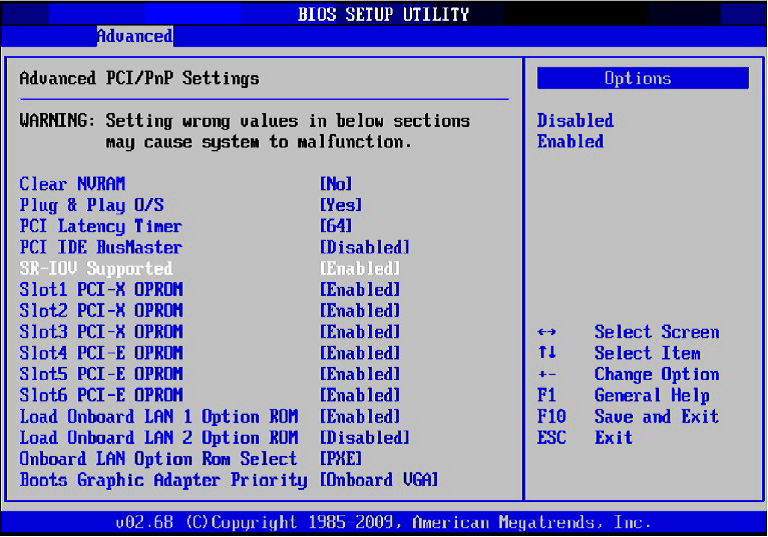

  2. Follow BIOS vendor guidelines to enable SR-IOV according to BIOS User Manual. For example,

    1. Enable SR-IOV.


    2. Enable “Intel Virtualization Technology” Support.


      For further details, please refer to the vendor's website.

Installing Hypervisor Operating System (SR-IOV Ethernet Only)

To install Hypervisor Operating System:

  1. Install Windows Server 2012 R2 and above.

  2. Install Hyper-V role:

    1. Go to: Server Manager → Manage → Add Roles and Features and set the following:

    2. Installation Type → Role-based or Feature-based Installation

    3. Server Selection → Select a server fro the server pool

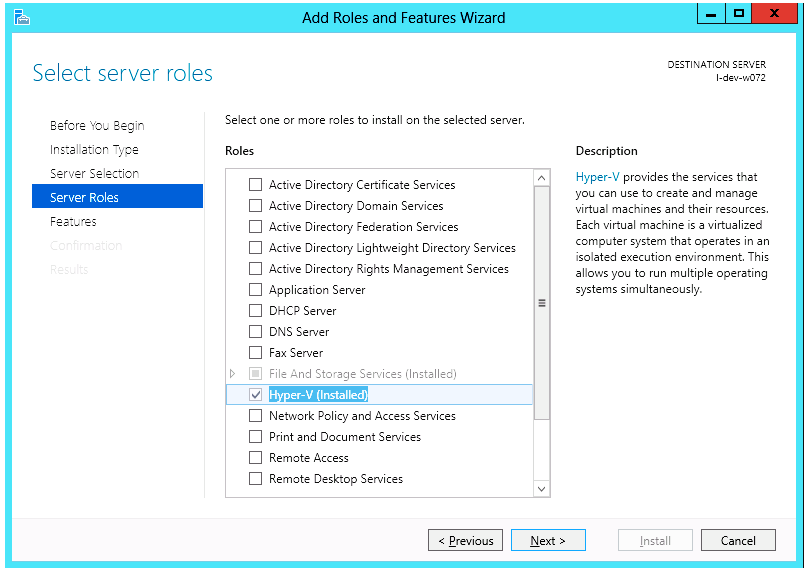

    4. Server Roles → Hyper-V (see figures below)

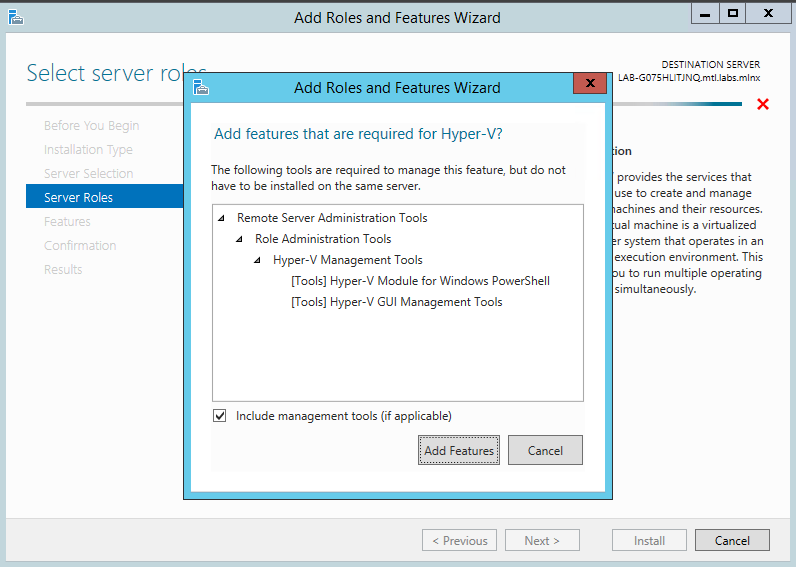

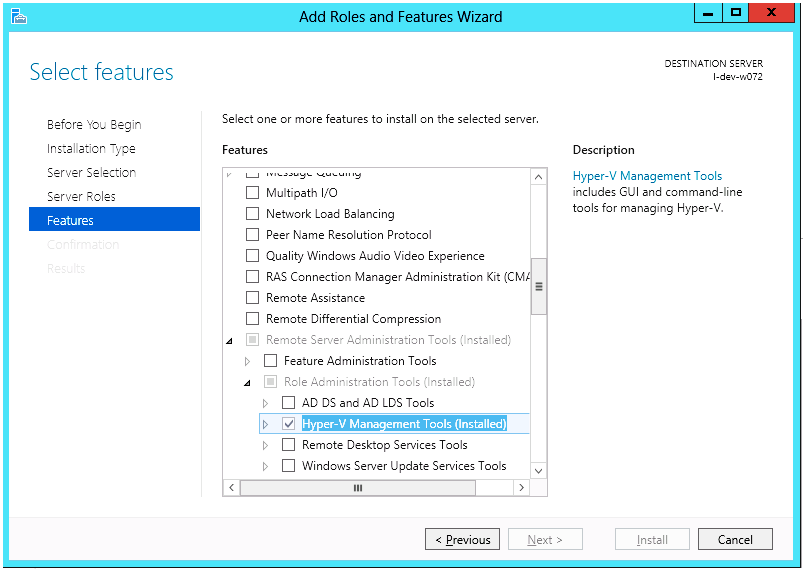

  3. Install Hyper-V Management Tools. Features → Remote Server Administration Tools → Role Administration Tools →Hyper-V Administration Tool

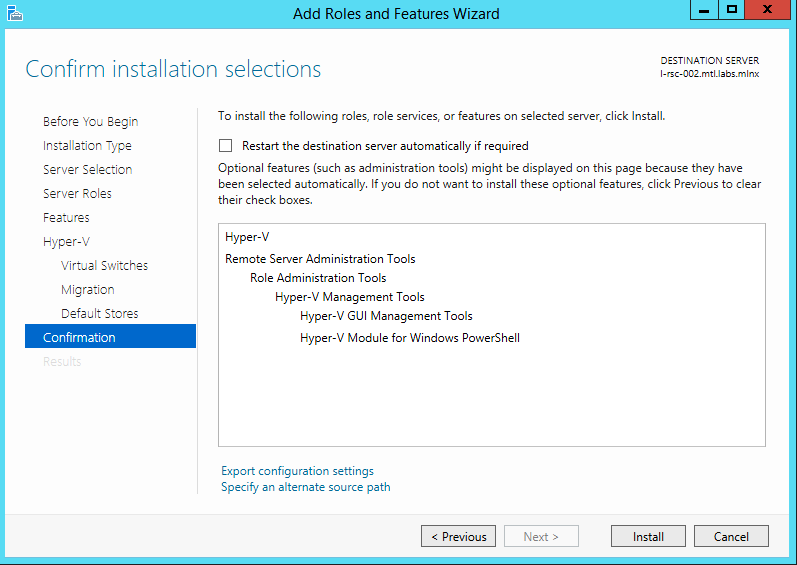

  4. Confirm the Installation.


  5. Click Install.


  6. Reboot the system.

Verifying SR-IOV Support within the Host Operating System (SR-IOV Ethernet Only)

To verify that the system is properly configured for SR-IOV:

  1. Go to: Start → Windows Powershell.

  2. Run the following PowerShell commands.

    Copy
    Copied!


    PS $ (Get-VmHost).IovSupport PS $ (Get-VmHost).IovSupportReasons

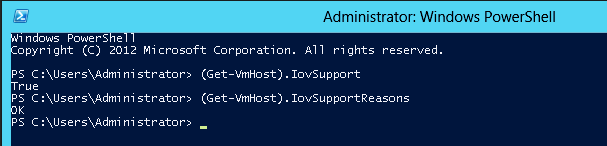

    In case that SR-IOV is supported by the OS, the output in the PowerShell is as in the figure below.
    Operating System Supports SR-IOV

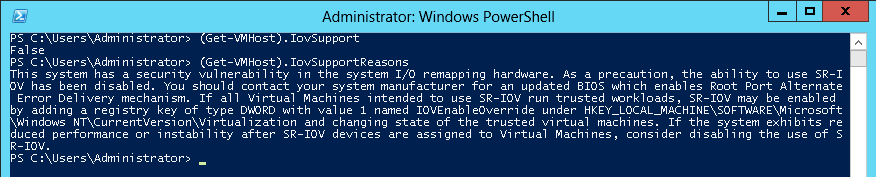

    Note: If BIOS was updated according to BIOS vendor instructions and you see the message displayed in the figure below, update the registry configuration as described in the (Get-VmHost). IovSupportReasons message.
    SR-IOV Support


  3. Reboot

  4. Verify the system is configured correctly for SR-IOV as described in Steps 1/2.

Creating a Virtual Machine (SR-IOV Ethernet Only)

To create a virtual machine

  1. Go to: Server Manager → Tools → Hyper-V Manager.

  2. Go to: New → Virtual Machine and set the following:
    • Name: <name>
    • Startup memory: 4096 MB
    • Connection: Not Connected

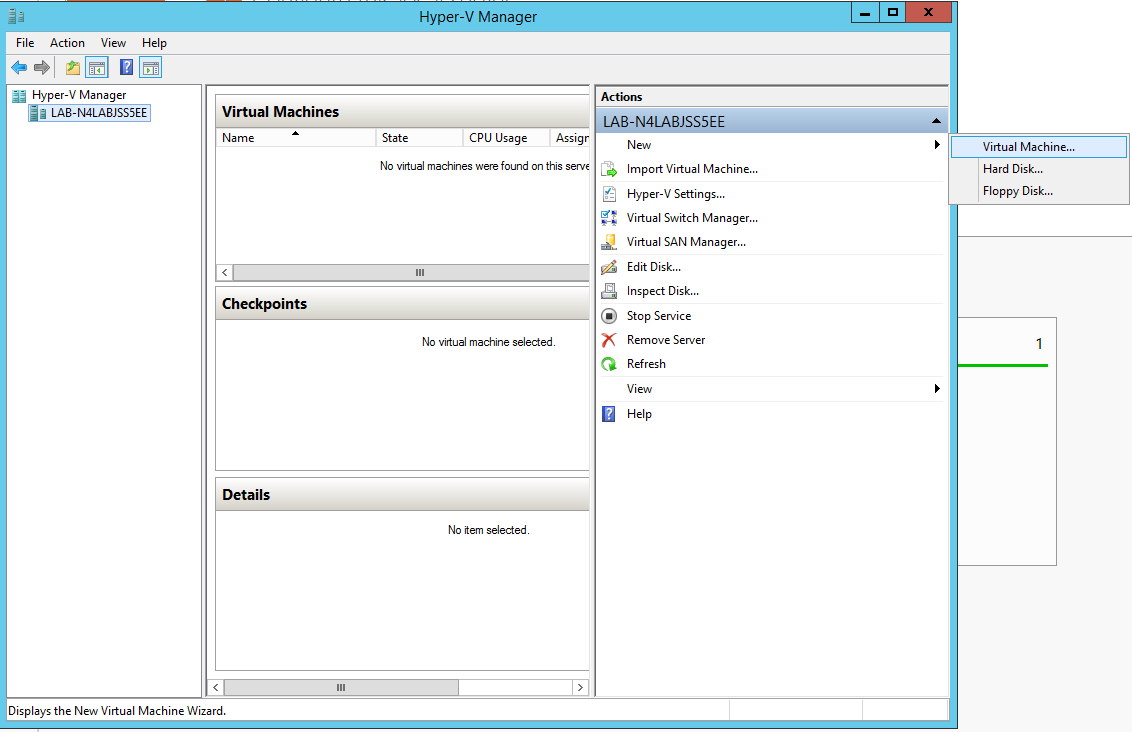

    Hyper-V Manager


  3. Connect the virtual hard disk in the New Virtual Machine Wizard.

  4. Go to Connect Virtual Hard Disk → Use an existing virtual hard disk.

  5. Select the location of the vhd file.

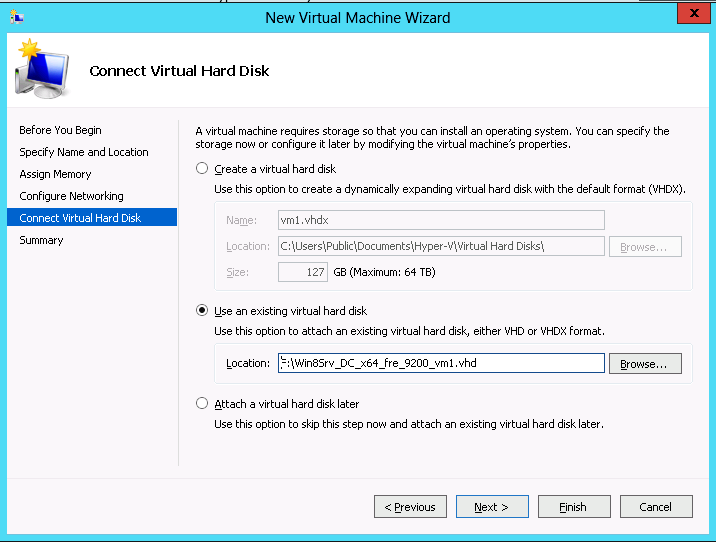

    Connect Virtual Hard Disk


The following are the steps for configuring Mellanox Network Adapter for SR-IOV:

Enabling SR-IOV in Firmware

For non-Mellanox (OEM) branded cards you may need to download and install the new firmware. For the latest OEM firmware, please go to: http://www.mellanox.com/page/oem_firmware_download

As of firmware version 2.31.5000, SR-IOV can be enabled and managed by using the mlxconfig too. For older firmware versions, use the flint tool.

To enable SR-IOV using mlxconfig:

mlxconfig is part of MFT tools used to simplify firmware configuration. The tool is available with MFT tools 3.6.0 or higher.

  1. Download MFT for Windows. www.mellanox.com → Products → Software → Firmware Tools.

  2. Get the device ID (look for the “_pciconf” string in the output).

    Copy
    Copied!


    > mst status

    Example:

    Copy
    Copied!


    MST devices: ------------ mt4103_pci_cr0 mt4103_pciconf0

  3. Check the current SR-IOV configuration.

    Copy
    Copied!


    > mlxconfig -d mt4103_pciconf0 q

    Example:

    Copy
    Copied!


    Device #1: ---------- Device type: ConnectX3Pro PCI device: mt4103_pciconf0   Configurations: Current SRIOV_EN N/A NUM_OF_VFS N/A LINK_TYPE_P1 N/A LINK_TYPE_P2 N/A

  4. Enable SR-IOV with 16 VFs.

    Copy
    Copied!


    > mlxconfig -d mt4103_pciconf0 s SRIOV_EN=1 NUM_OF_VFS=16

    Important

    Warning: Care should be taken in increasing the number of VFs. All servers are guaranteed to support 16 VFs. More VFs can lead to exceeding the BIOS limit of MMIO available address space.

    Example:

    Copy
    Copied!


    Device #1: ---------- Device type: ConnectX3Pro PCI device: mt4103_pciconf0   Configurations: Current New SRIOV_EN N/A 1 NUM_OF_VFS N/A 16 LINK_TYPE_P1 N/A N/A LINK_TYPE_P2 N/A N/A   Apply new Configuration? ? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.

  5. Reboot the machine. (After the reboot, continue to Enabling SR-IOV in Mellanox WinOF Package (Ethernet SR-IOV Only).)

To enable SR-IOV using flint:

Step 1. Download MFT for Windows. www.mellanox.com → Products → Software → Firmware Tools.

Step 2. Get the device ID (look for the “_pciconf” string in the output).

Copy
Copied!


> mst status

Example:

Copy
Copied!


MST devices: ------------ mt4103_pci_cr0 mt4103_pciconf0

Step 3. Verify that HCA is configured for SR-IOV by dumping the device configuration file to user-chosen location <ini device file>.ini.

Copy
Copied!


> flint -d <device> dc > <ini device file>.ini

Step 4. Verify in the [HCA] section of the .ini that the following fields appear:

Copy
Copied!


[HCA] num_pfs = 1 total_vfs = 16 sriov_en = true

Important

Warning: Care should be taken in increasing the number of VFs. All servers are guaranteed to support 16 VFs. More VFs can lead to exceeding the BIOS limit of MMIO available address space.

Step 5. If the fields do not appear, edit the .ini file and add them manually.

Recommended Values

Parameter

Recommended Values

num_pfs

1
Note: This field is optional and might not always appear.

total_vfs

<0-126> (The chosen value should be within BIOS limit of MMIO available address space)

sriov_en

true

Step 6. Create a binary image using the modified ini file.

Copy
Copied!


> mlxburn -fw <fw name>.mlx -conf <ini device file>.ini -wrimage <file name>.bin

Step 7. Burn the firmware. The file <file name>.bin is a firmware binary file with SR-IOV enabled that has 16 VFs.

Copy
Copied!


> flint -dev <PCI device> -image <file name>.bin b

Step 8. Reboot the system for changes to take effect. For more information, please, contact Mellanox Support.

Enabling SR-IOV in Mellanox WinOF Package (Ethernet SR-IOV Only)

To enable SR-IOV in Mellanox WinOF Package:

Step 1. Install Mellanox WinOF package that supports SR-IOV.

Step 2. Configure HCA ports' type to Ethernet. For further information, please refer to Port Configuration.
Note: SR-IOV cannot be enabled if one of the ports is InfiniBand.

Step 3. Set the Execution Policy specified in PowerShell Configuration.

Step 4. Query SR-IOV configuration with Powershell.

Copy
Copied!


PS $ Get-MlnxPCIDeviceSriovSetting

Example:

Copy
Copied!


Caption : MLNX_PCIDeviceSriovSettingData 'Mellanox ConnectX-3 PRO VPI (MT04103) Network Adapter' Description : Mellanox ConnectX-3 PRO VPI (MT04103) Network Adapter ElementName : HCA 0 InstanceID : PCI\VEN_15B3&DEV_1007&SUBSYS_22F5103C&REV_00\24BE05FFFFB9E2E000 Name : HCA 0 Source : 3 SystemName : LAB-N4LABJSS5EE SriovPort1NumVFs : 16 SriovPort2NumVFs : 0 SriovPortMode : 0 PSComputerName :

Step 5. Enable SR-IOV through Powershell on both ports.

Copy
Copied!


PS $ Set-MlnxPCIDeviceSriovSetting -Name "HCA 0" -SriovPortMode 2 -SriovPort1NumVFs 8 -SriovPort2NumVFs 8

Note: "SriovPortMode 2" enables SR-IOV on both ports. "SriovPort1NumVFs 8" & "SriovPort2NumVFs 8" enable 8 Virtual Functions for each port when working in manual mode. By default, there are assigned 16 virtual functions on the first port.

Example:

Copy
Copied!


Confirm Are you sure you want to perform this action? Performing the operation "SetValue" on target "MLNX_PCIDeviceSriovSettingData: MLNX_PCIDeviceSriovSettingData 'Mellanox ConnectX-3 PRO VPI (MT04103) Network Adapter' (InstanceID = "PCI\VEN_15B3&DEV_1007&SUBSYS_22F5103C&R...)". [Y] Yes [A] Yes to All [N] No [L] No to All [S] Suspend [?] Help (default is "Y"): y

Warning

Mellanox device is a dual-port single-PCI function. Virtual Functions' pool belongs to both ports. To define how the pool is divided between the two ports use the Powershell “SriovPort1NumVFs” command.

SR-IOV mode configuration parameters:

Parameter Name

Values

Descriptions

SriovPortMode

0 = auto_port1
1 = auto_port2
2 = manual (default)

Configures the number of VFs to be enabled by the bus driver to each port.
Note (for auto mode): In auto_portX mode, port X will have the number of VFs according to the burnt value in the device and the other port will have no SR-IOV and it will support native Ethernet (i.e. no RoCE). Setting this parameter to "Manual" will configure the number of VFs for each port according to the registry key MaxVFPortX.
Note (for manual mode): The number of VFs can be configured both on a Mellanox bus driver level and Network Interface level (i.e using Set-NetAdapterSriov Powershell cmdlet). The number of VFs actually available to the Network Interface is the minimum value between Mellanox bus driver configuration and Network Interface configuration.
For example, if 8 VFs support was burnt in firmware, SriovPortMode is auto_port1, and Network Interface was allowed 32 VFs using SetNetAdapterSriov Powershell cmdlet, the actual number of VFs available to Network Interface will be 8.

SriovPort1NumVFs
SriovPort2NumVFs

16=(default)

SriovPort<i>NumVFs specifies the number of VFs that are allowed per port. This is the number of VFs the bus driver will open when working in manual mode on SRI-OV mode.
Note: If the total number of VFs requested is larger than the number of VFs burnt in the firmware, each port X(1\2) will have the number of VFs according to the following formula:
(SriovPortXNumVFs / (SriovPort1NumVFs+SriovPort2NumVFs))*number of VFs burnt in the firmware.

Step 6. Verify the new values were set correctly.

Copy
Copied!


PS $ Get-MlnxPCIDeviceSriovSetting

Example:

Copy
Copied!


Caption : MLNX_PCIDeviceSriovSettingData 'Mellanox ConnectX-3 PRO VPI (MT04103) Network Adapter' Description : Mellanox ConnectX-3 PRO VPI (MT04103) Network Adapter ElementName : HCA 0 InstanceID : PCI\VEN_15B3&DEV_1007&SUBSYS_22F5103C&REV_00\24BE05FFFFB9E2E000 Name : HCA 0 Source : 3 SystemName : LAB-N4LABJSS5EE SriovPort1NumVFs : 8 SriovPort2NumVFs : 8 SriovPortMode : 2 PSComputerName :

Step 7. Check in the System Event Log that SR-IOV is enabled.

Step a. Open the View Event Logs/Event Viewer. Go to: Start → Control Panel → System and Security → Administrative Tools → View Event Logs/Event Viewer.

Step b. Open the System logs. Event Viewer (Local) → Windows Logs → System.

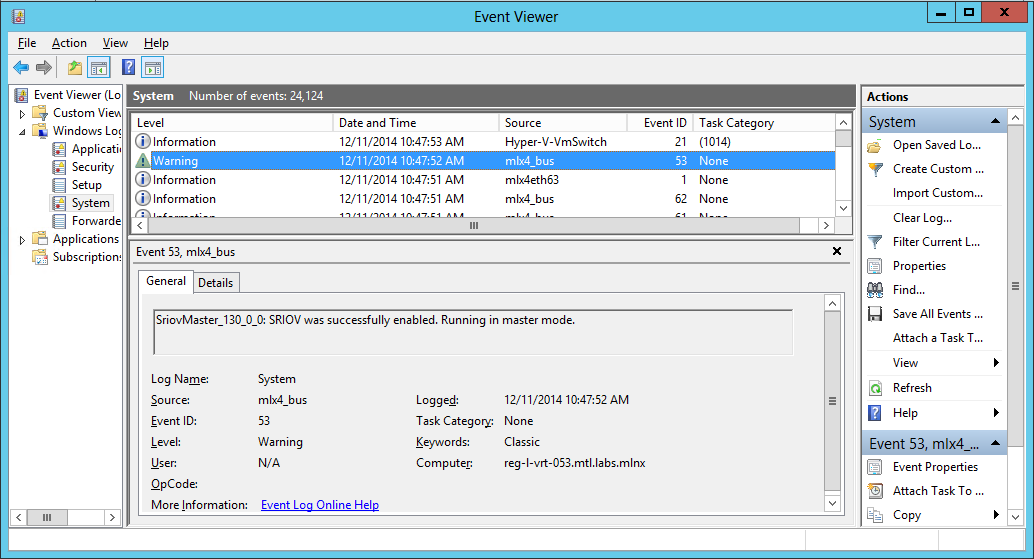

System Event Log
