Setup Guide#

This guide walks you through deploying Tokkio Workflow on AWS with lite version of the deployment scripts. You can deploy Tokkio in multiple ways on AWS. This guide focuses on doing it using Tokkio’s deployment scripts. These scripts automatically set up Tokkio Workflow and all required infrastructure components on AWS.

About the AWS Lite Deployment#

The AWS Lite deployment uses streamlined, leaner deployment scripts designed for simplified setup and reduced resource consumption. This newer deployment script implementation differs from the full AWS deployment scripts in several key ways:

Why “Lite”:

  • Simplified Architecture: The deployment scripts provision fewer AWS components and services, making deployment faster and more straightforward

  • Lower Resource Requirements: Scripts deploy fewer EC2 instances with optimized resource allocation to minimize costs

  • Streamlined Configuration: Deployment scripts require fewer configuration parameters and setup steps compared to the full deployment scripts

  • Faster Deployment Time: Automated deployment scripts complete the setup process more quickly due to the reduced infrastructure complexity

Key Differences from Full AWS Deployment Scripts:

  • Infrastructure Footprint: Lite deployment scripts provision a more compact infrastructure layout with consolidated services

  • Component Integration: Some services that were previously deployed separately by the full scripts are now co-located to reduce overhead

  • Configuration Complexity: Simplified configuration templates with sensible defaults reduce the need for extensive customization

  • Maintenance Overhead: Fewer infrastructure components result in easier monitoring, troubleshooting, and maintenance

  • Cluster local UI: The UI deployed as a cluster local service bundled as part of Helm chart.

Prerequisites#

AWS Prerequisites#

  1. Create an IAM user with administrator access and obtain the Access Key ID and Secret Access Key.

  2. Create an S3 bucket for storing deployment state

  3. Create a DynamoDB table for managing concurrent access to the deployment state

In case you need help in setting these up, you can refer to the AWS documentation. Also, see Environment Variables and Prerequisites Setup section for more information on getting this setup.

Hardware#

Controller Instance#

Note

Instructions to set up some of these prerequisites, such as setting up an SSH key pair and passwordless sudo access, can be found at Common Setup Procedures.

Access#

  • Access to all the artifacts used during the bringing up of Tokkio Pipeline Application. For example, Tokkio Application Helm chart on NGC. For instructions on how to generate a personal API key, refer to Generating a Personal API Key.

Infrastructure Layout#

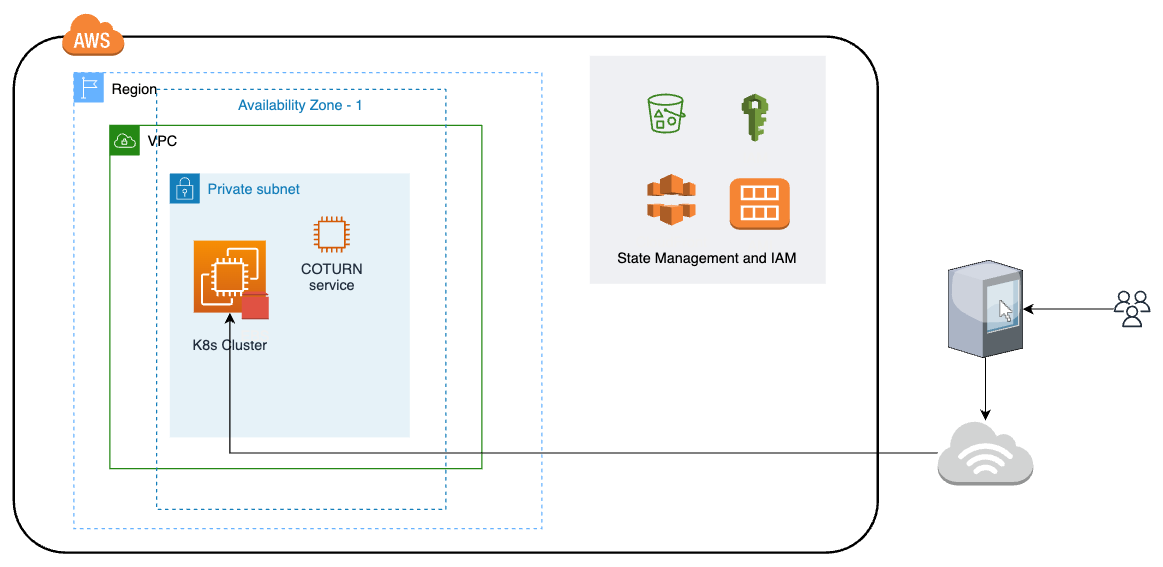

Tokkio Workflow setup on AWS requires several AWS resources including EC2 instances, Security Groups, Application Load Balancer, CloudFront for hosting UI content, S3 bucket, etc. The diagram below illustrates the overall layout of components deployed on AWS.

Tokkio AWS Lite Infrastructure

Installation Steps#

Note

Before proceeding with the installation steps, ensure you have reviewed the Deployment section to understand the deployment workflow and building blocks, including the Controller Instance, Config File, Environment Variables File, and Application Instance.

  1. Clone the NVIDIA/ACE.git repository and navigate to the AWS deployment scripts directory.

git clone https://github.com/NVIDIA/ACE.git
cd ACE/workflows/tokkio/5.0.0-ga/scripts/one-click/aws-lite

  1. Prepare a config file, either by copying the base config-template.yml or by copying one of the example config files available under config-template-examples folder.

#list of example templates
config-template-examples/
└── tokkio-3streams
    ├── config-template.yml
    └── my-config.env

Copy a config template of your choice as the base config template for this installation.

cp config-template-examples/tokkio-3streams/config-template.yml ./my-config.yml

  1. Modify the my-config.yml with your specific settings. For more details about each parameter, refer to Advanced Configuration

vi my-config.yml

  1. Set up environment variables.

  • Similar to the config-template file, you can copy an example env file from the config-template-examples folder.

  • Modify the environment variables file with your specific settings. For more details about each environment variable, refer to Environment Variables and Prerequisites Setup

cp config-template-examples/tokkio-3streams/my-config.env my-env-file.env
vi my-env-file.env

  1. Source the environment variables file.

source my-env-file.env

  1. Run the installation command.

./envbuild.sh install --tf-binary terraform --component all --config-file ./my-config.yml

  1. Capture installation results at the end of logs. Output will look like the sample below:

access_urls:
  app:
    ace_configurator: http://<app-instnce-public-ip>:30180/
    api: https://<app-instnce-public-ip>:30443/
    grafana: http://<app-instnce-public-ip>:32300/
    ui: https://<app-instnce-public-ip>:30111/
ssh_command:
  app:
    master: ssh -i <path-to-ssh-key> -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null ubuntu@<app-instnce-public-ip>

  1. Verify installation.

  • Login to the application instance using the SSH command from the installation results ssh_command.app.master

  • Check pod status: kubectl get pods -n <application-namespace>

  • Wait for all pods to reach Ready status (may take up to 60 minutes)

  • Once all the pods are healthy, you can access the UI using the URL from installation output access_urls.ui_endpoint

  • For the first time, the browser should prompt for permissions such as Mic, Speaker, or Camera necessary for the UI to operate. Upon accepting the permissions, the UI should load.

Verify AWS Lite Deployment

Uninstallation Steps#

Uninstalling Just the Application#

  • Source the correct environment variables file

source my-env-file.env

  • Run the commands below to uninstall just the application components.

./envbuild.sh uninstall --tf-binary terraform --component app --config-file ./my-config.yml

Uninstalling the Whole Setup#

  • Source the correct environment variables file

source my-env-file.env

  • Run the below uninstall command.

./envbuild.sh uninstall --tf-binary terraform --component all --config-file ./my-config.yml

Caution

This step uninstalls the entire Kubernetes cluster, and AWS infrastructure that was brought up during the install step. So use this with caution.

Additional Considerations#

Cost#

Many of the resources in this setup may not fall within the Free tier; you can check AWS billing reference pages to understand cost implications.

Security#

The security of Tokkio in production environments is the responsibility of the end users deploying it. When deploying in a production environment, please have security experts review any potential risks and threats; define the trust boundaries, secure the communication channels, integrate AuthN & AuthZ with appropriate access controls, keep the deployment including the containers up to date, and ensure the containers are secure and free of vulnerabilities.
