ACE Configurator Method#

The ACE Configurator based developer workflow is designed to enable seamless debugging and streamlined iterative development for Tokkio Digital Human Agents. For more details regarding the ACE Configurator, please refer to the ACE Configurator

The workflow satisfies the following use cases:

  • Modify the agent pipeline during live deployment and instantly view the updated changes.

  • Changes remain persistent even after pod reboot.

  • No need to rebuild or redeploy the app for changes supported by the ACE Configurator.

Pre-requisites:#

  • Tokkio application deployed in a Kubernetes cluster.

  • VSCode IDE.

Setup#

  • Follow the steps listed in Use VS Code Extension to setup and launch the ACE Configurator VSCode extension.

  • In the “ACE Configurator” panel you can set the ACE Configurator URL,

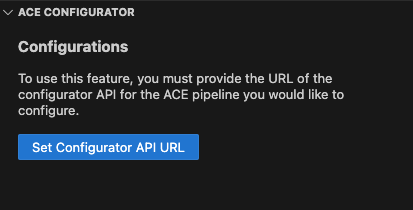

A screenshot of the extension's initial state in the VS Code desktop application. The panel is titled "ACE CONFIGURATOR" and contains a button titled "Set Configurator API URL"

  • Set the URL to match the IP of the Tokkio deployment and the port exposed by the ACE Configurator svc. Example: http://10.103.2.23:30180. Refer to FAQ for more information on finding the URL.

  • Download the ace controller configuration

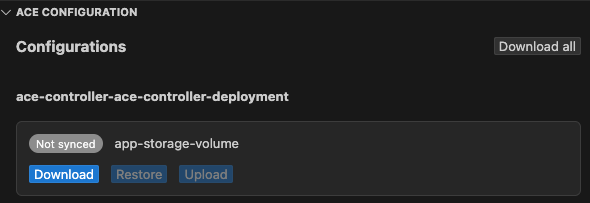

A screenshot of the extension's option to download the ace controller configuration.

  • Navigate to the downloaded asset (that contains the code for the ace controller)

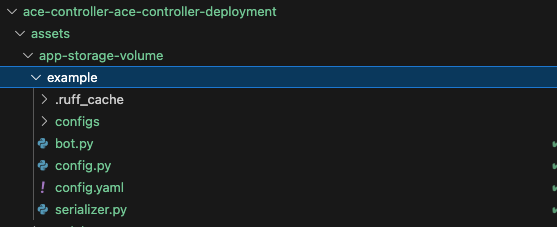

A screenshot of the ACE controller code exposed by the ACE Configurator.

  • Make the necessary changes and click on upload to upstream the changes in the live deployment.

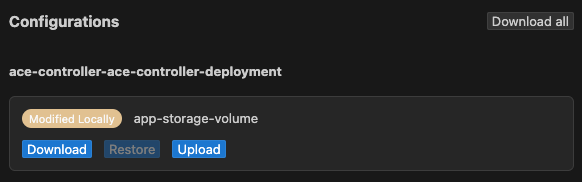

A screenshot of the ACE configurator upload button.

  • Wait till the changes are reflected in the live deployment. The changes will be reflected in the live deployment within a few seconds. The green indicator with Synced indicates that the changes have been successfully uploaded.

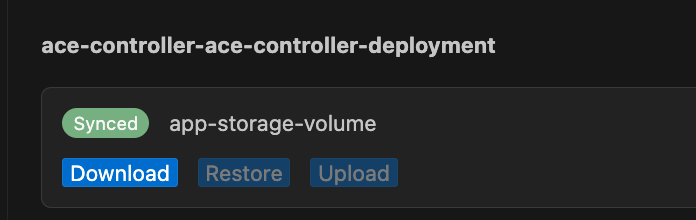

A screenshot of the ACE configurationator upload successful.

FAQ#

How to find the Configurator API URL?

The Configurator API URL is the IP address of the k8s cluster where the Tokkio application is deployed. The port is 30180. One can run the following bash script on that instance to find the URL.

# Extract the server IP address from the Kubernetes config
server_ip=$(kubectl config view --minify -o jsonpath='{.clusters[0].cluster.server}' | sed 's|http[s]*://||' | cut -d':' -f1)

# Ensure a valid server IP was found
if [[ -z "$server_ip" ]]; then
    echo "Error: Unable to extract server IP from Kubernetes config."
    exit 1
fi

# Append port 30180 to the extracted IP
configurator_url="${server_ip}:30180"

# Output the result
echo "Configurator API URL: $configurator_url"

The url is also output when you run the deployment script for Tokkio as ace_configurator_endpoint.

Troubleshooting#

The ACE Configurator plugin can throw an error like: “An error occurred while updating configurations: TypeError: fetch failed” if the extension is not able to connect to the Tokkio deployment.

Also, editing the files while they are still being downloaded can lead to errors thrown by the ACE Configurator plugin. A quick fix is to wait for the files to be downloaded and then edit them.

One can reload the ACE Configurator plugin in order to refresh the connection if any of the above issues are encountered or if one wants to refresh the connection. Please press CTRL+SHIFT+P (Or CMD + SHIFT + P on Mac) and select “Developer: Reload Window” option to reload the plugin.

Limitations#

  • The workflow might work a bit slow with uploading changes in a multi-stream deployment.

  • For this workflow, the ACE Configurator has been set up only for a subset of relevant Tokkio microservices. For more details on how to use the ACE Configurator for arbitrary deployments, please refer to ACE Configurator
