Power Management

Aspects of power management in NVIDIA Base Command Manager include:

• managing the main power supply to nodes through the use of power distribution units, baseboard management controllers, or CMDaemon

• monitoring power consumption over time

• setting power-saving options in workload managers

• ensuring the passive head node can safely take over from the active head during failover (Chapter 17)

• allowing cluster burn tests to be carried out (Chapter 11 of the Installation Manual)

The ability to control power inside a cluster is therefore important for cluster administration, and also creates opportunities for power savings. This chapter describes BCM power management features.

In section 4.1 the configuration of the methods used for power operations is described.

Section 4.2 then describes the way the power operations commands themselves are used to allow the administrator turn power on or off, reset the power, and retrieve the power status. It explains how these operations can be applied to devices in various ways.

Section 4.3 briefly covers monitoring power.

The integration of power saving with workload management systems is covered in the chapter on Workload Management (section 7.9).

4.1 Configuring Power Parameters

Several methods exist to control power to devices:

• Power Distribution Unit (PDU) based power control

• IPMI-based power control (for node devices only)

• Custom power control

• HP iLO-based power control (for node devices only)

• Dell DRAC-based power control (for node devices only)

• Cisco UCS CIMC-based power control (for node devices only)

• Redfish-based power control (for node devices only)

4.1.1 PDU-based Power Control

4.1.1.1 Introduction To PDU-based Power Control

For PDU-based power control, the power supply of a device is plugged into a port on a PDU. The device can be a node, but also anything else with a power supply, such as a switch or a blade chassis. The device can then be turned on or off by changing the state of the PDU port.

4.1.1.2 Configuring The PDU Itself

To use PDU-based power control, the PDU itself must be added and configured as a device in the cluster, and must be reachable over the network. PDU configuration was introduced in section 3.9. A summary of the configuration of PDUs is as follows:

The PDU can be added via cmsh using device mode, and is set as an object with a type of PowerDeviceUnit and is given a name. The value for Ports is automatically read, and is the number of power ports available to the other devices in the cluster.

In Base View the corresponding navigation path for a PDU named mypdu is:

Devices > PowerDistribution Unit list > mypdu > Add

4.1.1.3 Configuring The Devices To Use The PDU

After the PDU itself is configured, then the devices that use it can be configured to use the PDU and its ports.

For example, for a node node001 that is be powered by the PDU mypdu, in Base View the configuration can be done using the navigation path:

Devices > Nodes > Physical Node list[node001] > Edit > Settings > JUMP TO > Power Distribution Units > ADD > PDUPort

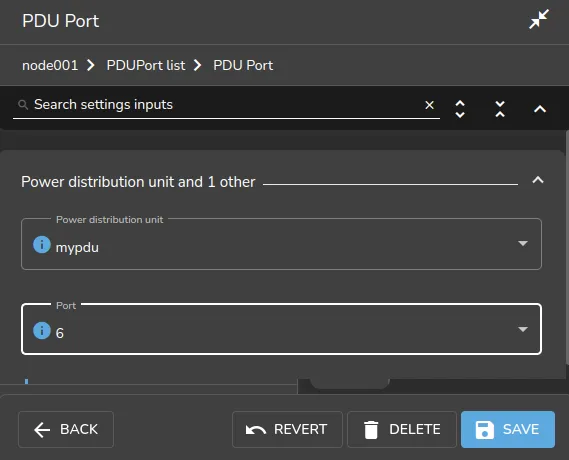

which opens up the PDU Port window (figure 4.1):

Figure 4.1: PDU configuration settings for a node

and allows the PDU and port used by node001 to be set.

For the APC brand of PDUs: the Power control property (here) should be set to apc, or the list of PDU ports is ignored by default. Overriding the default is described in section 4.1.3.

4.1.1.4 Power Ports: One-to-many And Many-to-one

Nodes may have multiple power feeds for redundancy reasons. Thus, there may be multiple PDU ports and multiple PDUs defined for a single device. The cluster management takes care of operating all ports of a device in the correct order when a power operation is done on the device.

For example, if a PDU mypdu has its ports 2 and 4 connected to a blade chassis mychassis, then the configuration can be specified using cmsh with:

Example

[basecm10->device*[mychassis]]% set powerdistributionunits mypdu:2 mypdu:4; commit

It is also possible for multiple devices to share the same PDU port. This is the case for example when twin nodes are used (i.e. two nodes sharing a single power supply). In this case, all power operations on one device apply to all nodes sharing the same PDU port.

4.1.1.5 Non-manageable PDUs

If the PDUs defined for a node are not manageable, then the node’s baseboard management controllers (that is, IPMI/iLO and similar) are assumed to be inoperative and are therefore assigned an unknown state. This means that dumb PDUs, which cannot be managed remotely, are best not assigned to nodes in BCM. It is suggested that administrators record that a dumb PDU is assigned to a node as follows:

• in Base View the Notes field or the Userdefined1/Userdefined2 fields can be used with the navigation paths:

  Devices[device] > Settings > Partition > Notes
  or
  Devices[device] > Settings > User Defined > Userdefined1/Userdefined1

• in cmsh the equivalent is accessible on using the device from device mode, and running:

  • set notes

  • set userdefined1 or

  • set userdefined2

4.1.1.6 Manageable PDUs And Node Power Status

For PDUs that are manageable:

• In cmsh, power-related options can be accessed from device mode, after selecting a device:

  Example

  [basecm10]% device use node001
  [basecm10->device[node001]]% show | grep -i power
  Custom power script argument
  Ipmi/iLO power reset delay             0
  Power control                          apc
  PowerDistributionUnits                 apc01:6 apc01:7

  The power status of a node can be accessed with:

  Example

  [basecm10->device[node001]]% power status

  NOTE: The output of power status is delivered as a private event (section 12.10), unlike device status/status, which is not event-based. If private events have been turned off with events off (or events off private), then power status produces no output at all. This is because power queries can be slow, involving a round trip through PDUs or BMCs, while device status is fast and does not need the event indirection. Running events off broadcast instead, leaving private events on, still allows power status output to be seen.

  If the node is up and has one or more PDUs assigned to it, then the power status is one of ON, OFF, RESET, FAILED, or UNKNOWN:

  Power Status	Description
  ON	Power is on
  OFF	Power is off
  RESET	Shows during the short time the power is off
  	during a power reset. The reset is a hard power
  	off for PDUs, but can be a soft or hard reset for
  	other power control devices.
  FAILED	Power status script communication failure.
  UNKNOWN	Power status script timeout

4.1.2 IPMI-Based Power Control

IPMI-based power control relies on the baseboard management controller (BMC) inside a node. It is therefore only available for node devices. Blades inside a blade chassis typically use IPMI for power management. Section 3.7 describes setting up networking and authentication for IPMI/iLO/DRAC/CIMC/Redfish interfaces.

To carry out IPMI-based power control operations, the Power control property (here) must be set to the IPMI interface through which power operations should be relayed. Normally this IPMI interface is configured to be ipmi0. Any list of configured APC PDU ports displayed in the GUI is ignored by default when the Power control property is not apc.

Example

Configuring power parameters settings for all the nodes using cmsh, with IPMI interfaces that are called ipmi0:

[mycluster]% device
[...device]% foreach -t physicalnode (set powercontrol ipmi0; commit)

Example

Configuring power parameters settings for a node using cmsh with APC:

[mycluster]% device use node001
[...device[node001]]% set powerdistributionunits apc01:6 apc01:7 apc01:8
[...device*[node001*]]% get powerdistributionunits
apc01:6 apc01:7 apc01:8
[...device*[node001*]]% removefrom powerdistributionunits apc01:7
[...device*[node001*]]% get powerdistributionunits
apc01:6 apc01:8
[...device*[node001*]]% set powercontrol apc
[...device*[node001*]]% get powercontrol
apc
[...device*[node001*]]% commit

4.1.3 Combining PDU- and IPMI-Based Power Control

By default when nodes are configured for IPMI Based Power Control, any configured PDU ports are ignored. However, it is sometimes useful to change this behavior.

For example, in the CMDaemon configuration file directives in /cm/local/apps/cmd/etc/cmd.conf (introduced in section 2.6.2 and listed in Appendix C), the default value of PowerOffPDUOutlet is false. It can be set to true on the head node, and CMDaemon restarted to activate it.

With PowerOffPDUOutlet set to true it means that CMDaemon, after receiving an IPMI-based power off instruction for a node, and after powering off that node, also subsequently powers off the PDU port. Powering off the PDU port shuts down the BMC, which saves some additional power—typically a few watts per node. When multiple nodes share the same PDU port, the PDU port only powers off when all nodes served by that particular PDU port are powered off.

When a node has to be started up again the power is restored to the node. It is important that the node BIOS is configured to automatically power on the node when power is restored.

4.1.4 Custom Power Control

For a device which cannot be controlled through any of the standard existing power control options, it is possible to set a custom power management script. This is then invoked by the cluster management daemon on the head node whenever a power operation for the device is done.

Power operations are described further in section 4.2.

4.1.4.1 Using custompowerscript

To set a custom power management script for a device, the powercontrol attribute is set by the administrator to custom using either Base View or cmsh, and the value of custompowerscript is specified by the administrator. The value for custompowerscript is the full path to an executable custom power management script on the head node(s) of a cluster.
A custom power script is invoked with the following mandatory arguments:

myscript <operation> <device>

where <device> is the name of the device on which the power operation is done, and <operation> is one of the following:

ON
OFF
RESET
STATUS

On success a custom power script exits with exit code 0. On failure, the script exits with a non-zero exit-code.

4.1.4.2 Using custompowerscriptargument

The mandatory argument values for <operation> and <device> are passed to a custom script for processing. For example, in bash the positional variables $1 and $2 are typically used for a custom power script. A custom power script can also be passed a further argument value by setting the value of custompowerscriptargument for the node via cmsh or Base View. This further argument value would then be passed to the positional variable $3 in bash.

An example custom power script is located at /cm/local/examples/cmd/custompower. In it, setting $3 to a positive integer delays the script via a sleep command by $3 seconds.

An example that is conceivably more useful than a “sleep $3” command is to have a “wakeonlan $3” command instead. If the custompowerscriptargument value is set to the MAC address of the node, that means the MAC value is passed on to $3. Using this technique, the power operation ON can then carry out a Wake On LAN operation on the node from the head node.

Setting the custompowerscriptargument can be done like this for all nodes:

#!/bin/bash
for nodename in $(cmsh -c "device; foreach * (get hostname)")
do
  macad=`cmsh -c "device use $nodename; get mac"`
  cmsh -c "device use $nodename; set customscriptargument $macad; commit"
done

The preceding material usefully illustrates how custompowerscriptargument can be used to pass on arbitrary parameters for execution to a custom script.

However, the goal of the task can be achieved in a simpler and quicker way using the environment variables available in the cluster management daemon environment (section 3.3.1 of the Developer Manual). This is explained next.

4.1.4.3 Using Environment Variables With custompowerscript

Simplification of the steps needed for custom scripts in CMDaemon is often possible because there are values in the CMDaemon environment already available to the script. A line such as:

env > /tmp/env

added to the start of a custom script dumps the names and values of the environment variables to /tmp/env for viewing.

One of the names is $CMD_MAC, and it holds the MAC address string of the node being considered.

So, it is not necessary to retrieve a MAC value for custompowerscriptargument with a bash script as shown in the previous section, and then pass the argument via $3 such as done in the command “wakeonlan $3”. Instead, custompowerscript can simply call “wakeonlan $CMD_MAC” directly in the script when run as a power operation command from within CMDaemon.

4.1.5 Hewlett Packard iLO-Based Power Control

4.1.5.1 iLO Configuration During Installation

If “Hewlett Packard” is chosen as the node manufacturer during installation (section 3.3.11 of the Installation Manual), and the nodes have an iLO management interface, then Hewlett-Packard’s iLO management package, hponcfg, is installed by default on the nodes and head nodes.

4.1.5.2 iLO Configuration After Installation

If “Hewlett Packard” has not been specified as the node manufacturer during installation then it can be configured after installation as follows:

The hponcfg rpm package is normally obtained and upgraded for specific HP hardware from the HP website. Using an example of hponcfg-3.1.1-0.noarch.rpm as the package downloaded from the HP website, and to be installed, the installation can then be done on the head node, the software image, and in the node-installer as follows:

rpm -iv hponcfg-3.1.1-0.noarch.rpm
rpm --root /cm/images/default-image -iv hponcfg-3.1.1-0.noarch.rpm
rpm --root /cm/node-installer -iv hponcfg-3.1.1-0.noarch.rpm

To use iLO on a node, the iLO interface of the node is set up just like the IPMI interfaces as outlined in section 4.1.2. That is, using “set powercontrol ilo0” instead of “set powercontrol ipmi0”. BCM treats HP iLO interfaces just like regular IPMI interfaces, except that the interface names are ilo0, ilo1… instead of ipmi0, ipmi1…

For example, nodes in the default category can be brought under iLO power control as follows:

Example

[mycluster]% device foreach -c default (set powercontrol ilo0)
[mycluster]% device commit

4.1.6 Dell drac-based Power Control

Dell drac configuration is covered here.

4.1.7 Redfish-Based and CIMC-Based Power Control

Section 3.7 describes setting up networking and authentication for Redfish/CIMC, as well as for IPMI/iLO/DRAC interfaces.

4.2 Power Operations

4.2.1 Power Operations Overview

4.2.1.1 Main Power Operations

Power operations may be carried out on devices from either Base View or cmsh. There are four main power operations:

• Power On: power on a device

• Power Off: power off a device

• Power Reset: power off a device and power it on again after a brief delay

• Power Status: check power status of a device

4.2.1.2 Scheduling-related Power Operations

There are also scheduling-related power operations, which are currently (December 2018) only accessible via cmsh. Scheduling-related power operations are power operations associated with managing and viewing explicitly-scheduled execution.

Scheduled execution of power operations can be carried out explicitly via the --at, --after, -d, and --parallel-delay options. The scheduling-related power operations to manage and view such scheduled power operations are:

• power wait: Identifies the devices that have power operations that are in the waiting state, i.e. waiting to be carried out, and also outputs the number of operations that are waiting to be carried out.

• power cancel: Cancels an operation in the waiting state. The devices on which they should be cancelled can be specified.

• power list: Lists the power operations on the device and the states of the operations. Possible states for operations are:

  • waiting: waiting to be executed

  • busy: are being executed

  • canceled: have been canceled

  • done: have been executed

It is possible that power operations without an explicitly-scheduled execution time setting show up very briefly in the output of power list and power wait. However, the output displayed is almost always about the explicitly-scheduled power operations.

4.2.2 Power Operations With Base View

In Base View, executing the main power operations can be carried out as follows:

• via the menu dropdown for a node. For example:

  • for the head node, via the navigation path Devices > Head Nodes > Power

  • for a regular node via the navigation path Devices > Nodes > Power

• via the menu dropdown for a category or group. For example, for the default category, via the navigation path Grouping > Categories > Power

• via the Actions button. The Actions button is available when specific device has been selected. For example, for the head node basecm10 the Actions button can be seen via the navigation path Devices > Head Nodes[basecm10] > checkbox.

  Clicking on the Actions button then makes power operation buttons available (figure 4.2).

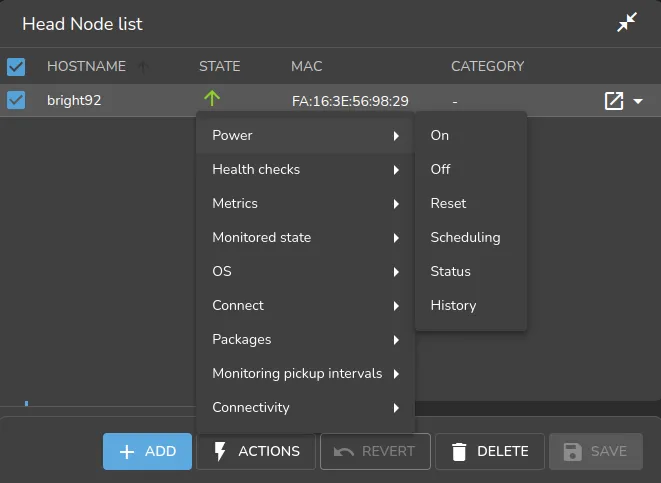

Figure 4.2: Actions button, accessing the power operations

4.2.3 Power Operations Through cmsh

Power operations on nodes can be carried out from within the device mode of cmsh, via the power command options.

4.2.3.1 Powering On

Powering on can be carried out on a list of nodes (here). Powering on node001, and nodes from node018 to node033 (output truncated):

Example

[mycluster]% device power -n node001,node018..node033 on
apc01:1 ............. [   ON    ] node001
apc02:8 ............. [   ON    ] node018
apc02:9 ............. [   ON    ] node019
...

When a power operation is carried out on multiple devices, CMDaemon ensures that a 1 second delay occurs by default between successive devices. This helps avoid power surges on the infrastructure.

4.2.3.2 Delay Period Between Nodes

The delay period can be modified from within the device mode of cmsh, by using the -d|--delay option of the power command. For example, the preceding power command can be run with a shorter, 10ms delay with:

[mycluster]% device power -n node001,node018..node033 -d 0.01 on

A 0-second delay (-d 0) should not be set for larger number of nodes, unless the power surge that this would cause has been taken into consideration.

4.2.3.3 Powering Up In Batches

Groups of nodes can be powered up “in batches”, according to power surge considerations. For example, to power up 3 racks at a time (“in batches of 3”), the -p|--parallel option is used:

Example

[mycluster]% device power on -p 3 rack[01-12]

By default, there is a delay of 20s between batch commands. So, in the preceding example, there is a 20s pause before the each batch of the next three racks is powered up. For batch operation a delay of -d 0 is assumed, i.e. the nodes within in the rack are powered up without a built-in delay between the nodes of the rack.

4.2.3.4 Thread Use During Powering Up

The default number of threads that are started up to handle powering up of all the nodes is 32. If the hardware can cope with it, then it is possible to decrease startup time by increasing the default number of threads used to handle powerup, by editing the PowerThreadPoolSize advanced configuration directive in CMDaemon.

4.2.3.5 Powering Off Nodes

An example of powering off nodes is the following, where all nodes in the default category are powered off, with a 100ms delay between nodes (some output elided):

Example

[mycluster]% device power off -c default -d 0.1
apc01:1 ............. [   OFF   ] node001
apc01:2 ............. [   OFF   ] node002
...
apc23:8 ............. [   OFF   ] node953

4.2.3.6 Getting The Power Status

The power status command lists the status for devices:

Example

[mycluster]% device power status -g mygroup
apc01:3 ............. [   ON    ] node003
apc01:4 ............. [   OFF   ] node004

4.2.3.7 Getting The Power History

The power history command lists the last few power operations on nodes. By default it lists up to the last 8.

Example

[mycluster]% device power history
Device   Time                     Operation    Success
-------- ------------------------ ------------ ------------
node001  Sat Sep 14 03:35:03 2019 shutdown     yes
node001  Fri Sep 20 14:28:38 2019 on           yes
node002  Sat Sep 14 03:35:03 2019 shutdown     yes
node002  Fri Sep 20 14:28:38 2019 on           yes
node003  Sat Sep 14 03:35:03 2019 shutdown     yes
node003  Fri Sep 20 14:28:38 2019 on           yes
node004  Sat Sep 14 03:35:03 2019 shutdown     yes

4.2.3.8 The power Command Help Text

The help text for the power command is:

[basecm10->device]% help power
Name:
          power - Manipulate or retrieve power state of devices
Usage:
          power [OPTIONS] status
          power [OPTIONS] on
          power [OPTIONS] off
          power [OPTIONS] reset
          power [OPTIONS] list
          power [OPTIONS] history
          power [OPTIONS] cancel
          power [OPTIONS] wait <index>
Options:
          -n, --nodes <node>
               List of nodes, e.g. node001..node015,node020..node028,node030 or
               ^/some/file/containing/hostnames
          -g, --group <group>
               Include all nodes that belong to the node group, e.g. testnodes or test01,test03
          -c, --category <category>
               Include all nodes that belong to the category, e.g. default or default,gpu
          -r, --rack <rack>
               Include all nodes that are located in the given rack, e.g rack01 or
               rack01..rack04
          -h, --chassis <chassis>
               Include all nodes that are located in the given chassis, e.g chassis01 or
               chassis03..chassis05
          -e, --overlay <overlay>
               Include all nodes that are part of the given overlay, e.g overlay1 or
               overlayA,overlayC
          -m, --image <image>
               Include all nodes that have the given image, e.g default-image or
               default-image,gpu-image
          -t, --type <type>
               Type of devices, e.g node or virtualnode,cloudnode
          -i, --intersection
               Calculate the intersection of the above selections
          -u, --union
               Calculate the union of the above selections
          -l, --role role
               Filter all nodes that have the given role
          -s, --status <status>
               Only run command on nodes with specified status, e.g. UP, "CLOSED|DOWN",
               "INST.*"
          -b, --background
               Run in background, output will come as events
          -d, --delay <seconds>
               Wait <seconds> between executing two sequential power commands. This option is
               ignored for the status command
          -f, --force
               Force power command on devices which have been closed
          -w, --overview
               Group all power operation results into an overview
          -p, --parallel <number>
               Number of parallel option-items to be used per batch, default 0 (disabled)
          --at <time>
               Execute the operation at the provided time
          --after <seconds>
               Wait <seconds> before executing the operation
          --parallel-delay <seconds>
               Wait <seconds> between executing the next batch of parallel commands, default
               20s
          --parallel-dry-run
               Only display the times at which operations will be executed, do not perform
               any power operations
          --retry-count <number>
               Number of times to retry operation if it failed the first time (default 0)
          --retry-delay <seconds>
               Delay between consecutive tries of a failed power operation (default 3s)
          --port <pdu>:<port>
               Do the power operation directly on a pdu port.
Examples:
          power status               Display power status for all devices or current device
          power on node001           Power on node001
          power on -n node00[1-2]    Power on node001 and node002
          power list                 List all pending power operations
          power history              List the last couple of power operations
          power wait                 List all power operation that can be waited for
          power wait 1               Wait for a power operation to be completed
          power wait all             Wait for all power operations to be completed
          power wait last            Wait for the last given power operation to be completed
          power off --after 10m      Power off the current node after 10 minutes
          power off --at 23:55       Power off the current node today just before midnight
          power cancel node001       Cancel all pending power operations for node001
          power on -p 4 rack[01-80]  Power on racks 1 to 80 in batches of 4. With a delay of 20s
                                     between each batch. And a delay of 0s between nodes.
          power on --port pdu1:1     Power on port 1 on pdu1
          power on --port pdu1:[1-4] Power on port 1 through 4 on pdu1

4.3 Monitoring Power

Monitoring power consumption is important since electrical power is an important component of the total cost of ownership for a cluster. The monitoring system of BCM collects power-related data from PDUs in the following metrics:

• PDUBankLoad: Phase load (in amperes) for one (specified) bank in a PDU

• PDULoad: Total phase load (in amperes) for one PDU

Chapter 12 on cluster monitoring has more on metrics and how they can be visualized.

4.4 Switch Configuration To Survive Power Downs

Besides the nodes and the BMC interfaces being configured for power control, it may be necessary to check that switches can handle power on and off network operations properly. Interfaces typically negotiate the link speed down to reduce power while still supporting Wake On Lan and other features. During such renegotiations the switch may lose connectivity to the node or BMC interface. This can happen if dynamic speed negotiation is disabled on the switch. Dynamic speed negotiation should therefore be configured to be on on the switch in order to reduce the chance that a node does not provision from a powered down state.
