Cluster Management With NVIDIA Base Command Manager

View as Markdown

This chapter introduces cluster management with NVIDIA Base Command Manager. A cluster running BCM exports a cluster management interface to the outside world, which can be used by any application designed to communicate with the cluster.

Section 2.1 introduces a number of concepts which are key to cluster management using BCM.

Section 2.2 gives a short introduction on how the modules environment can be used by administrators. The modules environment provides facilities to control aspects of a users’ interactive sessions and also the environment used by compute jobs.

Section 2.3 introduces how authentication to the cluster management infrastructure works and how it is used. Section 2.4 and section 2.5 introduce the cluster management GUI (Base View) and cluster management shell (cmsh) respectively. These are the primary applications that interact with the cluster management daemon.

Section 2.6 describes the basics of the cluster management daemon, CMDaemon, running on all nodes of the cluster.

2.1 Concepts

In this section some concepts central to cluster management with BCM are introduced.

2.1.1 Devices

A device in BCM infrastructure represents components of a cluster. A device can be any of the following types:

  • Head Node

  • Physical Node

  • Virtual Node

  • Cloud Node

  • GPU Unit

  • Chassis

  • Switch (ethernet, InfiniBand, Myrinet)

  • Lite Node

  • Power Distribution Unit

  • Rack Sensor Kit

  • Generic Device

A device can have a number of properties (e.g. rack position, hostname, switch port) which can be set in order to configure the device. Using BCM, operations (e.g. power on) may be performed on a device. The property changes and operations that can be performed on a device depend on the type of device. For example, it is possible to mount a new filesystem to a node, but not to an Ethernet switch.

Every device that is managed by BCM has a device state associated with it. The table below describes the most important states for devices:

device statusesdevice is monitored by BCM?state tracking?
[ UP ]UPmonitoredtracked
[ DOWN ]DOWNmonitoredtracked
[ CLOSED ] (UP)UPmostly ignoredtracked
[ CLOSED ] (DOWN)DOWNmostly ignoredtracked

These, and other states are described in more detail in section 5.5.

[ DOWN ] and [ CLOSED ] (DOWN) states have an important difference. In the case of [ DOWN ], the device is down, but is typically intended to be available, and thus typically indicates a failure. In the case of [ CLOSED ] (DOWN), the device is down, but is intended to be unavailable, and typically indicates that the administrator deliberately brought the device down, and would like the device to be ignored.

2.1.2 Software Images

A software image is a blueprint for the contents of the local filesystems on a regular node. In practice, a software image is a directory on the head node containing a full Linux filesystem.

The software image in a standard BCM installation is based on the same parent distribution that the head node uses. A different distribution can also be chosen after installation, from the distributions listed in section 2.1 of the Installation Manual for the software image. That is, the head node and the regular nodes can run different parent distributions. However, such a “mixed” cluster can be harder to manage and it is easier for problems to arise in such mixtures. Such mixtures, while supported, are therefore not recommended, and should only be administered by system administrators that understand the differences between Linux distributions.

RHEL 8 and Rocky Linux 8 mixtures are completely compatible with each other on the head and regular nodes. The same applies to RHEL9 and Rocky Linux 9. That is because Rocky Linux is designed to be a binary-compatible derivative of its RHEL parents. On the other hand, SLES and Ubuntu need quite some effort to work in a mixture.

When a regular node boots, the node provisioning system (Chapter 5) sets up the node with a copy of the software image, which by default is called default-image.

Once the node is fully booted, it is possible to instruct the node to re-synchronize its local filesystems with the software image. This procedure can be used to distribute changes to the software image without rebooting nodes (section 5.6.2).

It is also possible to “lock” a software image so that no node is able to pick up the image until the software image is unlocked. (section 5.4.7).

Software images can be changed using regular Linux tools and commands (such as rpm and chroot). More details on making changes to software images and doing image package management can be found in Chapter 11.

2.1.3 Node Categories

2.1.3.1 Reasons For Categories

The collection of settings in BCM that can apply to a node is called the configuration of the node. The administrator usually configures nodes using the Base View (section 2.4) or cmsh (section 2.5) front end tools, and the configurations are managed internally with a database.

A node category is a group of regular nodes that share the same configuration. Node categories allow efficiency, allowing an administrator to:

  • configure a large group of nodes at once. For example, to set up a group of nodes with a particular disk layout.

  • operate on a large group of nodes at once. For example, to carry out a reboot on an entire category.

A regular node is in exactly one category at all times, which is default by default. The default category can be changed by accessing the base object of partition mode (here), and setting the value of defaultcategory to another, existing, category.

Nodes are typically divided into node categories based on the hardware specifications of a node or based on the task that a node is to perform. Whether or not a number of nodes should be placed in a separate category depends mainly on whether the configuration—for example: monitoring setup, disk layout, role assignment—for these nodes differs from the rest of the nodes.

2.1.3.2 Corresponding Category Values And Node Values

  • For non-boolean values, a node inherits values from the category it is in. Each value is treated as the default property value for a node, and can be overruled by specifying the node property value for a particular node.

  • For boolean values, such as datanode (here) and installbootrecord (here), a node does not inherit the value from the category it is in. Instead the category Boolean value has the Boolean or operation applied to the node Boolean value, and the result is the Boolean value that is used for the node. Since by default the values for these Booleans are zero, the result is initially similar to the non-Boolean values behavior.

2.1.3.3 Category And Software Image Do Not Necessarily Map One-To-One

One configuration property value of a node category is its software image (section 2.1.2). However, there is no requirement for a one-to-one correspondence between node categories and software images. Therefore multiple node categories may use the same software image, and conversely, one variable image—it is variable because it can be changed by the node setting—may be used in the same node category.

Software images can have their parameters overruled by the category settings. By default, however, the category settings that can overrule the software image parameters are unset.

By default, all nodes are placed in the default category. Alternative categories can be created and used at will, such as:

Example

Node CategoryDescription
nodes-ibnodes with InfiniBand capabilities
nodes-highmemnodes with extra memory
loginlogin nodes
storagestorage nodes

2.1.4 Node Groups

A node group consists of nodes that have been grouped together for convenience. The group can consist of any mix of all kinds of nodes, irrespective of whether they are head nodes or regular nodes, and irrespective of what category they are in. A node may be in 0 or more node groups at one time. I.e.: a node may belong to many node groups.

Node groups are used mainly for carrying out operations on an entire group of nodes at a time. Since the nodes inside a node group do not necessarily share the same configuration, configuration changes cannot be carried out using node groups.

Example

Node GroupMembers
brokenhardwarenode087 node783 node917
headnodesmycluster-m1 mycluster-m2
rack5node212..node254
topnode084 node126 node168 node210

One important use for node groups is in the nodegroups property of the provisioning role configuration (section 5.2.1), where a list of node groups that provisioning nodes provision is specified.

2.1.5 Roles

A role is a task that can be performed by a node. By assigning a certain role to a node, an administrator activates the functionality that the role represents on this node. For example, a node can be turned into provisioning node, or can be turned into a storage node, by assigning the corresponding roles to the node. Roles typically have services (section 3.14) that are associated with them. For example, the dhcpd service is associated with the boot role, which means that nodes assigned a boot role can then provide netbooting using dhcpd to other nodes.

Roles can be assigned to individual nodes or to node categories. When a role has been assigned to a node category, it is implicitly assigned to all nodes inside the category.

A configuration overlay (section 2.1.6) is a group of roles that can be assigned to designated groups of nodes within a cluster. This allows configuration of a large number of configuration parameters in various combinations of nodes.

Some roles allow parameters to be set that influence the behavior of the role. For example, the Slurm Client Role (which turns a node into a Slurm client) uses parameters to control how the node is configured within Slurm in terms of queues and the number of GPUs.

When a role has been assigned to a node category with a certain set of parameters, it is possible to override the parameters for a node inside the category. This can be done by assigning the role again to the individual node with a different set of parameters. Roles that have been assigned to nodes override roles that have been assigned to a node category.

Roles have a priority setting associated with them. Roles assigned at category level have a fixed priority of 250, while roles assigned at node level have a fixed priority of 750. The configuration overlay priority is variable, but is set to 500 by default. Thus, for example, roles assigned at the node level override roles assigned at the category level. Roles assigned at the node level also override roles assigned by the default configuration overlay.

A role can be imported from another entity, such as a node, a category, or a configuration overlay.

Roles are assigned only from existing roles. A custom role cannot be created by the cluster administrator, which means that the add command (here) does not work in role mode, by design. Instead, only the assign command (here) can be used for roles.

Examples of role assignment are given in sections 5.2.2 and 5.2.3.

2.1.6 Configuration Overlay

A configuration overlay assigns roles (section 2.1.5) for groups of nodes. The number of roles can be quite large, and priorities can be set for these.

Multiple configuration overlays can be set for a node. A priority can be set for each configuration overlay, so that a configuration overlay with a higher priority is applied to its associated node instead of a configuration overlay with a lower priority. The configuration overlay with the highest priority then determines the actual assigned role.

A configuration overlay assigns a group of roles to an instance. This means that roles are assigned to nodes according to the instance configuration, along with a priority. Whether the configuration overlay assignment is used, or whether the original role assignment is used, depends upon the configured priorities.

Configuration overlays can take on priorities in the range 0-1000, except for 250 and 750, which are forbidden. Setting a priority of -1 means that the configuration overlay is ignored.

The priorities of 250, 500, and 750 are also special, as indicated by the following table:

priorityassigned to node from
-1configuration overlay not assigned
250category
500configuration overlay with default priority
750node

A custom configuration overlay can be created by the cluster administrator in configurationoverlay mode, which means that the add command (here) does work for it. This can be used to achieve a functional equivalent to creating custom roles. The creation of custom roles in role mode is a function that is missing by design.

2.2 Modules Environment

The modules environment is the shell environment that is set up by a third-party software (section 7.1 of the Installation Manual) called Environment Modules. The software allows users to modify their shell environment using pre-defined modules. A module may, for example, configure the user’s shell to run a certain version of an application.

Details of the modules environment from a user perspective are discussed in section 2.3 of the User Manual. However some aspects of it are relevant for administrators and are therefore discussed here.

2.2.1 Adding And Removing Modules

Modules may be loaded and unloaded, and also be combined for greater flexibility.

Modules currently installed are listed with:

module list

The modules available for loading are listed with:

module avail

Loading and removing specific modules is done with module load and module remove, using this format:

module load <module name 1> [<module name 2> ...]

For example, loading the shared module (section 2.2.2), the gcc compiler, the openmpi parallel library, and the openblas library, allows an MPI application myapp.c to be compiled with OpenBLAS optimizations:

Example

module add shared
module add gcc/13.1.0
module add openmpi/gcc/64/4.1.5
module add openblas
module add openblas/dynamic/0.3.18
mpicc -o myapp myapp.c

The exact versions used can be selected using tab-completion. In most cases, specifying version numbers explicitly is typically only necessary when multiple versions of an application are installed and available. When there is no ambiguity, module names without a further path specification may be used.

2.2.2 Using Local And Shared Modules

Applications and their associated modules are divided into local and shared groups. Local applications are installed on the local filesystem, whereas shared applications reside on a shared (i.e. imported) filesystem.

It is recommended that the shared module be loaded by default for ordinary users. Loading it gives access to the modules belonging to shared applications, and allows the module avail command to show these extra modules.

Loading the shared module automatically for root is not recommended on a cluster where shared storage is not on the head node itself. This is because root logins could be obstructed if this storage is not available, and if the root user relies on files in the shared storage.

On clusters without external shared storage, root can safely load the shared module automatically at login. This can be done by running the following command as root:

module initadd shared

Other modules can also be set to load automatically by the user at login by using “module initadd” with the full path specification. With the initadd option, individual users can customize their own default modules environment.

Modules can be combined in meta-modules. By default, the default-environment meta-module exists, which allows the loading of several modules at once by a user. Cluster administrators are encouraged to customize the default-environment meta-module to set up a recommended environment for their users. The default-environment meta-module is empty by default.

The administrator and users have the flexibility of deciding the modules that should be loaded in undecided cases via module dependencies. Dependencies can be defined using the prereq and conflict commands. The man page for modulefile gives details on configuring the loading of modules with these commands.

2.2.3 Setting Up A Default Environment For All Users

How users can set up particular modules to load automatically for their own use with the module initadd command is discussed in section 2.2.2.

How the administrator can set up particular modules to load automatically for all users by default is discussed in this section (section 2.2.3). In this example it is assumed that all users have just the following modules as a default:

Example

[fred@basecm10 ~]$ module list
Currently Loaded Modulefiles:
1) shared

The slurm and gdb modules can then be set up by the administrator as a default for all users in the following 2 ways:

  1. Creating and defining part of a .profile to be executed for login shells. For example, a file userdefaultmodules.sh created by the administrator:

    [root@basecm10 ~]# cat /etc/profile.d/userdefaultmodules.sh
    module load shared
    module load slurm
    module load gdb

    Whenever users now carry out a bash login, these modules are loaded.

  2. Instead of placing the modules directly in a script under profile.d like in the preceding item, a slightly more sophisticated way is to set the modules in the meta-module /cm/shared/modulefiles/default-environment. For example:

    [root@basecm10 ~]# cat /cm/shared/modulefiles/default-environment
    #%Module1.0######################################################
    ## default modulefile
    ##
    proc ModulesHelp { } {
    puts stderr "\tLoads default environment modules for this cluster"
    }
    module-whatis "adds default environment modules"
    # Add any modules here that should be added by when a user loads the 'default-enviro\
    nment' module
    module add shared slurm gdb

    The script userdefaultmodules.sh script under profile.d then only needs to have the default-environment module loaded in it:

    [root@basecm10 ~]# cat /etc/profile.d/userdefaultmodules.sh
    module load -s default-environment

    The -s option is used to load it silently, because otherwise a message is displayed on the terminal informing the person logging in that the default-environment module has been loaded.

    Now, whenever the administrator changes the default-environment module, users get these changes too during login.

The lexicographical order of the scripts in the /etc/profile directory is important. For example, naming the file defaultusermodules.sh instead of userdefaultmodules.sh means that the modules.sh script is run after the file is run, instead of before, which would cause an error.

2.2.4 Creating A Modules Environment Module

All module files are located in the /cm/local/modulefiles and /cm/shared/modulefiles directories. A module file is a Tcl or Lua script in which special commands are used to define functionality. The modulefile(1) man page has more on this.

Cluster administrators can use the existing modules files as a guide to creating and installing their own modules for module environments, and can copy and modify a file for their own software if there is no environment provided for it already by BCM.

2.2.5 Lua Modules Environment (Lmod)

By default, BCM uses traditional Tcl scripts for its environment modules files, or Tmod in BCM shorthand. Lua modules, or Lmod, provide alternative environment modules files, where the files are typically written in Lua. Lmod can be used as a replacement for Tmod.

Conceptually Lmod works in the same way as Tmod, but provides some extra features and commands.

For Lmod, the module files are typically written in Lua, but Lmod is also capable of reading Tcl module files. It is therefore not necessary to convert all existing Tcl modules manually to the Lua language.

On a BCM cluster, both Lmod and Tmod are installed by default. However only one of them is active, depending on which one is enabled. Switching between Lmod and Tmod for a node can be done by setting an environment variable, $ENABLE_LMOD in the cm-lmod-init.sh shell script.

2.2.5.1 Switching For The Head Node

For example, for the head node:

Example

[root@basecm10 ~]# cat /etc/sysconfig/modules/lmod/cm-lmod-init.sh
export ENABLE_LMOD=1

In the preceding example, Lmod is enabled, and Tmod is disabled because $ENABLE_LMOD is set to 1.

Example

[root@basecm10 ~]# cat /etc/sysconfig/modules/lmod/cm-lmod-init.sh
export ENABLE_LMOD=0

In the preceding example, Lmod is disabled, and Tmod is enabled because $ENABLE_LMOD is set to 0.

A change in the file on the node is effective after having logged out, then logged into the shell again.

2.2.5.2 Switching For The Regular Nodes

A node image is a directory and contents of that directory. It is used as the template for a regular node when the node is provisioned (Chapter 5). For a node image with the name <image name>, the cm-lmod-init.sh file is located at /cm/images/<image name>/etc/sysconfig/modules/lmod/cm-lmod-init.sh. For switching between Lmod and Tmod on a regular node, the file is changed on the image, and the file on the image is then updated to the node. The update from the image to the node is typically carried out with the imageupdate command in cmsh (section 5.6.2) or the Update node command in Base View (section 5.6.3).

2.3 Authentication

2.3.1 Changing Administrative Passwords On The Cluster

How to set up or change regular user passwords is not discussed here, but in Chapter 6 on user management.

Amongst the administrative passwords associated with the cluster are:

  1. The root password of the head node: This allows a root login to the head node.

  2. The root passwords of the software images: These allow a root login to a regular node running with that image, and is stored in the image file.

  3. The root password of the node-installer: This allows a root login to the node when the node-installer, a stripped-down operating system, is running. The node-installer stage prepares the node for the final operating system when the node is booting up. Section 5.4 discusses the node-installer in more detail.

  4. The root password of MySQL: This allows a root login to the MySQL server.

To avoid having to remember the disparate ways in which to change these 4 kinds of passwords, the cm-change-passwd command runs a dialog prompting the administrator on which of them, if any, should be changed, as in the following example:

[root@basecm10 ~]# cm-change-passwd
With this utility you can easily change the following passwords:
* root password of head node
* root password of slave images
* root password of node-installer
* root password of mysql
Note: if this cluster has a high-availability setup with 2 head
nodes, be sure to run this script on both head nodes.
Change password for root on head node? [y/N]: y
Changing password for root on head node.
Changing password for user root.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.
Change password for root in default-image [y/N]: y
Changing password for root in default-image.
Changing password for user root.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.
Change password for root in node-installer? [y/N]: y
Changing password for root in node-installer.
Changing password for user root.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.
Change password for MYSQL root user? [y/N]: y
Changing password for MYSQL root user.
Old password:
New password:
Re-enter new password:

For a high-availability—also called a failover—configuration, the passwords are copied over automatically to the other head node when a change is made in the software image root password (case 2 here).

For the remaining password cases (head root password, MySQL root password, and node-installer root password), the passwords are best “copied” over to the other head node by simply rerunning the script on the other head node.

Also, in the case of the password for software images used by the regular nodes: the new password that is set for a regular node only works on the node after the image on the node itself has been updated, with, for example, the imageupdate command (section 5.6.2). Alternatively, the new password can be made to work on the node by simply rebooting the node to pick up the new image.

The LDAP root password is a random string set during installation. Changing this is not done using cm-change-password. It can be changed as explained in Appendix I.

If the administrator has stored the password to the cluster in the Base View front-end, then the password should be modified there too (figure 2.2).

2.3.2 Logins Using ssh

The standard system login root password of the head node, the software image, and the node-installer, can be set using the cm-change-passwd command (section 2.3.1).

In contrast, ssh logins from the head node to the regular nodes are set by default to be passwordless:

  • For non-root users, an ssh passwordless login works if the /home directory that contains the authorized keys for these users is mounted. The /home directory is mounted by default on the head node as well as on the regular node, so that by default a passwordless login works from the head node to the regular nodes, as well as from the regular nodes to the head node.

  • For the root user, an ssh passwordless login should always work from the head node to the regular nodes since the authorized keys are stored in /root. Logins from the regular node to the head node are configured by default to request a password, as a security consideration.

Users can be restricted from ssh logins

  • on regular nodes using the cmsh usernodelogin option (section 7.2.1) or the Base View User node login (section 7.2.2) settings

  • on the head node by modifying the sshd configuration on the head node. For example, to allow only root logins, the value of AllowUsers can be set in /etc/ssh/sshd_config to root. The man page for sshd_config has details on this.

2.3.3 Certificates

2.3.3.1 PEM Certificates And CMDaemon Front-end Authentication

While nodes in the cluster accept ordinary ssh-based logins, the cluster manager accepts public key authentication using X509v3 certificates. Public key authentication using X509v3 certificates means in practice that the person authenticating to the cluster manager must present their public certificate, and in addition must have access to the private key that corresponds to the certificate.

BCM uses the PEM format for certificates. In this format, the certificate and private key are stored as plain text in two separate PEM-encoded files, ending in .pem and .key.

Using cmsh and authenticating to BCM: By default, one administrator certificate is created for root for the cmsh front end to interact with the cluster manager. The certificate and corresponding private key are thus found on a newly-installed BCM cluster on the head node at:

/root/.cm/admin.pem
/root/.cm/admin.key

The cmsh front end, when accessing the certificate and key pair as user root, uses this pair by default, so that prompting for authentication is then not a security requirement. The logic that is followed to access the certificate and key by default is explained in detail in item 2 here.

Using Base View and authenticating to BCM: When an administrator uses the Base View front end, a login to the cluster is carried out with username password authentication (figure 2.2), unless the authentication has already been stored in the browser, or unless certificate-based authentication is used.

  • Certificate-based authentication can be carried out using a PKCS#12 certificate file. This can be generated from the PEM format certificates. For example, for the root user, an openssl command that can be used to generate the admin.pfx file is:

    openssl pkcs12 -export -in ~/.cm/admin.pem -inkey ~/.cm/admin.key -out ~/.cm/admin.pfx
    • In Chrome, the IMPORT wizard at chrome://settings/certificates can be used to save the file into the browser.

    • For Firefox, the equivalent navigation path is:

      about:preferences#privacy > Certificates > View Certificates > Your Certificates > Import

    The browser can then access the Base View front end without a username/password combination.

If the administrator certificate and key are replaced, then any other certificates signed by the original administrator certificate must be generated again using the replacement, because otherwise they will no longer function.

Certificate generation in general, including the generation and use of non-administrator certificates, is described in greater detail in section 6.4.

2.3.3.2 Replacing A Temporary Or Evaluation License

In the preceding section, if a license is replaced, then regular user certificates need to be generated again. Similarly, if a temporary or evaluation license is replaced, regular user certificates need to be generated again. This is because the old user certificates are signed by a key that is no longer valid. The generation of non-administrator certificates and how they function is described in section 6.4.

2.3.3.3 Checking Certificates Validity With cm-check-certificates.sh

A BCM script that checks whether certificates are current or expired is /cm/local/apps/cmd/scripts/cm-check-certificates.sh:

Example

root@basecm10:~# /cm/local/apps/cmd/scripts/cm-check-certificates.sh
/cm/local/apps/cmd/etc/cluster.pem: OK
/cm/local/apps/cmd/etc/cert.pem: OK
/cm/local/apps/cmd/etc/cluster.key : matches
All /cm/local/apps/cmd/etc/cluster.pem files are up to date (82070dedb489df6c19ffa3ace1bf354e)
/root/.cm/admin.pem: OK
... output truncated ...
root@basecm10:~#

2.3.4 Profiles

Certificates that authenticate to CMDaemon contain a profile.

A profile determines which cluster management operations the certificate holder may perform. The administrator certificate is created with the admin profile, which is a built-in profile that allows all cluster management operations to be performed. In this sense it is similar to the root account on unix systems. Other certificates may be created with different profiles giving certificate owners access to a pre-defined subset of the cluster management functionality (section 6.4).

2.4 Base View GUI

This section introduces the basics of the cluster management GUI (Base View). Base View is the web application front end to cluster management in BCM.

is supported to run on the last 2 versions of Firefox, Google Chrome, Edge, and Safari. “Last 2 versions” means the last two publicly released versions at the time of release of . For example, at the time of writing of this section, July 2026, the last 2 versions were:

BrowserVersions
Chrome149, 150
Edge149, 150
Firefox151, 152
Safari26.3, 26.4

should run on more up-to-date versions of the browsers in the table without issues.

should run on other recent browsers without issues too, but this is not supported. Browsers that run on mobile devices are also not supported.

2.4.1 Installing The Cluster Management GUI Service

In a default installation, accessing the head node hostname or IP address with a browser leads to the landing page (figure 2.1).

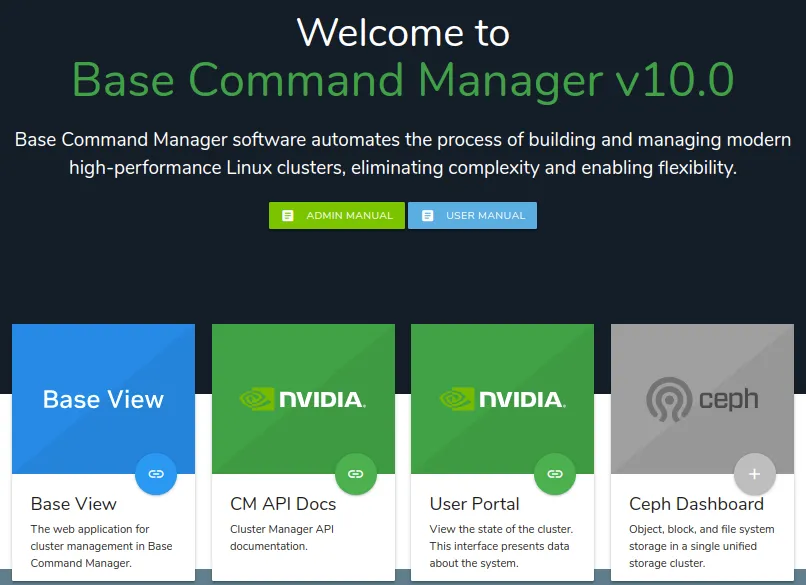

Head node hostname or IP address landing page at https://<host name or IP address>

Figure 2.1: Head node hostname or IP address landing page at https://<host name or IP address>

The landing page is served by the Apache web server from the distribution, and can be served over the HTTP (unencrypted) or HTTPS (encrypted) protocols.

The certificates used to ensure an encrypted connection are set within:

  • /etc/httpd/conf.d/ssl.conf for the RHEL family of distributions. The PEM-encoded certificate at /etc/pki/tls/certs/localhost.crt is set by default.

  • /etc/apache2/sites-available/default-ssl.conf for Ubuntu. The PEM-encoded certificate at /etc/ssl/certs/ssl-cert-snakeoil.pem is set by default.

The system administrator may wish to consider the security aspects of using the default distribution certificates, and may wish to replace them.

Within the landing page are several blocks, one of which is the Base View block. Base View is the BCM GUI. Within the Base View block is a clickable link, which is a circle with a chain-link symbol inside it.

Base View connects by default to the encrypted web service on port 8081. This is served from the head node cluster manager, rather than from Apache, to the browser. The direct URL for this is of the form:

https://<host name or IP address>:8081/base-view

The BCM package that provides the service is base-view and it is installed by default with BCM. The service can be disabled by removing the package with, for example, yum remove base-view.

2.4.1.1 NVIDIA Base Command Manager Base View Login Window

Figure 2.2 shows the login dialog window for Base View.

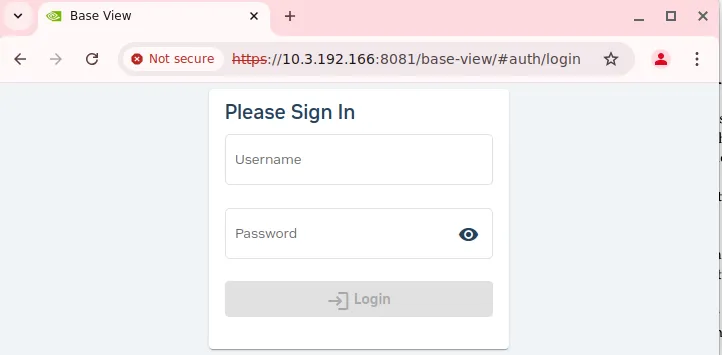

Base View Login via https://<host name or IP address>:8081/base-view

Figure 2.2: Base View Login via https://<host name or IP address>:8081/base-view

2.4.1.2 NVIDIA Base Command Manager Base View Default Display On Connection

Clicking on the Login button logs the administrator into the Base View service on the cluster. By default an overview window is displayed, corresponding to the navigation path Cluster > Partition base (figure 2.3).

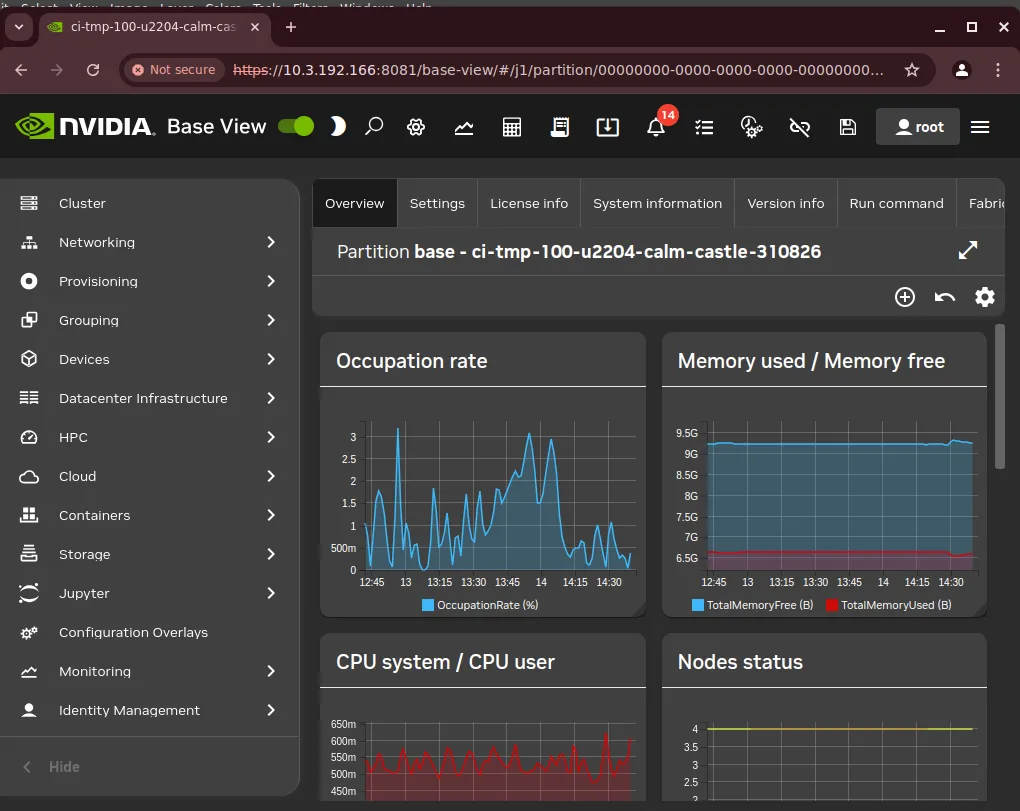

Cluster Overview

Figure 2.3: Cluster Overview

2.4.2 Navigating The Cluster With Base View

Aspects of the cluster can be managed by administrators using Base View (figure 2.3).

The resource tree, displayed on the left side of the window, consists of available cluster usage concepts such as Provisioning, Grouping, HPC, Cloud, and Containers. It also has a cluster-centric approach to miscellaneous system concepts such as hardware devices Devices, non-hardware resources such as Identity Management, and Networking.

Selecting a resource opens a window that allows parameters related to the resource to be viewed and managed.

As an example, the Cluster resource can be selected. This opens up the so-called Partition base window, which is essentially a representation of the cluster instance.

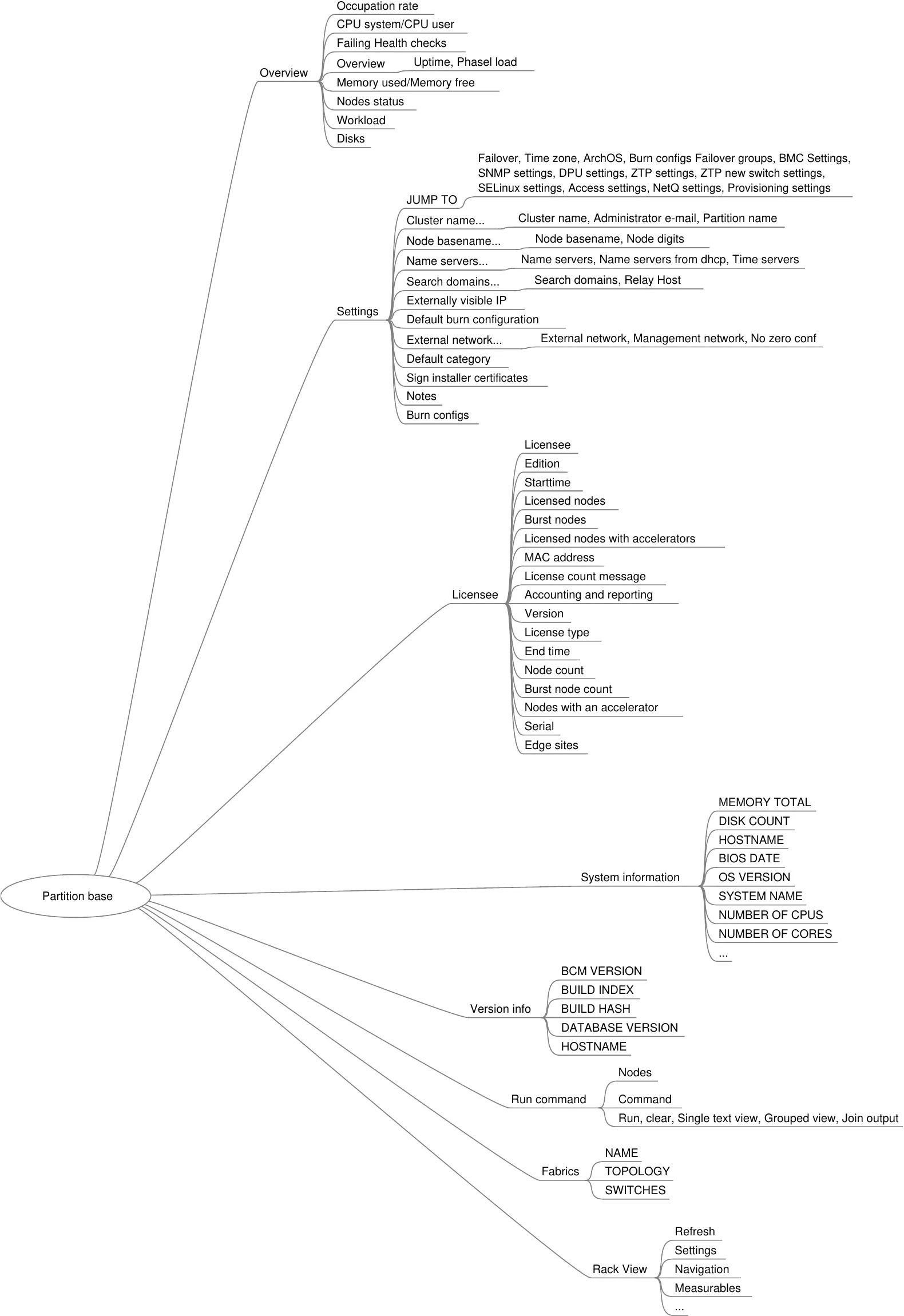

The tabs within the Partition base window are mapped out in figure 2.4 and summarily described next.

Cluster Navigation Within The Partition Base Window

Figure 2.4: Cluster Navigation Within The Partition Base Window

2.4.2.1 Overview

The Overview tab (figure 2.3, here) shows the Occupation rate (here), memory used, CPU cycles used, node statuses, and other helpful cluster overview details.

2.4.2.2 Settings

The Settings tab has a number of global cluster properties and property groups. These are loosely grouped as follows:

  • Buttons for jumping to settings for: Failover, time zone, ArchOS, burn configuration, failover groups, BMC settings, SNMP settings, DPU settings, ZTP settings, ZTP new switch settings, SELinux settings, provisioning settings, access settings, NetQ settings, provisioning settings.

  • Cluster name, Administrator e-mail, partition name

  • Node basename, Node digits

  • Name servers, Time servers

  • Search domains, Relay Host

  • Externally visible IP, Provisioning Node Auto Update Timeout

  • Default burn configuration

  • External network, Management network

  • Default category: Sets the default category

  • Sign installer certificates

  • Notes

2.4.2.3 License info

The License info tab shows information to do with cluster licensing. A slightly obscure property within this window is Version, which refers to the version type of the license. The license for NVIDIA Base Command Manager version 7.0 and above is of a type that is compatible with versions all the way up to the current version. NVIDIA Base Command Manager license versions from before 7.0 are not compatible. In practice it means that an upgrade from before 7.0, to 7.0 or beyond, requires a license upgrade. The BCM support team must be contacted to arrange the license upgrade.

2.4.2.4 System information

The System information tab shows the main hardware specifications of the node (CPU, memory, BIOS), along with the operating system version that it runs.

2.4.2.5 Version info

The Version info tab shows version information for important cluster software components, such as the CMDaemon database version, and BCM version and builds.

2.4.2.6 Run command

The Run command tab allows a specified command to be run on a selected node of the cluster.

2.4.2.7 Fabrics

The Fabrics tab displays the topology and switches for the fabrics used.

2.4.2.8 Rack View

The Rack View tab displays a view of the rack as defined by node allocations made by the administrator to racks and chassis.

2.5 Cluster Management Shell

This section introduces the basics of the cluster management shell, cmsh. This is the command-line interface to cluster management in BCM. Since cmsh and Base View give access to the same cluster management functionality, an administrator need not become familiar with both interfaces. Administrators intending to manage a cluster with only Base View may therefore safely skip this section.

The cmsh front end allows commands to be run with it, and can be used in batch mode. Although cmsh commands often use constructs familiar to programmers, it is designed mainly for managing the cluster efficiently rather than for trying to be a good or complete programming language. For programming cluster management, the use of Python bindings (Chapter 1 of the Developer Manual) is generally recommended instead of using cmsh in batch mode.

Usually cmsh is invoked from an interactive session (e.g. through ssh) on the head node, but it can also be used to manage the cluster from outside.

2.5.1 Invoking cmsh

From the head node, cmsh can be invoked as follows:

Example

[root@mycluster ~]# cmsh
[mycluster]%

By default it connects to the IP address of the local management network interface, using the default BCM port. If it fails to connect as in the preceding example, but a connection takes place using cmsh localhost, then the management interface is most probably not up. In that case, bringing the management interface up allows cmsh to connect to CMDaemon.

Running cmsh without arguments starts an interactive cluster management session. To go back to the unix shell, a user enters quit or ctrl-d:

[mycluster]% quit
[root@mycluster ~]#

2.5.1.1 Batch Mode And Piping In cmsh

The -c flag allows cmsh to be used in batch mode. Commands may be separated using semi-colons:

[root@mycluster ~]# cmsh -c "main showprofile; device status apc01"
admin
apc01 ............... [ UP ]
[root@mycluster ~]#

Alternatively, commands can be piped to cmsh:

[root@mycluster ~]# echo device status | cmsh
device status
apc01 ............... [ UP ]
mycluster ........... [ UP ]
node001 ............. [ UP ]
node002 ............. [ UP ]
switch01 ............ [ UP ]
[root@mycluster ~]#

2.5.1.2 Dotfiles And /etc/cmshrc File For cmsh

In a similar way to unix shells, cmsh sources an rc file from the /etc directory, and also dotfiles, if they exist. The sourcing is done upon start-up in both batch and interactive mode.

If /etc/cmshrc exists, then its settings are used, but the values can be overridden by user dotfiles. This is standard Unix behavior, analogous to how bash works with /etc/bashrc and .bashrc files.

In the following list of cmsh dotfiles, a setting in the file that is in the shorter path overrides a setting in the file with the longer path (i.e.: “shortest path overrides”):

  • ~/.cm/cmsh/.cmshrc

  • ~/.cm/.cmshrc

  • ~/.cmshrc

2.5.1.3 Defining Command Aliases In cmsh

Sourcing settings is convenient when defining command aliases. Command aliases can be used to abbreviate longer commands. For example, putting the following in .cmshrc would allow lv to be used as an alias for device list virtualnode:

Example

alias lv device list virtualnode

Besides defining aliases in dotfiles, aliases in cmsh can also be created with the alias command. The preceding example can be run within cmsh to create the lv alias. Running the alias command within cmsh lists the existing aliases.

Aliases can be exported from within cmsh together with other cmsh dot settings with the help of the export command:

Example

[mycluster]% export > /root/mydotsettings

The dot settings can be taken into cmsh by running the run command from within cmsh:

Example

[mycluster]% run /root/mydotsettings

2.5.1.4 Built-in Aliases In cmsh

The following aliases are built-ins, and are not defined in any .cmshrc or cmshrc files:

[basecm10]% alias
alias - goto -
alias .. exit
alias / home
alias ? help
alias ds device status
alias ls list

The meanings are:

  • goto -: go to previous directory level of cmsh

  • exit: go up a directory level, or leave cmsh if already at top level.

  • home: go to the top level directory

  • help: show help text for current level

  • device status: show status of devices that can be accessed in device mode

2.5.1.5 Automatic Aliases In cmsh

A cmsh script is a file that has a sequence of cmsh commands that run within a cmsh session.

The directory .cm/cmsh/ can have placed in it a cmsh script with a .cmsh suffix and an arbitrary prefix. The prefix then automatically becomes an alias in cmsh.

In the following example

  • the file tablelist.cmsh provides the alias tablelist, to list devices using the | symbol as a delimiter, and

  • the file dfh.cmsh provides the alias dfh to carry out the Linux shell command df -h

Example

[root@mycluster ~]# cat /root/.cm/cmsh/tablelist.cmsh
list -d "|"
[root@mycluster ~]# cat /root/.cm/cmsh/dfh.cmsh
!df -h
[root@mycluster ~]# cmsh
[mycluster]% device
[mycluster->device]% alias | egrep '(tablelist|dfh)'
alias dfh run /root/.cm/cmsh/dfh.cmsh
alias tablelist run /root/.cm/cmsh/tablelist.cmsh
[mycluster->device]% list
Type Hostname (key) MAC Category Ip
---------------------- ---------------- ------------------ ---------------- ---------------
HeadNode mycluster FA:16:3E:B4:39:DB 10.141.255.254
PhysicalNode node001 FA:16:3E:D5:87:71 default 10.141.0.1
PhysicalNode node002 FA:16:3E:BE:05:FE default 10.141.0.2
[mycluster->device]% tablelist
Type |Hostname (key) |MAC |Category |Ip
----------------------|----------------|------------------|----------------|---------------
HeadNode |mycluster |FA:16:3E:B4:39:DB | |10.141.255.254
PhysicalNode |node001 |FA:16:3E:D5:87:71 |default |10.141.0.1
PhysicalNode |node002 |FA:16:3E:BE:05:FE |default |10.141.0.2
[mycluster->device]% dfh
Filesystem Size Used Avail Use% Mounted on
devtmpfs 1.8G 0 1.8G 0% /dev
tmpfs 1.9G 0 1.9G 0% /dev/shm
tmpfs 1.9G 33M 1.8G 2% /run
tmpfs 1.9G 0 1.9G 0% /sys/fs/cgroup
/dev/vdb1 25G 17G 8.7G 66% /
tmpfs 374M 0 374M 0% /run/user/0

The cmsh session in NVIDIA Base Command Manager does not need restarting for the alias to become active.

2.5.1.6 Default Arguments In cmsh Scripts

In a cmsh script, the parameters $1, $2 and so on can be used to pass arguments. If the argument being passed is blank, then the values the parameters take also remain blank. However, if the parameter format has a suffix of the form - <value>, then <value> is the default value that the parameter takes if the argument being passed is blank.

Example

[root@mycluster ~]# cat .cm/cmsh/encrypt-node-disk.cmsh
home
device use ${1-node001}
set disksetup /root/my-encrypted-node-disk.xml
set revision ${2-test}
commit

The script can be run without an argument (a blank value for the argument), in which case it takes on the default value of node001 for the parameter:

[root@mycluster ~]# cmsh
[mycluster]% encrypt-node-disk
[mycluster->device[node001]]%

The script can be run with an argument (node002 here), in which case it takes on the passed value of node002 for the parameter:

[root@mycluster ~]# cmsh
[mycluster]% encrypt-node-disk node002
[mycluster->device[node002]]%

2.5.1.7 Options Usage For cmsh

The options usage information for cmsh is obtainable with cmsh -h:

Usage:
cmsh [options] [hostname[:port]]
cmsh [options] -c <command>
cmsh [options] -f <filename>
Options:
--help|-h
Display this help
--noconnect|-u
Start unconnected
--controlflag|-z
ETX in non-interactive mode
--color <yes/no>
Define usage of colors
--spool <directory>
Alternative /var/spool/cmd
--tty|-t
Pretend a TTY is available
--noredirect|-r
Do not follow redirects
--norc|-n
Do not load cmshrc file on start-up
--noquitconfirmation|-Q
Do not ask for quit confirmation
--echo|-x
Echo all commands
--quit|-q
Exit immediately after error
--disablemultiline|-m
Disable multiline support
--hide-events
Hide all events by default
--disable-events
Disable all events by default
--certificate|-i
Specify alternative certificate
--key|-k
Specify alternative private key
Arguments:
hostname
The hostname or IP to connect to
command
A list of cmsh commands to execute
filename
A file which contains a list of cmsh commands to execute
Examples:
cmsh run in interactive mode
cmsh -c 'device status' run the device status command and exit
cmsh --hide-events -c 'device status' run the device status command and exit, without
showing any events that arrive during this time
cmsh -f some.file -q -x run and echo the commands from some.file, exit

2.5.1.8 Man Page For cmsh

There is also a man page for cmsh(8), which is a bit more extensive than the help text. It does not however cover the modes and interactive behavior.

2.5.2 Levels, Modes, Help, And Commands Syntax In cmsh

The top-level of cmsh is the level that cmsh is in when entered without any options.

To avoid overloading a user with commands, cluster management functionality has been grouped and placed in separate cmsh mode levels. Mode levels and associated objects for a level make up a hierarchy available below the top-level.

There is an object-oriented terminology associated with managing via this hierarchy. To perform cluster management functions, the administrator descends via cmsh into the appropriate mode and object, and carries out actions relevant to the mode or object.

For example, within user mode, an object representing a user instance, fred, might be added or removed. Within the object fred, the administrator can manage its properties. The properties can be data such as a password fred123, or a home directory /home/fred.

Figure 2.5 shows the top-level commands available in cmsh. These commands are displayed when help is typed in at the top-level of cmsh:

alias ......................... Set aliases
beegfs ........................ Enter beegfs mode
category ...................... Enter category mode
ceph .......................... Enter ceph mode
cert .......................... Enter cert mode
cloud ......................... Enter cloud mode
cmjob ......................... Enter cmjob mode
color ......................... Manage console text color settings
configurationoverlay .......... Enter configurationoverlay mode
connect ....................... Connect to cluster
delimiter ..................... Display/set delimiter
device ........................ Enter device mode
disconnect .................... Disconnect from cluster
edgesite....................... Enter edgesite mode
etcd .......................... Enter etcd mode
events ........................ Manage events
exit .......................... Exit from current object or mode
export ........................ Display list of aliases current list formats
fspart ....................... Enter fspart mode
group ......................... Enter group mode
groupingsyntax ................ Manage the default grouping syntax
help .......................... Display this help
hierarchy ..................... Enter hierarchy mode
history ....................... Display command history
kubernetes..................... Enter kubernetes mode
list .......................... List state for all modes
main .......................... Enter main mode
modified ...................... List modified objects
monitoring .................... Enter monitoring mode
network ....................... Enter network mode
nodegroup ..................... Enter nodegroup mode
partition ..................... Enter partition mode
process ....................... Enter process mode
profile ....................... Enter profile mode
quit .......................... Quit shell
quitconfirmation .............. Manage the status of quit confirmation
rack .......................... Enter rack mode
refresh ....................... Refresh all modes
run ........................... Execute cmsh commands from specified file
session ....................... Enter session mode
softwareimage ................. Enter softwareimage mode
task .......................... Enter task mode
time .......................... Measure time of executing command
unalias ....................... Unset aliases
unmanagednodeconfiguration .... Enter unmanagednodeconfiguration mode
user .......................... Enter user mode
watch ......................... Execute a command periodically, showing output
wlm ........................... Enter wlm mode

Figure 2.5: Top level commands in cmsh

All levels inside cmsh provide these top-level commands.

Passing a command as an argument to help gets details for it:

Example

[myheadnode]% help run
Name: run - Execute all commands in the given file(s)
Usage: run [OPTIONS] <filename> [<filename2> ...]
Options: -x, --echo
Echo all commands
-q, --quit
Exit immediately after error
[myheadnode]%

In the general case, invoking help at any mode level or within an object, without an argument, provides two lists:

  • Firstly, under the title of Top: a list of top-level commands.

  • Secondly, under the title of the level it was invoked at: a list of commands that may be used at that level.

For example, entering session mode and then typing in help displays, firstly, output with a title of Top, and secondly, output with a title of session (some output ellipsized):

Example

[myheadnode]% session
[myheadnode->session]% help
============================ Top =============================
alias ......................... Set aliases
beegfs ........................ Enter beegfs mode
category ...................... Enter category mode
...
========================== session ===========================
id ....................... Display current session id
killsession .............. Kill a session
list ..................... Provide overview of active sessions
[myheadnode->session]%

2.5.2.1 Navigation Through Modes And Objects In cmsh

The major modes tree is shown in Appendix M.1.

The following notes can help the cluster administrator in navigating the cmsh shell:

  • To enter a mode, a user enters the mode name at the cmsh prompt. The prompt changes to indicate that cmsh is in the requested mode, and commands for that mode can then be run.

  • To use an object within a mode, the use command is used with the object name. In other words, a mode is entered, and an object within that mode is used. When an object is used, the prompt changes to indicate that that object within the mode is now being used, and that commands are applied for that particular object.

  • To leave a mode, and go back up a level, the exit command is used. Similarly, if an object is in use, the exit command exits the object. At the top level, exit has the same effect as the quit command, that is, the user leaves cmsh and returns to the unix shell. The string .. is an alias for exit.

  • The home command, which is aliased to /, takes the user from any mode depth to the top level.

  • The path command at any mode depth displays a string that can be used as a path to the current mode and object, in a form that is convenient for copying and pasting into cmsh. The string can be used in various ways. For example, it can be useful to define an alias in .cmshrc (here).

    In the following example, the path command is used to print out a string. This string makes it easy to construct a bash shell command to run a list from the correct place within cmsh:

    Example

    [basecm10->configurationoverlay[slurm-client]->roles[slurmclient]]% list
    Name (key)
    ----------------------------
    slurmclient
    [basecm10->configurationoverlay[slurm-client]->roles[slurmclient]]% path
    home;configurationoverlay;use "slurm-client";roles;use slurmclient;

    Pasting the string into a bash shell, using the cmsh command with the -c option, and appending the list command to the string, replicates the session output of the list command:

    [basecm10 ~]# cmsh -c 'configurationoverlay;use "slurm-client";roles;use slurmclient; list'
    Name (key)
    ----------------------------
    slurmclient

    The following example shows the path command can also be used inside the cmsh session itself for convenience:

    Example

    [basecm10]% device
    [basecm10->device]% list
    Type Hostname (key) MAC Category Ip Network Status
    ---------------- --------------- ------------------ --------- -------------- ----------- ------
    EthernetSwitch switch01 00:00:00:00:00:00 10.141.0.50 internalnet [ UP ]
    HeadNode basecm10 00:0C:29:5D:55:46 10.141.255.254 internalnet [ UP ]
    PhysicalNode node001 00:0C:29:7A:41:78 default 10.141.0.1 internalnet [ UP ]
    PhysicalNode node002 00:0C:29:CC:4F:79 default 10.141.0.2 internalnet [ UP ]
    [basecm10->device]% exit
    [basecm10]% device
    [basecm10->device]% use node001
    [basecm10->device[node001]]% path
    home;device;use node001;
    [basecm10->device[node001]]% home
    [basecm10]% home;device;use node001 #copy-pasted from path output earlier
    [basecm10->device[node001]]%

A command can also be executed in a mode without staying within that mode. This is done by specifying the mode before the command that is to be executed within that node. Most commands also accept arguments after the command. Multiple commands can be executed in one line by separating commands with semi-colons.

A cmsh input line has the following syntax:

<mode> <cmd> <arg> …<arg>; …; <mode> <cmd> <arg> …<arg>

where <mode> and <arg> are optional. More precisely, using standard command-synopsis notation, the synopsis is:
[<mode>] <cmd> [<arg> ... ] [; ... ; [<mode>] <cmd> [<arg> ... ]]

Example

[basecm10->network]% device status basecm10; list
basecm10 ............ [ UP ]
Name (key) Type Netmask bits Base address Domain name Ipv6
------------- --------- ------------- ------------- -------------------- ----
externalnet External 16 192.168.1.0 brightcomputing.com no
globalnet Global 0 0.0.0.0 cm.cluster
internalnet Internal 16 10.141.0.0 eth.cluster
[basecm10->network]%

In the preceding example, while in network mode, the status command is executed in device mode on the host name of the head node, making it display the status of the head node. The list command on the same line after the semi-colon still runs in network mode, as expected, and not in device mode, and so displays a list of networks.

Inserting a semi-colon makes a difference, in that the mode is actually entered, so that the list displays a list of nodes (some output truncated here for convenience):

Example

[basecm10->network]% device; status basecm10; list
basecm10 ................ [ UP ]
Type Hostname (key) MAC Category Ip Network Status
------------- --------------- ------------------ --------- -------------- ----------- ------
HeadNode basecm10 FA:16:3E:C8:06:D1 10.141.255.254 internalnet [ UP ]
PhysicalNode node001 FA:16:3E:A2:9C:87 default 10.141.0.1 internalnet [ UP ]
[basecm10->device]%

2.5.3 Working With Objects

Modes in cmsh work with associated groupings of data called objects. For instance, device mode works with device objects, and network mode works with network objects.

The commands used to deal with objects have similar behavior in all modes. Not all of the commands exist in every mode, and not all of the commands function with an explicit object:

CommandDescription
useUse the specified object. I.e.: Make the specified object the current object
addCreate the object and use it
assignAssign an existing property to an object
unassignUnassign from an object a previously-assigned property
clearClear the values of the object
cloneClone the object and use it
removeRemove the object
commitCommit local changes, done to an object, to CMDaemon
refreshUndo local changes done to the object
listList all objects at current level
sortSort the order of display for the list command
formatSet formatting preferences for list output
foreachExecute a set of commands on several objects
showDisplay all properties of the object
swapSwap (exchange) the names of two objects
getDisplay specified property of the object
setSet a specified property of the object
clearSet default value for a specified property of the object.
appendAppend a value to a property of the object, for a multi-valued property
removefromRemove a value from a specific property of the object, for a multi-valued property
modifiedList objects with uncommitted local changes
usedbyList objects that depend on the object
validateDo a validation check on the properties of the object
exit Exit from the current object or mode level

Working with objects with these commands is demonstrated with several examples in this section.

2.5.3.1 Working With Objects: use, exit

Example

[mycluster->device]% use node001
[mycluster->device[node001]]% status
node001 ............. [ UP ]
[mycluster->device[node001]]% exit
[mycluster->device]%

In the preceding example, use node001 issued from within device mode makes node001 the current object. The prompt changes accordingly. The status command, without an argument, then returns status information just for node001, because making an object the current object makes subsequent commands within that mode level apply only to that object. Finally, the exit command exits the current object level.

2.5.3.2 Working With Objects: add, commit, remove

The commands introduced in this section have many implicit concepts associated with them. So an illustrative session is first presented as an example. What happens in the session is then explained in order to familiarize the reader with the commands and associated concepts.

Example

[mycluster->device]% add physicalnode node100 10.141.0.100
[mycluster->device*[node100*]]% commit
[mycluster->device[node100]]% category add test-category
[mycluster->category*[test-category*]]% commit
[mycluster->category[test-category]]% remove test-category
[mycluster->category*]% commit
Successfully removed 1 Categories
Successfully committed 0 Categories
[mycluster->category]% device remove node100
[mycluster->category]% device
[mycluster->device*]% commit
Successfully removed 1 Devices
Successfully committed 0 Devices
[mycluster->device]%

add: The add command creates an object within its associated mode, and in cmsh the prompt drops into the object level just created. Thus, at the start in the preceding example, within device mode, a new object, named node100, is added. For this particular object properties can also be set, such as the type (physicalnode), and IP address (10.141.0.100). The node object level ([node100*]) is automatically dropped into from device mode when the add command is executed. After execution, the state achieved is that the object has been created with some properties. However, it is still in a temporary, modified state, and not yet persistent.

Asterisk tags in the prompt are a useful reminder of a modified state, with each asterisk indicating a tagged object that has an unsaved, modified property. In this case, the unsaved properties are the IP address setting, the node name, and the node type.

  • The add command—syntax notes:

  • In most modes the add command takes only one argument, namely the name of the object that is to be created. However, in device mode an extra object-type, in this case physicalnode, is also required as argument, and an optional extra IP argument may also be specified. The response to “help add” while in device mode gives details:

    [myheadnode->device]% help add
    Name:
    add - Create a new device of the given type with specified hostname
    Usage:
    add <type> <hostname>
    add cloudnode <hostname> [provider]
    add physicalnode <hostname> [ip] [interface]
    Arguments:
    type chassis, fabricresourcebox, fabricswitch, genericdevice, litenode,
    cloudnode, dpu, physicalnode, headnode, powerdistributionunit,
    racksensor, switch, unmanagednode
    interface eg. ens3, bond0=ens3+ens4

commit: The commit command is a further step that actually saves any changes made after executing a command. In this case, in the second line, it saves the node100 object with its properties. The asterisk tag disappears for the prompt if settings for that mode level and below have been saved.

Conveniently, the top level modes, such as the category mode, can be accessed directly from within this level if the mode is stated before the command. So, stating the mode category before running the add command allows the specified category test-category to be added. Again, the test-category object level within category mode is automatically dropped into when the add command is executed.

  • The -w|--wait option to commit:

  • The commit command by default does not wait for a state change to complete. This means that the prompt becomes available right away. This means that it is not obvious that the change has taken place, which could be awkward if scripting with cmsh for cloning (discussed shortly) a software image (section 2.1.2). The -w|--wait option to the commit command works around this issue by waiting for any associated background task, such as the cloning of a software image, to be completed before making the prompt available.

remove: The remove command removes a specified object within its associated mode. On successful execution, if the prompt is at the object level, then the prompt moves one level up. The removal is not actually carried out fully yet; it is only a proposed removal. This is indicated by the asterisk tag, which remains visible, until the commit command is executed, and the test-category removal is saved. The remove command can also remove a object in a non-local mode, if the non-local mode is associated with the command. This is illustrated in the example where, from within category mode, the device mode is declared before running the remove command for node100. The proposed removal is configured without being made permanent, but in this case no asterisk tag shows up in the category mode, because the change is in device mode. To drop into device mode, the mode command “device” is executed. An asterisk tag then does appear, to remind the administrator that there is still an uncommitted change (the node that is to be removed) for the mode. The commit command would remove the object whichever mode it is in—the non-existence of the asterisk tag does not change the effectiveness of commit.

  • The -d|--data option to remove:

  • The remove command by default removes an object, and not the represented data. An example is if, in softwareimage mode, a software image is removed with the remove (without options) command. As far as the cluster manager is concerned, the image is removed after running commit. However the data in the directory for that software image is not removed. The -d|--data option to the remove command arranges removal of the data in the directory for the specified image, as well as removal of its associated object.

  • The -a|--all option to remove:

  • The remove command by default does not remove software image revisions. The -a|--all option to the remove command also removes all software image revisions.

2.5.3.3 Working With Objects: clone, modified, swap

Continuing on with the node object node100 that was created in the previous example, it can be cloned to node101 as follows:

Example

[mycluster->device]% clone node100 node101
Warning: The Ethernet switch settings were not cloned, and have to be set manually
[mycluster->device*[node101*]]% exit
[mycluster->device*]% modified
State Type Name
------ ------------------------ -----------------------------------
+ Device node101
[mycluster->device*]% commit
[mycluster->device]%
[mycluster->device]% remove node100
[mycluster->device*]% commit
[mycluster->device]%

The modified command is used to check what objects have uncommitted changes, and the new object node101 that is seen to be modified, is saved with a commit. The device node100 is then removed by using the remove command. A commit executes the removal.

The modified command corresponds roughly to the functionality of the Unsaved entities icon in figure 12.5.

The “+” entry in the State column in the output of the modified command in the preceding example indicates the object is a newly added one, but not yet committed. Similarly, a “~” entry indicates an object that is to be removed on committing, while a blank entry indicates that the object has been modified without an addition or removal involved.

Cloning an object is a convenient method of duplicating a fully configured object. When duplicating a device object, cmsh will attempt to automatically assign a new IP address using a number of heuristics. In the preceding example, node101 is assigned IP address 10.141.0.101.

The attempt is a best-effort, and does not guarantee a sensibly-configured object. The cluster administrator should therefore inspect the result.

Sometimes an object may have been misnamed, or physically swapped. For example, node001 exchanged physically with node002 in the rack, or the hardware device eth0 is misnamed by the kernel and should be eth1. In that case it can be convenient to simply swap their names via the cluster manager front end rather than change the physical device or adjust kernel configurations. This is equivalent to exchanging all the attributes from one name to the other.

For example, if the two interfaces on the head node need to have their names exchanged, it can be done as follows:

[mycluster->device]% use mycluster
[mycluster->device[mycluster]]% interfaces
[mycluster->device[mycluster]->interfaces]% list
Type Network device name IP Network
------------ -------------------- ---------------- --------------
physical eth0 [dhcp] 10.150.4.46 externalnet
physical eth1 [prov] 10.141.255.254 internalnet
[basecm10->device[mycluster]->interfaces]% swap eth0 eth1; commit
[basecm10->device[mycluster]->interfaces]% list
Type Network device name IP Network
------------ -------------------- ---------------- --------------
physical eth0 [prov] 10.141.255.254 internalnet
physical eth1 [dhcp] 10.150.4.46 externalnet
[mycluster->device[mycluster]->interfaces]% exit; exit

2.5.3.4 Working With Objects: get, set, refresh

The get command is used to retrieve a specified property from an object, and set is used to set it:

Example

[mycluster->device]% use node101
[mycluster->device[node101]]% get category
test-category
[mycluster->device[node101]]% set category default
[mycluster->device*[node101*]]% get category
default
[mycluster->device*[node101*]]% modified
State Type Name
------ ------------------------ -------------------------------
Device node101
[mycluster->device*[node101*]]% refresh
[mycluster->device[node101]]% modified
No modified objects of type device
[mycluster->device[node101]]% get category
test-category
[mycluster->device[node101]]%

Here, the category property of the node101 object is retrieved by using the get command. The property is then changed using the set command. Using get confirms that the value of the property has changed, and the modified command reconfirms that node101 has local uncommitted changes.

The refresh command undoes the changes made, and corresponds roughly to the Revert button in Base View when viewing Unsaved entities (figure 12.5). The modified command then confirms that no local changes exist. Finally the get command reconfirms that no local change took place.

Among the possible values a property can take on are strings and booleans:

  • A string can be set as a revision label for any object:

    Example

    [mycluster->device[node101]]% set revision "changed on 10th May"
    [mycluster->device*[node101*]]% get revision
    [mycluster->device*[node101*]]% changed on 10th May 2011

    This can be useful when using shell scripts with an input text to label and track revisions when sending commands to cmsh. How to send commands from the shell to cmsh is introduced in section 2.5.1.

  • For booleans, the values “yes”, “1”, “on” and “true” are equivalent to each other, as are their opposites “no”, “0”, “off” and “false”. These values are case-insensitive.

2.5.3.5 Working With Objects: clear

Example

[mycluster->device]% set node101 mac 00:11:22:33:44:55
[mycluster->device*]% get node101 mac
00:11:22:33:44:55
[mycluster->device*]% clear node101 mac
[mycluster->device*]% get node101 mac
00:00:00:00:00:00
[mycluster->device*]%

The get and set commands are used to view and set the MAC address of node101 without running the use command to make node101 the current object. The clear command then unsets the value of the property. The result of clear depends on the type of the property it acts on. In the case of string properties, the empty string is assigned, whereas for MAC addresses the special value 00:00:00:00:00:00 is assigned.

2.5.3.6 Working With Objects: list, format, sort

The list command is used to list objects in a mode. The command has many options. The ones that are valid for the current mode can be viewed by running help list. The -f|--format option is available in all modes, and takes a format string as argument. The string specifies what properties are printed for each object, and how many characters are used to display each property in the output line. In following example a list of objects is requested for device mode, displaying the hostname, switchports and ip properties for each device object.

Example

[basecm10->device]% list -f hostname:14,switchports:15,ip
hostname (key) switchports ip
-------------- --------------- --------------------
apc01 10.142.254.1
basecm10 switch01:46 10.142.255.254
node001 switch01:47 10.142.0.1
node002 switch01:45 10.142.0.2
switch01 10.142.253.1
[basecm10->device]%

Running the list command with no argument uses the current format string for the mode. Running the list command with the -f option, and without specifying a size for the column keeps the column 20 characters wide.

Running the format command without arguments displays the current format string, and also displays all available properties including a description of each property. For example (output truncated):

Example

[basecm10->device]% format
Current list printing format:
-----------------------------
type:22, hostname:[16-32], mac:18, category:[16-32], ip:15, network:[14-32], status:[16-32]
Valid fields:
-------------
activation : Date on which node was defined
additionalhostnames : List of additional hostnames that should resolve to the interfaces IP address
allownetworkingrestart : Allow node to update ifcfg files and restart networking
banks : Number of banks
...

The print specification of the format command uses the delimiter “:” to separate the parameter and the value for the width of the parameter column. For example, a width of 10 can be set with:

Example

[basecm10->device]% format hostname:10
[basecm10->device]% list
hostname (
----------
apc01
basecm10
node001
node002
switch01

Setting a width of 0 means that the column takes on the width of the widest entry.

A range of widths can be specified for a column, from a minimum to a maximum, using square brackets. When a range is set, then the column width matches at least the lower bound, and at most the upper bound. The text for the column is fitted into this range. If possible, the column width is shrunk to fit the text that is displayed. If the text is larger than the upper bound, then the text is truncated with a + to that width. For example:

Example

[basecm10->device]% format hostname:[10-14]
[basecm10->device]% list
hostname (key)
--------------
apc01
basecm10
node001
node002
switch01
largenameforn+

Here a node called largenamefornode is truncated to 14 characters, with the + replacing the 14th character.

The parameters to be viewed can be chosen from a list of valid fields by running the format command without any options, as shown earlier.

The format command can take as an argument a string that is made up of multiple parameters in a comma-separated list. Each parameter takes a colon-delimited width specification.

Example

[basecm10->device]% format hostname:[10-14],switchports:14,ip:20
[basecm10->device]% list
hostname (key) switchports ip
-------------- -------------- --------------------
apc01 10.142.254.1
basecm10 switch01:46 10.142.255.254
node001 switch01:47 10.142.0.1
node002 switch01:45 10.142.0.2
switch01 10.142.253.1

The output of the format command without arguments shows the current list printing format string, with spaces. This can be used with enclosing quotes (").

In general, the string used in the format command can be set with enclosing quotes ("), or alternatively, with the spaces removed:

Example

[basecm10->device]% format "hostname:[16-32], network:[14-32], status:[16-32]"
or
[basecm10->device]% format hostname:[16-32],network:[14-32],status:[16-32]

The default parameter settings can be restored with the -r|--reset option:

Example

[basecm10->device]% format -r
[basecm10->device]% format | head -3
Current list printing format:
-----------------------------
type:22, hostname:[16-32], mac:18, category:[16-32], ip:15, network:[14-32], status:[16-32]
[basecm10->device]%

The sort command sorts output in alphabetical order for specified parameters when the list command is run. The sort is done according to the precedence of the parameters passed to the sort command:

Example

[basecm10->device]% sort type mac
[basecm10->device]% list -f type:15,hostname:15,mac
type hostname (key) mac
--------------- --------------- --------------------
HeadNode basecm10 08:0A:27:BA:B9:43
PhysicalNode node002 00:00:00:00:00:00
PhysicalNode log001 52:54:00:DE:E3:6B
[basecm10->device]% sort type hostname
[basecm10->device]% list -f type:15,hostname:15,mac
type hostname (key) mac
--------------- --------------- --------------------
HeadNode basecm10 08:0A:27:BA:B9:43
PhysicalNode log001 52:54:00:DE:E3:6B
PhysicalNode node002 00:00:00:00:00:00
[basecm10->device]% sort mac hostname
[basecm10->device]% list -f type:15,hostname:15,mac
type hostname (key) mac
--------------- --------------- --------------------
PhysicalNode node002 00:00:00:00:00:00
HeadNode basecm10 08:0A:27:BA:B9:43
PhysicalNode log001 52:54:00:DE:E3:6B

The preceding sort commands can alternatively be specified with the -s|--sort option to the list command:

[basecm10->device]% list -f type:15,hostname:15,mac --sort type,mac
[basecm10->device]% list -f type:15,hostname:15,mac --sort type,hostname
[basecm10->device]% list -f type:15,hostname:15,mac --sort mac,hostname

2.5.3.7 Working With Objects: append, removefrom

When dealing with a property of an object that can take more than one value at a time—a list of values—the append and removefrom commands can be used to respectively append to and remove elements from the list. If more than one element is appended, they should be space-separated. The set command may also be used to assign a new list at once, overwriting the existing list. In the following example values are appended and removed from the powerdistributionunits properties of device node001. The powerdistributionunits properties represent the list of ports on power distribution units that a particular device is connected to. This information is relevant when power operations are performed on a node. Chapter 4 has more information on power settings and operations.

Example

[mycluster->device]% use node001
[mycluster->device[node001]]% get powerdistributionunits
apc01:1
[...device[node001]]% append powerdistributionunits apc01:5
[...device*[node001*]]% get powerdistributionunits
apc01:1 apc01:5
[...device*[node001*]]% append powerdistributionunits apc01:6
[...device*[node001*]]% get powerdistributionunits
apc01:1 apc01:5 apc01:6
[...device*[node001*]]% removefrom powerdistributionunits apc01:5
[...device*[node001*]]% get powerdistributionunits
apc01:1 apc01:6
[...device*[node001*]]% set powerdistributionunits apc01:1 apc01:02
[...device*[node001*]]% get powerdistributionunits
apc01:1 apc01:2

2.5.3.8 Working With Objects: usedby

Removing a specific object is only possible if other objects do not have references to it. To help the administrator discover a list of objects that depend on (“use”) the specified object, the usedby command may be used. In the following example, objects depending on device apc01 are requested. The usedby property of powerdistributionunits indicates that device objects node001 and node002 contain references to (“use”) the object apc01. In addition, the apc01 device is itself displayed as being in the up state, indicating a dependency of apc01 on itself. If the device is to be removed, then the 2 references to it first need to be removed, and the device also first has to be brought to the CLOSED state (here) by using the close command.

Example

[mycluster->device]% usedby apc01
Device used by the following:
Type Name Parameter
---------------- ---------- ----------------------
Device apc01 Device is up
Device node001 powerDistributionUnits
Device node002 powerDistributionUnits
[mycluster->device]%

2.5.3.9 Working With Objects: validate

Whenever committing changes to an object, the cluster management infrastructure checks the object to be committed for consistency. If one or more consistency requirements are not met, then cmsh reports the violations that must be resolved before the changes are committed. The validate command allows an object to be checked for consistency without committing local changes.

Example

[mycluster->device]% use node001
[mycluster->device[node001]]% clear category
[mycluster->device*[node001*]]% commit
Code Field Message
----- ------------------------ ---------------------------
1 category The category should be set
[mycluster->device*[node001*]]% set category default
[mycluster->device*[node001*]]% validate
All good
[mycluster->device*[node001*]]% commit
[mycluster->device[node001]]%

2.5.3.10 Working With Objects: show

The show command is used to show the parameters and values of a specific object. For example for the object node001, the attributes displayed are (some output ellipsized):

[mycluster->device[node001]]% show
Parameter Value
--------------------------------------- ---------------------------------------
Hostname node001
IP 10.141.0.1
Network internalnet
Revision
Type PhysicalNode
Mac FA:16:3E:3B:D8:23
Use exclusively for (category:default)
Category default
Activation Thu, 28 Aug 2025 08:41:00 CEST
Rack
Chassis < not set >
...
From template node
Default gateway 10.141.255.254 (headnode)
Default gateway metric 0
Switch ports
Interfaces <1 in submode>
Static routes <0 in submode>
GPU Settings <0 in submode>
BMC Settings <submode>
...

2.5.3.11 Working With Objects: assign, unassign

The assign and unassign commands are analogous to add and remove. The difference between assign and add from the system administrator point of view is that assign sets an object with settable properties from a choice of existing names, whereas add sets an object with settable properties that include the name that is to be given. This makes assign suited for cases where multiple versions of a specific object choice cannot be used.

For example,

  • If a node is to be configured to be run with particular Slurm settings, then the node can be assigned an slurmclient role (section 2.1.5) with the assign command. The node cannot be assigned another slurmclient role with other Slurm settings at the same time. Only the settings within the assigned Slurm client role can be changed.

  • If a node is to be configured to run with added interfaces eth3 and eth4, then the node can have both physical interfaces added to it with the add command.

The only place where the assign command is currently used within cmsh is within the roles submode, available under category mode, configurationoverlay mode, or device mode. Within roles, assign is used for assigning roles objects to give properties associated with that role to the category, configuration overlay, or device.

2.5.3.12 Working With Objects: import For Roles

The import command is an advanced command that works within a role. It is used to clone roles between entities.

A node inherits all roles from the category and configuration overlay it is a part of.

Example

[root@basecm10 ~]# cmsh
[basecm10]% device roles node001
[basecm10->device[node001]->roles]% list
Name (key)
-------------------------------
[category:default] cgroupsupervisor
[category:default] slurmclient

If there is a small change to the default roles to be made, only for node001, in slurmclient, then the role can be imported from a category or overlay. Importing the role duplicates the object and assigns the duplicated value to node001.

This differs from simply assigning a slurmclient role to node001, because importing provides the values from the category or overlay, whereas assigning provides unset values.

After running import, just as for assign, changes to the role made at node001 level stay at that node level, and changes made to the category-level or overlay-level slurmclient role are not automatically inherited by the node001 slurmclient role.

Example

[basecm10->device[node001]->roles]% import<TAB><TAB>
cephmds cloudgateway elasticsearch
...and other available roles including slurmclient...
[basecm10->device[node001]->roles]% import --overlay slurm-client slurmclient
[basecm10->device*[node001*]->roles*]% list
Name (key)
-------------------------------
[category:default] cgroupsupervisor
slurmclient
[basecm10->device*[node001*]->roles*]% set slurmclient queues node1q
[basecm10->device*[node001*]->roles*]% commit

The preceding shows that a list of possible roles is prompted for via tab-completion after having typed import, and that the settings from the configuration overlay level are brought into node001 for the slurmclient role. The slurmclient values at node level then override any of the overlay level or category level settings, as suggested by the new list output. The Slurm client settings are then the same for node001 as the settings at the overlay level. The only change made is that a special queue, node1q, is configured just for node001.

The import command in roles mode can duplicate any role between any two entities. Options can be used to import from a category (-c|--category), or a node (-n|--node), or an overlay (-o|--overlay), as indicated by its help text (help import).

2.5.4 Accessing Cluster Settings

The management infrastructure of BCM is designed to allow cluster partitioning in the future. A cluster partition can be viewed as a virtual cluster inside a real cluster. The cluster partition behaves as a separate cluster while making use of the resources of the real cluster in which it is contained. Although cluster partitioning is not yet possible in the current version of BCM, its design implications do decide how some global cluster properties are accessed through cmsh.

In cmsh there is a partition mode which will, in a future version, allow an administrator to create and configure cluster partitions. Currently, there is only one fixed partition, called base. The base partition represents the physical cluster as a whole and cannot be removed. A number of properties global to the cluster exist inside the base partition. These properties are referenced and explained in remaining parts of this manual.

Example

[root@myheadnode ~]# cmsh
[myheadnode]% partition use base
[myheadnode->partition[base]]% show
Parameter Value
-------------------------------- ------------------------------------------------
Cluster name mycluster
Revision
Cluster reference architecture
Administrator e-mail gandalf@example.com
Name base
Headnode myheadnode
Node basename node
Node digits 3
Name servers
Name servers from dhcp 10.3.100.100
Time servers 0.pool.ntp.org,1.pool.ntp.org,2.pool.ntp.org
Search domains example.com
Relay Host
Externally visible IP 0.0.0.0
Time zone Europe/Amsterdam
BMC Settings <submode>
SNMP Settings <submode>
DPU Settings <submode>
SELinux Settings <submode>
Access Settings <submode>
Provisioning Settings <submode>
ZTP settings <submode>
ZTP new switch settings <submode>
NetQ settings <submode>
Default burn configuration default-destructive
External network externalnet
Management network internalnet
No zero conf no
Default category default
ArchOS <0 in submode>
Fabrics <0 in submode>
Sign installer certificates AUTO
Failover not defined
Failover groups <0 in submode>
Burn configs <3 in submode>
Notes <0B>

2.5.5 Advanced cmsh Features

This section describes some advanced features of cmsh and may be skipped on first reading.

2.5.5.1 Command Line Editing

Command line editing and history features from the readline library are available. http://tiswww.case.edu/php/chet/readline/rluserman.html provides a full list of key-bindings.

For users who are reasonably familiar with the bash shell running with readline, probably the most useful and familiar features provided by readline within cmsh are:

  • tab-completion of commands and arguments

  • being able to select earlier commands from the command history using <ctrl>-r, or using the up- and down-arrow keys

2.5.5.2 History And Timestamps

The history command within cmsh explicitly displays the cmsh command history as a list.

The --timestamps|-t option to the history command displays the command history with timestamps.

Example

[basecm10->device[node001]]% history | tail -3
162 use node001
163 history
164 history | tail -3
[basecm10->device[node001]]% history -t | tail -3
163 Thu Dec 3 15:15:18 2015 history
164 Thu Dec 3 15:15:43 2015 history | tail -3
165 Thu Dec 3 15:15:49 2015 history -t | tail -3

This history is saved in the file .cm/.cmshhistory in the cmsh user’s directory. The timestamps in the file are in unix epoch time format, and can be converted to human-friendly format with the standard date utility.

Example

[root@mycluster ~]# tail -2 .cm/.cmshhistory
1615412046
device list
[root@mycluster ~]# date -d @1615412046
Wed Mar 10 22:34:06 CET 2021

2.5.5.3 Mixing cmsh And Unix Shell Commands

It is often useful for an administrator to be able to execute unix shell commands while carrying out cluster management tasks. The cluster manager shell, cmsh, therefore allows users to execute commands in a subshell if the command is prefixed with a “!” character:

Example

[mycluster]% !hostname -f
mycluster.cm.cluster
[mycluster]%

Executing the ! command by itself will start an interactive login sub-shell. By exiting the sub-shell, the user will return to the cmsh prompt.

Besides simply executing commands from within cmsh, the output of operating system shell commands can also be used within cmsh. This is done by using the legacy-style “backtick syntax” available in most unix shells.

Example

[mycluster]% device use `hostname`
[mycluster->device[mycluster]]% status
mycluster ................ [ UP ]
[mycluster->device[mycluster]]%

2.5.5.4 Output Redirection

Similar to unix shells, cmsh also supports output redirection to the shell through common operators such as >, >>, and |.

Example

[mycluster]% device list > devices
[mycluster]% device status >> devices
[mycluster]% device list | grep node001
Type Hostname (key) MAC (key) Category
-------------- -------------- ------------------- ----------
PhysicalNode node001 00:E0:81:2E:F7:96 default

2.5.5.5 Input Redirection

Input redirection with cmsh is possible. As is usual, the input can be a string or a file. For example, for a file runthis with some commands stored in it:

Example

[root@mycluster ~]# cat runthis
device
get node001 ip

the commands can be run with the redirection operator as:

Example

[root@mycluster ~]# cmsh < runthis
device
get node001 ip
10.141.0.1

Running the file with the -f option avoids echoing the commands

Example

[root@mycluster ~]# cmsh -f runthis
10.141.0.1

2.5.5.6 The ssh Command

The ssh command is run from within the device mode of cmsh. If an ssh session is launched from within cmsh, then it clears the screen and is connected to the specified node. Exiting from the ssh session returns the user back to the cmsh launch point.

Example

[basecm10]% device ssh node001
<screen is cleared>
<some MOTD text and login information is displayed>
[root@node001 ~]# exit
Connection to node001 closed.
[basecm10]% device use basecm10
[basecm10->device[basecm10]]% #now let us connect to the head node from the head node object
[basecm10->device[basecm10]]% ssh
<screen is cleared>
<some MOTD text and login information is displayed>
[root@basecm10 ~]# exit
logout
Connection to basecm10 closed.
[basecm10->device[basecm10]]%

An alternative to running ssh within cmsh is to launch it in a subshell anywhere from within cmsh, by using !ssh.

2.5.5.7 The time Command

The time command within cmsh is a simplified version of the standard unix time command.

The time command takes as its argument a second command that is to be executed within cmsh. On execution of the time command, the second command is executed. After execution of the time command is complete, the time the second command took to execute is displayed.

Example

[basecm10->device]% time ds node001
node001 .................. [ UP ]
time: 0.108s

2.5.5.8 The watch Command

The watch command within cmsh is a simplified version of the standard unix watch command.

The watch command takes as its argument a second command that is to be executed within cmsh. On execution of the watch command, the second command is executed every 2 seconds by default, and the output of that second command is displayed.

The repeat interval of the watch command can be set with the --interval|-n option. A running watch command can be interrupted with a <Ctrl>-c.

Example

[basecm10->device]% watch newnodes
screen clears
Every 2.0s: newnodes Thu Dec 3 13:01:45 2015
No new nodes currently available.

Example

[basecm10->device]% watch -n 3 status -n node001,node002
screen clears
Every 3.0s: status -n node001,node002 Thu Jun 30 17:53:21 2016
node001 ...............[ UP ]
node002 ...............[ UP ]

2.5.5.9 Looping Over Objects With foreach

It is frequently convenient to be able to execute a cmsh command on several objects at once. The foreach command is available in a number of cmsh modes for this purpose. A foreach command takes a list of space-separated object names (the keys of the object) and a list of commands that must be enclosed by parentheses, i.e.: “(” and “)”. The foreach command will then iterate through the objects, executing the list of commands on the iterated object each iteration.

Basic syntax for the foreach command: The basic foreach syntax is:

foreach <object1><object2>·s ( <command1>; <command2>·s )

Example

[mycluster->device]% foreach node001 node002 (get hostname; status)
node001
node001 ............. [ UP ]
node002
node002 ............. [ UP ]
[mycluster->device]%

With the foreach command it is possible to perform set commands on groups of objects simultaneously, or to perform an operation on a group of objects. The range command (here) provides an alternative to it in many cases.

Advanced options for the foreach command: The foreach command advanced options can be viewed from the help page:

[root@basecm10 ~]# cmsh -c "device help foreach"

The options can be classed as: grouping options (list, type), adding options, conditional options, and looping options.

  • Grouping options:

    • -n|--nodes, -g|--group, -c|--category, -r|--rack, -h|--chassis, -e|--overlay, -l|--role, -m|--image, -u|--union, -i|--intersection

    • -t|--type chassis|fabricresourcebox|fabricswitch|genericdevice|litenode|cloudnode| dpu|physicalnode|headnode|powerdistributionunit|racksensor|switch|unmanagednode

    There are two forms of grouping options shown in the preceding text. The first form uses a list of the objects being grouped, while the second form uses the type of the objects being grouped. These options become available according to the cmsh mode used.

    In the device mode of cmsh, for example, the foreach command has many grouping options available. If objects are specifed with a grouping option, then the specified objects can be looped over.

    For example, with the list form, the --category (-c) option takes a node category argument (or several categories), while the --node (-n) option takes a node-list argument. Node-lists (specification here) can also use the following, more elaborate, syntax:
    <node>,…,<node>,<node>..<node>

    Example

    [demo->device]% foreach -c default (status)
    node001 ............. [ DOWN ]
    node002 ............. [ DOWN ]
    [demo->device]% foreach -g rack8 (status)
    ...
    [demo->device]% foreach -n node001,node008..node016,node032 (status)
    ...
    [demo->device]%

    With the type form, using the -t|--type option, the literal value to this option must be one of node, cloudnode, virtualnode, and so on.

    If multiple grouping options are used, then the union operation takes place by default.

    Both grouping option forms are often used in commands other than foreach for node selection.

  • Adding options: -o|--clone, -a|--add
    The --clone (-o) option allows the cloning (section 2.5.3.3) of objects in a loop. In the following example, from device mode, node001 is used as the base object from which other nodes from node022 up to node024 are cloned:

    Example

    [basecm10->device]% foreach --clone node001 -n node022..node024 ()
    [basecm10->device*]% list | grep node
    Type Hostname (key) Ip
    ------------ -------------- -----------
    PhysicalNode node001 10.141.0.1
    PhysicalNode node022 10.141.0.22
    PhysicalNode node023 10.141.0.23
    PhysicalNode node024 10.141.0.24
    [basecm10->device*]% commit

    To avoid possible confusion: the cloned objects are merely objects (placeholder schematics and settings, with some different values for some of the settings, such as IP addresses, decided by heuristics). So it is explicitly not the software disk image of node001 that is duplicated by object cloning to the other nodes by this action at this time.

    • Overriding the default heuristics for IP address allocation: The default heuristics for IP address allocation choose the next free IP address if, among other conditions, the same base name is used for the clone. Thus, if the base name used differs from the original, then by default the next free IP address is not chosen. To override the heuristic, so that the next free IP address is chosen anyway, the --next-ip option can be used.

      For example, when creating nodes starting with node02 instead of the default node002:

      Example

      [basecm10->device]% foreach -o node001 -n node[02-04] ()
      Base name mismatch, IP settings will not be modified!
      Base name mismatch, IP settings will not be modified!
      Base name mismatch, IP settings will not be modified!
      [basecm10->device*]% network ips internalnet
      Hostname IP State
      ----------------- ---------------- ----------------
      basecm10 10.141.255.254 ok
      node001 10.141.0.1 duplicate
      node02 10.141.0.1 duplicate
      node03 10.141.0.1 duplicate
      node04 10.141.0.1 ok
      [basecm10->device]% foreach -o node001 -n node[02-04] --next-ip ()
      [basecm10->device*]% network ips internalnet
      Hostname IP State
      ----------------- ---------------- ----------------
      basecm10 10.141.255.254 ok
      node001 10.141.0.1 ok
      node02 10.141.0.2 ok
      node03 10.141.0.3 ok
      node04 10.141.0.4 ok

      Conversely, IP addresses can be incremented by a specific amount when using the addinterface command (section 3.7.1), by using its --increment option.

    The --add (-a) option creates the device for a specified device type, if it does not exist. Valid types are shown in the help output, and include physicalnode, headnode, switch.

  • Conditional options: -s|--status, -q|--quitonunknown
    The --status (-s) option allows nodes to be filtered by the device status (section 2.1.1).

    Example

    [basecm10->device]% foreach -n node001..node004 --status UP (get IP)
    10.141.0.1
    10.141.0.3

    Since the --status option is also a grouping option, the union operation applies to it by default too, when more than one grouping option is being run.

    The --quitonunknown (-q) option allows the foreach loop to be exited when an unknown command is detected.

  • Looping options: *, -v|--verbose
    The wildcard character * with foreach implies all the objects that the list command lists for that mode. It is used without grouping options:

    Example

    [myheadnode->device]% foreach * (get ip; status)
    10.141.253.1
    switch01 ............ [ DOWN ]
    10.141.255.254
    myheadnode .......... [ UP ]
    10.141.0.1
    node001 ............. [ CLOSED ]
    10.141.0.2
    node002 ............. [ CLOSED ]
    [myheadnode->device]%

    Another example that lists all the nodes per category, by running the listnodes command within category mode:

    Example

    [basecm10->category]% foreach * (get name; listnodes)
    default
    Type Hostname MAC Category Ip Network Status
    ------------- --------- ------------------ --------- ---------- ------------ --------
    PhysicalNode node001 FA:16:3E:79:4B:77 default 10.141.0.1 internalnet [ UP ]
    PhysicalNode node002 FA:16:3E:41:9E:A8 default 10.141.0.2 internalnet [ UP ]
    PhysicalNode node003 FA:16:3E:C0:1F:E1 default 10.141.0.3 internalnet [ UP ]

    bf The --verbose (-v) option displays the loop headers during a running loop with time stamps, which can help in debugging.

Restrictions in execution of power-related commands for the foreach command: Some power-related commands are prevented from execution in a foreach loop.

Example

root@basecm10:~# cmsh
[basecm10]% device
[basecm10->device]% foreach -n node001 (power status)
This command is not allowed inside foreach/range: power status
Specify the node selection directly on the command instead

This is because the execution time-scale differences between the foreach command and the command executed by the foreach command can cause issues. The issues can be unacceptable delays in response, or an unacceptable stacking up of powering-on operations. If powering-on operations stack up and cause unfeasibly large power demands, then cloud instances and on-premises instances may not be able to start.

2.5.5.10 Node List Syntax

Node list specifications, as used in the foreach specification and elsewhere, can be of several types. These types are best explained with node list specification examples:

  • adhoc (with a comma, or a space):
    example: node001,node003,node005,node006

  • sequential (with two dots or square brackets):
    example: node001..node004
    or, equivalently: node00[1-4]
    which is: node001,node002,node003,node004

  • sequential extended expansion (only for square brackets):
    example: node[001-002]s[001-005]
    which is:
    node001s001,node001s002,node001s003,node001s004,node001s005,\ node002s001,node002s002,node002s003,node002s004,node002s005

  • rack-based:
    This is intended to hint which rack a node is located in. Thus:

    • example: r[1-2]n[01-03]
      which is: r1n01,r1n02,r1n03,r2n01,r2n02,r2n03
      This might hint at two racks, r1 and r2, with 3 nodes each.

    • example: rack[1-2]node0[1-3]
      which is: rack1node01,rack1node02,rack1node03,rack2node01,
      rack2node02,rack2node03
      Essentially the same as the previous one, but for nodes that were named more verbosely.

  • sequential exclusion (negation):
    example: node001..node005,-node002..node003
    which is: node001,node004,node005

  • sequential stride (every <stride> steps):
    example: node00[1..7:2]
    which is: node001,node003,node005,node007

  • mixed list:
    The square brackets and the two dots input specification cannot be used at the same time in one argument. Other than this, specifications can be mixed:

    • example: r1n001..r1n003,r2n003
      which is: r1n001,r1n002,r1n003,r2n003

    • example: r2n003,r[3-5]n0[01-03]
      which is: r2n003,r3n001,r3n002,r3n003,r4n001,r4n002,r4n003,r5n001,r5n002,r5n003

    • example: node[001-100],-node[004-100:4]
      which is: every node in the 100 nodes, except for every fourth node.

  • path to file that contains a list of nodes:
    example: ^/some/filepath/ <file with list of nodes>
    The caret sign is a special character in cmsh for node list specifications. It indicates the string that follows is a file path that is to be read.

Node list syntax is a customized subset of device list syntax. As such, when using devices other than nodes, some of the syntax from node list syntax may not work as expected.

Setting grouping syntax with the groupingsyntax command: “Grouping syntax” here refers to usage of dots and square brackets. In other words, it is syntax of how a grouping is marked so that it is accepted as a list. The list that is specified in this manner can be for input or output purposes.

The groupingsyntax command sets the grouping syntax using the following options:

  • bracket: the square brackets specification.

  • dot: the two dots specification.

  • auto: the default. Setting auto means that:

    • either the dot or the bracket specification are accepted as input,

    • the dot specification is used for output.

The chosen groupingsyntax option can be made persistent by adding it to the .cmshrc dotfiles, or to /etc/cmshrc (section 2.5.1).

Example

[root@basecm10 ~]# cat .cm/cmsh/.cmshrc
groupingsyntax auto

2.5.5.11 The range Command

The range command provides an interactive option to carry out basic foreach commands over a grouping of nodes. When the grouping option has been chosen, the cmsh prompt indicates the chosen range within braces ({}).

Example

[basecm10->device]% range -n node0[01-24]
[basecm10->device{-n node001..024}]%

In the preceding example, commands applied at device level will be applied to the range of 24 node objects.

Continuing the preceding session—if a category can be selected with the -c option. If the default category just has three nodes, then output displayed could look like:

Example

[basecm10->device{-n node001..024}]% range -c default
[basecm10->device{-c default}]% ds
node001 .................. [ UP ] state flapping
node002 .................. [ UP ]
node003 .................. [ UP ]

Values can be set at device mode level for the selected grouping.

Example

[basecm10->device{-c default}]% get revision
[basecm10->device{-c default}]% set revision test
[basecm10->device{-c default}]% get revision
test
test
test

Values can also be set within a submode. However, staying in the submode for a full interaction is not possible. The settings must be done by entering the submode via a semi-colon (new command statement continuation on same line) syntax, as follows:

Example

[basecm10->device{-c default}]% roles; assign pbsproclient; commit

The range command can be regarded as a modal way to carry out an implicit foreach on the grouping object. Many administrators should find it easier than a foreach:

Example

[basecm10->device{-c default}]% get ip
10.141.0.1
10.141.0.2
10.141.0.3
[basecm10->device{-c default}]% ..
[basecm10->device]% foreach -c default (get ip)
10.141.0.1
10.141.0.2
10.141.0.3

Commands can be run inside a range. However, running a pexec command inside a range is typically not the intention of the cluster administrator, even though it can be done:

Example

[basecm10->device]% range -n node[001-100]
[basecm10->device{-n node[001-100]}]% pexec -n node[001-100] hostname

The preceding starts 100 pexec commands, each running on each of the 100 nodes.

Further options to the range command can be seen with the help text for the command (output truncated):

Example

[root@basecm10 ~]# cmsh -c "device help range"
Name: range - Set a range of several devices to execute future commands on
Usage: range [OPTIONS] * (command)
range [OPTIONS] <device> [<device> ...] (command)
Options: --show Show the current range
--clear Clear the range
-v, --verbose Show header before each element
...

2.5.5.12 The bookmark And goto Commands

Bookmarks: A bookmark in cmsh is a location in the cmsh hierarchy.

A bookmark can be

  • set with the bookmark command

  • reached using the goto command

A bookmark is set with arguments to the bookmark command within cmsh as follows:

  • The user can set the current location as a bookmark:

    • by using no argument. This is the same as setting no name for it

    • by using an arbitrary argument. This is the same as setting an arbitrary name for it

  • Apart from any user-defined bookmark names, cmsh automatically sets the special name: “-”. This is always the previous location in the cmsh hierarchy that the user has just come from.

All bookmarks that have been set can be listed with the -l|--list option.

Reaching a bookmark: A bookmark can be reached with the goto command. The goto command can take the following as arguments: a blank (no argument), any arbitrary bookmark name, or “-”. The bookmark corresponding to the chosen argument is then reached.

The “-” bookmark does not need to be preceded by a goto.

Example

[mycluster]% device use node001
[mycluster->device[node001]]% bookmark
[mycluster->device[node001]]% bookmark -l
Name Bookmark
---------------- ------------------------
home;device;use node001;
- home;
[mycluster->device[node001]]% home
[mycluster]% goto
[mycluster->device[node001]]% goto -
[mycluster]% goto
[mycluster->device[node001]]% bookmark dn1
[mycluster->device[node001]]% goto -
[mycluster]% goto dn1
[mycluster->device[node001]]%

Saving bookmarks, and making them persistent: Bookmarks can be saved to a file, such as mysaved, with the -s|--save option, as follows:

Example

[mycluster]% bookmark -s mysaved

Bookmarks can be made persistent by setting (.)cmshrc files (here) to load a previously-saved bookmarks file whenever a new cmsh session is started. The bookmark command loads a saved bookmark file using the -x|--load option.

Example

[root@basecm10 ~]# cat .cm/cmsh/.cmshrc
bookmark -x mysaved

2.5.5.13 Renaming Nodes With The rename Command

Nodes can be renamed globally from within partition mode, in the Node basename field associated with the prefix of the node in Base View (section 3.1.1) or in cmsh (section 2.5.4, and also here).

However, a more fine-grained batch renaming is also possible with the rename command, and typically avoids having to resort to scripting mechanisms. Using rename is best illustrated by examples:

The examples begin with using the default basename of node and default node digits (padded suffix number length) of 3.

A simple rename that is a prefix change, can then be carried out as:

Example

[basecm10->device]% rename node001..node003 test
Renamed: node001 to test1
Renamed: node002 to test2
Renamed: node003 to test3

The rename starts up its own numbering from 1, independent of the original numbering. The change is committed using the commit command.

Zero-padding occurs if the number of nodes is sufficiently large to need it. For example, if 10 nodes are renamed (some output elided):

Example

[basecm10->device]% rename node[001-010] test
Renamed: node001 to test01
Renamed: node002 to test02
...
Renamed: node009 to test09
Renamed: node010 to test10

then 2 digits are used for each number suffix, in order to match the size of the last number.

String formatting can be used to specify the number of digits in the padded number field:

Example

[basecm10->device]% rename node[001-003] test%04d
Renamed: node001 to test0001
Renamed: node002 to test0002
Renamed: node003 to test0003

The target names can conveniently be specified exactly. It requires an exact name mapping. That is, it assumes the source list size and target list size match:

Example

[basecm10->device]% rename node[001-005] test0[1,2,5-7]
Renamed: node001 to test01
Renamed: node002 to test02
Renamed: node003 to test05
Renamed: node004 to test06
Renamed: node005 to test07

The hostnames are sorted alphabetically before they are applied, with some exceptions based on the listing method used.

A --dry-run option can be used to show how the devices will be renamed. Alternatively, the refresh command can clear a proposed set of changes before a commit command commits the change, although the refresh would also remove other pending changes.

Exact name mapping could be used to allocate individual servers to several people:

Example

[root@basecm10 ~]# cmsh
[basecm10]% device
[basecm10->device]% rename node[001-004] alice,bob,charlie,dave
Renamed: node001 to alice
Renamed: node002 to bob
Renamed: node003 to charlie
Renamed: node004 to dave
[basecm10->device]% commit

Skipping by a number of nodes is possible using a colon (:). An example might be to skip by two so that twin servers can be segregated into left/right.

Example

[root@basecm10 ~]# cmsh
[basecm10]% device
[basecm10->device]% rename node[001-100:2] left[001-050]
Renamed: node001 to left001
Renamed: node003 to left002
...
Renamed: node097 to left049
Renamed: node099 to left050
[basecm10->device]% rename node[002-100:2] right[001-050]
Renamed: node002 to right001
Renamed: node004 to right002
...
Renamed: node098 to right049
Renamed: node100 to right050
[basecm10->device]% commit

2.5.5.14 Using CMDaemon Environment Variables In Scripts

Within device mode, the environment command shows the CMDaemon environment variables (section 3.3.2 of the Developer Manual) that can be passed to scripts for particular device.

Example

[mycluster->device]% environment node001
Key Value
---------------------------------------------- ----------------------------------------------------------------
CMD_ACTIVE_MASTER_IP 10.141.255.254
CMD_CATEGORY default
CMD_CLUSTERNAME mycluster
CMD_DEVICE_TYPE ComputeNode
CMD_ENVIRONMENT_CACHE_EPOCH_MILLISECONDS 1615465821582
CMD_ENVIRONMENT_CACHE_UPDATES 4
...

The environment variables can be prepared for use in Bash scripts with the -e|--export option:

Example

[mycluster->device]% environment -e node001
export CMD_ENVIRONMENT_CACHE_UPDATES=4
export CMD_CATEGORY=default
export CMD_SOFTWAREIMAGE=default-image
export CMD_DEVICE_TYPE=ComputeNode
export CMD_ROLES=
export CMD_FSMOUNT__SLASH_home_FILESYSTEM=nfs
export CMD_NODEGROUPS=
...

2.5.5.15 Creating JSON Format Output From A Table Format Output In cmsh

A list of table entries can be converted to a JSON representation by using the delimiter specification option: -d

By default, the indentation value used is 2. Other values can be set by putting the value inside the braces.

Example

[basecm10->device]% list -f hostname,ip,mac,status
hostname (key) ip mac status
-------------------- -------------------- -------------------- --------------------
node001 10.141.0.1 FA:16:3E:95:80:9F [ UP ]
basecm10 10.141.255.254 FA:16:3E:D3:56:E0 [ UP ]
[basecm10->device]% color off; list -f hostname,ip,mac,status -d {}
[
{
"hostname (key)": "basecm10",
"ip": "10.141.255.254",
"mac": "FA:16:3E:D3:56:E0",
"status": "[ UP ]"
},
{
"hostname (key)": "node001",
"ip": "10.141.0.1",
"mac": "FA:16:3E:95:80:9F",
"status": "[ UP ]"
}
]
[basecm10->device]%

The color off setting is needed to remove the default console coloring. If the command is to run from the bash shell, the same output can be achieved with:

Example

[root@basecm10 ~]# cmsh --color=no -c "device; list -f hostname,ip,mac,status -d {}"

2.6 Cluster Management Daemon

The cluster management daemon or CMDaemon is a server process that runs on all nodes of the cluster (including the head node). The cluster management daemons work together to make the cluster manageable. When applications such as cmsh and Base View communicate with the cluster, they are actually interacting with the cluster management daemon running on the head node. Cluster management applications never communicate directly with cluster management daemons running on non-head nodes.

The CMDaemon application starts running on any node automatically when it boots, and the application continues running until the node shuts down. Should CMDaemon be stopped manually for whatever reason, its cluster management functionality becomes unavailable, making it hard for administrators to manage the cluster. However, even with the daemon stopped, the cluster remains fully usable for running computational jobs using a workload manager.

The only route of communication with the cluster management daemon is through TCP port 8081. The cluster management daemon accepts only SSL connections, thereby ensuring all communications are encrypted. Authentication is also handled in the SSL layer using client-side X509v3 certificates (section 2.3).

On the head node, the cluster management daemon uses a MySQL database server to store all of its internal data. Raw monitoring data, on the other hand, is stored as binary data outside of the MySQL database (section [Managing Raw Monitoring Data]).

2.6.1 Managing And Inspecting The Cluster Management Daemon

2.6.1.1 Using systemctl To Manage The Cluster Management Daemon

It may be useful to shut down or restart the cluster management daemon. For instance, a restart may be necessary to activate changes when the cluster management daemon configuration file is modified.

The cluster management daemon operation can be controlled through the systemctl unit command options:

Example

[root@basecm10 etc]# systemctl stop cmd.service
[root@basecm10 etc]# systemctl is-enabled cmd.service
enabled
[root@basecm10 etc]# systemctl status cmd.service
* cmd.service - BCM daemon
Loaded: loaded (/usr/lib/systemd/system/cmd.service; enabled; preset: enabled)
Active: inactive (dead) since Tue 2025-04-08 15:44:00 CEST; 48s ago
...
[root@basecm10 etc]# systemctl start cmd.service
[root@basecm10 etc]# systemctl status cmd.service
* cmd.service - BCM daemon
Loaded: loaded (/usr/lib/systemd/system/cmd.service; enabled; preset: enabled)
Active: active (running) since Tue 2025-04-08 09:18:18 CEST; 6h ago
...

The cluster management daemon can be restarted on all regular nodes that are up:

Example

[root@mycluster ~]# pdsh -a "systemctl restart cmd; systemctl is-active cmd"
node001: active
node002: active
node003: active
[root@mycluster ~]#

This uses pdsh, the parallel shell command (section 16.1.0.1).

2.6.1.2 Using cmdaemonctl To Inspect The Cluster Management Daemon

The cmdaemonctl command is a way to run some CMDaemon-specific service-related commands:

Example

[root@basecm10 etc]# cmdaemonctl -h
cmdaemonctl [OPTIONS...] COMMAND ...
Query or send control commands to the cluster manager daemon.
-h --help Show this help
Commands:
debugon Turn on CMDaemon debug
debugoff Turn off CMDaemon debug
full-status Display CMDaemon status
upgrade Upgrade CMDaemon database
logconf Reload log configuration
[root@basecm10 etc]# cmdaemonctl full-status
CMDaemon version 3.0 is running (active)
Running locally
Debug logging is disabled
Current Time: Tue, 08 Apr 2025 16:15:41 CEST
Startup Time: Tue, 08 Apr 2025 15:55:39 CEST
Uptime: 20m 1s
CPU Usage: 5.55887u 1.93049s (0.6%)
Memory Usage: 176MB
Sessions Since Startup: 5
Active Sessions: 5
Number of occupied worker-threads: 1
Number of free worker-threads: 14
Connections handled: 323
Requests processed: 323
Total read: 93KB
Total written: 317KB
Average request rate: 16.1 requests/m
Average bandwidth usage: 264.35B/s

For performance reasons, CMDaemon should not normally be run in debug mode.

2.6.2 Configuring The Cluster Management Daemon

Many cluster configuration changes can be done by modifying the cluster management daemon configuration file. For the head node, the file is located at:

/cm/local/apps/cmd/etc/cmd.conf

For regular nodes, it is located inside of the software image that the node uses.

Appendix C describes the supported configuration file directives and how they can be used. Normally there is no need to modify the default settings.

After modifying the configuration file, the cluster management daemon must be restarted to activate the changes.

2.6.3 CMDaemon Versions

2.6.3.1 Updating CMDaemon

CMDaemon can be updated on the head node with a package manager command such as:

yum update cmdaemon

and on a regular node image with a command such as:

yum update --installroot=/cm/images/<software image> cmdaemon

Updating software on the cluster is covered in greater detail in Chapter11.

2.6.3.2 CMDaemon Version Extraction

For debugging an issue, knowing the version of CMDaemon that is in use on the cluster can be helpful. The cmdaemonversions command runs within the device mode of cmsh. It lists the CMDaemon version running on the nodes of the cluster

Example

[basecm10->device]% cmdaemonversions
Hostname Version index Version hash
---------------- ------------- ------------
basecm10 146,965 e6f593b676
node001 146,965 e6f593b676
node002 146,965 e6f593b676

A higher version index value indicates a more recent CMDaemon version.

The --join option is a formatting option that gathers together versions with the same value:

[basecm10->device]% cmdaemonversions --join
Version index Version hash Count Hostnames
------------- ------------ ------------ -------------------------
146,962 dcb306b592 2 node004..node006
146,963 db3a48968c 1 node003
146,965 e6f593b676 3 basecm10,node001..node002

A cluster administrator is expected to keep the same version for all nodes, but sometimes updating nodes to the same version can take some time—for example, when waiting for a long job to finish on a node, before rebooting that node.

2.6.4 Configuring The Cluster Management Daemon Logging Facilities

CMDaemon generates log messages in /var/log/cmdaemon from specific internal subsystems, such as Workload Management, Service Management, Monitoring, Certs, and so on. By default, none of those subsystems generate detailed (debug-level) messages, as that would make the log file grow rapidly.

2.6.4.1 CMDaemon Logging Configuration Global Debug Mode

A global debug mode can be enabled in CMDaemon using cmdaemonctl:

Example

[root@basecm10 ~]# cmdaemonctl -h
cmdaemonctl [OPTIONS...] COMMAND ...
Query or send control commands to the cluster manager daemon.
-h --help Show this help
Commands:
debugon Turn on CMDaemon debug
debugoff Turn off CMDaemon debug
...
[root@basecm10 ~]# cmdaemonctl debugon
CMDaemon debug level on

Stopping debug level logs from running for too long by executing cmdaemonctl debugoff is a good idea, especially for production clusters. This is important in order to prevent swamping the cluster with unfeasibly large logs.

2.6.4.2 CMDaemon Subsystem Logging Configuration Debug Mode

CMDaemon subsystems can generate debug logs separately per subsystem, including by severity level. This can be done by modifying the logging configuration file at:

/cm/local/apps/cmd/etc/logging.cmd.conf

Within this file, a section with a title of #Available Subsystems lists the available subsystems that can be monitored. These subsystems include MON (for monitoring), DB (for database), HA (for high availability), CERTS (for certificates), CEPH (for Ceph), and so on.

2.6.4.3 CMDaemon Subsystem Logging Configuration Severity Levels

The debug setting is one of several severity levels. Other severity levels are info, warning, error, and all.

Further details on setting subsystem options are given within the logging.cmd.conf file.

For example, to set CMDaemon log output for Monitoring, at a severity level of warning, the file contents for the section severity might look like:

Example

Severity {
warning: MON
}

2.6.4.4 CMDaemon Subsystem Logging Configuration Deployment

The new logging configuration can be reloaded from the file by restarting CMDaemon:

Example

[root@basecm10 etc]# systemctl restart cmd

or by triggering it using the event bucket (here)

Example

[root@basecm10 etc]# echo LOGGING.RELOAD.CONFIG > /var/spool/cmd/eventbucket

2.6.5 Configuration File Modification, And The FrozenFile Directive

As part of its tasks, the cluster management daemon modifies a number of system configuration files. Some configuration files are completely replaced, while other configuration files only have some sections modified. Appendix A lists all system configuration files that are modified.

  • A file that has been generated entirely by the cluster management daemon contains a header:

    # This file was automatically generated by cmd. Do not edit manually!

    Such a file will be entirely overwritten, unless the FrozenFile configuration file directive (Appendix C.69, here) is used to keep it frozen.

  • A file that has had only a section of it generated by the cluster management daemon contains a header and ending sections in the following format:

    # This section of this file was automatically generated by cmd. Do not edit manually!
    # BEGIN AUTOGENERATED SECTION -- DO NOT REMOVE
    ...
    # END AUTOGENERATED SECTION -- DO NOT REMOVE

    Such a file has only the auto-generated sections entirely overwritten, unless the FrozenFile configuration file directive is used to keep these sections frozen.

The FrozenFile configuration file directive in cmd.conf is set as suggested by this example:

Example

FrozenFile = { "/etc/dhcpd.conf", "/etc/postfix/main.cf" }

If the generated full file or generated section of a file has a manually modified part, and FrozenFile is not in use, then during overwriting an event is generated, and the original manually modified configuration file is backed up to:

/var/spool/cmd/saved-config-files

Using FrozenFile can be regarded as a configuration technique (section 3.20.3), and one of various possible configuration techniques (section 3.20.1).

2.6.6 Configuration File Conflicts Between The Standard Distribution And BCM For Generated And Non-Generated Files

While BCM changes as little as possible of the standard distributions that it manages, there can sometimes be unavoidable issues. In particular, sometimes a standard distribution utility or service generates a configuration file that conflicts with what the configuration file generated by BCM carries out (Appendix A).

For example, the Red Hat security configuration tool system-config-securitylevel can conflict with what shorewall (section 7.2 of the Installation Manual) does, while the Red Hat Authentication Configuration Tool authconfig (used to modify the /etc/pam.d/system-auth file) can conflict with the configuration settings set by BCM for LDAP and PAM.

In such a case the configuration file generated by BCM must be given precedence, and the generation of a configuration file from the standard distribution should be avoided. Sometimes using a fully or partially frozen configuration file (section 2.6.5) allows a workaround. Otherwise, the functionality of the BCM version usually allows the required configuration function to be implemented.

Details on the configuration files installed and updated by the package management system, for files that are “non-generated” (that is, not of the kind in section 2.6.5 or in the lists in Appendixes A.1 and A.2.3), are given in Appendix A.3.

2.6.7 CMDaemon Lite

2.6.7.1 Introduction

As an alternative to the regular CMDaemon, BCM provides a lightweight CMDaemon, called CMDaemon Lite. This is intended as a minimal alternative to the regular CMDaemon for nodes that are not managed by CMDaemon. CMDaemon Lite is contained in the package cm-lite-daemon.

It can be installed on a device where the administrator considers the option of installing a regular, full-featured, CMDaemon to be overkill, but still wants an alternative that allows some basic monitoring, and (if available) GNSS measurements, to be carried out on the device.

CMDaemon Lite is a Python service, and can be run on a device such as a standalone desktop, running Windows, Linux, or MacOS. It uses up one node license per node that it is run on. It requires Python 3.7 or higher.

CMDaemon Lite with the standard number of metrics is about 25% lighter on memory resources, and 50% lighter on CPU resources, than the regular CMDaemon.

2.6.7.2 Deployment

Deployment is typically carried out using the head node to place the zipped CMDaemon Lite packages onto the lite node. The lite node is the device that is to run cm-lite-daemon.

The zipped packages for the head node: can be picked up with:

Example

[root@basecm10 ~]# yum install cm-lite-daemon-dist #apt install cm-lite-daemon-dist for Ubuntu

The package cm-lite-daemon is also available from the APT repositories, instead of cm-lite-daemon-dist. It should be used for Cumulus OS and for NVOS.

The package manager places the zip file and bootstrap certificate files under /cm/shared/apps/cm-lite-daemon-dist/:

Example

[root@basecm10 ~]# ls -al /cm/shared/apps/cm-lite-daemon-dist/
total 212
drwxr-xr-x 2 root root 74 Mar 30 02:38 .
drwxr-xr-x 32 root root 4096 Mar 18 09:57 ..
-rw------- 1 root root 1704 Mar 30 02:38 bootstrap.key
-rw------- 1 root root 1289 Mar 30 02:38 bootstrap.pem
-rw-r--r-- 1 root root 202448 Feb 24 15:19 cm-lite-daemon.zip

Placing the files on the lite node: In the following session the lite node is assumed to be running Ubuntu. The session details may differ a bit for other operating systems.

Example

[root@basecm10 ~]# scp /cm/shared/apps/cm-lite-daemon-dist/* root@lite01:/opt/
[root@basecm10 ~]# ssh root@lite01
...
root@lite01:~# cd /opt
root@lite01:/opt# unzip cm-lite-daemon.zip
...
root@lite01:/opt# cd cm-lite-daemon
root@lite01:/opt/cm-lite-daemon# ls -l --group-directories-first
total 60
drwxr-xr-x 7 root root 4096 Oct 31 2017 cm_lite_daemon
drwxr-xr-x 2 root root 87 Oct 31 2017 etc
drwxr-xr-x 2 root root 76 Oct 31 2017 examples
drwxr-xr-x 2 root root 6 Oct 31 2017 log
drwxr-xr-x 2 root root 110 Oct 31 2017 service
-rwxr-xr-x 1 root root 7752 Oct 31 2017 cm-lite-daemon
-rwxr-xr-x 1 root root 916 Oct 31 2017 cm-lite-daemon_ctl
-rwxr-xr-x 1 root root 3832 Oct 31 2017 connection_test
-rwxr-xr-x 1 root root 382 Oct 31 2017 install-required-pip-packages
-rwxr-xr-x 1 root root 182 Oct 31 2017 install-required-pip-packages.bat
-rwxr-xr-x 1 root root 8409 Oct 31 2017 register_node
-rwxr-xr-x 1 root root 4683 Oct 31 2017 request_certificate
-rw-r--r-- 1 root root 107 Oct 31 2017 requirements.txt
-rwxr-xr-x 1 root root 5409 Oct 31 2017 unregister_node

The bootstrap.* files that were also copied over to the lite node should also be moved into the /opt/cm-lite-daemon/etc/ directory:

Example

root@lite01:/opt/cm-lite-daemon# mv ../bootstrap.* /opt/cm-lite-daemon/etc/

A virtual Python environment on the lite node: is set up to provide consistency for the configuration scripts. For Ubuntu:

apt install python3-venv

should install the venv module if it is not already available.

The virtual environment directory for CMDaemon Lite, venv (the last argument in the following python3 -m line), can then be configured and activated by running:

Example

root@lite01:/opt/cm-lite-daemon# python3 -m venv venv
root@lite01:/opt/cm-lite-daemon# source venv/bin/activate

The installation requirements for the cm-lite-daemon software are then met with:

Example

(venv) root@lite01:/opt/cm-lite-daemon# pip install -r requirements.txt
Collecting pyOpenSSL>=21.0.0 (from -r requirements.txt (line 1))
Downloading pyopenssl-26.0.0-py3-none-any.whl.metadata (18 kB)
Collecting websocket-client (from -r requirements.txt (line 2))
Downloading websocket_client-1.9.0-py3-none-any.whl.metadata (8.3 kB)
...
(venv) [root@lite01 cm-lite-daemon]#

Registering the lite node with CMDaemon on the head node: can be carried out on the lite node with:

Example

(venv) root@lite01:/opt/cm-lite-daemon# ./register_node --node lite01 --disable-cert-check \
--disable-hostname-check
INFO ... Certificate requested: ec53aa08-d796-4f95-9e24-088e2f81cb90, waiting for it to be issued...
INFO ... Saved private key: /opt/cm-lite-daemon/etc/cert.key
INFO ... Saved certificate: /opt/cm-lite-daemon/etc/cert.pem
...
(venv) root@lite01:/opt/cm-lite-daemon#

If the lite node is on the same network: as the regular nodes being managed by regular CMDaemon on the head node, then the CMDaemon Lite certificate is automatically issued for the lite node by the regular CMDaemon on the head node.

In this case, CMDaemon Lite is configured to run automatically on startup, and its status should show up the lite node as:

Example

(venv) root@lite01:/opt/cm-lite-daemon# systemctl status cm-lite-daemon.service
cm-lite-daemon.service - Bright Computing Cluster Lite Manager daemon
Loaded: loaded (/usr/lib/systemd/system/cm-lite-daemon.service; enabled; preset: enabled)
Active: active (running) since Mon 2026-03-30 11:22:29 PDT; 1min 7s ago
Main PID: 11872 (python3)
Tasks: 22 (limit: 128)
Memory: 28.7M (high: 488.0M max: 512.0M available: 459.2M peak: 54.0M)
CPU: 1.656s
CGroup: /system.slice/cm-lite-daemon.service
└─11872 python3 /opt/cm-lite-daemon/cm-lite-daemon --daemon --pid-file /var/run/cm-lite-daemon.pid
Mar 30 11:22:29 lite01 systemd[1]: Started cm-lite-daemon.service - Bright Computing Cluster Lite Manager daemon.

If the lite node is on another network: compared to the regular nodes being managed by regular CMDaemon on the head node, then the CMDaemon Lite certificate must be issued manually for the lite node by the regular CMDaemon on the head node. This can be done as follows:

Using cmsh the certificate request ID can be found:

Example

[basecm10->cert]% listrequests
Request ID Client type Session ID Name
------------ ------------ ------------ ------------
1 Lite node .... ....

After finding the correct value for the Request ID, the certificate can then be issued. For a certificate with a Request ID value of 1, it can be issued with, for example:

basecm10->cert]% issuecertificate --days 10000 1

The days field can be used to set how long cm-lite-daemon is allowed to connect. Regular BCM node certificates have a lifetime of about 10,000 days (about 27 years).

The network of the lite node must also be set to be explicitly managed by CMDaemon. For example: if a lite node, lite02, is on another network internalnet2 that is not the management network, then it needs to have its management network explicitly set:

Example

[basecm10->device[lite02]]% interfaces
[basecm10->device[lite02]->interfaces]% list
Type Network device name IP Network Start if
------------ -------------------- ---------------- ---------------- --------
physical eth0 10.142.0.1 internalnet2 always
[basecm10->device[lite02]->interfaces]% ..
[basecm10->device[lite02]]% get managementnetwork
[basecm10->device[lite02]]% set managementnetwork
externalnet globalnet internalnet internalnet2
[basecm10->device[lite02]]% set managementnetwork internalnet2
[basecm10->device*[lite02*]]% commit

After register_node has successfully finished its configuration in Linux, CMDaemon Lite runs as a service: so that the following commands work as expected:

[root@lite01 ~]# systemctl status cm-lite-daemon
...
[root@lite01 ~]# systemctl start cm-lite-daemon
...
[root@lite01 ~]# systemctl stop cm-lite-daemon
...

On non-Linux operating systems, cm-lite-daemon can be run on startup automatically. For example with launchd in macOS, or as a scheduled task in Microsoft Windows. It can be tested by first running it manually. If successful, the lite node should show up as being in the UP state in Base View or cmsh.

2.6.7.3 CMDaemon Lite On Cumulus Switches

From NVIDIA Base Command Manager version 10 onwards, Cumulus switches (section 3.10) also support running CMDaemon Lite. In that case, the property hasclientdaemon must be set for the switch:

Example

[head]% device add switch cumulus01
[head->device*[switch01*]]% set mac 12:34:56:78:90:AB
[head->device*[switch01*]]% set ip 1.2.3.4
[head->device*[switch01*]]% set hasclientdaemon yes
[head->device*[switch01*]]% commit

The ZTP settings should be configured from ztpsettings mode, and a username and password must be set within the accesssettings mode for the Cumulus switch. Further details on configuring Cumulus switches are given in section 3.10.

2.6.7.4 Even Lighter Than CMDaemon Lite: Configuring A Device As A Generic Node

To put things in perspective: so far the options described have been:\

  1. CMDaemon running on the device\
  2. CMDaemon Lite running on the device
    A third option that can be considered, is to have\
  3. no CMDaemon at all running on the device and to register the device as a generic node with the regular CMDaemon on the head node. A generic node is a generic network device (here) that happens to be a node.

This third option—the generic node option—then monitors the device for a basic state of UP/DOWN, but nothing else. In contrast to the first two cases, a node license is not used up.

Even lighter than generic nodes: configuring a device as unmonitored: Devices can alternatively be added to the BIND DNS entries of the zone file via the /var/named/*.include files (Appendix A.1). This is a feature of the Linux operating system rather than a feature of BCM, and so —perhaps rather obviously—a BCM node license is also not used up in this case.

After restarting the named service, the nodes are not seen on the head node, and the device is not monitored in any way. The cluster does however know how to reach it, which in some cases may be all that a cluster administrator wants.

For example, if a host 10.141.1.20 with hostname myotherhost01, is added to the internalnet network within the domain name eth.cluster, then the session may be run as follows:

Example

[root@head ~]# vi /var/named/eth.cluster.zone.include
(appropriate DNS forward entry is added)
[root@head ~]# cat /var/named/eth.cluster.zone.include
myotherhost01 IN A 10.141.1.20
[root@head ~]# vi /var/named/141.10.in-addr.arpa.zone.include
(appropriate DNS reverse entry is added)
[root@head ~]# cat /var/named/141.10.in-addr.arpa.zone.include
20.1 IN PTR myotherhost01.eth.cluster.
[root@head ~]# systemctl restart named
