User Management

Users and groups for the cluster are presented to the administrator in a single system paradigm. That is, if the administrator manages them with BCM, then the changes are automatically shared across the cluster (the single system).

BCM runs its own LDAP service to manage users, rather than using unix user and group files. In other words, users and groups are managed via the centralizing LDAP database server running on the head node, and not via entries in /etc/passwd or /etc/group files.

Sections 6.1 and 6.2 cover the most basic aspects of how to add, remove and edit users and groups using BCM.

Section 6.3 describes how an external LDAP server can be used for authentication services instead of the one provided by BCM.

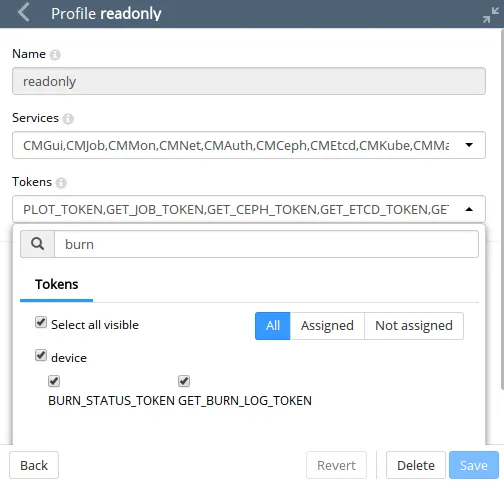

Section 6.4 discusses how users can be assigned only selected capabilities when using Base View or cmsh, using profiles with sets of tokens.

6.1 Managing Users And Groups With Base View

Within Base View:

• users can be managed via the navigation path Identity Management > Users

• groups can be managed via the navigation path Identity Management > Groups.

For users (figure 6.1) the LDAP entries for users are displayed. These entries are editable and each user can then be managed in further detail.

There is already one user on a newly-installed BCM: cmsupport. This user has no password set by default, which means (section 6.2.2) no logins to this account are allowed by default. BCM uses the user cmsupport to run various diagnostics utilities, so it should not be removed, and the default contents of its home directory should not be removed.

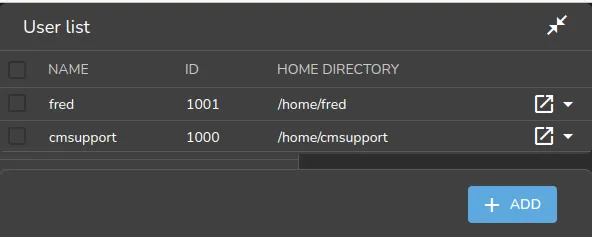

Figure 6.1: Base View User Management

The + ADD button allows users to be added via a User parameters window (figure 6.2). The changes in parameter values can be committed via the SAVE button in the User parameter window.

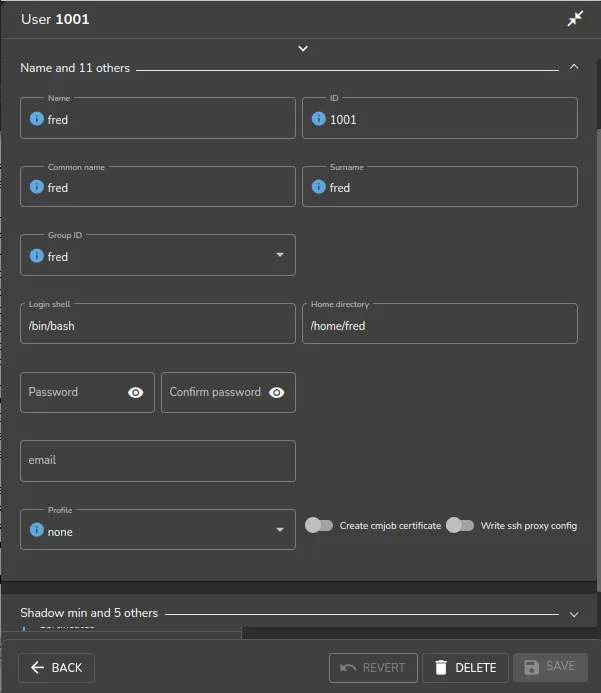

Figure 6.2: Base View User Management: Add Dialog

When saving an addition or modification:

• User and group ID numbers are automatically assigned from UID and GID 1000 onward.

• A home directory is created and a login shell is set. Users with unset passwords cannot log in.

Group management in Base View is carried out via the navigation path Identity Management > Groups. Clickable LDAP object entries for regular groups then show up, similar to the user entries already covered. Management of these entries is done with the same functions as for user management.

6.2 Managing Users And Groups With cmsh

User management tasks as carried out by Base View in section 6.1, can be carried with the same end results in cmsh too.

A cmsh session is run here in order to cover the functions corresponding to the user management functions of Base View of section 6.1. These functions are run from within the user mode of cmsh:

Example

[root@basecm10 ~]# cmsh
[basecm10]% user
[basecm10->user]%

6.2.1 Adding A User

This part of the session corresponds to the functionality of the Add button operation in section 6.1. In user mode, the process of adding a user maureen to the LDAP directory is started with the add command:

Example

[basecm10->user]% add maureen
[basecm10->user*[maureen*]]%

The cmsh utility helpfully drops into the user object just added, and the prompt shows the user name to reflect this. Going into user object would otherwise be done manually by typing use maureen at the user mode level.

Asterisks in the prompt are a helpful reminder of a modified state, with each asterisk indicating that there is an unsaved, modified property at that asterisk’s level.

The modified command displays a list of modified objects that have not yet been committed:

Example

[basecm10->user*[maureen*]]% modified
State  Type                    Name
------ ----------------------- ---------------
+      User                    maureen

This corresponds roughly to what is displayed by the Unsaved entities icon in the top right corner of the Base View standard display (figure 12.5).

Running show at this point reveals a user name entry, but empty fields for the other properties of user maureen. So the account in preparation, while it is modified, is clearly not yet ready for use:

Example

[basecm10->user*[maureen*]]% show
Parameter                        Value
------------------------------   --------------------------
Accounts
Managees
Name                             maureen
Primary group
Revision
Secondary groups
ID
Common name
Surname
Group ID
Login shell
Home directory
Password                         < not set >
email
Profile
Create cmjob certificate         no
Write ssh proxy config           no
Shadow min                       0
Shadow max                       999999
Shadow warning                   7
Inactive                         0
Last change                      1970/1/1
Expiration date                  2038/1/1
Project manager                  <submode>
Notes                            <0B>

6.2.2 Saving The Modified State

This part of the session corresponds to the functionality of the SAVE button operation in section 6.1.

In the preceding section 6.2.1, user maureen was added. maureen now exists as a proposed modification, but has not yet been committed to the LDAP database.

Running the commit command now at the maureen prompt stores the modified state at the user maureen object level:

Example

[basecm10->user*[maureen*]]% commit
[basecm10->user[maureen]]% show
Parameter                        Value
------------------------------   ---------------------------
Accounts
Managees
Name                             maureen
Primary group                    maureen
Revision
Secondary groups
ID                               1001
Common name                      maureen
Surname                          maureen
Group ID                         1001
Login shell                      /bin/bash
Home directory                   /home/maureen
Password                         *********
email
Profile
Create cmjob certificate         no
Write ssh proxy config           no
Shadow min                       0
Shadow max                       999999
Shadow warning                   7
Inactive                         0
Last change                      2021/3/12
Expiration date                  2038/1/1
Project manager                  <submode>
Notes                            <0B>

If, however, commit were to be run at the user mode level without dropping into the maureen object level, then instead of just that modified user, all modified users would be committed.

When the commit is done, all the empty fields for the user are automatically filled in with defaults based the underlying Linux distribution used. Also, as a security precaution, if an empty field (that is, a “not set”) password entry is committed, then a login to the account is not allowed. So, in the example, the account for user maureen exists at this stage, but still cannot be logged into until the password is set. Editing passwords and other properties is covered in section 6.2.3.

The default permissions for file and directories under the home directory of the user are defined by the umask settings in /etc/login.defs, as would be expected if the administrator were to use the standard useradd command. Setting a path for the homedirectory parameter for a user sets a default home directory path. By default the default path is /home/<username> for a user <username>. If homedirectory is unset, then the default is determined by the HomeRoot directive (Appendix C.35).

6.2.3 Editing Properties Of Users And Groups

This corresponds roughly to the functionality of the Edit operation in section 6.1.

In the preceding section 6.2.2, a user account maureen was made, with an unset password as one of its properties. Logins to accounts with an unset password are refused. The password therefore needs to be set if the account is to function.

6.2.3.1 Editing Users With set And clear

The tool used to set user and group properties is the set command. Typing set and then either using tab to see the possible completions, or following it up with the enter key, suggests several parameters that can be set, one of which is password:

Example

[basecm10->user[maureen]]% set
Name:
          set - Set specific user property
Usage:
          set [user] <parameter> <value> [<value> ...]  (type 1)
          set [user] <parameter> [file]                 (type 2)
Arguments:
          user
               name of the user, omit if current is set
Parameters: (type 1)
    commonname .......... Full name (e.g. Donald Duck)
    createcmjobcertificate  Create a certificate with the cloudjob profile for cmjob
    email ............... email
    expirationdate ...... Date on which the user login will be disabled
    groupid ............. Base group of this user
    homedirectory ....... Home directory
    id .................. User ID number
    inactive ............ Number of days of inactivity allowed for the user
    loginshell .......... Login shell
    name ................ User login (e.g. donald)
    password ............ Password
    profile ............. Profile for Authorization
    projectmanager ...... Project manager
    revision ............ Entity revision
    shadowmax ........... Maximum number of days for which the user password remains valid.
    shadowmin ........... Minimum number of days required between password changes
    shadowwarning ....... Number of days of advance warning given to the user before the
                          user password expires
    surname ............. Surname (e.g. Duck)
    writesshproxyconfig . Write ssh proxy config
Parameters: (type 2)
    notes ............... Administrator notes
[basecm10->user[maureen]]%

Continuing the session from the end of section 6.2.2, the password can be set at the user context prompt like this:

Example

[basecm10->user[maureen]]% set password seteca5tr0n0my
[basecm10->user*[maureen*]]% commit
[basecm10->user[maureen]]%

At this point, the account maureen is finally ready for use.

The converse of the set command is the clear command, which clears properties:

Example

[basecm10->user[maureen]]% clear password; commit

Setting a password in cmsh is also possible by setting the LDAP hash (the encrypted storage format) that is generated from the password within cmsh. When setting passwords in cmsh, a string starting with {MD5}, {CRYPT} or {SSHA} is considered to be the hash of the password:

Example

[root@basecm10 ~]# #first create the LDAP salted SHA-1 hash of the password:
[root@basecm10 ~]# /cm/local/apps/openldap/sbin/slappasswd -h {SSHA} -s seteca5tr0n0my
[root@basecm10 ~]# {SSHA}sViD+lfSTtlIy0MuGwPGfGd5XKHgEm5d
[root@basecm10 ~]# cmsh
[basecm10]% user use maureen
[basecm10->user[maureen]]% set password
enter new password:         #here and in the next line {SSHA}sViD+lfSTtlIy0MuGwPGfGd5XKHgEm5d is typed in
retype new password:
[basecm10->user[maureen]]% commit
[basecm10->user[maureen]]% !ssh maureen@node001     #now will test the password that generated the hash
Warning: Permanently added 'node001' (ECDSA) to the list of known hosts.
maureen@node001's password:  #here seteca5tr0n0my is typed in
Creating ECDSA key for ssh
[maureen@node001 ~]$         #successfully logged in with the password associated with the hash

Managing passwords in cmsh via direct LDAP hash entry is not normally done.

6.2.3.2 Editing Groups With append And removefrom

While the preceding commands set and clear also work with groups, there are two other commands available which suit the special nature of groups. These supplementary commands are append and removefrom. They are used to add extra users to, and remove extra users from a group.

For example, it may be useful to have a printer group so that several users can share access to a printer. For the sake of this example (continuing the session from where it was left off in the preceding), tim and fred are now added to the LDAP directory, along with a group printer:

Example

[basecm10->user[maureen]]% add tim; add fred
[basecm10->user*[fred*]]% exit; group;  add printer
[basecm10->group*[printer*]]% commit
[basecm10->group[printer]]% exit; exit; user
[basecm10->user*]%

The context switch that takes place in the preceding session should be noted: The context of user maureen was eventually replaced by the context of group printer. As a result, the group printer is committed, but the users tim and fred are not yet committed, which is indicated by the asterisk at the user mode level.

Continuing onward, to add users to a group the append command is used. A list of users maureen, tim and fred can be added to the group printer like this:

Example

[basecm10->user*]% commit
Successfully committed 2 Users
[basecm10->user]% group use printer
[basecm10->group[printer]]% append members maureen tim fred; commit
[basecm10->group[printer]]% show
Parameter                Value
------------------------ --------------------------
ID                       1002
Revision
Name                     printer
Members                  maureen,tim,fred

To remove users from a group, the removefrom command is used. A list of specific users, for example, tim and fred, can be removed from a group like this:

[basecm10->group[printer]]% removefrom members tim fred; commit
[basecm10->group[printer]]% show
Parameter                Value
------------------------ --------------------------
ID                       1002
Revision
Name                     printer
Members                  maureen

The clear command can also be used to clear members—but it also clears all of the extras from the group:

Example

[basecm10->group[printer]]% clear members
[basecm10->group*[printer*]]% show
Parameter                Value
------------------------ --------------------------
ID                       1002
Revision
Name                     printer
Members

The commit command is intentionally left out at this point in the session in order to illustrate how reversion is used in the next section.

6.2.4 Reverting To The Unmodified State

This corresponds roughly to the functionality of the Revert operation in section 6.1.

This section (6.2.4) continues on from the state of the session at the end of section 6.2.3. There, the state of group printers was cleared so that the extra added members were removed. This state (the state with no group members showing) was however not yet committed.

The refresh command reverts an uncommitted object back to the last committed state.

This happens at the level of the object it is using. For example, the object that is being handled here is the properties of the group object printer. Running revert at a higher level prompt—say, in the group mode level—would revert everything at that level and below. So, in order to affect only the properties of the group object printer, the refresh command is used at the group object printer level prompt. It then reverts the properties of group object printer back to their last committed state, and does not affect other objects:

Example

[basecm10->group*[printer*]]% refresh
[basecm10->group[printer]]% show
Parameter                Value
------------------------ --------------------------
ID                       1002
Revision
Name                     printer
Members                  maureen

Here, the user maureen reappears because she was stored in the last save. Also, because only the group object printer has been committed, the asterisk indicates the existence of other uncommitted, modified objects.

6.2.5 Removing A User

Removing a user using cmsh corresponds roughly to the functionality of the Delete operation in section 6.1.

The remove command removes a user or group. The useful “-d|--data” flag added to the end of the username removes the user’s home directory too. For example, within user mode, the command “remove user maureen -d; commit” removes user maureen, along with her home directory. Continuing the session at the end of section 6.2.4 from where it was left off, as follows, shows this result:

Example

[basecm10->group[printer]]% user use maureen
[basecm10->user[maureen]]% remove -d;  commit
Successfully removed 1 Users
Successfully committed 0 Users
[basecm10->user]% !ls -d /home/*| grep maureen   #no maureen left behind
[basecm10->user]%

6.3 Using An External LDAP Server

Sometimes, an external LDAP server is used to serve the user database. If, instead of just using the database for authentication, the user database is also to be managed, then its LDAP schema must match the BCM LDAP schema.

For RHEL8, the /etc/nslcd.conf, /etc/openldap/ldap.conf, and the certificate files under /cm/local/apps/openldap/etc/certs/ should be copied over. For RHEL9, /etc/sssd/sssd.conf is copied over instead of /etc/nslcd.conf.

Port 636 on ShoreWall running on the head node should be open for LDAP communication over the external network, if external nodes are using it on the external network. In addition, the external nodes and the head node must be able to resolve each other.

By default, BCM runs an LDAP health check using the cmsupport user on the LDAP server. The LDAP health check may need to be modified or disabled by the administrator to prevent spurious health warnings with an external LDAP server:

6.3.0.1 Modifying Or Disabling The ldap Healthcheck

Modifying the ldap health check: To keep a functional ldap health check with an external LDAP server, a permanent external LDAP user name, for example ldapcheck, can be added. This user can then be set as the parameter for BCM’s ldap health check object that is used to monitor the LDAP service. Health checks and health check objects are discussed in Chapter 12.

• If user management is not configured to work on CMDaemon for the external LDAP server, then the user management tool that is used with the external LDAP server should be used by the administrator to create the ldapcheck user instead.

• If user management is still being done via CMDaemon, then an example session for configuring the ldap script object to work with the new external LDAP user is (some prompt text elided):

  Example

  [root@basecm10 ~]# cmsh
  [basecm10]% user
  [basecm10->user]% add ldapcheck; commit
  [basecm10->user[ldapcheck]]% monitoring setup use ldap
  [basecm10->monitoring->setup[ldap]]% show
  Parameter                        Value
  -------------------------------- -----------------------------------------
  ...
  Arguments
  ...
  [basecm10->monitoring->setup[ldap]]% set arguments "ldapcheck"; commit
  [basecm10->monitoring->setup[ldap:ldapcheck]]%

Disabling the ldap health check:

Instead of modifying the ldap health check to work when using an external LDAP server, it can be disabled entirely via Base View or cmsh.

• Base View: the ldap health check is disabled via the navigation path:

  Monitoring > Data Producers > ldap > Edit

• cmsh: the disabled parameter of the ldap health check object is set to yes. The disabled parameter for the ldap health check can be set as follows:

  [root@basecm10 ~]# cmsh -c "monitoring setup use ldap; set disabled yes; commit"

6.3.0.2 Configuring The Cluster To Authenticate Against An External LDAP Server

The cluster can be configured in different ways to authenticate against an external LDAP server.

For smaller clusters, a configuration where LDAP clients on all nodes point directly to the external server is recommended. An easy way to set this up is as follows:

• On the head node:

  • In distributions that are

    derived from the RHEL 8.x series: The files in which the changes need to be made are /etc/nslcd.conf and /etc/openldap/ldap.conf. To implement the changes, the nslcd daemon must then be restarted, for example with systemctl nslcd restart.

    For the RHEL 9.x series, /etc/nslcd.conf is replaced by /etc/sssd/sssd.conf, and it is the sssd daemon that must be restarted, for example with: /bin/systemctl restart sssd.

  • the updateprovisioners command (section 5.2.4) is run to update any other provisioners.

• Then, the configuration files are updated in the software images that the nodes use. If the nodes use the default-image, and if the nodes are based on RHEL8 and derivatives, then the files to update are /cm/images/default-image/etc/nslcd.conf and /cm/images/default/etc/openldap/ldap.conf.

  For RHEL9 and derivatives /cm/images/default-image/etc/sssd/sssd.conf is used instead /cm/images/default-image/etc/nslcd.conf.

  After the configuration change has been made, and the nodes have picked up the new configuration, the regular nodes can then carry out LDAP lookups.

  • Nodes can simply be rebooted to pick up the updated configuration, along with the new software image.

  • Alternatively, to avoid a reboot, the imageupdate command (section 5.6.2) can be run to pick up the new software image from a provisioner.

• The CMDaemon configuration file cmd.conf (Appendix C) has LDAP user management directives. These may need to be adjusted:

  • If another LDAP tool is to be used for external LDAP user management instead of Base View or cmsh, then altering cmd.conf is not required, and BCM’s user management capabilities do nothing in any case.

  • If, however, system users and groups are to be managed via Base View or cmsh, then CMDaemon, too, must refer to the external LDAP server instead of the default LDAP server. This configuration change is actually rare, because the external LDAP database schema is usually an existing schema generated outside of BCM, and so it is very unlikely to match BCM LDAP database schema. To implement the changes:

    • On the node that is to manage the database, which is normally the head node, the LDAPHost, LDAPUser, LDAPPass, and LDAPSearchDN directives in cmd.conf are changed so that they refer to the external LDAP server.

    • CMDaemon is restarted to enable the new configurations.

For larger clusters the preceding solution can cause issues due to traffic, latency, security and connectivity fault tolerance. If such occur, a better solution is to replicate the external LDAP server onto the head node, hence keeping all cluster authentication local, and making the presence of the external LDAP server unnecessary except for updates. This optimization is described in the next section.

6.3.1 External LDAP Server Replication

This section explains how to set up replication for an external LDAP server to an LDAP server that is local to the cluster, if improved LDAP services are needed. Section 6.3.2 then explains how this can then be made to work with a high availability setup.

Typically, the BCM LDAP server is configured as a replica (consumer) to the external LDAP server (provider), with the consumer refreshing its local database at set timed intervals. How the configuration is done varies according to the LDAP server used. The description in this section assumes the provider and consumer both use OpenLDAP.

6.3.1.1 External LDAP Server Replication: Configuring The Provider

It is advisable to back up any configuration files before editing them.

The provider is assumed to be an external LDAP server, and not necessarily part of the BCM cluster. The LDAP TCP ports 389 and 689 may therefore need to be made accessible between the consumer and the provider by changing firewall settings.

If a provider LDAP server is already configured then the following synchronization directives must be in the slapd.conf file to allow replication:

index entryCSN eq
index entryUUID eq
overlay syncprov
syncprov-checkpoint <ops> <minutes>
syncprov-sessionlog <size>

The openldap documentation (http://www.openldap.org/doc/) has more on the meanings of these directives. If the values for <ops>, <minutes>, and <size> are not already set, typical values are:

syncprov-checkpoint 1000 60

and:

syncprov-sessionlog 100

To allow the consumer to read the provider database, the consumer’s access rights need to be configured. In particular, the userPassword attribute must be accessible. LDAP servers are often configured to prevent unauthorized users reading the userPassword attribute.

Read access to all attributes is available to users with replication privileges. So one way to allow the consumer to read the provider database is to bind it to replication requests.

Sometimes a user for replication requests already exists on the provider, or the root account is used for consumer access. If not, a user for replication access must be configured.

A replication user, syncuser with password secret can be added to the provider LDAP with adequate rights using the following syncuser.ldif file:

dn: cn=syncuser,<suffix>
objectClass: person
cn: syncuser
sn: syncuser
userPassword: secret

Here, <suffix> is the suffix set in slapd.conf, which is originally something like dc=example,dc=com. The syncuser is added using:

ldapadd -x -D "cn=root,<suffix>" -W -f syncuser.ldif

This prompts for the root password configured in slapd.conf.

To verify syncuser is in the LDAP database the output of ldapsearch can be checked:

ldapsearch -x "(sn=syncuser)"

To allow access to the userPassword attribute for syncuser the following lines in slapd.conf are changed, from:

 access to attrs=userPassword
   by self write
   by anonymous auth
   by * none

to:

 access to attrs=userPassword
   by self write
   by dn="cn=syncuser,<suffix>" read
   by anonymous auth
   by * none

Provider configuration is now complete. The server can be restarted using

systemctl restart slapd.service

in RHEL8.x and RHEL9.x.

6.3.1.2 External LDAP Server Replication: Configuring The Consumer(s)

The consumer is an LDAP server on a BCM head node. It is configured to replicate with the provider by adding the following lines to /cm/local/apps/openldap/etc/slapd.conf:

syncrepl rid=2
   provider=ldap://external.ldap.server
   type=refreshOnly
   interval=01:00:00:00
   searchbase=<suffix>
   scope=sub
   schemachecking=off
   binddn="cn=syncuser,<suffix>"
   bindmethod=simple
   credentials=secret

Here:

• The rid=2 value is chosen to avoid conflict with the rid=1 setting used during high availability configuration (section 6.3.2).

• The provider argument points to the external LDAP server.

• The interval argument (format DD:HH:MM:SS) specifies the time interval before the consumer refreshes the database from the external LDAP. Here, the database is updated once a day.

• The credentials argument specifies the password chosen for the syncuser on the external LDAP server.

More on the syncrepl directive can be found in the openldap documentation (http://www.openldap.org/doc/).

The configuration files must also be edited so that:

• The <suffix> and rootdn settings in slapd.conf both use the correct <suffix> value, as used by the provider.

• The base value in /etc/ldap.conf uses the correct <suffix> value as used by the provider. This is set on all BCM nodes including the head node(s). If the /etc/ldap.conf file does not exist, then the note here applies.

Finally, before replication takes place, the consumer database is cleared. This can be done by removing all files, except for the DB_CONFIG file, from under the configured database directory, which by default is at /var/lib/ldap/.

The consumer is restarted using systemctl restart slapd. This replicates the provider’s LDAP database, and continues to do so at the specified intervals.

6.3.2 High Availability

6.3.2.1 No External LDAP Server Case

If the LDAP server is not external—that is, if BCM is set to its high availability configuration, with its LDAP servers running internally, on its own head nodes—then by default LDAP services are provided from both the active and the passive node. The high-availability setting ensures that CMDaemon takes care of any changes needed in the slapd.conf file when a head node changes state from passive to active or vice versa, and also ensures that the active head node propagates its LDAP database changes to the passive node via a syncprov/syncrepl configuration in slapd.conf.

6.3.2.2 External LDAP Server With No Replication Locally Case

In the case of an external LDAP server being used, but with no local replication involved, no special high-availability configuration is required. The LDAP client configuration in /etc/ldap.conf simply remains the same for both active and passive head nodes, pointing to the external LDAP server. The file /cm/images/default-image/etc/ldap.conf, in each software image also point to the same external LDAP server. If the /etc/ldap.conf files referred to here in the head and software images do not exist, then the note here applies.

6.3.2.3 External LDAP Server With Replication Locally Case

In the case of an external LDAP server being used, with the external LDAP provider being replicated to the high-availability cluster, it is generally more efficient for the passive node to have its LDAP database propagated and updated only from the active node to the passive node, and not updated from the external LDAP server.

The configuration should therefore be:

• an active head node that updates its consumer LDAP database from the external provider LDAP server

• a passive head node that updates its LDAP database from the active head node’s LDAP database

Although the final configuration is the same, the sequence in which LDAP replication configuration and high availability configuration are done has implications on what configuration files need to be adjusted.

1. For LDAP replication configuration done after high availability configuration, adjusting the new suffix in /cm/local/apps/openldap/etc/slapd.conf and in /etc/ldap.conf on the passive node to the local cluster suffix suffices as a configuration. If the ldap.conf file does not exist, then the note here applies.

2. For high availability configuration done after LDAP replication configuration, the initial LDAP configurations and database are propagated to the passive node. To set replication to the passive node from the active node, and not to the passive node from an external server, the provider option in the syncrepl directive on the passive node must be changed to point to the active node, and the suffix in /cm/local/apps/openldap/etc/slapd.conf on the passive node must be set identical to the head node.

The high availability replication event occurs once only for configuration and database files in BCM’s high availability system. Configuration changes made on the passive node after the event are therefore persistent.

6.4 Tokens And Profiles

Access to Base View and cmsh is based on user certificates (section 2.3.3).

Tokens can be assigned by the administrator to users so that users can carry out some of the operations that the administrator does with Base View or cmsh. Every cluster management operation requires that each user, including the administrator, has the relevant tokens in their profile for the operation.

The tokens for a user are grouped into a profile, and such a profile is typically given a name by the administrator according to the assigned capabilities. For example the profile might be called readmonitoringonly if it allows the user to read the monitoring data only, or it may be called powerhandler if the user is only allowed to carry out power operations. Each profile thus consists of a set of tokens, typically relevant to the name of the profile, and is typically assigned to several users.

The profile is stored as part of the authentication certificate (section 2.3) which is generated for running authentication operations to the cluster manager for the certificate owner.

Profiles are handled with the profiles mode of cmsh, or from the Base View Profiles window, accessible via a navigation path of Identity Management > Profiles

The following preconfigured profiles are available from cmsh:

The last column in the preceding table indicates whether the preconfigured profile is a nonuser profile or not. A cmsh one-liner that indicates this is:

[root@basecm10 ~]# cmsh -c "profile; foreach * (get name; get nonuser)" | paste - -

• Most of the preconfigured profiles are nonuser profiles. Such a profile is used by cluster manager clients, and should never be modified by the cluster administrator.

• The preconfigured profiles that are not nonuser profiles are admin, readonly, and portal. These can be modified by the cluster administrator and used for human users.

The cluster manager services that use the available preconfigured profiles can be viewed in cmsh the list command in profile mode.

The tokens, and other properties of a particular profile can be seen within profile mode as follows:

Example

[basecm10->profile]% show readonly
Parameter    Value
------------ ----------------------------------------------------------------------------------
Name         readonly
Non user     no
Revision
Services     CMDevice CMNet CMPart CMMon CMJob CMAuth CMServ CMUser CMSession CMMain CMGui CMP+
Tokens       GET_DEVICE_TOKEN GET_CATEGORY_TOKEN GET_NODEGROUP_TOKEN POWER_STATUS_TOKEN GET_DE+

For screens that are not wide enough to view the parameter values, the values can also be listed:

Example

[basecm10->profile]% get readonly tokens
GET_DEVICE_TOKEN
GET_CATEGORY_TOKEN
GET_NODEGROUP_TOKEN
...

A profile can be set with cmsh for a user within user mode as follows:

Example

[root@basecm10 ~]# cmsh
[basecm10]% user use conner
[basecm10->user[conner]]% get profile
[basecm10->user[conner]]% set profile readonly; commit

Only a subset of the predefined profiles are available to users. The ones that are made available to users are readonly, admin, and portal.

6.4.1 Modifying Profiles

A profile can be modified by adding or removing appropriate tokens to it. For example, the readonly group by default has access to the burn status and burn log results. Removing the appropriate tokens stops users in that group from seeing these results.

In cmsh the removal can be done from within profile mode as follows:

[root@basecm10 ~]# cmsh
[basecm10]% profile use readonly
[...[readonly]]% removefrom tokens burn_status_token get_burn_log_token
[basecm10->profile*[readonly*]]% commit

Tab-completion after typing in removefrom tokens helps in filling in the tokens that can be removed.

In Base View (figure 6.3), the same removal action can be carried out via the navigation path:
Identity Management > Profiles > readonly > Edit > Tokens

In the resulting display it is convenient to maximize the window. Also convenient is running a search for burn, which will show the relevant tokens:

BURN_STATUS_TOKEN and GET_BURN_LOG_TOKEN

as well as the subgroup they are in, which is the device subgroup.

The ticks can be removed from the BURN_STATUS_TOKEN and GET_BURN_LOG_TOKEN checkboxes, and the changed settings can then be saved.

Figure 6.3: Base View Profile Token Management

6.4.2 Creation Of Custom Certificates With Profiles, For Users Managed By BCM’s Internal LDAP

Custom profiles can be created to include a custom collection of capabilities in cmsh and Base View. Cloning of profiles is also possible from cmsh.

A certificate file, with an associated expiry date, can be created based on a profile. The time of expiry for a certificate cannot be extended after creation. An entirely new certificate is required after expiry of the old one.

The creation of custom certificates using cmsh (here) or Base View (here) is described later on. After creating such a certificate, the openssl utility can be used to examine its structure and properties. In the following example most of the output has been elided in order to highlight the expiry date (30 days from the time of generation), the common name (democert), the key size (2048), profile properties (readonly), and system login name (peter), for such a certificate:

[root@basecm10]# openssl x509 -in peterfile.pem -text -noout                                                                                                       Certificate:
    Data:
        ...
            Not After : Sep 21 13:18:27 2014 GMT
        Subject: ... CN=democert
                Public-Key: (2048 bit)
        ...
        X509v3 extensions:
            1.3.6.1.4.4324.1:
                ..readonly
            1.3.6.1.4.4324.2:
                ..peter
[root@basecm10]#

However, using the openssl utility for managing certificates is rather inconvenient. BCM provides more convenient ways to do so, as described next.

6.4.2.1 Listing Certificates

All certificates that have been generated by the cluster are noted by CMDaemon.

Listing certificates with cmsh: Within the cert mode of cmsh, the listcertificates command lists all cluster certificates and their properties:

[root@basecm10 ~]# cmsh
[basecm10]% cert
[basecm10-> cert]% listcertificates
Serial Revoked  Time left    Profile          System log in    Name
------ -------- ------------ ---------------- ---------------- ------------------------------
1      No       5214w 1d     admin            root             Administrator
2      No       5214w 1d     cmhealth                          CMHealth
3      No       5214w 1d     cmhealth                          CMHealth
4      No       5214w 1d     power                             Slurm
5      No       5214w 1d     bootstrap                         CertificateRequest
6      No       5214w 1d     cmpam                             CMPam
7      No       5214w 1d     portal                            WebPortal
...

Listing certificates with Base View: The Base View equivalent for listing certificates is via the navigation path Identity Management > Certificates (figure 6.4):

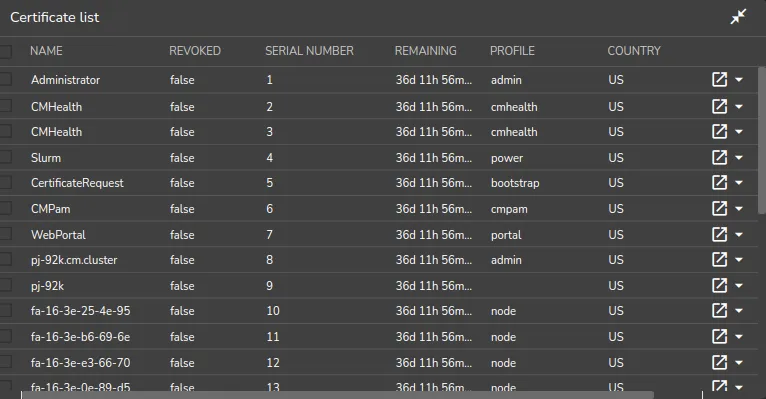

Figure 6.4: Base View Certificates List Window

6.4.2.2 Node Certificates

In the certificates list, node certificates that are generated by the node-installer (section 5.4.1) for each node for CMDaemon use are listed. These are entries that look like:

[basecm10-> cert]% listcertificates
Serial Revoked  Time left    Profile          System log in    Name
------ -------- ------------ ---------------- ---------------- ------------------------------
...
10     No       5214w 1d     node                              fa-16-3e-74-24-dc
11     No       5214w 1d     node                              fa-16-3e-57-2c-8e
12     No       5214w 1d     node                              fa-16-3e-b6-c7-4a
13     No       5214w 1d     node                              fa-16-3e-bd-cd-05
14     No       5214w 1d     node                              fa-16-3e-0d-ab-ea
...

6.4.2.3 Creating A Custom Certificate

Custom certificates are also listed in the certificates list.

Unlike node certificates, which are normally system-generated, custom certificates are typically generated by a user with the appropriate tokens in their profile, such as root with the admin profile. Such a user can create a certificate containing a specified profile, as discussed in the next section, by using:

• cmsh: with the createcertificate operation from within cert mode

• Base View: via the navigation path Identity Management > Users > Edit > Profile to set the Profile.

Creating a new certificate for cmsh users: Creating a new certificate in cmsh is done from cert mode using the createcertificate command, which has the following help text:

[basecm10->cert]% help createcertificate
Name:
      createcertificate - Create a new certificate
Usage:
      createcertificate <key-length> <common-name> <organization> <organizational-unit> <loca\
lity> <state> <country> <profile> <sys-login> <days> <key-file> <cert-file>
Arguments:
      key-file
            Path to key file that will be generated
      cert-file
            Path to pem file that will be generated

Accordingly, as an example, a certificate file with a read-only profile set to expire in 30 days, to be run with the privileges of user peter, can be created with:

Example

[basecm10->cert]% createcertificate 2048 democert a b c d ef readonly peter 30 /home/peter\
/peterfile.key /home/peter/peterfile.pem
Thu Jan  5 15:13:01 2023 [notice] basecm10: New certificate request with ID: 16
[basecm10->cert]% createcertificate 2048 democert a b c d ef readonly peter 30 /home/peter\
/peterfile.key /home/peter/peterfile.pem
Certificate key written to file: /home/peter/peterfile.key
Certificate pem written to file: /home/peter/peterfile.pem

The certificate list would show it as something like:

[basecm10-> cert]% listcertificates
Serial Revoked  Time left    Profile          System log in    Name
------ -------- ------------ ---------------- ---------------- ------------------------------
...
23     No       4w 1d        readonly         peter            democert

Setting the ownership of the new custom certificate: The certificates are owned by the owner generating them, so they are root-owned if root was running cmsh. This means that user peter cannot use them until their ownership is changed to user peter:

Example

[root@basecm10 ~]# cd /home/peter
[root@basecm10 peter]# ls -l peterfile.*
-rw------- 1 root root 1704 Aug 22 06:18 peterfile.key
-rw------- 1 root root 1107 Aug 22 06:18 peterfile.pem
[root@basecm10 peter]# chown peter:peter peterfile.*

Other users must have the certificate ownership changed to their own user names.

Associating users with paths to the new custom certificate: Users associated with such a certificate can then carry out cmdaemon tasks that have a read-only profile, and CMDaemon sees such users as being user peter. Two ways of being associated with the certificate are:

1. The paths to the pem and key files can be set with the -i and -k options respectively of cmsh. For example, in the home directory of peter, for the files generated in the preceding session, cmsh can be launched with these keys with:

   [peter@basecm10 ~] cmsh -i peterfile.pem -k peterfile.key
   [basecm10]% quit

2. If the -i and -k options are not used, then cmsh searches for default keys. The default keys for cmsh are under these paths under $HOME, in the following order of priority:

3. .cm/admin.{pem,key}

4. .cm/cert.{pem,key}

Creating a custom certificate for Base View users: As in the case of cmsh, a Base View user having a sufficiently privileged tokens profile, such as the admin profile, can create a certificate and key file for themselves or another user. This is done by associating a value for the Profile from the Add or Edit dialog for the user (figure 6.2).

The certificate files, cert.pem and cert.key, are then automatically placed in the following paths and names, under $HOME for the user:

• .cm/admin.{pem,key}

• .cm/cert.{pem,key}

Users that authenticate with their user name and password when running Base View use this certificate for their Base View clients, and are then restricted to the set of tasks allowed by their associated profile.

6.4.3 Creation Of Custom Certificates With Profiles, For Users Managed By An External LDAP

The use of an external LDAP server instead of BCM’s for user management is described in section 6.3. Generating a certificate for an external LDAP user must be done explicitly in BCM. This can be carried out with the external-user-cert script, which is provided with the cluster-tools package. The package is installed by default with BCM.

Running the external-user-cert script embeds the user and profile in the certificate during certificate generation. The script has the following usage:

 external-user-cert -h
Usage: for a single profile: external-user-cert <profile> <user> [<user> ... ]
                             --home=<home-prefix> [-g <group>] [-o]
       for several profiles: external-user-cert --home=<home-prefix>
                             --file=<inputfile> [-g <group>]
                             where lines of <inputfile> have the syntax
                             <profile> <user> [<user> ... ]
Options:
  -h, --help        show this help message and exit
  --file=FILE       input FILE
  --home=HOME_PATH  path for home directories, default /home/
  -g GROUP          name of primary group, e.g. wheel
  -o                overwrite existing certificates

Here,

• <profile> should be a valid profile

• <user> should be an existing user

• is usually /home

• <group> is a group, such as wheel

• <inputfile> is a file with each line having the syntax

  <profile> <user> [<user> ... ]

One or more external LDAP user certificates can be created by the script. The certificate files generated are cert.pem and cert.key. They are stored in the home directory of the user.

For example, a user spongebob that is managed on the external server, can have a read-only certificate generated with:

# external-user-cert readonly spongebob --home=/home

If the home directory of spongebob is /home/spongebob, then the key files that are generated are /home/spongebob/.cm/cert.key and /home/spongebob/.cm/cert.pem.

Assuming no other keys are used by cmsh, a cmsh session that runs as user spongebob with readonly privileges can now be launched:

$ module load cmsh
$ cmsh

If other keys do exist, then they may be used according to the logic explained in item 2 here.

6.4.4 Logging The Actions Of CMDaemon Users

The following directives allow control over the logging of CMDaemon user actions.

• CMDaemonAudit: Enables logging

• CMDaemonAuditorFile: Sets log location

• DisableAuditorForProfiles: Disables logging for particular profiles

Details on these directives are given in Appendix C.

6.4.5 Creation Of Certificates For Nodes With cm-component-certificate

The cm-component-certificate utility can be used to generate or update SSL certificates for components of services. The cluster administrator is not expected to use this utility because the cluster manager manages the certificates without bothering the administrator about it during normal operations. If the utilty is to be used, then it should be used with caution, to avoid failure in the components that use these certificates.

One of the SSL client components for which this utility works is LDAP.

Options include setting a new CA and creating a new certificate or key for nodes.

Some examples of how it can be used are:

6.4.5.1 LDAP PEM And Key Creation For A Standalone Node

A standalone node (here) is a node that is not provisioned from the head node, but is configured to boot from its own drive. A standalone node <mynode> may have a PEM and key certificate created on the head node with:

Example

[root@basecm10 ~]# cm-component-certificate --generate=<mynode>
Certificate saved to ./ldap.{pem,key}
Done.

The certificates are saved to the working directory. They should be copied over manually to the location of the LDAP certificates on mynode. The nslcd daemon on mynode for RHEL8 (or the sssd daemon for RHEL9) should then be restarted.

6.4.5.2 LDAP PEM And Key Creation For A Regular Node

If a node node001 that is provisioned has a lost or corrupted LDAP key or certificate, then replacements for these can be made with:

Example

[root@basecm10 ~]# cm-component-certificate -n node001
Sending request to recreate certificates for 1 node to cmd on basecm10
[(38654705666, 1)] 1 0 0
1 certificates were successfully recreated
Done.

The ldap.{pem,key} files are automatically placed on node001, by default at the location specified by the CMDaemon LDAPCertificate and LDAPPrivateKey directives (here).

The files /cm/node-installer/certificates/<node001-mac>/ldap.{pem,key} should be removed on the head node.

The nslcd, sssd, and LDAP daemons should be restarted on node001, or more simply it can be rebooted if it is not in use. The reboot replaces the ldap.{pem,key} files on the head node with the newly-generated ones.

6.4.5.3 LDAP CA Certificate Creation

If a new LDAP CA certificate is needed, then a replacement can be made with:

[root@basecm10 ~]# cm-component-certificate --ca
Sending request to recreate the CA to cmd on basecm10
Done.

The following steps must be done manually:

• If there is another head node, then the CA files, by default ca.pem and ca.key under /cm/local/apps/openldap/etc/certs/, should be copied over the other head node.

• The key/PEM certificate files on all the nodes should be recreated using:
  cm-component-certificate --allnodes

• The old component PEM/key files for each regular node, ldap.pem and ldap.key, under the node-installer directory of the head node(s), should be removed. These certificates are kept under a directory named for the MAC address of the regular node, and follow the pattern:
  /cm/node-installer/certificates/ <MAC address>/<LDAP.{pem,key}>

• The node CA files, by default ca.pem and ca.key under /cm/local/apps/openldap/etc/certs/ should be copied to the nodes:

  Example

  [root@basecm10 ~]# export ldapcertdir="/cm/local/apps/openldap/etc/certs/"
  for i in {01..12}
    do
      scp $ldapcertdir/ca.pem node0$i:/$ldapcertdir
      scp $ldapcertdir/ca.key node0$i:/$ldapcertdir
    done

• The nslcd, sssd and LDAP daemons should be restarted on all nodes

• CMDaemon should be restarted on the active head node
