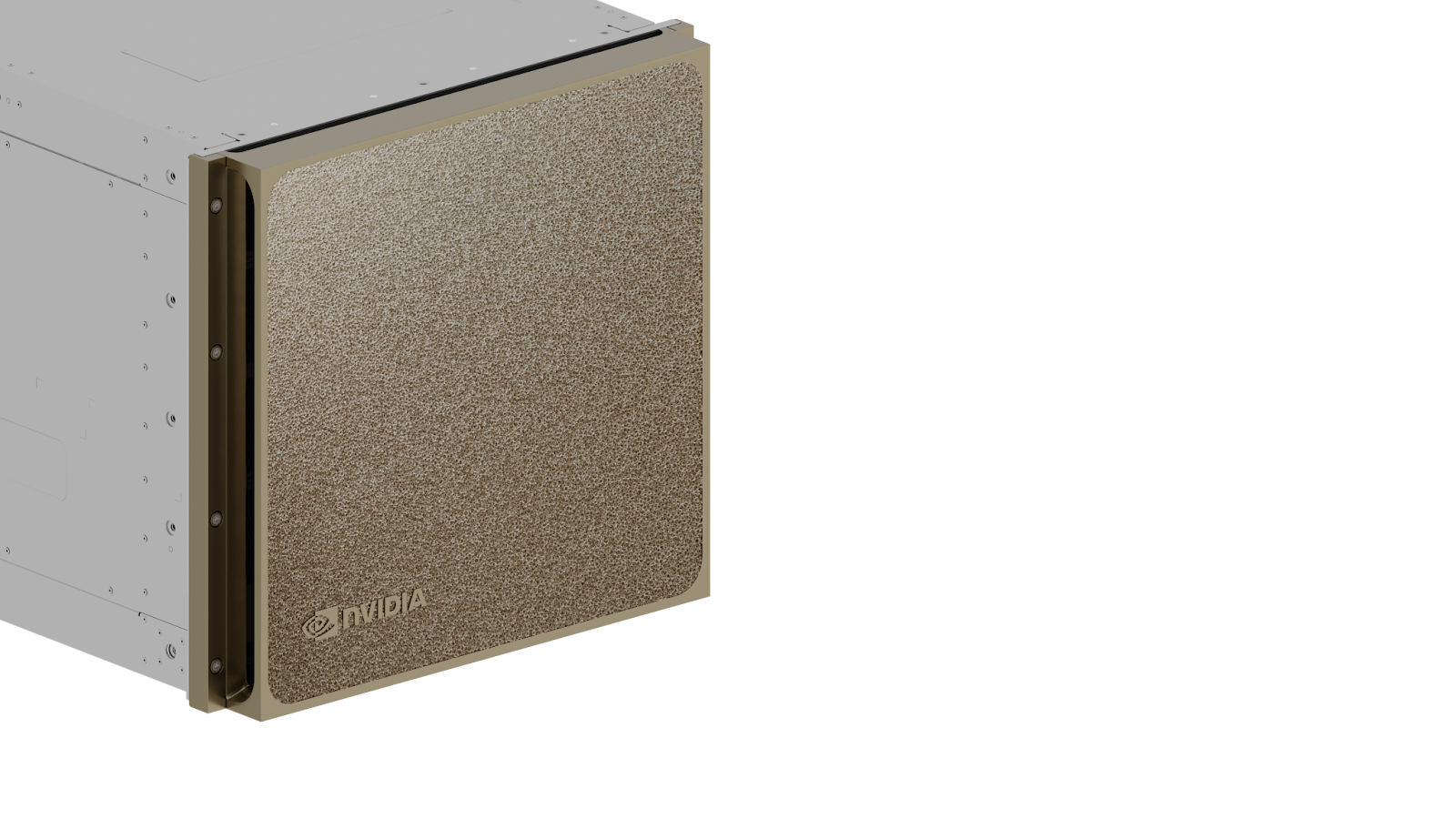

Removing and Attaching the Bezel

Bezel Removal

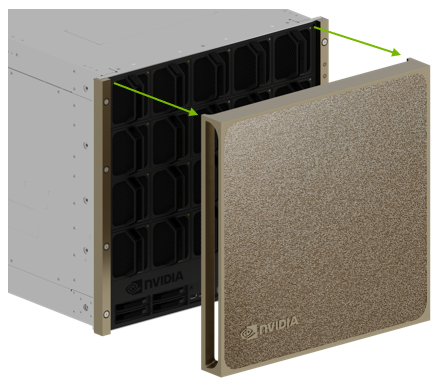

1. Grab the bezel on both sides by the side handles.



2. Pull the bezel away from the system with a horizontal motion to release it from the magnets that keep it in place.



Bezel Installation

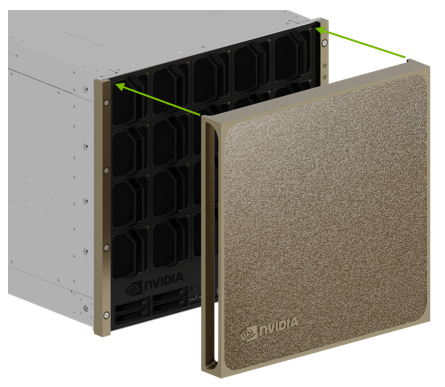

1. Align the pins on the bezel to the notches on the system fascia.

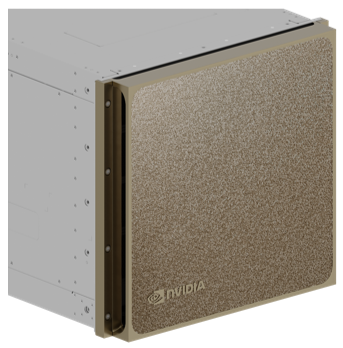

2. Attach the bezel to the system, ensuring that the pins fit in the notches and that the magnetic latch holds the bezel securely in place.
