DPI Compiler

NVIDIA DOCA DPI Compiler

This document describes DPI compiler architecture, supported signatures format, compiler usage, etc.

DPI compiler is used to compile a signature file which will be loaded to the BlueField RegEx HW accelerator using a dedicated API (doca_dpi_load_signatures(cdo_file)). The output for the DPI compiler is a JSON-based CDO file.

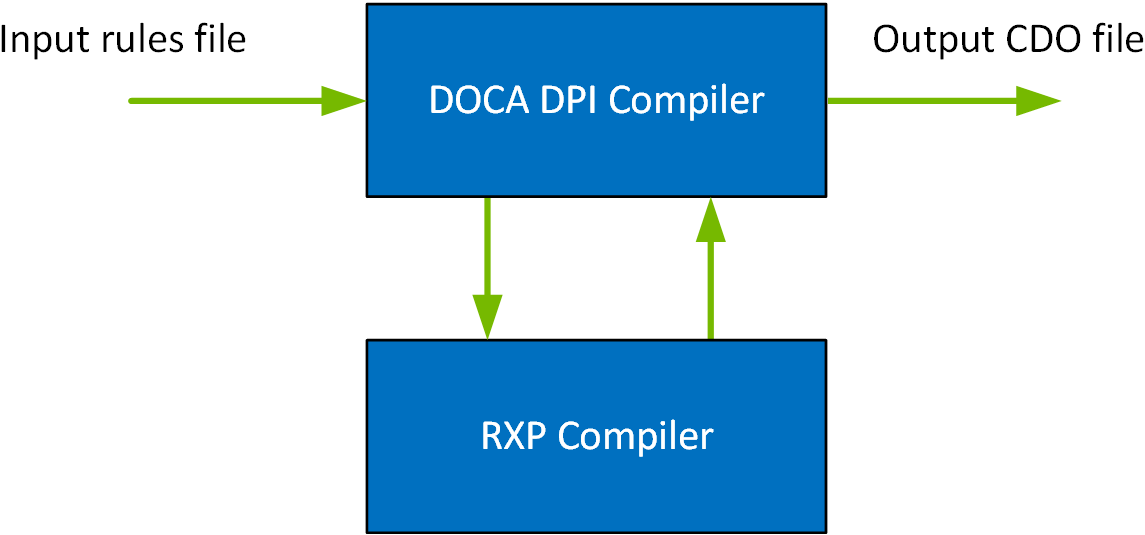

This diagram contains the following elements:

  • Input rules file – file containing list of rules

    Supported formats:

    • Suricata (limited support—see section "Syntax Example" for more information)
    • Third party signature files (for more information, please contact NVIDIA Support at: networking-support@nvidia.com).
  • RXP compiler – regular expression compiler which is part of the DPI compiler
  • Output CDO file – compiled signature output from compiler. File containing list of rules to be loaded to the RegEx engine.

The following is a Suricata syntax example:

Copy
Copied!


alert udp any any -> any 53 (msg:"ET DOS DNS BIND 9 Dynamic Update DoS attempt"; content:"|00 00 06|"; offset:8; content:"|c0 0c 00 ff|"; sid:2009701; )


Suricata rules are made of three parts – action, header, and options. Take the following rule for example:

Copy
Copied!


drop tcp 1.1.1.1/11 8080 -> 2.2.2.2/22 9090 (msg:"ET TROJAN Likely Bot Nick in IRC (USA +..)"; flow: to_server; content:"NICK "; nocase; pcre:"/NICK .*USA.*[0-9]{3,}/iI"; sid:2008124;)


The following table breaks down the rule syntax:

Part Rule Element
Action drop
Header tcp any any -> any any 1.1.1.1/11 8080 -> 2.2.2.2/22 9090
Options

(msg:”ET TROJAN Likely Bot Nick in IRC (USA +..)”; flow: to_server; content:”NICK “; nocase; pcre:”/NICK .*USA.*[0-9]{3,}/i”; sid:2008124;)

Detailed explanation can be found in Suricata's official documentation.

DPI compiler has limited support for Suricata format. Field support is detailed in the following table:

Part Keyword Support
Action Any Accept any value. The application decides what to do with each action value.
Header Protocol tcp/udp
Header Port Single port number or range (ex. 100:150)
Header Address Single IP address and netmask (ex. 1.2.3.4/5)
Header Direction
  • -> - unidirectional: client-to-server OR server-to-client (default is client-to-server)
  • <> - bidirectional: client to server and server to client
Option msg Any string – use to identify the rule in case of match on the DPI
Option http. (must come before content option) uri, cookie, user_agent, host, server, referer, content_type, location, request_body, response_body
Option http_ (must come after content option) uri, cookie, user_agent, host, referer, content_type, request_body, response_body
Option content pattern

Hexadecimal conversion is not supported (no support for "|#HEX|" conversions).

Negation (!) for content is not supported.

Option content modifiers

nocase, startswith, endswith, offset

Negation (!) for content is not supported

Option PCRE modifiers
  • i – PCRE is case insensitive
  • s – PCRE checks new line characters
  • A – A pattern must match at the beginning of a buffer
  • I – Makes PCRE match on the HTTP-raw-uri
  • C – Makes PCRE match on the HTTP-cookie
  • V – Makes PCRE match on the HTTP-User-Agent
  • W – Makes PCRE match on the HTTP-Host
  • P – Makes PCRE match on the HTTP-Content for CTS
  • Q – Makes PCRE match on the HTTP-Content for STC
Option ip_proto Supported values: 1 (ICMP), 6 (TCP), 17 (UDP)
Option flow from_client, to_client, from_server, to_server
Option tls. sni – server name indication
Option dns. query
Option sid Any number

Note:

If content or PCRE are provided without a field (for example http_uri), content/PCRE will be search on tcp/udp payload according to the header protocol.


Prerequisites:

Package Instructions
json-c library For RHEL, run:
Copy
Copied!


yum install json-c


For Debian, run:
Copy
Copied!


apt install libjson-c


RXPC engine Packaged in the BlueField software

To execute the compiler, run the following command:

Copy
Copied!


./doca_dpi_compiler -i [in_rules] -o [out_rules.cdo] -f [format] -r [rxpc_path]


For example:

Copy
Copied!


./doca_dpi_compiler -i ./suricata_rules.rules -o compiler_output.cdo -f suricata -r /usr/bin/rxpc


Flags:

Flag Description
-h / --help Print all information about the available options
-i / --input Path to input files
-o / --output Path to output file
-f / --format Signatures format
-r / --rxp Path to RXP compiler
-p / --print_rules Add the RegEx rules being passed to the RXPC to the CDO as well (useful for debug)
-v / --version Print the current DOCA version in use
