East-west Overlay Encryption

NVIDIA DOCA East-West Overlay Encryption Reference Application

This document describes IPsec based strongSwan solution.

Important note for NVIDIA® BlueField®-2 DPUs only: If your target application utilizes 100Gb/s or higher bandwidth, where a substantial part of the bandwidth is allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Product Release Notes to learn about a potential bandwidth limitation. To access the relevant product release notes, please contact your NVIDIA sales representative.

1. Introduction

IPsec is used to set up encrypted connections between different devices. It helps keep data sent over public networks secure. IPsec is often used to set up VPNs, and it works by encrypting IP packets as well as authenticating the packets' originator. IPsec contains the following main modules:

  • Key exchange - a key is a string of random characters that can be used for encryption and decryption of messages. IPsec sets up keys with a key exchange between the connected devices, so that each device can decrypt the other device's messages.
  • Authentication - IPsec provides authentication for each packet which ensures that they come from a trusted source.
  • Encryption - IPsec encrypts the payloads within each packet and possibly, based on the transport mode, the packet's IP header.
  • Decryption - at the other end of the communication, packets are decrypted by the IPsec supported node.

IPsec supports two types of headers:

  • Authentication header (AH) - AH protocol ensures that packets are from a trusted source. AH does not provide any encryption.
  • Encapsulating security protocol (ESP) - ESP encrypts the payload for each packet as well as the IP header depending on the transport mode. ESP adds its own header and a trailer to each data packet.

IPsec support two types of transport mode:

  • IPsec tunnel mode - used between two network nodes, each acting as tunnel initiator/terminator on a public network. In this mode, the original IP header and payload are both encrypted. Since the IP header is encrypted, an IP tunnel is added for network forwarding. At each end of the tunnel, the routers decrypt the IP headers to route the packets to their destinations.
  • Transport mode - the payload of each packet is encrypted, but the original IP header is not. Intermediary network nodes are therefore able to view the destination of each packet and route the packet, unless a separate tunneling protocol is used.

strongSwan is an open-source IPsec-based VPN solution. For more information, please refer to strongSwan documentation.

2. System Design

IPsec full offload offloads both IPsec crypto (encrypt/decrypt) and IPsec encapsulation to the hardware. IPsec full offload is configured on the Arm via the uplink netdev.

The deployment model allows the IPsec offload to be transparent to the host with the benefits of securing legacy workloads (no dependency on host SW stack) and to zero CPU utilization on host.

IPsec full offload configuration works with and is transparent to OVS offload. This means all packets from OVS offload are encrypted by IPsec rules.

The following figure illustrates the interaction between IPsec full offload and OVS VXLAN offload.


Note: OVS offload and IPsec IPv6 do not work together.

3. Application Architecture


  1. Configure strongSwan IPsec offload using swanctl.conf. configuration file.
  2. Traffic is sent from the host through BlueField-2.
  3. Using OVS, the packets are encapsulated on ingress using tunnel protocols (VXLAN for example) to match IPsec configuration by strongSwan.
  4. Set by strongSwan configuration file, traffic will be encrypted using the hardware offload.
  5. Egress flow is decryption first, decapsulation of the tunnel header and forward to the relevant physical function.

4. Configuration Flow

The following subsections provide information on configuring IPsec full offload in general and on using IPsec with strongSwan specifically.

If you are working directly with the ip xfrm tool, you must use /opt/mellanox/iproute2/sbin/ip to benefit from IPsec full offload support.

Explicitly enable IPsec full offload on the Arm cores before full offload rule is configured.

  1. Delete the two SFs created on the BlueField device upon boot (one per port if the port is in switchdev mode). Instructions for deleting SFs may be found at Scalable Function Setup Guide.
  2. Move the SR-IOV mode to legacy. Run on Arm:
    Copy
    Copied!



    devlink dev eswitch set pci/0000:03:00.0 mode legacy
  3. Set the IPsec to full offload. Run on Arm:
    Copy
    Copied!



    echo full > /sys/class/net/p0/compat/devlink/ipsec_mode
  4. Enable firmware steering. Run on Arm:
    Copy
    Copied!



    echo dmfs > /sys/bus/pci/devices/0000\:03\:00.0/net/p0/compat/devlink/steering_mode
  5. Enable the switchdev SR-IOV mode. Run on Arm:
    Copy
    Copied!



    devlink dev eswitch set pci/0000:03:00.0 mode switchdev
  6. To enable IPsec full offload on the second port, please perform steps 2-5 on pci/0000:03:00.1.
Note:

Make sure the MTU of the Arm PF used by IPsec is at least 26 bytes larger than the Arm VXLAN-REP MTU.

Note:

BlueField DPU supports configuring IPsec rules using strongSwan 5.9.0bf (yet to be upstreamed) which supports new fields in swanctl.conf file.

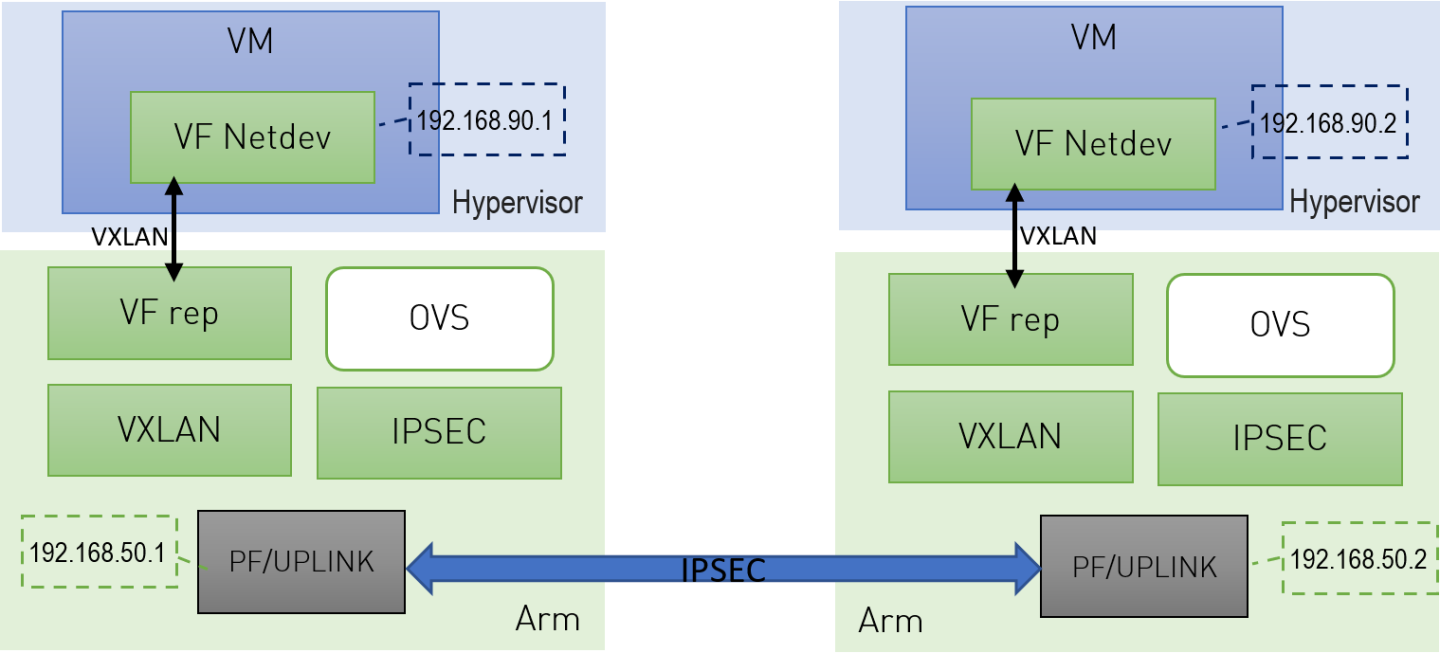

The following figure illustrates an example with two BlueField DPUs, Left and Right, operating with a secured VXLAN channel.


Support for strongSwan IPsec full HW offload requires using VXLAN together with IPSec as shown here.

  1. Follow the procedure described above.
  2. Configure VXLAN tunnel.
    1. Consider p0 to be the local VXLAN tunnel interface.
    2. Build a VXLAN tunnel over OVS arm-ovs. Run:
      Copy
      Copied!



      ovs-vsctl add-port arm-ovs vxlan11 -- set interface vxlan11 type=vxlan
options:local_ip=192.168.50.1 options:remote_ip=192.168.50.2 options:key=100
options:dst_port=4789
    3. Connect pf0hpf to the same arm-ovs.
    4. Run traffic over pf0 on x86 (the one connected to pf0hpf) to the host the DPU connected.
    5. Configure the MTU of the PF used by VXLAN to at least 50 bytes larger than VXLAN-REP MTU.
  3. Query OVS VXLAN hw_offload rules.
    1. To query OVS VXLAN hw_offload rules, run:
      Copy
      Copied!



      ovs-appctl dpctl/dump-flows type=offloaded
in_port(2),eth(src=ae:fd:f3:31:7e:7b,dst=a2:fb:09:85:84:48),eth_type(0x0800), packets:1, bytes:98, used:0.900s, actions:set(tunnel(tun_id=0x64,src=192.168.50.1,dst=192.168.50.2,tp_dst=4789,flags(key))),3
tunnel(tun_id=0x64,src=192.168.50.1,dst=192.168.50.2,tp_dst=4789,flags(+key)),in_port(3),eth(src=a2:fb:09:85:84:48,dst=ae:fd:f3:31:7e:7b),eth_type(0x0800), packets:75, bytes:7350, used:0.900s, actions:2
    2. For the host PF, in order for VXLAN to work properly with the default 1500 MTU, disable host PF as the port owner from Arm. Run:
      Copy
      Copied!



      $ mlxprivhost -d /dev/mst/mt41682_pciconf0 --disable_port_owner r

      The MTU of the end points (pf0hpf in the example above) of the VXLAN tunnel must be smaller than the MTU of the tunnel interfaces (p0) to account for the size of the VXLAN headers. For example, you can set the MTU of P0 to 2000.

      1. Make sure the MTU of the PF used by VXLAN is at least 50 bytes larger than VXLAN-REP MTU.
      2. Make sure the MTU of the Arm PF used by IPsec is at least 26 bytes larger than the Arm VXLAN-REP MTU.
      3. Enable TC offloading. Run:
        Copy
        Copied!



        ethtool -K <PF> hw-tc-offload on
        Note:

        Do not add the PF itself using ovs-vsctl add-port to the OVS.

4.1. Setting IPsec Full Offload Using strongSwan

strongSwan configures IPSec HW full offload using a new value added to its configuration file swanctl.conf. The file should be placed under sysconfdir which by default can be found at /etc/swanctl/swanctl.conf.

The terms Left (BFL) and Right (BFR) are used to identify the two nodes that communicate corresponding with the following figure:


In this example, 192.168.50.1 is used for the left PF uplink and 192.168.50.2 for the right PF uplink.

Copy
Copied!



connections {
   BFL-BFR {
      local_addrs  = 192.168.50.1
      remote_addrs = 192.168.50.2

      local {
        auth = psk
        id = host1
      }
      remote {
        auth = psk
        id = host2
      }

      children {
         bf {
            local_ts = 192.168.50.1/24 [udp/4789]
            remote_ts = 192.168.50.2/24 [udp/4789]
            esp_proposals = aes128gcm128-x25519
            mode = transport
            policies_fwd_out = yes
            hw_offload = full
         }
      }
      version = 2
      mobike = no
      reauth_time = 0
      proposals = aes128-sha256-x25519
   }
}

secrets {
   ike-BF {
      id-host1 = host1
      id-host2 = host2
      secret = 0sv+NkxY9LLZvwj4qCC2o/gGrWDF2d21jL
   }
   }

BFB installation will place two example swanctl.conf files for both Left and Right nodes (BFL.swanctl.conf and BFR.swanctl.conf respectively) in the strongSwan conf.d directory. Please move one of them manually to the other BlueField-2 machine and edit it according to your configuration.

Note that:

  • "hw_offload = full" is responsible for configuring IPSec HW full offload
  • Full offload support has been added to the existing hw_offload field and preserves backward compatibility.

    For your reference:

    Value Description
    no Do not configure HW offload, fail if not supported
    yes Configure crypto HW offload if supported by the kernel, fail if not supportedExisting
    auto Configure crypto HW offload if supported by the kernel, do not failExisting
    full Configure full HW offload if supported by the kernel, fail if not supportedNew

  • Whenever the value of hw_offload is changed, strongSwan configuration must be reloaded.
  • Switching to crypto HW offload requires setting up devlink/ipsec_mode to none beforehand.
  • Switching to full HW offload requires setting up devlink/ipsec_mode to full beforehand.
  • [udp/4789] is crucial for instructing strongSwan to IPSec only VXLAN communication.
  • Full HW offload can only be done on what is streamed over VXLAN.

Mind the following limitations:

Fields Limitation
reauth_time Ignored if set
rekey_time Do not use. Ignored if set.
rekey_bytes Do not use. Not supported and will fail if it is set.
rekey_packets Use for rekeying

5. Running Application on BlueField

Please refer to the DOCA Installation Guide for details on how to install BlueField related software.

5.1. Running strongSwan Example

Notes:

  • IPsec daemons are started by systemd strongswan-starter.service
  • Use systemctl [start | stop | restart] to control IPsec daemons through strongswan-starter.service. For example, to restart, the command systemctl restart strongswan-starter.service will effectively do the same thing as ipsec restart. Do not use the ipsec script to restart/stop/start.
  • If you are using the ipsec script, then, in order to restart or start the daemons, openssl.cnf.orig must be copied to openssl.cnf before performing ipsec restart or ipsec start. Then openssl.cnf.mlnx can be copied to openssl.cnf after restart or start. Failing to do so can result in errors since openssl.cnf.mlnx allows IPsec PK and RNG hardware offload via the OpenSSL plugin.
    • On Ubuntu/Debian/Yocto, openssl.cnf* can be found under /etc/ssl/
    • On CentOS, openssl.cnf* can be found under /etc/pki/tls/
  • The strongSwan package installs openssl.cnf config files to enable hardware offload of PK and RNG operations via the OpenSSL plugin
  • The OpenSSL dynamic engine is used to carry out the offload to hardware. OpenSSL dynamic engine ID is "pka".

Procedure:


  1. Perform the following on Left and Right devices corresponding with the figure above:
    Copy
    Copied!



    # systemctl start strongswan-starter.service
# swanctl --load-all

    The following should appear:

    Copy
    Copied!



    Starting strongSwan 5.9.0bf IPsec [starter]...
no files found matching '/etc/ipsec.d/*.conf'
# deprecated keyword 'plutodebug' in config setup
# deprecated keyword 'virtual_private' in config setup
loaded ike secret 'ike-BF'
no authorities found, 0 unloaded
no pools found, 0 unloaded
loaded connection 'BFL-BFR'
successfully loaded 1 connections, 0 unloaded

  2. Perform the actual connection on one side only (client, Left in this case).
    Copy
    Copied!



    # swanctl -i --child bf

    The following should appear:

    Copy
    Copied!



    [IKE] initiating IKE_SA BFL-BFR[1] to 192.168.50.2
[ENC] generating IKE_SA_INIT request 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) N(FRAG_SUP) N(HASH_ALG) N(REDIR_SUP) ]
[NET] sending packet: from 192.168.50.1[500] to 192.168.50.2[500] (240 bytes)
[NET] received packet: from 192.168.50.2[500] to 192.168.50.1[500] (273 bytes)
[ENC] parsed IKE_SA_INIT response 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) CERTREQ N(FRAG_SUP) N(HASH_ALG) N(CHDLESS_SUP) N(MULT_AUTH) ]
[CFG] selected proposal: IKE:AES_CBC_128/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519
[IKE] received 1 cert requests for an unknown ca
[IKE] authentication of 'host1' (myself) with pre-shared key
[IKE] establishing CHILD_SA bf{1}
[ENC] generating IKE_AUTH request 1 [ IDi N(INIT_CONTACT) IDr AUTH N(USE_TRANSP) SA TSi TSr N(MULT_AUTH) N(EAP_ONLY) N(MSG_ID_SYN_SUP) ]
[NET] sending packet: from 192.168.50.1[500] to 192.168.50.2[500] (256 bytes)
[NET] received packet: from 192.168.50.2[500] to 192.168.50.1[500] (224 bytes)
[ENC] parsed IKE_AUTH response 1 [ IDr AUTH N(USE_TRANSP) SA TSi TSr N(AUTH_LFT) ]
[IKE] authentication of 'host2' with pre-shared key successful
[IKE] IKE_SA BFL-BFR[1] established between 192.168.50.1[host1]...192.168.50.2[host2]
[IKE] scheduling reauthentication in 10027s
[IKE] maximum IKE_SA lifetime 11107s
[CFG] selected proposal: ESP:AES_GCM_16_128/NO_EXT_SEQ
[IKE] CHILD_SA bf{1} established with SPIs ce543905_i c60e98a2_o and TS 192.168.50.1/32 === 192.168.50.2/32
initiate completed successfully

    You may now send encrypted data over the HOST VF interface (192.168.70.[1|2]) configured for VXLAN.

5.2. Building strongSwan

Note:

Perform the following only if you want to build your own BFB and would like to rebuild strongSwan.

  1. strongSwan IPsec full version can be found here (tag: 5.9.0bf).
  2. Install dependencies mentioned here. libgmp-dev is missing from that list, so make sure to install that as well.
  3. Git clone https://github.com/Mellanox/strongswan.git.
  4. Git checkout BF-5.9.0.
  5. Run autogen.sh within the strongSwan repo.
  6. Run the following:
    Copy
    Copied!



    configure --enable-openssl --disable-random --prefix=/usr/local --sysconfdir=/etc --enable-systemd
make
make install
    Note:
    • --enable-systemd enables the systemd service for strongSwan present inside the GitHub repo (see step 3) at init/systemd-starter/strongswan-starter.service.in. This service file is meant for Ubuntu, Debian and Yocto distributions. For CentOS, the contents of the above file must be replaced by the one present in systemd-conf/strongswan-starter.service.in.centos (inside the GitHub repo) before running the configure script above.
    • When building strongSwan on your own, the openssl.cnf.mlnx file, required for PK and RNG HW offload via OpenSSL plugin, is not installed. It must be copied over manually from GitHub repo inside the openssl-conf directory. See section "Running Strongswan Example" for important notes.
    • The openssl.cnf.mlnx file references PKA engine shared objects. libpka (version 1.3 or later) and openssl (version 1.1.1) must be installed for this to work.

5.3. Reverting IPsec Configuration

To destroy IPsec configuration, run the following commands:

Copy
Copied!



sudo ip x s f                                       // Disable IPsec flows
sudo ip x p f                                       // Disable IPsec flows
sudo systemctl start NetworkManager
sudo ip addr flush dev <port_name>                  // <port_name> = uplinks = p<0|1>
sudo rm -f /etc/openvswitch/conf.db


For Ubuntu/Debian:

Copy
Copied!



sudo /etc/init.d/openvswitch-switch restart


For CentOS/RHEL:

Copy
Copied!



systemctl restart openvswitch;
systemctl enable openvswitch;
