Telemetry Client

NVIDIA DOCA Telemetry Client Reference Application Guide

This document provides a DOCA Telemetry Client implementation on top of NVIDIA® BlueField® DPU.

This document describes DOCA telemetry API example. For general information, refer to NVIDIA DOCA Telemetry Programming Guide. The telemetry application example code shows an initial recommended configuration which covers 2 use cases:

  • Standard DOCA telemetry data
  • DOCA telemetry for NetFlow data

The telemetry_client.c contains the basic DOCA application logic, which splits into the two cases as mentioned above:

  • telemetry_config.c
  • telemetry_netflow_config.c

Both files demonstrate the API usage and are recommended as a basis for any development that uses the DOCA telemetry API.

The telemetry client runs on the BlueField and writes telemetry data to BlueField's storage. If IPC is enabled, data is sent to the DOCA Telemetry Service (DTS) running on the same BlueField. There are 2 possibilities:

  • Telemetry client runs in a container and shares the same Kubernetes pod with the DTS container, using a single .yaml file. The hostIPC option is set to false and telemetry client ipc_sockets folder must be mounted to:
    Copy
    Copied!


    /opt/mellanox/doca/services/telemetry/ipc_sockets

  • Telemetry client is executed regardless of the DTA Kubernetes pod, and the pod defines hostIPC=true. In this case, the telemetry client ipc_sockets folder must be changed to:
    Copy
    Copied!


    /opt/mellanox/doca/services/telemetry/ipc_sockets

The first scenario is preferred for production deployment as it is better in terms of security. The second scenario should be used only for debugging and development.

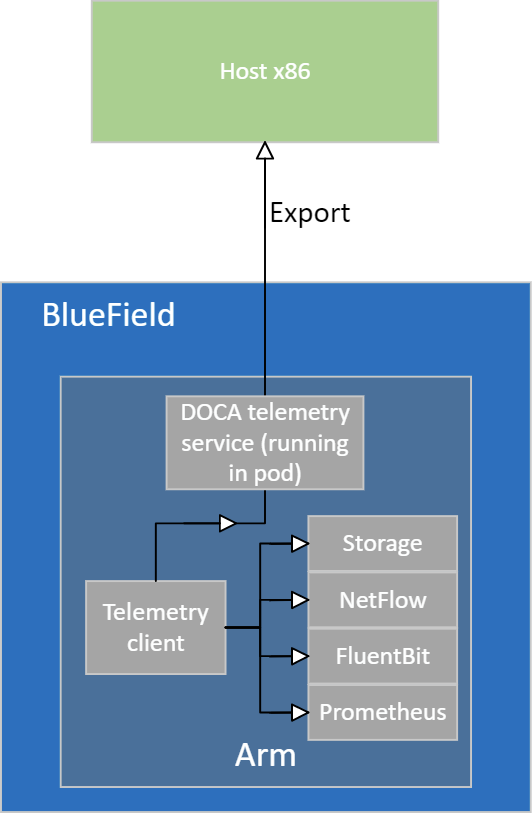

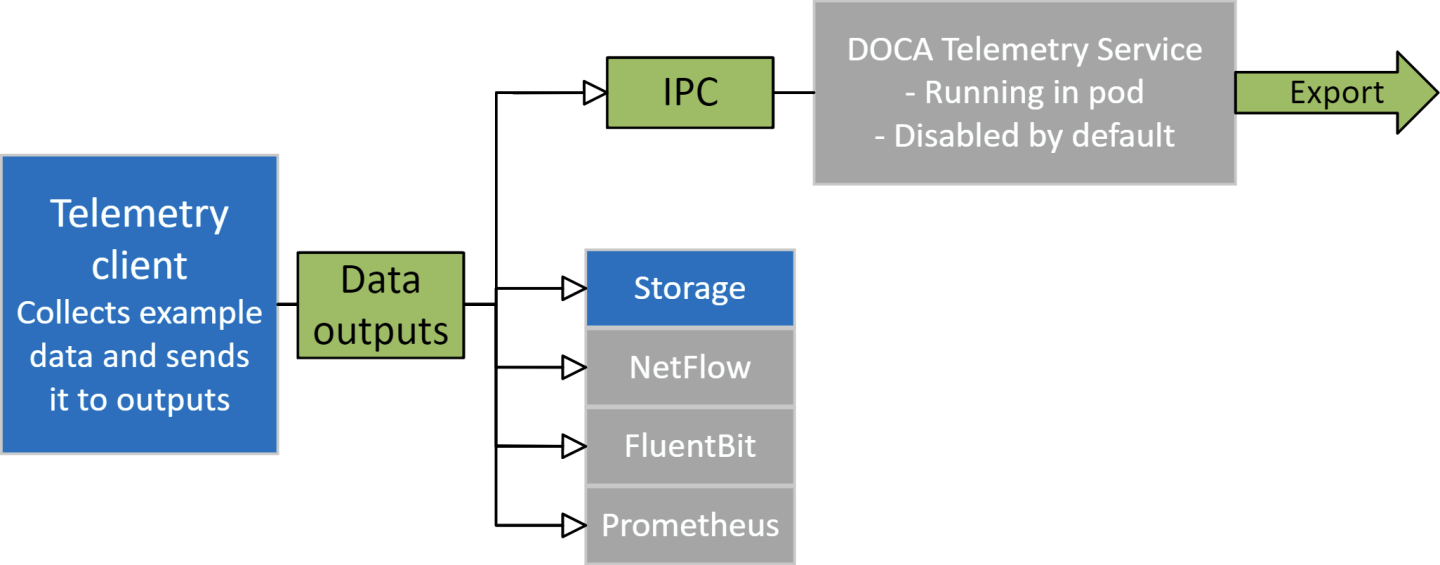

The following diagram presents example data flow:


Data from telemetry client can be exported in two ways:

  • Write to disk (default)
  • Using inter-process communication (IPC)

By default, IPC connection to DTS is disabled and the data is written to the disk.

When the data is written to disk, it can be read with the clx_read utility (see Read Example Data). Once the user finds that data is written correctly, IPC transport can be enabled so the data is sent to DTS.

When IPS is used, telemetry client and DTS must be executed on the same node (BlueField-2/host).

DTS can export the collected data out of the node.

  1. Parse application argument.
    Copy
    Copied!


    arg_parser_init();

    1. Initialize arg parser resources.
    2. Register DOCA general flags.
      Copy
      Copied!


      register_telemetry_params();

    3. Register telemetry application flags.
      Copy
      Copied!


      arg_parser_start();

    4. Parse app flags.

  1. Please refer to the DOCA Installation Guide for details on how to install BlueField related software.
  2. The telemetry client binary is located under /opt/mellanox/doca/examples/telemetry_client/bin/doca_telemetry_client.
  3. To re-build the application:
    1. Run:
      Copy
      Copied!


      cd /opt/mellanox/doca/examples/telemetry_client/src meson /tmp/build ninja -C /tmp/build

      doca_telemetry_client is created under /tmp/build.

    2. The build process depends on the PKG_CONFIG_PATH environment variable to locate the DPDK libraries. If the variable was accidently corrupted and the build fails, run the following command:
      • For Ubuntu:
        Copy
        Copied!


        export PKG_CONFIG_PATH=$PKG_CONFIG_PATH:/opt/mellanox/dpdk/lib/aarch64-linux-gnu/pkgconfig

      • For CentOS:
        Copy
        Copied!


        export PKG_CONFIG_PATH=$PKG_CONFIG_PATH:/opt/mellanox/dpdk/lib64/pkgconfig

  4. To run the application:
    Copy
    Copied!


    Usage: doca_telemetry_client [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -l, --log-level Set the log level for the program <CRITICAL=0, DEBUG=4> Program Flags: -t, --telemetry Run DOCA telemetry example -n, --netflow Run DOCA telemetry netflow example

    For example, running with telemetry config:
    Copy
    Copied!


    /opt/mellanox/doca/examples/telemetry_client/bin/doca_telemetry_client -t


    For example, running with NetFlow config:
    Copy
    Copied!


    /opt/mellanox/doca/examples/telemetry_client/bin/doca_telemetry_client -n


    For additional information on available flags for DPDK, use -h before the -- separator:
    Copy
    Copied!


    /opt/mellanox/doca/examples/telemetry_client/bin/doca_telemetry_client -h


    For additional information on the app, use -h after the -- separator:
    Copy
    Copied!


    /opt/mellanox/doca/examples/telemetry_client/bin/doca_telemetry_client -- -h


Flag Type Short Flag Long Flag/JSON Key Description
General Flags l log-level Sets the log level for the application:
  • CRITICAL=0
  • ERROR=1
  • WARNING=2
  • INFO=3
  • DEBUG=4
h help Print a help synopsis
Program Flags t telemetry Run DOCA telemetry example
n netflow Run DOCA telemetry NetFlow example

In the example, data output to the file is enabled by default and is written to a predefined path which is set to ./telemetry_examle_data. The binary files are written according to the following folder structure:

Copy
Copied!


{year}/{date}/{source_id}/{tag}_{timestamp}.bin


New binary files appear when the program starts or when binary file age/size restriction is reached.

Copy
Copied!


$ ls -R telemetry_example_data telemetry_example_data ├── 2021 │ └── 1007 │ └── source_1 │ └── source_1_tag_1633596291715225.bin └── schema ├── schema_ec9d36e6844048461d96c859e176cf32.json └── schema_f5ce72803e5583d747e1e45d0fa1241b.json


Note:

The file structure shown is printed using tree.

For the development stage, it is recommended to read data with the clx_read utility, which reads a binary file and dumps the data to stdout.

Copy
Copied!


# usage: /opt/mellanox/collectx/bin/clx_read -s /path/to/schema/folder /path/to/binary/file $ /opt/mellanox/collectx/bin/clx_read -s telemetry_example_data/schema telemetry_example_data/2021/1007/ source_1_tag_1633596291715225.bin { "timestamp": 1634815738799728, "event_number": 0, "iter_num": 0, "string_number": 0, "example_string": "example_str_1" } { "timestamp": 1634815738799768, "event_number": 1, "iter_num": 0, "string_number": 1, "example_string": "example_str_2" } …


Once the user decides the data is in the correct format (i.e., all the fields are filled with the expected data), the IPC transport may be enabled.

Note:

When working on the BlueField, it is recommended to disable writing data to binary files on the disk due to existing storage restrictions of the DPU.

  • /opt/mellanox/doca/examples/telemetry_client/telemetry_client.c
  • /opt/mellanox/doca/examples/telemetry_client/telemetry_config.c
  • /opt/mellanox/doca/examples/telemetry_client/telemetry_netflow_config.c
