App Shield Agent

NVIDIA DOCA App Shield Agent Application Guide

This document provides a process introspection system implementation on top of NVIDIA® BlueField® DPU.

App Shield Agent monitors a process in the host system using the DOCA App Shield library (doca-apsh).

This security capability helps identify corruption of core processes in the system from an independent and trusted DPU. This is a major and innovate intrusion detection system (IDS) ability since it cannot be provided from inside the host.

The DOCA App Shield library gives the capability to read, analyze, and authenticate the host (bare metal/VM) memory directly from the DPU.

Using the library, this application hashes the un-writeable memory pages (also unloaded pages) of a specific process and its libraries. Then, at regularly occurring intervals the app authenticates the loaded pages.

The app reports pass/fail after every iteration until the first attestation failure. The reports are both printed to the console and exported to the DOCA telemetry service (DTS) using inter-process communication (IPC).

This document describes how to build secure process monitoring using the DOCA App Shield library, which leverages the DPU's advantages such as hardware-based DMA, integrity, and more.

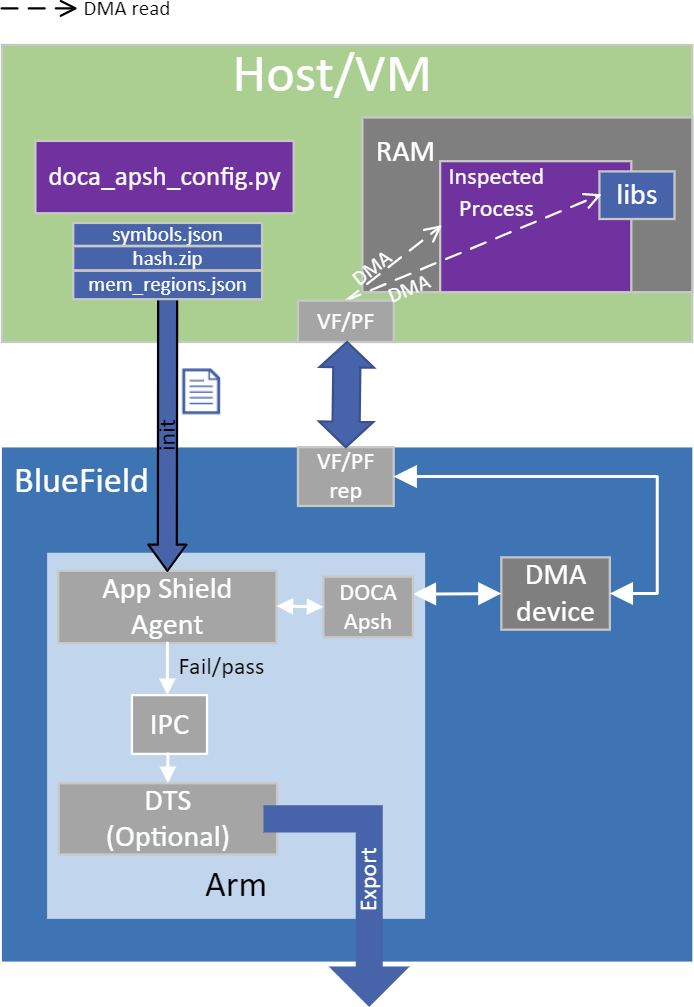

The App Shield agent is designed to run independently on the DPU's Arm without hindering the host.

The host's involvement is limited to configuring monitoring of a new process when there is a need to generate the needed ZIP and JSON files to pass to the DPU. This is done at inception ("time 0") which is when the host is still in a "safe" state.

Generating the needed files can be done by running DOCA App Shield's doca_apsh_config.py tool on the host. See NVIDIA DOCA App Shield Programming Guide for more info.

The user creates three mandatory files using the DOCA tool doca_apsh_config.py and copies them to the DPU. The application can report attestation results to the:

• File
• Terminal
• DTS

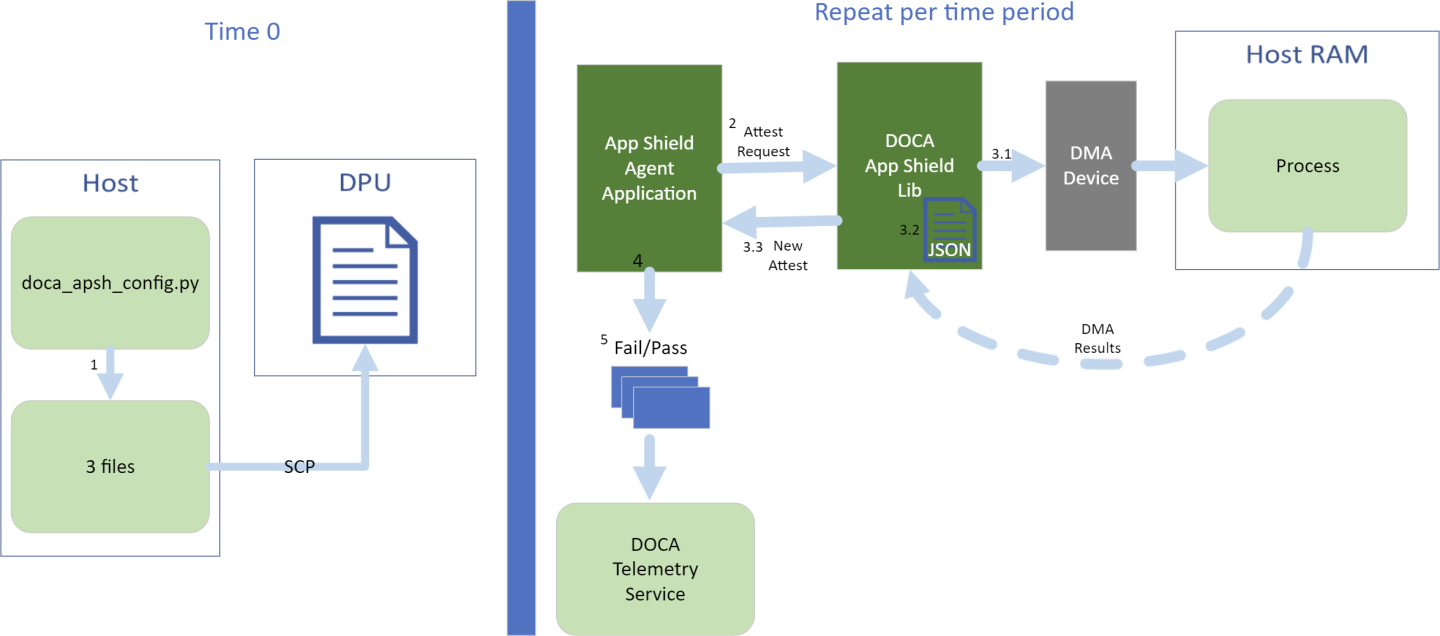

1. The files are generated by running doca_apsh_config.py on the host against the process at time zero.
   Note:

   The actions 2-5 recur at regular time intervals.

2. The App Shield agent requests new attestation from DOCA App Shield library.
3. The DOCA App Shield library creates a new attestation:
   1. Scans and hashes process memory pages (that are currently in use).
   2. Compares the hash to the original hash.
   3. Creates attestation for each lib/exe involved in the process. Each of attestation includes the number of valid pages and the number of pages.
4. The App Shield agent searches each attestation for inconsistency between number of used pages and number of valid pages.
5. The App Shield agent reports results with a timestamp and scan count to:
   1. Local telemetry files – a folder and files representing the data a real DTS would have received. These files are used for the purposes of this example only as normally this data is not exported into user-readable files.
   2. DOCA log (without scan count).
   3. DTS IPC interface (even if no DTS is active).
6. The App Shield agent exits on first attestation failure.

This application leverages following DOCA libraries:

• DOCA App Shield library
• DOCA Telemetry library

1. Parse application argument.
   Copy

   Copied!




   doca_argp_init();


   1. Initialize arg parser resources.
   2. Register DOCA general flags.
      Copy

      Copied!




      register_apsh_params();


   3. Register App Shield Agent application flags.
      Copy

      Copied!




      doca_argp_start();


   4. Parse app flags.
2. Initialize DOCA App Shield lib context.
   Copy

   Copied!




   doca_apsh_create();


   1. Create lib context.
      Copy

      Copied!




      doca_devinfo_list_create();
      doca_dev_open();
      doca_devinfo_list_destroy();
      doca_apsh_dma_dev_set();


   2. Set DMA device for lib.
      Copy

      Copied!




      doca_apsh_start();
      apsh_system_init();


   3. Start the context.
3. Initialize DOCA App Shield lib system context handler.
   Copy

   Copied!




   doca_devinfo_remote_list_create();
   doca_dev_remote_open();
   doca_devinfo_remote_list_destroy();


   1. Get the representor of the remote PCIe function exposed to the system.
      Copy

      Copied!




      doca_apsh_system_create();
      doca_apsh_sys_os_symbol_map_set();
      doca_apsh_sys_mem_region_set();
      doca_apsh_sys_dev_set();
      doca_apsh_sys_os_type_set();
      doca_apsh_system_start();


   2. Create and start the system context handler.
4. Find target process by pid.
   Copy

   Copied!




   doca_apsh_processes_get();


5. Telemetry initialization.
   Copy

   Copied!




   telemetry_start();


   1. Initialize a new telemetry schema.
   2. Register attestation type event.
   3. Set up output to file (in addition to default IPC).
   4. Start the telemetry schema.
   5. Initialize and start a new DTS source with the gethostname() name as source ID.
6. Get initial attestation of the process.
   Copy

   Copied!




   doca_apsh_attestation_get();


7. Loop until attestation validation fail.
   Copy

   Copied!




   doca_apsh_attst_refresh();
   /* validation logic */
   doca_telemetry_source_report();
   DOCA_LOG_INFO();
   sleep();


8. DOCA App Shield Agent destroy.
   Copy

   Copied!




   doca_apsh_attestation_free();
   doca_apsh_processes_free();
   doca_apsh_system_destroy();
   doca_apsh_destroy();
   doca_dev_close();
   doca_dev_remote_close();


9. Telemetry destroy.
   Copy

   Copied!




   telemetry_destroy();


10. Arg parser destroy.
    Copy

    Copied!




    doca_argp_destroy();


The minimum required firmware version is 24.32.1010.

The application is only supported in the Ubuntu 20.04 BlueField OS.

1. Refer to the following documents:
   • NVIDIA DOCA Installation Guide for details on how to install BlueField-related software.
   • NVIDIA DOCA Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA applications.
2. The App Shield Agent binary is located under /opt/mellanox/doca/applications/app_shield_agent/bin/doca_app_shield_agent. To build the applications together, run:
   Copy

   Copied!




   cd /opt/mellanox/doca/applications/
   meson build
   ninja -C build


3. To build only the App Shield Agent:
   1. Edit the following flags in /opt/mellanox/doca/applications/meson_option.txt:
      • Set enable_all_applications to false
      • Set enable_app_shield_agent to true
   2. Run the commands in step 2.
      Note:

      doca_app_shield_agent is created under ./build/app_shield_agent/src/.

   Application usage:

   Copy

   Copied!




   Usage: doca_app_shield_agent [DOCA Flags] [Program Flags]
   DOCA Flags:
    -h, --help                  Print a help synopsis
    -v, --version               Print program version information
    -l, --log-level             Set the log level for the app <CRITICAL=0, DEBUG=4>
   Program Flags:
     -p, --pid <arg>              Pid of the process to monitor
     -e, --ehm <path>             Path to the process executable ‘hash.zip’ generated file
     -m, --memr <path>            Path to the system memory regions map – ‘mem_regions.json’ generated file.
     -f, --pcif <arg>             System PCI (VF/PF) VUID to use for DMA connection
     -d, --dma <arg>              DMA device name
     -o, --osym <path>            Path to the system os symbol map – ‘symbols.json’ generated file.
     -s, --osty [windows|linux]   OS of the system where the process is running
     -t, --time <seconds>         Time interval between scans


   Note:

   For additional information on the application, use the -h flag:

   Copy

   Copied!




   /opt/mellanox/doca/applications/app_shield_agent/bin/doca_app_shield_agent -h





4. The following steps need to be done only once.
   • Configure the BlueField's firmware.
     • On the BlueField system, configure the PF base address register and NVME emulation. Run:
       Copy

       Copied!




       dpu> mlxconfig -d /dev/mst/mt41686_pciconf0 s PF_BAR2_SIZE=2 PF_BAR2_ENABLE=1 NVME_EMULATION_ENABLE=1


     • Perform a cold boot from the host. Run:
       Copy

       Copied!




       host> ipmitool power cycle


     Note:

     These configurations can be checked using the following command:

     Copy

     Copied!




     dpu> mlxconfig -d /dev/mst/mt41686_pciconf0 q | grep -E "NVME|BAR"


   • Download target system (host/VM) symbols.
     • For Ubuntu:
       Copy

       Copied!




       host> sudo tee /etc/apt/sources.list.d/ddebs.list << EOF
       deb http://ddebs.ubuntu.com/ $(lsb_release -cs) main restricted universe multiverse
       deb http://ddebs.ubuntu.com/ $(lsb_release -cs)-updates main restricted universe multiverse
       deb http://ddebs.ubuntu.com/ $(lsb_release -cs)-proposed main restricted universe multiverse
       EOF
       host> sudo apt install ubuntu-dbgsym-keyring
       host> sudo apt-get update
       host> sudo apt-get install linux-image-$(uname -r)-dbgsym


     • For CentOS:
       Copy

       Copied!




       host> yum install --enablerepo=base-debuginfo kernel-devel-$(uname -r) kernel-debuginfo-$(uname -r) kernel-debuginfo-common-$(uname -m)-$(uname -r)




     • No action is needed for Windows
   • Perform IOMMU passthrough. This stage is only needed on some of the cases where IOMMU is not enabled by default (e.g., when the host is using an AMD CPU).
     Note:

     Skip this step if you are not sure whether you need it. Return to it only if DMA fails with a message in dmesg similar to the following:

     Copy

     Copied!




     host> dmesg
     [ 3839.822897] mlx5_core 0000:81:00.0: AMD-Vi: Event logged [IO_PAGE_FAULT domain=0x0047 address=0x2a0aff8 flags=0x0000]


     • Locate your OS's grub file (most likely /boot/grub/grub.conf, /boot/grub2/grub.cfg, or /etc/default/grub) and open it for editing. Run:
       Copy

       Copied!




       host> vim /etc/default/grub


     • Search for the line defining GRUB_CMDLINE_LINUX_DEFAULT and add the argument iommu=pt. For example:
       Copy

       Copied!




       GRUB_CMDLINE_LINUX_DEFAULT="iommu=pt <intel/amd>_iommu=on"


     • Run:
       • For Ubuntu:
         Copy

         Copied!




         host> sudo update-grub
         host> ipmitool power cycle


       • For CentOS:
         Copy

         Copied!




         host> grub2-mkconfig -o /boot/grub2/grub.cfg
         host> ipmitool power cycle


   • For Windows targets only: Turn off Hyper-V capability.
5. Running the application on BlueField:
   • Pre-run setup:
     1. The DOCA App Shield library uses hugepages for DMA buffers. Therefore, the user is required to provide allocate specific size huge pages. Run:
        Copy

        Copied!




        dpu> rm -rf "/mnt/huge/*"
        dpu> sudo echo 42 > /sys/devices/system/node/node0/hugepages/hugepages-32768kB/nr_hugepages
        dpu> \
        if [ ! -d "/mnt/huge" ] ; then
          mkdir "/mnt/huge"
        fi
        dpu> mount -t hugetlbfs -o pagesize=32MB none "/mnt/huge"


     2. Create the ZIP and JSON files. Run:
        Note:

        If the kernel and process .exe have not changed, there no need to redo this step.

        Copy

        Copied!




        target-system> cd /opt/mellanox/doca/tools/
        target-system> python3 doca_apsh_config.py <pid-of-process-to-monitor> --os <windows/linux> --path <path to dwarf2json executable  or pdbparse-to-json.py>
        target-system> cp /opt/mellanox/doca/tools/*.* <shared-folder-with-baremetal>
        dpu> scp <shared-folder-with-baremetal>/* <path-to-app-shield-binary>





        If the target system does not have DOCA installed, the script can be copied from the BlueField.

        The required dwaf2json and pdbparse-to-json.py are not provided with DOCA. Follow the NVIDIA DOCA App Shield Programming Guide for more information.

   • CLI example for running the app:
     Copy

     Copied!




     dpu> /opt/mellanox/doca/applications/app_shield_agent/bin/doca_app_shield_agent -p 13577 -e hash.zip -m mem_regions.json -o symbols.json -f MT2125X03335MLNXS0D0F0VF1 -d mlx5_0 -t 3 -s linux


Refer to NVIDIA DOCA Arg Parser User Guide for more information.




target-system> lspci -vv | grep "\[VU\] Vendor specific:"





[VU] Vendor specific: MT2125X03335MLNXS0D0F0
[VU] Vendor specific: MT2125X03335MLNXS0D0F1


• /opt/mellanox/doca/applications/app_shield_agent/src/app_shield_agent.c
