File Integrity
NVIDIA DOCA File Integrity Application Guide
This guide provides a file integrity implementation on top of NVIDIA® BlueField® DPU.
The file integrity application exhibits how to use the DOCA Comm Channel and DOCA SHA libraries to send and receive a file securely.
The application's logic includes both a client and a server:
- Client side – the application opens a file, calculates the SHA (secure hash algorithm) digest on it, and sends to the server the digest of the source file alongside the file itself
- Server side – the application calculates the SHA on the received file and compares the received digest to the calculated one to check if the file has been compromised

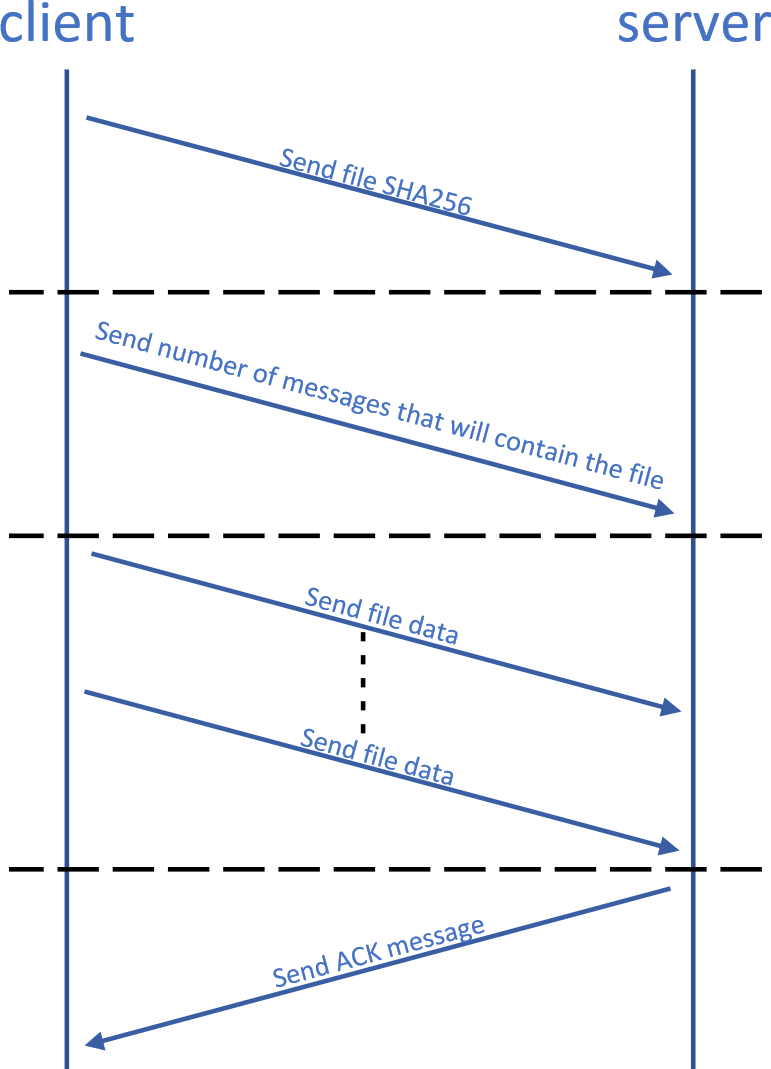

The file integrity application runs on top of the DOCA Comm Channel API to send and receive files from the host and DPU.
- Connection is established on both sides by the Comm Channel API.
- Client submits SHA job with the DOCA SHA Library and sends the result to the server.
- Client sends the number of messages needed to send the content of the file.
- Client sends data segments in size of up to 4032 bytes.
- Server submits a partial SHA job on each received segment.
- Server sends an ACK message to the client when all parts of the file are received successfully.
- Server compares the received SHA to the calculated SHA.
- Parse application argument.
- Initialize arg parser resources and register DOCA general parameters.
doca_argp_init();
- Register file integrity application parameters.
register_file_integrity_params();
- Parse the arguments.
doca_argp_start();
- Parse app flags.
- Initialize arg parser resources and register DOCA general parameters.
- Set queue-pair attributes.
set_endpoint_properties();
- Set maximum message size of 4032 bytes.
- Set maximum messages allowed on queue pair.
- Create Comm Channel endpoint.
doca_comm_channel_ep_create();
- Create endpoint for client/server.
- Create SHA context.
doca_sha_create();
- Create SHA context for submitting SHA jobs for client/server.
- Run client/server main logic.
file_integrity_client/server();
- Clean up the application.
file_integrity_cleanup();
- Free all application resources.
- Refer to the following documents:
- NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software.
- NVIDIA DOCA Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA applications.
- NVIDIA DOCA Applications Overview for additional compilation instructions and development tips regarding the DOCA applications.
- The file compression binary is located under
/opt/mellanox/doca/applications/file_integrity/bin/doca_file_integrity
. To build all the applications together, run:cd /opt/mellanox/doca/applications/ meson build ninja -C build
- To build only the file integrity application:
- Edit the following flags in
/opt/mellanox/doca/applications/meson_options.txt
:- Set
enable_all_applications
tofalse
- Set
enable_file_integrity
totrue
- Set
- Run the commands in step 2.
Note:
doca_file_integrity
is created under./build/file_integrity/src/
.
Application usage:
Usage: doca_file_integrity [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60> Program Flags: -f, --file <path> File to send by the client / File to write by the server -d, --dev-pci Comm Channel DOCA device PCI address -r, --rep-pci Comm Channel DOCA device representor PCI address
Note:For additional information on the application, use
-h
option:/opt/mellanox/doca/applications/file_integrity/bin/doca_file_integrity -h
- Edit the following flags in
- CLI example for running the application on BlueField:
/opt/mellanox/doca/applications/file_integrity/bin/doca_file_integrity -d 03:00.0 -r b1:00.0 -f recieved_data.txt
- CLI example for running the application on the host:
/opt/mellanox/doca/applications/file_integrity/bin/doca_file_integrity -d b1:00.0 -f file_data.txt
Note:Refer to section "Running DOCA Application on Host" in NVIDIA DOCA Virtual Functions User Guide.
- To run
doca_file_compression
using a JSON file:doca_file_integrity --json [json_file]
cd /opt/mellanox/doca/applications/file_integrity/bin ./doca_file_integrity --json file_integrity_params.json
For more information, refer to NVIDIA DOCA Arg Parser User Guide.
Flag Type | Short Flag | Long Flag/JSON Key | Description | JSON Content |
---|---|---|---|---|
General Flags | l | log-level | Set the log level for the application:
|
|
v | version | Print program version information | N/A | |
h | help | Print a help synopsis | N/A | |
Program Flags | f | file | For client – path to the file to be sent For server – path to write the file into Note:
This is mandatory flag.
|
|
d | dev-pci | Comm Channel DOCA device PCIe address
Note:
This is mandatory flag. |
|
|
r | rep-pci | Comm Channel DOCA device representor PCIe address
Note:
This flag is mandatory only on the DPU. |
|
