DOCA Telemetry PCC

This guide provides instructions for building and developing applications that require telemetry data collection from NVIDIA® BlueField and NVIDIA® ConnectX® families of networking platforms.

The doca_telemetry_pcc library provides access to algorithm information and counter statistics for any Programmable Congestion Control (PCC) implementations currently installed on NVIDIA® BlueField or ConnectX® networking platforms.

To use DOCA Telemetry PCC, the following prerequisites must be met:

• fwctl driver installed and loaded (see instructions in NVIDIA MLNX_OFED Documentation v24.07-0.6.1.0)

  Note

  To verify whether the fwctl driver is successfully loaded:

  Copy

  Copied!




  $ ls /sys/class/fwctl/


  Expected output:

  Copy

  Copied!




  fwctl0  fwctl1


  If the directory /sys/class/fwctl does not exist or is empty, follow these steps:

  1. Search for the fwctl package:

     Copy

     Copied!




     $ apt search fwctl


     The output may indicate either fwctl-dkms or fwctl-modules.

  2. Install the appropriate package:

     Copy

     Copied!




     $ sudo apt install fwctl-dkms


     Or:

     Copy

     Copied!




     $ sudo apt install fwctl-modules


  3. Load the mlx5_fwctl module:

     Copy

     Copied!




     $ sudo modprobe mlx5_fwctl


  4. Confirm the module is loaded:

     Copy

     Copied!




     $ lsmod | grep fwctl


     Expected output:

     Copy

     Copied!




     mlx5_fwctl             20480  0
     fwctl                  24576  1 mlx5_fwctl
     mlx5_core            2211840  2 mlx5_fwctl,mlx5_ib
     mlx_compat             20480  17 rdma_cm,ib_ipoib,mlxdevm,nvme,mlxfw,mlx5_fwctl,iw_cm,nvme_core,nvme_fabrics,ib_umad,fwctl,ib_core,rdma_ucm,ib_uverbs,mlx5_ib,ib_cm,mlx5_core


• Firmware version 28.43.1000 for ConnectX-7 or 32.43.1000 for BlueField-3

DOCA Telemetry-based applications can run on either the host machine (ConnectX-7 or BlueField-3 and newer) or the DPU target (BlueField-3 and newer).

DOCA Telemetry PCC allows for the collection of information from any PCC images installed and actively running on a ConnectX or BlueField device.

To interact with a device, a separate doca_telemetry_pcc context must be created for each device. A device typically corresponds to a specific port on a NIC.

The doca_telemetry_pcc context operates independently of any doca_pcc contexts. This means that changes to the configuration of a running PCC image, such as disabling an algorithm, are not automatically reflected in the telemetry context. Implementing applications must handle these changes either by directly interacting with the PCC application or by scanning all algorithm slots to determine which are currently active.

It is assumed that a new PCC image will not be installed while a doca_telemetry_pcc context is active on the device.

Slots/Algorithms

An active PCC image running on the DPA subsystem of a device can contain multiple Congestion Control algorithms. Each algorithm is assigned to a specific "slot," with only one slot/algorithm active on the device at any given time.

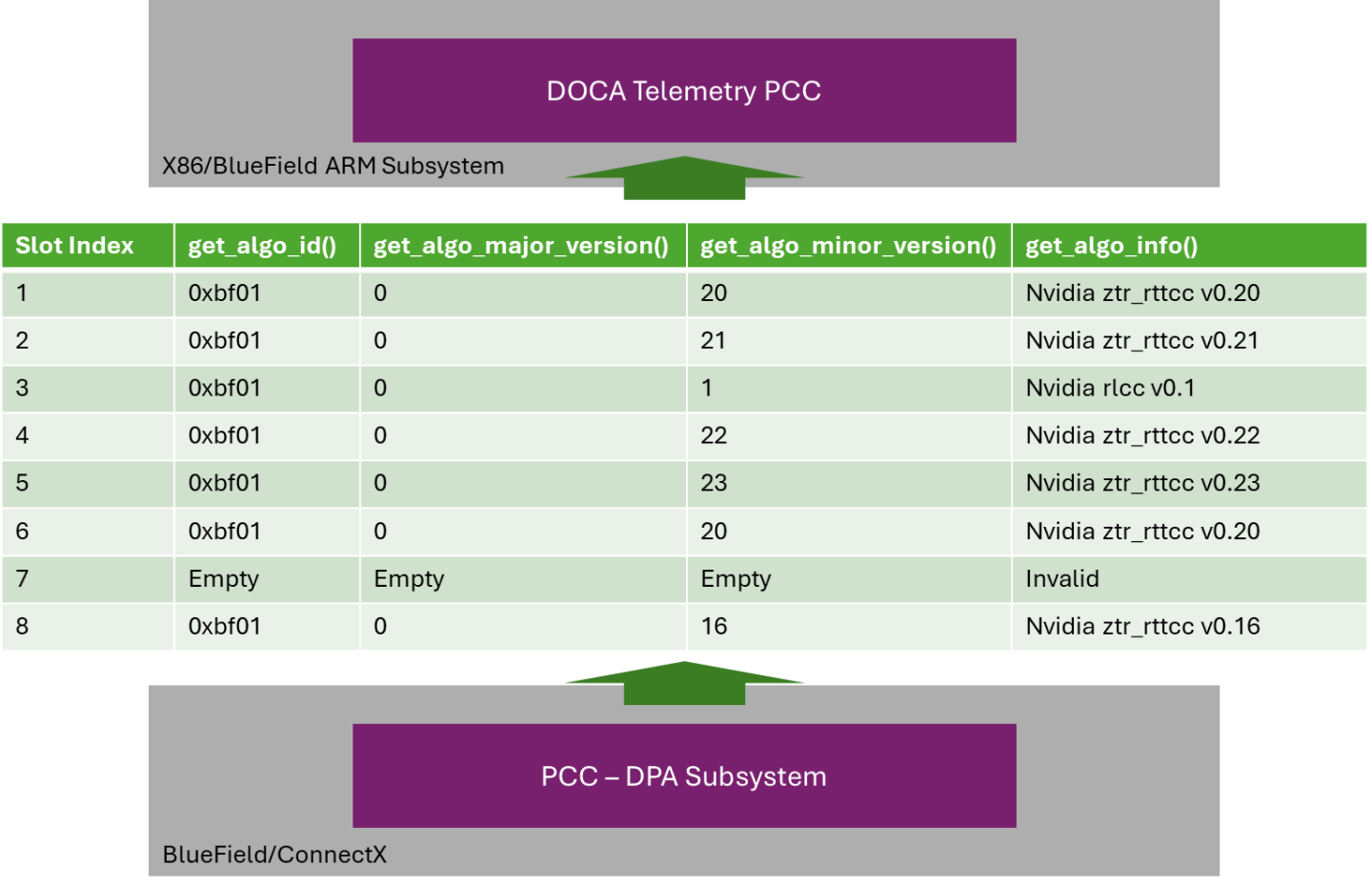

The algorithms in each slot cannot be modified without re-imaging the PCC algorithm on the DPAs. While DOCA Telemetry PCC does not provide functionality to configure slots or algorithms, it enables the calling application to retrieve information about the algorithms installed in each populated slot.

For example:

Counter Information

Similar to slots, the counter definitions for each algorithm cannot be modified without re-imaging a new PCC.

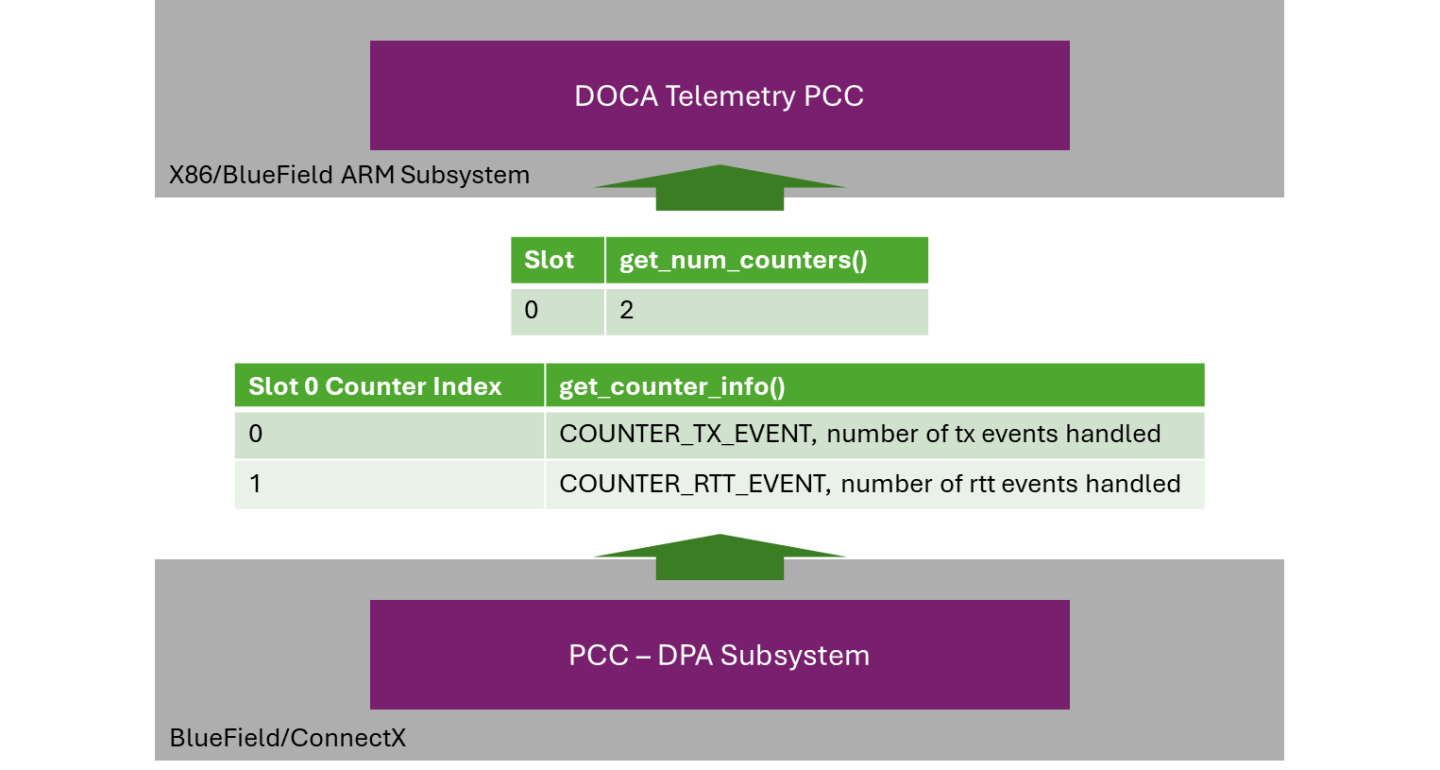

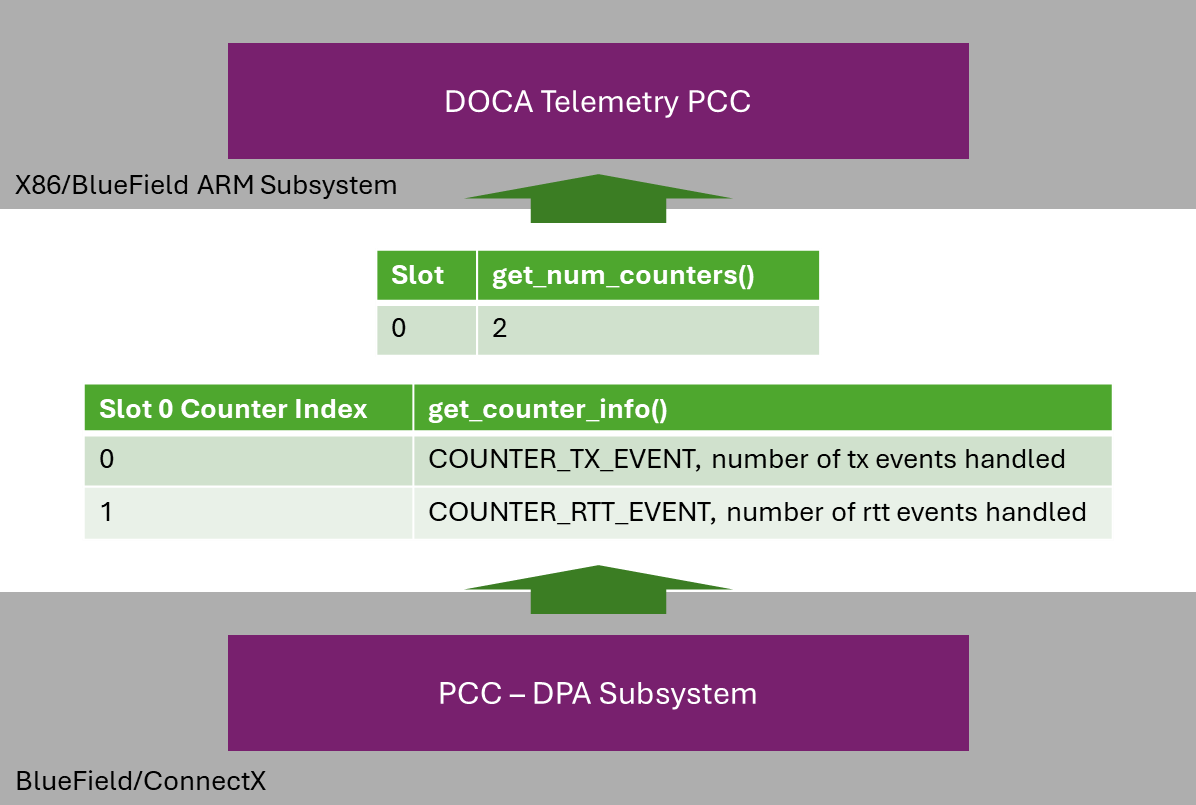

DOCA Telemetry PCC allows applications to retrieve the number of counters defined for an algorithm applied to a specific port. Each counter's definition can then be accessed using an index value, ranging from 0 to total_counters-1.

For example:

Status

The congestion algorithm actively running on a device at any given time is determined by the lowest enabled slot index, as multiple slots can be marked as enabled simultaneously.

The enabling or disabling of a slot can be triggered dynamically at runtime by external processes, independent of DOCA Telemetry PCC. Automatically detecting these changes falls outside the scope of a doca_telemetry_pcc context. It is the user's responsibility to either scan all slots periodically or interface directly with the external process to monitor changes.

In addition to enabling/disabling a slot, counters for a slot can also be enabled or disabled. Only one slot can have active counters at any given time. If counters are not active on an algorithm slot, any attempt to poll their values will result in a DOCA_ERROR_BAD_STATE.

The status of both the slot and its counters can be inspected using the doca_telemetry_pcc_get_algo_enable_status API.

Counters

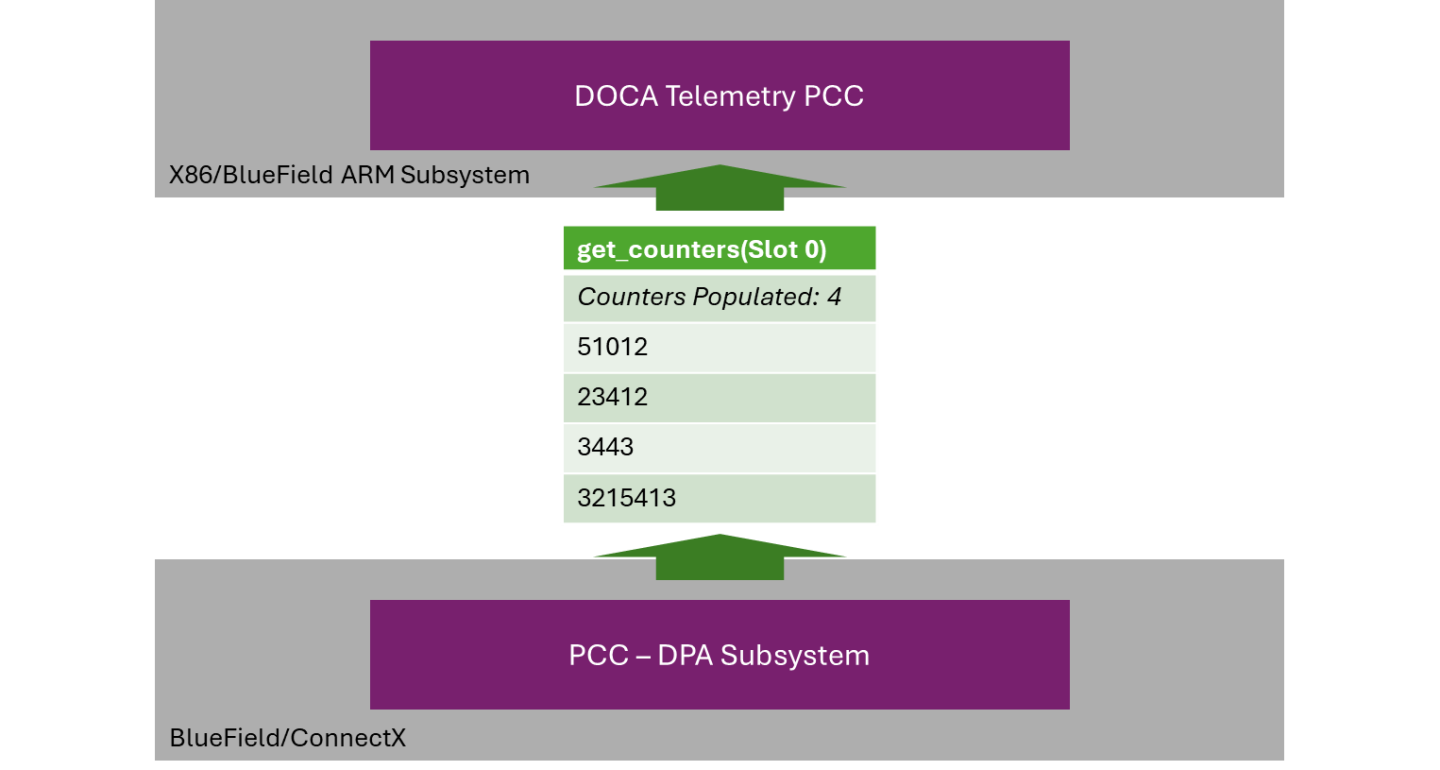

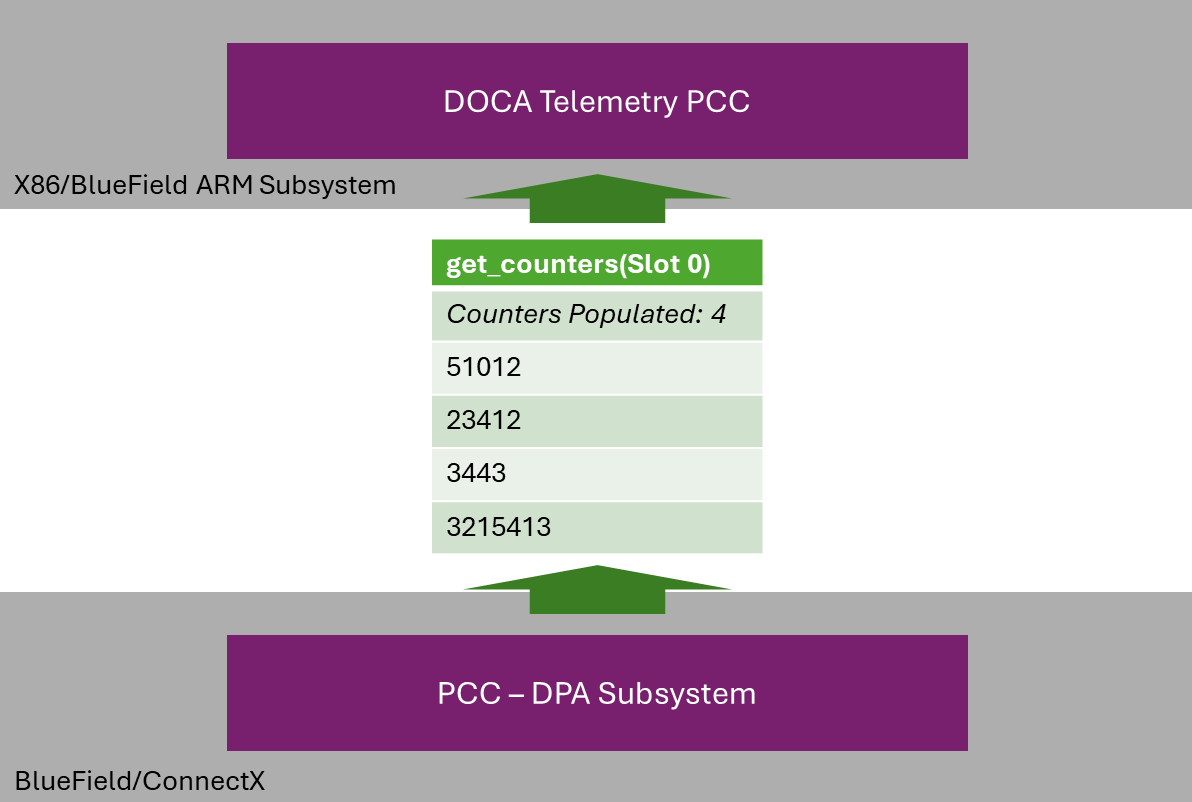

Counter values for a slot with enabled counters can be polled using a doca_telemetry_pcc context associated with a specific device.

When retrieving counter values, the API returns all available counters as a block rather than individually. The counters are provided in an array of 32-bit values, along with the total number of counters populated in the array.

It is assumed that the user is familiar with what each counter index represents (refer to the "Counter Information" section for details).

DOCA Telemetry PCC provides another API function which enables the resetting of counters if so required.

This section outlines the various states the doca_telemetry_pcc context transitions through, the methods for transitioning between these states, and the operations permitted in each state.

Idle

The context has been created and is Idle.

In this state, it is expected for the application to:

• Destroy the context.

• Start the context for processing.

Allowed operations:

• Configuring the context according to section "Configurations".

It is possible to reach this state as follows:

Running

In this state it is expected for the application to:

• Stop the context.

Allowed operations:

• Calling stop, moving the application to "Idle" state

It is possible to reach this state as follows:

DOCA Telemetry PCC supports only CPU-based datapaths.

This section describes a telemetry PCC sample based on the doca_telemetry_pcc library.

The sample illustrates the utilization of DOCA telemetry PCC APIs to initialize and configure the doca_telemetry_pcc context, as well as querying and parsing PCC schema and counters.

Running the Sample

1. Refer to the following documents:

   1. DOCA Installation Guide for Linux for details on how to install BlueField-related software.

   2. NVIDIA BlueField Platform Software Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA samples.

2. To build the sample:

   Copy

   Copied!




   cd /opt/mellanox/doca/samples/doca_telemetry/telemetry_pcc
   meson /tmp/build
   ninja -C /tmp/build


   The binary doca_telemetry_pcc is created under/tmp/build/.

Sample usage:




Usage: doca_telemetry_pcc [DOCA Flags] [Program Flags]

DOCA Flags:
  -h, --help                        Print a help synopsis
  -v, --version                     Print program version information
  -l, --log-level                   Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  --sdk-log-level                   Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  -j, --json <path>                 Parse all command flags from an input json file

Program Flags:
  -p, --pci-addr                    DOCA device PCI device address


The sample includes:

1. Locating and opening a DOCA device.

2. Creating a doca_telemetry_pcc instance.

3. Parsing all possible slots, printing each:

   1. Algo ID

   2. Major version

   3. Minor version

   4. Description

4. Determining and displaying the current enabled status of each slot.

5. Counter values and descriptions for any slot with counters enabled.

6. Destroying the doca_telemetry_pcc context.
