Troubleshooting with Asset Validator#

Now that you’ve loaded a machine asset into the stage and everything appears visually correct, it’s important to verify the internal structure and quality using the Asset Validator. The Asset Validator is a powerful tool designed to catch issues that may disrupt downstream assembly, cause rendering problems, or break collaborative workflows, before your scene grows in complexity.

Opening the Asset Validator

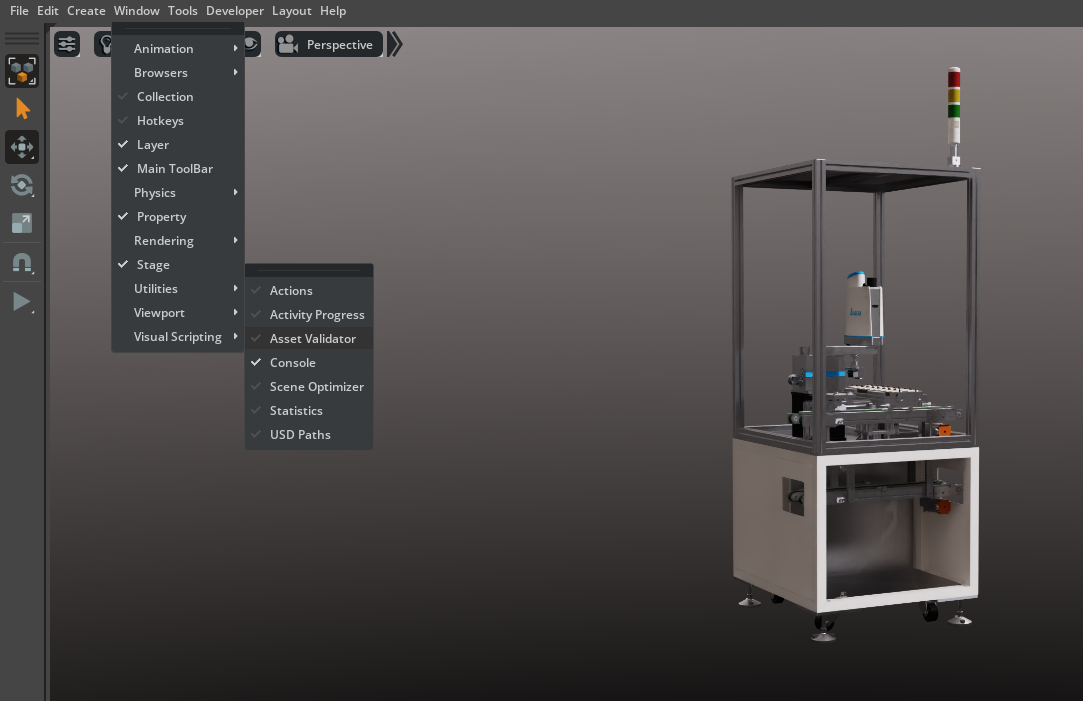

  1. Go to Window > Utilities > Asset Validator

../_images/image6.png

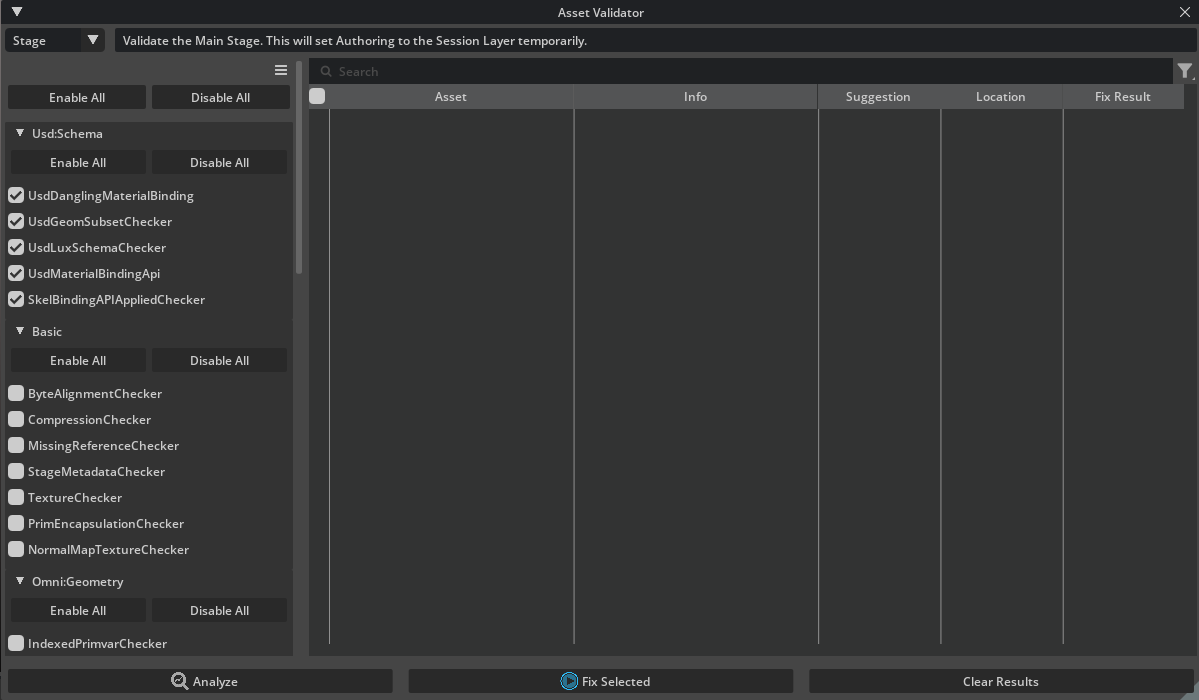

In the Asset Validator window, you can select whether to analyze the current stage, a particular file path (URI), or a subset of assets.

  1. For most scene assembly tasks, leaving the default Stage setting is sufficient to check all loaded content.

../_images/image64.png

How the Validator Works#

  • The Asset Validator runs a suite of automated checks (“validators”) over your selection

    • These tests look for missing metadata, structural issues, geometry errors, misplaced materials, and more.

  • You can choose Enable All from the validator list to run the full set of validation checks, or select individual rules as needed.

  1. Click Analyze to start the review process.

../_images/image32.png

Interpreting Results#

  • After analysis, the tool will report errors (red), warnings (yellow), or a clean pass (green).

  • Each error or warning is listed with the affected prim, a description, and sometimes a suggested fix.

Fixing Kinds#

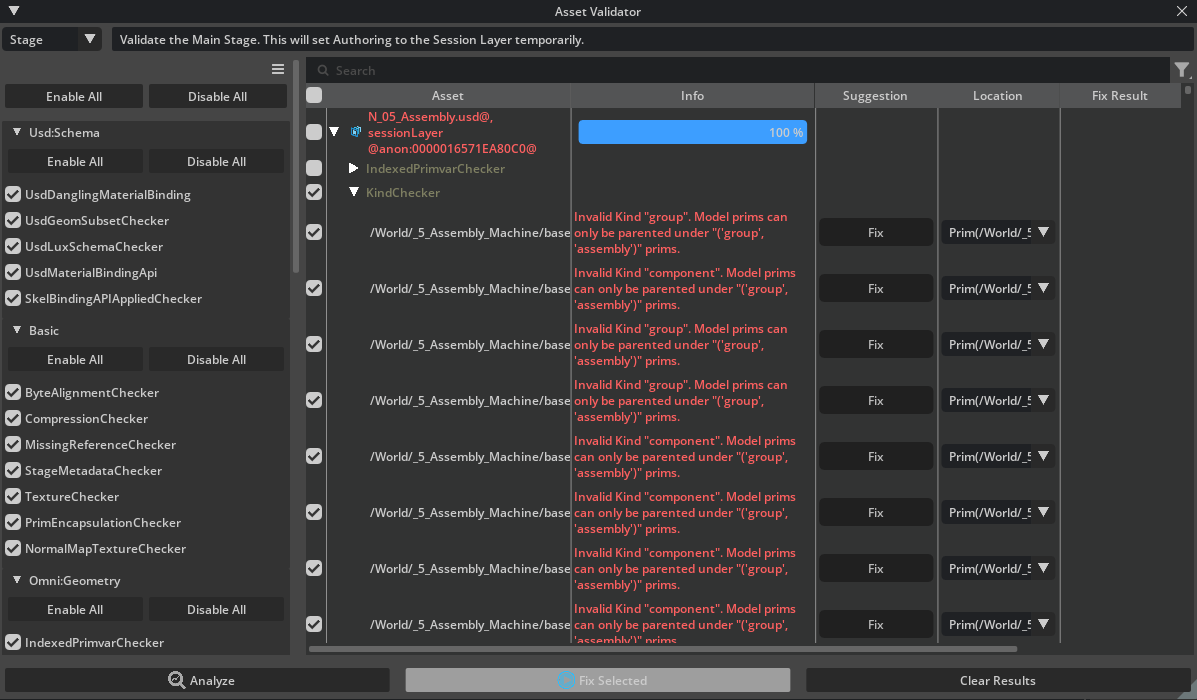

After analyzing the machine, we are getting a lot of Kind errors. The error is:

1Invalid Kind "group". Model prims can only be parented under "('group', 'assembly')" prims.
../_images/image22.png

This is telling us that in USD, model prims must follow a hierarchy: model (component, subcomponent, assembly) prims are only allowed to be direct children of “group” or “assembly” prims. If you have a model prim directly under a kind that isn’t “group” or “assembly,” you’ll get this error.

To fix it, ensure that every model prim is parented under a prim whose kind is set to “group” or “assembly,” maintaining a valid and predictable USD model hierarchy.

To fix automatically

  1. Select the checkbox next to KindChecker.

  2. And press Fix Selected

The Asset Validator will work its way through the hierarchy to ensure all prims have the correct Kind set.

Common Issues and Easy Fixes#

While some errors may require deeper asset work, many common warnings can be resolved quickly. Here are typical issues you may encounter and tips for addressing them:

Warning/Error

What it means

How to fix

Missing default prim

The USD file lacks a designated entry point

Set a default prim for the asset in USD Composer

Invalid kind metadata

Asset hierarchy is missing ‘kind’ tags

Assign component, assembly, or correct kind in the Properties panel

No or invalid up axis/units

Stage doesn’t specify the correct axis/units

Set the scene’s up axis and units in Layer Properties

Unassigned materials

Meshes are missing materials

Assign materials using the Materials tab

Duplicate or co-located geometry

Overlapping meshes or merged geometry

Use Scene Optimizer: Merge Vertices operation

Unused topology/primvars

Extra attributes or mesh data that’s not needed

Remove unused attributes in Properties or re-export asset

Automatic and Guided Fixes#

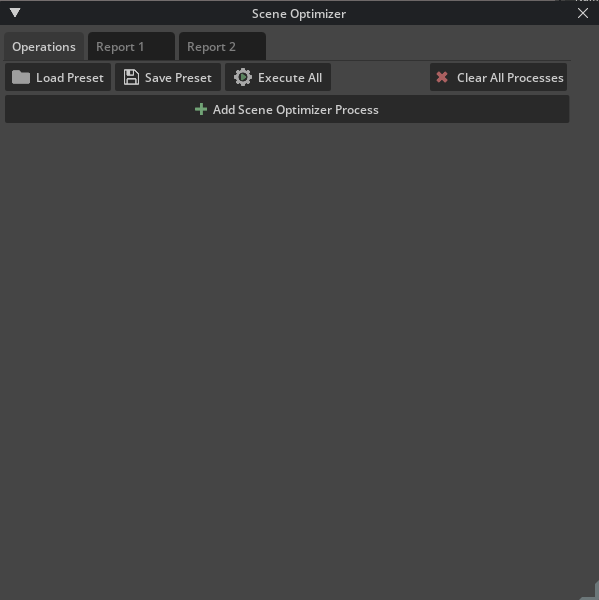

  • Some issues, such as fixing duplicate vertices or zero-area faces, can be addressed right from within Omniverse using the Scene Optimizer extension, no need to go back to the original source.

../_images/image33.png

  • For structural or metadata issues, corrections can often be made directly in the Properties panel by editing the asset properties.

  • For fundamentally broken or missing source data (e.g., absent geometry), you may need to re-export or update the original asset.

Best Practices#

  • Don’t panic if you see many errors! Use the validator as a triage tool: focus first on errors that block usage (e.g., missing prims or invalid units) and note minor warnings for cleanup later.

  • For learning and rapid prototyping, prioritize structural corrections (kind, prim, units) and material assignments. Performance or advanced warnings (e.g., dense meshes, instancing) become more critical as your project grows.

  • Run the Asset Validator frequently as you assemble and modify your scene, it’s easier to maintain quality than to fix a deeply broken asset hierarchy later.
