Instancing and Performance Best Practices#

As you add props and other elements to your factory scene, you’ve likely noticed something: many objects are identical. Safety cones, pallets, mounting brackets, warning signs, these items appear multiple times throughout a real facility.

In the previous section, you may have placed several identical objects by referencing the same USD file repeatedly. While this approach works for small scenes, it creates significant challenges as your digital twin grows:

The Memory Problem Each reference loads a complete copy of the geometry, materials, and metadata into memory. Ten safety cones mean ten complete copies stored in RAM.

The Performance Problem As scene complexity increases, viewport navigation becomes sluggish. Frame rates drop. Simple operations like selecting and moving objects slow down.

The Scale Problem Industrial facilities contain hundreds or thousands of repetitive elements. A manufacturing plant might have 200+ safety devices, 500+ mounting points, and 1000+ fasteners. Traditional referencing approaches break down entirely at this scale.

This is exactly the problem USD instancing solves.

What Are Instances in USD?#

Instances are USD’s solution to the repetitive object problem. Instead of creating multiple complete copies, instancing creates one prototype (the definition) and multiple instances (lightweight references to that prototype).

Think of instancing like a blueprint system:

The prototype is the architectural blueprint—one detailed plan
Each instance is a building constructed from that blueprint—sharing the same design but existing in different locations

How Instances Work Differently#

Traditional References	USD Instances
Each reference loads complete geometry	One prototype shared by all instances
Materials duplicated for each object	Materials defined once on the prototype
Full metadata copied to each reference	Core metadata shared, instance-specific data separate
Memory usage scales linearly	Memory usage stays nearly constant

Visual Identification in Omniverse#

USD instances display distinct visual cues in the Stage panel:

Instance icon Small overlapping I symbol next to the primitive name

Why Instances Are Critical for Digital Twins#

Understanding why instancing matters helps you build scalable, performant digital twins that can grow with your facility’s needs.

Performance at Interactive Speeds#

USD instances enable real-time interaction with complex scenes because:

Faster Scene Traversal The USD system processes one prototype instead of hundreds of individual objects

Improved Rendering Rendering multiple instances of the same geometry is a much lighter load on the GPU

Reduced Processing Overhead Less data to manage means faster viewport updates and smoother navigation

When to Use Instances#

Not every object benefits from instancing. Understanding when to apply this technique ensures optimal results.

Ideal Candidates for Instancing#

Asset Type	Examples	Why They Work Well
Safety Equipment	Cones, barriers, signs, emergency equipment	Standardized designs, multiple locations, regulatory compliance
Infrastructure Components	Mounting brackets, cable supports, pipe fittings	Standardized parts, repeated throughout facility, identical specifications
Environmental Elements	Lighting fixtures, flooring tiles, structural beams	Consistent appearance requirements, multiple installations
Transport and Storage	Pallets, containers, conveyor components	Standardized dimensions, frequent repetition, material handling needs

When NOT to Use Instancing#

Avoid For	Reason	Alternative Approach
Unique machinery	Each machine serves different functions, has different configurations	Use references with individual customization
Highly customized objects	Objects requiring significant individual modifications	Create variants or separate asset versions
Single or few objects	No performance benefit with less than 3 identical items	Standard referencing is sufficient
Frequently changing objects	Objects that need regular individual updates	Standard references allow easier individual editing

Decision Framework#

Use this simple framework to determine if instancing is appropriate:

Count Do you have 3 or more identical objects?
Complexity Is the object geometrically complex enough to benefit from shared memory?
Stability Will the objects remain largely unchanged once placed?
Scale Do you expect to add more identical objects in the future?

If you answered “yes” to these questions, instancing is likely beneficial.

Getting Started: Preparing for Instancing#

Before creating instances, prepare your scene and identify appropriate candidates from the props you’ve already placed.

Identifying Instance Candidates#

Look through your current factory scene for:

Multiple identical props placed in different locations
Objects you’ll likely need more of as the scene develops
Standardized components that appear throughout industrial facilities

Step-by-Step Process: Creating Your First Instance#

We’ll walk through converting existing props to instances, then creating additional instances from the prototype.

Converting Existing References to Instances#

Starting with props you placed in previous sections:

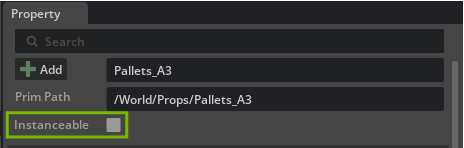

Creating Instanced from the Properties Panel#

Select an object you want to instance
Open the Property panel

Toggle “Instanceable”

Monitoring Your Instancing Success#

Omniverse provides tools to verify that instancing is working correctly and delivering performance benefits.

Enabling USD Stage Statistics#

To monitor instancing effectiveness, enable the USD Stage Stats extension:

Navigate to Developer > Extensions
Search for “USD Stage Stats”
Enable the extension
Close the Extensions window

Opening the Statistics Window#

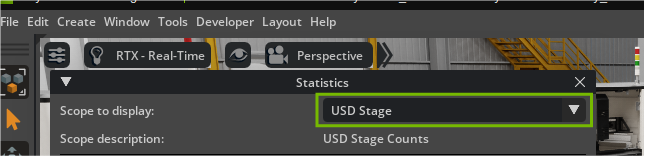

Open Window > Utilities “Statistics” to open the statistics panel
In the Statistics window, set “Scope to Display” to “USD Stage”

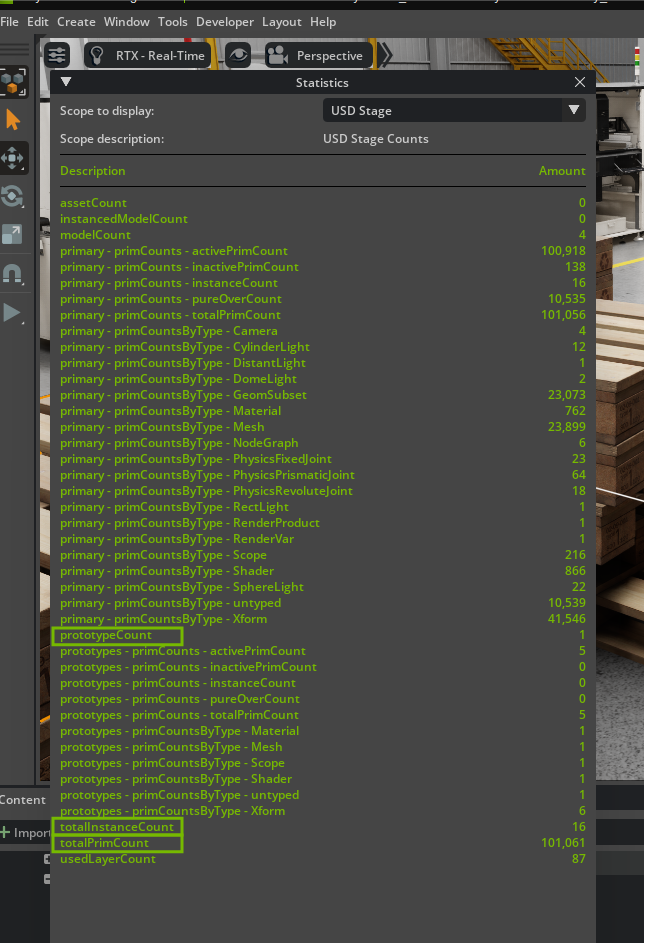

Understanding the Statistics#

The USD Stage statistics display critical instancing metrics:

Metric	What It Means	Why It Matters
PrototypeCount	Number of unique prototypes in your scene	Shows how many different objects you’re instancing
TotalInstanceCount	Total number of instances across all prototypes	Indicates the scale of your instancing implementation
TotalPrimCount	Overall primitive count in the scene	Helps understand scene complexity and optimization opportunities

Interpreting Your Results#

Good instancing implementation shows:

High instance-to-prototype ratio Many instances per prototype indicates effective reuse
Controlled primitive growth Total primitive count grows slower than object count
Memory efficiency Memory usage remains stable as you add instances

Example interpretation:

This is different than the screenshot above.

PrototypeCount: 5
TotalInstanceCount: 25
TotalPrimCount: 150

This shows 5 prototypes supporting 25 instances—an average of 5 instances per prototype, indicating good instancing efficiency.

The Bigger Picture: Why This Matters#

While our current factory scene may not show dramatic performance improvements yet, instancing becomes absolutely critical as your digital twin scales. Here’s why establishing these practices now sets you up for success:

Small Scenes vs. Large Facilities#

Current Scene Impact With 10-20 props, instancing provides modest benefits but establishes good workflow habits.

Industrial Scale Impact Real manufacturing facilities contain thousands of repetitive elements.

Future Capabilities Enabled#

Proper instancing practices today enable advanced capabilities tomorrow:

Simulation Integration Physics simulations with thousands of objects become possible
IoT Data Integration Sensor data from hundreds of devices can be efficiently processed
Collaborative Workflows Multiple team members can work simultaneously without performance degradation
Real-time Updates Facility changes can be visualized instantly rather than waiting for scene rebuilds

The habits you build with these initial props, identifying repetitive elements, converting them to instances, and monitoring performance, become the foundation for managing digital twins at industrial scale. Every safety cone you instance now is practice for the thousands of components you’ll manage in production environments.

Remember: the goal isn’t just to complete this exercise, but to develop the instancing mindset that makes complex digital twins possible. Your facility’s future digital transformation depends on these fundamental optimization practices.
