DetectNet_v2

DetectNet_v2 is an NVIDIA-developed object-detection model that is included in the TAO Toolkit. DetectNet_v2 supports the following tasks:

  • dataset_convert

  • train

  • evaluate

  • inference

  • prune

  • calibration_tensorfile

  • export

These tasks can be invoked from the TAO Toolkit Launcher using the following convention on the command-line:

Copy
Copied!


tao detectnet_v2 <sub_task> <args_per_subtask>

where, args_per_subtask are the command-line arguments required for a given subtask. Each subtask is explained in detail in the following sections.

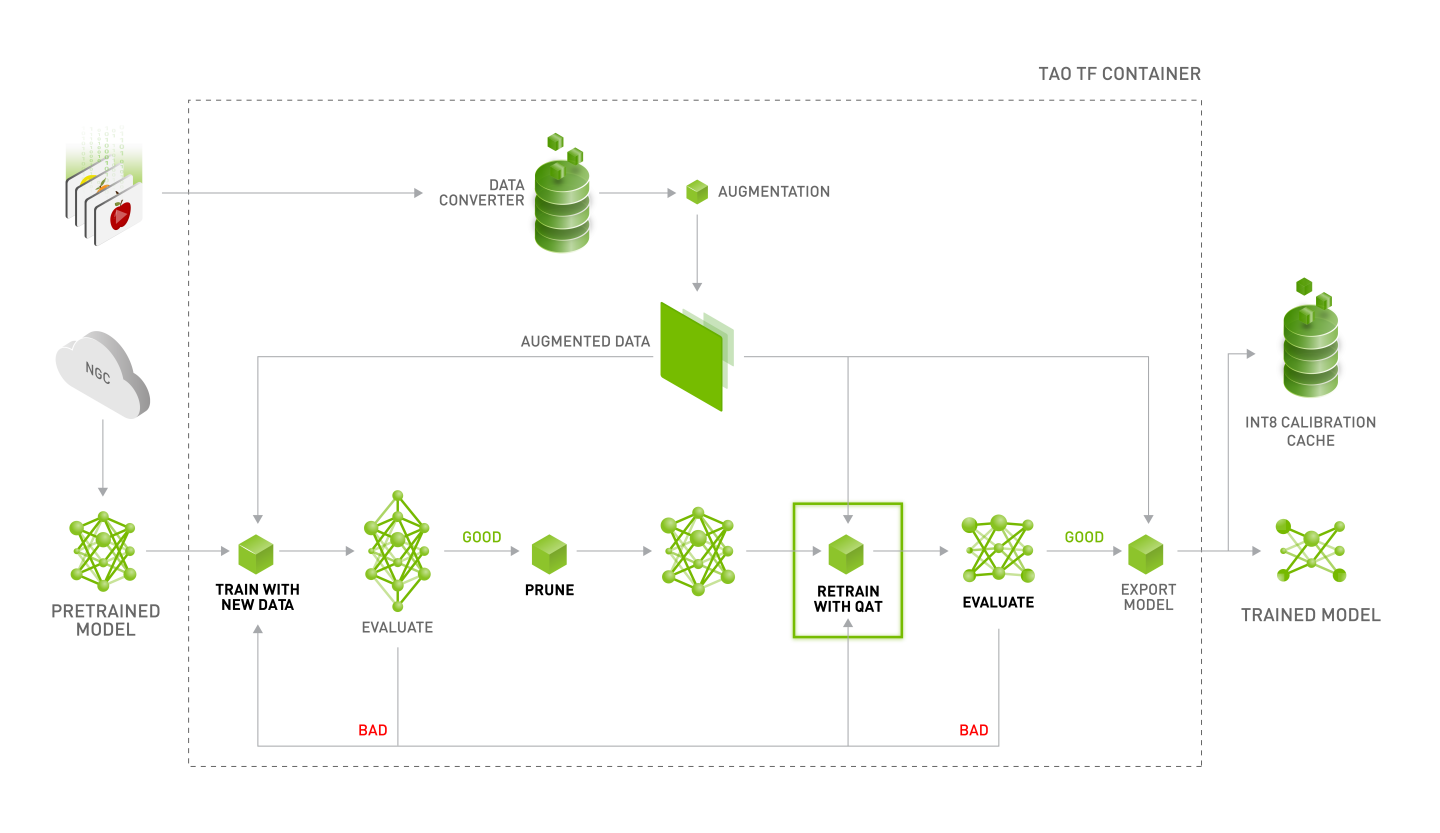

NVIDIA recommends following the workflow in the diagram below to generate a trained and optimized DetectNet_v2 model.


The object detection apps in TAO Toolkit expect data in KITTI format for training and evaluation.

See the Data Annotation Format page for more information about the KITTI data format.

The DetectNet_v2 app requires the KITTI formatted data to be converted to TFRecords for optimized iteration across the data batches. This can be done using the dataset_convert subtask under DetectNet_v2.

The dataset_convert tool requires a configuration file as input. Details of the configuration file and examples are included in the following sections.

Configuration File for Dataset Converter

The dataset_convert tool provides several configurable parameters. The parameters are encapsulated in a spec file to convert data from the KITTI format to the TFRecords format which the DetectNet_v2 trainer can ingest. This is a prototxt format file with two global parameters:

  • kitti_config: A nested prototxt configuration with multiple input parameters

  • image_directory_path: The path to the dataset root. The image_dir_name is appended to this path to get the input images and must be the same path specified in the experiment spec file.

Here are descriptions of the configurable parameters for the kitti_config field:

Parameter

Datatype

Default

Description

Supported Values

root_directory_path

string

The path to the dataset root directory

image_dir_name

string

The relative path to the directory containing images from the path in root_directory_path.

label_dir_name

string

The relative path to the directory containing labels from the path in root_directory_path.

partition_mode

string

The method employed when partitioning the data to multiple folds. Two methods are supported:

  • Random partitioning: The data is divided in to 2 folds, train and val. This mode requires that the val_split parameter be set.

  • Sequence-wise partitioning: The data is divided into n partitions (defined by the num_partitions parameter) based on the number of sequences available.

  • random

  • sequence

num_partitions

int

2 (if partition_mode is random)

The number of partitions to use to split the data (N folds). This field is ignored when the partition model is set to random, as by default only two partitions are generated: val and train. In sequence mode, the data is split into n-folds. The number of partitions is ideally fewer than the total number of sequences in the kitti_sequence_to_frames file.

n=2 for random partition n< number of sequences in the kitti_sequence_to_frames_file

image_extension

str

.png

The extension of the images in the image_dir_name parameter.

.png .jpg .jpeg

val_split

float

20

The percentage of data to be separated for validation. This only works under “random” partition mode. This partition is available in fold 0 of the TFrecords generated. Set the validation fold to 0 in the dataset_config.

0-100

kitti_sequence_to_frames_file

str

The name of the KITTI sequence to frame mapping file. This file must be present within the dataset root as mentioned in the root_directory_path.

num_shards

int

10

The number of shards per fold.

1-20

The sample configuration file shown below converts the Pascal VOC dataset with 80% training data and 20% validation data. This assumes that the data has been converted to KITTI format and is available for ingestion in the root directory path.

Copy
Copied!


kitti_config { root_directory_path: "/workspace/tao-experiments/data/VOCtrainval_11-May-2012/VOCdevkit/VOC2012" image_dir_name: "JPEGImages_kitti/test" label_dir_name: "Annotations_kitti/test" image_extension: ".jpg" partition_mode: "random" num_partitions: 2 val_split: 20 num_shards: 10 } image_directory_path: "/workspace/tao-experiments/data/VOCtrainval_11-May-2012/VOCdevkit/VOC2012"


Sample Usage of the Dataset Converter Tool

While KITTI is the accepted dataset format for object detection, the DetectNet_v2 trainer requires this data to be converted to TFRecord files for ingestion. The dataset_convert tool is described below:

Copy
Copied!


tao detectnet_v2 dataset-convert [-h] -d DATASET_EXPORT_SPEC -o OUTPUT_FILENAME [-f VALIDATION_FOLD]

You can use the follwoing optional arguments:

  • -h, --help: Show this help message and exit

  • -d, --dataset-export-spec: The path to the detection dataset spec containing the config for exporting .tfrecord files

  • -o output_filename: The output filename

  • -f, –validation-fold: The validation fold in 0-based indexing. This is required when modifying the training set, but otherwise optional.

The following example shows how to use the command with the dataset:

Copy
Copied!


tao detectnet_v2 dataset_convert [-h] -d <path_to_tfrecords_conversion_spec> -o <path_to_output_tfrecords>

The following is the output log from executing tao detectnet_v2 dataset_convert:

Copy
Copied!


Using TensorFlow backend. 2019-07-16 01:30:59,073 - iva.detectnet_v2.dataio.build_converter - INFO - Instantiating a kitti converter 2019-07-16 01:30:59,243 - iva.detectnet_v2.dataio.kitti_converter_lib - INFO - Num images in Train: 10786 Val: 2696 2019-07-16 01:30:59,243 - iva.detectnet_v2.dataio.kitti_converter_lib - INFO - Validation data in partition 0. Hence, while choosing the validation set during training choose validation_fold 0. 2019-07-16 01:30:59,251 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Writing partition 0, shard 0 /usr/local/lib/python2.7/dist-packages/iva/detectnet_v2/dataio/kitti_converter_lib.py:265: VisibleDeprecationWarning: Reading unicode strings without specifying the encoding argument is deprecated. Set the encoding, use None for the system default. 2019-07-16 01:31:01,226 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Writing partition 0, shard 1 . . sheep: 242 bottle: 205 .. boat: 171 car: 418 2019-07-16 01:31:20,772 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Writing partition 1, shard 0 .. 2019-07-16 01:32:40,338 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Writing partition 1, shard 9 2019-07-16 01:32:49,063 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Wrote the following numbers of objects: sheep: 695 .. car: 1770 2019-07-16 01:32:49,064 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Cumulative object statistics 2019-07-16 01:32:49,064 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Wrote the following numbers of objects: sheep: 937 .. car: 2188 2019-07-16 01:32:49,064 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Class map. Label in GT: Label in tfrecords file sheep: sheep .. boat: boat For the dataset_config in the experiment_spec, please use labels in the tfrecords file, while writing the classmap. 2019-07-16 01:32:49,064 - iva.detectnet_v2.dataio.dataset_converter_lib - INFO - Tfrecords generation complete.

Note

The dataset_convert tool converts the class names in the KITTI-formatted data files to lowercase characters. Therefore, when configuring a training experiment, ensure that lowercase class names are used in the dataset_config section under target class mapping. Using incorrect class names in the dataset_config section can cause invalid training experiments with 0 mAP.

Note

When using the dataset_convert tool to create separate TFRecords for evaluation, which may be defined under dataset_config using the parameter validation_data_source, we recommend setting the partition_mode to random with 2 partitions and an arbitrary val_split (1-100). The dataloader takes care of traversing through all the folds and generating the mAP accordingly.


To perform training, evaluation, and inference for DetectNet_v2, you need to configure several components, each with their own parameters. The train and evaluate tasks for a DetectNet_v2 experiment share the same configuration file. The inference task uses a separate configuration file.

The specification file for DetectNet_v2 training configures these components of the training pipe:

  • Model

  • BBox ground truth generation

  • Post processing module

  • Cost function configuration

  • Trainer

  • Augmentation model

  • Evaluator

  • Dataloader

Model Config

The core object-detection model can be configured using the model_config option in the spec file.

The following is a sample model config to instantiate a ResNet-18 model with pretrained weights and freeze blocks 0 and 1 with all shortcuts set to projection layers.

Copy
Copied!


# Sample model config for to instantiate a resnet18 model with pretrained weights and freeze blocks 0, 1 # with all shortcuts having projection layers. model_config { arch: "resnet" pretrained_model_file: <path_to_model_file> freeze_blocks: 0 freeze_blocks: 1 all_projections: True num_layers: 18 use_pooling: False use_batch_norm: True dropout_rate: 0.0 objective_set: { cov {} bbox { scale: 35.0 offset: 0.5 } } }

The following table describes the model_config parameters:

Parameter

Datatype

Default

Description

Supported Values

all_projections

bool

False

For templates with shortcut connections, this parameter defines whether or not all shortcuts should be instantiated with 1x1 projection layers, irrespective of whether there is a change in stride across the input and output.

True or False (only to be used in ResNet templates)

arch

string

resnet

The architecture of the backbone feature extractor to be used for training.

  • resnet

  • vgg

  • mobilenet_v1

  • mobilenet_v2

  • googlenet

num_layers

int

18

The depth of the feature extractor for scalable templates.

  • resnet: 10, 18, 34, 50, 101

  • vgg: 16, 19

pretrained model file

string

This parameter defines the path to a pretrained TAO model file. If the load_graph flag is set to false, it is assumed that only the weights of the pretrained model file is to be used. In this case, TAO train constructs the feature extractor graph in the experiment and loads the weights from the pretrained model file that has matching layer names. Thus, transfer learning across different resolutions and domains are supported. For layers that may be absent in the pretrained model, the tool initializes them with random weights and skips the import for that layer.

Unix path

use_pooling

Boolean

False

Choose between using strided convolutions or MaxPooling while downsampling. When True, MaxPooling is used to downsample; however, for the object-detection network, NVIDIA recommends setting this to False and using strided convolutions.

True or False

use_batch_norm

Boolean

False

A flag to determine whether to use Batch Normalization layers or not.

True or False

objective_set

Proto Dictionary

The objectives for training the network. For object-detection networks, set it to learn cov and bbox. These parameters should not be altered for the current training pipeline.

cov {} bbox { scale: 35.0 offset: 0.5 }

dropout_rate

Float

0.0

Probability for drop out,

0.0-0.1

load_graph

Boolean

False

A flag to determine whether or not to load the graph from the pretrained model file, or just the weights. For a pruned model, set this parameter to True. Pruning modifies the original graph, so the pruned model graph and the weights need to be imported.

True or False

freeze_blocks

float (repeated)

This parameter defines which blocks may be frozen from the instantiated feature extractor template, and is different for different feature extractor templates.

  • ResNet series: For the ResNet series, the block ID’s valid for freezing is any subset of [0, 1, 2, 3, 4](inclusive).

  • VGG series: For the VGG series, the block ID’s valid for freezing is any subset of [1, 2, 3, 4, 5](inclusive).

  • MobileNet V1: For the MobileNet V1, the block ID’s valid for freezing is any subset of [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11](inclusive).

  • MobileNet V2: For the MobileNet V2, the block ID’s valid for freezing is any subset of [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13](inclusive).

  • GoogLeNet: For the GoogLeNet, the block ID’s valid for freezing is any subset of [0, 1, 2, 3, 4, 5, 6, 7](inclusive).

freeze_bn

Boolean

False

A flag to determine whether to freeze the Batch Normalization layers in the model during training.

True or False

BBox Ground Truth Generator

DetectNet_v2 generates 2 tensors, cov and bbox. The image is divided into 16x16 grid cells. The cov tensor (short for “coverage” tensor) defines the number of grid cells that are covered by an object. The bbox tensor defines the normalized image coordinates of the object top left (x1, y1) and bottom right (x2, y2) with respect to the grid cell. For best results, you can assume the coverage area to be an ellipse within the bbox label with the maximum confidence assigned to the cells in the center and reducing coverage outwards. Each class has its own coverage and bbox tensor, thus the shape of the tensors are as follows:

  • cov: Batch_size, Num_classes, image_height/16, image_width/16

  • bbox: Batch_size, Num_classes * 4, image_height/16, image_width/16 (where 4 is the number of coordinates per cell)

Here is a sample rasterizer config for a 3 class detector:

Copy
Copied!


# Sample rasterizer configs to instantiate a 3 class bbox rasterizer bbox_rasterizer_config { target_class_config { key: "car" value: { cov_center_x: 0.5 cov_center_y: 0.5 cov_radius_x: 0.4 cov_radius_y: 0.4 bbox_min_radius: 1.0 } } target_class_config { key: "cyclist" value: { cov_center_x: 0.5 cov_center_y: 0.5 cov_radius_x: 0.4 cov_radius_y: 0.4 bbox_min_radius: 1.0 } } target_class_config { key: "pedestrian" value: { cov_center_x: 0.5 cov_center_y: 0.5 cov_radius_x: 0.4 cov_radius_y: 0.4 bbox_min_radius: 1.0 } } deadzone_radius: 0.67 }

The bbox_rasterizer has the following parameters that are configurable:

Parameter

Datatype

Default

Description

Supported Values

deadzone radius

float

0.67

The area to be considered dormant (or area of no bbox) around the ellipse of an object. This is particularly useful in cases of overlapping objects so that foreground objects and background objects are not confused.

0-1.0

target_class_config

proto dictionary

This is a nested configuration field that defines the coverage region for an object of a given class. For each class, this field is repeated. The following are configurable parameters for the target_class_config:

  • cov_center_x (float): x-coordinate of the center of the object

  • cov_center_y (float): y-coordinate of the center of the object

  • cov_radius_x (float): x-radius of the coverage ellipse

  • cov_radius_y (float): y-radius of the coverage ellipse

  • bbox_min_radius (float): The minimum radius of the coverage region to be drawn for boxes

  • cov_center_x: 0.0 - 1.0

  • cov_center_y: 0.0 - 1.0

  • cov_radius_x: 0.0 - 1.0

  • cov_radius_y: 0.0 - 1.0

  • bbox_min_radius: 0.0 - 1.0

Post-Processor

The post-processor module generates renderable bounding boxes from the raw detection output. The process includes the following:

  • Filtering out valid detections by thresholding objects using the confidence value in the coverage tensor.

  • Clustering the raw filtered predictions using DBSCAN to produce the final rendered bounding boxes.

  • Filtering out weaker clusters based on the final confidence threshold derived from the candidate boxes that get grouped into a cluster.

Here is an example of the definition of the post-processor for a 3-class network learning for car, cyclist, and pedestrian:

Copy
Copied!


postprocessing_config { target_class_config { key: "car" value: { clustering_config { coverage_threshold: 0.005 dbscan_eps: 0.15 dbscan_min_samples: 0.05 minimum_bounding_box_height: 20 } } } target_class_config { key: "cyclist" value: { clustering_config { coverage_threshold: 0.005 dbscan_eps: 0.15 dbscan_min_samples: 0.05 minimum_bounding_box_height: 20 } } } target_class_config { key: "pedestrian" value: { clustering_config { coverage_threshold: 0.005 dbscan_eps: 0.15 dbscan_min_samples: 0.05 minimum_bounding_box_height: 20 } } } }

This section defines parameters that configure the post-processor. For each class that you can train for, the postprocessing_config has a target_class_config element that defines the clustering parameters for this class. The parameters for each target class include the following:

Parameter

Datatype

Default

Description

Supported Values

key

string

The name of the class for which the post processor module is being configured

The network object class name, which is mentioned in the cost_function_config.

value

clustering _config proto

The nested clustering-config proto parameter that configures the postprocessor module. The parameters for this module are defined in the next table.

Encapsulated object with parameters defined below.

The clustering_config element configures the clustering block for this class. Here are the parameters for this element:

Parameter

Datatype

Default

Description

Supported Values

coverage_threshold

float

The minimum threshold of the coverage tensor output to be considered a valid candidate box for clustering. The four coordinates from the bbox tensor at the corresponding indices are passed for clustering.

0.0 - 1.0

dbscan_eps

float

The maximum distance between two samples for one to be considered in the neighborhood of the other. This is not a maximum bound on the distances of points within a cluster. The greater the dbscan_eps value, the more boxes are grouped together.

0.0 - 1.0

dbscan_min_samples

float

The total weight in a neighborhood for a point to be considered as a core point. This includes the point itself.

0.0 - 1.0

minimum_bounding_box_height

int

The minimum height in pixels to consider as a valid detection post clustering.

0 - input image height

clustering_algorithm

enum

DBSCAN

Defines the post-processing algorithm to cluter raw detections to the final bbox render. When using HYBRID mode, ensure both DBSCAN and NMS configuration parameters are defined.

DBSCAN, NMS, HYBRID

dbscan_confidence_threshold

float

0.1

The confidence threshold used to filter out the clustered bounding box output from DBSCAN.

> 0.0

nms_iou_threshold

float

0.2

The Intersection Over Union (IOU) threshold to filter out redundant boxes from raw detections to form final clustered outputs.

(0.0 - 1.0)

nms_confidence_threshold

float

0.

The confidence threshold to filter out clustered bounding boxes from NMS.

0.0 - 1.0

In TAO Toolkit 3.21.08, DetectNet_v2 supports three methods for clustering raw detections for the network in final rendered bounding boxes.

  • DBSCAN: Density Based Spatial Clustering of Application

  • NMS: Non-Maximal suppression

  • HYDRID: DBSCAN + NMS

Under HYBRID clustering, DetectNet_v2 post-processing first passes the raw network outputs to the DBSCAN clustering and uses the candidate boxes per cluster from DBSCAN as input to NMS. The NMS clustering generates the final rendered boxes.

Note

For HYBRID clustering, ensure both DBSCAN and NMS related parameters are defined in the post-processing config.


Cost Function

This section describes how to configure the cost function to include the classes that you are training for. For each class you want to train, add a new entry for the target classes to the spec file. We recommend not changing the parameters within the spec file for best performance with these classes. The other parameters here should remain unchanged.

Copy
Copied!


cost_function_config { target_classes { name: "car" class_weight: 1.0 coverage_foreground_weight: 0.05 objectives { name: "cov" initial_weight: 1.0 weight_target: 1.0 } objectives { name: "bbox" initial_weight: 10.0 weight_target: 10.0 } } target_classes { name: "cyclist" class_weight: 1.0 coverage_foreground_weight: 0.05 objectives { name: "cov" initial_weight: 1.0 weight_target: 1.0 } objectives { name: "bbox" initial_weight: 10.0 weight_target: 1.0 } } target_classes { name: "pedestrian" class_weight: 1.0 coverage_foreground_weight: 0.05 objectives { name: "cov" initial_weight: 1.0 weight_target: 1.0 } objectives { name: "bbox" initial_weight: 10.0 weight_target: 10.0 } } enable_autoweighting: True max_objective_weight: 0.9999 min_objective_weight: 0.0001 }


Trainer

The following is a sample training_config block to configure a DetectNet_v2 trainer:

Copy
Copied!


training_config { batch_size_per_gpu: 16 num_epochs: 80 learning_rate { soft_start_annealing_schedule { min_learning_rate: 5e-6 max_learning_rate: 5e-4 soft_start: 0.1 annealing: 0.7 } } regularizer { type: L1 weight: 3e-9 } optimizer { adam { epsilon: 1e-08 beta1: 0.9 beta2: 0.999 } } cost_scaling { enabled: False initial_exponent: 20.0 increment: 0.005 decrement: 1.0 } }

The following table describes the parameters used to configure the trainer:

Parameter

Datatype

Default

Description

Supported Values

batch_size_per_gpu

int

32

The number of images per batch per GPU.

>1

num_epochs

int

120

The total number of epochs to run the experiment.

enable_qat

bool

False

Enables model training using Quantization Aware Training (QAT). For more information about QAT, see the Quantization Aware Training section.

True or False

learning rate

learning rate scheduler proto

soft_start _annealing _schedule

Configures the learning rate schedule for the trainer. Currently, DetectNet_v2 only supports the soft_start annealing learning rate schedule, which may be configured using the following parameters:

  • soft_start (float): The time to ramp up the learning rate from minimum learning rate to maximum learning rate.

  • annealing (float): The time to cool down the learning rate from maximum learning rate to minimum learning rate.

  • minimum_learning_rate (float): The minimum learning rate in the learning rate schedule.

  • maximum_learning_rate (float): The maximum learning rate in the learning rate schedule.

annealing: 0.0-1.0 and greater than soft_start Soft_start: 0.0 - 1.0

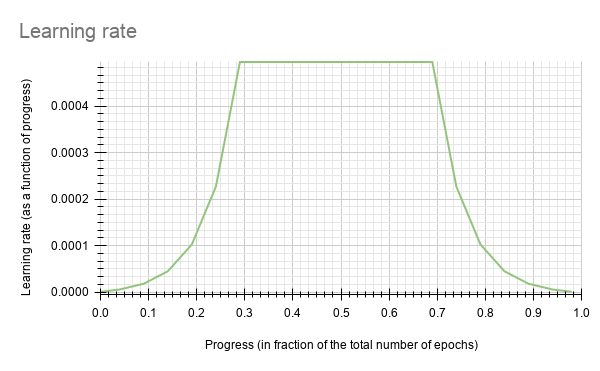

A sample lr plot for a soft_start of 0.3 and annealing of 0.1 is shown in the figure below.

regularizer

regularizer proto config

The type and the weight of the regularizer to be used during training. There are two parameters:

  • type: The type of the regularizer being used.

  • weight: The floating point weight of the regularizer.

The supported values for type are:

  • NO_REG

  • L1

  • L2

optimizer

optimizer proto config

The optimizer to use for training and the parameters to configure it:

  • epsilon (float): A very small number to prevent any division by zero in the implementation.

  • beta1 (float)

  • beta2 (float)

cost_scaling

costscaling _config

Enables cost scaling during training. Leave this parameter untouched currently for the DetectNet_v2 training pipe.

cost_scaling { enabled: False initial_exponent: 20.0 increment: 0.005 decrement: 1.0 }

checkpoint interval

float

0/10

The interval (in epochs) at which train saves intermediate models.

0 to num_epochs

DetectNet_v2 currently supports the soft_start annealing learning rate schedule. The learning rate when plotted as a function of the training progress (0.0, 1.0) results in the following curve:


In this experiment, the soft_start was set as 0.3 and annealing as 0.7, with the minimum learning rate as 5e-6 and maximum learning rate, or base_lr, as 5e-4.

Note

We suggest using an L1 regularizer when training a network before pruning, as L1 regularization makes pruning the network weights easier. After pruning, when retraining the networks, we recommend turning regularization off by setting the regularization type to NO_REG.


Augmentation Module

The augmentation module provides some basic pre-processing and augmentation when training. Here is a sample augmentation_config element:

Copy
Copied!


# Sample augementation config for augmentation_config { preprocessing { output_image_width: 960 output_image_height: 544 output_image_channel: 3 min_bbox_width: 1.0 min_bbox_height: 1.0 } spatial_augmentation { hflip_probability: 0.5 vflip_probability: 0.0 zoom_min: 1.0 zoom_max: 1.0 translate_max_x: 8.0 translate_max_y: 8.0 } color_augmentation { color_shift_stddev: 0.0 hue_rotation_max: 25.0 saturation_shift_max: 0.2 contrast_scale_max: 0.1 contrast_center: 0.5 } }

Note

If the output image height and output image width of the preprocessing block doesn’t match with the dimensions of the input image, the dataloader either pads with zeros or crops to fit to the output resolution. It does not resize the input images and labels to fit.

The augmentation_config contains three elements:

preprocessing: This nested field configures the input image and ground truth label pre-processing module. It sets the shape of the input tensor to the network. The ground truth labels are pre-processed to meet the dimensions of the input image tensors.

Parameter

Datatype

Default/Suggested value

Description

Supported Values

output _image _width

int

The width of the augmentation output. This is the same as the width of the network input and must be a multiple of 16.

>480

output _image _height

int

The height of the augmentation output. This is the same as the height of the network input and must be a multiple of 16.

>272

output _image _channel

int

1, 3

The channel depth of the augmentation output. This is the same as the channel depth of the network input. Currently, 1-channel input is not recommended for datasets with JPG images. For PNG images, both 3-channel RGB and 1-channel monochrome images are supported.

1,3

output _image_min

int

The smaller side of the augmentation output. This is the same as the smaller side of the network input. This is used in the case of input with dynamic shape in FasterRCNN where we specify the smaller side size and the data loader will resize the image such that the smaller side is this number and keep aspect ratio.

>272

output _image_max

int

The larger side of the augmentation output. This is the same as the larger side of the network input. This is used in the case of input with dynamic shape in FasterRCNN where if the smaller side and keep aspect ratio results in the other side exceeding this limit, it will resize such that the larger side is exactly this number and keep aspect ratio so the smaller side does not exceed input_image_min.

>272

enable_auto _resize

bool

False

A flag to enable automatic resize during training. When it is set to True, offline resize before the training is no longer required. Enabling this will potentially increase the training time.

min_bbox _height

float

The minimum height of the object labels to be considered for training.

0 - output_image_height

min_bbox _width

float

The minimum width of the object labels to be considered for training.

0 - output_image_width

crop_right

int

The right boundary of the crop to be extracted from the original image.

0 - input image width

crop_left

int

The left boundary of the crop to be extracted from the original image.

0 - input image width

crop_top

int

The top boundary of the crop to be extracted from the original image.

0 - input image height

crop_bottom

int

The bottom boundary of the crop to be extracted from the original image.

0 - input image height

scale_height

float

The floating point factor to scale the height of the cropped images.

> 0.0

scale_width

float

The floating point factor to scale the width of the cropped images.

> 0.0

spatial_augmentation: This module supports basic spatial augmentation such as flip, zoom, and translate, which may be configured.

Parameter

Datatype

Default/Suggested value

Description

Supported Values

hflip_probability

float

0.5

The probability to flip an input image horizontally.

0.0-1.0

vflip_probability

float

0.0

The probability to flip an input image vertically.

0.0-1.0

zoom_min

float

1.0

The minimum zoom scale of the input image.

> 0.0

zoom_max

float

1.0

The maximum zoom scale of the input image.

> 0.0

translate_max_x

int

8.0

The maximum translation to be added across the x axis.

0.0 - output_image_width

translate_max_y

int

8.0

The maximum translation to be added across the y axis.

0.0 - output_image_height

rotate_rad_max

float

0.69

The angle of rotation to be applied to the images and the training labels. The range is defined between [-rotate_rad_max, rotate_rad_max].

> 0.0 (modulo 2*pi

color_augmentation: This module configures the color space transformations, such as color shift, hue_rotation, saturation shift, and contrast adjustment.

Parameter

Datatype

Default/Suggested value

Description

Supported Values

color_shift_stddev

float

0.0

The standard devidation value for the color shift.

0.0-1.0

hue_rotation_max

float

25.0

The maximum rotation angle for the hue rotation matrix.

0.0-360.0

saturation_shift_max

float

0.2

The maximum shift that changes the saturation. A value of 1.0 means no change in saturation shift.

0.0 - 1.0

contrast_scale_max

float

0.1

The slope of the contrast as rotated around the provided center. A value of 0.0 leaves the contrast unchanged.

0.0 - 1.0

contrast_center

float

0.5

The center around which the contrast is rotated. Ideally, this is set to half of the maximum pixel value. Since our input images are scaled between 0 and 1.0, you can set this value to 0.5.

0.5

The dataloader online augmentation pipeline applies spatial and color-space augmentation transformations in the following order:

  1. The dataloader first performs the pre-processing operations on the input data (image and labels) read from the tfrecords files. Here the images and labels are cropped and scaled based on the parameters mentioned in the preprocessing config. The boundaries for generating the cropped image and labels from the original image is defined by the crop_left, crop_right, crop_top and crop_bottom parameters. This cropped data is then scaled by the scale factors defined by scale_height and scale_width. The transformation matrices for these operations are computed globally and do not change per image.

  2. The net tensors generated from the pre-processing blocks are then passed through a pipeline of random augmentations in spatial and color domains. The spatial augmentations are applied to both images and label coordinates, while the color augmentations are applied only to images. To apply color augmentations, the output_image_channel parameter must be set to 3. For monochrome tensors, color augmentations are not applied. The spatial and color transformation matrices are computed per image, based on a uniform distribution along the maximum and minimum ranges defined by the spatial_augmentation and color_augmentation config parameters.

  3. Once the spatial and color augmented net input tensors are generated, the output is then padded with zeros or clipped along the right and bottom edge of the image to fit the output dimensions defined in the preprocessing config.

Configuring the Evaluator

The evaluator in the detection training pipeline can be configured using the evaluation_config parameters. The following is an example evaluation_config element:

Copy
Copied!


# Sample evaluation config to run evaluation in integrate mode for the given 3 class model, # at every 10th epoch starting from the epoch 1. evaluation_config { average_precision_mode: INTEGRATE validation_period_during_training: 10 first_validation_epoch: 1 minimum_detection_ground_truth_overlap { key: "car" value: 0.7 } minimum_detection_ground_truth_overlap { key: "person" value: 0.5 } minimum_detection_ground_truth_overlap { key: "bicycle" value: 0.5 } evaluation_box_config { key: "car" value { minimum_height: 4 maximum_height: 9999 minimum_width: 4 maximum_width: 9999 } } evaluation_box_config { key: "person" value { minimum_height: 4 maximum_height: 9999 minimum_width: 4 maximum_width: 9999 } } evaluation_box_config { key: "bicycle" value { minimum_height: 4 maximum_height: 9999 minimum_width: 4 maximum_width: 9999 } } }

The following tables describe the parameters used to configure evaluation:

Parameter

Datatype

Default/Suggested value

Description

Supported Values

average_precision _mode

Sample

The mode in which the average precision for each class is calculated.

  • SAMPLE: This is the ap calculation mode using 11 evenly spaced recall points as used in the Pascal VOC challenge 2007.

  • INTEGRATE: This is the ap calculation mode as used in the 2011 challenge

validation_period _during_training

int

10

The interval at which evaluation is run during training. The evaluation is run at this interval starting from the value of the first validation epoch parameter as specified below.

1 - total number of epochs

first_validation _epoch

int

30

The first epoch to start running validation. Ideally it is preferred to wait for at least 20-30% of the total number of epochs before starting evaluation, since the predictions in the initial epochs would be fairly inaccurate. Too many candidate boxes may be sent to clustering and this can cause the evaluation to slow down.

1 - total number of epochs

minimum_detection _ground_truth_overlap

proto dictionary

Minimum IOU between ground truth and predicted box after clustering to call a valid detection. This parameter is a repeatable dictionary and a separate one must be defined for every class. The members include:

  • key (string): class name

  • value (float): intersection over union value

evaluation_box_config

proto dictionary

This nested configuration field configures the min and max box dimensions to be considered as a valid ground truth and prediction for AP calculation.

The evaluation_box_config field has these configurable inputs.

Parameter

Datatype

Default/Suggested value

Description

Supported Values

minimum_height

float

10

Minimum height in pixels for a valid ground truth and prediction bbox.

    • model image height

minimum_width

float

10

Minimum width in pixels for a valid ground truth and prediction bbox.

    • model image width

maximum_height

float

9999

Maximum height in pixels for a valid ground truth and prediction bbox.

minimum_height - model image height

maximum_width

float

9999

Maximum width in pixels for a valid ground truth and prediction bbox.

minimum _width - model image width

Dataloader

The dataloader defines the path to the data you want to train on and the class mapping for classes in the dataset that the network is to be trained for.

The following is an example dataset_config element:

Copy
Copied!


dataset_config { data_sources: { tfrecords_path: "<path to the training tfrecords root/tfrecords train pattern>" image_directory_path: "<path to the training data source>" } image_extension: "jpg" target_class_mapping { key: "car" value: "car" } target_class_mapping { key: "automobile" value: "car" } target_class_mapping { key: "heavy_truck" value: "car" } target_class_mapping { key: "person" value: "pedestrian" } target_class_mapping { key: "rider" value: "cyclist" } validation_fold: 0 }

In this example the tfrecords is assumed to be multi-fold, and the fold number to validate on is defined. However, evaluation doesn’t necessarily have to be run on a split of the training set. Many ML engineers choose to evaluate the model on a well chosen evaluation dataset that is exclusive of the training dataset. If you prefer to run evaluation on a different validation dataset as opposed to a split from the training dataset, then convert this dataset into tfrecords by using the dataset-convert tool as mentioned here and use the validation_data_source field in the dataset_config to define this dataset to the evaluator . In this case, do not forget to remove the validation_fold field from the spec. When generating the TFRecords for evaluation by using the validation_data_source field, please review the notes here.

Copy
Copied!


validation_data_source: { tfrecords_path: " <path to tfrecords to validate on>/tfrecords validation pattern>" image_directory_path: " <path to validation data source>" }

The parameters in dataset_config are defined as follows:

  • data_sources: Captures the path to tfrecords to train on. This field contains 2 parameters:

    • tfrecords_path: Path to the individual tfrecords files. This path follows the UNIX style pathname pattern extension, so a common pathname pattern that captures all the tfrecords files in that directory can be used.

    • image_directory_path: Path to the training data root from which the tfrecords was generated.

  • image_extension: Extension of the images to be used.

  • target_class_mapping: This parameter maps the class names in the tfrecords to the target class to be trained in the network. An element is defined for every source class to target class mapping. This field was included with the intention of grouping similar class objects under one umbrella. For example: car, van, heavy_truck etc may be grouped under automobile. The “key” field is the value of the class name in the tfrecords file and the “value” field corresponds to the value that the network is expected to learn.

  • validation_fold: In case of an n fold tfrecords, you define the index of the fold to use for validation. For sequencewise validation choose the validation fold in the range [0, N-1]. For random split partitioning, force the validation fold index to 0 as the tfrecord is just 2-fold.

Note

The class names key in the target_class_mapping must be identical to the one shown in the dataset converter log, so that the correct classes are picked up for training.


Specification File for Inference

This spec file configures the infer tool of detectnet to generate valid bbox predictions. The inference tool consists of 2 blocks, namely the inferencer and the bbox handler. The inferencer instantiates the model object and preprocessing pipe. The bbox handler handles the post processing, rendering of bounding boxes and the serialization to KITTI format output labels.

Inferencer

The inferencer instantiates a model object that generates the raw predictions from the trained model. The model may be defined to run inference in the TAO Toolkit backend or the TensorRT backend.

A sample inferencer_config element for the inferencer spec is defined here:

Copy
Copied!


inferencer_config{ # defining target class names for the experiment. # Note: This must be mentioned in order of the networks classes. target_classes: "car" target_classes: "cyclist" target_classes: "pedestrian" # Inference dimensions. image_width: 1248 image_height: 384 # Must match what the model was trained for. image_channels: 3 batch_size: 16 gpu_index: 0 # model handler config tensorrt_config{ parser: ETLT etlt_model: "/path/to/model.etlt" backend_data_type: INT8 save_engine: true trt_engine: "/path/to/trt/engine/file" calibrator_config{ calibration_cache: "/path/to/calibration/cache" n_batches: 10 batch_size: 16 } } }

The inferencer_config parameters are explained in the table below.

Parameter

Datatype

Default/Suggested value

Description

Supported Values

target_classes

String (repeated)

None

The names of the target classes the model should output. For a multi-class model this parameter is repeated N times. The number of classes must be equal to the number of classes and the order must be the same as the classes in costfunction_config of the training config file.

For example, for the 3 class kitti model it will be:

  • car

  • cyclist

  • pedestrian

batch_size

int

1

The number of images per batch of inference.

Max number of images that can be fit in 1 GPU

image_height

int

384

The height of the image in pixels at which the model will be inferred.

>16

image_width

int

1248

The width of the image in pixels at which the model will be inferred.

>16

image_channels

int

3

The number of channels per image.

1,3

gpu_index

int

0

The index of the GPU to run inference on. This is useful only in TAO inference. For tensorRT inference, by default, the GPU of choice in ‘0’.

tensorrt_config

TensorRTConfig

None

Proto config to instantiate a TensorRT object.

tlt_config

TLTConfig

None

Proto config to instantiate a TLT model object.

As mentioned earlier, the infer tool is capable of running inference using the native TAO Toolkit backend and the TensorRT backend. They can be configured by using the tensorrt_config proto element or the tlt_config proto element respectively. You may use only one of the two in a single spec file. The definitions of the two model objects are:

Parameter

Datatype

Default/Suggested value

Description

Supported Values

parser

enum

ETLT

The tensorrt parser to be invoked. Only ETLT parser is supported.

ETLT

etlt_model

string

None

Path to the exported etlt model file.

Any existing etlt file path.

backend_data _type

enum

FP32

The data type of the backend TensorRT inference engine. For int8 mode, be

sure to mention the calibration_cache.

FP32 FP16 INT8

save_engine

bool

False

Flag to save a TensorRT engine from the input etlt file. This will save initialization time if inference needs to be run on the same etlt file and there are no changes needed to be made to the inferencer object.

True, False

trt_engine

string

None

Path to the TensorRT engine file. This acts an I/O parameter. If the path defined here is not an engine file, then the infer tool creates a new TensorRT engine from the etlt file. If there exists an engine already, the tool re-instantiates the inferencer from the engine defined here.

UNIX path string

calibration _config

CalibratorConfig Proto

None

This is a required parameter when running in the int8 inference mode. This proto object contains parameters used to define a calibrator object. Namely: calibration_cache: path to the calibration cache file generated using export.

TLT_Config

Parameter

Datatype

Default/Suggested value

Description

Supported Values

model

string

None

The path to the .tlt model file.

Note

Since detectnet is a full convolutional neural net, the model can be inferred at a different inference resolution than the resolution at which it was trained. The input dims of the network will be overridden to run inference at this resolution, if they are different from the training resolution. There may be some regression in accuracy when running inference at a different resolution since the convolutional kernels don’t see the object features at this shape.


Bbox Handler

The bbox handler takes care of the post processing the raw outputs from the inferencer. It performs the following steps:

  1. Thresholding the raw outputs to defines grid cells where the detections may be present per class.

  2. Reconstructing the image space coordinates from the raw coordinates of the inferencer.

  3. Clustering the raw thresholded predictions.

  4. Filtering the clustered predictions per class.

  5. Rendering the final bounding boxes on the image in its input dimensions and serializing them to KITTI format metadata.

A sample bbox_handler_config element is defined below.

Copy
Copied!


bbox_handler_config{ kitti_dump: true disable_overlay: false overlay_linewidth: 2 classwise_bbox_handler_config{ key:"car" value: { confidence_model: "aggregate_cov" output_map: "car" bbox_color{ R: 0 G: 255 B: 0 } clustering_config{ coverage_threshold: 0.005 dbscan_eps: 0.3 dbscan_min_samples: 0.05 dbscan_confidence_threshold: 0.9 minimum_bounding_box_height: 4 } } } classwise_bbox_handler_config{ key:"default" value: { confidence_model: "aggregate_cov" bbox_color{ R: 255 G: 0 B: 0 } clustering_config{ coverage_threshold: 0.005 dbscan_eps: 0.3 dbscan_min_samples: 0.05 dbscan_confidence_threshold: 0.9 minimum_bounding_box_height: 4 } } } }

The parameters to configure the bbox handler are defined below.

Parameter

Datatype

Default/Suggested value

Description

Supported Values

kitti_dump

bool

false

Flag to enable saving the final output predictions per image in KITTI format.

true, false

disable_overlay

bool

true

Flag to disable bbox rendering per image.

true, false

overlay _linewidth

int

1

Thickness in pixels of the bbox boundaries.

>1

classwise_bbox _handler_config

ClasswiseCluster Config (repeated)

None

This is a repeated class-wise dictionary of post-processing parameters. DetectNet_v2 uses dbscan clustering to group raw bboxes to final predictions. For models with several output classes, it may be cumbersome to define a separate dictionary for each class. In such a situation, a default class may be used for all classes in the network.

The classwise_bbox_handler_config is a Proto object containing several parameters to configure the clustering algorithm as well as the bbox renderer.

Parameter

Datatype

Default / Suggested value

Description

Supported Values

confidence _model

string

aggregate_cov

Algorithm to compute the final confidence of the clustered bboxes. In the aggregate_cov mode, the final confidence of a detection is the sum of the confidences of all the candidate bboxes in a cluster. In mean_cov mode, the final confidence is the mean confidence of all the bboxes in the cluster.

aggregate_cov, mean_cov

bbox_color

BBoxColor Proto Object

None

RGB channel wise color intensity per box.

R: 0 - 255

G: 0 - 255

B: 0 - 255

clustering_config

ClusteringConfig

None

Proto object to configure the DBSCAN, NMS or HYBRID clustering algorithm. It leverages the same parameters as defined in the postprocessing_config of the training config. Please refer here for more explanation about the parameters.

After creating TFRecords ingestible by the TAO training (as outlined in Preprocessing the Dataset) and setting up a spec file, you are now ready to start training an object detection network.

The following outlines the DetectNet_v2 training command:

Copy
Copied!


tao detectnet_v2 train [-h] -k <key> -r <result directory> -e <spec_file> [-n <name_string_for_the_model>] [--gpus <num GPUs>] [--gpu_index <comma separate gpu indices>] [--use_amp] [--log_file <log_file>]

Required Arguments

  • -r, --results_dir: The path to a folder where experiment outputs should be written.

  • -k, –key: A user-specific encoding key to save or load a .tlt model.

  • -e, --experiment_spec_file: The path to the spec file. The path may be absolute or relative to the working directory. By default, the spec from spec_loader.py is used.

Optional Arguments

  • -n, --model_name: The name of the final step model saved. If not provided, defaults to the model.

  • --gpus: The number of GPUs to use and processes to launch for training. The default value is 1.

  • --gpu_index: The indices of the GPUs to use for training. The GPUs are referenced as per the indices mentioned in the ./deviceQuery CUDA samples.

  • --use_amp: When defined, this flag enables Automatic Mixed Precision mode.

  • --log_file: The path to the log file. Defaults to stdout.

  • -h, --help: Show this help message and exit.

Input Requirement

  • Input size: C * W * H (where C = 1 or 3, W > =480, H >=272 and W, H are multiples of 16)

  • Image format: JPG, JPEG, PNG

  • Label format: KITTI detection

Note

The train tool does not support training on images of multiple resolutions. However, the dataloader does support resizing images to the input resolution defined in the specification file. This can be enabled by setting the enable_auto_resize parameter to true in the augmentation_config module of the spec file.


Sample Usage

Here is an example of a command for training with two GPUs:

Copy
Copied!


tao detectnet_v2 train -e <path_to_spec_file> -r <path_to_experiment_output> -k <key_to_load_the_model> -n <name_string_for_the_model> --gpus 2

Note

The train tool does not support training on images of multiple resolutions, or resizing images during training. All of the images must be resized offline to the final training size and the corresponding bounding boxes must be scaled accordingly.

Note

DetectNet_v2 now supports resuming training from intermediate checkpoints. When a previously running training experiment is stopped prematurely, one may restart the training from the last checkpoint by simply re-running the detectnet_v2 training command with the same command line arguments as before. The trainer for detectnet_v2 finds the last saved checkpoint in the results directory and resumes the training from there. The interval at which the checkpoints are saved are defined by the checkpoint_interval parameter under the “training_config” for detectnet_v2.


Execute evaluate on a DetectNet_v2 model.

Copy
Copied!


tao detectnet_v2 evaluate [-h] -e <experiment_spec -m <model_file> -k <key> [--use_training_set] [--gpu_index]

Required Arguments

  • -e, --experiment_spec_file: The experiment spec file to set up the evaluation experiment. This should be the same as training spec file.

  • -m, --model: The path to the model file to use for evaluation. This could be a .tlt model file or a tensorrt engine generated using the export tool.

  • -k, -–key: The encryption key to decrypt the model. This argument is only required with a .tlt model file.

Optional Arguments

  • -h, --help: Show this help message and exit.

  • -f, --framework: The framework to use when running evaluation (choices: “tlt”, “tensorrt”). By default the framework is set to TensorRT.

  • --use_training_set: Set this flag to run evaluation on the training dataset.

  • --gpu_index: The index of the GPU to run evaluation on.

If you have followed the example in Training a Detection Model, you may now evaluate the model using the following command:

Copy
Copied!


tao detectnet_v2 evaluate -e <path to training spec file> -m <path to the model> -k <key to load the model>

Note

This command runs evaluation on the same validation set that was used during training.

Use these steps to evaluate on a test set with ground truth labeled:

  1. Create tfrecords for this training set by following the steps listed in the data input section.

  2. Update the dataloader configuration part of the training spec file to include the newly generated tfrecords. For more information on the dataset config, refer to Creating an Experiment Spec File. You may create the tfrecords with any partition mode (sequence/random). The evaluate tool iterates through all the folds in the tfrecords patterns mentioned in the validation_data_source.

Copy
Copied!


dataset_config { data_sources: { tfrecords_path: "<path to training tfrecords root>/<tfrecords_name*>" image_directory_path: "<path to training data root>" } image_extension: "jpg" target_class_mapping { key: "car" value: "car" } target_class_mapping { key: "automobile" value: "car" } .. .. .. target_class_mapping { key: "person" value: "pedestrian" } target_class_mapping { key: "rider" value: "cyclist" } validation_data_source: { tfrecords_path: "<path to testing tfrecords root>/<tfrecords_name*>" image_directory_path: "<path to testing data root>" } }

The rest of the experiment spec file should remain the same as the training spec file.

The infer task for detectnet_v2 may be used to visualize bboxes and/or generate frame-by-frame KITTI format labels on a single image or directory of images. An example of the command for this task is shown below:

Copy
Copied!


tao detectnet_v2 inference [-h] -e </path/to/inference/spec/file> -i </path/to/inference/input> -o </path/to/inference/output> -k <model key>

Required Parameters

  • -e, --inference_spec: The path to an inference spec file.

  • -i, --inference_input: The directory of input images or a single image for inference.

  • -o, --inference_output: The directory to the output images and labels. The annotated images are in inference_output/images_annotated and labels are in inference_output/labels.

  • -k, --enc_key: The key to load the model.

The tool automatically generates bbox rendered images in output_path/images_annotated. To get the bbox labels in KITTI format, configure the bbox_handler_config spec file using the kitti_dump parameter as mentioned here. This will generate the output in output_path/labels.

Pruning removes parameters from the model to reduce the model size without compromising the integrity of the model itself using the prune command.

The prune task includes these parameters:

Copy
Copied!


tao detectnet_v2 prune [-h] -pm <pretrained_model> -o <output_file> -k <key> [-n <normalizer>] [-eq <equalization_criterion>] [-pg <pruning_granularity>] [-pth <pruning threshold>] [-nf <min_num_filters>] [-el [<excluded_list>]

Required Arguments

  • -pm, --pretrained_model: The path to the pretrained model.

  • -o, --output_file: The path to the output checkpoints.

  • -k, --key: The key to load a .tlt model.

Optional Arguments

  • -h, --help: Show this help message and exit.

  • -n, –normalizer: Specify max to normalize by dividing each norm by the maximum norm within a layer; specify L2 to normalize by dividing by the L2 norm of the vector comprising all kernel norms. The default value is max.

  • -eq, --equalization_criterion: Criteria to equalize the stats of inputs to an element-wise op layer or depth-wise convolutional layer. This parameter is useful for resnets and mobilenets. The options are arithmetic_mean, geometric_mean, union, and intersection (default: union).

  • -pg, -pruning_granularity: The number of filters to remove at a time (default:8)

  • -pth: The threshold to compare the normalized norm against (default:0.1)

  • -nf, --min_num_filters: The minimum number of filters to keep per layer (default:16)

  • -el, --excluded_layers: A list of excluded_layers (e.g. -i item1 item2) (default: [])

After pruning, the model needs to be retrained. See Re-training the Pruned Model for more details.

Using the Prune Command

Here’s an example of using the prune task:

Copy
Copied!


tao detectnet_v2 prune -m /workspace/output/weights/resnet_003.tlt -o /workspace/output/weights/resnet_003_pruned.tlt -eq union -pth 0.7 -k $KEY


Once the model has been pruned, there might be a slight decrease in accuracy because some previously useful weights may have been removed. To regain the accuracy, we recommend that you retrain this pruned model over the same dataset using the train task, as documented in the Training the model section, with an updated spec file that points to the newly pruned model as the pretrained model file.

You should turn off the regularizer in the training_config for detectnet to recover the accuracy when retraining a pruned model. You may do this by setting the regularizer type to NO_REG as mentioned here. All other parameters may be retained in the spec file from the previous training.

To load the pretrained model, set the load_graph flag under model_config to true.

The DetectNet_V2 model application in the TAO Toolkit includes an export sub-task to export and prepare a trained DetectNet_v2 model for Deploying to DeepStream. The export sub-task optionally generates the calibration cache for TensorRT INT8 engine calibration.

Exporting the model decouples the training process from deployment and allows conversion to TensorRT engines outside the TAO environment. TensorRT engines are specific to each hardware configuration and should be generated for each unique inference environment. This may be interchangeably referred to as a .trt or .engine file. The same exported TAO model may be used universally across training and deployment hardware. This is referred to as the .etlt file, or encrypted TAO file. During model export, the TAO model is encrypted with a private key, which is required when you deploy this model for inference.

INT8 Mode Overview

TensorRT engines can be generated in INT8 mode to run with lower precision, and thus improve performance. This process requires a cache file that contains scale factors for the tensors to help combat quantization errors, which may arise due to low-precision arithmetic. The calibration cache is generated using a calibration tensorfile when export is run with the --data_type flag set to int8. Pre-generating the calibration information and caching it removes the need for calibrating the model on the inference machine. Moving the calibration cache is usually much more convenient than moving the calibration tensorfile since it is a much smaller file and can be moved with the exported model. Using the calibration cache also speeds up engine creation as building the cache can take several minutes to generate depending on the size of the Tensorfile and the model itself.

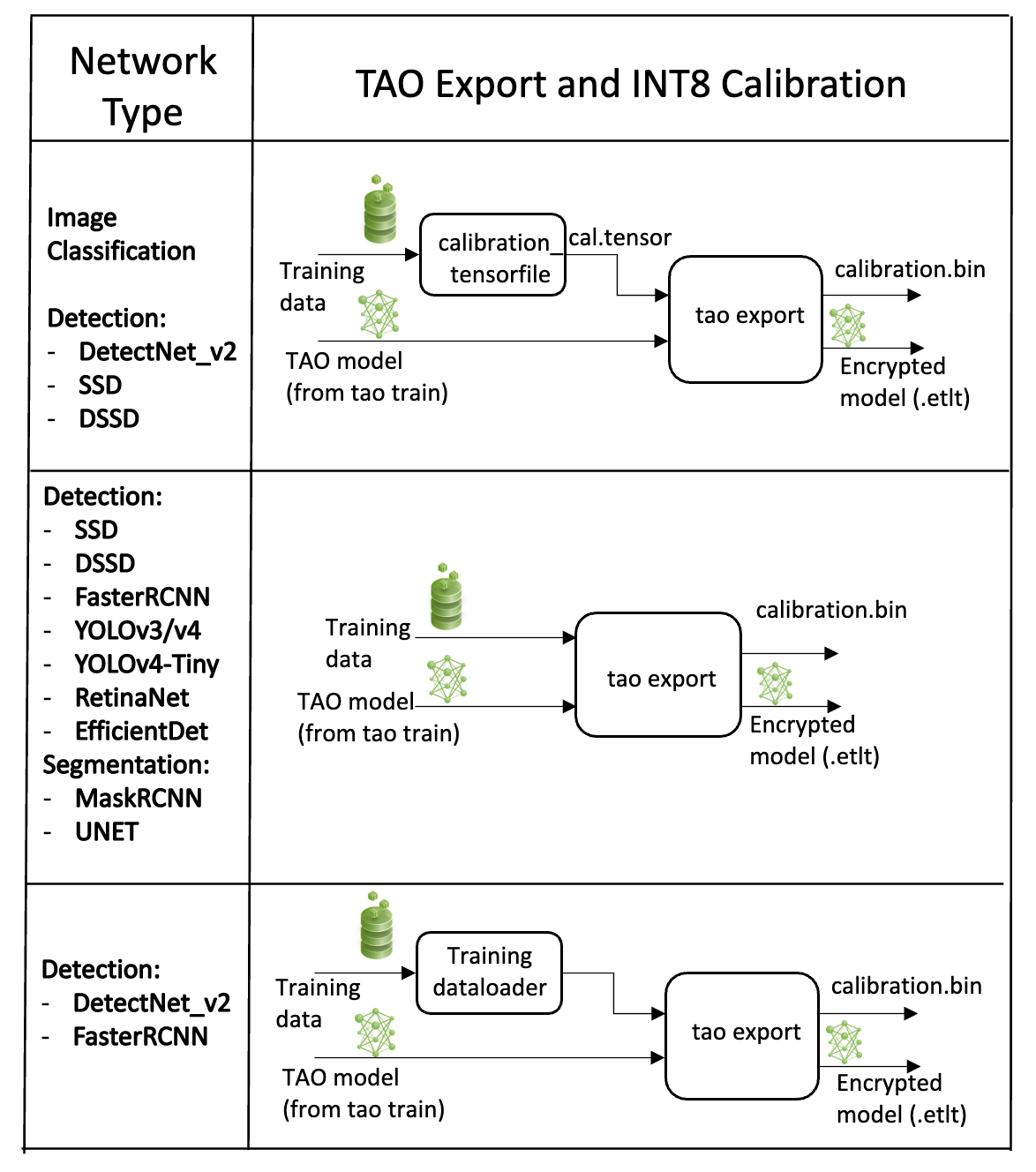

The export tool can generate an INT8 calibration cache by ingesting training data using one of these options:

  • Option 1: Providing a calibration tensorfile generated using the calibration_tensorfile task defined in DetectNet_v2. This command uses the data generators in the training pipeline to produce a drop of preprocessed batches of input images from the training dataset. Using this gives users the opportunity to maintain a record of the exact batches of the training data used to generate the calibration scale factors in the calibration cache file. However, this is a two-step process for generating an int8 cache file.

  • Option 2: Pointing the tool to a directory of images that you want to use to calibrate the model. For this option, you will need to create a sub-sampled directory of random images that best represent your training dataset.

  • Option 3: Using the training data loader directly to load the training images for INT8 calibration. This option is now the recommended approach as it helps to generate multiple random samples. This also ensures two important aspects of the data during calibration:

    • Data pre-processing in the INT8 calibration step is the same as in the training process.

    • The data batches are sampled randomly across the entire training dataset, thereby improving the accuracy of the int8 model.

    • Calibration occurs as a one-step process with the data batches being generated on the fly.

NVIDIA plans to eventually deprecate Option 1 and only support Options 2 and 3.


FP16/FP32 Model

The calibration.bin is only required if you need to run inference at INT8 precision. For FP16/FP32 based inference, the export step is much simpler. All that is required is to provide a model from the train step to export to convert it into an encrypted TAO model.


Generating an INT8 tensorfile Using the calibration_tensorfile Command

The INT8 tensorfile is a binary file that contains the preprocessed training samples, which may be used to calibrate the model. In this release, TAO Toolkit only supports calibration tensorfile generation for SSD, DSSD, DetectNet_v2, and classification models.

The sample usage for the calibration_tensorfile command to generate a calibration tensorfile is defined below:

Copy
Copied!


tao detectnet_v2 calibration_tensorfile [-h] -e <path to training experiment spec file> -o <path to output tensorfile> -m <maximum number of batches to serialize> [--use_validation_set]

Required Arguments

  • -e, --experiment_spec_file: The path to the experiment spec file (only required for SSD and FasterRCNN).

  • -o, --output_path: The path to the output tensorfile that will be created.

  • -m, --max_batches: The number of batches of input data to be serialized.

Optional Argument

  • --use_validation_set: A flag specifying whether to use the validation dataset instead of the training set.

The following is a sample command to invoke the calibration_tensorfile command for a classification model:

Copy
Copied!


tao detectnet_v2 calibration_tensorfile -e $SPECS_DIR/classification_retrain_spec.cfg -m 10 -o $USER_EXPERIMENT_DIR/export/calibration.tensor

Exporting the DetectNet_v2 Model

The following are command line arguments of the export command:

Copy
Copied!


tao detectnet_v2 export [-h] -m <path to the .tlt model file generated by tao train> -k <key> [-o <path to output file>] [--cal_data_file <path to tensor file>] [--cal_image_dir <path to the directory images to calibrate the model] [--cal_cache_file <path to output calibration file>] [--data_type <Data type for the TensorRT backend during export>] [--batches <Number of batches to calibrate over>] [--max_batch_size <maximum trt batch size>] [--max_workspace_size <maximum workspace size] [--batch_size <batch size to TensorRT engine>] [--experiment_spec <path to experiment spec file>] [--engine_file <path to the TensorRT engine file>] [--verbose Verbosity of the logger] [--force_ptq Flag to force PTQ] [--gen_ds_config Generate DeepStream config]

Required Arguments

  • -m, --model: The path to the .tlt model file to be exported using export.

  • -k, --key: The key used to save the .tlt model file.

  • -e, --experiment_spec: The path to the spec file. This argument is required for faster_rcnn, ssd, dssd, yolo, and retinanet.

Optional Arguments

  • -o, --output_file: The path to save the exported model to. The default path is ./<input_file>.etlt.

  • --data_type: The desired engine data type. The options are fp32, fp16, and int8. A calibration cache will be generated in int8 mode. The default value is fp32. If using int8 mode, the following INT8 arguments are required.

  • -s, --strict_type_constraints: A Boolean flag to indicate whether or not to apply the TensorRT strict_type_constraints when building the TensorRT engine. Note this is only for applying the strict type of int8 mode.

  • --gen_ds_config: A Boolean flag indicating whether to generate the template DeepStream related configuration (“nvinfer_config.txt”) as well as a label file (“labels.txt”) in the same directory as the output_file. Note that the config file is NOT a complete configuration file and requires the user to update the sample config files in DeepStream with the parameters generated.

INT8 Export Mode Required Arguments

  • --cal_data_file: The tensorfile generated from calibration_tensorfile for calibrating the engine. This can also be an output file if used with --cal_image_dir.

  • --cal_image_dir: The directory of images to use for calibration.

Note

The --cal_image_dir parameter applies the necessary preprocessing to generate a tensorfile at the path mentioned in the --cal_data_file parameter, which is in turn used for calibration. The number of generated batches in the tensorfile is obtained from the value set to the --batches parameter, and the batch_size is obtained from the value set to the --batch_size parameter. Ensure that the directory mentioned in --cal_image_dir has at least batch_size * batches number of images in it. The valid image extensions are .jpg, .jpeg, and .png. In this case, the input_dimensions of the calibration tensors are derived from the input layer of the .tlt model.


INT8 Export Optional Arguments

  • --cal_cache_file: The path to save the calibration cache file to. The default value is ./cal.bin.

  • --batches: The number of batches to use for calibration and inference testing. The default value is 10.

  • --batch_size: The batch size to use for calibration. The default value is 8.

  • --max_batch_size: The maximum batch size of the TensorRT engine. The default value is 16.

  • --max_workspace_size: The maximum workspace size of the TensorRT engine. The default value is 1073741824 = 1<<30.

  • --experiment_spec: The experiment_spec for training/inference/evaluation. This is used to generate the graphsurgeon config script for FasterRCNN from the experiment_spec (which is only useful for FasterRCNN). Use this argument when DetectNet_v2 and FasterRCNN also set up the dataloader-based calibrator to leverage the training dataloader to calibrate the model.

  • --engine_file: The path to the serialized TensorRT engine file. Note that this file is hardware specific and cannot be generalized across GPUs. Use this argument to quickly test your model accuracy using TensorRT on the host. As the TensorRT engine file is hardware specific, you cannot use this engine file for deployment unless the deployment GPU is identical to the training GPU.

  • --force_ptq: A Boolean flag to force post-training quantization on the exported .etlt model.

Note

When exporting a model that was trained with QAT enabled, the tensor scale factors to calibrate the activations are peeled out of the model and serialized to a TensorRT-readable cache file defined by the cal_cache_file argument. However, the current version of QAT doesnt natively support DLA int8 deployment on Jetson. To deploy this model on Jetson with DLA int8, use the --force_ptq flag to use TensorRT post-training quantization to generate the calibration cache file.


Sample usage for the export sub-task

The following is a sample command to export a DetectNet_v2 model in INT8 mode. This command shows option 1: using the --cal_data_file option with the calibration.tensor generated using the calibration_tensorfile sub-task.

Copy
Copied!


tao detectnet_v2 export -e $USER_EXPERIMENT_DIR/experiment_dir_retrain/experiment_spec.txt -m $USER_EXPERIMENT_DIR/experiment_dir_retrain/weights/resnet18_detector_pruned.tlt -o $USER_EXPERIMENT_DIR/experiment_dir_final/resnet18_detector.etlt -k $KEY --cal_data_file $USER_EXPERIMENT_DIR/experiment_dir_final/calibration.tensor --data_type int8 --batches 10 --cal_cache_file $USER_EXPERIMENT_DIR/experiment_dir_final/calibration.bin --engine_file $USER_EXPERIMENT_DIR/experiment_dir_final/resnet_18.engine

The following is an example log of a successful export:

Copy
Copied!


Using TensorFlow backend. 2018-11-02 18:59:43,347 [INFO] iva.common.tlt-export: Loading model from resnet10_kitti_multiclass_v1.tlt 2018-11-02 18:59:47,572 [INFO] tensorflow: Restoring parameters from /tmp/tmp8crUBp.ckpt INFO:tensorflow:Froze 82 variables. 2018-11-02 18:59:47,701 [INFO] tensorflow: Froze 82 variables. Converted 82 variables to const ops. 2018-11-02 18:59:48,123 [INFO] iva.common.tlt-export: Converted model was saved into resnet10_kitti_multiclass_v1.etlt 2018-11-02 18:59:48,123 [INFO] iva.common.tlt-export: Input node: input_1 2018-11-02 18:59:48,124 [INFO] iva.common.tlt-export: Output node(s): ['output_bbox/BiasAdd', 'output_cov/Sigmoid']

The following is a sample command using the --cal_image_dir option for a DetectNet_v2 model using option 2.

Copy
Copied!


tao detectnet_v2 export -m $USER_EXPERIMENT_DIR/detectnet_v2/model.tlt -o $USER_EXPERIMENT_DIR/detectnet_v2/model.int8.etlt -e $SPECS_DIR/detectnet_v2_kitti_retrain_spec.txt --key $KEY --cal_image_dir $USER_EXPERIMENT_DIR/data/KITTI/val/image_2 --data_type int8 --batch_size 8 --batches 10 --cal_data_file $USER_EXPERIMENT_DIR/data/detectnet_v2/cal.tensorfile --cal_cache_file $USER_EXPERIMENT_DIR/data/detectnet_v2/cal.bin --engine_file $USER_EXPERIMENT_DIR/data/detectnet_v2/detection.trt


Generating a Template DeepStream Config File

TAO Toolkit supports serializing a template config file for the nvinfer element of deepstream to consume this model. This config file contains the network specific pre-processing parameters and network graph parameters for parsing the etlt model file. It also generates a label file that contains the names of the classes that the model was trained for in the order in which the outputs are generated. To generate the deepstream config, simply run the export command using the --gen_ds_config option.

The following example shows how to generate the DeepStream config:

Copy
Copied!


tao detectnet_v2 export -m $USER_EXPERIMENT_DIR/detectnet_v2/model.tlt -o $USER_EXPERIMENT_DIR/detectnet_v2/model.int8.etlt -e $SPECS_DIR/detectnet_v2_kitti_retrain_spec.txt --key $KEY --cal_image_dir $USER_EXPERIMENT_DIR/data/KITTI/val/image_2 --data_type int8 --batch_size 8 --batches 10 --cal_data_file $USER_EXPERIMENT_DIR/data/detectnet_v2/cal.tensorfile --cal_cache_file $USER_EXPERIMENT_DIR/data/detectnet_v2/cal.bin --engine_file $USER_EXPERIMENT_DIR/data/detectnet_v2/detection.trt --gen_ds_config

The template DeepStream config is generated in the same directory as the output model file as nvinfer_config.txt, while the labels are serialized in labels.txt file. Sample output of the nvinfer_config.txt and labels.txt are as follows:

  • Sample nvinfer_config.txt

    Copy
    Copied!


    net-scale-factor=0.00392156862745098 offsets=0;0;0 infer-dims=3;544;960 tlt-model-key=tlt_encode network-type=0 num-detected-classes=3 uff-input-order=0 output-blob-names=output_cov/Sigmoid;output_bbox/BiasAdd uff-input-blob-name=input_1 model-color-format=0

  • Sample labels.txt

    Copy
    Copied!


    person bag face

Note

The nvinfer_config.txt file that is generated by export is NOT a complete config_infer_*.txt file that can be replaced into the DeepStream config file. You need to find and replace the parameters defined in this file, with the parameters in the default config_infer_*.txt file.


This section elaborates how to deploy a trained DetectNet_v2 model to the DeepStream SDK for inference, and the two options to consume an exported .etlt model file. For information about the DeepStream SDK itself, please refer to this section.

Generating an Engine Using tao-converter

The tao-converter tool is provided with the TAO Toolkit to facilitate the deployment of TAO trained models on TensorRT and/or Deepstream. This section elaborates on how to generate a TensorRT engine using tao-converter.

For deployment platforms with an x86-based CPU and discrete GPUs, the tao-converter is distributed within the TAO docker. Therefore, we suggest using the docker to generate the engine. However, this requires that the user adhere to the same minor version of TensorRT as distributed with the docker. The TAO docker includes TensorRT version 8.0.

Instructions for x86

For an x86 platform with discrete GPUs, the default TAO package includes the tao-converter built for TensorRT 8.0 with CUDA 11.3 and CUDNN 8.2. However, for any other version of CUDA and TensorRT, please refer to the overview section for download. Once the tao-converter is downloaded, follow the instructions below to generate a TensorRT engine.

  1. Unzip the zip file on the target machine.

  2. Install the OpenSSL package using the command:

    Copy
    Copied!


    sudo apt-get install libssl-dev

  3. Export the following environment variables:

Copy
Copied!


$ export TRT_LIB_PATH=”/usr/lib/x86_64-linux-gnu” $ export TRT_INC_PATH=”/usr/include/x86_64-linux-gnu”

  1. Run the tao-converter using the sample command below and generate the engine.

Note

Make sure to follow the output node names as mentioned in Exporting the Model section of the respective model.


Instructions for Jetson

For the Jetson platform, the tao-converter is available to download in the NVIDIA developer zone. You may choose the version you wish to download as listed in the overview section. Once the tao-converter is downloaded, please follow the instructions below to generate a TensorRT engine.

  1. Unzip the zip file on the target machine.

  2. Install the OpenSSL package using the command:

    Copy
    Copied!


    sudo apt-get install libssl-dev

  3. Export the following environment variables:

Copy
Copied!


$ export TRT_LIB_PATH=”/usr/lib/aarch64-linux-gnu” $ export TRT_INC_PATH=”/usr/include/aarch64-linux-gnu”

  1. For Jetson devices, TensorRT comes pre-installed with Jetpack. If you are using older JetPack, upgrade to JetPack 4.5 or 4.6.

  2. Run the tao-converter using the sample command below and generate the engine.

Note

Make sure to follow the output node names as mentioned in Exporting the Model section of the respective model.


Using the tao-converter

Copy
Copied!


tao-converter [-h] -k <encryption_key> -d <input_dimensions> -o <comma separated output nodes> [-c <path to calibration cache file>] [-e <path to output engine>] [-b <calibration batch size>] [-m <maximum batch size of the TRT engine>] [-t <engine datatype>] [-w <maximum workspace size of the TRT Engine>] [-i <input dimension ordering>] [-p <optimization_profiles>] [-s] [-u <DLA_core>] input_file

Required Arguments
  • input_file: The path to the .etlt model exported using export.

  • -k: The key used to encode the .tlt model when doing the training.

  • -d: A comma-separated list of input dimensions that should match the dimensions used for export. Unlike export, this cannot be inferred from calibration data.

  • -o: A comma-separated list of output blob names that should match the output configuration used for export. For DetectNet_v2, set this argument to output_cov/Sigmoid,output_bbox/BiasAdd.

Optional Arguments
  • -e: The path to save the engine to. The default path is default: ./saved.engine.

  • -t: The desired engine data type. This option generates a calibration cache if in INT8 mode. The default value is fp32. The options are fp32, fp16, int8.

  • -w: The maximum workspace size for the TensorRT engine. The default value is 1073741824(1<<30).

  • -i: The input dimension ordering. The default value is nchw. The options are nchw, nhwc, nc. For detectnet_v2, we can omit this argument.

  • -p: The optimization profiles for .etlt models with dynamic shape. This argument takes a comma-separated list of optimization profile shapes in the format <input_name>,<min_shape>,<opt_shape>,<max_shape>, where each shape has the format <n>x<c>x<h>x<w>. This can be specified multiple times if there are multiple input tensors for the model. This argument is only useful for new models introduced since TLT 3.0.

  • -s: A Boolean value specifying whether to apply TensorRT strict type constraints when building the TensorRT engine.

  • -u: Specifies the DLA core index when building the TensorRT engine on Jetson devices.

INT8 Mode Arguments
  • -c: The path to the calibration cache file for INT8 mode. The default path is ./cal.bin.

  • -b: The batch size used during the export step for INT8 calibration cache generation (default: 8).

  • -m: The maximum batch size for the TensorRT engine. The default value is 16. If you encounter out-of-memory issues, decrease the batch size accordingly.

Sample Output Log

The following is a sample log for exporting a DetectNet_v2 model:

Copy
Copied!


tao-converter -d 3,544,960 -k nvidia_tlt -o output_cov/Sigmoid,output_bbox/BiasAdd /workspace/tao-experiments/detectnet_v2/resnet18_pruned.etlt .. [INFO] Some tactics do not have sufficient workspace memory to run. Increasing workspace size may increase performance, please check verbose output. [INFO] Detected 1 inputs and 2 output network tensors.

Note

To use the default tao-converter available in the TAO Toolkit package, append tao to the sample usage of the tao_converter as mentioned here.

Once the model and/or TensorRT engine file has been generated, two extra files are required:

  1. Label file

  2. DS configuration file

Label File

The label file is a text file containing the names of the classes that the DetectNet_v2 model is trained to detect. The order in which the classes are listed here must match the order in which the model predicts the output. The export subtask in DetectNet_v2 generates this file when run with the --gen_ds_config flag enabled.

DeepStream Configuration File

The detection model is typically used as a primary inference engine. It can also be used as a secondary inference engine. To run this model in the sample deepstream-app, you must modify the existing config_infer_primary.txt file to point to this model.



Option 1: Integrate the model (.etlt) directly in the DeepStream app.

For this option, you will need to add the following parameters in the configuration file. The int8-calib-file is only required for INT8 precision.

Copy
Copied!


tlt-encoded-model=<TLT exported .etlt> tlt-model-key=<Model export key> int8-calib-file=<Calibration cache file>

The tlt-encoded-model parameter points to the exported model (.etlt) from TLT. The tlt-model-key is the encryption key used during model export.

Option 2: Integrate the TensorRT engine file with DeepStream app.

Step 1: Generate TensorRT engine using tao-converter. Detailed instructions are provided in the Generating an engine using tao-converter section above.

Step 2: Once the engine file is generated successfully, modify the following parameters to use this engine with DeepStream.

Copy
Copied!


model-engine-file=<PATH to generated TensorRT engine>

All other parameters are common between the two approaches. Update the label-file-path parameter in the config file with the path to the labels.txt that was generated at export.

Copy
Copied!


labelfile-path=<Classification labels>

For all options, see the configuration file below. To learn more about all the parameters, refer to the DeepStream Development Guide under the GsT-nvinfer section.

Copy
Copied!


[property] gpu-id=0 # preprocessing parameters. net-scale-factor=0.0039215697906911373 model-color-format=0 # model paths. int8-calib-file=<Path to optional INT8 calibration cache> labelfile-path=<Path to detectNet_v2_labels.txt> tlt-encoded-model=<Path to DetectNet_v2 TLT model> tlt-model-key=<Key to decrypt the model> infer-dims=c;h;w # where c = number of channels, h = height of the model input, w = width of model input uff-input-order=0 # 0 implies that the input blob is in chw order uff-input-blob-name=input_1 batch-size=4 ## 0=FP32, 1=INT8, 2=FP16 mode network-mode=0 num-detected-classes=3 interval=0 gie-unique-id=1 is-classifier=0 output-blob-names=output_cov/Sigmoid;output_bbox/BiasAdd #enable_dbscan=0 [class-attrs-all] threshold=0.2 group-threshold=1 ## Set eps=0.7 and minBoxes for enable-dbscan=1 eps=0.2 #minBoxes=3 roi-top-offset=0 roi-bottom-offset=0 detected-min-w=0 detected-min-h=0 detected-max-w=0 detected-max-h=0


© Copyright 2022, NVIDIA. Last updated on Jun 6, 2022.
