Sliding Window Decoding with a Tile Cache#
This notebook demonstrates how to efficiently process a large tiled image using a sliding window that caches already-decoded tiles.
It builds on the concepts introduced in code_stream.ipynb: ROI decoding and tile-aligned batch decoding. Here we go one step further and show how to avoid redundant decoding when the window moves across the image.
[1]:
import os
import numpy as np
from matplotlib import pyplot as plt
resources_dir = os.getenv("PYNVIMGCODEC_EXAMPLES_RESOURCES_DIR", "../assets/images/")
from nvidia import nvimgcodec
decoder = nvimgcodec.Decoder()
def display(images, titles=None, figsize=(10, 4)):
num_images = len(images)
fig, axes = plt.subplots(1, num_images, figsize=figsize)
if num_images == 1:
axes = [axes]
for i, ax in enumerate(axes):
ax.imshow(images[i])
if titles is not None and i < len(titles):
ax.set_title(titles[i])
ax.axis('off')
plt.tight_layout()
plt.show()
[2]:
img_full_path = os.path.abspath(os.path.join(resources_dir, "tiled-cat-1046544_640.jp2"))
cs = nvimgcodec.CodeStream(img_full_path)
print('Image size:', cs.height, 'x', cs.width)
print('Tile size: ', cs.tile_height, 'x', cs.tile_width)
Image size: 475 x 640
Tile size: 100 x 100
In many real-world applications — such as panoramic imagery, satellite scans, or whole-slide medical images — you need to process a large image through a sliding window. At each step the window overlaps significantly with the previous position, so many of the underlying tiles remain the same.
Rather than re-decoding those tiles at every step, we maintain a tile cache: a dictionary that maps (tile_row, tile_col) to its decoded pixel data. For each new window position we:
Identify which tiles overlap the window.
Look up each tile in the cache — a cache hit costs nothing.
Batch-decode only the missing tiles in a single
decoder.decode()call.Assemble the window by stitching the (now fully cached) tiles together.
[3]:
def tiles_for_window(y0, x0, win_h, win_w, tile_h, tile_w, nytiles, nxtiles):
"""Return the list of (tile_row, tile_col) tuples that overlap a given window."""
tr0, tc0 = y0 // tile_h, x0 // tile_w
tr1, tc1 = (y0 + win_h - 1) // tile_h, (x0 + win_w - 1) // tile_w
return [
(tr, tc)
for tr in range(tr0, min(tr1 + 1, nytiles))
for tc in range(tc0, min(tc1 + 1, nxtiles))
]
def assemble_window(relevant_tiles, tile_h, tile_w, y0, x0, win_h, win_w, img_h, img_w):
"""Stitch a subset of cached tiles into a single window array."""
actual_h = min(win_h, img_h - y0)
actual_w = min(win_w, img_w - x0)
n_ch = next(iter(relevant_tiles.values())).shape[2]
window = np.zeros((actual_h, actual_w, n_ch), dtype=np.uint8)
for (tr, tc), tile in relevant_tiles.items():
ty0, tx0 = tr * tile_h, tc * tile_w
iy0 = max(y0, ty0); iy1 = min(y0 + actual_h, ty0 + tile.shape[0])
ix0 = max(x0, tx0); ix1 = min(x0 + actual_w, tx0 + tile.shape[1])
if iy1 <= iy0 or ix1 <= ix0:
continue
window[iy0-y0:iy1-y0, ix0-x0:ix1-x0] = tile[iy0-ty0:iy1-ty0, ix0-tx0:ix1-tx0]
return window
We choose a window size of 250 × 300 pixels and a step size equal to one tile (100 × 100). This means that after a horizontal step exactly one new column of tiles enters the window while two columns are already cached — giving an immediate 2/3 hit rate that grows further as the scan continues.
[4]:
win_h, win_w = 250, 300 # sliding window size in pixels
step_y = cs.tile_height # step = one tile row
step_x = cs.tile_width # step = one tile column
nytiles = (cs.height + cs.tile_height - 1) // cs.tile_height
nxtiles = (cs.width + cs.tile_width - 1) // cs.tile_width
tile_cache = {} # {(tile_row, tile_col): np.ndarray}
cache_hits = 0
cache_misses = 0
windows = [] # assembled window arrays
window_positions = [] # (y0, x0) for each window
for y0 in range(0, cs.height - win_h + 1, step_y):
for x0 in range(0, cs.width - win_w + 1, step_x):
needed = tiles_for_window(y0, x0, win_h, win_w,
cs.tile_height, cs.tile_width, nytiles, nxtiles)
missing = [key for key in needed if key not in tile_cache]
cache_hits += len(needed) - len(missing)
cache_misses += len(missing)
# Batch-decode all missing tiles in a single decoder call
if missing:
srcs = []
for (tr, tc) in missing:
sy = tr * cs.tile_height; ey = min(sy + cs.tile_height, cs.height)
sx = tc * cs.tile_width; ex = min(sx + cs.tile_width, cs.width)
srcs.append(cs.get_sub_code_stream(region=nvimgcodec.Region(sy, sx, ey, ex)))
for key, img in zip(missing, decoder.decode(srcs)):
tile_cache[key] = np.array(img.cpu())
# Assemble window by stitching only the tiles it needs
relevant = {k: tile_cache[k] for k in needed}
windows.append(
assemble_window(relevant, cs.tile_height, cs.tile_width,
y0, x0, win_h, win_w, cs.height, cs.width)
)
window_positions.append((y0, x0))
total = cache_hits + cache_misses
print(f"Windows scanned : {len(windows)}")
print(f"Total tile accesses : {total}")
print(f" Cache hits : {cache_hits} ({100*cache_hits/total:.0f}%)")
print(f" Tiles actually decoded : {cache_misses} ({100*cache_misses/total:.0f}%)")
print(f"Unique tiles in cache : {len(tile_cache)} out of {nytiles*nxtiles} total")
Windows scanned : 12
Total tile accesses : 108
Cache hits : 78 (72%)
Tiles actually decoded : 30 (28%)
Unique tiles in cache : 30 out of 35 total
Even with this small image the cache eliminates most redundant decodes. Let’s inspect a sample of the assembled windows:
[5]:

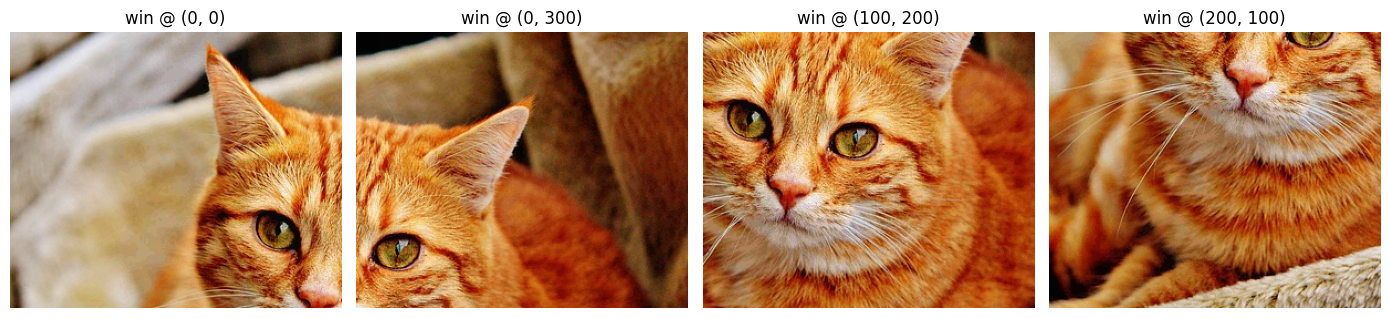

sample_indices = [0, len(windows) // 4, len(windows) // 2, 3 * len(windows) // 4]
display(
[windows[i] for i in sample_indices],
[f"win @ {window_positions[i]}" for i in sample_indices],
figsize=(14, 4),
)

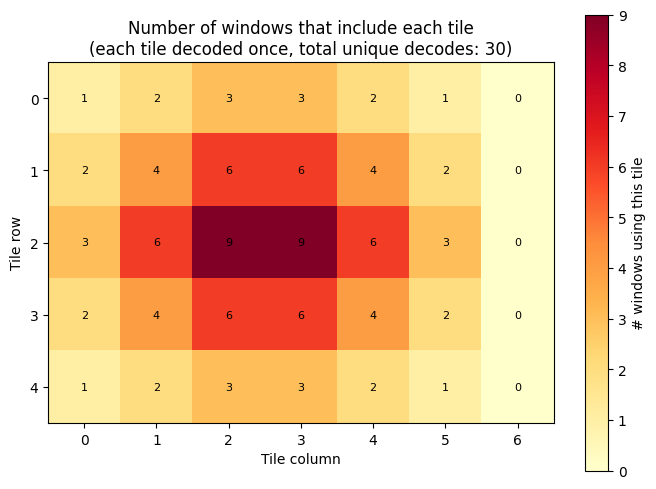

Tile access heatmap#
We can visualize how many windows overlapped each tile. Interior tiles are covered by more windows than edge tiles, yet every tile was decoded exactly once — the cache reuse is what makes the access count high.
[6]:
access_count = np.zeros((nytiles, nxtiles), dtype=int)
for y0, x0 in window_positions:
for (tr, tc) in tiles_for_window(y0, x0, win_h, win_w,
cs.tile_height, cs.tile_width, nytiles, nxtiles):
access_count[tr, tc] += 1
fig, ax = plt.subplots(figsize=(7, 5))
im = ax.imshow(access_count, cmap='YlOrRd')
for tr in range(nytiles):
for tc in range(nxtiles):
ax.text(tc, tr, str(access_count[tr, tc]),
ha='center', va='center', fontsize=8)
ax.set_title('Number of windows that include each tile\n'
f'(each tile decoded once, total unique decodes: {cache_misses})')
ax.set_xlabel('Tile column')
ax.set_ylabel('Tile row')
plt.colorbar(im, ax=ax, label='# windows using this tile')
plt.tight_layout()
plt.show()
Bounded Cache: LRU Eviction Policy#
For very large images the unbounded dict above eventually exhausts RAM. The solution is a Least-Recently-Used (LRU) cache: keep at most N tiles in memory; when the cache is full and a new tile is needed, discard the tile that was accessed least recently.
Python’s standard collections.OrderedDict provides O(1) move-to-end and pop operations, making it the natural building block for an LRU cache with no external dependencies.
[7]:
from collections import OrderedDict
class LRUTileCache:
"""Fixed-capacity tile cache with Least-Recently-Used eviction.
Backed by :class:`collections.OrderedDict` so that promoting a hit
and evicting the oldest entry are both O(1).
"""
def __init__(self, maxsize):
self.maxsize = maxsize
self._cache = OrderedDict()
self.hits = 0
self.misses = 0
self.evictions = 0
def get(self, key):
"""Return ``(tile, True)`` on a hit (promoting to MRU), ``(None, False)`` on a miss."""
if key in self._cache:
self._cache.move_to_end(key) # promote to most-recently used
self.hits += 1
return self._cache[key], True
self.misses += 1
return None, False
def put(self, key, value):
"""Store a decoded tile, evicting the LRU entry if at capacity."""
if key in self._cache:
self._cache.move_to_end(key)
else:
if len(self._cache) >= self.maxsize:
self._cache.popitem(last=False) # evict least-recently used
self.evictions += 1
self._cache[key] = value
def __len__(self):
return len(self._cache)
def scan_with_lru(cs, decoder, cache, win_h, win_w, step_y, step_x):
"""Slide a window over *cs*, reusing tiles via *cache*.
Drop-in replacement for the unbounded-dict loop: same batch-decode
logic, same assembly step — only the cache type differs.
"""
nytiles = (cs.height + cs.tile_height - 1) // cs.tile_height
nxtiles = (cs.width + cs.tile_width - 1) // cs.tile_width
windows = []
for y0 in range(0, cs.height - win_h + 1, step_y):
for x0 in range(0, cs.width - win_w + 1, step_x):
needed = tiles_for_window(y0, x0, win_h, win_w,
cs.tile_height, cs.tile_width,
nytiles, nxtiles)
tile_data = {}
missing = []
for key in needed:
tile, hit = cache.get(key)
if hit:
tile_data[key] = tile
else:
missing.append(key)
if missing:
srcs = []
for (tr, tc) in missing:
sy = tr * cs.tile_height; ey = min(sy + cs.tile_height, cs.height)
sx = tc * cs.tile_width; ex = min(sx + cs.tile_width, cs.width)
srcs.append(cs.get_sub_code_stream(
region=nvimgcodec.Region(sy, sx, ey, ex)))
for key, img in zip(missing, decoder.decode(srcs)):
arr = np.array(img.cpu())
cache.put(key, arr)
tile_data[key] = arr
windows.append(
assemble_window(tile_data, cs.tile_height, cs.tile_width,
y0, x0, win_h, win_w, cs.height, cs.width)
)
return windows
Choosing the cache capacity#
For a left-to-right, top-to-bottom scan the window overlaps at most
⌈win_h / tile_h⌉ + 1 tile rows simultaneously
With a 250 px window and 100 px tiles that is 3 tile rows × 7 tile columns = 21 tiles. Setting maxsize = 3 * nxtiles guarantees that every tile required by the current window is always present — the LRU hit rate matches the unbounded dict while capping memory to three rows of pixel data.
A cache of only ``1 * nxtiles = 7`` tiles is too small: tiles from the top row of the window compete for slots with tiles from the bottom row, triggering evictions and re-decoding of tiles that were decoded just moments before.
[8]:
# Optimal LRU: 3 tile rows cover the full window height with no wasted decodes
optimal_size = 3 * nxtiles # 21 tiles for this image
lru_optimal = LRUTileCache(maxsize=optimal_size)
scan_with_lru(cs, decoder, lru_optimal, win_h, win_w, step_y, step_x)
total_opt = lru_optimal.hits + lru_optimal.misses
print(f"=== LRU (capacity = 3 × nxtiles = {optimal_size} tiles) ===")
print(f" Hits : {lru_optimal.hits} ({100*lru_optimal.hits/total_opt:.0f}%)")
print(f" Misses : {lru_optimal.misses} ({100*lru_optimal.misses/total_opt:.0f}%)")
print(f" Evictions : {lru_optimal.evictions}")
print(f" Peak memory: ≤{optimal_size} tiles (vs all {len(tile_cache)} tiles for unbounded dict)")
print()
print(f"Unbounded dict — hits: {cache_hits}, misses: {cache_misses}, "
f"peak memory: {len(tile_cache)} tiles")
=== LRU (capacity = 3 × nxtiles = 21 tiles) ===
Hits : 78 (72%)
Misses : 30 (28%)
Evictions : 9
Peak memory: ≤21 tiles (vs all 30 tiles for unbounded dict)
Unbounded dict — hits: 78, misses: 30, peak memory: 30 tiles
[9]:
# Under-sized LRU: only 1 tile row — triggers evictions and re-decoding
tight_size = nxtiles # 7 tiles for this image
lru_tight = LRUTileCache(maxsize=tight_size)
scan_with_lru(cs, decoder, lru_tight, win_h, win_w, step_y, step_x)
total_tight = lru_tight.hits + lru_tight.misses
extra_decodes = lru_tight.misses - cache_misses # tiles re-decoded after eviction
print(f"=== LRU (capacity = 1 × nxtiles = {tight_size} tiles) ===")
print(f" Hits : {lru_tight.hits} ({100*lru_tight.hits/total_tight:.0f}%)")
print(f" Misses : {lru_tight.misses} ({100*lru_tight.misses/total_tight:.0f}%)")
print(f" Evictions : {lru_tight.evictions}")
print(f" Extra decodes : +{extra_decodes} (tiles re-decoded after eviction)")
=== LRU (capacity = 1 × nxtiles = 7 tiles) ===
Hits : 45 (42%)
Misses : 63 (58%)
Evictions : 56
Extra decodes : +33 (tiles re-decoded after eviction)
[10]:

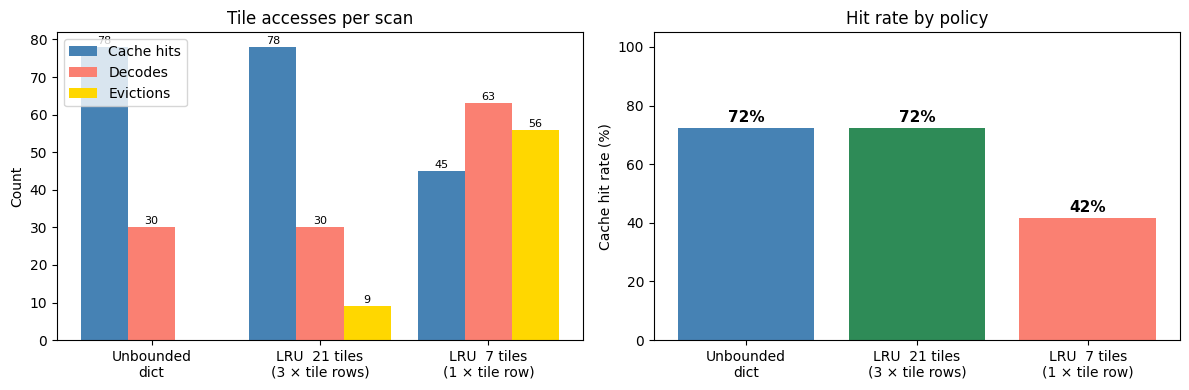

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
labels = ['Unbounded\ndict',
f'LRU {optimal_size} tiles\n(3 × tile rows)',
f'LRU {tight_size} tiles\n(1 × tile row)']
hits_v = [cache_hits, lru_optimal.hits, lru_tight.hits]
misses_v = [cache_misses, lru_optimal.misses, lru_tight.misses]
evictions_v = [0, lru_optimal.evictions, lru_tight.evictions]
x = np.arange(len(labels))
width = 0.28
# Left — absolute tile accesses
ax = axes[0]
bh = ax.bar(x - width, hits_v, width, label='Cache hits', color='steelblue')
bm = ax.bar(x, misses_v, width, label='Decodes', color='salmon')
be = ax.bar(x + width, evictions_v, width, label='Evictions', color='gold')
ax.set_xticks(x); ax.set_xticklabels(labels)
ax.set_ylabel('Count'); ax.set_title('Tile accesses per scan')
ax.legend(loc='upper left')
for group in (bh, bm, be):
for bar in group:
h = bar.get_height()
if h > 0:
ax.text(bar.get_x() + bar.get_width() / 2, h + 0.3, str(int(h)),
ha='center', va='bottom', fontsize=8)
# Right — hit rate
ax = axes[1]
totals = [h + m for h, m in zip(hits_v, misses_v)]
rates = [100 * h / t for h, t in zip(hits_v, totals)]
bars = ax.bar(x, rates, color=['steelblue', 'seagreen', 'salmon'])
ax.set_xticks(x); ax.set_xticklabels(labels)
ax.set_ylabel('Cache hit rate (%)'); ax.set_title('Hit rate by policy')
ax.set_ylim(0, 105)
for bar, r in zip(bars, rates):
ax.text(bar.get_x() + bar.get_width() / 2, r + 1, f'{r:.0f}%',
ha='center', va='bottom', fontsize=11, fontweight='bold')
plt.tight_layout()
plt.show()
