Intrusion Prevention System (IPS)

NVIDIA DOCA IPS Reference Application Guide

This document provides an intrusion prevention system (IPS) implementation on top of NVIDIA® BlueField® DPU.

1. Introduction

Intrusion prevention system (IPS) is an application that monitors a network for malicious activity or policy violations.

IPS uses the deep packet inspection (DPI) engine to scan network flow for malicious content based on predefined Suricata signatures. Packets that are deemed malicious are dropped and a corresponding message is printed.

IPS supports NetFlow protocol for sending data from the DPU to remote NetFlow collector for further analysis.

Connection tracking is also supported for tracking all network connections or flows which helps the identification of all the packets that make up a flow for better handling of the network traffic.

This document describes how to build and run the IPS application both on the host and on the DPU.

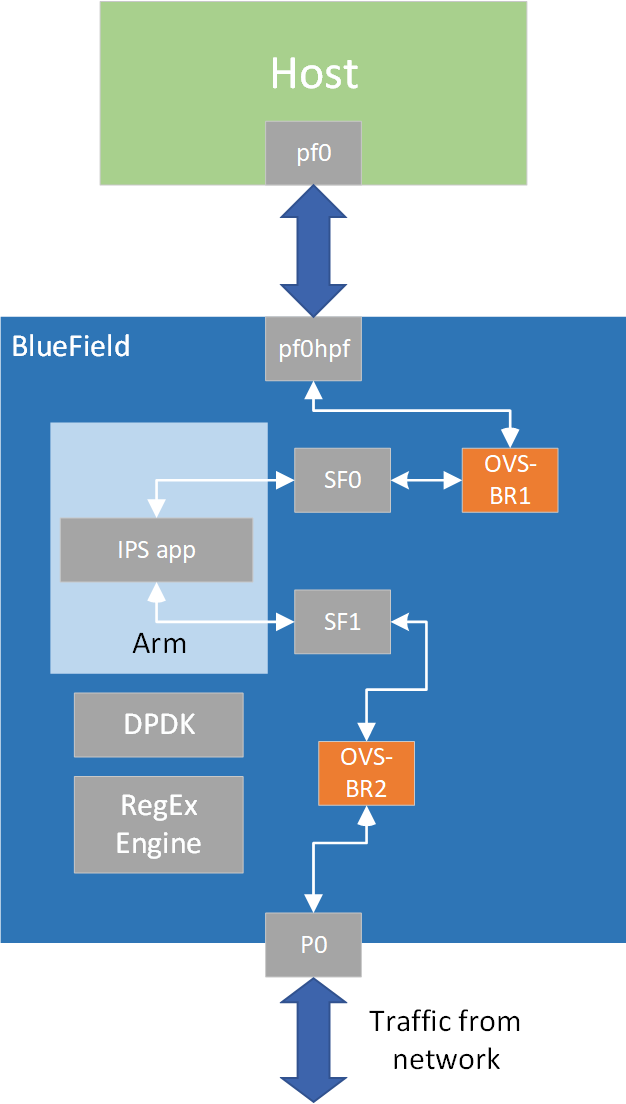

2. System Design

The IPS application is designed to run as "bump-on-the-wire" on the BlueField instance, it intercepts the traffic coming from the wire, and passes it to peer port.

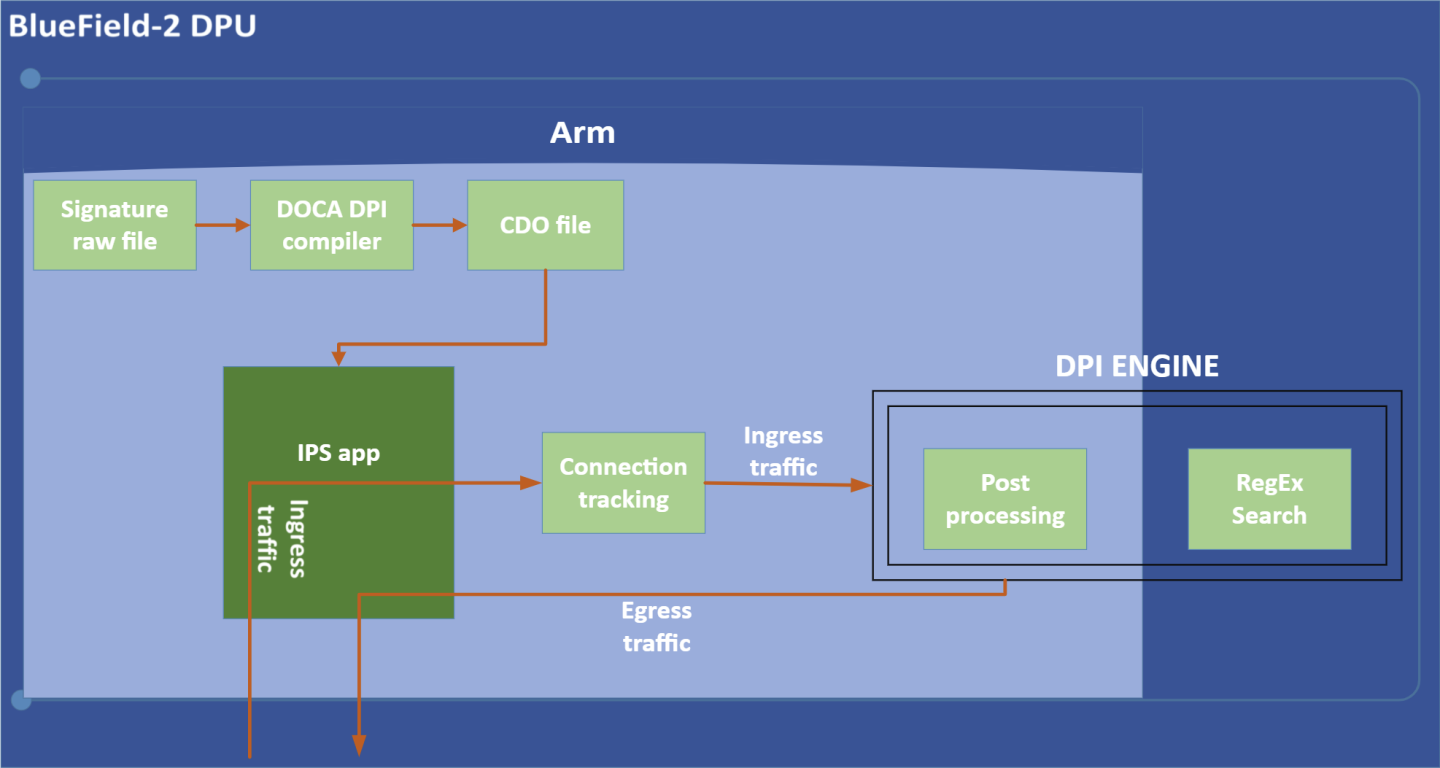

3. Application Architecture

IPS runs on top of DPDK-based stateful flow tracking (SFT) to identify the flow that each packet belongs to, then uses DPI to process L7 classification.

Signatures are compiled by DPI compiler and then loaded to DPI engine. See DOCA DPI Compiler for more information.
Ingress traffic is identified using the stateful table module which utilizes the connection tracking hardware offloads.
Traffic is scanned against DPI-engine-compiled signature DB.
Post-processing is performed for match decision.
Matched flows are identified and drop actions can be offloaded to the hardware to increase performance as no further inspection is needed.
Flow termination is done by a configurable aging timer set in the SFT to 60 seconds. When a flow is offloaded, it cannot be tracked and destroyed.

4. Configuration Flow

Parse application argument.

Copy
Copied!


            arg_parser_init();

Initialize Arg Parser resources.

Register DOCA general flags.

Copy
Copied!


            register_ips_params();

Register IPS application flags.

Copy
Copied!


            arg_parser_start();

Parsing DPDK flags and calling rte_eal_init() function.
Parsing APP flags.

Initialize DPDK.
Copy

Copied!
```

            dpdk_init();

```
1. Initialize SFT.
2. Initialize DPDK ports, including mempool allocation.
Initialize IPS application resources including DPI engine and NetFlow.
Copy

Copied!
```

            ips_init();

```
Configure DPI packet processing.
Copy

Copied!
```

            ips_worker_lcores_run();

```
1. Configure DPI enqueue packets.
2. Send jobs to RegEx engine.
3. Configure DPI dequeue packets.
IPS destroy.
Copy

Copied!
```

            ips_destroy();

```
1. Stop and free DPI resources.
2. Destroy netflow resources.
3. Stop SFT.
4. Free IPS resources.

5. Running Application on BlueField

Refer to DOCA Installation Guide for details on how to install BlueField related software.
The IPS application binary is located under /opt/mellanox/doca/examples/ips/bin/doca_ips.

To rebuild the application:

Run:

Copy
Copied!


            cd /opt/mellanox/doca/examples/ips/src
meson /tmp/build
ninja -C /tmp/build

doca_ips is created under /tmp/build.

The build process depends on the PKG_CONFIG_PATH environment variable to locate the DPDK libraries. If the variable accidentally gets corrupted and the build fails, run the following command:

For Ubuntu:

Copy
Copied!


            export PKF_CONFIG_PATH=$PKG_CONFIG_PATH:/opt/mellanox/dpdk/lib/aarch64-linux-gnu/pkgconfig

For CentOS:

Copy
Copied!


            export PKG_CONFIG_PATH=$PKG_CONFIG_PATH:/opt/mellanox/dpdk/lib64/pkgconfig

Pre-run setup

The IPS example is based on DPDK libraries. Therefore, the user is required to provide DPDK flags and allocate huge pages. Run:
Copy

Copied!
```

            echo 2048 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages

```

Make sure the RegEx engine is active:

Copy
Copied!


            systemctl status mlx-regex

If the status is inactive (Active: failed), run:

Copy
Copied!


            systemctl start mlx-regex

To run the application:

Copy
Copied!


            Usage: doca_ips [DPDK Flags] -- [DOCA Flags] [Program Flags]

DOCA Flags:
  -h, --help                 Print a help synopsis
  -l, --log-level            Set the log level for the app <CRITICAL=0, DEBUG=4>

Program Flags:
  -p, --print-match          Prints FID when matched in DPI engine
  -n, --netflow              Collect netflow statistics and send according to conf file
  -o, --output-csv <path>    Path to the output of the CSV file
  -c, --cdo <path>           Path to CDO file compiled from a valid PDD

For example:

Copy
Copied!


            /opt/mellanox/doca/examples/ips/bin/doca_ips -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 –– --cdo /root/ips.cdo -p -n

Note:

The SFT supports a maximum of 64 queues. Therefore, the application cannot be run with more than 64 cores. To limit the number of cores, run:

Copy
Copied!


            /opt/mellanox/doca/examples/ips/bin/doca_ips -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 -l 0-64 –– --cdo /root/ips.cdo -p -n

This limits the application to use 65 cores (core-0 to core-64). That is 1 core for the main thread and 64 cores to serve as workers.

Using a JSON file:

Copy
Copied!


            doca_ips --json [json_file]

For example:

Copy
Copied!


            /opt/mellanox/doca/examples/ips/bin/doca_ips –-json /root/ips_params.json

Note:

Sub-functions must be enabled according to Scalable Function Setup Guide.

Note:

The flags -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 are necessary for proper usage of the application. Modifying these flags results in unexpected behavior as only 2 ports are supported. The SF numbers are arbitrary and configurable. The RegEx device, however, is not and must be initiated on port 0.

For additional information on available flags for DPDK, use -h before the --separator:

Copy
Copied!


            /opt/mellanox/doca/examples/ips/bin/doca_ips -h

For additional information on the app, use -h after the -- separator:

Copy
Copied!


            /opt/mellanox/doca/examples/ips/bin/doca_ips -- -h

6. Arg Parser DOCA Flags

Refer to NVIDIA DOCA Arg Parser User Guide for more information.

Flag Type	Short Flag	Long Flag/JSON Key	Description	JSON Content
DPDK Flags	a	devices	Adds a PCIe device into the list of devices to probe	Copy Copied! `"devices": [ {"device": "regex", "id": "0000:03:00.0"}, {"device": "sf", "id": "4","sft": true}, {"device": "sf", "id": "5","sft": true}, ]`
DPDK Flags	l	core-list	Lists cores to run on	Copy Copied! `"core-list": "0-4"`
General Flags	l	log-level	Sets the log level for the application: CRITICAL=0 ERROR=1 WARNING=2 INFO=3 DEBUG=4	Copy Copied! `"log-level": 4`
General Flags	h	help	Prints a help synopsis	N/A
Program Flags	p	print-match	Prints FID when matched in DPI engine	Copy Copied! `"print-match": true`
	n	netflow	Collects netflow statistics and sends according to `.conf` file	Copy Copied! `"netflow": false`
	o	output-csv	Path to the output of the CSV file	Copy Copied! `"output-csv": "/tmp/ ips_stats.csv"`
	c	cdo	Path to CDO file compiled from a valid PDD	Copy Copied! `"cdo": "/tmp/ips.cdo"`

7. Running Application on Host

Host execution example:

Copy
Copied!


            cd /opt/mellanox/doca/examples/ips/
./doca_ips -a 0000:21:00.0,class=regex -a 0000:21:00.3 -a 0000:21:00.4 -- --cdo ~/ips.cdo

Refer to section "Running DOCA Application on Host" in NVIDIA DOCA Virtual Functions User Guide.

8. Managing gRPC-Enabled Application from Host

For instructions on running the gRPC application server on BlueField, refer to NVIDIA DOCA gRPC Infrastructure User Guide.

To run the Python client of the gRPC-enabled application:

Copy
Copied!


            ./doca_ips_gRPC_client.py -d/--debug <server address[:server port]>

For example:

Copy
Copied!


            /opt/mellanox/doca/examples/ips/bin/grpc/client/doca_ips_gRPC_client.py 192.168.104.2

Note:

Refer to known issue 2872829 in NVIDIA DOCA Release Notes regarding the deployment of the gRPC enabled application using the DOCA gRPC orchestrator.

Note:

Please refer to known issue 2872883 in NVIDIA DOCA Release Notes regarding the execution of the gRPC python client.

9. Deploying Containerized Application

The IPS example supports a container-based deployment. Refer to the NVIDIA DOCA Container Deployment Guide for more information.

Application-specific configuration steps may be found on NGC under the application's container page.

10. References

/opt/mellanox/doca/examples/ips/src/ips.c
/opt/mellanox/doca/examples/ips/src/grpc/ips.proto
/opt/mellanox/doca/examples/ips/bin/ips_suricata_rules_example
