NetFlow Exporter
NVIDIA DOCA NetFlow Exporter Reference Application Guide
This document describes how to use the NetFlow library in a DOCA application on NVIDIA® BlueField® DPU.
NetFlow is a protocol used for exporting device network flows information to a NetFlow collector. A flow refers to any connection or connection-like communication channel between two communication nodes.
The most common definition of a flow is by a standard 5-tuple.

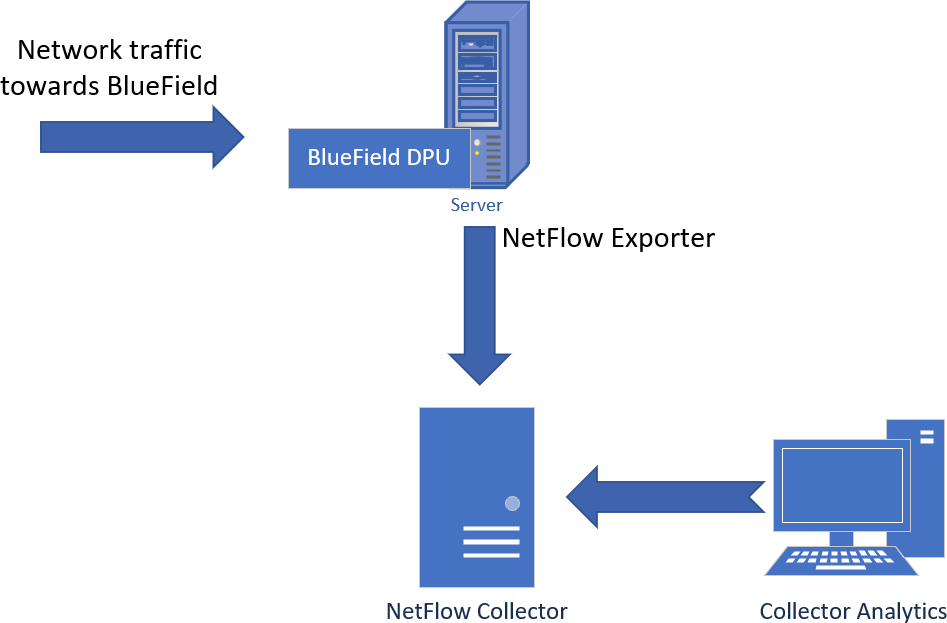

Using NetFlow requires three network nodes:
- NetFlow exporter – a network device in charge of collecting flow information and exporting it to a flow collector
- NetFlow collector – a server that receives exported flow information
- NetFlow analyzer – an application which runs on the collector and analyzes flow information collected by the flow collector
Using a NetFlow monitoring solution allows monitoring and analyzing these flow records more efficiently and effectively for traffic within the network.
Main NetFlow use cases:
- Bandwidth utilization and network resource allocation (QoS)
NetFlow data allows network administrators to view a complete report on traffic which allows them to understand bandwidth consumption, network resource utilization, etc.
- Anomaly-based attack detection
Flow-based analysis relies on algorithms and behavior rather than signature matching. This gives the flow analyzer the ability to detect attacks before a signature is available.
- Network visibility
NetFlow provides the ability to drill down into network traffic to see source and destination address and ports, protocol, and more. With this information, it is possible to identify traffic patterns throughout the entire network. Full view of traffic flow allows network operation and security operation teams to monitor when and how often users access applications in the network.
- Define record struct and template.
The application must define a TLV NetFlow v9 template. This is done by using doca_netflow_types.h defined macros. The order has no significance for the collector but must be maintained for the record struct. The struct should be in packed format without pointers. The app can use the default record struct and template by using structs
doca_netflow_default_record
anddoca_netflow_template_default_get()
. - Initiate NetFlow Exporter.
Call doca_netflow_exporter_init() to initiate the exporter. Pass the configuration file or pass
NULL
for the default path.The configuration file is located by default at
/etc/doca-netflow.conf
. The configuration file should contain:- Title – [doca_netflow_conf]
- Target – the IP and port of the collector (to send the NetFlow records)
- Source ID – the source ID of the NetFlow exporter (defined by the user) to send alongside the NetFlow records to identify the source of the record
- Version – 9 (for future development)
For example:
- Update record information.
The app should update the flow information with information that extracted from the packets. For information on this process, please refer to the NVIDIA DOCA Application Recognition Reference Guide.
This part should be periodically updated before sending the records.
- Send records.
Call
doca_netflow_exporter_send()
to send the records to the collector.This function should be periodically called, and must contain all the current active flows or flow-sampled records in that period of time.
- Destroy.
Call
doca_netflow_exporter_destroy()
to close the exporter before exiting the application.
The NetFlow example source file shows how to set up the exporter and send an array of record flows to a collector. It contains 2 functions:
default_template_example()
– this example uses the default template with the default structcustom_template_example()
– this example creates a custom template that can be altered to meet the application's needsFor simplicity and generalization, the example sends a static dummy record duplicated over an array of records. This is the part the app that includes the NetFlow lib should supply.
- Create a new record with a default template.
Note:
It is possible to configure a custom record.
struct doca_netflow_default_record record = { .src_addr_v4,/* Source IP Address */ .dst_addr_v4,/* Destination IP Address */ .next_hop,/* Next hop router's IP Address */ .input,/* Input interface index */ .output,/* Output interface index */ .src_port,/* TCP/UDP source port number or equivalent */ .dst_port,/* TCP/UDP destination port number or equivalent */ .tcp_flags,/* Cumulative OR of tcp flags */ .protocol,/* IP protocol type (for example, TCP = 6, UDP = 17) */ .tos,/* IP Type-of-Service */ .src_as,/* originating AS of source address */ .dst_as,/* originating AS of destination address */ .src_mask,/* source address prefix mask bits */ .dst_mask,/* destination address prefix mask bits */ .d_pkts,/* Packets sent in Duration */ .d_octets,/* Octets sent in Duration. */ .first,/* SysUptime at start of flow */ .last,/* and of last packet of flow */ .flow_id,/* This identifies a transaction within a connection */ .application_name /* Name associated with a classification */ };
- Initialize NetFlow exporter. Run:
doca_netflow_exporter_init(file_path);
- Send NetFlow records. Run:
doca_netflow_exporter_send(&template, (const void **)(records), records_length, &err)
-
Please refer to the DOCA Installation Guide for details on how to install BlueField related software.
- To build the application:
- Modify the code. Change the "netflow.c" example, the configuration file location, the record to send, the template, etc.
- Prepare the configuration file which may be found by default at /etc/doca_netflow.conf.
- Compile the example. Run:
cd /opt/mellanox/doca/examples/netflow/src meson /tmp/build ninja -C /tmp/build
- To run the application, simply run doca_netflow.
