Prometheus + Grafana Setup

Overview

This guide shows how to set up Prometheus and Grafana for visualizing Dynamo metrics on a single machine for demo purposes.

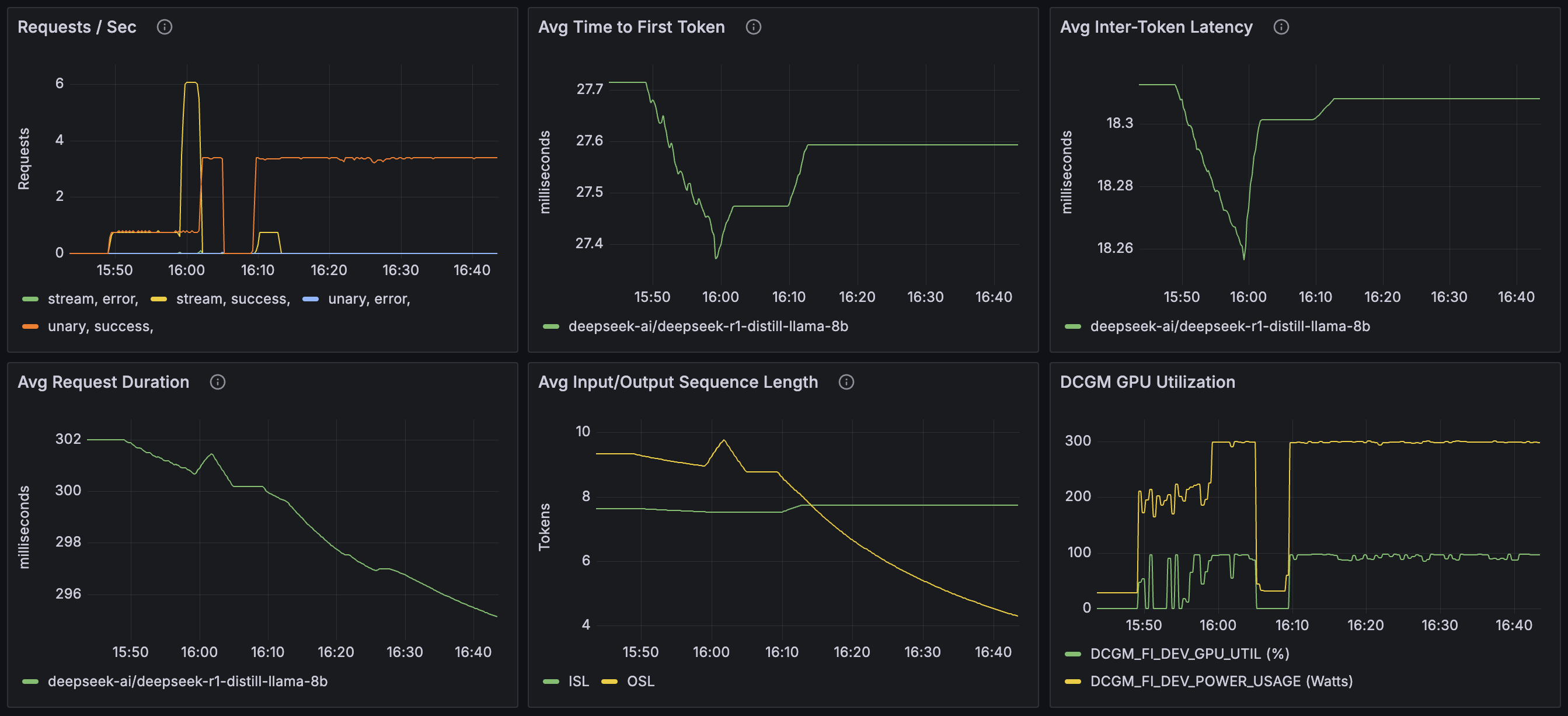

Grafana Dynamo Dashboard

Components:

Prometheus Server - Collects and stores metrics from Dynamo services
Grafana - Provides dashboards by querying the Prometheus Server

For metrics reference, see Metrics Documentation.

Environment Variables

Variable	Description	Default	Example
`DYN_SYSTEM_PORT`	System metrics/health port	`-1` (disabled)	`8081`

Getting Started Quickly

This is a single machine example.

Start the Observability Stack

Start the observability stack (Prometheus, Grafana, Tempo, exporters). See Observability Getting Started for instructions and prerequisites.

Start Dynamo Components

Start frontend and worker (a simple single GPU example):

$ # Start frontend (default port 8000, override with --http-port or DYN_HTTP_PORT env var)
$ python -m dynamo.frontend &
$
$ # Start vLLM worker with metrics enabled on port 8081
$ DYN_SYSTEM_PORT=8081 python -m dynamo.vllm --model Qwen/Qwen3-0.6B --enforce-eager

After the workers are running, send a few test requests to populate metrics in the system:

$ curl -X POST http://localhost:8000/v1/chat/completions \
>   -H "Content-Type: application/json" \
>   -d '{
>     "model": "Qwen/Qwen3-0.6B",
>     "messages": [{"role": "user", "content": "Hello"}],
>     "max_completion_tokens": 100
>   }'

After sending a few requests, the Prometheus Exposition Format text metrics are available at:

Frontend: http://localhost:8000/metrics
Backend worker: http://localhost:8081/metrics

Access Web Interfaces

Once Dynamo components are running:

Open Grafana at http://localhost:3000 (username: dynamo, password: dynamo)
Click on Dashboards in the left sidebar
Select Dynamo Dashboard to view metrics and traces

Other interfaces:

Prometheus: http://localhost:9090
Tempo (tracing): Accessible through Grafana’s Explore view. See Tracing Guide for details.

Note: If accessing from another machine, replace localhost with the machine’s hostname or IP address, and ensure firewall rules allow access to these ports (3000, 9090).

Configuration

Prometheus

The Prometheus configuration is specified in prometheus.yml. This file is set up to collect metrics from the metrics aggregation service endpoint.

Please be aware that you might need to modify the target settings to align with your specific host configuration and network environment.

After making changes to prometheus.yml, restart the Prometheus service. See Observability Getting Started for Docker Compose commands.

Grafana

Grafana is pre-configured with:

Prometheus datasource
Sample dashboard for visualizing service metrics

Troubleshooting

Verify services are running using docker compose ps
Check logs using docker compose logs
Check Prometheus targets at http://localhost:9090/targets to verify metric collection.
If you encounter issues with stale data or configuration, stop services and wipe volumes using docker compose down -v then restart.

Note: The -v flag removes named volumes (grafana-data, tempo-data), which will reset dashboards and stored metrics.

For specific Docker Compose commands, see Observability Getting Started.

Developer Guide

For detailed information on creating custom metrics in Dynamo components, see:

Metrics Developer Guide
