Augmentation Gallery#
This example showcases different augmentations possible with DALI, using its new dynamic mode.
With dynamic mode, there’s no need to build pipeline objects; we can simply use the operators as functions.
DALI_EXTRA_PATH
environment variable should point to the place where data from DALI extra repository is downloaded. Please make sure that the proper release tag is checked out.
[1]:
import nvidia.dali.experimental.dynamic as ndd
from nvidia.dali import types
import matplotlib.pyplot as plt
import math
import os.path
import numpy as np
test_data_root = os.environ["DALI_EXTRA_PATH"]
db_folder = os.path.join(test_data_root, "db", "lmdb")
reader = ndd.readers.Caffe(path=db_folder, random_shuffle=True, seed=100)
iterator = reader.next_epoch(None)
encoded, label = next(iterator)
image = ndd.decoders.image(encoded, device="mixed", output_type=types.RGB)
def imshow(image):
fig = plt.figure(figsize=(6, 6))
plt.imshow(image.cpu().data) # TODO(janton): .data shouldn't be needed.

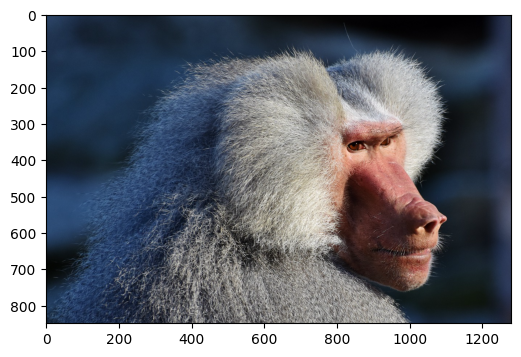

imshow(image)

[2]:

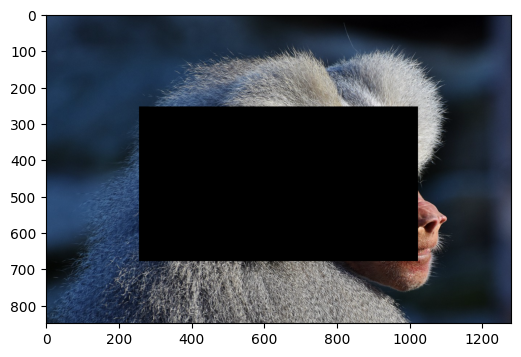

out0 = ndd.erase(
image,
anchor=[0.3, 0.2],
shape=[0.5, 0.6],
normalized_anchor=True,
normalized_shape=True,
axis_names="HW",
)
imshow(out0)

[3]:

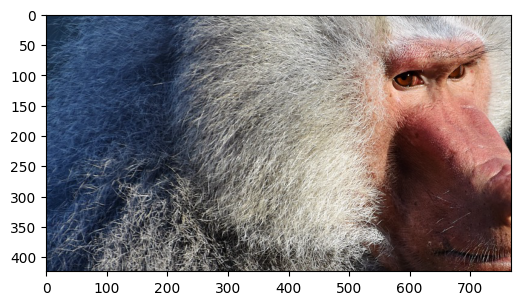

out1 = ndd.slice(
image, rel_start=[0.3, 0.2], rel_shape=[0.5, 0.6], axis_names="HW"
)
imshow(out1)

[4]:

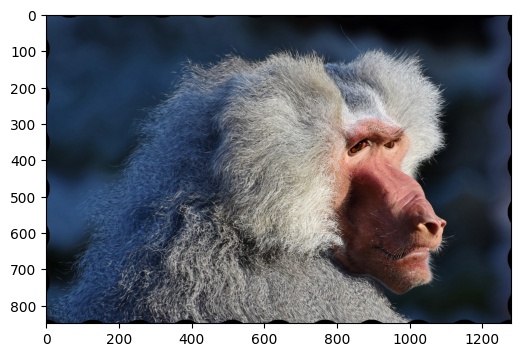

# transforms sampling coordinates to produce wavy patterns
out2 = ndd.water(image)
imshow(out2)

[5]:

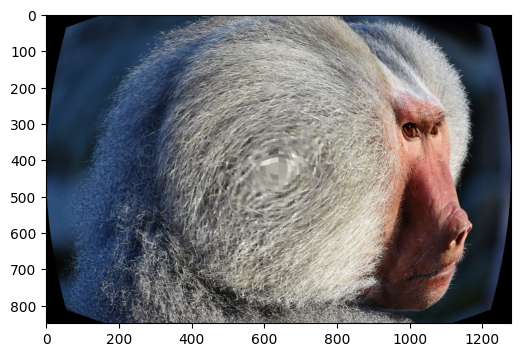

# applies fisheye distortion
out3 = ndd.sphere(image)
imshow(out3)

[6]:

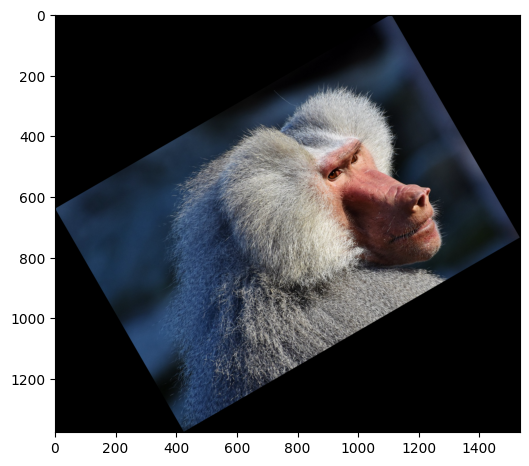

# rotates the image, enlarging the canvas
# TODO(janton): angle=30 doesn't work anymore. Fix this.
out4 = ndd.rotate(
image, angle=30.0, interp_type=types.INTERP_LINEAR, fill_value=0
)
imshow(out4)

[7]:

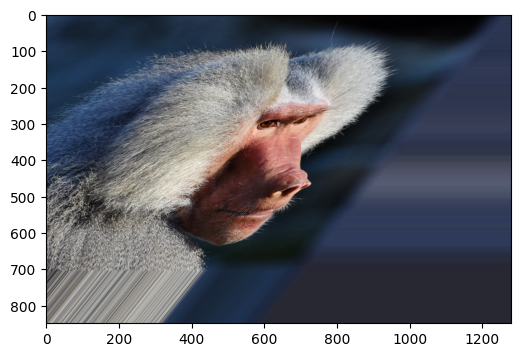

# applies affine transform
out5 = ndd.warp_affine(
image,
matrix=ndd.Tensor(
[
[
1.0,
0.8,
0.0,
],
[0.0, 1.2, 0.0],
]
),
interp_type=types.INTERP_LINEAR,
)
imshow(out5)

[8]:

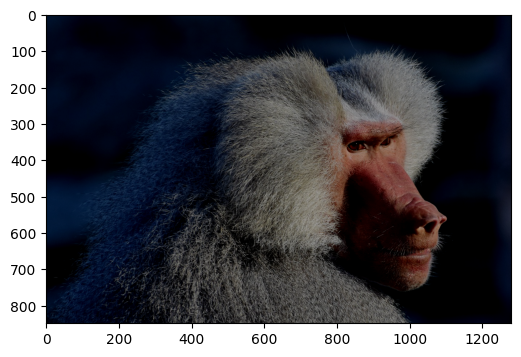

# manipulates brightness and contrast of the image
out6 = ndd.brightness_contrast(image, brightness=0.5, contrast=1.5)
imshow(out6)

[9]:

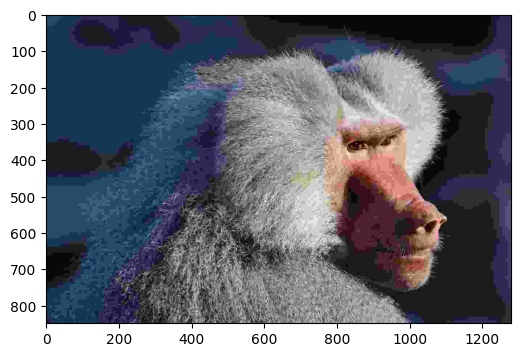

# Generate JPEG compression artifacts
out7 = ndd.jpeg_compression_distortion(image, quality=5)
imshow(out7)

[10]:
# twists colors of the image
out8 = ndd.hsv(image, hue=45.0, saturation=0.2)
imshow(out8)

[11]:

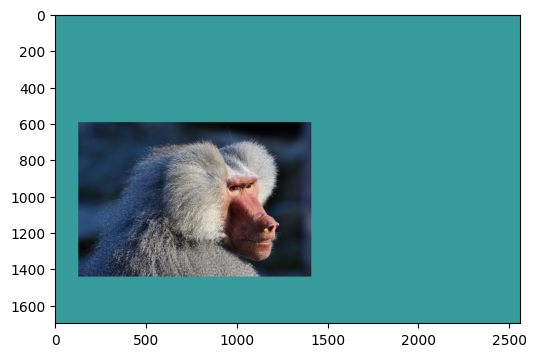

# places the image on a larger canvas
out9 = ndd.paste(
image, ratio=2.0, fill_value=(55, 155, 155), paste_x=0.1, paste_y=0.7
)
imshow(out9)

[12]:

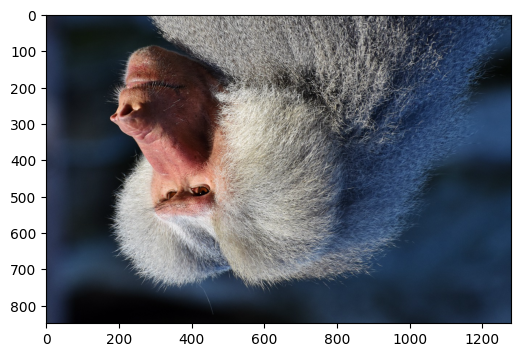

# param flips the image
out10 = ndd.flip(image, vertical=1, horizontal=1)
imshow(out10)
