Creating Operators

Tip

Creating a custom operator is also illustrated in the ping_custom_op example.

When assembling a C++ application, two types of operators can be used:

  1. Native C++ operators: custom operators defined in C++ without using the GXF API, by creating a subclass of holoscan::Operator. These C++ operators can pass arbitrary C++ objects around between operators.

  2. GXF Operators: operators defined in the underlying C++ library by inheriting from the holoscan::ops::GXFOperator class. These operators wrap GXF codelets from GXF extensions. Examples are VideoStreamReplayerOp for replaying video files, FormatConverterOp for format conversions, and HolovizOp for visualization.

Note

It is possible to create an application using a mixture of GXF operators and native operators. In this case, some special consideration to cast the input and output tensors appropriately must be taken, as shown in a section below.

Native C++ Operators

Operator Lifecycle (C++)

The lifecycle of a holoscan::Operator is made up of three stages:

  • start() is called once when the operator starts, and is used for initializing heavy tasks such as allocating memory resources and using parameters.

  • compute() is called when the operator is triggered, which can occur any number of times throughout the operator lifecycle between start() and stop().

  • stop() is called once when the operator is stopped, and is used for deinitializing heavy tasks such as deallocating resources that were previously assigned in start().

All operators on the workflow are scheduled for execution. When an operator is first executed, the start() method is called, followed by the compute() method. When the operator is stopped, the stop() method is called. The compute() method is called multiple times between start() and stop().

If any of the scheduling conditions specified by Conditions are not met (for example, the CountCondition would cause the scheduling condition to not be met if the operator has been executed a certain number of times), the operator is stopped and the stop() method is called.

We will cover how to use Conditions in the Specifying operator inputs and outputs (C++) section of the user guide.

Typically, the start() and the stop() functions are only called once during the application’s lifecycle. However, if the scheduling conditions are met again, the operator can be scheduled for execution, and the start() method will be called again.

%%{init: {"theme": "base", "themeVariables": { "fontSize": "16px"}} }%% flowchart LR start(start) stop(stop) compute(compute) start --> compute compute --> compute compute --> stop

Fig. 15 The sequence of method calls in the lifecycle of a Holoscan Operator

We can override the default behavior of the operator by implementing the above methods. The following example shows how to implement a custom operator that overrides start, stop and compute methods.

Listing 2 The basic structure of a Holoscan Operator (C++)

Copy
Copied!


#include "holoscan/holoscan.hpp" using holoscan::Operator; using holoscan::OperatorSpec; using holoscan::InputContext; using holoscan::OutputContext; using holoscan::ExecutionContext; using holoscan::Arg; using holoscan::ArgList; class MyOp : public Operator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS(MyOp) MyOp() = default; void setup(OperatorSpec& spec) override { } void start() override { HOLOSCAN_LOG_TRACE("MyOp::start()"); } void compute(InputContext&, OutputContext& op_output, ExecutionContext&) override { HOLOSCAN_LOG_TRACE("MyOp::compute()"); }; void stop() override { HOLOSCAN_LOG_TRACE("MyOp::stop()"); } };


Creating a custom operator (C++)

To create a custom operator in C++ it is necessary to create a subclass of holoscan::Operator. The following example demonstrates how to use native operators (the operators that do not have an underlying, pre-compiled GXF Codelet).

Code Snippet: examples/ping_multi_port/cpp/ping_multi_port.cpp

Listing 3 examples/ping_multi_port/cpp/ping_multi_port.cpp

Copy
Copied!


#include "holoscan/holoscan.hpp" class ValueData { public: ValueData() = default; explicit ValueData(int value) : data_(value) { HOLOSCAN_LOG_TRACE("ValueData::ValueData(): {}", data_); } ~ValueData() { HOLOSCAN_LOG_TRACE("ValueData::~ValueData(): {}", data_); } void data(int value) { data_ = value; } int data() const { return data_; } private: int data_; }; namespace holoscan::ops { class PingTxOp : public Operator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS(PingTxOp) PingTxOp() = default; void setup(OperatorSpec& spec) override { spec.output<std::shared_ptr<ValueData>>("out1"); spec.output<std::shared_ptr<ValueData>>("out2"); } void compute(InputContext&, OutputContext& op_output, ExecutionContext&) override { auto value1 = std::make_shared<ValueData>(index_++); op_output.emit(value1, "out1"); auto value2 = std::make_shared<ValueData>(index_++); op_output.emit(value2, "out2"); }; int index_ = 0; }; class PingMiddleOp : public Operator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS(PingMiddleOp) PingMiddleOp() = default; void setup(OperatorSpec& spec) override { spec.input<std::shared_ptr<ValueData>>("in1"); spec.input<std::shared_ptr<ValueData>>("in2"); spec.output<std::shared_ptr<ValueData>>("out1"); spec.output<std::shared_ptr<ValueData>>("out2"); spec.param(multiplier_, "multiplier", "Multiplier", "Multiply the input by this value", 2); } void compute(InputContext& op_input, OutputContext& op_output, ExecutionContext&) override { auto value1 = op_input.receive<std::shared_ptr<ValueData>>("in1").value(); auto value2 = op_input.receive<std::shared_ptr<ValueData>>("in2").value(); HOLOSCAN_LOG_INFO("Middle message received (count: {})", count_++); HOLOSCAN_LOG_INFO("Middle message value1: {}", value1->data()); HOLOSCAN_LOG_INFO("Middle message value2: {}", value2->data()); // Multiply the values by the multiplier parameter value1->data(value1->data() * multiplier_); value2->data(value2->data() * multiplier_); op_output.emit(value1, "out1"); op_output.emit(value2, "out2"); }; private: int count_ = 1; Parameter<int> multiplier_; }; class PingRxOp : public Operator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS(PingRxOp) PingRxOp() = default; void setup(OperatorSpec& spec) override { spec.param(receivers_, "receivers", "Input Receivers", "List of input receivers.", {}); } void compute(InputContext& op_input, OutputContext&, ExecutionContext&) override { auto value_vector = op_input.receive<std::vector<std::shared_ptr<ValueData>>>("receivers").value(); HOLOSCAN_LOG_INFO("Rx message received (count: {}, size: {})", count_++, value_vector.size()); HOLOSCAN_LOG_INFO("Rx message value1: {}", value_vector[0]->data()); HOLOSCAN_LOG_INFO("Rx message value2: {}", value_vector[1]->data()); }; private: Parameter<std::vector<IOSpec*>> receivers_; int count_ = 1; }; } // namespace holoscan::ops class App : public holoscan::Application { public: void compose() override { using namespace holoscan; auto tx = make_operator<ops::PingTxOp>("tx", make_condition<CountCondition>(10)); auto mx = make_operator<ops::PingMiddleOp>("mx", Arg("multiplier", 3)); auto rx = make_operator<ops::PingRxOp>("rx"); add_flow(tx, mx, {{"out1", "in1"}, {"out2", "in2"}}); add_flow(mx, rx, {{"out1", "receivers"}, {"out2", "receivers"}}); } }; int main(int argc, char** argv) { auto app = holoscan::make_application<MyPingApp>(); app->run(); return 0; }


Code Snippet: examples/native_operator/cpp/app_config.yaml

In this application, three operators are created: PingTxOp, PingMxOp, and PingRxOp

  1. The PingTxOp operator is a source operator that emits two values every time it is invoked. The values are emitted on two different output ports, out1 (for even integers) and out2 (for odd integers).

  2. The PingMxOp operator is a middle operator that receives two values from the PingTxOp operator and emits two values on two different output ports. The values are multiplied by the multiplier parameter.

  3. The PingRxOp operator is a sink operator that receives two values from the PingMxOp operator. The values are received on a single input, receivers, which is a vector of input ports. The PingRxOp operator receives the values in the order they are emitted by the PingMxOp operator.

As covered in more detail below, the inputs to each operator are specified in the setup() method of the operator. Then inputs are received within the compute() method via op_input.receive() and outputs are emitted via op_output.emit().

Note that for native C++ operators as defined here, any object including a shared pointer can be emitted or received. For large objects such as tensors it may be preferable from a performance standpoint to transmit a shared pointer to the object rather than making a copy. When shared pointers are used and the same tensor is sent to more than one downstream operator, one should avoid in-place operations on the tensor or race conditions between operators may occur.

Specifying operator parameters (C++)

In the example holoscan::ops::PingMxOp operator above, we have a parameter multiplier that is declared as part of the class as a private member using the param() templated type:

Copy
Copied!


Parameter<int> multiplier_;

It is then added to the OperatorSpec attribute of the operator in its setup() method, where an associated string key must be provided. Other properties can also be mentioned such as description and default value:

Copy
Copied!


// Provide key, and optionally other information spec.param(multiplier_, "multiplier", "Multiplier", "Multiply the input by this value", 2);

Note

If your parameter is of a custom type, you must register that type and provide a YAML encoder/decoder, as documented under holoscan::Operator::register_converter()

See the Configuring operator parameters section to learn how an application can set these parameters.

Specifying operator inputs and outputs (C++)

To configure the input(s) and output(s) of C++ native operators, call the spec.input() and spec.output() methods within the setup() method of the operator.

The spec.input() and spec.output() methods should be called once for each input and output to be added. The OperatorSpec object and the setup() method will be initialized and called automatically by the Application class when its run() method is called.

These methods (spec.input() and spec.output()) return an IOSpec object that can be used to configure the input/output port.

By default, the holoscan::MessageAvailableCondition and holoscan::DownstreamMessageAffordableCondition conditions are applied (with a min_size of 1) to the input/output ports. This means that the operator’s compute() method will not be invoked until a message is available on the input port and the downstream operator’s input port (queue) has enough capacity to receive the message.

Copy
Copied!


void setup(OperatorSpec& spec) override { spec.input<std::shared_ptr<ValueData>>("in"); // Above statement is equivalent to: // spec.input<std::shared_ptr<ValueData>>("in") // .condition(ConditionType::kMessageAvailable, Arg("min_size") = 1); spec.output<std::shared_ptr<ValueData>>("out"); // Above statement is equivalent to: // spec.output<std::shared_ptr<ValueData>>("out") // .condition(ConditionType::kDownstreamMessageAffordable, Arg("min_size") = 1); ... }

In the above example, the spec.input() method is used to configure the input port to have the holoscan::MessageAvailableCondition with a minimum size of 1. This means that the operator’s compute() method will not be invoked until a message is available on the input port of the operator. Similarly, the spec.output() method is used to configure the output port to have the holoscan::DownstreamMessageAffordableCondition with a minimum size of 1. This means that the operator’s compute() method will not be invoked until the downstream operator’s input port has enough capacity to receive the message.

If you want to change this behavior, use the IOSpec::condition() method to configure the conditions. For example, to configure the input and output ports to have no conditions, you can use the following code:

Copy
Copied!


void setup(OperatorSpec& spec) override { spec.input<std::shared_ptr<ValueData>>("in") .condition(ConditionType::kNone); spec.output<std::shared_ptr<ValueData>>("out") .condition(ConditionType::kNone); // ... }

The example code in the setup() method configures the input port to have no conditions, which means that the compute() method will be called as soon as the operator is ready to compute. Since there is no guarantee that the input port will have a message available, the compute() method should check if there is a message available on the input port before attempting to read it.

The receive() method of the InputContext object can be used to access different types of input data within the compute() method of your operator class, where its template argument (DataT) is the data type of the input. This method takes the name of the input port as an argument (which can be omitted if your operator has a single input port), and returns the input data. If input data is not available, the method returns an object of the holoscan::RuntimeError class which contains an error message describing the reason for the failure. The holoscan::RuntimeError class is a derived class of std::runtime_error and supports accessing more error information, for example, with what() method.

In the example code fragment below, the PingRxOp operator receives input on a port called “in” with data type ValueData. The receive() method is used to access the input data. The value is checked to be valid or not with the if condition. If value is of holoscan::RuntimeError type, then if condition will be false. Otherwise, the data() method of the ValueData class is called to get the value of the input data.

Copy
Copied!


// ... class PingRxOp : public holoscan::ops::GXFOperator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS_SUPER(PingRxOp, holoscan::ops::GXFOperator) PingRxOp() = default; void setup(OperatorSpec& spec) override { spec.input<ValueData>("in"); } void compute(InputContext& op_input, OutputContext&, ExecutionContext&) override { // The type of `value` is `ValueData` auto value = op_input.receive<ValueData>("in"); if (value){ HOLOSCAN_LOG_INFO("Message received (value: {})", value.data()); } } };

For GXF Entity objects (holoscan::gxf::Entity wraps underlying GXF nvidia::gxf::Entity class), the receive() method will return the GXF Entity object for the input of the specified name. In the example below, the PingRxOp operator receives input on a port called “in” with data type holoscan::gxf::Entity.

Copy
Copied!


// ... class PingRxOp : public holoscan::ops::GXFOperator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS_SUPER(PingRxOp, holoscan::ops::GXFOperator) PingRxOp() = default; void setup(OperatorSpec& spec) override { spec.input<holoscan::gxf::Entity>("in"); } void compute(InputContext& op_input, OutputContext&, ExecutionContext&) override { // The type of `in_entity` is 'holoscan::gxf::Entity'. auto in_entity = op_input.receive<holoscan::gxf::Entity>("in"); if (in_entity) { // Process with `in_entity`. // ... } } };

For objects of type std::any, the receive() method will return a std::any object containing the input of the specified name. In the example below, the PingRxOp operator receives input on a port called “in” with data type std::any. The type() method of the std::any object is used to determine the actual type of the input data, and the std::any_cast<T>() function is used to retrieve the value of the input data.

Copy
Copied!


// ... class PingRxOp : public holoscan::ops::GXFOperator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS_SUPER(PingRxOp, holoscan::ops::GXFOperator) PingRxOp() = default; void setup(OperatorSpec& spec) override { spec.input<std::any>("in"); } void compute(InputContext& op_input, OutputContext&, ExecutionContext&) override { // The type of `in_any` is 'std::any'. auto in_any = op_input.receive<std::any>("in"); auto& in_any_type = in_any.type(); if (in_any_type == typeid(holoscan::gxf::Entity)) { auto in_entity = std::any_cast<holoscan::gxf::Entity>(in_any); // Process with `in_entity`. // ... } else if (in_any_type == typeid(std::shared_ptr<ValueData>)) { auto in_message = std::any_cast<std::shared_ptr<ValueData>>(in_any); // Process with `in_message`. // ... } else if (in_any_type == typeid(nullptr_t)) { // No message is available. } else { HOLOSCAN_LOG_ERROR("Invalid message type: {}", in_any_type.name()); return; } } };

The Holoscan SDK provides built-in data types called Domain Objects, defined in the include/holoscan/core/domain directory. For example, the holoscan::Tensor is a Domain Object class that is used to represent a multi-dimensional array of data, which can be used directly by OperatorSpec, InputContext, and OutputContext.

Tip

This holoscan::Tensor class is a wrapper around the DLManagedTensorCtx struct holding a DLManagedTensor object. As such, it provides a primary interface to access Tensor data and is interoperable with other frameworks that support the DLPack interface.

Warning

Passing holoscan::Tensor objects to/from GXF operators directly is not supported. Instead, they need to be passed through holoscan::gxf::Entity objects. See the interoperability section for more details.

Receiving any number of inputs (C++)

Instead of assigning a specific number of input ports, it may be desired to have the ability to receive any number of objects on a port in certain situations. This can be done by defining Parameter with std::vector<IOSpec*>> (Parameter<std::vector<IOSpec*>> receivers_) and calling spec.param(receivers_, "receivers", "Input Receivers", "List of input receivers.", {}); as done for PingRxOp in the native operator ping example.

Listing 4 examples/ping_multi_port/cpp/ping_multi_port.cpp

Copy
Copied!


class PingRxOp : public Operator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS(PingRxOp) PingRxOp() = default; void setup(OperatorSpec& spec) override { spec.param(receivers_, "receivers", "Input Receivers", "List of input receivers.", {}); } void compute(InputContext& op_input, OutputContext&, ExecutionContext&) override { auto value_vector = op_input.receive<std::vector<ValueData>>("receivers"); HOLOSCAN_LOG_INFO("Rx message received (count: {}, size: {})", count_++, value_vector.size()); HOLOSCAN_LOG_INFO("Rx message value1: {}", value_vector[0]->data()); HOLOSCAN_LOG_INFO("Rx message value2: {}", value_vector[1]->data()); }; private: Parameter<std::vector<IOSpec*>> receivers_; int count_ = 1; }; } // namespace holoscan::ops class App : public holoscan::Application { public: void compose() override { using namespace holoscan; auto tx = make_operator<ops::PingTxOp>("tx", make_condition<CountCondition>(10)); auto mx = make_operator<ops::PingMiddleOp>("mx", Arg("multiplier", 3)); auto rx = make_operator<ops::PingRxOp>("rx"); add_flow(tx, mx, {{"out1", "in1"}, {"out2", "in2"}}); add_flow(mx, rx, {{"out1", "receivers"}, {"out2", "receivers"}}); } };


Then, once the following configuration is provided in the compose() method, the PingRxOp will receive two inputs on the receivers port.

Copy
Copied!


134: add_flow(mx, rx, {{"out1", "receivers"}, {"out2", "receivers"}});

By using a parameter (receivers) with std::vector<holoscan::IOSpec*> type, the framework creates input ports (receivers:0 and receivers:1) implicitly and connects them (and adds the references of the input ports to the receivers vector).

Building your C++ operator

You can build your C++ operator using CMake, by calling find_package(holoscan) in your CMakeLists.txt to load the SDK libraries. Your operator will need to link against holoscan::core:

Listing 5 /CMakeLists.txt

Copy
Copied!


# Your CMake project cmake_minimum_required(VERSION 3.20) project(my_project CXX) # Finds the holoscan SDK find_package(holoscan REQUIRED CONFIG PATHS "/opt/nvidia/holoscan") # Create a library for your operator add_library(my_operator SHARED my_operator.cpp) # Link your operator against holoscan::core target_link_libraries(my_operator PUBLIC holoscan::core )


Once your CMakeLists.txt is ready in <src_dir>, you can build in <build_dir> with the command line below. You can optionally pass Holoscan_ROOT if the SDK installation you’d like to use differs from the PATHS given to find_package(holoscan) above.

Copy
Copied!


# Configure cmake -S <src_dir> -B <build_dir> -D Holoscan_ROOT="/opt/nvidia/holoscan" # Build cmake --build <build_dir> -j

Using your C++ Operator in an Application

  • If the application is configured in the same CMake project as the operator, you can simply add the operator CMake target library name under the application executable target_link_libraries call, as the operator CMake target is already defined.

    Copy
    Copied!


    # operator add_library(my_op my_op.cpp) target_link_libraries(my_operator PUBLIC holoscan::core) # application add_executable(my_app main.cpp) target_link_libraries(my_operator PRIVATE holoscan::core my_op )

  • If the application is configured in a separate project as the operator, you need to export the operator in its own CMake project, and import it in the application CMake project, before being able to list it under target_link_libraries also. This is the same as what is done for the SDK built-in operators, available under the holoscan::ops namespace.

You can then include the headers to your C++ operator in your application code.

GXF Operators

With the Holoscan C++ API, we can also wrap GXF Codelets from GXF extensions as Holoscan Operators.

Note

If you do not have an existing GXF extension, we recommend developing native operators using the C++ or Python APIs to skip the need for wrapping gxf codelets as operators. If you do need to create a GXF Extension, follow the Creating a GXF Extension section for a detailed explanation of the GXF extension development process.

Given an existing GXF extension, we can create a simple “identity” application consisting of a replayer, which reads contents from a file on disk, and our recorder from the last section, which will store the output of the replayer exactly in the same format. This allows us to see whether the output of the recorder matches the original input files.

The MyRecorderOp Holoscan Operator implementation below will wrap the MyRecorder GXF Codelet shown here.

Operator definition

Listing 6 my_recorder_op.hpp

Copy
Copied!


#ifndef APPS_MY_RECORDER_APP_MY_RECORDER_OP_HPP #define APPS_MY_RECORDER_APP_MY_RECORDER_OP_HPP #include "holoscan/core/gxf/gxf_operator.hpp" namespace holoscan::ops { class MyRecorderOp : public holoscan::ops::GXFOperator { public: HOLOSCAN_OPERATOR_FORWARD_ARGS_SUPER(MyRecorderOp, holoscan::ops::GXFOperator) MyRecorderOp() = default; const char* gxf_typename() const override { return "MyRecorder"; } void setup(OperatorSpec& spec) override; void initialize() override; private: Parameter<holoscan::IOSpec*> receiver_; Parameter<std::shared_ptr<holoscan::Resource>> my_serializer_; Parameter<std::string> directory_; Parameter<std::string> basename_; Parameter<bool> flush_on_tick_; }; } // namespace holoscan::ops #endif/* APPS_MY_RECORDER_APP_MY_RECORDER_OP_HPP */


The holoscan::ops::MyRecorderOp class wraps a MyRecorder GXF Codelet by inheriting from the holoscan::ops::GXFOperator class. The HOLOSCAN_OPERATOR_FORWARD_ARGS_SUPER macro is used to forward the arguments of the constructor to the base class.

We first need to define the fields of the MyRecorderOp class. You can see that fields with the same names are defined in both the MyRecorderOp class and the MyRecorder GXF codelet .

Listing 7 Parameter declarations in gxf_extensions/my_recorder/my_recorder.hpp

Copy
Copied!


nvidia::gxf::Parameter<nvidia::gxf::Handle<nvidia::gxf::Receiver>> receiver_; nvidia::gxf::Parameter<nvidia::gxf::Handle<nvidia::gxf::EntitySerializer>> my_serializer_; nvidia::gxf::Parameter<std::string> directory_; nvidia::gxf::Parameter<std::string> basename_; nvidia::gxf::Parameter<bool> flush_on_tick_;


Comparing the MyRecorderOp holoscan parameter to the MyRecorder gxf codelet:

Holoscan Operator

GXF Codelet

holoscan::Parameter nvidia::gxf::Parameter
holoscan::IOSpec* nvidia::gxf::Handle<nvidia::gxf::Receiver>>
or nvidia::gxf::Handle<nvidia::gxf::Transmitter>>
std::shared_ptr<holoscan::Resource>> nvidia::gxf::Handle<T>>
example: T is nvidia::gxf::EntitySerializer

We then need to implement the following functions:

  • const char* gxf_typename() const override: return the GXF type name of the Codelet. The fully-qualified class name (MyRecorder) for the GXF Codelet is specified.

  • void setup(OperatorSpec& spec) override: setup the OperatorSpec with the inputs/outputs and parameters of the Operator.

  • void initialize() override: initialize the Operator.

Setting up parameter specifications

The implementation of the setup(OperatorSpec& spec) function is as follows:

Listing 8 my_recorder_op.cpp

Copy
Copied!


#include "./my_recorder_op.hpp" #include "holoscan/core/fragment.hpp" #include "holoscan/core/gxf/entity.hpp" #include "holoscan/core/operator_spec.hpp" #include "holoscan/core/resources/gxf/video_stream_serializer.hpp" namespace holoscan::ops { void MyRecorderOp::setup(OperatorSpec& spec) { auto& input = spec.input<holoscan::gxf::Entity>("input"); // Above is same with the following two lines (a default condition is assigned to the input port if not specified): // // auto& input = spec.input<holoscan::gxf::Entity>("input") // .condition(ConditionType::kMessageAvailable, Arg("min_size") = 1); spec.param(receiver_, "receiver", "Entity receiver", "Receiver channel to log", &input); spec.param(my_serializer_, "serializer", "Entity serializer", "Serializer for serializing input data"); spec.param(directory_, "out_directory", "Output directory path", "Directory path to store received output"); spec.param(basename_, "basename", "File base name", "User specified file name without extension"); spec.param(flush_on_tick_, "flush_on_tick", "Boolean to flush on tick", "Flushes output buffer on every `tick` when true", false); } void MyRecorderOp::initialize() {...} } // namespace holoscan::ops


Here, we set up the inputs/outputs and parameters of the Operator. Note how the content of this function is very similar to the MyRecorder GXF codelet’s registerInterface function.

The highlighted lines in MyRecorderOp::setup above match the following highlighted statements of GXF Application YAML:

Listing 9 A part of apps/my_recorder_app_gxf/my_recorder_gxf.yaml

Copy
Copied!


name: recorder components: - name: input type: nvidia::gxf::DoubleBufferReceiver - name: allocator type: nvidia::gxf::UnboundedAllocator - name: component_serializer type: nvidia::gxf::StdComponentSerializer parameters: allocator: allocator - name: entity_serializer type: nvidia::holoscan::stream_playback::VideoStreamSerializer # inheriting from nvidia::gxf::EntitySerializer parameters: component_serializers: [component_serializer] - type: MyRecorder parameters: receiver: input serializer: entity_serializer out_directory: "/tmp" basename: "tensor_out" - type: nvidia::gxf::MessageAvailableSchedulingTerm parameters: receiver: input min_size: 1


In the same way, if we had a Transmitter GXF component, we would have the following statements (Please see available constants for holoscan::ConditionType):

Copy
Copied!


auto& output = spec.output<holoscan::gxf::Entity>("output"); // Above is same with the following two lines (a default condition is assigned to the output port if not specified): // // auto& output = spec.output<holoscan::gxf::Entity>("output") // .condition(ConditionType::kDownstreamMessageAffordable, Arg("min_size") = 1);

Initializing the operator

Next, the implementation of the initialize() function is as follows:

Listing 10 my_recorder_op.cpp

Copy
Copied!


#include "./my_recorder_op.hpp" #include "holoscan/core/fragment.hpp" #include "holoscan/core/gxf/entity.hpp" #include "holoscan/core/operator_spec.hpp" #include "holoscan/core/resources/gxf/video_stream_serializer.hpp" namespace holoscan::ops { void MyRecorderOp::setup(OperatorSpec& spec) {...} void MyRecorderOp::initialize() { // Set up prerequisite parameters before calling GXFOperator::initialize() auto frag = fragment(); auto serializer = frag->make_resource<holoscan::VideoStreamSerializer>("serializer"); add_arg(Arg("serializer") = serializer); GXFOperator::initialize(); } } // namespace holoscan::ops


Here we set up the pre-defined parameters such as the serializer. The highlighted lines above matches the highlighted statements of GXF Application YAML:

Listing 11 Another part of apps/my_recorder_app_gxf/my_recorder_gxf.yaml

Copy
Copied!


name: recorder components: - name: input type: nvidia::gxf::DoubleBufferReceiver - name: allocator type: nvidia::gxf::UnboundedAllocator - name: component_serializer type: nvidia::gxf::StdComponentSerializer parameters: allocator: allocator - name: entity_serializer type: nvidia::holoscan::stream_playback::VideoStreamSerializer # inheriting from nvidia::gxf::EntitySerializer parameters: component_serializers: [component_serializer] - type: MyRecorder parameters: receiver: input serializer: entity_serializer out_directory: "/tmp" basename: "tensor_out" - type: nvidia::gxf::MessageAvailableSchedulingTerm parameters: receiver: input min_size: 1


Note

The Holoscan C++ API already provides the holoscan::VideoStreamSerializer class which wraps the nvidia::holoscan::stream_playback::VideoStreamSerializer GXF component, used here as serializer.

Building your GXF operator

There are no differences in CMake between building a GXF operator and building a native C++ operator, since the GXF codelet is actually loaded through a GXF extension as a plugin, and does not need to be added to target_link_libraries(my_operator ...).

Using your GXF Operator in an Application

There are no differences in CMake between using a GXF operator and using a native C++ operator in an application. However, the application will need to load the GXF extension library which holds the wrapped GXF codelet symbols, so the application needs to be configured to find the extension library in its yaml configuration file, as documented here.

Interoperability between GXF and native C++ operators

To support sending or receiving tensors to and from operators (both GXF and native C++ operators), the Holoscan SDK provides the C++ classes below:

  • A class template called holoscan::MyMap which inherits from std::unordered_map<std::string, std::shared_ptr<T>>. The template parameter T can be any type, and it is used to specify the type of the std::shared_ptr objects stored in the map.

A holoscan::TensorMap class defined as a specialization of holoscan::Map for the holoscan::Tensor type.

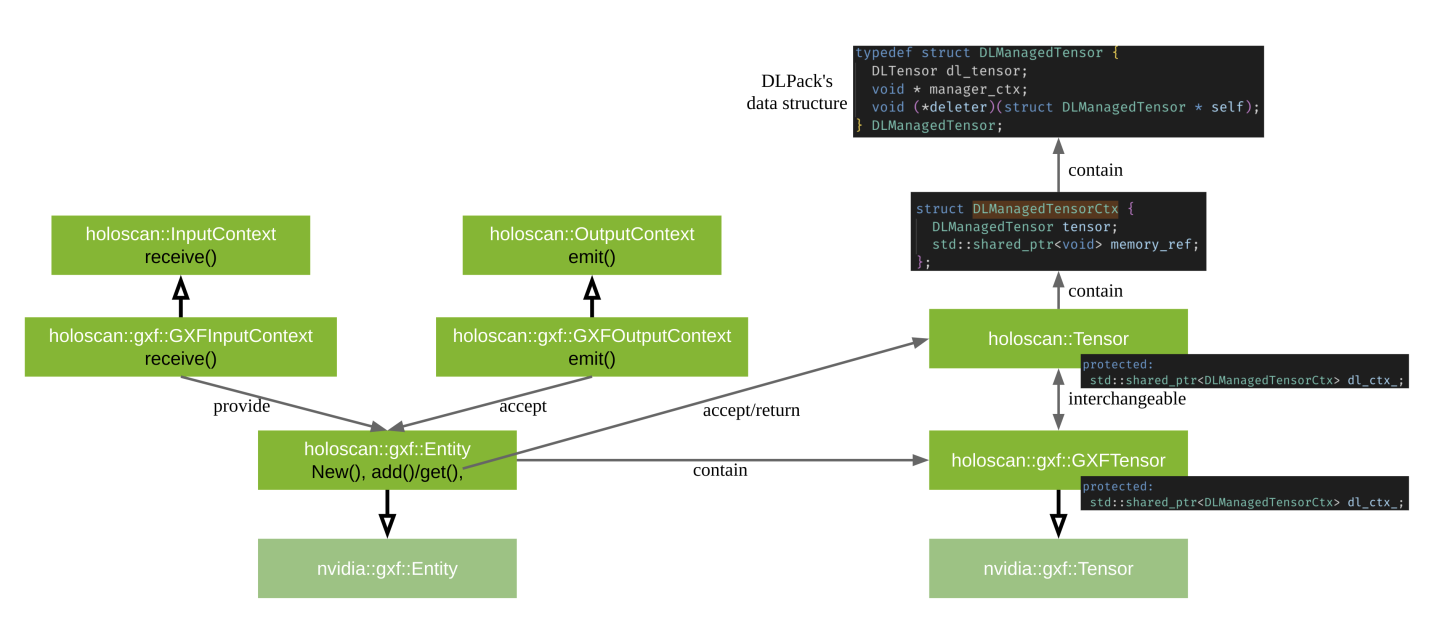

Fig. 16 Supporting Tensor Interoperability

Consider the following example, where GXFSendTensorOp and GXFReceiveTensorOp are GXF operators, and where ProcessTensorOp is a C++ native operator:

%%{init: {"theme": "base", "themeVariables": { "fontSize": "16px"}} }%% classDiagram direction LR GXFSendTensorOp --|> ProcessTensorOp : signal...in ProcessTensorOp --|> GXFReceiveTensorOp : out...signal class GXFSendTensorOp { signal(out) Tensor } class ProcessTensorOp { [in]in : TensorMap out(out) TensorMap } class GXFReceiveTensorOp { [in]signal : Tensor }

Fig. 17 The tensor interoperability between C++ native operator and GXF operator

The following code shows how to implement ProcessTensorOp’s compute() method as a C++ native operator communicating with GXF operators. Focus on the use of the holoscan::gxf::Entity:

Listing 12 examples/tensor_interop/cpp/tensor_interop.cpp

Copy
Copied!


void compute(InputContext& op_input, OutputContext& op_output, ExecutionContext& context) override { // The type of `in_message` is 'holoscan::TensorMap'. auto in_message = op_input.receive<holoscan::TensorMap>("in").value(); // the type of out_message is TensorMap TensorMap out_message; for (auto& [key, tensor] : in_message) { // Process with 'tensor' here. cudaError_t cuda_status; size_t data_size = tensor->nbytes(); std::vector<uint8_t> in_data(data_size); CUDA_TRY(cudaMemcpy(in_data.data(), tensor->data(), data_size, cudaMemcpyDeviceToHost)); HOLOSCAN_LOG_INFO("ProcessTensorOp Before key: '{}', shape: ({}), data: [{}]", key, fmt::join(tensor->shape(), ","), fmt::join(in_data, ",")); for (size_t i = 0; i < data_size; i++) { in_data[i] *= 2; } HOLOSCAN_LOG_INFO("ProcessTensorOp After key: '{}', shape: ({}), data: [{}]", key, fmt::join(tensor->shape(), ","), fmt::join(in_data, ",")); CUDA_TRY(cudaMemcpy(tensor->data(), in_data.data(), data_size, cudaMemcpyHostToDevice)); out_message.insert({key, tensor}); } // Send the processed message. op_output.emit(out_message); };


Note

A complete example of the C++ native operator that supports interoperability with GXF operators is available in the examples/tensor_interop/cpp directory.

When assembling a Python application, two types of operators can be used:

  1. Native Python operators: custom operators defined in Python, by creating a subclass of holoscan.core.Operator. These Python operators can pass arbitrary Python objects around between operators and are not restricted to the stricter parameter typing used for C++ API operators.

  2. Python wrappings of C++ Operators: operators defined in the underlying C++ library by inheriting from the holoscan::Operator class. These operators have Python bindings available within the holoscan.operators module. Examples are VideoStreamReplayerOp for replaying video files, FormatConverterOp for format conversions, and HolovizOp for visualization.

Note

It is possible to create an application using a mixture of Python wrapped C++ operators and native Python operators. In this case, some special consideration to cast the input and output tensors appropriately must be taken, as shown in a section below.

Native Python Operator

Operator Lifecycle (Python)

The lifecycle of a holoscan.core.Operator is made up of three stages:

  • start() is called once when the operator starts, and is used for initializing heavy tasks such as allocating memory resources and using parameters.

  • compute() is called when the operator is triggered, which can occur any number of times throughout the operator lifecycle between start() and stop().

  • stop() is called once when the operator is stopped, and is used for deinitializing heavy tasks such as deallocating resources that were previously assigned in start().

All operators on the workflow are scheduled for execution. When an operator is first executed, the start() method is called, followed by the compute() method. When the operator is stopped, the stop() method is called. The compute() method is called multiple times between start() and stop().

If any of the scheduling conditions specified by Conditions are not met (for example, the CountCondition would cause the scheduling condition to not be met if the operator has been executed a certain number of times), the operator is stopped and the stop() method is called.

We will cover how to use Conditions in the Specifying operator inputs and outputs (Python) section of the user guide.

Typically, the start() and the stop() functions are only called once during the application’s lifecycle. However, if the scheduling conditions are met again, the operator can be scheduled for execution, and the start() method will be called again.

%%{init: {"theme": "base", "themeVariables": { "fontSize": "16px"}} }%% flowchart LR start(start) stop(stop) compute(compute) start --> compute compute --> compute compute --> stop

Fig. 18 The sequence of method calls in the lifecycle of a Holoscan Operator

We can override the default behavior of the operator by implementing the above methods. The following example shows how to implement a custom operator that overrides start, stop and compute methods.

Listing 13 The basic structure of a Holoscan Operator (Python)

Copy
Copied!


from holoscan.core import ( ExecutionContext, InputContext, Operator, OperatorSpec, OutputContext, ) class MyOp(Operator): def __init__(self, fragment, *args, **kwargs): super().__init__(fragment, *args, **kwargs) def setup(self, spec: OperatorSpec): pass def start(self): pass def compute(self, op_input: InputContext, op_output: OutputContext, context: ExecutionContext): pass def stop(self): pass


setup method vs initialize vs __init__

The setup method aims to get the “operator’s spec” by providing OperatorSpec object as a spec param. When __init__ is called, it calls C++’s Operator::spec method (and also sets self.spec class member), and calls setup method so that Operator’s spec property holds the operator’s specification. (See the source code for more details.)

Since the setup method can be called multiple times with other OperatorSpec object (e.g., to enumerate the operator’s description), in the setup method, a user shouldn’t initialize something in the Operator object. Such initialization needs to be done in initialize method. The __init__ method is for creating the Operator object and it can be used for initializing the operator object itself by passing miscellaneous arguments. Still, it doesn’t ‘initialize’ the corresponding GXF entity object.

Creating a custom operator (Python)

To create a custom operator in Python it is necessary to create a subclass of holoscan.core.Operator. A simple example of an operator that takes a time-varying 1D input array named “signal” and applies convolution with a boxcar (i.e. rect) kernel.

For simplicity, this operator assumes that the “signal” that will be received on the input is already a numpy.ndarray or is something that can be cast to one via (np.asarray). We will see more details in a later section on how we can interoperate with various tensor classes, including the GXF Tensor objects used by some of the C++-based operators.

Code Snippet: examples/numpy_native/convolve.py

Listing 14 examples/numpy_native/convolve.py

Copy
Copied!


import os from holoscan.conditions import CountCondition from holoscan.core import Application, Operator, OperatorSpec from holoscan.logger import LogLevel, set_log_level import numpy as np class SignalGeneratorOp(Operator): """Generate a time-varying impulse. Transmits an array of zeros with a single non-zero entry of a specified `height`. The position of the non-zero entry shifts to the right (in a periodic fashion) each time `compute` is called. Parameters ---------- fragment : holoscan.core.Fragment The Fragment (or Application) the operator belongs to. height : number The height of the signal impulse. size : number The total number of samples in the generated 1d signal. dtype : numpy.dtype or str The data type of the generated signal. """ def __init__(self, fragment, *args, height=1, size=10, dtype=np.int32, **kwargs): self.count = 0 self.height = height self.dtype = dtype self.size = size super().__init__(fragment, *args, **kwargs) def setup(self, spec: OperatorSpec): spec.output("signal") def compute(self, op_input, op_output, context): # single sample wide impulse at a time-varying position signal = np.zeros((self.size,), dtype=self.dtype) signal[self.count % signal.size] = self.height self.count += 1 op_output.emit(signal, "signal") class ConvolveOp(Operator): """Apply convolution to a tensor. Convolves an input signal with a "boxcar" (i.e. "rect") kernel. Parameters ---------- fragment : holoscan.core.Fragment The Fragment (or Application) the operator belongs to. width : number The width of the boxcar kernel used in the convolution. unit_area : bool, optional Whether or not to normalize the convolution kernel to unit area. If False, all samples have implitude one and the dtype of the kernel will match that of the signal. When True the sum over the kernel is one and a 32-bit floating point data type is used for the kernel. """ def __init__(self, fragment, *args, width=4, unit_area=False, **kwargs): self.count = 0 self.width = width self.unit_area = unit_area super().__init__(fragment, *args, **kwargs) def setup(self, spec: OperatorSpec): spec.input("signal_in") spec.output("signal_out") def compute(self, op_input, op_output, context): signal = op_input.receive("signal_in") assert isinstance(signal, np.ndarray) if self.unit_area: kernel = np.full((self.width,), 1/self.width, dtype=np.float32) else: kernel = np.ones((self.width,), dtype=signal.dtype) convolved = np.convolve(signal, kernel, mode='same') op_output.emit(convolved, "signal_out") class PrintSignalOp(Operator): """Print the received signal to the terminal.""" def setup(self, spec: OperatorSpec): spec.input("signal") def compute(self, op_input, op_output, context): signal = op_input.receive("signal") print(signal) class ConvolveApp(Application): """Minimal signal processing application. Generates a time-varying impulse, convolves it with a boxcar kernel, and prints the result to the terminal. A `CountCondition` is applied to the generate to terminate execution after a specific number of steps. """ def compose(self): signal_generator = SignalGeneratorOp( self, CountCondition(self, count=24), name="generator", **self.kwargs("generator"), ) convolver = ConvolveOp(self, name="conv", **self.kwargs("convolve")) printer = PrintSignalOp(self, name="printer") self.add_flow(signal_generator, convolver) self.add_flow(convolver, printer) def main(config_file): app = ConvolveApp() # if the --config command line argument was provided, it will override this config_file` app.config(config_file) app.run() if __name__ == "__main__": config_file = os.path.join(os.path.dirname(__file__), 'convolve.yaml') main(config_file=config_file)


Code Snippet: examples/numpy_native/convolve.yaml

Listing 15 examples/numpy_native/convolve.yaml

Copy
Copied!


signal_generator: height: 1 size: 20 dtype: int32 convolve: width: 4 unit_area: false


In this application, three native Python operators are created: SignalGeneratorOp, ConvolveOp and PrintSignalOp. The SignalGeneratorOp generates a synthetic signal such as [0, 0, 1, 0, 0, 0] where the position of the non-zero entry varies each time it is called. ConvolveOp performs a 1D convolution with a boxcar (i.e. rect) function of a specified width. PrintSignalOp just prints the received signal to the terminal.

As covered in more detail below, the inputs to each operator are specified in the setup() method of the operator. Then inputs are received within the compute method via op_input.receive() and outputs are emitted via op_output.emit().

Note that for native Python operators as defined here, any Python object can be emitted or received. When transmitting between operators, a shared pointer to the object is transmitted rather than a copy. In some cases, such as sending the same tensor to more than one downstream operator, it may be necessary to avoid in-place operations on the tensor in order to avoid any potential race conditions between operators.

Specifying operator parameters (Python)

In the example SignalGeneratorOp operator above, we added three keyword arguments in the operator’s __init__ method, used inside the compose() method of the operator to adjust its behavior:

Copy
Copied!


def __init__(self, fragment, *args, width=4, unit_area=False, **kwargs): # Internal counter for the time-dependent signal generation self.count = 0 # Parameters self.width = width self.unit_area = unit_area # To forward remaining arguments to any underlying C++ Operator class super().__init__(fragment, *args, **kwargs)

Note

As an alternative closer to C++, these parameters can be added through the OperatorSpec attribute of the operator in its setup() method, where an associated string key must be provided as well as a default value:

Copy
Copied!


def setup(self, spec: OperatorSpec): spec.param("width", 4) spec.param("unit_area", False)

Other kwargs properties can also be passed to spec.param such as headline, description (used by GXF applications), or kind (used when Receiving any number of inputs (Python)).

Note

Native operator parameters added via either of these methods must not have a name that overlaps with any of the existing attribute or method names of the base Operator class.

See the Configuring operator parameters section to learn how an application can set these parameters.

Specifying operator inputs and outputs (Python)

To configure the input(s) and output(s) of Python native operators, call the spec.input() and spec.output() methods within the setup() method of the operator.

The spec.input() and spec.output() methods should be called once for each input and output to be added. The holoscan.core.OperatorSpec object and the setup() method will be initialized and called automatically by the Application class when its run() method is called.

These methods (spec.input() and spec.output()) return an IOSpec object that can be used to configure the input/output port.

By default, the holoscan.conditions.MessageAvailableCondition and holoscan.conditions.DownstreamMessageAffordableCondition conditions are applied (with a min_size of 1) to the input/output ports. This means that the operator’s compute() method will not be invoked until a message is available on the input port and the downstream operator’s input port (queue) has enough capacity to receive the message.

Copy
Copied!


def setup(self, spec: OperatorSpec): spec.input("in") # Above statement is equivalent to: # spec.input("in") # .condition(ConditionType.MESSAGE_AVAILABLE, min_size = 1) spec.output("out") # Above statement is equivalent to: # spec.output("out") # .condition(ConditionType.DOWNSTREAM_MESSAGE_AFFORDABLE, min_size = 1)

In the above example, the spec.input() method is used to configure the input port to have the holoscan.conditions.MessageAvailableCondition with a minimum size of 1. This means that the operator’s compute() method will not be invoked until a message is available on the input port of the operator. Similarly, the spec.output() method is used to configure the output port to have a holoscan.conditions.DownstreamMessageAffordableCondition with a minimum size of 1. This means that the operator’s compute() method will not be invoked until the downstream operator’s input port has enough capacity to receive the message.

If you want to change this behavior, use the IOSpec.condition() method to configure the conditions. For example, to configure the input and output ports to have no conditions, you can use the following code:

Copy
Copied!


from holoscan.core import ConditionType, OperatorSpec # ... def setup(self, spec: OperatorSpec): spec.input("in").condition(ConditionType.NONE) spec.output("out").condition(ConditionType.NONE)

The example code in the setup() method configures the input port to have no conditions, which means that the compute() method will be called as soon as the operator is ready to compute. Since there is no guarantee that the input port will have a message available, the compute() method should check if there is a message available on the input port before attempting to read it.

The receive() method of the InputContext object can be used to access different types of input data within the compute() method of your operator class. This method takes the name of the input port as an argument (which can be omitted if your operator has a single input port).

For standard Python objects, receive() will directly return the Python object for input of the specified name.

The Holoscan SDK also provides built-in data types called Domain Objects, defined in the include/holoscan/core/domain directory. For example, the Tensor is a Domain Object class that is used to represent a multi-dimensional array of data, which can be used directly by OperatorSpec, InputContext, and OutputContext.

Tip

This holoscan.core.Tensor class supports both DLPack and NumPy’s array interface (__array_interface__ and __cuda_array_interface__) so that it can be used with other Python libraries such as CuPy, PyTorch, JAX, TensorFlow, and Numba. See the interoperability section for more details.

In both cases, it will return None if there is no message available on the input port:

Copy
Copied!


# ... def compute(self, op_input, op_output, context): msg = op_input.receive("in") if msg: # Do something with msg

Receiving any number of inputs (Python)

Instead of assigning a specific number of input ports, it may be desired to have the ability to receive any number of objects on a port in certain situations. This can be done by calling spec.param(port_name, kind='receivers') as done for PingRxOp in the native operator ping example located at examples/native_operator/python/ping.py:

Code Snippet: examples/native_operator/python/ping.py

Listing 16 examples/native_operator/python/ping.py

Copy
Copied!


class PingRxOp(Operator): """Simple receiver operator. This operator has: input: "receivers" This is an example of a native operator that can dynamically have any number of inputs connected to is "receivers" port. """ def __init__(self, fragment, *args, **kwargs): self.count = 1 # Need to call the base class constructor last super().__init__(fragment, *args, **kwargs) def setup(self, spec: OperatorSpec): spec.param("receivers", kind="receivers") def compute(self, op_input, op_output, context): values = op_input.receive("receivers") print(f"Rx message received (count:{self.count}, size:{len(values)})") self.count += 1 print(f"Rx message value1:{values[0].data}") print(f"Rx message value2:{values[1].data}")


and in the compose method of the application, two parameters are connected to this “receivers” port:

Copy
Copied!


self.add_flow(mx, rx, {("out1", "receivers"), ("out2", "receivers")})

This line connects both the out1 and out2 ports of operator mx to the receivers port of operator rx.

Here, values as returned by op_input.receive("receivers") will be a tuple of python objects.

Python wrapping of a C++ operator

Note

While we provide some utilities to simplify part of the process, this section is designed for advanced developers, since the wrapping of the C++ class using pybind11 is mostly manual and can vary greatly between each operator.

For convenience while maintaining highest performance, operators written in C++ can be wrapped in Python. In the Holoscan SDK, we’ve used pybind11 to wrap all the built-in operators in python/holoscan/operators. We’ll highlight the main components below:

Trampoline classes for handling Python kwargs

In a C++ file (my_op_pybind.cpp in our skeleton code below), create a subclass of the C++ Operator class to wrap. In the subclass, define a new constructor which takes a Fragment, an explicit list of parameters with potential default values (argA, argB below…), and an operator name to fully initialize the operator similar to what is done in Fragment::make_operator:

Listing 17 my_op_python/my_op_pybind.cpp

Copy
Copied!


#include <holoscan/core/fragment.hpp> #include <holoscan/core/operator.hpp> #include <holoscan/core/operator_spec.hpp> #include "my_op.hpp" class PyMyOp : public MyOp { public: using MyOp::MyOp; PyMyOp( Fragment* fragment, TypeA argA, TypeB argB = 0, ..., const std::string& name = "my_op" ) : MyOp(ArgList{ Arg{"argA", argA}, Arg{"argB", argB}, ... }) { # If you have arguments you can't pass directly to the `MyOp` constructor as an `Arg`, do # the conversion and pass the result to `this->add_arg` before setting up the spec below. name_ = name; fragment_ = fragment; spec_ = std::make_shared<OperatorSpec>(fragment); setup(*spec_.get()); } }


Example: Look at the implementation of PyLSTMTensorRTInferenceOp on HoloHub for a specific example, or any of the Py*Op classes used for the SDK built-in operators here. In the latter, you can find examples of add_arg used for less straightforward arguments.

Documentation strings

Prepare documentation strings (const char*) for your python class and its parameters, which we’ll use in the next step.

Note

Below we use a PYDOC macro defined in the SDK and available in HoloHub as a utility to remove leading spaces. In this skeleton example, the documentation code is located in a header file named my_op_pybind_docs.hpp, under a custom doc::MyOp namespace. None of this is required, you just need to make the strings available in some way for the next section.

Listing 18 my_op_python/my_op_pybind_docs.hpp

Copy
Copied!


#include "../macros.hpp" namespace doc::MyOp { PYDOC(cls, R"doc( My operator. )doc") PYDOC(constructor, R"doc( Create the operator. Parameters ---------- fragment : holoscan.core.Fragment The fragment that the operator belongs to. argA : TypeA argA description argB : TypeB, optional argB description name : str, optional The name of the operator. )doc") PYDOC(initialize, R"doc( Initialize the operator. This method is called only once when the operator is created for the first time, and uses a light-weight initialization. )doc") PYDOC(setup, R"doc( Define the operator specification. Parameters ---------- spec : holoscan.core.OperatorSpec The operator specification. )doc") }


Examples: Continuing with the LSTMTensorRTInferenceOp example on HoloHub, the documentation strings are defined in lstm_tensor_rt_inference_pydoc.hpp. The documentation strings for the SDK built-in operators are located in operators_pydoc.hpp.

Writing glue code

In the same C++ file as the first section, call py::class_ within PYBIND11_MODULE to define your operator python class.

Note
  • If you are implementing the python wrapping in Holohub, the <module_name> passed to PYBIND_11_MODULE must match _<CPP_CMAKE_TARGET> (covered in more details in the next section), in this case, _my_op.

  • If you are implementing the python wrapping in a standalone CMake project,the <module_name> passed to PYBIND_11_MODULE must match the name of the module passed to the pybind11-add-module CMake function.

Listing 19 my_op_python/my_op_pybind.cpp (continued)

Copy
Copied!


#include <pybind11/pybind11.h> #include "my_op_pybind_docs.hpp" using pybind11::literals::operator""_a; namespace py = pybind11; #define STRINGIFY(x) #x #define MACRO_STRINGIFY(x) STRINGIFY(x) // See notes above, value of `<module_name>` is important PYBIND11_MODULE(<module_name>, m) { m.doc() = R"pbdoc( My Module Python Bindings --------------------------------------- .. currentmodule:: <module_name> .. autosummary:: :toctree: _generate add subtract )pbdoc"; #ifdef VERSION_INFO m.attr("__version__") = MACRO_STRINGIFY(VERSION_INFO); #else m.attr("__version__") = "dev"; #endif py::class_<MyOp, PyMyOp, Operator, std::shared_ptr<MyOp>>( m, "MyOp", doc::MyOp::doc_cls) .def(py::init<Fragment*, TypeA, TypeB, ..., const std::string&>(), "fragment"_a, "argA"_a, "argB"_a = 0, ..., "name"_a = "my_op", doc::MyOp::doc_constructor) .def("initialize", &MyOp::initialize, doc::MyOp::doc_initialize) .def("setup", &MyOp::setup, "spec"_a, doc::MyOp::doc_setup); }


Examples: Like the trampoline class, the PYBIND11_MODULE implementation of the LSTMTensorRTInferenceOp example on HoloHub is located in lstm_tensor_rt_inference.cpp. For the SDK built-in operators, their class bindings are all implemented within a single PYBIND11_MODULE in operators.cpp.

Configuring with CMake

We use CMake to configure pybind11 and build the bindings for the C++ operator you wish to wrap. There are two approaches detailed below, one for HoloHub (recommended), one for standalone CMake projects.

Tip

To have your bindings built, ensure the CMake code below is executed as part of a CMake project which already defines the C++ operator as a CMake target, either built in your project (with add_library) or imported (with find_package or find_library).

We provide a CMake utility function named pybind11_add_holohub_module in HoloHub to facilitate configuring and building your python bindings.

In our skeleton code below, a top-level CMakeLists.txt which already defined the my_op target for the C++ operator would need to do add_subdirectory(my_op_python) to include the following CMakeLists.txt. The pybind11_add_holohub_module lists that C++ operator target, the C++ class to wrap, and the path to the C++ binding source code we implemented above. Note how the <module_name> from the previous section would need to match _<CPP_CMAKE_TARGET> i.e. _my_op.

Listing 20 my_op_python/CMakeLists.txt

Copy
Copied!


include(pybind11_add_holohub_module) pybind11_add_holohub_module( CPP_CMAKE_TARGET my_op CLASS_NAME "MyOp" SOURCES my_op_pybind.cpp )


Example: the cmake configuration for the LSTMTensorRTInferenceOp python bindings on HoloHub can be found here. This directory is reachable thanks to the add_subdirectory(python) in the CMakeLists.txt one folder above, but that’s an arbitrary opinionated location and not a required directory structure.

Follow the pybind11 documentation to configure your CMake project to use pybind11. Then, use the pybind11_add_module function with the cpp files containing the code above, and link against holoscan::core and the library that exposes your C++ operator to wrap.

Listing 21 my_op_python/CMakeLists.txt

Copy
Copied!


pybind11_add_module(my_python_module my_op_pybind.cpp) target_link_libraries(my_python_module PRIVATE holoscan::core PUBLIC my_op )


Example: in the SDK, this is done here.

Importing the class in Python

When building your project, two files will be generated inside <build_or_install_dir>/python/lib/holohub/my_op:

  1. the shared library for your bindings (_my_op.cpython-<pyversion>-<arch>-linux-gnu.so)

  2. an __init__.py file that makes the necessary imports to expose this in python

Assuming you have export PYTHONPATH=<build_or_install_dir>/python/lib/, you should then be able to create an application in Holohub that imports your class via:

Copy
Copied!


from holohub.my_op import MyOp

Example: LSTMTensorRTInferenceOp is imported in the Endoscopy Tool Tracking application on HoloHub here.

When building your project, a shared library file holding the python bindings and named my_python_module.cpython-<pyversion>-<arch>-linux-gnu.so will be generated inside <build_or_install_dir>/my_op_python (configurable with OUTPUT_NAME and LIBRARY_OUTPUT_DIRECTORY respectively in CMake).

From there, you can import it in python via:

Copy
Copied!


import holoscan.core import holoscan.gxf # if your c++ operator uses gxf extensions from <build_or_install_dir>.my_op_python import MyOp

Tip

To imitate HoloHub’s behavior, you can also place that file alongside the .so file, name it __init__.py, and replace <build_or_install_dir> by .. It can then be imported as a python module, assuming <build_or_install_dir> is a module under the PYTHONPATH environment variable.

Interoperability between wrapped and native Python operators

As described in the Interoperability between GXF and native C++ operators section, holoscan::Tensor objects can be passed to GXF operators using a holoscan::TensorMap message that holds the tensor(s). In Python, this is done by sending dict type objects that have tensor names as the keys and holoscan Tensor or array-like objects as the values. Similarly, when a wrapped C++ operator that transmits a single holoscan::Tensor is connected to the input port of a Python native operator, calling op_input.receive() on that port will return a Python dict containing a single item. That item’s key is the tensor name and its value is the corresponding holoscan.core.Tensor.

Consider the following example, where VideoStreamReplayerOp and HolovizOp are Python wrapped C++ operators, and where ImageProcessingOp is a Python native operator:

%%{init: {"theme": "base", "themeVariables": { "fontSize": "16px"}} }%% classDiagram direction LR VideoStreamReplayerOp --|> ImageProcessingOp : output_tensor...input_tensor ImageProcessingOp --|> HolovizOp : output_tensor...receivers class VideoStreamReplayerOp { output_tensor(out) Tensor } class ImageProcessingOp { [in]input_tensor : dict[str,Tensor] output_tensor(out) dict[str,Tensor] } class HolovizOp { [in]receivers : Tensor }

Fig. 19 The tensor interoperability between Python native operator and C++-based Python GXF operator

The following code shows how to implement ImageProcessingOp’s compute() method as a Python native operator communicating with C++ operators:

Listing 22 examples/tensor_interop/python/tensor_interop.py

Copy
Copied!


def compute(self, op_input, op_output, context): # in_message is of dict in_message = op_input.receive("input_tensor") # smooth along first two axes, but not the color channels sigma = (self.sigma, self.sigma, 0) # out_message is of dict out_message = dict() for key, value in in_message.items(): print(f"message received (count:{self.count})") self.count += 1 cp_array = cp.asarray(value) # process cp_array cp_array = ndi.gaussian_filter(cp_array, sigma) out_message[key] = cp_array op_output.emit(out_message, "output_tensor")


  • The op_input.receive() method call returns a dict object.

  • The holoscan.core.Tensor object is converted to a CuPy array by using cupy.asarray() method call.

  • The CuPy array is used as an input to the ndi.gaussian_filter() function call with a parameter sigma. The result of the ndi.gaussian_filter() function call is a CuPy array.

  • Finally, a new dict object is created ,out_message, to be sent to the next operator with op_output.emit(). The CuPy array, cp_array, is added to it where the key is the tensor name. CuPy arrays do not have to explicitly be converted to a holocan.core.Tensor object first since they implement a DLPack (and __cuda__array_interface__) interface.

Note

A complete example of the Python native operator that supports interoperability with Python wrapped C++ operators is available in the examples/tensor_interop/python directory.

You can add multiple tensors to a single dict object , as in the example below:

Operator sending a message:

Copy
Copied!


out_message = { "video": output_array, "labels": labels, "bbox_coords": bbox_coords, } # emit the tensors op_output.emit(out_message, "outputs")

Operator receiving the message, assuming the outputs port above is connected to the inputs port below with add_flow()has the corresponding tensors:

Copy
Copied!


in_message = op_input.receive("inputs") # Tensors and tensor names video_tensor = in_message["video"] labels_tensor = in_message["labels"] bbox_coords_tensor = in_message["bbox_coords"]

Note

Some existing operators allow configuring the name of the tensors they send/receive. An example is the tensors parameter of HolovizOp, where the name for each tensor maps to the names of the tensors in the Entity (see the holoviz entry in apps/endoscopy_tool_tracking/python/endoscopy_tool_tracking.yaml).

A complete example of a Python native operator that emits multiple tensors to a downstream C++ operator is available in the examples/holoviz/python directory.

There is a special serialization code for tensor types for emit/receive of tensor objects over a UCX connection that avoids copying the tensor data to an intermediate buffer. For distributed apps, we cannot just send the Python object as we do between operators in a single fragment app, but instead we need to cast it to holoscan::Tensor to use a special zero-copy code path. However, we also transmit a header indicating if the type was originally some other array-like object and attempt to return the same type again on the other side so that the behavior remains more similar to the non-distributed case.

Transmitted object

Received Object

holoscan.Tensor holoscan.Tensor
dict of array-like dict of holoscan.Tensor
host array-like object (with __array_interface__) numpy.ndarray
device array-like object (with __cuda_array_interface__) cupy.ndarray

This avoids NumPy or CuPy arrays being serialized to a string via cloudpickle so that they can efficiently be transmitted and the same type is returned again on the opposite side. Worth mentioning is that ,if the type emitted was e.g. a PyTorch host/device tensor on emit, the received value will be a numpy/cupy array since ANY object implementing the interfaces returns those types.

Previous Packaging Holoscan Applications
Next Logging
© Copyright 2022-2023, NVIDIA. Last updated on Apr 19, 2024.
