Holoviz provides the functionality to composite real time streams of frames with multiple different other layers like segmentation mask layers, geometry layers and GUI layers.

For maximum performance Holoviz makes use of Vulkan, which is already installed as part of the Nvidia GPU driver.

Holoscan provides the Holoviz operator which is sufficient for many, even complex visualization tasks. The Holoviz operator is used by multiple Holoscan example applications.

Additionally, for more advanced use cases, the Holoviz module can be used to create application specific visualization operators. The Holoviz module provides a C++ API and is also used by the Holoviz operator.

The term Holoviz is used for both the Holoviz operator and the Holoviz module below. Both the operator and the module roughly support the same features set. Where applicable information how to use a feature with the operator and the module is provided. It’s explicitly mentioned below when features are not supported by the operator.

The core entity of Holoviz are layers. A layer is a two-dimensional image object. Multiple layers are composited to create the final output.

These layer types are supported by Holoviz:

  • image layer

  • geometry layer

  • GUI layer

All layers have common attributes which define the look and also the way layers are finally composited.

The priority determines the rendering order of the layers. Before rendering the layers they are sorted by priority, the layers with the lowest priority are rendered first so that the layer with the highest priority is rendered on top of all other layers. If layers have the same priority then the render order of these layers is undefined.

The example below draws a transparent geometry layer on top of an image layer (geometry data and image data creation is omitted in the code). Although the geometry layer is specified first, it is drawn last because it has a higher priority (1) than the image layer (0).

The operator has a receivers port which accepts tensors and video buffers produced by other operators. Each tensor or video buffer will result in a layer.

The operator autodetects the layer type for certain input types (e.g. a video buffer will result in an image layer).

For other input types or more complex use cases input specifications can be provided either at initialization time as a parameter or dynamically at run time.

Copy
Copied!


std::vector<ops::HolovizOp::InputSpec> input_specs; auto& geometry_spec = input_specs.emplace_back(ops::HolovizOp::InputSpec("point_tensor", ops::HolovizOp::InputType::POINTS)); geometry_spec.priority_ = 1; geometry_spec.opacity_ = 0.5; auto& image_spec = input_specs.emplace_back(ops::HolovizOp::InputSpec("image_tensor", ops::HolovizOp::InputType::IMAGE)); image_spec.priority_ = 0; auto visualizer = make_operator<ops::HolovizOp>("holoviz", Arg("tensors", input_specs)); // the source provides two tensors named "point_tensor" and "image_tensor" at the "outputs" port. add_flow(source, visualizer, {{"outputs", "receivers"}});

The definition of a layer is started by calling one of the layer begin functions viz::BeginImageLayer(), viz::BeginGeometryLayer() or viz::BeginImGuiLayer(). The layer definition ends with viz::EndLayer().

The start of a layer definition is resetting the layer attributes like priority and opacity to their defaults. So for the image layer, there is no need to set the opacity to 1.0 since the default is already 1.0.

Copy
Copied!


namespace viz = holoscan::viz; viz::Begin(); viz::BeginGeometryLayer(); viz::LayerPriority(1); viz::LayerOpacity(0.5); /// details omitted viz::EndLayer(); viz::BeginImageLayer(); viz::LayerPriority(0); /// details omitted viz::EndLayer(); viz::End();

Image Layers

Image data can either be on host or device (GPU), both tensors and video buffers are accepted.

Copy
Copied!


std::vector<ops::HolovizOp::InputSpec> input_specs; auto& image_spec = input_specs.emplace_back(ops::HolovizOp::InputSpec("image", ops::HolovizOp::InputType::IMAGE)); auto visualizer = make_operator<ops::HolovizOp>("holoviz", Arg("tensors", input_specs)); // the source provides an image named "image" at the "outputs" port. add_flow(source, visualizer, {{"output", "receivers"}});

The function viz::BeginImageLayer() starts an image layer. An image layer displays a rectangular 2D image.

The image data is defined by calling viz::ImageCudaDevice(), viz::ImageCudaArray() or viz::ImageHost(). Various input formats are supported, see viz::ImageFormat.

For single channel image formats image colors can be looked up by defining a lookup table with viz::LUT().

Copy
Copied!


viz::BeginImageLayer(); viz::ImageHost(width, height, format, data); viz::EndLayer();

Supported Image Formats

Supported formats for nvidia::gxf::VideoBuffer.

nvidia::gxf::VideoFormat

Supported

Description

GXF_VIDEO_FORMAT_CUSTOM -

GXF_VIDEO_FORMAT_YUV420 - BT.601 multi planar 4:2:0 YUV
GXF_VIDEO_FORMAT_YUV420_ER - BT.601 multi planar 4:2:0 YUV ER
GXF_VIDEO_FORMAT_YUV420_709 - BT.709 multi planar 4:2:0 YUV
GXF_VIDEO_FORMAT_YUV420_709_ER - BT.709 multi planar 4:2:0 YUV
GXF_VIDEO_FORMAT_NV12 - BT.601 multi planar 4:2:0 YUV with interleaved UV
GXF_VIDEO_FORMAT_NV12_ER - BT.601 multi planar 4:2:0 YUV ER with interleaved UV
GXF_VIDEO_FORMAT_NV12_709 - BT.709 multi planar 4:2:0 YUV with interleaved UV
GXF_VIDEO_FORMAT_NV12_709_ER - BT.709 multi planar 4:2:0 YUV ER with interleaved UV
GXF_VIDEO_FORMAT_RGBA RGBA-8-8-8-8 single plane
GXF_VIDEO_FORMAT_BGRA BGRA-8-8-8-8 single plane
GXF_VIDEO_FORMAT_ARGB ARGB-8-8-8-8 single plane
GXF_VIDEO_FORMAT_ABGR ABGR-8-8-8-8 single plane
GXF_VIDEO_FORMAT_RGBX RGBX-8-8-8-8 single plane
GXF_VIDEO_FORMAT_BGRX BGRX-8-8-8-8 single plane
GXF_VIDEO_FORMAT_XRGB XRGB-8-8-8-8 single plane
GXF_VIDEO_FORMAT_XBGR XBGR-8-8-8-8 single plane
GXF_VIDEO_FORMAT_RGB RGB-8-8-8 single plane
GXF_VIDEO_FORMAT_BGR BGR-8-8-8 single plane
GXF_VIDEO_FORMAT_R8_G8_B8 - RGB - unsigned 8 bit multiplanar
GXF_VIDEO_FORMAT_B8_G8_R8 - BGR - unsigned 8 bit multiplanar
GXF_VIDEO_FORMAT_GRAY 8 bit GRAY scale single plane
GXF_VIDEO_FORMAT_GRAY16 16 bit GRAY scale single plane
GXF_VIDEO_FORMAT_GRAY32 - 32 bit GRAY scale single plane
GXF_VIDEO_FORMAT_GRAY32F float 32 bit GRAY scale single plane
GXF_VIDEO_FORMAT_RGB16 - RGB-16-16-16 single plane
GXF_VIDEO_FORMAT_BGR16 - BGR-16-16-16 single plane
GXF_VIDEO_FORMAT_RGB32 - RGB-32-32-32 single plane
GXF_VIDEO_FORMAT_BGR32 - BGR-32-32-32 single plane
GXF_VIDEO_FORMAT_R16_G16_B16 - RGB - signed 16 bit multiplanar
GXF_VIDEO_FORMAT_B16_G16_R16 - BGR - signed 16 bit multiplanar
GXF_VIDEO_FORMAT_R32_G32_B32 - RGB - signed 32 bit multiplanar
GXF_VIDEO_FORMAT_B32_G32_R32 - BGR - signed 32 bit multiplanar
GXF_VIDEO_FORMAT_NV24 - multi planar 4:4:4 YUV with interleaved UV
GXF_VIDEO_FORMAT_NV24_ER - multi planar 4:4:4 YUV ER with interleaved UV
GXF_VIDEO_FORMAT_R8_G8_B8_D8 - RGBD unsigned 8 bit multiplanar
GXF_VIDEO_FORMAT_R16_G16_B16_D16 - RGBD unsigned 16 bit multiplanar
GXF_VIDEO_FORMAT_R32_G32_B32_D32 - RGBD unsigned 32 bit multiplanar
GXF_VIDEO_FORMAT_RGBD8 - RGBD 8 bit unsigned single plane
GXF_VIDEO_FORMAT_RGBD16 - RGBD 16 bit unsigned single plane
GXF_VIDEO_FORMAT_RGBD32 - RGBD 32 bit unsigned single plane
GXF_VIDEO_FORMAT_D32F Depth 32 bit float single plane
GXF_VIDEO_FORMAT_D64F - Depth 64 bit float single plane
GXF_VIDEO_FORMAT_RAW16_RGGB - RGGB-16-16-16-16 single plane
GXF_VIDEO_FORMAT_RAW16_BGGR - BGGR-16-16-16-16 single plane
GXF_VIDEO_FORMAT_RAW16_GRBG - GRBG-16-16-16-16 single plane
GXF_VIDEO_FORMAT_RAW16_GBRG - GBRG-16-16-16-16 single plane

Image format detection for nvidia::gxf::Tensor. Tensors don’t have image format information attached. The Holoviz operator detects the image format from the tensor configuration.

nvidia::gxf::PrimitiveType

Channels

Color format

Index for color lookup

kUnsigned8 1 8 bit GRAY scale single plane
kInt8 1 signed 8 bit GRAY scale single plane
kUnsigned16 1 16 bit GRAY scale single plane
kInt16 1 signed 16 bit GRAY scale single plane
kUnsigned32 1 -
kInt32 1 -
kFloat32 1 float 32 bit GRAY scale single plane
kUnsigned8 3 RGB-8-8-8 single plane -
kInt8 3 signed RGB-8-8-8 single plane -
kUnsigned8 4 RGBA-8-8-8-8 single plane -
kInt8 4 signed RGBA-8-8-8-8 single plane -
kUnsigned16 4 RGBA-16-16-16-16 single plane -
kInt16 4 signed RGBA-16-16-16-16 single plane -
kFloat32 4 RGBA-16-16-16-16 single plane -

See viz::ImageFormat for supported image formats. Additionally viz::ImageComponentMapping() can be used to map the color components of an image to the color components of the output.

Geometry Layers

A geometry layer is used to draw geometric primitives such as points, lines, rectangles, ovals or text.

Coordinates start with (0, 0) in the top left and end with (1, 1) in the bottom right.

The function viz::BeginGeometryLayer() starts a geometry layer.

See viz::PrimitiveTopology for supported geometry primitive topologies.

There are functions to set attributes for geometric primitives like color (viz::Color()), line width (viz::LineWidth()) and point size (viz::PointSize()).

The code below draws a red rectangle and a green text.

Copy
Copied!


namespace viz = holoscan::viz; viz::BeginGeometryLayer(); // draw a red rectangle viz::Color(1.f, 0.f, 0.f, 0.f); const float data[]{0.1f, 0.1f, 0.9f, 0.9f}; viz::Primitive(viz::PrimitiveTopology::RECTANGLE_LIST, 1, sizeof(data) / sizeof(data[0]), data); // draw green text viz::Color(0.f, 1.f, 0.f, 0.f); viz::Text(0.5f, 0.5f, 0.2f, "Text"); viz::EndLayer();

ImGui Layers

Note

ImGui layers are not supported when using the Holoviz operator.

The Holoviz module supports user interface layers created with Dear ImGui.

Calls to the Dear ImGui API are allowed between viz::BeginImGuiLayer() and viz::EndImGuiLayer() are used to draw to the ImGui layer. The ImGui layer behaves like other layers and is rendered with the layer opacity and priority.

The code below creates a Dear ImGui window with a checkbox used to conditionally show a image layer.

Copy
Copied!


namespace viz = holoscan::viz; bool show_image_layer = false; while (!viz::WindowShouldClose()) { viz::Begin(); viz::BeginImGuiLayer(); ImGui::Begin("Options"); ImGui::Checkbox("Image layer", &show_image_layer); ImGui::End(); viz::EndLayer(); if (show_image_layer) { viz::BeginImageLayer(); viz::ImageHost(...); viz::EndLayer(); } viz::End(); }

ImGUI is a static library and has no stable API. Therefore the application and Holoviz have to use the same ImGUI version. Therefore the link target holoscan::viz::imgui is exported, make sure to link your app against that target.

Depth Map Layers

A depth map is a single channel 2d array where each element represents a depth value. The data is rendered as a 3d object using points, lines or triangles. The color for the elements can also be specified.

Supported format for the depth map:

  • 8-bit unsigned normalized format that has a single 8-bit depth component

Supported format for the depth color map:

  • 32-bit unsigned normalized format that has an 8-bit R component in byte 0, an 8-bit G component in byte 1, an 8-bit B component in byte 2, and an 8-bit A component in byte 3

Depth maps are rendered in 3D and support camera movement.

The camera is operated using the mouse.

  • Orbit (LMB)

  • Pan (LMB + CTRL | MMB)

  • Dolly (LMB + SHIFT | RMB | Mouse wheel)

  • Look Around (LMB + ALT | LMB + CTRL + SHIFT)

  • Zoom (Mouse wheel + SHIFT)

Copy
Copied!


std::vector<ops::HolovizOp::InputSpec> input_specs; auto& depth_map_spec = input_specs.emplace_back(ops::HolovizOp::InputSpec("depth_map", ops::HolovizOp::InputType::DEPTH_MAP)); depth_map_spec.depth_map_render_mode_ = ops::HolovizOp::DepthMapRenderMode::TRIANGLES; auto visualizer = make_operator<ops::HolovizOp>("holoviz", Arg("tensors", input_specs)); // the source provides an depth map named "depth_map" at the "output" port. add_flow(source, visualizer, {{"output", "receivers"}});

By default a layer will fill the whole window. When using a view, the layer can be placed freely within the window.

Layers can also be placed in 3D space by specifying a 3D transformation matrix.

Note

For geometry layers there is a default matrix which allows coordinates in the range of [0 … 1] instead of the Vulkan [-1 … 1] range. When specifying a matrix for a geometry layer, this default matrix is overwritten.

When multiple views are specified the layer is drawn multiple times using the specified layer view.

It’s possible to specify a negative term for height, which flips the image. When using a negative height, one should also adjust the y value to point to the lower left corner of the viewport instead of the upper left corner.

Use viz::LayerAddView() to add a view to a layer.

Usually Holoviz opens a normal window on the Linux desktop. In that case the desktop compositor is combining the Holoviz image with all other elements on the desktop. To avoid this extra compositing step, Holoviz can render to a display directly.

Configure a display for exclusive use

SSH into the machine and stop the X server:

Copy
Copied!


sudo systemctl stop display-manager

To resume the display manager, run:

Copy
Copied!


sudo systemctl start display-manager

The display to be used in exclusive mode needs to be disabled in the NVIDIA Settings application (nvidia-settings): open the X Server Display Configuration tab, select the display and under Configuration select Disabled. Press Apply.

Enable exclusive display in Holoviz

Arguments to pass to the Holoviz operator:

Copy
Copied!


auto visualizer = make_operator<ops::HolovizOp>("holoviz", Arg("use_exclusive_display", true), // required Arg("display_name", "DP-2"), // optional Arg("width", 2560), // optional Arg("height", 1440), // optional Arg("framerate", 240) // optional );

Provide the name of the display and desired display mode properties to viz::Init().

If the name is nullptr then the first display is selected.

The name of the display can either be the EDID name as displayed in the NVIDIA Settings, or the output name used by xrandr.

Tip

In this example output of xrandr, DP-2 would be an adequate display name to use:

Copy
Copied!


Screen 0: minimum 8 x 8, current 4480 x 1440, maximum 32767 x 32767 DP-0 disconnected (normal left inverted right x axis y axis) DP-1 disconnected (normal left inverted right x axis y axis) DP-2 connected primary 2560x1440+1920+0 (normal left inverted right x axis y axis) 600mm x 340mm 2560x1440 59.98 + 239.97* 199.99 144.00 120.00 99.95 1024x768 60.00 800x600 60.32 640x480 59.94 USB-C-0 disconnected (normal left inverted right x axis y axis)

By default Holoviz is using CUDA stream 0 for all CUDA operations. Using the default stream can affect concurrency of CUDA operations, see stream synchronization behavior for more information.

The operator is using a holoscan::CudaStreamPool instance if provided by the cuda_stream_pool argument. The stream pool is used to create a CUDA stream used by all Holoviz operations.

Copy
Copied!


const std::shared_ptr<holoscan::CudaStreamPool> cuda_stream_pool = make_resource<holoscan::CudaStreamPool>("cuda_stream", 0, 0, 0, 1, 5); auto visualizer = make_operator<holoscan::ops::HolovizOp>("visualizer", Arg("cuda_stream_pool") = cuda_stream_pool);

When providing CUDA resources to Holoviz through e.g. viz::ImageCudaDevice() Holoviz is using CUDA operations to use that memory. The CUDA stream used by these operations can be set by calling viz::SetCudaStream(). The stream can be changed at any time.

The rendered frame buffer can be read back. This is useful when when doing offscreen rendering or running Holoviz in a headless environment.

Note

Reading the depth buffer is not supported when using the Holoviz operator.

To read back the color framebuffer set the enable_render_buffer_output parameter to true and provide an allocator to the operator.

The framebuffer is emitted on the render_buffer_output port.

Copy
Copied!


std::shared_ptr<holoscan::ops::HolovizOp> visualizer = make_operator<ops::HolovizOp>("visualizer", Arg("enable_render_buffer_output", true), Arg("allocator") = make_resource<holoscan::UnboundedAllocator>("allocator"), Arg("cuda_stream_pool") = cuda_stream_pool); add_flow(visualizer, destination, {{"render_buffer_output", "input"}});

The rendered color or depth buffer can be read back using viz::ReadFramebuffer().

Class documentation

C++

Python.

Examples

There are multiple examples both in Python and C++ showing how to use various features of the Holoviz operator.

Concepts

The Holoviz module uses the concept of the immediate mode design pattern for its API, inspired by the Dear ImGui library. The difference to the retained mode, for which most APIs are designed for, is, that there are no objects created and stored by the application. This makes it fast and easy to make visualization changes in a Holoscan application.

Instances

The Holoviz module uses a thread-local instance object to store its internal state. The instance object is created when calling the Holoviz module is first called from a thread. All Holoviz module functions called from that thread use this instance.

When calling into the Holoviz module from other threads other than the thread from which the Holoviz module functions were first called, make sure to call viz::GetCurrent() and viz::SetCurrent() in the respective threads.

There are usage cases where multiple instances are needed, for example, to open multiple windows. Instances can be created by calling viz::Create(). Call viz::SetCurrent() to make the instance current before calling the Holoviz module function to be executed for the window the instance belongs to.

Getting started

The code below creates a window and displays an image.

First the Holoviz module needs to be initialized. This is done by calling viz::Init().

The elements to display are defined in the render loop, termination of the loop is checked with viz::WindowShouldClose().

The definition of the displayed content starts with viz::Begin() and ends with viz::End(). viz::End() starts the rendering and displays the rendered result.

Finally the Holoviz module is shutdown with viz::Shutdown().

Copy
Copied!


#include "holoviz/holoviz.hpp" namespace viz = holoscan::viz; viz::Init("Holoviz Example"); while (!viz::WindowShouldClose()) { viz::Begin(); viz::BeginImageLayer(); viz::ImageHost(width, height, viz::ImageFormat::R8G8B8A8_UNORM, image_data); viz::EndLayer(); viz::End(); } viz::Shutdown();

Result:

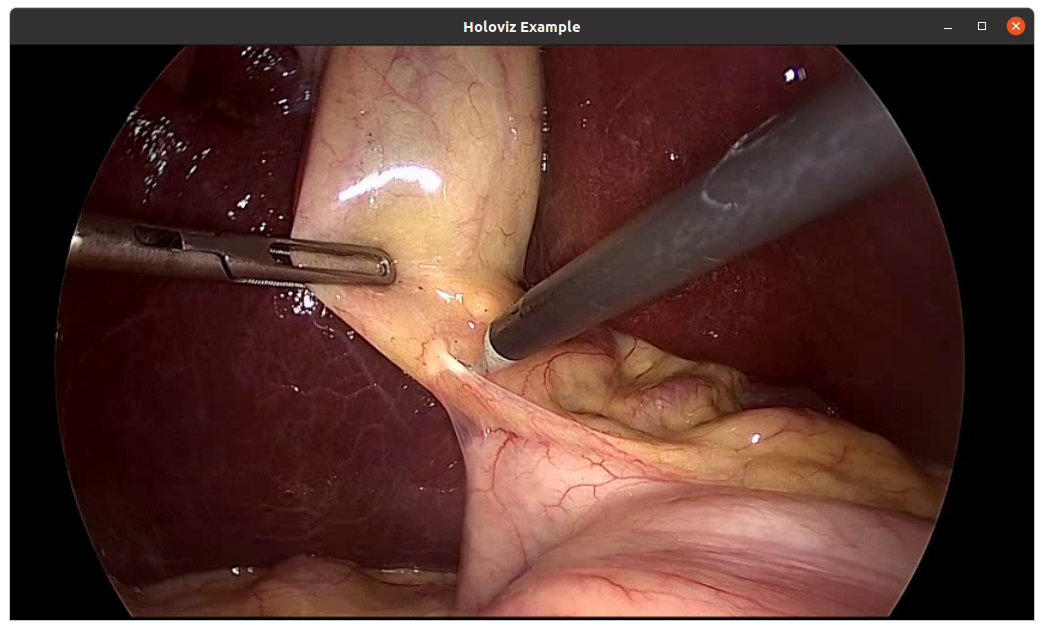

Fig. 20 Holoviz example app

API

Holoviz module API

Examples

There are multiple examples showing how to use various features of the Holoviz module.
