Apply the Simulation-Ready Corrections#

Mission connection: The readiness report identifies authored conditions that prevent the selected objects from satisfying their physical contract. In a future physical-AI workflow, a wrong mass, missing rigid body, or closed collider becomes incorrect motion or contact. Your publish-gate, proxy-modeling, and nondestructive-layering skills transfer directly: route supported findings, preserve source assets, author a physically meaningful open-top collision envelope, and expose that invisible representation for inspection.

Collider-Overlay Experience#

When the assets are physics-ready, the viewport adds a Collider Overlay on the cube and the containment pod. This overlay is a visual representation we added to show the physical contact geometry. Use it as a diagnostic view to validate that the fixes ran correctly.

The overlay makes it possible to inspect:

which prims participate in collision;
whether C-9 remains open at the top and no mesh is blocking the top of the pod;
whether its floor and walls have appropriate coverage;
whether the cube’s collision representation matches its intended scale; and
whether support collision is located where the rendered surface appears.

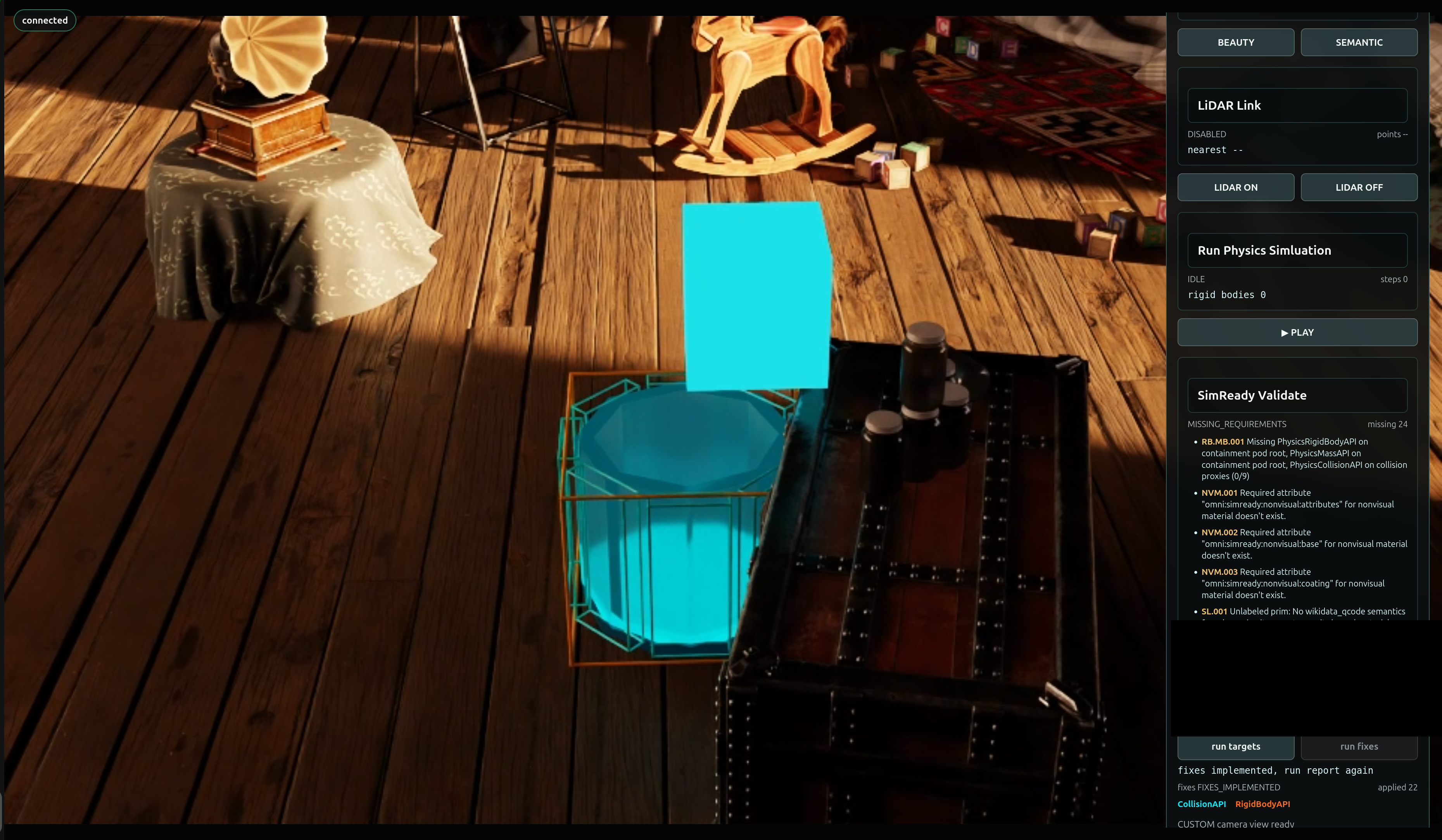

The R-17 SimReady Validate panel listing missing requirements - RB.MB.001 rigid-body and collision APIs, NVM.001 to NVM.003 nonvisual material attributes, and SL.001 an unlabeled prim - with the C-9 containment pod collider overlay visible in the viewport.

Mission 3 arrives in two parts: first you add a guarded control, then you wire it to the report so a repair can only run on real, current evidence.

Decide Before You Build#

Your call — what must be true before a repair may run? A fix that runs on stale or missing evidence is worse than no fix. Before you build the guarded control, decide the guard conditions that must hold before run fixes may act, and what “non-destructive” must guarantee about the protected sources.

Author your brief. The tested mission owns the guard-and-apply architecture. Continue authoring both Context and Done when, now covering the guard and the non-destructive promise across both parts. A worked example you can adapt:

Context (your addition):  run fixes stays disabled until run targets produces a current
                          report containing RB.MB.001; corrections write to *_Fixed.usda,
                          never the protected sources.
Done when (your addition): after a user-initiated fix, the collider overlay shows C-9 still
                          open at the top and the Mission 2 source hashes are unchanged.

Carry those decisions into both Prompt Builder briefs below, then judge each result against them.

Mission Brief 3, Part 1 — Add the Guarded Repair Control#

Part 1 adds a run fixes button next to run targets, but keeps it deliberately inert. Clicking it reports that fixes are not implemented and authors nothing. This proves the control and its guards exist before any USD is touched.

Tip

Make It Yours: Open the Prompt Builder, choose the SimReady or Not, Here Comes Gravity session, and select Mission 3 Part 1 - Add the Guarded Repair Control. Review your learner-authored Expert Brief in Context and Done when before you run the mission. Goal and Skills remain tested.

Mission Brief 3, Part 2 — Apply Report-Driven Fixes#

Part 2 wires run fixes to the current run targets report. The button stays disabled until the user has run targets and the report contains repairable RB.MB.001 evidence. Only when the user later clicks run fixes does the workflow apply the report-driven rigid-body, mass, and open-top compound-collision corrections, then reload the fixed output and display CollisionAPI and RigidBodyAPI outlines.

Tip

Make It Yours: In the Prompt Builder, select Mission 3 Part 2 - Wire Report-Driven Fixes. Review your Expert Brief in Context and Done when before you run the mission. Goal and Skills remain tested.

Show a finished prompt

Goal:      Implement Mission 3 Part 2 by wiring "run fixes" to the current SimReady "run targets" report. Keep the button disabled and reject the command until the user has run targets and the current report contains repairable RB.MB.001 evidence. When—and only when—the user later clicks "run fixes", apply the report-driven rigid-body, mass, and open-top compound-collision fixes; reject top, lid, ceiling, or cap colliders and preserve enough opening clearance for the Memory Cube; report exactly "fixes implemented, run report again"; reload the fixed mission output; and display visible CollisionAPI and RigidBodyAPI outlines in the scene.
Skills:    Read ~/SimReadyPhysics/skills/omniverse-realtime-viewer/SKILL.md and its focused guidance at references/streaming-messages/README.md, references/viewer-control-patterns/README.md, references/viewer-feedback-status/README.md, references/viewport-overlays/README.md, and references/validation.md. Read ~/SimReadyPhysics/skills/omniverse-cad-to-simready/references/simready-validate/README.md and references/simready-conform-profile/README.md; use the FET004/RB.MB.001 repair guidance and existing authored collision proxies.
Context:   Mission 3 Part 1 is the starting application state. Reuse ~/SimReadyPhysics/Attic_Portal_Mission_3_Part_2. The current ~/SimReadyPhysics/scripts/apply_and_verify_mission3_part2.sh is not safe to run unmodified because its browser workflow clicks "run fixes". Update the apply/verification workflow so its default path installs, builds, restarts, proves the pre-report client and server guards, clicks only "run targets", confirms RB.MB.001 enables "run fixes", and then stops without clicking or sending simready.fixTargets. The guarded fixer must confirm that report targets and hashes still match the active Mission 2 sources. Preserve those sources. If the user later clicks "run fixes", author explicit outputs at ~/SimReadyPhysics/OldAttic_Mission_3_Fixed.usda and ~/SimReadyPhysics/C9_ContainmentPod_Mission_3_Fixed.usda and use the viewer-owned R17_PhysicsOutlines.usda layer for outlines. Do not create backup scene files. Unrelated validator findings may remain and must still be reported honestly.
Safety:    During implementation and automated verification, do not click "run fixes", do not send simready.fixTargets, do not author or overwrite either fixed output, and do not create or display R17_PhysicsOutlines.usda. Leave the live app on the original Mission 2 sources with the current validation report loaded and "run fixes" enabled for the user. Any end-to-end fix execution and post-fix revalidation belong to a separate user-initiated test after handoff.
Done when: The frontend builds; before validation, "run fixes" is disabled and a focused server-side test proves the command is rejected without a current report; the automated browser smoke clicks only "run targets" and confirms the report contains RB.MB.001 and "run fixes" becomes enabled; no simready.fixTargets command appears in the apply-run log; fixes remain unapplied, outlineVisible=false, and the active stage remains ~/SimReadyPhysics/OldAttic_Mission_2.usda; renderer_owner_count remains 1; both Mission 2 source hashes are unchanged; readiness evidence captures r17-mission3-part2-ready.png; and the app is left open with "run fixes" enabled for the user to test manually.

Validate: Corrections Applied and Visible#

Before you move on, confirm you can answer:

In Part 1, does run fixes stay inert (fixes.status="NOT_IMPLEMENTED", appliedCount=0, outlineVisible=false) and author nothing?
In Part 2, is run fixes disabled until the report contains repairable RB.MB.001 evidence?
After a user-initiated fix, do the CollisionAPI and RigidBodyAPI outlines appear, and does C-9 stay open at the top?
Are the protected Mission 2 sources unchanged, with corrected outputs authored to separate *_Fixed.usda files?

When a Run Doesn’t Match#

If a check fails, find the first boundary to inspect:

Symptom	First boundary
run fixes is enabled before you ran targets	the guard is missing - fixes must stay disabled until a current report contains `RB.MB.001`
C-9 is closed at the top after the fix	a top, lid, or ceiling collider was added - the pod must stay open with clearance for the cube

With the assets corrected and the colliders visible, we’ll prove behavior at runtime in Prove the Physical Rehearsal.
