Prove the Physical Rehearsal

Mission connection: Static validation establishes that the selected assets satisfy their declared contracts. The scene is not ready for deployment until runtime evidence also shows that those assets interact correctly when composed into the full rehearsal. Your animation and FX dailies instincts transfer directly: hold inputs constant, compare runs, inspect motion, contact, and settling, and require telemetry and a persistent report alongside the rendered frame.

Second Drop Test: Give the World Its Rules

You repaired the missing SimReady requirements. The corrected asset outputs now contribute prims with rigid-body and collider schemas:

• A rigid body identifies a prim that can participate in simulated motion.

• A collider defines the surface the solver can contact.

• A PhysicsScene defines the shared physical environment those bodies inhabit.

The last piece is still missing. The attic does not yet contain an explicitly authored PhysicsScene.

A PhysicsScene is an OpenUSD prim that records scene-wide simulation rules, including the direction and strength of gravity. Without it, the individual assets may be valid, but the composed rehearsal has no explicit, reviewable contract for the world they are expected to behave within. Relying on unstated runtime defaults would make the result difficult to reproduce or trust.

In this mission, you’ll compose the corrected assets into a new, nondestructive physics stage and author its PhysicsScene in a deployment-owned layer. You’ll then repeat the drop test while preserving the same starting pose, pod placement, timestep, and duration. By changing only the missing scene-level physics contract, you can connect any new behavior to that authored change.

When you press Play, ovphysx advances the simulation using the PhysicsScene and the physical properties authored on the prims. ovrtx renders each resulting scene state, while ovstream returns the video and authoritative telemetry to the browser.

A convincing fall is not enough. The evidence must show that the Memory Cube:

• moves under the authored gravity;

• passes through C-9’s open top;

• contacts its physical floor and walls;

• settles inside the acceptance region;

• produces advancing time, step, and pose telemetry; and

• can repeat the result from the same inputs.

This is where your 3D expertise matters. Stage scale, up axis, coordinate frames, collision boundaries, object placement, and layer ownership determine whether the simulation represents the intended physical world. The agent can author the requested PhysicsScene, but you define what a coherent and trustworthy world should mean.

Decide Before You Build

Your call — what makes the composed world trustworthy? A convincing fall is not evidence. Before you build the physics stage, decide the scene-level contract that makes the rehearsal reproducible (gravity, up axis, scale) and the runtime evidence beyond the visual you require.

Author your brief. This is the last guided brief before your open build, so you own the most here: sanity-check the Skills route and author both Context and Done when. A worked example you can adapt:

Skills (your check):      confirm the brief points the agent at the ovphysx basic-workflow
                          and prim-transform-safety references before it authors the scene.
Context (your addition):  Z-up, centimeter metrics, one enabled PhysicsScene with gravity;
                          the pod stays open-top with at least 32 units of opening radius.
Done when (your addition): on my Play click the cube passes through the open top, contacts
                          the floor and walls, settles in the acceptance region, and the run
                          is reproducible with a persistent OVD report.

Carry those decisions into the Prompt Builder below, then judge the runtime evidence against them.

Mission Brief 4 — Compose the Physics Stage and Author the PhysicsScene

Tip

Make It Yours: Open the Prompt Builder, choose the SimReady or Not, Here Comes Gravity session, and select Mission 4 - Build the Physics-Ready Stage. Review your Expert Brief in Context and Done when before you run the mission. Goal and Skills remain tested.

Show a finished prompt

Goal:      Complete Mission 4 by making the prepared Attic Portal visibly physics-ready and user-controlled. Build the clean physical-stage composite with a valid Xform root, Z-up centimeter metrics, an enabled PhysicsScene with gravity, a dynamic Memory Cube, the repaired open-top containment-pod colliders with no top, lid, ceiling, or cap collider and at least 32 units of opening radius, a stationary kinematic pod, and a static ground collider. Show distinct viewport outlines for RigidBodyAPI, CollisionAPI, and PhysicsScene. Wire Play for continuous fixed-step ovphysx simulation and renderer-owner RIGID_BODY_POSE handoff, but do not start or step physics during implementation or automated verification. The cube must fall only when the user later clicks Play.
Skills:    Read ~/SimReadyPhysics/skills/omniverse-realtime-viewer/SKILL.md, references/viewport-overlays/README.md, references/viewer-feedback-status/README.md, references/prim-transform-safety/README.md, and references/validation.md. Read the installed ovphysx 0.4 guidance at ~/evidence-lab-ovrtx-minimal/.venv/lib/python3.12/site-packages/ovphysx/skills/basic-workflow/SKILL.md and skills/tensor-bindings-cpu/SKILL.md. On a later user Play click, load the stage, wait for completion, create persistent pose bindings once, step at a fixed 1/60 second, read poses, reuse the bindings, and release them cleanly.
Context:   Session 2 PreWork and Missions 1–3 are complete, including the dependency-only Mission 4 preflight at ~/SimReadyPhysics/.preflight/mission_4.env. Reuse ~/SimReadyPhysics/Attic_Portal_Mission_4 and run ~/SimReadyPhysics/scripts/apply_and_verify_mission4.sh. Build from ~/SimReadyPhysics/OldAttic_Mission_3_Fixed.usda into ~/SimReadyPhysics/OldAttic_Mission_4_Physics.usda using the dedicated Mission4_PhysicsLayer.usda and sanitized Mission4_AuthoredScene.usda outputs. Preserve all source scenes and do not create backup scenes. Keep the full camera, robot-vision, Lidar, SimReady panel, r17 command/state protocol, and one renderer owner. Physics owns the Memory Cube transform while running, so manual cube-pose commands must not compete with it. Automated verification must not click Play, send physics.play, create pose bindings, step ovphysx, or run a drop test. Keep the workflow under five minutes.
Done when: The frontend builds; the physical-stage contract reports rootType="Xform", upAxis="Z", metersPerUnit=0.01, one PhysicsScene, two rigid bodies, eleven collision APIs, cubeDynamic=true, podKinematic=true, podOpenTop=true, and podMinimumOpeningRadius>=32; the viewport and panel visibly identify RigidBodyAPI, CollisionAPI, and PhysicsScene; the panel reports PhysicsScene ENABLED and the Play button is enabled; final state.json reports the Mission 4 stage, status="READY_TO_RUN", playing=false, stepCount=0, elapsedTime=0, sceneEnabled=true, sceneCount=1, rigidBodyCount=2, colliderCount=11, visualizationVisible=true, bridgeReady=false, and renderer_owner_count=1. No physics.play command appears in the apply-run log, mission4-physics-ready.json reports dropTestExecuted=false, all source hashes remain unchanged, no recurring backup files are created, and the app is left open for the user to click Play manually.

Tip

Predict first: Before you press Play, predict what the cube will do - whether it passes through C-9’s open top, contacts the floor and walls, and settles inside the acceptance region - and the telemetry you expect to see. Then compare against the runtime evidence.

After the workflow leaves the app READY_TO_RUN, press Play yourself to run the drop test and produce runtime evidence.

Runtime Evidence

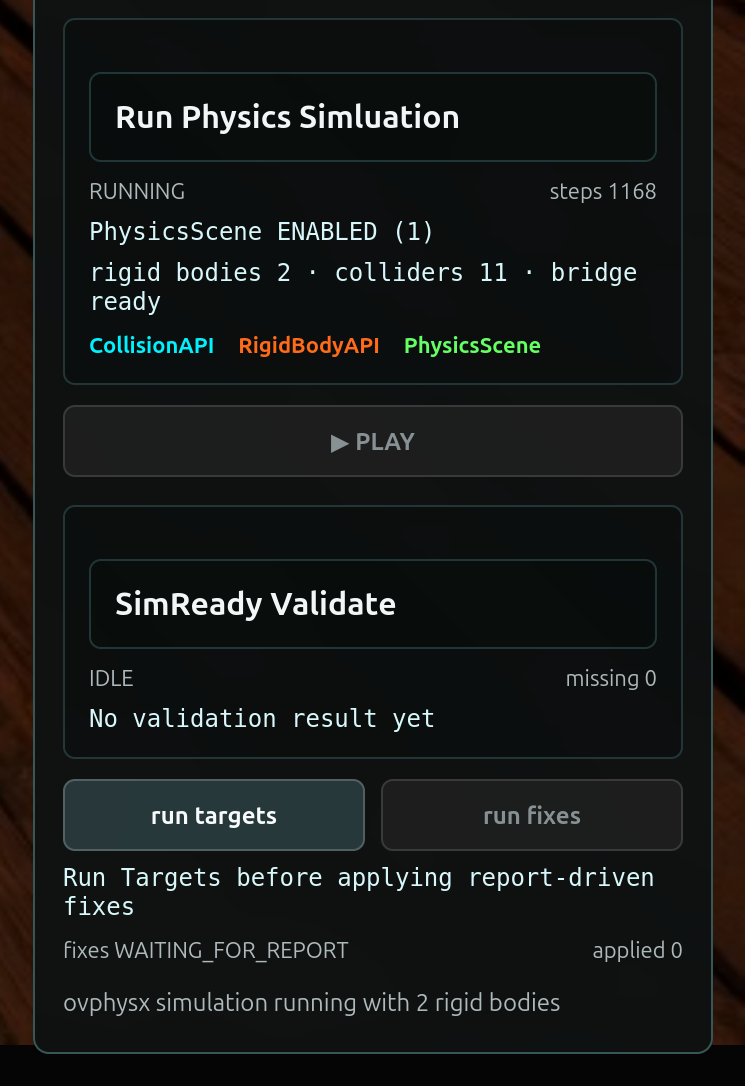

The Physics Rehearsal section reports:

• nonzero rigid-body count;

• simulation time and step count;

• finite cube pose;

• contact state or count;

• containment result;

• PASS or ERROR status; and

• a path or link to the OVD report.

The OVD report is the persistent proof that lives beside the rendered frame. A convincing picture is not evidence; the telemetry and report are what a robotics team can review and reproduce.

Validate: Runtime Proof Captured

Before you move on, confirm you can answer:

• Does the scene report one PhysicsScene, two rigid bodies, and the expected collider count with the pod open at the top?

• When you press Play, does the cube fall under gravity, pass through the open top, contact the floor and walls, and settle inside the acceptance region?

• Does the panel produce advancing time, step, and pose telemetry plus a linked OVD report?

• Can you repeat the result from the same inputs?

When a Run Doesn’t Match

If a check fails, find the first boundary to inspect:

Symptom	First boundary
The cube falls during the build or automated verification	physics ran too early - the cube must fall only on your Play click
Play is disabled or sceneEnabled=false	no PhysicsScene was authored or enabled - confirm one enabled PhysicsScene with gravity
The cube falls but never contacts the pod floor	scale, up-axis, or collider mismatch - confirm Z-up, centimeter metrics, and the open-top colliders

With runtime proof captured, we’ll interact with the live world and package the workflow in Pick Up the Physical World.
