Low Latency Streaming (LLS/WebRTC) Functions

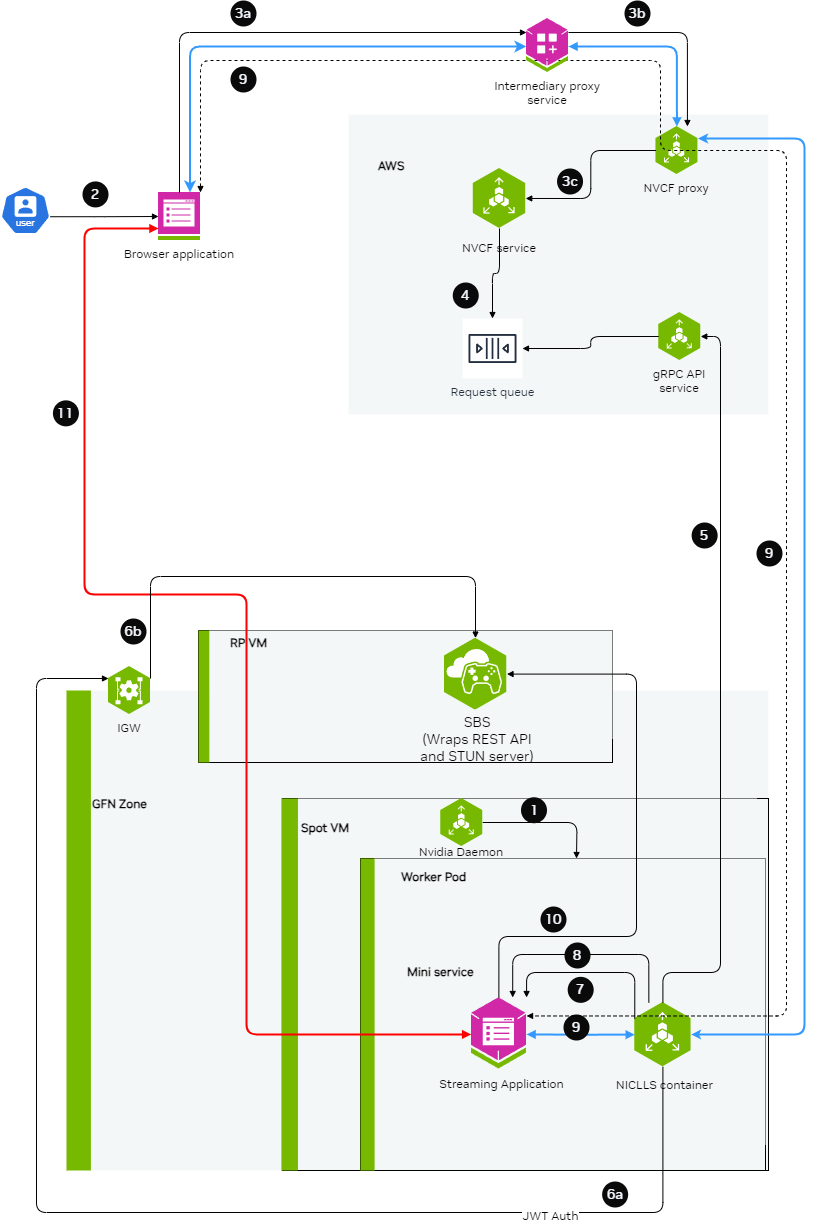

Cloud Functions supports the ability to stream video, audio, and other data using WebRTC.

For complete examples of LLS streaming functions, contact your NVIDIA representative for access to sample function containers.

Cloud Provider Network Requirements

WebRTC streaming uses UDP NodePort services to carry media traffic between the browser client and the streaming application. Cloud providers apply network security rules at multiple layers. If any layer blocks UDP inbound traffic on the NodePort range (30000-32767), streaming sessions fail even though the function shows ACTIVE.

Azure (AKS)

AKS attaches two Network Security Groups (NSGs) to every node: one on the subnet and one on the NIC in the managed resource group (MC_<resource-group>_<cluster>_<region>). Both NSGs must allow inbound UDP traffic on the NodePort range. The subnet NSG alone is not sufficient.

After helmfile sync completes, add the NIC NSG rule:

$
# Identify the managed resource group
$
MC_RG="MC_${RESOURCE_GROUP}_${CLUSTER_NAME}_${LOCATION}"
$
$
# Add the UDP rule to every NIC NSG in the managed resource group.
$
# Multi-pool clusters have one NSG per pool; streaming pods may
$
# schedule on any pool, so all NSGs need the rule.
$
for NIC_NSG in $(az network nsg list -g "$MC_RG" --query "[].name" -o tsv); do
$
  echo "Adding UDP rule to NSG: $NIC_NSG"
$
  az network nsg rule create -g "$MC_RG" --nsg-name "$NIC_NSG" \
>
    -n allow-udp-nodeports-webrtc --priority 510 \
>
    --direction Inbound --access Allow --protocol Udp \
>
    --source-address-prefix Internet --source-port-range "*" \
>
    --destination-address-prefix "*" --destination-port-range "30000-32767"
$
done

Verify the rules are present:

$
# Subnet NSG (your own, created during cluster setup)
$
az network nsg rule list -g "$RESOURCE_GROUP" --nsg-name "$SUBNET_NSG" \
>
  --query "[?protocol=='Udp']" -o table
$
$
# NIC NSGs (AKS-managed, one per node pool)
$
MC_RG="MC_${RESOURCE_GROUP}_${CLUSTER_NAME}_${LOCATION}"
$
for NIC_NSG in $(az network nsg list -g "$MC_RG" --query "[].name" -o tsv); do
$
  echo "=== $NIC_NSG ==="
$
  az network nsg rule list -g "$MC_RG" --nsg-name "$NIC_NSG" \
>
    --query "[?protocol=='Udp']" -o table
$
done

If the NIC NSG rule is missing, WebRTC clients receive NVST_R_GENERIC_ERROR while the function remains ACTIVE. See streaming-troubleshooting for diagnosis steps.

AWS (EKS)

For LLS streaming on EKS, security group and NLB configuration is covered in LLS Installation.

Building the Streaming Server Application

The streaming application needs to be packaged inside a container and should be leveraging the StreamSDK. The streaming application needs to follow the below guidelines:

1. Expose an HTTP server at port CONTROL_SERVER_PORT with following 2 endpoints:

   1. Health endpoint: This endpoint should return 200 HTTP status code only when the streaming application container is ready to start streaming a session. If the streaming application container doesn’t want to serve any more streaming sessions of current container deployment this endpoint should return HTTP status code 500.

      1
      Request:
      2
        Endpoint:
      3
          GET /v1/streaming/ready
      4
      5
      Responses:
      6
        Status code:
      7
          200 OK
      8
          500 Internal Server Error

   2. STUN creds endpoint: This endpoint should accept the access details and credentials for STUN server and keep it cached in the memory of the streaming application. When the streaming requests comes, the streaming application can use these access details and credentials to communicate with STUN server and request for opening of ports for streaming.

      1
      Request:
      2
        Endpoint:
      3
          POST /v1/streaming/creds
      4
        Headers:
      5
          Content-Type: application/json
      6
        Request Body:
      7
          {
      8
            "stunIp": "<string>",
      9
            "stunPort": <int>,
      10
            "username": "<string>",
      11
            "password": "<string>"
      12
          }
      13
      Responses:
      14
        Status code:
      15
          200 OK

2. Expose a server at port STREAMING_SERVER_PORT to accepting WebSocket connection

   1. An endpoint STREAMING_START_ENDPOINT should be exposed by this server

3. Post websocket connection establishment guidelines:

   1. When the browser client requests for opening port for specific protocols (e.g. WebRTC), the streaming application needs to request STUN server to open port. This port should be in the range of 47998 and 48020 which would be referred as STREAMING_PORT_BINDING_RANGE in this doc.

4. Containerization guidelines:

   1. The container should make sure that the CONTROL_SERVER_PORT, STREAMING_SERVER_PORT and STREAMING_PORT_BINDING_RANGE are exposed by the container and accessible from outside the container.
   2. If multiple sessions one after another needs to be supported with a fresh start of container, then exit the container after a streaming session ends.

Creating the LLS Streaming Function

When creating the function, ensure functionType is set to STREAMING:

$
curl -s -X POST "http://${GATEWAY_ADDR}/v2/nvcf/functions" \
>
    -H "Host: api.${GATEWAY_ADDR}" \
>
    -H "Authorization: Bearer $NVCF_TOKEN" \
>
    -H 'accept: application/json' \
>
    -H 'Content-Type: application/json' \
>
    -d '{
>
        "name": "'$STREAMING_FUNCTION_NAME'",
>
        "inferenceUrl": "/sign_in",
>
        "inferencePort": '$STREAMING_SERVER_PORT',
>
        "health": {
>
            "protocol": "HTTP",
>
            "uri": "/v1/streaming/ready",
>
            "port": '$CONTROL_SERVER_PORT',
>
            "timeout": "PT10S",
>
            "expectedStatusCode": 200
>
        },
>
        "containerImage": "'$STREAMING_CONTAINER_IMAGE'",
>
        "apiBodyFormat": "CUSTOM",
>
        "description": "'$STREAMING_FUNCTION_NAME'",
>
        "functionType": "STREAMING"
>
        }
>
    }'

Connecting to a streaming function with a client

Intermediary Proxy

An intermediary proxy service needs to be deployed in order to facilitate the connection to the streaming function.

The intermediate proxy serves to handle authentication and the headers that are required for NVCF, and also to align the connection behavior with NVCF that the browser can’t handle on its own, or the browser behavior is unpredictable.

Proxy Responsibilities

The intermediary proxy performs the following functionalities:

1. Authenticate the user token coming from the browser to the intermediary proxy
2. Authorize the user to have access to specific streaming function
3. Once the user is authenticated and authorized, modify the websocket connection coming in to append the required NVCF headers (NVCF_API_KEY and STREAMING_FUNCTION_ID)
4. Forward the websocket connection request to NVCF

Technical Implementation Guidance

nvcf-function-id Header

NVCF requires this header to be present to identify the function that needs to be reached. Browser does not have the mechanism to set any kind of headers in case of WebSocket connections other than Sec-Websocket-Protocol, so the intermediate proxy can serve to either add the nvcf-function-id header on its own, or to parse Sec-Websocket-Protocol if the browser added it there and get the function id from there.

See http-request add-header documentation in HAProxy.

Authentication

The role of intermediate proxy is to add the required server authentication (e.g. http-request set-header Authorization "Bearer NVCF_BEARER_TOKEN").

Connection Keepalive

NVCF controls the session lifetime based on the TCP connection lifetime to the function and the type of disconnection that happens. The intermediate proxy helps to keep the connection with the browser alive.

Resume Support

NVCF returns the cookie with nvcf-request-id, but given the browser may reject the cookie since it is not from the same domain, the intermediate proxy helps to align this.

CORS Headers

For browsers to allow traffic with NVCF, the intermediate proxy needs to add the relevant CORS headers to responses from NVCF:

• access-control-expose-headers: *
• access-control-allow-headers: *
• access-control-allow-origin: *

For guidance on implementing this in HAProxy, see http-response set-header documentation.

Example HAProxy Dockerfile

Below is an all-in-one Dockerfile sample for setting up an HAProxy intermediary proxy with optional TLS/SSL support:

1
FROM haproxy:3.2
2
3
# Switch to root user for package installation
4
USER root
5
6
# Install necessary tools
7
RUN apt-get update && apt-get install -y \
8
    bash \
9
    gettext-base \
10
    lua5.3 \
11
    openssl \
12
    && rm -rf /var/lib/apt/lists/*
13
14
# Create directory for configuration and certificates
15
RUN mkdir -p /usr/local/etc/haproxy/lua \
16
    && mkdir -p /usr/local/etc/haproxy/certs \
17
    && chown -R haproxy:haproxy /usr/local/etc/haproxy
18
19
# Create certificate generation script
20
COPY <<EOF /usr/local/bin/generate-cert.sh
21
#!/bin/bash
22
cd /usr/local/etc/haproxy/certs
23
openssl req -x509 -newkey rsa:2048 -keyout server.key -out server.crt -days 365 -nodes -subj "/CN=localhost" -quiet
24
# Combine certificate and key into a single file for HAProxy
25
cat server.crt server.key > server.pem
26
chown haproxy:haproxy server.key server.crt server.pem
27
chmod 600 server.key server.pem
28
chmod 644 server.crt
29
EOF
30
31
RUN chmod +x /usr/local/bin/generate-cert.sh
32
33
# Create the HAProxy configuration template file
34
COPY --chown=haproxy:haproxy <<EOF /usr/local/etc/haproxy/haproxy.cfg.template
35
global
36
        log stdout    local0 info
37
        stats timeout 30s
38
        user haproxy
39
40
        # Default SSL material locations
41
        ca-base /etc/ssl/certs
42
        crt-base /etc/ssl/private
43
44
        # SSL server verification enabled for security
45
        ssl-server-verify required
46
47
        # See: https://ssl-config.mozilla.org/#server=haproxy&server-version=3.2&config=intermediate
48
        ssl-default-bind-ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384
49
        ssl-default-bind-ciphersuites TLS_AES_128_GCM_SHA256:TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256
50
        ssl-default-bind-options ssl-min-ver TLSv1.2 no-tls-tickets
51
52
defaults
53
        log     global
54
        option  httplog
55
        option  dontlognull
56
        option  logasap
57
        timeout connect 5000
58
        timeout client  50000
59
        timeout server  50000
60
61
frontend test_frontend
62
        log  global
63
        bind *:\${PROXY_PORT} \${PROXY_SSL_BIND_OPTIONS}
64
        mode http
65
        timeout client       7s
66
        timeout http-request 30m
67
        use_backend webrtc_backend
68
69
backend webrtc_backend
70
        log  global
71
        mode http
72
        timeout connect 4s
73
        timeout server  7s
74
        http-request set-header Host \${NVCF_SERVER}
75
        http-request set-header Authorization "Bearer \${NVCF_API_KEY}"
76
        http-request set-header Function-ID \${STREAMING_FUNCTION_ID}
77
        server s1 \${NVCF_SERVER}:443 ssl ca-file /etc/ssl/certs/ca-certificates.crt verify required
78
EOF
79
80
# Create the entrypoint script
81
COPY <<EOF /entrypoint.sh
82
#!/bin/bash
83
84
# Check required environment variables
85
if [ -z "\${NVCF_API_KEY:+x}" ]; then
86
    echo "NVCF_API_KEY must be set"
87
    exit 1
88
fi
89
90
if [ -z "\${STREAMING_FUNCTION_ID:+x}" ]; then
91
    echo "STREAMING_FUNCTION_ID must be set"
92
    exit 1
93
fi
94
95
# Use default NVCF_SERVER if not set
96
if [ -z "\${NVCF_SERVER:+x}" ]; then
97
    export NVCF_SERVER=\${GATEWAY_ADDR}
98
    echo "NVCF_SERVER not set, using GATEWAY_ADDR: \${NVCF_SERVER}"
99
fi
100
101
# Use default PROXY_PORT if not set
102
if [ -z "\${PROXY_PORT:+x}" ]; then
103
    export PROXY_PORT=49100
104
    echo "PROXY_PORT not set, using default: \${PROXY_PORT}"
105
fi
106
107
# Use default PROXY_SSL_INSECURE if not set
108
if [ -z "\${PROXY_SSL_INSECURE:+x}" ]; then
109
    export PROXY_SSL_INSECURE=false
110
    echo "PROXY_SSL_INSECURE not set, using default: \${PROXY_SSL_INSECURE}"
111
fi
112
113
echo "Launching intermediate proxy:"
114
echo "  API Key: \${NVCF_API_KEY:0:6}**********\${NVCF_API_KEY: -3}"
115
echo "  Function ID: \${STREAMING_FUNCTION_ID}"
116
echo "  Version ID: \${STREAMING_FUNCTION_VERSION_ID}"
117
echo "  NVCF Server: \${NVCF_SERVER}"
118
echo "  Proxy Port: \${PROXY_PORT}"
119
echo "  Proxy SSL (Insecure): \${PROXY_SSL_INSECURE}"
120
121
# Generate self-signed certificate if SSL is enabled
122
if [ "\${PROXY_SSL_INSECURE}" = "true" ]; then
123
    /usr/local/bin/generate-cert.sh
124
    export PROXY_SSL_BIND_OPTIONS="ssl crt /usr/local/etc/haproxy/certs/server.pem"
125
    echo "SSL enabled - self-signed certificate generated"
126
else
127
    export PROXY_SSL_BIND_OPTIONS=""
128
    echo "SSL disabled - running in HTTP mode"
129
fi
130
131
# Process the template and create the final config
132
envsubst < /usr/local/etc/haproxy/haproxy.cfg.template > /usr/local/etc/haproxy/haproxy.cfg
133
134
# Function to handle signals and forward them to HAProxy
135
handle_signal() {
136
    echo "Received signal, shutting down HAProxy..."
137
    if [ -n "\$HAPROXY_PID" ]; then
138
        kill -TERM "\$HAPROXY_PID" 2>/dev/null
139
        wait "\$HAPROXY_PID"
140
    fi
141
    exit 0
142
}
143
144
# Set up signal handlers
145
trap handle_signal SIGTERM SIGINT
146
147
# Start HAProxy in background and capture PID
148
echo "Starting HAProxy..."
149
haproxy -f /usr/local/etc/haproxy/haproxy.cfg &
150
HAPROXY_PID=\$!
151
152
# Wait for HAProxy process
153
wait "\$HAPROXY_PID"
154
EOF
155
156
RUN chmod +x /entrypoint.sh
157
158
# Switch back to haproxy user
159
USER haproxy
160
161
# Set the entrypoint
162
ENTRYPOINT ["/entrypoint.sh"]

Environment Variables

The following environment variables control proxy behavior:

Usage Examples

1. HTTP Mode (Default)

Standard configuration without SSL:

$
export STREAMING_FUNCTION_ID=your-function-id
$
export NVCF_API_KEY=your-nvcf-api-key
$
export PROXY_PORT=49100
$
$
docker build -t nvcf-haproxy-proxy .
$
$
docker run --rm -it \
>
    -p 127.0.0.1:${PROXY_PORT}:${PROXY_PORT}/tcp \
>
    -e PROXY_PORT="$PROXY_PORT" \
>
    -e NVCF_API_KEY="$NVCF_API_KEY" \
>
    -e STREAMING_FUNCTION_ID="$STREAMING_FUNCTION_ID" \
>
    nvcf-haproxy-proxy

2. HTTPS Mode with Self-Signed Certificate

Configuration with SSL enabled using a self-signed certificate:

$
export STREAMING_FUNCTION_ID=your-function-id
$
export NVCF_API_KEY=your-nvcf-api-key
$
export PROXY_SSL_INSECURE=true
$
export PROXY_PORT=48322
$
$
docker build -t nvcf-haproxy-proxy .
$
$
docker run --rm -it \
>
    -p 127.0.0.1:${PROXY_PORT}:${PROXY_PORT}/tcp \
>
    -e PROXY_PORT=${PROXY_PORT} \
>
    -e PROXY_SSL_INSECURE=${PROXY_SSL_INSECURE} \
>
    -e NVCF_API_KEY="$NVCF_API_KEY" \
>
    -e STREAMING_FUNCTION_ID="$STREAMING_FUNCTION_ID" \
>
    nvcf-haproxy-proxy

Web Browser Client

Using the proxy, a browser client can be used to connect to the stream. The browser client needs to be developed by the customer leveraging the raganrok dev branch 0.0.1503 version. Please ensure that the flags are set:

1
const configData: RagnarokConfigData = {
2
  overrideData: "disableworkerws=true"
3
}
4
5
ConfigureRagnarokSettings(configData);
