Supported Test Vector Configurations
This release of Aerial cuBB currently supports the following test-vector configurations.
TC start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 7201 | 7201 | base | 1 | 1 | 1 |
| 7202 | 7203 | mcsTable | 2 | 2 | 2 |
| 7204 | 7204 | mcs | 1 | 1 | 1 |
| 7205 | 7207 | num of layers | 3 | 3 | 3 |
| 7208 | 7208 | rb0, Nrb | 1 | 1 | 1 |
| 7209 | 7210 | sym0 | 2 | 2 | 2 |
| 7211 | 7211 | dmsr0 | 1 | 1 | 1 |
| 7212 | 7213 | Nsym | 2 | 2 | 2 |
| 7214 | 7214 | SCID | 1 | 1 | 1 |
| 7215 | 7215 | BWP0, nBWP | 1 | 1 | 1 |
| 7216 | 7216 | RNTI | 1 | 1 | 1 |
| 7217 | 7219 | addPos | 3 | 3 | 3 |
| 7220 | 7220 | dataScId | 1 | 1 | 1 |
| 7221 | 7222 | maxLen | 2 | 2 | 2 |
| 7223 | 7223 | dmrsScId | 1 | 1 | 1 |
| 7224 | 7224 | nCdm | 1 | 1 | 1 |
| 7225 | 7225 | port0 | 1 | 1 | 1 |
| 7227 | 7227 | nAnt=2 | 1 | 1 | 1 |
| 7228 | 7228 | nAnt=16 | 1 | 1 | 0 |
| 7229 | 7229 | slotIdx | 1 | 1 | 1 |
| 7230 | 7232 | rvIdx | 3 | 3 | 3 |
| 7233 | 7235 | FDM | 3 | 3 | 3 |
| 7236 | 7241 | CDM | 6 | 6 | 6 |
| 7242 | 7244 | rvIdx>0/BGN=1 | 3 | 3 | 3 |
| 7245 | 7245 | ulGridSize=106 | 1 | 1 | 0 |
| 7246 | 7247 | dmrs_par per Ueg | 2 | 2 | 2 |
| 7248 | 7250 | additional FDM | 3 | 3 | 3 |
| 7251 | 7257 | precoding | 7 | 7 | 7 |
| 7258 | 7260 | mapping type B | 3 | 3 | 3 |
| 7261 | 7272 | Flexible DMRS ports | 12 | 12 | 12 |
| 7273 | 7273 | MCS > 28 | 1 | 1 | 1 |
| 7274 | 7279 | additional nCDM=1 | 6 | 6 | 6 |
| 7280 | 7283 | Flexible SLIV | 4 | 4 | 4 |
| 7301 | 7320 | multi-params | 20 | 20 | 18 |
| 7321 | 7323 | LBRM | 3 | 3 | 3 |
| 7324 | 7326 | HARQ-rx | 3 | 3 | 0 |
| 7327 | 7330 | 8/16 UEs | 4 | 4 | 4 |
| 7331 | 7338 | multiple layers | 8 | 8 | 8 |
| 7340 | 7340 | Multi-layers with nAnt=16 | 1 | 1 | 0 |
| 7401 | 7403 | CFO | 3 | 3 | 3 |
| 7404 | 7406 | TO | 3 | 3 | 3 |
| 7407 | 7407 | RSSI | 1 | 1 | 1 |
| 7408 | 7408 | CFO w/ SDM | 1 | 1 | 1 |
| 7409 | 7409 | TO w/ SDM | 1 | 1 | 1 |
| 7410 | 7411 | CEE-TDI | 2 | 2 | 2 |
| 7412 | 7413 | rx power | 2 | 2 | 2 |
| 7414 | 7414 | TDI maxLen = 2 | 1 | 1 | 1 |
| 7415 | 7417 | small/big/zero rx | 3 | 3 | 3 |
| 7418 | 7419 | additional TDI | 2 | 2 | 2 |
| 7420 | 7426 | IRC=0 | 7 | 7 | 7 |
| 7427 | 7432 | SINR meas | 6 | 6 | 6 |
| 7501 | 7516 | UCI on PUSCH (w/o data) | 16 | 16 | 16 |
| 7517 | 7530 | UCI on PUSCH (w/ data) | 14 | 14 | 14 |
| 7531 | 7531 | UciOnPusch DTX | 1 | 1 | 1 |
| 7532 | 7532 | UciOnPusch CRC fail | 1 | 1 | 1 |
| 7533 | 7534 | UciOnPusch addPos | 2 | 2 | 2 |
| 7551 | 7570 | UciOnPusch (multi-params) | 20 | 20 | 20 |
| 7571 | 7575 | UCI w/ and w/o data | 5 | 5 | 5 |
| 7601 | 7613 | FR1 BW mu = 1 | 13 | 13 | 13 |
| 7614 | 7621 | FR1 BW mu = 0 | 8 | 8 | 0 |
| 7901 | 7901 | demo_msg3 | 1 | 1 | 1 |
| 7902 | 7902 | demo_traffic_ul | 1 | 1 | 1 |
| 7903 | 7904 | UciOnPusch conformance | 0 | 0 | 0 |
| 7016 | 7153 | sweep Zc/mcs (skip 7016,7017,7024,7025,7032,7039,7045,7057) | 130 | 130 | 130 |
TC Start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 6001 | 6003 | bases for format 0 | 3 | 3 | 3 |
| 6004 | 6010 | vary single parameter for format 0 | 7 | 7 | 7 |
| 6011 | 6040 | vary multiple parameters for format 0 | 30 | 30 | 30 |
| 6041 | 6046 | vary slotIdx (single-UCI) for format 0 | 6 | 6 | 6 |
| 6047 | 6056 | multi-UCI tests for format 0 | 10 | 10 | 10 |
| 6057 | 6061 | vary slotIdx (multi-UCI) for format 0 | 5 | 5 | 5 |
| 6101 | 6103 | bases for format 1 | 3 | 3 | 3 |
| 6104 | 6116 | vary single parameter for format 1 | 13 | 13 | 13 |
| 6117 | 6146 | vary multiple parameters for format 1 | 30 | 30 | 30 |
| 6147 | 6155 | vary slotIdx (single-UCI) for format 1 | 9 | 9 | 9 |
| 6156 | 6173 | multi-UCI tests for format 1 | 18 | 18 | 18 |
| 6175 | 6192 | TA estimation for format 1 | 18 | 18 | 18 |
| 6193 | 6194 | 192 UCI groups for format 1 | 2 | 2 | 2 |
| 6201 | 6203 | bases for format 2 | 3 | 3 | 3 |
| 6204 | 6219 | test Nf for format 2 | 16 | 16 | 16 |
| 6220 | 6235 | test Nt and freq hopping for format 2 | 16 | 16 | 16 |
| 6236 | 6236 | 11 info bits and 2 PRBS for format 2 | 1 | 1 | 1 |
| 6239 | 6245 | different payload sizes for format 2 | 7 | 7 | 7 |
| 6301 | 6310 | bases for format 3 | 10 | 10 | 10 |
| 6311 | 6313 | multi-UCI tests for format 3 | 3 | 3 | 3 |
| 6314 | 6324 | tests with freqHop enabled for format 3 | 11 | 11 | 11 |
| 6325 | 6335 | tests with freqHop disabled for format 3 | 11 | 11 | 11 |
| 6336 | 6346 | tests with add’l DMRS postion, freqHop enabled for format 3 | 11 | 11 | 11 |
| 6347 | 6357 | tests with add’l DMRS postion, freqHop disabled for format 3 | 11 | 11 | 11 |
| 6358 | 6364 | different payload sizes for format 3 | 7 | 7 | 7 |
| 6365 | 6373 | 24-UCI tests for format 3 | 9 | 9 | 9 |
| 6501 | 6513 | sweep different bandwidth for format 0, mu = 1 | 13 | 13 | 13 |
| 6514 | 6526 | sweep different bandwidth for format 1, mu = 1 | 13 | 13 | 13 |
| 6527 | 6539 | sweep different bandwidth for format 2, mu = 1 | 13 | 13 | 13 |
| 6540 | 6552 | sweep different bandwidth for format 3, mu = 1 | 13 | 13 | 13 |
| 6553 | 6560 | sweep different bandwidth for format 0, mu = 0 | 8 | 8 | 0 |
| 6561 | 6568 | sweep different bandwidth for format 1, mu = 0 | 8 | 8 | 0 |
| 6569 | 6576 | sweep different bandwidth for format 2, mu = 0 | 8 | 8 | 0 |
| 6577 | 6584 | sweep different bandwidth for format 3, mu = 0 | 8 | 8 | 0 |
| 6585 | 6586 | rx power for format 0 | 2 | 2 | 2 |
| 6587 | 6588 | rx power for format 1 | 2 | 2 | 2 |
| 6589 | 6590 | rx power for format 2 | 2 | 2 | 2 |
| 6591 | 6592 | rx power for format 3 | 2 | 2 | 2 |
| 6593 | 6595 | very small/very big/forcRxZero rx power for format 0 | 3 | 3 | 3 |
| 6596 | 6598 | very small/very big/forcRxZero rx power for format 1 | 3 | 3 | 3 |
| 6599 | 6601 | very small/very big/forcRxZero rx power for format 2 | 3 | 3 | 3 |
| 6602 | 6605 | very small/very big/forcRxZero rx power for format 3 | 4 | 4 | 4 |
| 6801 | 6802 | perf TV F08 | 2 | 2 | 2 |
| 6803 | 6804 | perf TV F14 | 2 | 2 | 2 |
TC Start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 5001 | 5001 | base | 1 | 1 | 1 |
| 5002 | 5002 | format 0 | 1 | 1 | 0 |
| 5003 | 5003 | rootIdx | 1 | 1 | 1 |
| 5004 | 5004 | zoneIdx | 1 | 1 | 1 |
| 5005 | 5005 | prmbIdx | 1 | 1 | 1 |
| 5006 | 5006 | Nant | 1 | 1 | 0 |
| 5007 | 5007 | N_nc | 1 | 1 | 1 |
| 5008 | 5008 | delay | 1 | 1 | 1 |
| 5009 | 5009 | SNR | 1 | 1 | 1 |
| 5010 | 5010 | CFO | 1 | 1 | 1 |
| 5011 | 5011 | 2-UE | 1 | 1 | 1 |
| 5012 | 5012 | 4-UE | 1 | 1 | 1 |
| 5013 | 5013 | 4FDM/16UE | 1 | 1 | 1 |
| 5014 | 5018 | rx power | 5 | 5 | 5 |
| 5101 | 5101 | FDD,mu=0,B4,nAnt=2 | 1 | 1 | 0 |
| 5102 | 5102 | FDD,mu=1,B4,nAnt=4 | 1 | 1 | 1 |
| 5103 | 5103 | TDD,mu=0,B4,nAnt=8 | 1 | 1 | 0 |
| 5104 | 5104 | TDD,mu=1,B4,nAnt=16 | 1 | 1 | 0 |
| 5105 | 5105 | FDD,mu=0,F0,nAnt=16 | 1 | 1 | 0 |
| 5106 | 5106 | FDD,mu=1,F0,nAnt=8 | 1 | 1 | 0 |
| 5107 | 5107 | TDD,mu=0,F0,nAnt=4 | 1 | 1 | 0 |
| 5108 | 5108 | TDD,mu=1,F0,nAnt=2 | 1 | 1 | 0 |
| 5201 | 5213 | FR1 BW mu = 1 | 13 | 13 | 13 |
| 5214 | 5221 | FR1 BW mu = 0 | 8 | 8 | 0 |
| 5801 | 5802 | perf TV F08 | 2 | 2 | 2 |
| 5803 | 5804 | perf TV F14 | 2 | 2 | 0 |
| 5901 | 5901 | demo_msg1 | 1 | 1 | 1 |
| 5911 | 5914 | comformance TC | 4 | 4 | 1 |
TC Start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 3201 | 3201 | base | 1 | 1 | 1 |
| 3202 | 3203 | mcsTable | 2 | 2 | 2 |
| 3204 | 3204 | mcs | 1 | 1 | 1 |
| 3205 | 3207 | num of layers | 3 | 3 | 3 |
| 3208 | 3208 | rb0, Nrb | 1 | 1 | 1 |
| 3209 | 3210 | sym0 | 2 | 2 | 2 |
| 3211 | 3211 | dmrs0 | 1 | 1 | 1 |
| 3212 | 3213 | Nsym | 2 | 2 | 2 |
| 3214 | 3214 | SCID | 1 | 1 | 1 |
| 3215 | 3215 | BWP0, nBWP | 1 | 1 | 1 |
| 3216 | 3216 | RNTI | 1 | 1 | 1 |
| 3217 | 3219 | addPos | 3 | 3 | 3 |
| 3220 | 3220 | dataScId | 1 | 1 | 1 |
| 3221 | 3222 | maxLen | 2 | 2 | 2 |
| 3223 | 3223 | dmrsScId | 1 | 1 | 1 |
| 3224 | 3224 | nCdm | 1 | 1 | 1 |
| 3225 | 3225 | port0 | 1 | 1 | 1 |
| 3226 | 3228 | nAnt | 3 | 3 | 3 |
| 3229 | 3229 | slotIdx | 1 | 1 | 1 |
| 3230 | 3232 | rvIdx | 3 | 3 | 3 |
| 3233 | 3235 | FDM | 3 | 3 | 3 |
| 3236 | 3241 | SDM/SCID | 6 | 6 | 6 |
| 3242 | 3244 | rvIdx>0/BGN=1 | 3 | 3 | 3 |
| 3245 | 3245 | dlGridSize=106 | 1 | 1 | 0 |
| 3246 | 3247 | dmrs_par per Ueg | 2 | 2 | 2 |
| 3248 | 3254 | precoding | 7 | 7 | 7 |
| 3255 | 3257 | mapping type B | 3 | 3 | 3 |
| 3258 | 3260 | mixed precoding | 3 | 3 | 3 |
| 3261 | 3261 | refPoint | 1 | 1 | 1 |
| 3262 | 3262 | TxPower | 1 | 1 | 1 |
| 3263 | 3263 | modComp | 1 | 0 | 0 |
| 3264 | 3264 | precoding (mixed nPorts) | 1 | 1 | 1 |
| 3265 | 3265 | TxPower with 2 UEs | 1 | 1 | 1 |
| 3266 | 3267 | different rv | 2 | 2 | 2 |
| 3268 | 3269 | multi-layer | 2 | 2 | 2 |
| 3271 | 3276 | nCDM = 1 | 6 | 6 | 6 |
| 3321 | 3322 | LBRM | 2 | 2 | 2 |
| 3323 | 3333 | RE map from CSI-RS | 11 | 11 | 11 |
| 3334 | 3336 | 8/16 UEs (SU-MIMO) | 3 | 3 | 3 |
| 3337 | 3337 | 16 UEs (MU-MIMO) | 1 | 1 | 1 |
| 3401 | 3413 | FR1 BW mu = 1 | 13 | 13 | 13 |
| 3414 | 3421 | FR1 BW mu = 0 | 8 | 8 | 0 |
| 3901 | 3901 | demo_coreset0 | 1 | 1 | 1 |
| 3902 | 3902 | demo_msg2 | 1 | 1 | 1 |
| 3903 | 3903 | demo_msg4 | 1 | 1 | 1 |
| 3904 | 3904 | demo_traffic_dl | 1 | 1 | 1 |
| 3001 | 3015 | multi-params | 15 | 15 | 15 |
| 3016 | 3154 | sweep Zc/mcs (3016,3017,3024,3025,3032,3039,3045,3057 are skipped) | 131 | 131 | 131 |
TC Start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 2001 | 2001 | base | 1 | 1 | 1 |
| 2002 | 2002 | slotIdx | 1 | 1 | 1 |
| 2003 | 2003 | nBWP | 1 | 1 | 1 |
| 2004 | 2004 | BPW0 | 1 | 1 | 1 |
| 2005 | 2005 | sym0 | 1 | 1 | 1 |
| 2006 | 2007 | Nsym | 2 | 2 | 2 |
| 2008 | 2009 | crstIdx | 2 | 2 | 2 |
| 2010 | 2010 | intl | 1 | 1 | 1 |
| 2011 | 2012 | nBndl | 2 | 2 | 2 |
| 2013 | 2014 | nIntl | 2 | 2 | 2 |
| 2015 | 2015 | nShift | 1 | 1 | 1 |
| 2016 | 2016 | isCSS | 1 | 1 | 1 |
| 2017 | 2017 | rnti | 1 | 1 | 1 |
| 2018 | 2018 | scrbId | 1 | 1 | 1 |
| 2019 | 2019 | scrbRnti | 1 | 1 | 1 |
| 2020 | 2022 | aggrL | 3 | 3 | 3 |
| 2023 | 2023 | dbQam | 1 | 1 | 1 |
| 2024 | 2024 | dbDmrs | 1 | 1 | 1 |
| 2025 | 2025 | Npayload | 1 | 1 | 1 |
| 2026 | 2027 | crstMap | 2 | 2 | 2 |
| 2028 | 2028 | nDCI | 1 | 1 | 1 |
| 2029 | 2029 | Npayload | 1 | 1 | 1 |
| 2030 | 2030 | aggrL | 1 | 1 | 1 |
| 2031 | 2031 | precoding | 1 | 1 | 1 |
| 2032 | 2032 | modComp | 1 | 0 | 0 |
| 2033 | 2033 | multi-PDCCH | 1 | 1 | 1 |
| 2101 | 2112 | multi-params | 12 | 12 | 12 |
| 2201 | 2213 | FR1 BW mu = 1 | 13 | 13 | 13 |
| 2214 | 2221 | FR1 BW mu = 0 | 8 | 8 | 0 |
| 2801 | 2802 | perf TV F14 | 2 | 2 | 2 |
| 2803 | 2804 | perf TV F08 | 2 | 2 | 2 |
| 2805 | 2806 | perf TV F09 | 2 | 2 | 2 |
| 2901 | 2901 | demo_msg2 | 1 | 1 | 1 |
| 2902 | 2902 | demo_msg4 | 1 | 1 | 1 |
| 2903 | 2903 | demo_coreset0 | 1 | 1 | 1 |
| 2904 | 2904 | demo_traffic_dl | 1 | 1 | 1 |
| 2905 | 2905 | demo_msg5 | 1 | 1 | 1 |
TC Start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 1001 | 1001 | base | 1 | 1 | 1 |
| 1002 | 1002 | mu = 0 | 1 | 1 | 0 |
| 1003 | 1003 | N_CELL_ID | 1 | 1 | 1 |
| 1004 | 1004 | n_hf = 1 | 1 | 1 | 1 |
| 1005 | 1005 | L_max = 4 | 1 | 1 | 1 |
| 1006 | 1006 | k_SSB | 1 | 1 | 1 |
| 1007 | 1007 | offsetPointA | 1 | 1 | 1 |
| 1008 | 1008 | SFN | 1 | 1 | 1 |
| 1009 | 1009 | blockIdx | 1 | 1 | 1 |
| 1010 | 1010 | precoding | 1 | 1 | 1 |
| 1011 | 1011 | betaPss | 1 | 1 | 1 |
| 1101 | 1101 | mu=0, 1SSB | 1 | 1 | 0 |
| 1102 | 1102 | mu=1, 1SSB | 1 | 1 | 1 |
| 1103 | 1103 | mu=1, 2SSB | 1 | 1 | 0 |
| 1104 | 1104 | mu=1, 2SSB | 1 | 1 | 1 |
| 1202 | 1213 | FR1 BW, mu = 1 | 12 | 12 | 12 |
| 1214 | 1221 | FR1 BW, mu = 0 | 8 | 8 | 0 |
| 1801 | 1801 | Perf TV | 1 | 1 | 1 |
| 1901 | 1901 | demo_ssb | 1 | 1 | 1 |
| 1902 | 1902 | for CP pipeline | 1 | 1 | 1 |
TC Start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 4001 | 4004 | nPorts = 1 | 4 | 4 | 4 |
| 4005 | 4007 | nPorts = 2 | 3 | 3 | 3 |
| 4008 | 4009 | nPorts = 4 | 2 | 2 | 2 |
| 4010 | 4012 | nPorts = 8 | 3 | 3 | 3 |
| 4013 | 4038 | nPorts > 8, row > 8 | 26 | 26 | 0 |
| 4039 | 4039 | RB0 | 1 | 1 | 1 |
| 4040 | 4040 | nRB | 1 | 1 | 1 |
| 4041 | 4041 | sym0 | 1 | 1 | 1 |
| 4042 | 4042 | sym1 | 1 | 1 | 0 |
| 4043 | 4043 | nID | 1 | 1 | 1 |
| 4044 | 4044 | power control | 1 | 1 | 1 |
| 4045 | 4050 | freqDomainAllocation | 6 | 6 | 5 |
| 4051 | 4051 | idxSlot | 1 | 1 | 1 |
| 4052 | 4054 | batching | 3 | 3 | 3 |
| 4055 | 4055 | small gird size | 1 | 1 | 0 |
| 4056 | 4056 | TRS | 1 | 1 | 1 |
| 4057 | 4057 | precoding | 1 | 1 | 1 |
| 4058 | 4058 | modComp | 1 | 0 | 0 |
| 4059 | 4060 | 16/32 CSIRS PDUs | 2 | 2 | 2 |
| 4101 | 4103 | multiple parameters | 3 | 3 | 3 |
| 4201 | 4213 | FR1 BW mu = 1 | 13 | 13 | 13 |
| 4214 | 4221 | FR1 BW mu = 0 | 8 | 8 | 0 |
| 4801 | 4801 | perf TV F08 | 1 | 1 | 1 |
| 4802 | 4802 | perf TV F09 | 1 | 1 | 1 |
| 4803 | 4803 | perf TV F14 | 1 | 1 | 0 |
TC Start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 8001 | 8001 | base | 1 | 1 | 1 |
| 8002 | 8002 | rnti | 1 | 1 | 1 |
| 8003 | 8003 | Nap=2 | 1 | 1 | 1 |
| 8004 | 8004 | Nap=4 | 1 | 1 | 1 |
| 8005 | 8005 | nSym=2 | 1 | 1 | 1 |
| 8006 | 8006 | nSym=4 | 1 | 1 | 1 |
| 8007 | 8007 | Nrep=2 | 1 | 1 | 1 |
| 8008 | 8008 | Nrep=4 | 1 | 1 | 1 |
| 8009 | 8009 | sym0 | 1 | 1 | 1 |
| 8010 | 8010 | cfgIdx | 1 | 1 | 1 |
| 8011 | 8011 | seqId | 1 | 1 | 1 |
| 8012 | 8012 | bwIdx=1 | 1 | 1 | 1 |
| 8013 | 8013 | bwIdx=2 | 1 | 1 | 1 |
| 8014 | 8014 | bwIdx=3 | 1 | 1 | 1 |
| 8015 | 8015 | cmbSize | 1 | 1 | 1 |
| 8016 | 8016 | cmbOffset | 1 | 1 | 1 |
| 8017 | 8017 | cyclic shift | 1 | 1 | 1 |
| 8018 | 8018 | freqPosition | 1 | 1 | 1 |
| 8019 | 8019 | freqShift | 1 | 1 | 1 |
| 8020 | 8020 | freqHopping=1 | 1 | 1 | 1 |
| 8021 | 8021 | freqHopping=2 | 1 | 1 | 1 |
| 8022 | 8022 | freqHopping=3 | 1 | 1 | 1 |
| 8023 | 8023 | grpSeqHopping=1 | 1 | 1 | 1 |
| 8024 | 8024 | grpSeqHopping=2 | 1 | 1 | 1 |
| 8025 | 8025 | rsrcType,Tsrs,Toffset | 1 | 1 | 0 |
| 8026 | 8026 | idxSlot | 1 | 1 | 1 |
| 8027 | 8033 | multi-SRS | 1 | 1 | 1 |
| 8034 | 8034 | rsrcType,Tsrs,Toffset | 1 | 1 | 0 |
| 8035 | 8035 | 16 users wideband | 1 | 1 | 1 |
| 8051 | 8057 | multiple parameters | 7 | 7 | 7 |
| 8101 | 8164 | sweep cfgIdx | 64 | 64 | 64 |
| 8201 | 8213 | FR1 BW mu=1 | 13 | 13 | 13 |
| 8214 | 8221 | FR1 BW mu=0 | 8 | 8 | 0 |
| 8222 | 8226 | rx power | 5 | 5 | 5 |
| 8227 | 8227 | additional BW | 1 | 1 | 1 |
| 8301 | 8302 | SRS integration | 2 | 2 | 2 |
| 8401 | 8415 | 32 nAnt | 15 | 15 | 15 |
| 8420 | 8421 | 32 nAnt | 2 | 2 | 2 |
| 8501 | 8524 | 64 nAnt | 24 | 24 | 24 |
| 8801 | 8801 | F09 perf TV | 1 | 1 | 1 |
| 8802 | 8802 | 20M perf TV | 1 | 1 | 1 |
TC Start |
TC End |
Description |
TV Generated |
cuPHY Pass |
cuBB Pass |
|---|---|---|---|---|---|
| 90001 | 90007 | single channel | 7 | 7 | 7 |
| 90011 | 90012 | dlmix/ulmix | 2 | 2 | 2 |
| 90013 | 90015 | s-slot | 3 | 3 | 3 |
| 90016 | 90018 | multi-cell base case | 3 | 3 | 3 |
| 90019 | 90019 | prcd+noPrcd | 1 | 1 | 1 |
| 90020 | 90020 | BFP14+BFP9 | 1 | 1 | 1 |
| 90021 | 90022 | HARQ | 2 | 2 | 2 |
| 90023 | 90023 | empty slot | 1 | 1 | 1 |
| 90032 | 90037 | multi-slot combo TC | 6 | 6 | 6 |
| 90041 | 90046 | SRS + UL + DL | 6 | 6 | 6 |
| 90051 | 90056 | mixed cells | 6 | 6 | 6 |
| 90057 | 90058 | adaptive re-tx | 2 | 2 | 2 |
| 90060 | 90060 | SRS even/odd frames | 1 | 1 | 1 |
| 90501 | 90505 | bug TCs | 5 | 5 | 5 |
| 90601 | 90603 | multi-channel TCs | 3 | 3 | 3 |
The ldpc\_perf\_collect.py Python script from the cuPHY repository can
be used to perform error rate tests for the cuPHY LDPC decoder.
There are test input files defined for Z = [64, 128, 256,
384], BG = [1,2]. The tests check whether the block error rate
(BLER, also sometimes referred to as Frame Error Rate or FER) is less
than 0.1.
From the build directory, the following commands run the tests:
../util/ldpc/ldpc\_perf\_collect.py --mode test -i
../util/ldpc/test/ldpc\_decode\_BG1\_Z64\_BLER0.1.txt -f -w 800 -P
../util/ldpc/ldpc\_perf\_collect.py --mode test -i
../util/ldpc/test/ldpc\_decode\_BG1\_Z128\_BLER0.1.txt -f -w 800 -P
../util/ldpc/ldpc\_perf\_collect.py --mode test -i
../util/ldpc/test/ldpc\_decode\_BG1\_Z256\_BLER0.1.txt -f -w 800 -P
../util/ldpc/ldpc\_perf\_collect.py --mode test -i
../util/ldpc/test/ldpc\_decode\_BG1\_Z384\_BLER0.1.txt -f -w 800 -P
../util/ldpc/ldpc\_perf\_collect.py --mode test -i
../util/ldpc/test/ldpc\_decode\_BG2\_Z64\_BLER0.1.txt -f -w 800 -P
../util/ldpc/ldpc\_perf\_collect.py --mode test -i
../util/ldpc/test/ldpc\_decode\_BG2\_Z128\_BLER0.1.txt -f -w 800 -P
../util/ldpc/ldpc\_perf\_collect.py --mode test -i
../util/ldpc/test/ldpc\_decode\_BG2\_Z256\_BLER0.1.txt -f -w 800 -P
../util/ldpc/ldpc\_perf\_collect.py --mode test -i
../util/ldpc/test/ldpc\_decode\_BG2\_Z384\_BLER0.1.txt -f -w 800 -P
Each test input file contains multiple tests for different code rates, as specified by the number of parity nodes. The format of the input files has the following form:
# BG Z num_parity num_iter SNR max_BER max_BLER
#--------------------------------------------------------------
1 384 4 10 6.87 1 0.1
1 384 5 10 6.15 1 0.1
1 384 6 10 5.64 1 0.1
1 384 7 10 5.17 1 0.1
1 384 8 10 4.79 1 0.1
...
- After running each of the test cases, the
ldpc\_perf\_collect.pyscript displays an output table:
+-----------------------------------------------------------------------------------------------------------+
| # BG Z num\_parity num\_iter SNR max\_BER BER max\_BLER BLER STATUS |
| |
| 1 384 4 10 6.870 1.000000e+00 4.833980e-04 1.000000e-01 8.750000e-02 PASS |
| |
| 1 384 5 10 6.150 1.000000e+00 1.481120e-04 1.000000e-01 7.250000e-02 PASS |
| |
| 1 384 6 10 5.640 1.000000e+00 5.652230e-05 1.000000e-01 8.000000e-02 PASS |
| |
| 1 384 7 10 5.170 1.000000e+00 7.886480e-05 1.000000e-01 8.750000e-02 PASS |
| |
| 1 384 8 10 4.790 1.000000e+00 1.673470e-04 1.000000e-01 8.375000e-02 PASS |
| |
| 1 384 9 10 4.480 1.000000e+00 1.185190e-04 1.000000e-01 7.625000e-02 PASS |
| |
| 1 384 10 10 4.200 1.000000e+00 8.552320e-05 1.000000e-01 8.875000e-02 PASS |
| |
| 1 384 11 10 3.920 1.000000e+00 5.385890e-05 1.000000e-01 8.375000e-02 PASS |
| |
| 1 384 12 10 3.660 1.000000e+00 1.234020e-04 1.000000e-01 9.125000e-02 PASS |
| |
| 1 384 13 10 3.450 1.000000e+00 7.013490e-05 1.000000e-01 8.000000e-02 PASS |
| |
| 1 384 14 10 3.220 1.000000e+00 7.620150e-05 1.000000e-01 8.125000e-02 PASS |
| |
| 1 384 15 10 3.020 1.000000e+00 5.800190e-05 1.000000e-01 7.250000e-02 PASS |
| |
| 1 384 16 10 2.830 1.000000e+00 8.774270e-05 1.000000e-01 8.375000e-02 PASS |
| |
| 1 384 17 10 2.640 1.000000e+00 4.838420e-05 1.000000e-01 7.750000e-02 PASS |
| |
| 1 384 18 10 2.500 1.000000e+00 3.950640e-05 1.000000e-01 7.875000e-02 PASS |
| |
| 1 384 19 10 2.310 1.000000e+00 3.551140e-05 1.000000e-01 8.375000e-02 PASS |
| |
| 1 384 20 10 2.150 1.000000e+00 2.500590e-05 1.000000e-01 8.500000e-02 PASS |
| |
| 1 384 21 10 1.980 1.000000e+00 3.181230e-05 1.000000e-01 7.625000e-02 PASS |
| |
| 1 384 22 10 1.810 1.000000e+00 3.299600e-05 1.000000e-01 8.000000e-02 PASS |
| |
| 1 384 23 10 1.670 1.000000e+00 2.618960e-05 1.000000e-01 9.125000e-02 PASS |
| |
| 1 384 24 10 1.530 1.000000e+00 3.136840e-05 1.000000e-01 7.875000e-02 PASS |
| |
| 1 384 25 10 1.400 1.000000e+00 2.663350e-05 1.000000e-01 8.375000e-02 PASS |
| |
| 1 384 26 10 1.270 1.000000e+00 3.255210e-05 1.000000e-01 8.625000e-02 PASS |
| |
| 1 384 27 10 1.140 1.000000e+00 2.692950e-05 1.000000e-01 7.500000e-02 PASS |
| |
| 1 384 28 10 0.999 1.000000e+00 5.149150e-05 1.000000e-01 9.250000e-02 PASS |
| |
| 1 384 29 10 0.889 1.000000e+00 3.225620e-05 1.000000e-01 8.750000e-02 PASS |
| |
| 1 384 30 10 0.772 1.000000e+00 3.536340e-05 1.000000e-01 9.375000e-02 PASS |
| |
| 1 384 31 10 0.650 1.000000e+00 4.113400e-05 1.000000e-01 9.125000e-02 PASS |
| |
| 1 384 32 10 0.547 1.000000e+00 3.965440e-05 1.000000e-01 8.750000e-02 PASS |
| |
| 1 384 33 10 0.428 1.000000e+00 5.489460e-05 1.000000e-01 9.625000e-02 PASS |
| |
| 1 384 34 10 0.333 1.000000e+00 5.030780e-05 1.000000e-01 8.875000e-02 PASS |
| |
| 1 384 35 10 0.220 1.000000e+00 3.906250e-05 1.000000e-01 8.875000e-02 PASS |
| |
| 1 384 36 10 0.127 1.000000e+00 2.929690e-05 1.000000e-01 8.250000e-02 PASS |
| |
| 1 384 37 10 0.034 1.000000e+00 3.225620e-05 1.000000e-01 9.000000e-02 PASS |
| |
| 1 384 38 10 -0.066 1.000000e+00 2.737330e-05 1.000000e-01 8.375000e-02 PASS |
| |
| 1 384 39 10 -0.170 1.000000e+00 2.722540e-05 1.000000e-01 8.500000e-02 PASS |
| |
| 1 384 40 10 -0.253 1.000000e+00 3.521540e-05 1.000000e-01 7.500000e-02 PASS |
| |
| 1 384 41 10 -0.344 1.000000e+00 5.563450e-05 1.000000e-01 9.375000e-02 PASS |
| |
| 1 384 42 10 -0.424 1.000000e+00 2.559780e-05 1.000000e-01 8.750000e-02 PASS |
| |
| 1 384 43 10 -0.515 1.000000e+00 4.690460e-05 1.000000e-01 9.500000e-02 PASS |
| |
| 1 384 44 10 -0.605 1.000000e+00 5.755800e-05 1.000000e-01 9.125000e-02 PASS |
| |
| 1 384 45 10 -0.693 1.000000e+00 3.980230e-05 1.000000e-01 8.000000e-02 PASS |
| |
| 1 384 46 10 -0.766 1.000000e+00 5.208330e-05 1.000000e-01 9.875000e-02 PASS |
| |
| 43 TESTS PASSED, 0 TESTS FAILED |
+-----------------------------------------------------------------------------------------------------------+

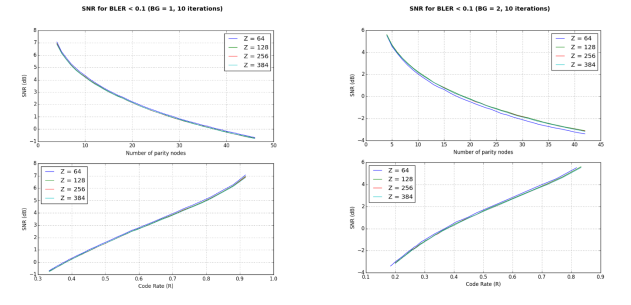

Plots of current SNR values used for BLER testing are shown below:
