Rate limiting

AIStore v3.28 introduces a unified rate-limiting capability that works at both the frontend (client-facing) and backend (cloud-facing) layers. It enables proactive control to prevent hitting limits and reactive handling when limits are encountered — all configurable at both the cluster and bucket levels, with zero performance overhead when disabled.

This text explains how it all fits together.

Table of Contents

1. Background
2. Elements
   • Proactive vs. Reactive
   • Frontend vs. Backend
3. Configuration
   • Configuration: Summary Table
4. Unified Rate-Limiting Logic
5. Handling Batch Jobs
6. Use Cases
   • Handling Backend-Imposed Limits
   • Limiting User Traffic
     • Limiting User Traffic: Example aisloader run
   • Combined Frontend/Backend Limiting for Cross-Cloud Transfer
7. Monitoring and Troubleshooting
   • GET Performance Table
   • PUT Performance Table
   • Quick Troubleshooting Summary
8. Recap

1. Background

The original motivation was to gracefully handle rate-limited cloud storage such as Amazon S3, Google Cloud Storage (GCS), and other remote backends.

One common misconception is that integrating with systems that impose their own rate constraints boils down to simply retrying failed requests with exponential backoff.

Not true! In reality, such integrations are always a balancing act: the goal is to minimize retries while running at the maximum allowed speed — which further requires configuration, runtime state, and a few more elements explained below.

2. Elements

2.1 Proactive vs. Reactive

Proactive Rate Limiting aims to keep requests within permitted throughput before hitting any system-imposed limits—cloud or otherwise. By governing the flow of requests in real time, we reduce the need for retries.

Reactive Rate Limiting comes into play when the external service or remote storage actually enforces a limit (returning 429 or 503).

When that happens, we respond with adaptive backoff and retry logic — but only if the corresponding bucket has its rate-limiting policy enabled. This gives us a self-adjusting mechanism that converges on the maximum permissible speed with minimal overhead.

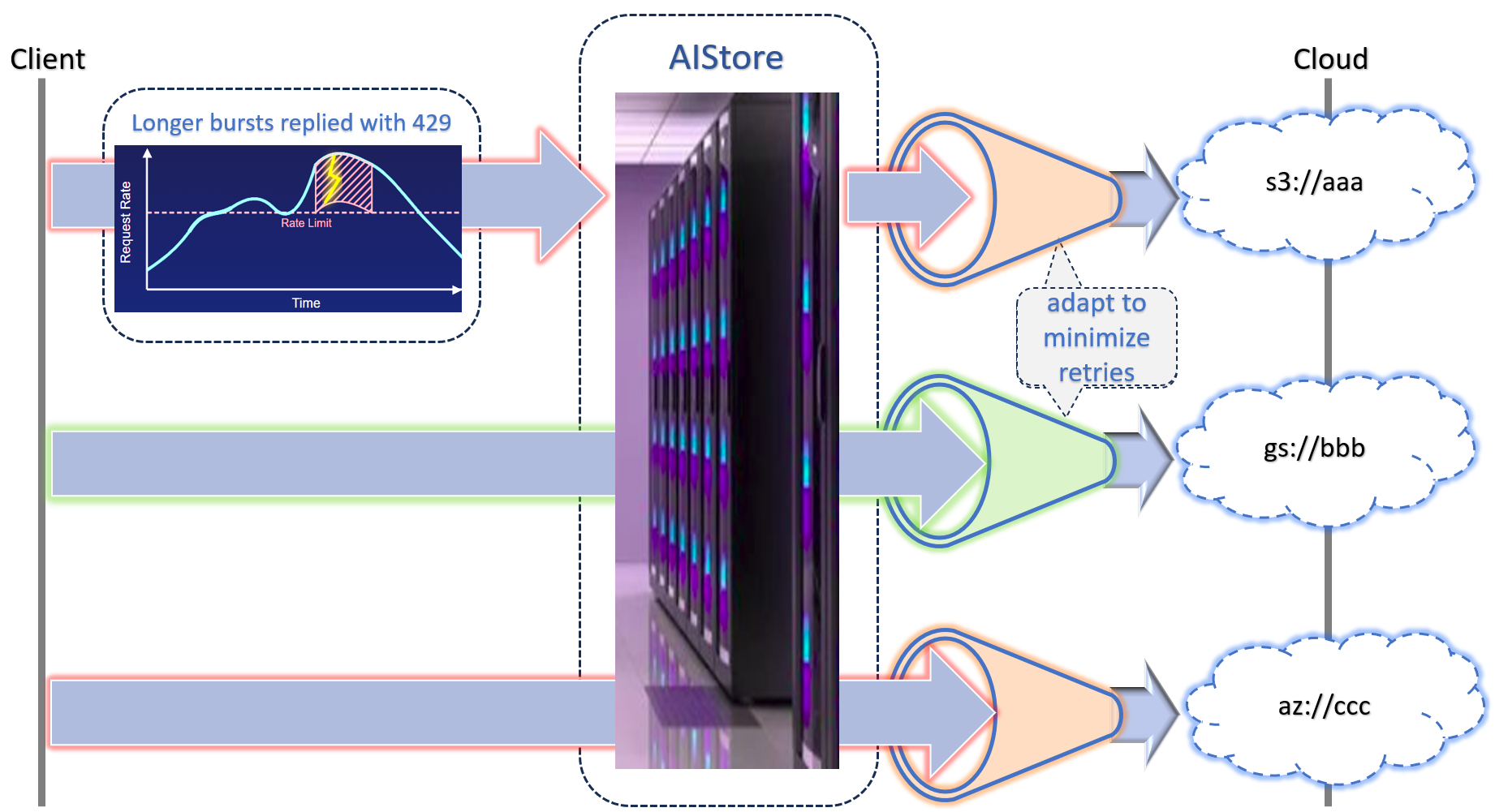

2.2 Frontend vs. Backend

“AIStore has a unique dual identity: it acts as reliable distributed storage (managing local and remote buckets) while also serving as a fast tiering layer for other systems.”

1. Bursty (Frontend)

   • Frontend rate limiting is provided by each AIS proxy (or gateway).
   • The system allows short-term spikes but enforces an overall maximum request rate.
   • When clients exceed the allowed rate, they receive HTTP 429 immediately.

2. Adaptive or Shaping (Backend)

   • Backend rate limiting is handled by each AIS target node.
   • There’s a stateful rate-limiter instance on a per (bucket, verb) basis, where the verbs are: GET, PUT, and DELETE.
   • This logic dynamically adjusts request rates based on current usage and responses from the remote service.
   • If a remote backend returns 429 or 503, AIS target may engage exponential backoff to stay under the cloud provider’s limits.

3. Configuration

Version 3.28 introduces per-bucket configuration, with inheritable defaults set at the cluster level. Buckets automatically inherit the global settings, but each bucket can override them at creation time or any point thereafter. For reference, see the updated configuration definitions in cmn/config.go (lines 676–733).

1
$ ais config cluster rate_limit --json

1
    "rate_limit": {
2
        "backend": {
3
            "num_retries": 3,
4
            "interval": "1m",
5
            "max_tokens": 1000,
6
            "enabled": false
7
        },
8
        "frontend": {
9
            "burst_size": 375,
10
            "interval": "1m",
11
            "max_tokens": 1000,
12
            "enabled": false
13
        }
14
    }

This includes:

• Rate-Limit Policies: Separate policies for frontend (bursty) and backend (adaptive or shaping) rate limiting.
• Performance Requirement: If rate limiting is not enabled for a particular bucket or cluster, there should be no performance penalty.
• Proportional Distribution:
  • On the front, each AIS proxy assumes it handles 1 / nap share of incoming requests, where nap is the current number of active proxies in the cluster.
  • On the back, each target node assumes it is one of nat targets accessing the same remote bucket in parallel, and computes its share accordingly.

For a given bucket, configuration may look as follows:

1
$ ais bucket props set s3://abc rate_limit
2
3
PROPERTY                                 VALUE
4
rate_limit.backend.enabled               true     <<<< (values that differ from cluster defaults will be highlighted)
5
rate_limit.backend.interval              10s      <<<<
6
rate_limit.backend.max_tokens            35000    <<<<
7
rate_limit.backend.num_retries           5
8
rate_limit.backend.per_op_max_tokens
9
10
rate_limit.frontend.burst_size           375
11
rate_limit.frontend.enabled              false
12
rate_limit.frontend.interval             1m
13
rate_limit.frontend.max_tokens           1000
14
rate_limit.frontend.per_op_max_tokens

3.1 Configuration: Summary Table

4. Unified Rate-Limiting Logic

Although frontend and backend differ in their specific mechanisms (bursty vs. shaping), the underlying logic is unified:

• Frontend: Each proxy enforces a configurable rate limit on a per-bucket and per-operation (verb) basis.

• Backend: Each target enforces the configured limit for outbound calls. This is wrapped by a dedicated ais/rlbackend layer that shapes traffic to remote AIS clusters or external clouds (e.g., S3, GCS).

Here’s a simplified snippet of logic with (4) inline comments:

1
func (bp *rlbackend) GetObj() (int, error) {
2
	// 1. find or create rate limiter instance; proactively apply to optimize out error handling
3
	arl := bp.acquire(bucket, http.MethodGet)
4
5
	// 2. fast path
6
	ecode, err := bp.Backend.GetObj()
7
	if !IsErrTooManyRequests(err) {
8
		return ecode, err
9
	}
10
11
	// 3. generic retry with a given backend and method-specific callback
12
	cb := func() (int, error) {
13
		return bp.Backend.GetObj()
14
	}
15
	total, ecode, err := bp.retry()
16
17
	// 4. increment retry count, add `total` waiting time to retry latency
18
	bp.stats()
19
20
	return ecode, err
21
}

• Lazy Pruning: Over time, not all buckets remain active, so the system utilizes common housekeeping mechanism to lazily prune stale rate-limiter instances.

5. Handling Batch Jobs

AIStore supports numerous batch jobs that read and transform data across buckets. For example, a job might read data from one bucket, apply a user-defined transformation, and then write the results to another bucket. Multiple rate-limiting scenarios can arise:

• Source Bucket:
  • May or may not be rate-limited.
  • Could be limited on the frontend, the backend, or both.
• Destination Bucket:
  • Could also have its own rate-limiting policies.
  • Might be a remote system with enforced limits (e.g., writing to an S3 bucket).

At first, the permutations may seem too numerous, but in reality it is easy to state a single rule:

• Frontend rate-limiting is enforced by a given running job and is conjunctive (source and/or destination wise). When both limits are defined one of them will most likely “absorb” the other.
• Backend is controlled by the corresponding (bucket, verb) rate limiter that keeps adjusting its runtime state based on the responses from remote storage.

6. Use Cases

6.1 Handling Backend-Imposed Limits

Scenario: You have an S3 bucket with a known rate limit of 3500 requests per second.

Configuration:

1
$ ais bucket props set s3://abc rate_limit.backend.enabled=true rate_limit.backend.interval=10s \
2
  rate_limit.backend.max_tokens=35000

6.2 Limiting User Traffic

“You want to limit the maximum number of client requests to a specific bucket to 20,000 per minute. Further, the cluster in question happens to have 10 AIS gateways (and a load balancer on the front).”

Configuration:

1
$ ais bucket props set ais://nnn rate_limit.frontend.enabled=true rate_limit.frontend.interval=1m \
2
  rate_limit.frontend.max_tokens=2000 rate_limit.frontend.burst_size=100

This configures a given bucket to:

• Limit client requests to 20,000 per minute (notice that 2000 * 10 = 20,000).
• Allow short bursts up to 100 additional requests.
• Return status 429 (“Too Many Requests”) if clients exceed these limits.

6.3 Limiting User Traffic: Example aisloader run

1
$ ais bucket props set ais://nnn rate_limit.frontend.enabled true rate_limit.frontend.max_tokens 2000 rate_limit.frontend.burst_size 500
2
"rate_limit.frontend.burst_size" set to: "500" (was: "375")
3
"rate_limit.frontend.enabled" set to: "true" (was: "false")
4
"rate_limit.frontend.max_tokens" set to: "2000" (was: "1000")
5
6
Bucket props successfully updated.

And then:

1
$ aisloader -bucket=ais://nnn -cleanup=false -numworkers=8 -quiet -pctput=100 -minsize=1k -maxsize=1k --duration 5m -randomproxy
2
Found 0 existing objects
3
4
Runtime configuration:
5
{
6
   "stats interval": "10s",
7
   "proxy": "http://ais-endpoint",
8
   "bucket": "nnn",
9
   "provider": "ais",
10
   "namespace": "",
11
   "duration": "5m0s",
12
   "backed by": "sg",
13
   "PUT upper bound": "0",
14
   "minimum object size (bytes)": 1024,
15
   "maximum object size (bytes)": 1024,
16
   "# workers": 8,
17
   "% PUT": 100,
18
   "seed": "1744663719184760811",
19
   "cleanup": false
20
}
21
22
23
Time      OP    Count                   Size (Total)            Latency (min, avg, max)                 Throughput (Avg)        Errors (Total)
24
16:48:50  PUT   11 (11 8 0)             11.0KiB (11.0KiB)       1.101ms    1.060s     7.135s            1.10KiB/s (1.10KiB/s)   -
25
PUT failed: ErrRateLimitFrontend: Too Many Requests
26
PUT failed: ErrRateLimitFrontend: Too Many Requests
27
...

6.4 Combined Frontend/Backend Limiting for Cross-Cloud Transfer

Scenario: You are migrating or copying data from GCS to S3 and need to respect both providers’ limits.

Configuration:

1
# Configure source S3 bucket
2
$ ais bucket props set s3://src rate_limit.backend.enabled=true rate_limit.backend.interval=10s \
3
  rate_limit.backend.max_tokens=50000
4
5
# Configure destination Google Cloud bucket
6
$ ais bucket props set gs://dst rate_limit.backend.enabled=true rate_limit.backend.interval=10s \
7
  rate_limit.backend.max_tokens=33000

When running a copy or transform job between these buckets, AIStore automatically respects both rate limits without (requiring) any additional configuration.

7. Monitoring and Troubleshooting

There are statistics and Prometheus metrics to monitor all performance-related aspects including (but not limited to) rate-limiting.

Below are two tables — one for GET, another for PUT — that illustrate how the performance monitoring might look for an AIStore cluster under the described rate-limited scenario.

GET Performance Table

1
$ ais performance latency --refresh 10 --regex get

• AWS-GET(n) / AWS-GET(t): Number and average latency of GET requests that actually hit the AWS backend.
• GET(n) / GET(t): Number and average latency of all GET requests (including those served from local cache or in-cluster data).
• GET(total/avg size): Approximate total data read and corresponding average object size.
• RATELIM-RETRY-GET(n) / RATELIM-RETRY-GET(t): Number and average latency of GET requests retried due to hitting the rate limit.

PUT Performance Table

1
$ ais performance latency --refresh 10 --regex put

• GCP-PUT(n) / GCP-PUT(t): Number and average latency of PUT requests that actually went to Google Cloud Storage.
• PUT(n) / PUT(t): Number and average latency of all PUT requests processed.
• PUT(total/avg size): Approximate total data written and the corresponding average object size.
• RATELIM-RETRY-PUT(n) / RATELIM-RETRY-PUT(t): Number and average latency of PUT requests retried due to rate limiting on the destination bucket.

These tables can vary widely, primarily depending on the percentage of source data that is in-cluster, but also on:

• Rate-limit settings for both the source (AWS) and the destination (GCP).
• Total number of disks in the cluster.
• Object sizes, current workload from other running jobs, available network bandwidth, etc.

In practice, you’d adjust the rate-limit interval and max_tokens (and potentially other AIStore config parameters) to match your workload and performance requirements.

Quick Troubleshooting Summary

8. Recap

The objective for v3.28 was to maintain linear scalability and high performance while safeguarding against external throttling or internal overload.

The solution features:

• Bursty (frontend) and adaptive (backend) rate limiters configurable on a per-bucket basis.
• Proactive controls, to keep runtime errors and retries to a minimum.
• Reactive logic, to gracefully handle 429s and 503s from remote storages.
